Wolfbox G840H Manual de usuario
Model:G840H
Notice : To avoid product loss caused byimproper operation, please read the
safety information of all operation instructions in this manual before using this
product.
CONTENTS
1. Port description
2. SD card selection and installation
3. Screen icon description
4. Screen shortcut key adjustment
5. Function set
6.Parameters details
7. Installation instructions
8. Abnormal handling
01
02
03
03
05
08
09
14
9. Warranty&Support 16
01
1.Port description
NO. Name Overview
1
2
3
4
5
6
7
8
lens
Rear lens connector
GPS connector
TF card slot
Power connector
Fasteners
Display screen
Power button
Front lens, record the front image of the car
Port used to connect the rear lens
Provide extensible storage(class10 Max 64GB)
Port for charging
The machine can be fixed with silicone straps
11.66 inch touch screen display
Used to connect GPS port
(GPS function requires optional GPS antenna)
02
2. SD card selection and installation
SD card insertion
The data of SD card should be read and written repeatedly during the use of
dashcam,the type of SD card is class 10.In order to work more stably and extend
the service life of dashcam,we suggest formatting SD card per month on PC and
change a new SD card per year.
When SD card is inserted, make sure the dashcam is powered off.
The front of host The back of host
The front of host The back of host
SD card removal
When taking out the SD card, please ensure that the dashcam is powered off.
03

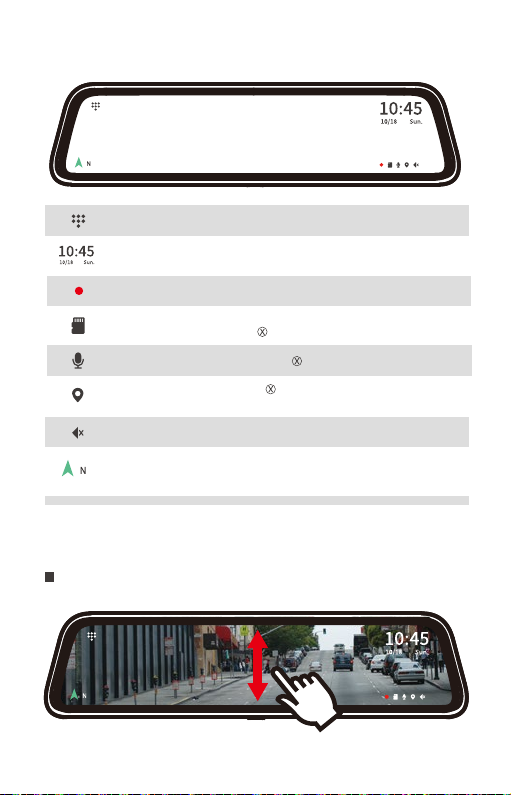

3.Screen icon description
4.The function of the screen shortcuts
Click the icon to enter the DVR interface
Display time/date
Sound icon: Display when recording the sound, when not recording
GPS icon: Display when there is GPS and when there is no GPS
While recording ,swiping the screen up and down adjusts the
Angle of view
Video icon: Recording, the color is red; Emergency recording ,the color of icon is yellow;
out of recording ,The color is white.
TF card icon: When the host reads the card, it will be displayed;
when the card is not read, it will show
Mute icon: The mute status of the host is displayed. No mute icon when the host is not mute
GPS position icon: The GPS position status indicates the current driving position of the car
GPS unpositioned status icon automatic hiding
(GPS function requires optional GPS antenna)
(GPS function requires optional GPS antenna)
04
While recording ,sliding the screen left and right to switch front
and back camera
While recording ,slide the area inside the red frame up or down to
adjust the screen brightness
While recording ,Double-click the screen to capture the current video
05
5. Function set
5.1 Function interface
press the pause button on the screen to pause recording,then press the
setting button to enter the menu.
Storage space: click to view the storage condition and format SD card
Sound recording :on/off optional
>
1440P 1080P 720P
1min 3min 5min
06
5.2 Video playback interface
Click the enter icon, pause the video and click the history file icon to enter
the playback interface.
Parking monitoring mode: turn on the parking monitoring mode after entering, and the
monitoring sensitivity and time-lapse video can be adjusted
Time and date: after entering, you can set the GPS automatic setting time, 24-hour system,
time zone, or you can set the date and time manually
GPS information: click to view GPS information
Factory Settings: click to set factory restore Settings
About the machine: enter to view the machine information
(GPS function requires optional GPS antenna)
07
NO. Overview
1
2
3
4
5
6
7
Video icon, click the icon to display the video file thumbnail
Image icon, click the icon to display the image file thumbnail
Edit the icon, click the icon to edit the file
File date, click to select the date you want to view the file
Front camera file
Rear camera files
the locked video file
