Classic stainless

steel finish

Backdraft damper

Stainless steel

baffle filters

Infinite speed

blower control

Welded seams

and hemmed edges

Halogen lighting

Model W302718

Model W302718R

Rail Option

Model W302718R shown with standard classic stainless steel

decorative rail, platinum or brass rail available as a sales accessory

Hand finished

craftsmanship

Recessed easy

access controls

Decorative rail

(optional)

Planning Information

30" (762) Pro Wall Hood

Model W302718(R)

Dimensions in parentheses are in

millimeters unless otherwise specified.

3/06

Wolf Pro wall hoods provide the ultimate in

ventilation. With standard elements like heat sentry

and dual setting halogen lighting, Wolf elevates the

need for ventilation to an enjoyable perk.

With the Pro 27" (686) deep wall hood you have the

option of a decorative rail. While a classic stainless

steel rail is standard on the (R) model, platinum or

brass rails are also available to match the bezels of our

Dual Fuel Ranges.

The deepest of the Wolf Pro wall hoods, this 27" (686)

deep model provides an additional exclusive feature—

heat lamps. Hosting your dream dinner party and the

warming drawer is already filled? Not a problem.

Turn on your heat lamps and relax.

Pro wall ventilation hoods are recommended for use

with all Wolf cooking appliances.

Wolf Pro 27" (686) deep wall hoods

are available in the classic stainless steel

finish. Rail option hoods (R) come with a

classic stainless steel decorative rail and

stand-offs. Optional platinum or brass

rails match dual fuel range bezels. Pro

wall hoods are sold as a shell only,

internal and remote blower options are

available.

FEATURES

27" (686) deep wall ventilation hood with

classic stainless steel finish

Rail option hoods (R) come with a classic

stainless steel decorative rail and stand-offs –

optional platinum or brass rail to match dual

fuel range bezels is available as a sales

accessory

Internal or remote blower options

Heavy-duty 16-gauge brushed stainless steel

construction

Stainless steel enclosed liner

Continually welded seams, hemmed edges

and sides and hand finished craftsmanship

Recessed easy access controls

Infinite speed blower control

Heat sentry feature automatically turns unit

on when heat is sensed and automatically

adjusts blower speed

Halogen lighting with two settings

Heat lamps – bulbs not included

Removable, easy to clean restaurant-grade

stainless steel baffle filters

Transition with backdraft damper included

UL listed to US and Canadian safety

standards

UL approved for covered outdoor applica-

tions

Two and five year residential warranty –

exclusions apply; warranty information can

be found on our website, wolfappliance.com

30" (762)

OVERALL WIDTH

27" (686)

OVERALL DEPTH

12"

(305)

30" (762)

OVERALL WIDTH

27" (686)

OVERALL DEPTH

12"

(305)

18"(457)

OVERALL

HEIGHT

(51)

4"(102)

3/4" (19)

DIAMETER

OF RAIL

4"(102)

18"(457)

OVERALL

HEIGHT

OVERALL DIMENSIONS

Planning Information

30" (762) Pro Wall Hood

Model W302718(R)

Dimensions in parentheses are in

millimeters unless otherwise specified.

Dimensions may vary by ±

" (3).

Model W302718

Model W302718R with Rail

Planning Information

30" (762) Pro Wall Hood

Model W302718(R)

Dimensions in parentheses are in

millimeters unless otherwise specified.

ACCESSORIES

Platinum or brass decorative rail

and stand-offs

38" (965) high stainless steel

backsplash with warming rack

38" (965) high stainless steel

backsplash

6" (152) and 12" (305) duct covers

Accessories are available through your

Wolf dealer. To obtain local dealer

information, visit the Locator section of

our website, wolfappliance.com.

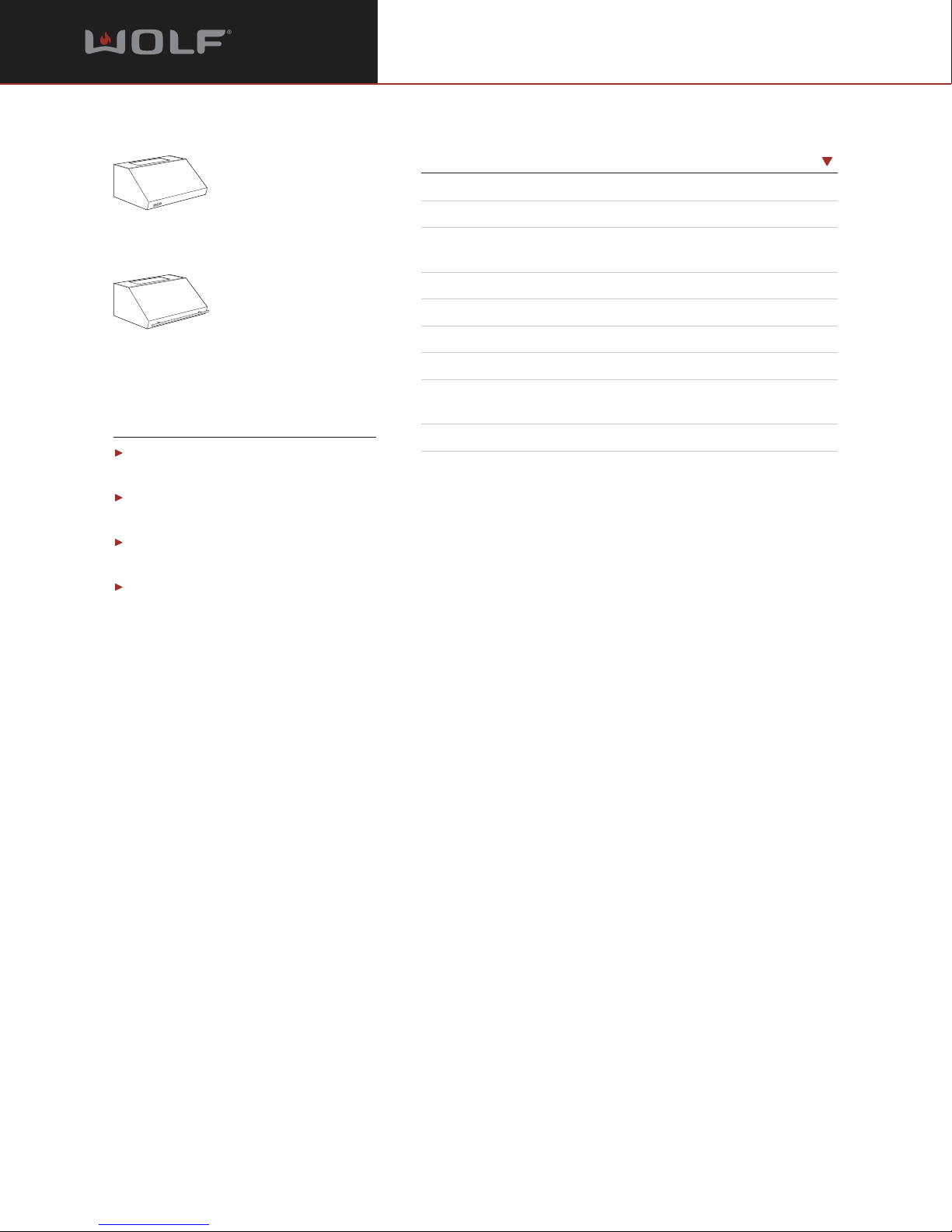

SPECIFICATIONS

Overall Width of Hood 30" (762)

Overall Height of Hood 18" (457)

Overall Depth of Hood – W302718 27" (686)

W302718R (including rail) 29" (737)

Internal Blower Options 600 CFM, 900 CFM

Remote Blower Options 600, 900, 1200 or 1500 CFM

Duct Size 10" (254) Round

Discharge Vertical

Electrical Supply Requirements 110 / 120 V AC, 60 Hz

15 amp dedicated circuit

Shipping Weight (shell only) 69 lbs (31 kg)

Specifications are subject to change without notice.

Model W302718

Model W302718R

Rail Option

Planning Information

30" (762) Pro Wall Hood

Model W302718(R)

Dimensions in parentheses are in

millimeters unless otherwise specified.

Dimensions may vary by ±

" (3).

INSTALLATION SPECIFICATIONS

30" (762)

WIDTH OF HOOD

(152)

(127)

NOTE: 27" (686) deep wall hoods are vertical discharge only.

30" TO 36"

(762–914)

TO COUNTERTOP

30" TO 36"

(762–914)

TO COUNTERTOP

18" (457)

HEIGHT

OF HOOD

27" (686)

DEPTH OF HOOD

DIMENSIONS

Overall Width of Hood 30" (762)

Overall Height of Hood 18" (457)

Overall Depth of Hood (excluding rail) 27" (686)

Countertop to Bottom of Hood 30" (762) to 36" (914)

Location of Electrical Within shaded area

See Installation Instructions shipped with unit for detailed specifications.

Planning Information

36" (914) Pro Wall Hood

Model W362718(R)

Dimensions in parentheses are in

millimeters unless otherwise specified.

3/06

Wolf Pro wall hoods provide the ultimate in

ventilation. With standard elements like heat sentry

and dual setting halogen lighting, Wolf elevates the

need for ventilation to an enjoyable perk.

With the Pro 27" (686) deep wall hood you have the

option of a decorative rail. While a classic stainless

steel rail is standard on the (R) model, platinum or

brass rails are also available to match the bezels of our

Dual Fuel Ranges.

The deepest of the Wolf Pro wall hoods, this 27" (686)

deep model provides an additional exclusive feature—

heat lamps. Hosting your dream dinner party and the

warming drawer is already filled? Not a problem.

Turn on your heat lamps and relax.

Pro wall ventilation hoods are recommended for use

with all Wolf cooking appliances.

Wolf Pro 27" (686) deep wall hoods

are available in the classic stainless steel

finish. Rail option hoods (R) come with a

classic stainless steel decorative rail and

stand-offs. Optional platinum or brass

rails match dual fuel range bezels. Pro

wall hoods are sold as a shell only,

internal and remote blower options are

available.

Classic stainless

steel finish

Backdraft damper

Stainless steel

baffle filters

Infinite speed

blower control

Welded seams

and hemmed edges

Halogen lighting

Model W362718

Model W362718R

Rail Option

Model W362718R shown with standard classic stainless steel

decorative rail, platinum or brass rail available as a sales accessory

Hand finished

craftsmanship

Recessed easy

access controls

Decorative rail

(optional)

FEATURES

27" (686) deep wall ventilation hood with

classic stainless steel finish

Rail option hoods (R) come with a classic

stainless steel decorative rail and stand-offs –

optional platinum or brass rail to match dual

fuel range bezels is available as a sales

accessory

Internal or remote blower options

Heavy-duty 16-gauge brushed stainless steel

construction

Stainless steel enclosed liner

Continually welded seams, hemmed edges

and sides and hand finished craftsmanship

Recessed easy access controls

Infinite speed blower control

Heat sentry feature automatically turns unit

on when heat is sensed and automatically

adjusts blower speed

Halogen lighting with two settings

Heat lamps – bulbs not included

Removable, easy to clean restaurant-grade

stainless steel baffle filters

Transition with backdraft damper included

UL listed to US and Canadian safety

standards

UL approved for covered outdoor applica-

tions

Two and five year residential warranty –

exclusions apply; warranty information can

be found on our website, wolfappliance.com

27" (686)

OVERALL DEPTH

12"

(305)

27" (686)

OVERALL DEPTH

12"

(305)

18"(457)

OVERALL

HEIGHT

(51)

4"(102)

3/4" (19)

DIAMETER

OF RAIL

4"(102)

18"(457)

OVERALL

HEIGHT

36" (914)

OVERALL WIDTH

36" (914)

OVERALL WIDTH

OVERALL DIMENSIONS

Planning Information

36" (914) Pro Wall Hood

Model W362718(R)

Dimensions in parentheses are in

millimeters unless otherwise specified.

Dimensions may vary by ±

" (3).

Model W362718

Model W362718R with Rail

Planning Information

36" (914) Pro Wall Hood

Model W362718(R)

Dimensions in parentheses are in

millimeters unless otherwise specified.

ACCESSORIES

Platinum or brass decorative rail

and stand-offs

38" (965) high stainless steel

backsplash with warming rack

38" (965) high stainless steel

backsplash

6" (152) and 12" (305) duct covers

Accessories are available through your

Wolf dealer. To obtain local dealer

information, visit the Locator section of

our website, wolfappliance.com.

SPECIFICATIONS

Overall Width of Hood 36" (914)

Overall Height of Hood 18" (457)

Overall Depth of Hood – W362718 27" (686)

W362718R (including rail) 29" (737)

Internal Blower Options 600 CFM, 900 CFM

Remote Blower Options 900, 1200 or 1500 CFM

Duct Size 10" (254) Round

Discharge Vertical

Electrical Supply Requirements 110 / 120 V AC, 60 Hz

15 amp dedicated circuit

Shipping Weight (shell only) 80 lbs (36 kg)

Specifications are subject to change without notice.

Model W362718

Model W362718R

Rail Option

Planning Information

36" (914) Pro Wall Hood

Model W362718(R)

Dimensions in parentheses are in

millimeters unless otherwise specified.

Dimensions may vary by ±

" (3).

INSTALLATION SPECIFICATIONS

36" (914)

WIDTH OF HOOD

(152)

(127)

NOTE: 27" (686) deep wall hoods are vertical discharge only.

30" TO 36"

(762–914)

TO COUNTERTOP

30" TO 36"

(762–914)

TO COUNTERTOP

18" (457)

HEIGHT

OF HOOD

27" (686)

DEPTH OF HOOD

DIMENSIONS

Overall Width of Hood 36" (914)

Overall Height of Hood 18" (457)

Overall Depth of Hood (excluding rail) 27" (686)

Countertop to Bottom of Hood 30" (762) to 36" (914)

Location of Electrical Within shaded area

See Installation Instructions shipped with unit for detailed specifications.

Planning Information

42" (1067) Pro Wall Hood

Model W422718(R)

Dimensions in parentheses are in

millimeters unless otherwise specified.

3/06

Wolf Pro wall hoods provide the ultimate in

ventilation. With standard elements like heat sentry

and dual setting halogen lighting, Wolf elevates the

need for ventilation to an enjoyable perk.

With the Pro 27" (686) deep wall hood you have the

option of a decorative rail. While a classic stainless

steel rail is standard on the (R) model, platinum or

brass rails are also available to match the bezels of our

Dual Fuel Ranges.

The deepest of the Wolf Pro wall hoods, this 27" (686)

deep model provides an additional exclusive feature—

heat lamps. Hosting your dream dinner party and the

warming drawer is already filled? Not a problem.

Turn on your heat lamps and relax.

Pro wall ventilation hoods are recommended for use

with all Wolf cooking appliances.

Wolf Pro 27" (686) deep wall hoods

are available in the classic stainless steel

finish. Rail option hoods (R) come with a

classic stainless steel decorative rail and

stand-offs. Optional platinum or brass

rails match dual fuel range bezels. Pro

wall hoods are sold as a shell only,

internal and remote blower options are

available.

Classic stainless

steel finish

Backdraft damper

Stainless steel

baffle filters

Infinite speed

blower control

Welded seams

and hemmed edges

Halogen lighting

Model W422718

Model W422718R

Rail Option

Model W422718R shown with standard classic stainless steel

decorative rail, platinum or brass rail available as a sales accessory

Hand finished

craftsmanship

Recessed easy

access controls

Decorative rail

(optional)

FEATURES

27" (686) deep wall ventilation hood with

classic stainless steel finish

Rail option hoods (R) come with a classic

stainless steel decorative rail and stand-offs –

optional platinum or brass rail to match dual

fuel range bezels is available as a sales

accessory

Internal or remote blower options

Heavy-duty 16-gauge brushed stainless steel

construction

Stainless steel enclosed liner

Continually welded seams, hemmed edges

and sides and hand finished craftsmanship

Recessed easy access controls

Infinite speed blower control

Heat sentry feature automatically turns unit

on when heat is sensed and automatically

adjusts blower speed

Halogen lighting with two settings

Heat lamps – bulbs not included

Removable, easy to clean restaurant-grade

stainless steel baffle filters

Transition with backdraft damper included

UL listed to US and Canadian safety

standards

UL approved for covered outdoor applica-

tions

Two and five year residential warranty –

exclusions apply; warranty information can

be found on our website, wolfappliance.com

42" (1067)

OVERALL WIDTH

27" (686)

OVERALL DEPTH

12"

(305)

42" (1067)

OVERALL WIDTH

27" (686)

OVERALL DEPTH

12"

(305)

18"(457)

OVERALL

HEIGHT

(51)

4"(102)

3/4" (19)

DIAMETER

OF RAIL

18"(457)

OVERALL

HEIGHT

4"(102)

OVERALL DIMENSIONS

Planning Information

42" (1067) Pro Wall Hood

Model W422718(R)

Dimensions in parentheses are in

millimeters unless otherwise specified.

Dimensions may vary by ±

" (3).

Model W422718

Model W422718R with Rail

Otros manuales para W302718

Este manual sirve para los siguientes modelos

Otros manuales de Campana de ventilación de Wolf

Wolf

Wolf CTEWH30I Manual de usuario

Wolf

Wolf W302210I Instrucciones de uso

Wolf

Wolf PW482418 Instrucciones de uso

Wolf

Wolf CTEWH30I Manual del propietario

Wolf

Wolf PW602418(R) Instrucciones de uso

Wolf

Wolf PW542418 Manual de usuario

Wolf

Wolf Pro Wall Ventilation hoods Manual del propietario

Wolf

Wolf DD30 Manual de usuario

Wolf

Wolf PL582212 Manual de usuario

Wolf

Wolf PW302418 Manual de usuario

Wolf

Wolf W662718 Instrucciones de uso

Wolf

Wolf PW422718 Instrucciones de uso

Wolf

Wolf W422210 Instrucciones de uso

Wolf

Wolf Pro Wall Manual de usuario

Wolf

Wolf DD45 Manual de usuario

Wolf

Wolf W362718 Instrucciones de uso

Wolf

Wolf CTWH36 Manual de usuario

Wolf

Wolf ICBPW482418 Manual del propietario

Wolf

Wolf CTWH30 Manual de usuario

Wolf

Wolf PW662718 Instrucciones de uso

Wolf

Wolf Pro Wall Ventilation hoods Manual de usuario

Wolf

Wolf PW302718 Manual de usuario

Wolf

Wolf L402212 Instrucciones de uso

Wolf

Wolf Pro Hood Liner Manual de usuario

Manuales populares de Campana de ventilación de otras marcas

emmeti

emmeti RECUPA MED A-140 Guía

Nibe

Nibe F135 Manual de usuario

Kuppersberg

Kuppersberg INTRO 60 Instrucciones de instalación y mantenimiento

Zephyr

Zephyr Spruce AK9834BS Guía de instalación

Hisense

Hisense MH6INBG Manual de usuario

Miele

Miele DA 1255 Manual de usuario

Broan

Broan 46000 Manual de usuario

GE Profile PV977 Instrucciones originales

FALMEC

FALMEC FFRIA24W5FS Manual de usuario

Whirlpool

Whirlpool RH2600XL-1 SERIES Manual de usuario

Küppersbusch

Küppersbusch DX ISLA Manual de usuario

ETNA

ETNA AV360RVS Manual de usuario

JUNO

JUNO JDF603E6 Manual de usuario

Miele

Miele DA 6708 D Manual de usuario

Tricity Bendix

Tricity Bendix LE 150 Manual

AEG

AEG X68163BV1 Manual de usuario

AEG

AEG 125 D Manual de usuario

Smeg

Smeg KSEV97X Manual de usuario
