PRO SERIES WALL HOODS INSTALLATION INSTRUCTIONS

IMPORTANT INFORMATION

IMPORTANT NOTE: This appliance

must be installed in accordance with

National Electrical Codes, as well as

all state, municipal and local codes.

The correct voltage, frequency and

amperage must be supplied to the

appliance from a dedicated, ground-

ed circuit which is protected by a

properly sized circuit breaker or time

delay fuse. The proper voltage,

frequency, and amperage ratings are

listed on the product rating plate.

Record the model and serial numbers

before installing the wall hood. Both

numbers are listed on the rating

plate, located on the left wall of hood

shell.

Model #

Serial #

If you have questions concerning the

installation of this product, call Wolf

Appliance Company, LLC at (800)

332-9513.

If you received a damaged wall hood

you should immediately contact your

dealer or builder.

IMPORTANT NOTE: This

installation must be completed by a

qualified installer or service agency.

Before you begin installation, read

these instructions completely and

carefully.

•INSTALLER: please retain these

instructions for local inspector’s

reference, then leave them with the

homeowner.

•Please read the entire installation

instructions prior to installation.

•HOMEOWNER: please read and

keep these instructions for future

reference.

•Please read the entire Wolf

Pro Series Ventilation Use & Care

Information book prior to use.

As you follow these installation

instructions, take particular note of

the CAUTION and WARNING

symbols when they appear. This

information is important for the safe

and efficient installation of the Wolf

Pro Series wall hood.

In addition, the printed instructions

may signal an IMPORTANT NOTE,

which highlights information that is

especially important for a problem-

free installation.

CAUTION

signals a situation where minor

injury or product damage may

occur if you do not follow

instructions.

WARNING

states a hazard that may cause

serious injury or death if pre-

cautions are not followed.

PRO SERIES WALL VENTILATION HOODS

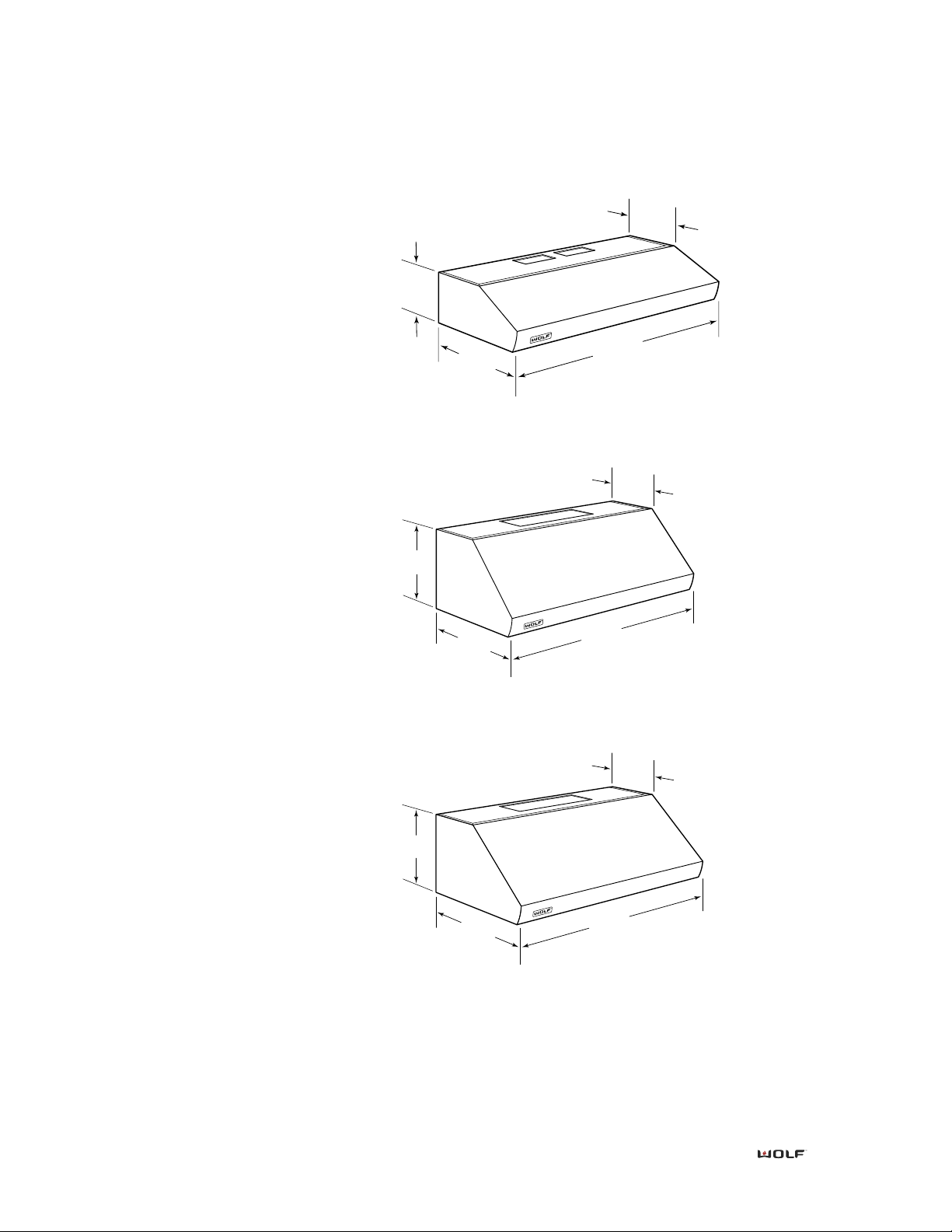

24-inch deep Pro Series wall hood overall dimensions

18"

(457 mm)

24"

(610 mm)

48"

(1219 mm)

12"

(305 mm)

27-inch deep Pro Series wall hood overall dimensions

27"

(686 mm)

18"

(457 mm)

48"

(1219 mm)

12"

(305 mm)

22-inch deep Pro Series wall hood overall dimensions

10"

(254 mm)

22"

(559 mm)

48"

(1219 mm)

12"

(305 mm)

PRO SERIES WALL HOODS

22-inch Deep Low Profile Wall Hoods:

Available in 30", 36", 42" and 48"

widths. (R) models include mounting

holes for optional decorative rail. (I)

models include 600 cfm internal blower.

These hoods are not recommended for

use with dual fuel range, range or

rangetop with charbroiler or griddle.

24-inch Deep Wall Hoods:

Available in 30", 36", 42", 48", 54",

60" and 66" widths. (R) models

include mounting holes for optional

decorative rail.

27-inch Deep Wall Hoods:

Available in 30", 36", 42", 48", 54",

60" and 66" widths. (R) models

include mounting holes for optional

decorative rail.

Pro Series Wall Hood Features:

•Recessed controls

•Halogen lighting with night-light

•Hand finished with continually

welded seams

•Stainless steel enclosed liner

•Stainless steel baffle filters

•Transition included

•Internal or remote blower option

•Heat Sentry feature

•16-gauge stainless steel shell

•Top or rear discharge with certain

models

•Heat lamp (27" deep wall hoods only)

•Damper included

•Optional decorative rail assembly in

stainless, platinum, brass or copper

finish. Hood must be specifically

ordered and configured for rail

assembly.

INSTALLATION

CONSIDERATIONS

22-inch and 24-inch Deep

Pro Series Wall Hoods

1) A straight, short duct run will

allow the hood to perform more effi-

ciently. Try to limit the number of

elbows and transitions to as few as

possible. Long duct runs, elbows and

transitions will reduce the perform-

ance of the hood.

IMPORTANT NOTE: All hoods must

exhaust to the outdoors.

IMPORTANT NOTE: There is a possi-

bility of noise issues, if there is a short

duct run coupled with a remote

blower.

2) Always use metal ducting. Do not

use flex ducting.

3) Wolf recommends installing a

back-draft damper in all installations

(included with hood). In cold weather

installations a back-draft damper is

necessary to minimize the backflow

of cold air into the room.

4) Wolf recommends the hood be

installed 30" to 36" above the cook-

ing surface.

5) Local building codes may require

the use of make-up air. Consult your

local HVAC professional for specific

requirements in your area.

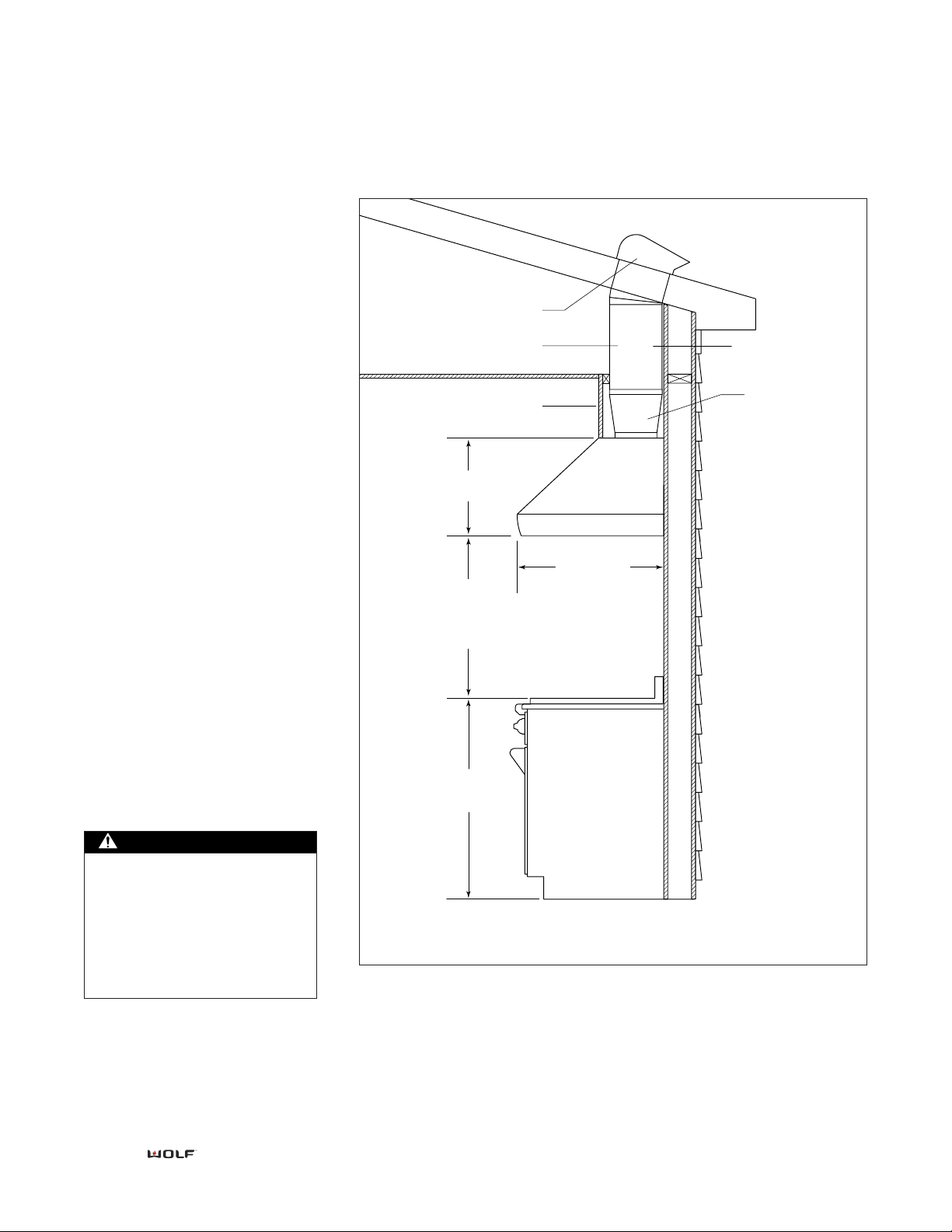

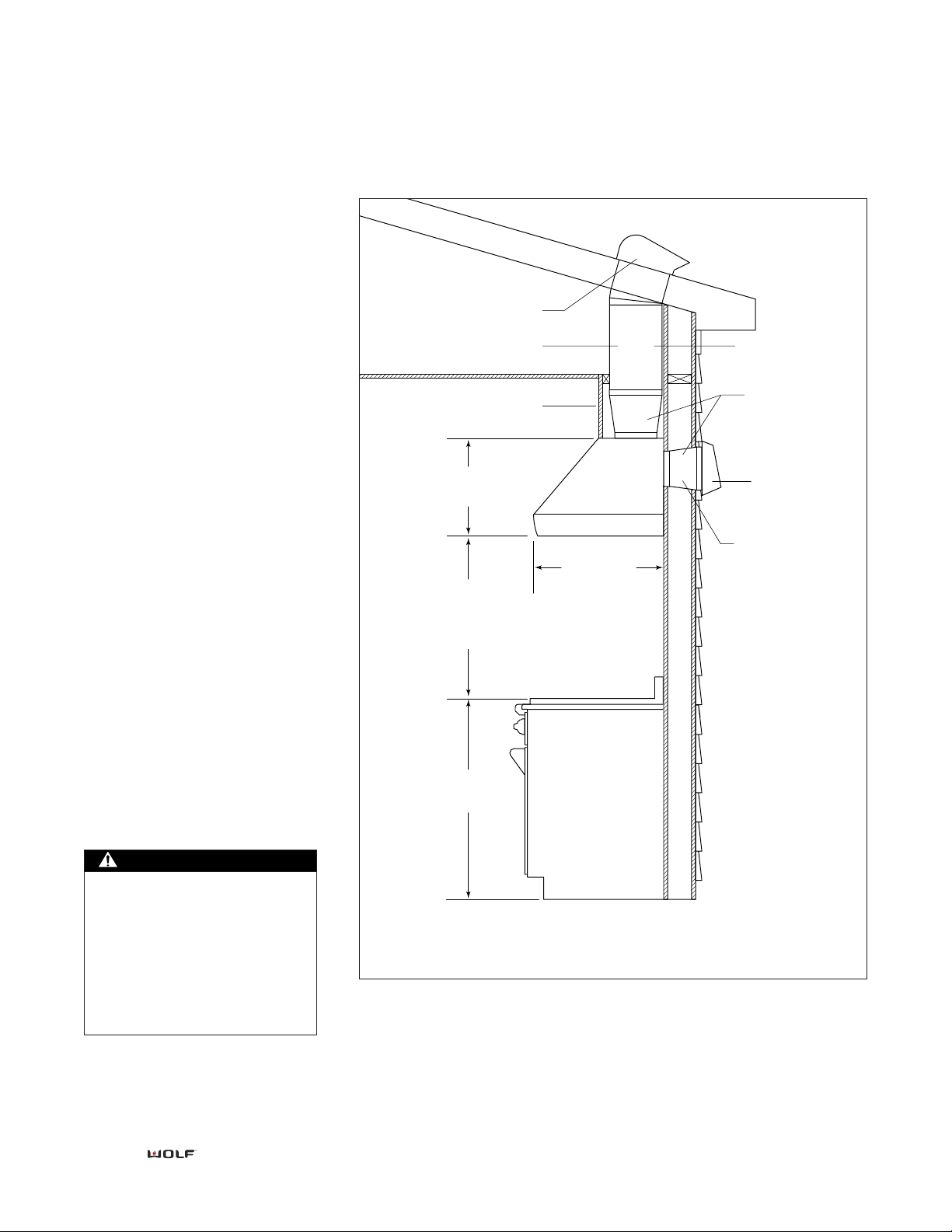

22-INCH AND 24-INCH DEEP WALL HOODS

30" TO 36"

(762 mm - 914 mm)

COOKING SURFACE

TO BOTTOM OF

VENTILATION HOOD

10" (254 mm)

18" (457 mm)

HEIGHT OF HOOD

WALL HOOD

DUCTWORK INSTALLATION

THROUGH ROOF

37" (940 mm)

TO COOKING

SURFACE

22" (559 mm)

24" (610 mm)

DEPTH OF HOOD

ROOF CAP

8" OR 10" ROUND DUCT

SOFIT OR CABINET

OR DUCT COVER

WALL CAP

*REAR DISCHARGE IS ONLY APPLICABLE ON 22" WALL HOODS (excluding W302210I and W362210I)

AND 24" WALL HOODS USED WITH A WBLOWER-120INT (804702) OR ANY WOLF EXTERNAL BLOWER.

WBLOWER-90INT (805086) IS NOT FOR USE IN REAR DISCHARGE APPLICATIONS.

REAR DISCHARGE*

DUCTWORK INSTALLATION

THROUGH WALL

TRANSITION

TOP DISCHARGE

Installation dimensions for 22-inch and 24-inch deep Pro Series wall hoods.

CAUTION

To reduce the risk of fire and

electric shock, install this range

hood only with the blowers

manufactured by Wolf

Appliance Co., Model numbers

805086, 804702, 801640,

801641, 801642, 804701,

804702 and 805347.

30" TO 36"

(762 - 914)

TO COOKING

SURFACE

30" TO 36"

(762 - 914)

TO COOKING

SURFACE

10" (254)

18" (457)

HEIGHT

OF HOOD

22" (559)

24" (610)

DEPTH OF HOOD

WIDTH OF HOOD

LOCATION OF

ELECTRICAL FOR

REAR DISCHARGE

COOKING SURFACE

NOTE: Dimensions in parentheses are in millimeters.

(152)

(127)

E6"

(152)

(127)

LOCATION OF

ELECTRICAL FOR

TOP DISCHARGE

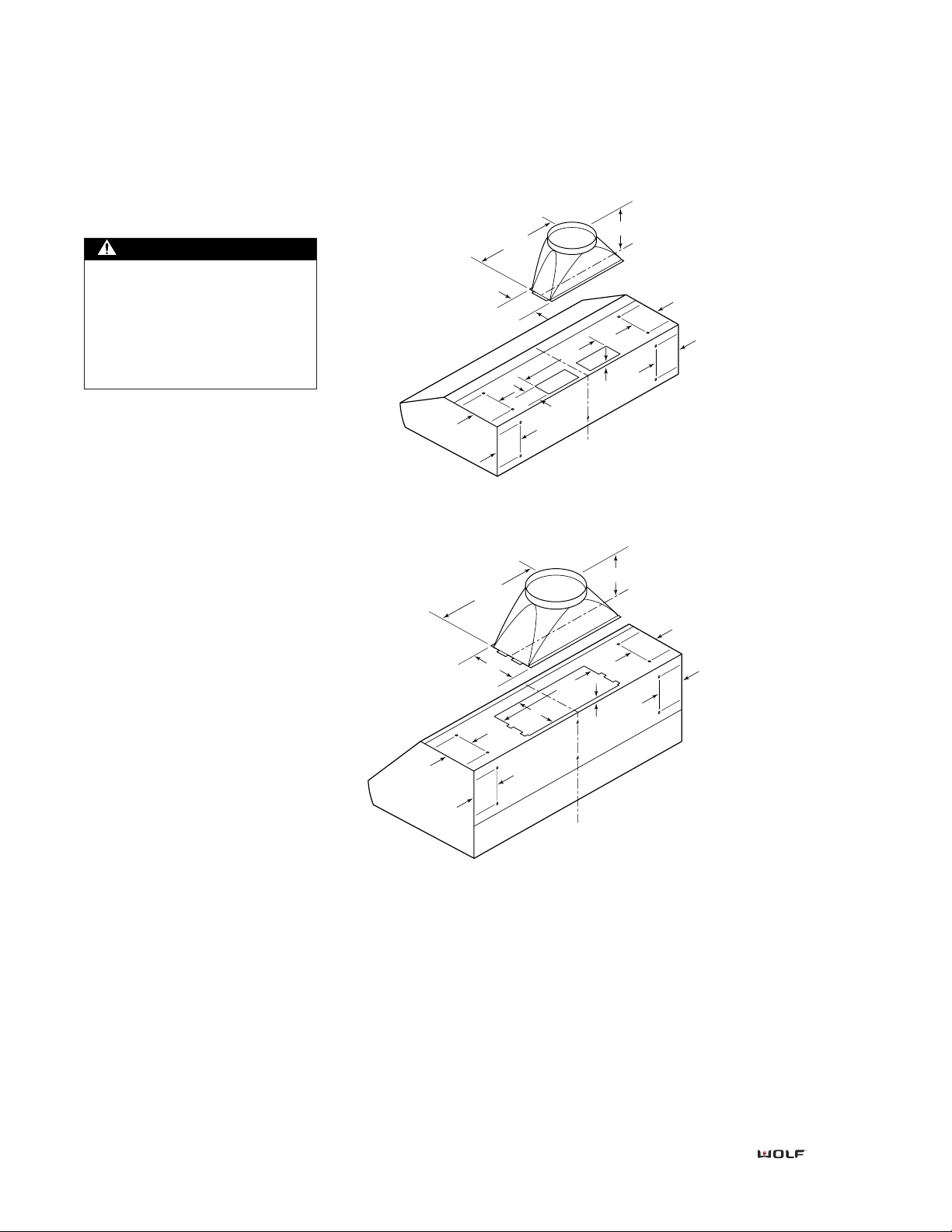

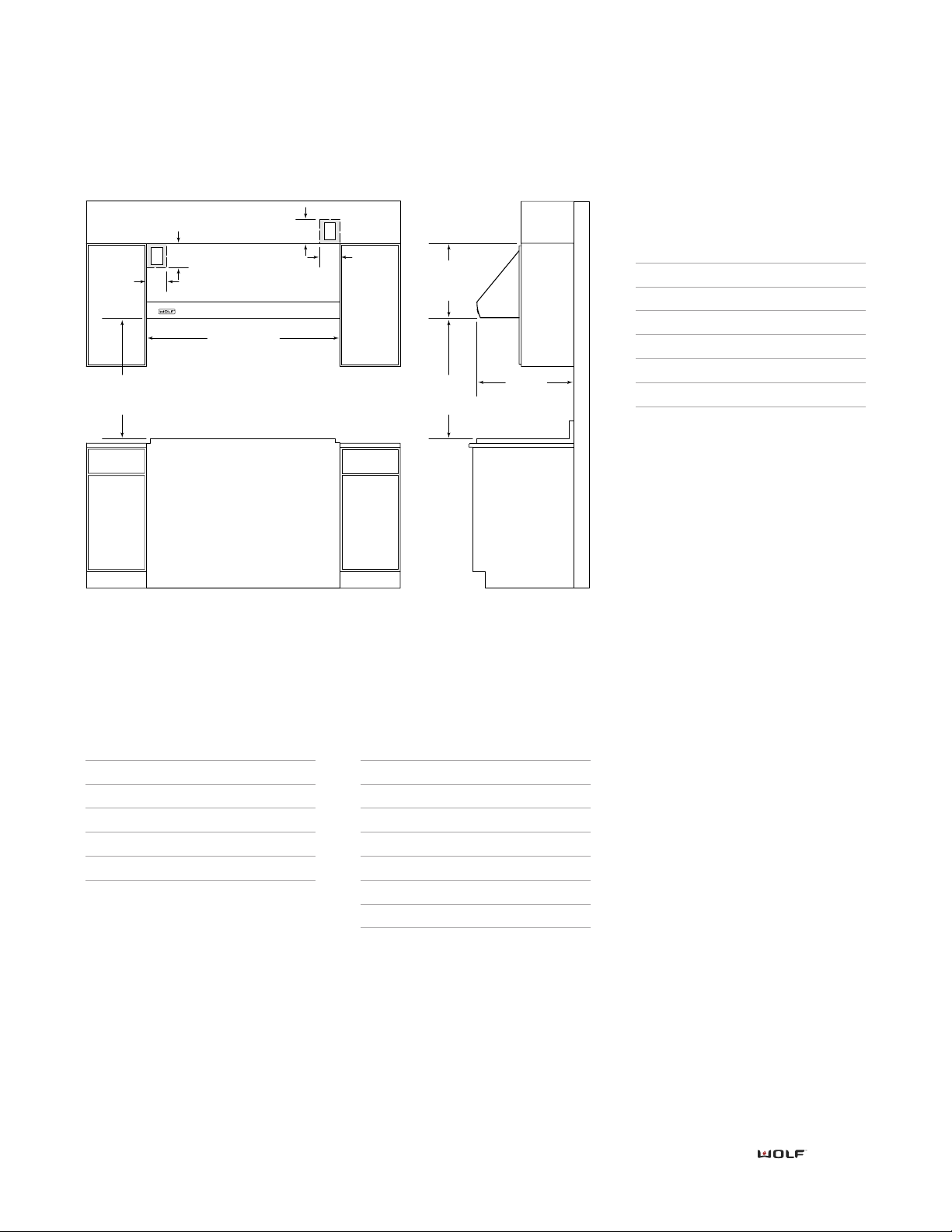

Cabinetry and electrical placement for 22-inch and 24-inch deep Pro Series wall hoods.

Shipping Weights for 22-inch

Deep Wall Hoods

Model Number Shipping Weight

W302210I 57 lbs.

W362210I 63 lbs.

W362210 44 lbs.

W422210 50 lbs.

W482210 55 lbs.

Shipping Weights for Blowers

Part Shipping

Blower Number Weight

WBLOWER-90INT

805086 30 lbs.

WBLOWER-120INT

804702 38 lbs.

CTBLOWER-60REM

801640 35 lbs.

CTBLOWER-90REM

801641 35 lbs.

CTBLOWER-120REM

801642 39 lbs.

CTBLOWER-150REM

804701 47 lbs.

Shipping Weights for 24-inch

Deep Wall Hoods

Model Number Shipping Weight

W302418 67 lbs.

W362418 78 lbs.

W422418 86 lbs.

W482418 96 lbs.

W542418 106 lbs.

W602418 116 lbs.

W662418 126 lbs.

Hardware Contents:

•(10) #10 screws self tapping hex

head 2" long

•(10) 10-24 hex head flanged nuts

22-INCH AND 24-INCH DEEP WALL HOODS

22-inch Deep Wall Hoods

Width Height of To Center of To Center of

Model Number of Hood (A) Transition (B) Transition (C) Transition (D)

W302210I 30" (762) 71/2" (191) 15" (381) 411/16" (119)

W362210I 36" (914) 71/2" (191) 18" (457) 411/16" (119)

W362210 36" (914) 71/2" (191) 18" (457) 411/16" (119)

W422210 42" (1067) 71/2" (191) 21" (533) 411/16" (119)

W482210 48" (1219) 71/2" (191) 24" (610) 411/16" (119)

NOTE: Dimensions in parentheses are in millimeters.

24-inch Deep Wall Hoods

Width Height of To Center of To Center of

Model Number of Hood (A) Transition (B) Transition (C) Transition (D)

W302418 30" (762) 91/2" (241) 15" (381) 513/16" (148)

W362418 36" (914) 91/2" (241) 18" (457) 513/16" (148)

W422418 42" (1067) 91/2" (241) 21" (533) 513/16" (148)

W482418 48" (1219) 91/2" (241) 24" (610) 513/16" (148)

W542418 54" (1372) 91/2" (241) 27" (686) 513/16" (148)

W602418 60" (1524) 91/2" (241) 30" (762) 513/16" (148)

W662418 66" (1676) 91/2" (241) 33" (838) 513/16" (148)

NOTE: Dimensions in parentheses are in millimeters.

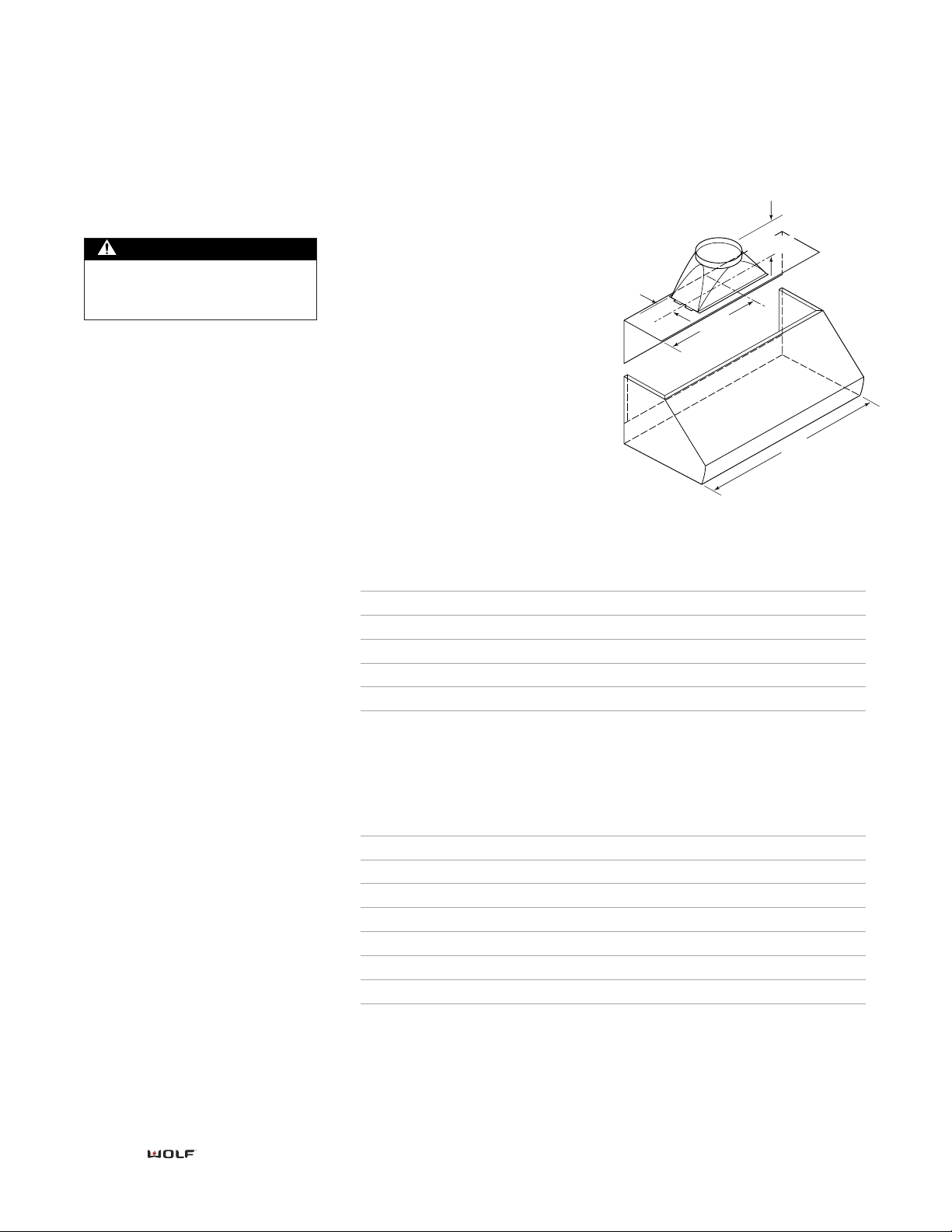

Installation Dimensions

Refer to the following illustration

and charts for critical dimensions

needed for the proper installation

of a 22-inch or 24-inch deep wall

hood.

TO CENTER

OF TRANSITION

WIDTH

OF HOOD

TO CENTER

OF TRANSITION

HEIGHT OF

TRANSITION

INSTALLATION

Step 1: Install Ductwork

1) Decide where the ductwork will

run between the hood and the

outside of the home. Your Wolf hood

has an adjustable discharge location

which can run vertically or horizon-

tally.

NOTE: Rear discharge is only

applicable on 22-inch wall hoods

(excluding W302210I and W362210I)

and 24-inch wall hoods used with a

WBLOWER-120INT (804702) or any

Wolf remote blower. WBLOWER-

90INT (805086) is not for use in rear

discharge applications.

IMPORTANT NOTE: All hoods must

exhaust to the outdoors.

2) When not installing a remote

blower, always install a roof or wall

cap. Connect 8" (22-inch deep

hoods) or 10" (24-inch deep hoods)

round metal ductwork to the cap and

work back towards the hood location.

3) Use duct tape to seal the joints

between the ductwork sections.

4) Your Wolf wall hood comes stan-

dard with a back-draft damper

included in the transition assembly.

An additional back-draft damper is

not required.

WARNING

To reduce the risk of fire, use

only metal ductwork.

Step 2: Wall Preparation

IMPORTANT NOTE: Do not use duct

smaller than 8".

IMPORTANT NOTE: Wolf recom-

mends that the hood be installed a

minimum of 30" and a maximum of

36" above the cooking surface.

1) Construct wood wall framing that

is flush with the interior surface of the

wall studs. Make certain that the

framing is centered over the desired

installation location.

2) Use the rough-in plate shipped

with hood to determine framing

location.

3) After wall surface is finished,

secure the hood to the wall surface.

NOTE: If additional mounting holes

are required for adequate hood

support, drill additional mounting

holes in rough-in plate and use these

holes to attach hood assembly to wall

framing.

WARNING

Framing must be structurally

tied together and tied to ceiling

joists to provide enough

strength to support the weight

of the hood and the internal

blower, if applicable.

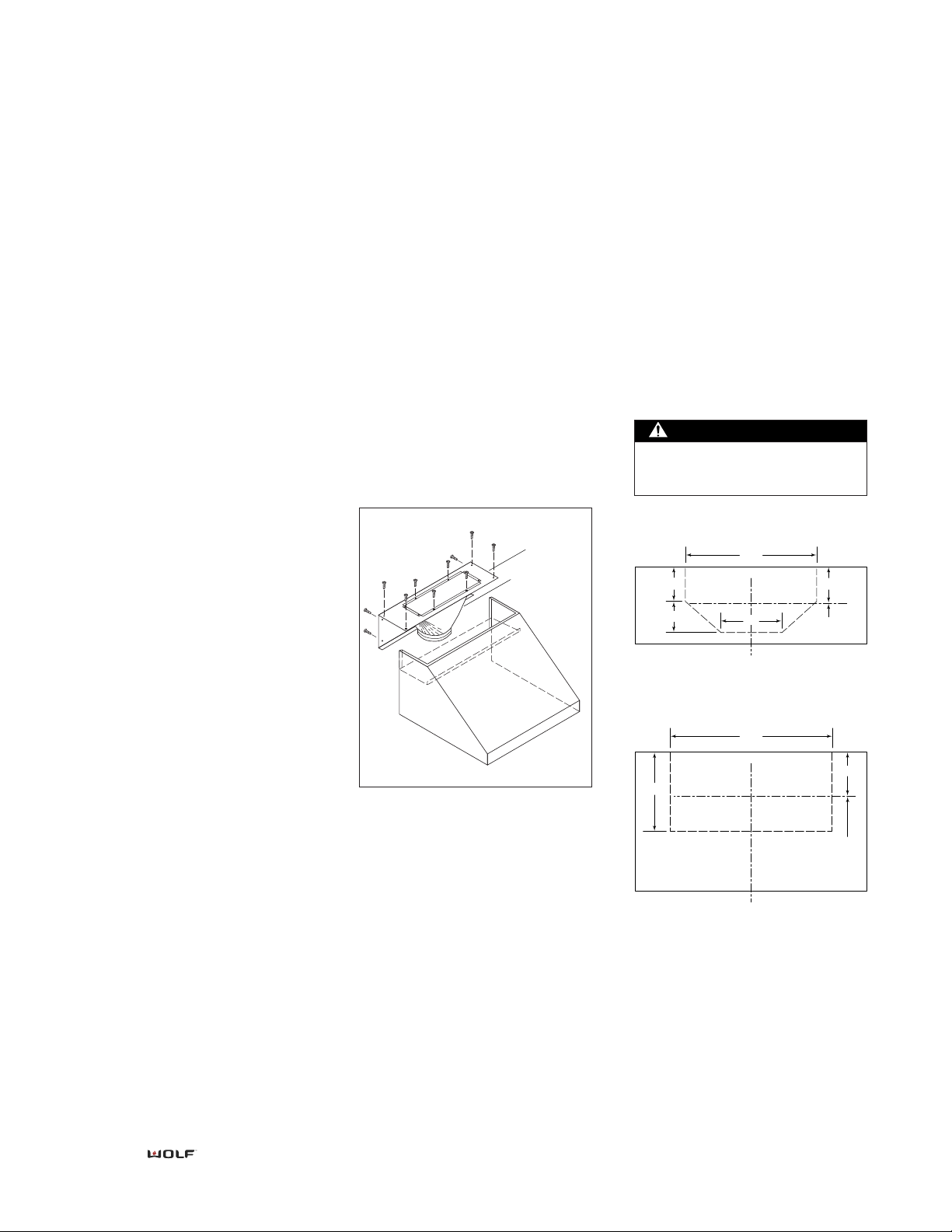

Location of mounting holes for 22-inch wall hood

Location of mounting holes for 24-inch wall hood

71/2"

173/4"

31/2"

8" ROUND

.688"

165/8"

31/4"

* DIMENSION IS 11/2"

91/2"

211/4"

81/2"

20" 41

/2"

10" ROUND

.813"

4) Determine the discharge direction

for your installation and rotate back

panel accordingly. Your wall hood

back panel has been designed to

accommodate vertical or horizontal

discharge direction.

NOTE: Rear discharge is only

applicable on 22-inch wall hoods

(excluding W302210I and W362210I)

and 24-inch wall hoods used with a

WBLOWER-120INT (804702) or any

Wolf remote blower. WBLOWER-

90INT (805086) is not for use in rear

discharge applications.

22-INCH AND 24-INCH DEEP WALL HOODS

5) Use rough-in plate assembly to

determine stud locations. Lift rough-

in plate onto desired wall location

and mark pre-drilled mounting holes

on wall surface.

Horizontal discharge requires a wall

cut-out. See illustrations for 22- and

24-inch deep wall hoods. The loca-

tion of the cut-out is determined by

the hood installation height.

CAUTION

If wall framing is not available,

wall anchors must be used.

Step 3: Hood Preparation

If installing a WBLOWER-90INT

(805086) or WBLOWER-120INT

(804702) see Installation for Internal

Blower on page 16.

IMPORTANT NOTE: Wolf recom-

mends installing the internal blower

to the rough-in plate assembly prior

to installing hood to the wall framing.

If installing a duct cover assembly, see

duct cover installation on page 18.

1) The hood assembly is shipped

with the rough-in plate and the tran-

sition attached. The transition is

shipped upside down in the top of

the hood assembly and must be

removed and reinstalled.

2) Detach the rough-in plate/ transi-

tion from the hood assembly by

removing the four (4) screws on the

top and the four (4) screws on the

back of the rough-in plate/ transition

assembly.

3) Detach the transition from the

rough-in plate by removing the four

(4) screws. DO NOT DISCARD

SCREWS. Shipping screws are needed

for reinstallation of transition to the

rough-in plate.

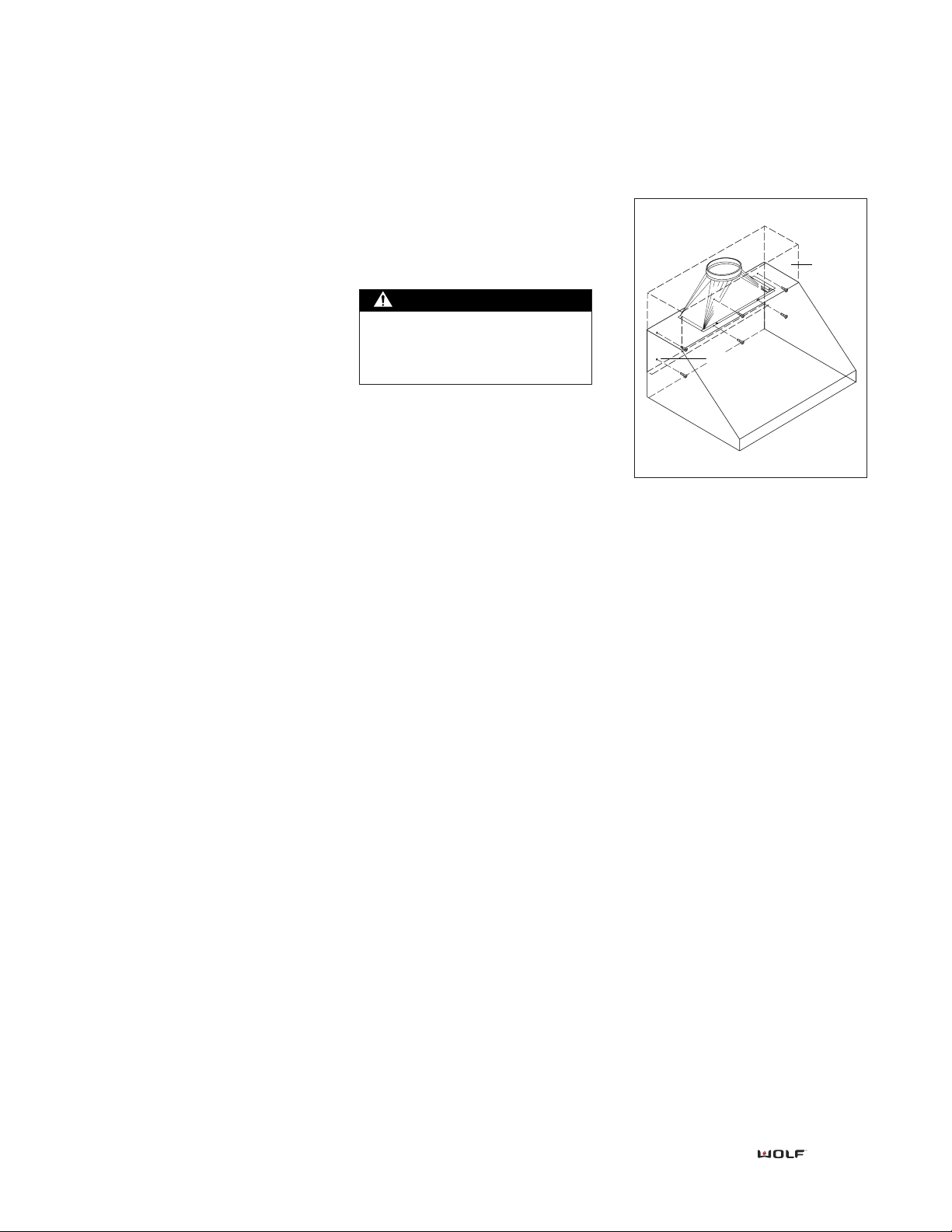

Rough-in plate installation

ROUGH-IN

PLATE

HOOD

ASSEMBLY

SHIPPING

SCREWS

TRANSITION

17"

41/2"

411/16"

AREA OF CUT-OUT ON WALL SURFACE

8" CENTERLINE

OF 8" ROUND

TRANSITION

CENTERLINE

OF 10" ROUND

TRANSITION

TOP OF 22" DEEP HOOD

21"

101/4"

513/16"

CENTERLINE OF HOOD

TOP OF 24" DEEP HOOD

Wall cut-out for 24-inch deep hood

Wall cut-out for 22-inch deep hood

Step 4: Install the Hood

1) Align the hood assembly with the

marked location.

2) Install #10 x 2" screws through

rough-in plate mounting holes.

3) Attach transition to existing duct-

work with sheet metal screws. Use

duct tape or silicone to make all

joints secure and air tight.

4) If additional mounting holes are

required for adequate hood support,

drill additional mounting holes in

rough-in plate of hood and use these

holes to attach hood assembly to wall

framing.

5) Follow Step 6: Install Wiring, Step

7: Install Hood Filters and Drip Cups

and Final Installation on page 15.

Hood installation

SOFFIT

ROUGH-IN PLATE

MOUNTING HOLES

CAUTION

Note the weight of the hood.

Three people may be required

for proper installation.

6) Re-attach rough-in plate/transition

assembly to hood shell with screws

removed in step 2.

7) If installing a remote blower,

drill 7/8" hole through the wood

framing for conduit wires. See

Connect Remote Blower on page 17

for overall dimensions and electrical

requirements. See installation instruc-

tions provided with blower for

mounting and installation informa-

tion.

IMPORTANT NOTE: Do not run

remote blower connects through

ductwork.

8) If installing internal blower

WBLOWER-90INT (805086) or

WBLOWER-120INT (804702) see

installation guidelines on page 16

and installation instructions provided

with blower.

Installation dimensions for 27-inch deep Pro Series wall hoods.

INSTALLATION

CONSIDERATIONS

27-inch Deep Pro Series Wall Hoods

1) A straight, short duct run will

allow the hood to perform more effi-

ciently. Try to limit the number of

elbows and transitions to as few as

possible. Long duct runs, elbows and

transitions will reduce the perform-

ance of the hood.

IMPORTANT NOTE: All hoods must

exhaust to the outdoors.

IMPORTANT NOTE: There is a possi-

bility of noise issues, if there is a short

duct run coupled with a remote

blower.

2) Always use metal ducting. Do not

use flex ducting.

3) Wolf recommends installing a

back-draft damper in all installations

(included with hood). In cold weather

installations a back-draft damper is

necessary to minimize the backflow

of cold air into the room.

4) Wolf recommends the hood be

installed 30" to 36" above the cook-

ing surface.

5) Local building codes may require

the use of make-up air. Consult your

local HVAC professional for specific

requirements in your area.

30" TO 36"

(762 mm - 914 mm)

COOKING SURFACE

TO BOTTOM OF

VENTILATION HOOD

18" (457 mm)

HEIGHT OF HOOD

WALL HOOD

DUCTWORK INSTALLATION

THROUGH ROOF

37" (940 mm)

TO COOKING

SURFACE

27" (686 mm)

DEPTH OF HOOD

ROOF CAP

10" ROUND DUCT

SOFIT OR CABINET

OR DUCT COVER

*TOP DISCHARGE ONLY FOR 27" WALL HOODS.

TOP DISCHARGE*

TRANSITION

27-INCH DEEP WALL HOODS

CAUTION

To reduce the risk of fire and

electric shock, install this range

hood only with the blowers

manufactured by Wolf

Appliance Co., Model numbers

805086, 804702, 801640,

801641, 801642 and 804701.

Otros manuales para W302210I

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Campana de ventilación de Wolf

Wolf

Wolf PWC362418 Manual de usuario

Wolf

Wolf I423418 Instrucciones de uso

Wolf

Wolf W362210I Instrucciones de uso

Wolf

Wolf PRO WOSZRERADWRH117 Manual de usuario

Wolf

Wolf PWC482418 Manual de usuario

Wolf

Wolf PW662418 Instrucciones de uso

Wolf

Wolf W422210 Instrucciones de uso

Wolf

Wolf W482210 Instrucciones de uso

Wolf

Wolf DD45I Manual de usuario

Wolf

Wolf PW302718 Manual de usuario

Wolf

Wolf Drawer Microwave Oven Manual de usuario

Wolf

Wolf I663418(R) Manual de usuario

Wolf

Wolf Pro Island Ventilation Hoods Manual de usuario

Wolf

Wolf CTWH36 Manual de usuario

Wolf

Wolf CTWH30 Manual de usuario

Wolf

Wolf PL582212 Manual de usuario

Wolf

Wolf CTWH36 Manual de usuario

Wolf

Wolf Downdraft Ventilation Manual de usuario

Wolf

Wolf IH4227 Manual de usuario

Wolf

Wolf CT Manual de usuario

Wolf

Wolf Pro Wall Series Manual de usuario

Wolf

Wolf PL582212 Manual de usuario

Wolf

Wolf PL342212 Manual de usuario

Wolf

Wolf Pro Wall Chimney Ventilation Hoods Manual de usuario

Manuales populares de Campana de ventilación de otras marcas

emmeti

emmeti RECUPA MED A-140 Guía

Nibe

Nibe F135 Manual de usuario

Kuppersberg

Kuppersberg INTRO 60 Instrucciones de instalación y mantenimiento

Zephyr

Zephyr Spruce AK9834BS Guía de instalación

Hisense

Hisense MH6INBG Manual de usuario

Miele

Miele DA 1255 Manual de usuario

Broan

Broan 46000 Manual de usuario

GE Profile PV977 Instrucciones originales

FALMEC

FALMEC FFRIA24W5FS Manual de usuario

Whirlpool

Whirlpool RH2600XL-1 SERIES Manual de usuario

Küppersbusch

Küppersbusch DX ISLA Manual de usuario

ETNA

ETNA AV360RVS Manual de usuario

JUNO

JUNO JDF603E6 Manual de usuario

Miele

Miele DA 6708 D Manual de usuario

Tricity Bendix

Tricity Bendix LE 150 Manual

AEG

AEG X68163BV1 Manual de usuario

AEG

AEG 125 D Manual de usuario

Smeg

Smeg KSEV97X Manual de usuario
