Wolf Sub-Zero ICBIG15/S Manual de usuario

GRILL MODULE

INSTALLATION INSTRUCTIONS

MÓDULO DE PARRILLA INSTRUCCIONES DE INSTALACIÓN

GRIL INSTRUCTIONS D’INSTALLATION

PIANO GRILL ISTRUZIONI PER L’INSTALLAZIONE

ENGLISH 4

ESPÃNOL 13

F R A N A I S 2 2

I TA L I A N O 3 1

As you follow these instructions, you will

notice WARNING and CAUTI N symbols.

This blocked information is important for the

safe and efficient installation of Wolf equip-

ment. There are two types of potential

hazards that may occur during installation.

Another footnote we would like to identify is

IMP RTANT N TE: This highlights information

that is especially relevant to a problem-free

installation.

signals a situation where minor injury or

product damage may occur if you do not

follow instructions.

states a hazard that may cause serious

injury or death if precautions are not

followed.

WOLF®is a regis ered rademark of Wolf Appliance, Inc.

CONTACT

INFORMATION

Website:

wolfappliance.com

I N S TA L L AT I O N REQUIREMENTS

IMP RTANT N TE:

Save these Installation

Instructions for the local inspector’s use.

Please read the entire Installation

Instructions prior to installation.

This installation must be completed by a

qualified technician.

Installer:

please retain these instructions

for local inspector’s reference, then leave

them with the homeowner.

Homeowner:

please read and keep

these instructions for future reference and

be sure to read the entire Use & Care

Information prior to use.

IMP RTANT N TE:

This appliance must be

installed in accordance with local codes. The

correct voltage, frequency and amperage

must be supplied to the appliance from a

dedicated, grounded circuit which is protected

by a properly sized circuit breaker or time

delay fuse. The proper voltage, frequency, and

amperage ratings are listed on the product

rating plate.

Record the model and serial numbers before

installing the grill module. Both numbers are

listed on the product rating plate located on

the underside of the module. Refer to the

illustration below.

B E F O R E YO U S TA RT

IMP RTANT N TE:

Installation and

service must be performed by a qualified

installer or service agency.

Installation of the grill module must meet

the minimum clearance requirements for

safe operation. Refer to Site Preparation

on page 6.

If the grill module is to be used with any

combination of additional cooktop units or

modules, refer to ultiple Cooktop Installa-

tion on page 8.

Electrical installation must be adequate

and in compliance with all local codes and

ordinances. Electrical ground is required,

refer to Electrical Requirements on page 9.

IMP RTANT N TE:

A ventilation hood is

recommended (but not required) for use with

the Wolf electric grill module.

This module is intended for indoor use.

W O L F GRILL MODULE

Model ICBIG15/S

Model Number

ICBIG15/S

Serial Number

Rating plate location

Location of rating

plate under module

L O C AT I O N I N C O U N T E RT O P

inimum flat countertop surface. ust be

equal to or greater than the width of the

module(s).

inimum 152 mm wide clearance from the

module side edge to any combustible

surface up to 457 mm above the countertop

(noted by shaded area).

OVERHEAD CABINET DIMENSIONS

inimum spacing between overhead side

cabinets must be greater than or equal to

the nominal width of the module(s).

inimum 457 mm vertical distance from

the countertop to the bottom of side

cabinets within minimum side clearance.

inimum vertical distance between the

countertop and combustible materials

above the module must be 762 mm.

inimum 25 mm from rear wall.

aximum 330 mm depth of overhead and

side cabinets directly above and within side

clearance.

S I T E PREPARATION

IMP RTANT N TE:

Installation of the Wolf

electric grill module must meet the following

location requirements. All dimensions listed

are minimum requirements for safe operation.

Refer to the illustration below.

To eliminate the risk of burns or fire by

reaching over heated surface units,

cabinet storage space located above the

surface units should be avoided. If

cabinet storage is to be provided, the risk

can be reduced by installing a ventilation

hood that projects horizontally a

minimum of 127 mm beyond the bottom

cabinets.

Failure to locate the cooktop module

without the proper clearances will result

in a fire hazard.

W O L F G R I L L M O D U L E

Minimum installation clearances

I N S TA L L AT I O N SPECIFICATIONS

The illustrations below provide the overall

dimensions, finished cut-out dimensions and

electrical placement for the Wolf electric grill

module.

The grill module is designed to fit a standard

610 mm deep base cabinet with 635 mm deep

countertop. Before making the countertop cut-

out, verify that the module will clear the side

walls of the base cabinet below.

A grounded junction box needs to be placed

within 1.2 m of the right rear of the module.

Locate electrical with the shaded area of the

illustration below.

MODEL ICBIG15/S DIMENSIONS

Overall Width 381 mm

Overall Height 159 mm

Overall Depth 533 mm

inimum Cabinet Depth 578 mm

inimum Height Clearance 159 mm

Cut-Out Width 356 mm

Cut-Out Depth 489 mm

Uni dimensions may vary o ± 3 mm.

I N S TA L L AT I O N INSTRUCTIONS

verall Dimensions

Installation Specifications

Countertop Cut- ut

Dimensions

W O L F G R I L L M O D U L E

M U LT I P L E C O O K TO P INSTALLATION

IMP RTANT N TE:

If the grill module is to be

used with a combination of additional cooktop

units or modules with a filler strip, the cut-out

width is calculated by adding the corresponding

units' cut-out dimensions plus 32 mm for each

additional unit.

When multiple units are installed side by side,

each unit must have its own separate recom-

mended electrical circuit.

When two or more modules are installed

together, an integrated module filler strip

(IFILLER/S) is recommended.

Countertop cut-out dimensions for installation of multiple cooktops

IMP RTANT N TE:

Review specific

installation instructions for product to product

capabilities.

E L E C T R I C A L REQUIREMENTS

Required Power Supply

220–240 V AC, 50–60 Hz, 15 amp service

Maximum Connected Load

2.8 kW

The Wolf electric grill module requires 15 amp

service with its own circuit breaker or fuse.

Locate electrical within the shaded area shown

in the illustration on page 7. A properly rated

cord should be attached to the power supply

box of the grill as shown in the illustration

below. Open the power box to expose the

screws with corresponding numbers. Loosen

the 1, 5, and ground screws. Run the cord

through the circular hole and into the power

supply box. Attach the Neutral wire to the

number 1 position. Attach the line wire to the 5

position and attach the ground wire to the

corresponding ground screw. After tightening

the screws, close the cover to the power

supply box without pinching any of the wires.

You must follow all local codes and ordinances

when installing your service.

Attach the power cord to the unit before

plugging the cord into the wall.

IMP RTANT N TE:

The correct voltage,

frequency and amperage must be supplied to

the appliance from a dedicated, grounded

circuit which is protected by a properly sized

circuit breaker or time delay fuse. The proper

voltage, frequency, and amperage ratings are

listed on the product rating plate located on

the underside of the module. Refer to the illus-

tration on page 5. The wiring diagram covering

the control circuit is located inside the module

control box.

The complete appliance must be properly

grounded at all times when electrical

power is applied.

Improper connection can result in a fire

hazard!

W O L F GRILL MODULE

Power supply box

IMP RTANT N TE:

To avoid electrical shock

when disconnecting the grill module, all

poles/wires must be disconnected from the

power supply box.

MODULE I N S TA L L AT I O N

To prevent pollution from entering the controls

area, attach the foam strip to the underside of

the module frame. Refer to the illustration

below.

Gently lower the grill module into the cut-out

area in the countertop and center. Check that

the front edge of module is parallel to the front

edge of the countertop. Check that all required

clearances are met.

To attach the brackets to the sides of the

module, insert the clip into the rectangular

punchout in the pan, and push down. Install

the clamping screw into the bracket and

tighten until the screw contacts the underside

of the countertop. Do not overtighten screws.

Refer to the illustration below.

IMP RTANT N TE:

Do not use caulk or

silicone to seal the module to the countertop.

The unit must be readily removable for service.

B E F O R E OPERATING

Read the entire Wolf Grill odule Use & Care

Information included with the module. Impor-

tant safety, service and warranty information is

contained within the book.

Thoroughly clean the grilling grate, grease

deflection plates and grease collection pan

with mild soap and water before use.

Foam strip Installation brackets

I N S TA L L AT I O N INSTRUCTIONS

Otros manuales para Sub-Zero ICBIG15/S

Tabla de contenidos

Idiomas:

Otros manuales de Parrilla de Wolf

Wolf

Wolf Sub-Zero ICBIG15/S Manual de usuario

Wolf

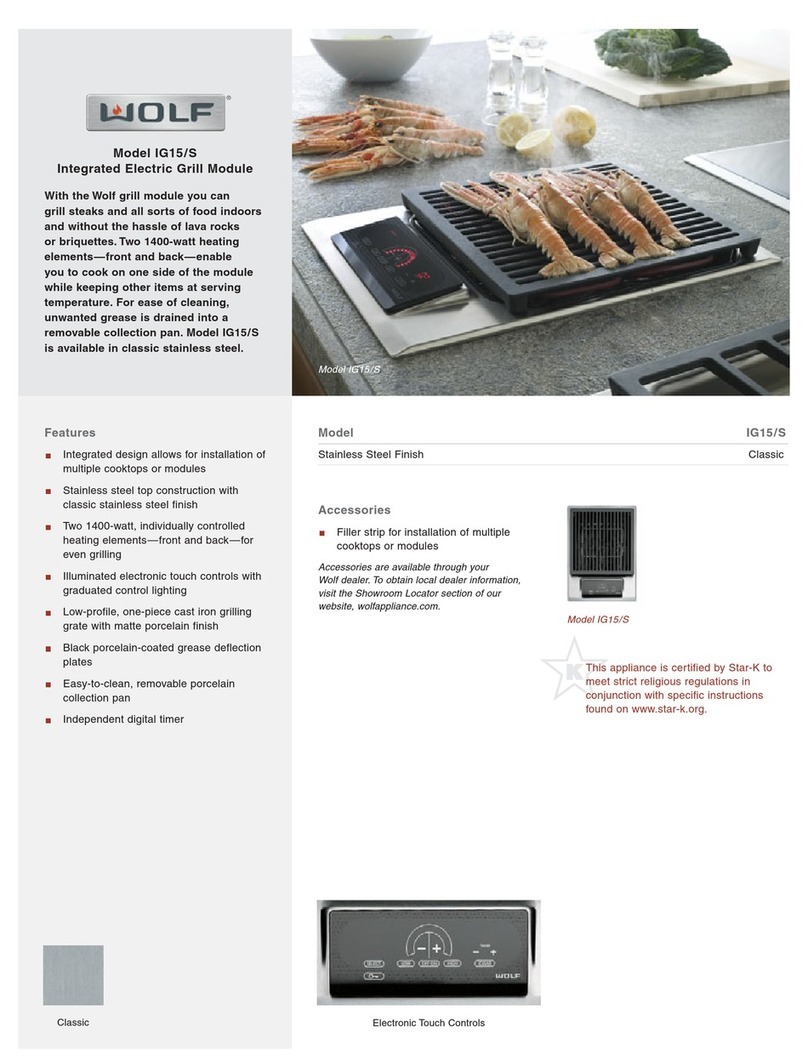

Wolf IG15/S Manual de usuario
