15" Gas Cooktop

The patented dual-stacked burner design

o Wol gas cooktops uses its upper-level

burner or maximum heat trans er. Merely

turn down the knob and the lower-tier

burners delivers ine-tuning control and

true simmer. The sealed burners and deep

recess o the seamless drawn pan make

clean up a snap. Wol gas cooktops are

available in natural or LP gas.

FEATURES

•Stainless steel top construction.

•Integrated design allows for installation of

multiple cooktops or modules.

•Two dual-stacked, sealed burners with

automatic reignition on all settings.

•One medium 12,000 Btu sealed burner

with 800 Btu delivered at simmer.

•One small 9,200 Btu sealed burner

with 300 Btu delivered at simmer.

•Individual spark ignition system.

•True simmer setting on both burners.

•Illuminated control panel with two-tiered

control knobs.

•Low-profile cast iron continuous burner

grates with matte porcelain finish.

•Seamless drawn burner pan.

ACCESSORIES

•Filler strip for installation of multiple

cooktops or modules.

•Bracket supports for installation of two

integrated modules with downdraft.

Accessories are available through your authorized

Wolf dealer. For local dealer information, visit the

find a showroom section of our website,

wolfappliance.com.

Model CT15G/S

Model IM15G/S multi-function gas cooktop (left).

Model CT15G/S gas cooktop (right).

DUAL-STACKED BURNERS

Full-flame setting.Melt setting.

This appliance is certified by Star-K

to meet strict religious regulations in

conjunction with specific instructions

found on www.star-k.org.

INSTALLATION NOTES

The 15" gas cooktop can be installed in

combination with other cooktops or

modules.

For LP gas installations above 8,600'

a high altitude conversion kit is required.

For natural gas installations above 10,250',

contact your authorized Wolf dealer.

Complete installation specifications can be

found on our website, wolfappliance.com.

Unit dimensions may vary by ± 1/8".

SPECIFICATIONS

Overall Width 15"

Overall Height 4"

Overall Depth 21"

Burner ating

(1) 12,000 Btu with 800 Btu delivered

at simmer

(1) 9,200 Btu with 300 Btu delivered

at simmer

Countertop Cut-Out Width 14"

Countertop Cut-Out Depth 191/4"

Electrical equirements 120 V AC, 60 Hz

15 amp circuit

Power Cord 6' cord with grounded plug

Gas ating 21,200 Btu

Shipping Weight 30 lbs

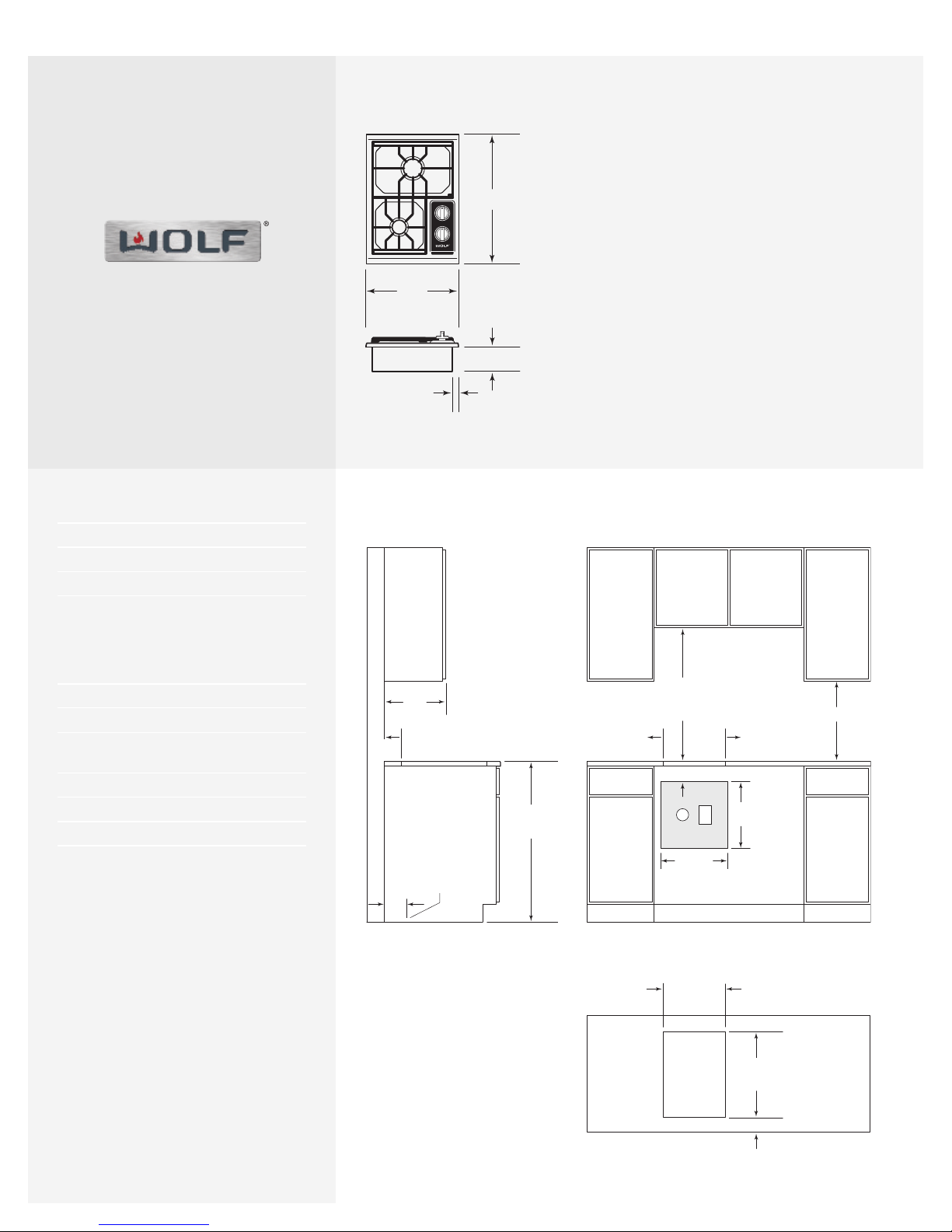

INSTALLATION SPECIFICATIONS

OVERALL DIMENSIONS

15" Gas Cooktop

Dimensions in parentheses are in

millimeters unless otherwise specified.

7/8"(22)

ALL SIDES

4" (102)

21" (533)

15"

(381)

36" (914)

FLOOR TO

COUNTERTOP

30" (762) min

COUNTERTOP

TO COMBUSTIBLE

MATERIALS

SEE COUNTERTOP

CUT-OUT BELOW

14" (356)

CUT-OUT

WIDTH

COUNTERTOP CUT-OUT

FRONT

191/4"(489)

CUT-OUT

DEPTH

21/2"(64) min

7" (178) TO

COMBUSTIBLE*

7" (178) TO

COMBUSTIBLE*

SIDE

CABINET

13" (330)

max

*Minimum clearance from cooktop cut-out to combustible materials up to 18" (457) above countertop.

NOTE: Application shown allows for installation of two 15" (381) modules side by side.

15" (381)

15"

(381)

(102)

18" (457) min

(127)

LOCATION OF GAS

AND ELECTRICAL

EXTENDS ON FLOOR

21/2"

(64)*

Countertop Cut-Out Dimensions
