INSTALLATI N GUIDE

Induction and Electric Cooktops

Important Note

To ensure the safe and efficient use of Wolf equipment,

please take note of the following types of highlighted

information throughout this guide:

IMP RTANT N TE highlights information that is especially

important.

CAUTI N signals a situation where minor injury or product

damage may occur if instructions are not followed.

WARNING states a hazard that may cause serious injury or

death if precautions are not followed.

Contents

Wolf Induction and Electric Cooktops . . . . . . . . . . . . . 3

Cooktop Specifications . . . . . . . . . . . . . . . . . . . . . . . . 4

CooktopInstallation ..........................14

ServiceInformation...........................18

Features and specifications are subject to change at any time

without notice. Visit wolfappliance.com/specs for the most

up-to-date information.

IMP RTANT N TE: Throughout this guide, dimensions in

parentheses are millimeters unless otherwise specified.

Wolf Induction and Electric Cooktops 3

wolfappliance.com/specs

Induction and Electric Cooktops

IMP RTANT N TE: This installation must be completed

by a qualified installer or Wolf factory certified service.

Read this entire installation guide prior to installation and

save for the local inspector’s reference. The homeowner

should keep this installation guide for future reference.

This appliance must be installed in accordance with

National Electrical Codes, as well as all state, municipal

and local codes. The correct voltage, frequency and

amperage must be supplied to the appliance from a dedi-

cated, grounded circuit which is protected by a properly

sized circuit breaker or time delay fuse. The proper

voltage, frequency and amperage ratings are listed on the

product rating plate.

Record the model and serial numbers before installing the

cooktop. Both numbers are listed on the product rating

plate, located on the underside of the cooktop. Refer to

the illustrations below for location of the rating plate.

Wolf Induction or Electric Cooktop

Model Number

Serial Number

MEL

TOFF

HI-POWER

HIGH

SIMOFFON

HI-POWER

HIGH

SIMOFFON

MEL

THIGH

OFFON

Induction cooktop. Electric cooktop.

SIMHIGH

OFFON

SIMHIGH

OFFON

SIMHIGH

BRIDGE

ZONE2

ZONE3

HIGH

MEL

TOFFON

RATING P ATE RATING P ATE

Cooktop Specifications 4

21/2"(64)

11/4"(32) 7/8"(22)

ALL SIDES

21" (533)

15"

(381)

CONDUIT

15" (381) FRAMED

21/2"(64)

30" (762)

11/4"(32) 7/8"(22)

ALL SIDES

21" (533)

CONDUIT

30" (762) FRAMED

36" (914)

21/2"(64)

11/4"(32) 7/8"(22)

ALL SIDES

21" (533)

CONDUIT

36" (914) FRAMED

30" (762)

11/4"(32) 7/8"(22)

ALL SIDES

21" (533)

3" (76)

CONDUIT

30" (762) UNFRAMED

36" (914)

3" (76)

11/4"(32) 7/8"(22)

ALL SIDES

CONDUIT

21" (533)

36" (914) UNFRAMED

Induction Cooktops

VERALL DIMENSI NS

Cooktop Specifications 5

wolfappliance.com/specs

Electric Cooktops

VERALL DIMENSI NS

11/4"(32) 7/8"(22)

ALL SIDES

33/4"(96)

CONDUIT

21" (533)

15"

(381)

15" (381) FRAMED

30" (762)

21" (533)

11/4"(32) 7/8"(22)

ALL SIDES

33/4"(96)

CONDUIT

30" (762) FRAMED

36" (914)

11/4"(32) 7/8"(22)

ALL SIDES

33/4"(96)

CONDUIT

21" (533)

36" (914) FRAMED

30" (762)

41/4"(108)

11/4"(32) 7/8"(22)

ALL SIDES

CONDUIT

21" (533)

30" (762) UNFRAMED

36" (914)

41/4"(108)

11/4"(32) 7/8"(22)

ALL SIDES

CONDUIT

21" (533)

36" (914) UNFRAMED

Cooktop Specifications 6

Electrical Requirements

Wolf induction and electric cooktops have a 4' (1.2 m)

flexible conduit and require a separate, grounded 3-wire

electrical supply with its own circuit breaker. ocate the

electrical supply within the shaded area shown in the

installation illustration for your specific model on the

following pages.

IMP RTANT N TE: You must follow all National Electrical

Code regulations. In addition, be aware of local codes and

ordinances when installing your service.

IMP RTANT N TE: Except for model CT30E-208/S,

performance may be compromised if the electrical supply

is less than 240 volts.

Induction Cooktops

CT15I/S

Power Supply 240/208 V AC, 60 Hz

Service 20 amp

Max Connected oad 3.6 kW at 240 / 3.1 kW at 208

CT30I/S AND CT30IU

Power Supply 240/208 V AC, 60 Hz

Service 40 amp

Max Connected oad 7.2 kW at 240 / 6.3 kW at 208

CT36I/S AND CT36IU

Power Supply 240/208 V AC, 60 Hz

Service 50 amp

Max Connected oad 11.2 kW at 240 / 9.7 kW at 208

Electric Cooktops

CT15E/S

Power Supply 240/208 V AC, 60 Hz

Service 20 amp

Max Connected oad 3.7 kW at 240 / 2.8 kW at 208

CT30E-208/S

Power Supply 208 V AC, 60 Hz

Service 40 amp

Max Connected oad 7.9 kW

CT30E/S AND CT30EU

Power Supply 240/208 V AC, 60 Hz

Service 40 amp

Max Connected oad 8.1 kW at 240 / 6.1 kW at 208

CT36E/S AND CT36EU

Power Supply 240/208 V AC, 60 Hz

Service 50 amp

Max Connected oad 10.5 kW at 240 / 7.9 kW at 208

Cooktop Specifications 7

wolfappliance.com/specs

Electrical Requirements

IMP RTANT N TE: For electrical installation, attach the

conductors to the residence wiring in accordance with

National Electrical Codes and all state, provincial, munici-

pal and local codes.

This appliance must be installed in accordance with

National Electrical Codes, as well as all state, municipal

and local codes. The correct voltage, frequency and

amperage must be supplied to the appliance from a dedi-

cated, grounded circuit which is protected by a properly

sized circuit breaker or time delay fuse. The proper

voltage, frequency and power ratings are listed on the

product rating plate, located on the underside of the

cooktop. Refer to the illustrations on page 3 for location

of the rating plate.

The complete appliance must be properly grounded at

all times when electrical power is applied.

Do not ground appliance with the neutral (white) house

supply wire. A separate ground wire must be utilized.

If aluminum house supply wiring is utilized, splice the

appliance copper wire to the aluminum house wiring

using special connectors design and agency certified

for joining copper and aluminum. Follow the connector

manufacturer's recommended procedure carefully.

Improper connection can result in a fire hazard.

Cooktop Specifications 8

Installation Requirements

IMP RTANT N TE: Installation of the induction or electric

cooktop must meet location requirements shown in the

installation illustration for your specific model on the

following pages. All dimensions listed are minimum

requirements for safe operation.

Wolf induction and electric cooktops are intended for

indoor use. For ease of installation, Wolf recommends

using 33" (838) wide cabinets with 30" (762) cooktops and

39" (991) cabinets with 36" (914) cooktops. They are

designed to fit a standard 24" (610) deep base cabinet with

a 25" (635) deep countertop. Before making the countertop

cut-out, verify that the cooktop will clear the side walls of

the base cabinet.

A minimum height clearance of 61/4"(159) is required from

the top of the countertop to any combustible surface

directly below the cooktop. For induction cooktops, if a

shelf is installed below the unit, a 1" (25) gap at the rear of

the shelf is necessary to allow for proper ventilation.

Clearance is required for the conduit located at the right

rear of induction and electric cooktops. Refer to the illus-

tration below for dimensions.

Failure to locate the cooktop without proper clearances

will result in a fire hazard.

It is recommended that you use a Wolf cooktop ventilation

hood, pro hood or hood liner with induction and electric

cooktops. Framed cooktops can accommodate a Wolf

downdraft ventilation system. Refer to the Wolf design

guide.

11/4"(32)

(51)

Conduit dimensions.

Cooktop Specifications 9

wolfappliance.com/specs

36" (914)

FLOOR TO

COUNTERTOP

30" (762) min

COUNTERTOP

TO COMBUSTIBLE

MATERIALS

SEE COUNTERTOP

CUT-OUT BELOW

133/8"(340)

CUT-OUT

WIDTH

COUNTERTOP CUT-OUT

FRONT

191/4"(489)

CUT-OUT

DEPTH

21/2"(64) min

2" (51) TO

COMBUSTIBLE*

2" (51) TO

COMBUSTIBLE*

SIDE

CABINET

13" (330)

max

15" (381)

15"

(381)

41/2"(114)

18" (457) min

2" (51) min*

FRONT VIEWSIDE VIEW

*Minimum clearance from cooktop cut-out to combustible materials up to 18" (457) above countertop.

NOTE: Application shown allows for installation of two 15" (381) modules side by side.

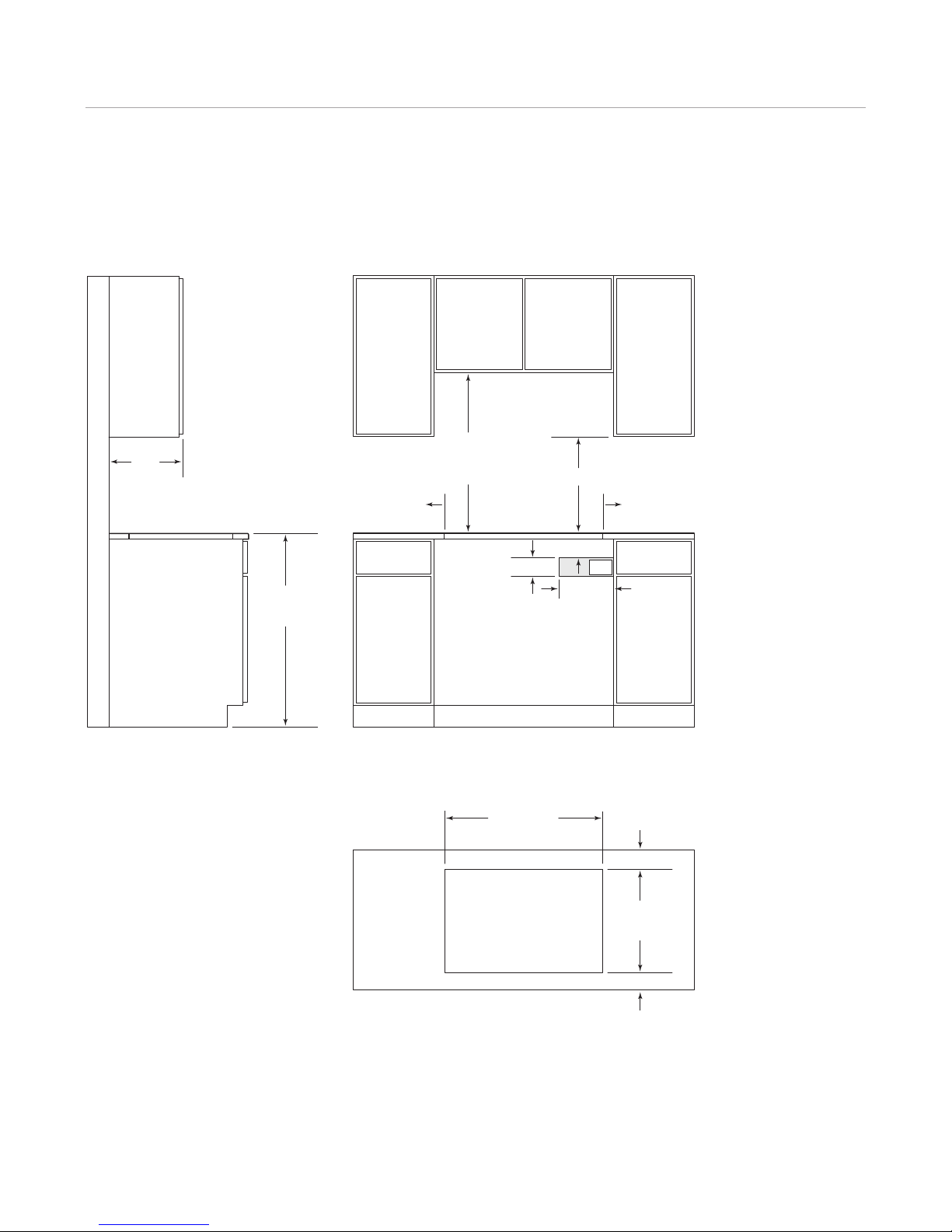

15" (381) Framed Induction and Electric Cooktops

STANDARD INSTALLATI N

Cooktop Specifications 10

18" (457) min

36" (914)

FLOOR TO

COUNTERTOP

30" (762) min

COUNTERTOP

TO COMBUSTIBLE

MATERIALS

41/2"(114)

10" (254)

31/2"(89) E

SEE COUNTERTOP

CUT-OUT BELOW

2" (51) TO

COMBUSTIBLE*

2" (51) TO

COMBUSTIBLE*

SIDE

CABINET

13" (330)

max

283/8"(721)

CUT-OUT WIDTH

COUNTERTOP CUT-OUT

FRONT

191/4"(489)

CUT-OUT

DEPTH

21/2"(64) min

2" (51) min*

FRONT VIEWSIDE VIEW

*Minimum clearance from cooktop cut-out to combustible materials up to 18" (457) above countertop.

NOTE: Electrical location applies only to installation with built-in oven.

30" (762) Framed Induction and Electric Cooktops

STANDARD INSTALLATI N

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa de cocina de Wolf

Wolf

Wolf CT15G Instrucciones de uso

Wolf

Wolf CT15G Manual de usuario

Wolf

Wolf RT484CG Instrucciones de uso

Wolf

Wolf SRT364C Instrucciones de uso

Wolf

Wolf ICBCT15G Manual de usuario

Wolf

Wolf SB13 Manual de usuario

Wolf

Wolf Induction Cooktop Manual de funcionamiento

Wolf

Wolf Sealed Burner RangeTop Manual del propietario

Wolf

Wolf CT15I/S Instrucciones de uso

Wolf

Wolf 381 Manual de usuario

Wolf

Wolf ICBCI152 Manual de usuario

Wolf

Wolf CT36I/S Manual de usuario

Wolf

Wolf CT15G-3 Manual de usuario

Wolf

Wolf REV-A 5/2010 814990 Manual de usuario

Wolf

Wolf IR304PE/S/PH Manual de usuario

Wolf

Wolf CT15I Manual de funcionamiento

Wolf

Wolf IM15/S Manual de usuario

Wolf

Wolf CE152TF/S Manual de funcionamiento

Wolf

Wolf GAS COOK TOPS Manual del propietario

Wolf

Wolf Gas Multi-Function Cooktop Manual de usuario

Wolf

Wolf ICBCG152TF/S Manual de usuario

Wolf

Wolf CT30EU Instrucciones de uso

Wolf

Wolf CT30I/S Manual de usuario

Wolf

Wolf RT484CG Manual de usuario

Manuales populares de Placa de cocina de otras marcas

Bonnet

Bonnet OPTIMUM 700 Manual del propietario

Jenn-Air

Jenn-Air JGCP430 Manual de usuario

Frigidaire

Frigidaire FES367FCC Guía de inicio rápido

Ztove

Ztove EZ2 DUO Manual de usuario

Kleenmaid

Kleenmaid cooking GCTK9011 Guía de instalación

Casselin

Casselin CSASRE24 Manual de usuario

Jenn-Air

Jenn-Air JGC2536EB00 Manual de usuario

Waldorf

Waldorf RN8603E-B Manual de instrucciones

Whirlpool

Whirlpool SMP658CNEIXL Manual de usuario

Fulgor Milano

Fulgor Milano F5PGK305S1 Manual de usuario

GE JP389 Manual de usuario

Wells

Wells WV-2HFG Manual de usuario

IKEA

IKEA Lagan HGA4K Manual de usuario

Samsung

Samsung NA36N9755 Manual de usuario

Miele

Miele KM 404 Manual de usuario

Lacor

Lacor 69562 Hoja de especificaciones

Keating Of Chicago

Keating Of Chicago MG-2 Manual de usuario

Jenn-Air

Jenn-Air CCE1400 Manual de usuario
