Wolf WRS-K Hoja de instrucciones
Conguration wizard
WRS-K
WOLF GMBH / POSTFACH 1380 / D-84048 MAINBURG / TEL. +49(0) 87 51 74- 0 / FAX +49(0)87 51 74- 16 00 / www.WOLF.eu
Part no.: 3062933_201707 Subject to technical modications
GB
23062933_201707
Contents
Contents ................................................................................................................... 2
Installation / commissioning / operating overview .................................................... 3
Post-conguration, air quality / CO2sensor.............................................................. 4
Post-conguration remote control............................................................................. 5
Post-conguration, LON / BacNet / ModBus / Ethernet / KNX interface .................. 6
Post-conguration, pressure control / ow rate control / cooling function ................ 7
New conguration controller..................................................................................... 8
System conguration.............................................................................................. 12
Conguration for pressure or ow rate control ....................................................... 15
Notes ...................................................................................................................... 19
3
3062933_201707
1Displaying and acknowledging active fault messages
2Displaying the system operating data (set / actual values)
3Access to the main menu
4Forward scrolling within a menu and increasing values
5Switching the system ON and OFF, selecting menu points, conrming inputs
6Backwards scrolling within a menu and reducing values
1. Commissioning
- According to EN 50110-1, only qualied electricians may carry out the installation and commissioning of
the ventilation control unit and connected accessories.
- Observe all regulations stipulated by your local power supply utility and all VDE or local regulations.
- DIN VDE 0100 regulations regarding the installation of high voltage systems up to 1000 V.
- DIN VDE 0105-100 operation of electrical systems.
- Only original Wolf accessories may be used (electric heater bank, condensate pump, servomotors, etc.),
otherwise, Wolf cannot provide a warranty.
Installation / commissioning /
operating overview
1
2
3
4
5
6
Operating overview
43062933_201707

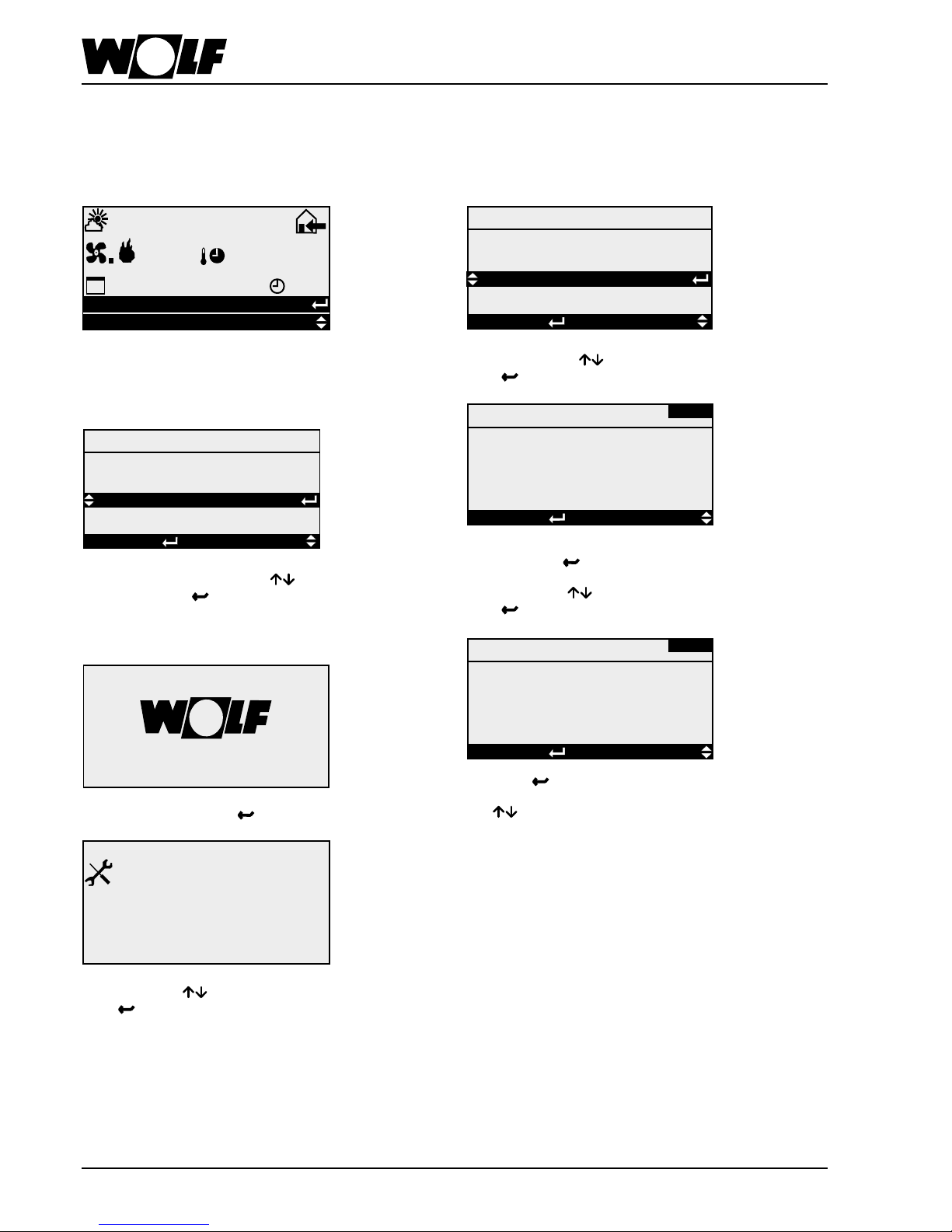

2. When retrotting an air quality sensor (mixed gas or VOC, CO2) follow the instructions below.
Post-conguration, air quality / CO2 sensor
Conguration Activation
Other
Air quality sensor
No
Using ↑ ↓ select "Air quality sensor"
and press Enter to activate re-
conguration.
Select "Yes" with and conrm with
Enter
Other
Air quality sensor
available? >Yes
U08 KLM-M/L
Type 0-10V
Version VOC
Use Enter to conrm the input port
"U8" and type "0-10 V"
Use to select the variant "VOC" or
"CO2"
FR 20.03.09 11:02
21.0
11.4°C 18.5°C
PRG OPERATING DATA
Esc MENUS
ON/OFF
SET VALUE
Press
EscEsc
button
Select 1234 with and conrm with
Enter
wolf-heiztechnik.de
Contractor
Password: 1234
Continue with
Select "Heating contractor" with and
conrm with Enter
Main menus
Standard settings
Displays
Time functions
Contractor
DISPLAYSSELECTIONEsc BACK
Alarm management
Service
Other
Contractor - menus
DISPLAYSELECTIONEsc BACK
Select "Other" with and conrm with
Enter
DISPLAYSELECTIONEsc BACK
DISPLAYSAVEEsc BACK
5
3062933_201707
Post-conguration remote control
Backup mode
Night ventilation
Other
Contractor - menus
DISPLAYSELECTIONEsc BACK
Select "Other" with and conrm with
Enter
Select "Remote control" with and
conrm with
DISPLAYSELECTIONEsc BACK
Other...
Remote control
installed? No
Select "Yes" with and conrm with
Enter
DISPLAYSELECTIONEsc BACK
Other...
Remote control
installed? Yes
Switch power supply to control unit OFF
and ON again
The remote control is enabled
Conguration
Restart system
(mains OFF/ON)
System restart
FR 20.03.09 11:02
21.0
11.4°C 18.5°C
PRG OPERATING DATA
Esc MENUS
ON/OFF
SET VALUE
Press
EscEsc
button
Select 1234 with and conrm with
Enter
wolf-heiztechnik.de
Contractor
Password: 1234
Continue with
3. Proceed as follows to re-congure a remote control
Select "Heating contractor" with and
conrm with Enter
Main menus
Displays
Time functions
Contractor
DISPLAYSSELECTIONEsc BACK
63062933_201707
FR 20.03.09
11:02
21.0
11.4°C 18.5°C
PRG OPERATING DATA
Esc MENUS
ON/OFF
SET VALUE
Press
EscEsc
button
Main menus
Standard settings
Displays
Time functions
Contractor
DISPLAY
SELECTION
Esc BACK
Select "Heating contractor" with and
conrm with Enter
Select 1234 with and conrm with
Enter
Contractor
Password: 1234
Continue with
wolf-heiztechnik.de
4. Proceed as follows for the re-conguration of a LON / BacNet / Modbus / Ethernet / KNX
interface.
Post-conguration, LON / BacNet /
Modbus / Ethernet / KNX interface
Conrm with
Other...
BMS protocol
>LON-Works
Transfer speed
>4800 (RS485/RS422)
BMS address: 001
VALUESAVEEsc CANCEL
Select required connection with
- No proto
- pCO Manager
- LON-Works
- Bac-Net
- Modbus Stave Standard
- Ethernet
- KNX
and conrm with Enter
Other...
Protocol type:
BacNet
VALUESAVEEsc CANCEL
BMS protocol has been set
Hold down
EscEsc
button until you jump to
the standard screen
Select "Other" with and conrm with
Enter
Alarm management
Service
OtherNight ventilation
Limits
Contractor - menus
DISPLAYSELECTIONEsc BACK
7
3062933_201707
Post-conguration, pressure control /
ow rate control / cooling function
FR 20.03.09 11:02
21.0
11.4°C 18.5°C
PRG OPERATING DATA
Esc MENU
ON/OFF
SET VALUE
5. A new conguration of the control unit must be performed in the rst step for the
re-conguration of a pressure/volume ow control unit or a cooling function.
Please note: The complete system conguration will be deleted and must be re-entered.
Displays
Time functions
Contractor
Step 1
Press
EscEsc
button
Alarm management
Service
Other
Night ventilation
Limits
Contractor - menus
DISPLAYSELECTIONEsc BACK
Select "Other" with and conrm with
Enter
Conrm with
DISPLAYSELECTIONEsc BACK
Other...
Remote control
installed? No
Select "Yes" with and conrm with
Enter
DISPLAYSELECTIONEsc BACK
Other...
Remote control
installed? Yes
Select 1234 with and conrm with
Enter
wolf-heiztechnik.de
Contractor
Password: 1234
Continue with
Select "Heating contractor" with and
conrm with Enter
Main menus
DISPLAYSSELECTIONEsc BACK
83062933_201707
Select language:
German, English, French, Dutch, Italian,
Spanish, Portuguese, Hungarian,
Swedish, Danish, Russian, Czech, Slovak,
Slovenian, Polish, Latvian, Lithuanian
Conguration
German
DISPLAYSELECTIONEsc BACK
Please select
language
6. To make an individual control adjustment, you must go through the whole system
conguration process.
Operation (selection) is carried out with
the arrow keys , the selected function
is conrmed with Enter , and then the
next menu is opened automatically.
You can return to a menu with
EscEsc
to
change incorrect settings.
VALUESAVEEsc CANCEL
Conguration
System conguration in preparation
Please wait...
The settings shown under Step 2 must be entered
according to whether pressure control or ow rate
control is selected.
The following selection is possible via
arrow keys:
Ventilation air system
Vent./extr. air system
Conrm selected system type with Enter
VALUESAVEEsc CANCEL
Conguration
System type:
Please select
Factory setting Customer setting
Vent./extr. air system
Select fan speed:
Single stage
Two-stage
Three-stage
Variable
Pressure control
Flow rate control
VALUE
SAVEEsc CANCEL
Conguration
Fan:
Please select
Factory setting Customer setting
Variable
New conguration control unit
9
3062933_201707
Select cooling mode:
No cooling
Cold water pump bank
Direct evap. stage 1
Direct evap. stage 2
Heat pump
Heat pump (Stulz)*
VALUESAVEEsc CANCEL
Conguration
Cooling:
Please select
Factory setting Customer setting
No cooling
Select air dampers:
No air dampers installed
Mixer air dampers
Mixer/vent/ex.air dmpr
Outs./dis. air dampers
vent/ex.air dmpr
Outs./ex.air dmpr
Open/close dampers
CRL damper system*
VALUESAVEEsc CANCEL
Air dampers
Please select
Factory setting Customer setting
Outs./dis. air dampers
New conguration control unit
Select heating mode:
No heating
DHW pump bank
El heater bank stage 1
El heater bank stage 2
El heater bank stage 3
El heater bank stage 4
El heater bank stage 5
El heater bank var.
KGWO
Heat pump
Heat pump (Stulz)*
VALUESAVEEsc CANCEL
Conguration
Heating:
Please select
Factory setting Customer setting
Electric heater bank
variable
DHW pump bank
Depending on
order
Conguration
10 3062933_201707
Select temperature control:
Vent. air control
Room vent. air cascade
Ext./vent. air cascade
VALUESAVEEsc CANCEL
Conguration
Control type:
Please select
Factory setting Customer setting
Ext./vent. air cascade
Select re dampers:
No FD available
1 re damper
VALUE
SAVEEsc CANCEL
Conguration
Number FD:
Please select
Factory setting Customer setting
1 re damper
Select lters:
No lter Vent./extr. air lter
Outside air lter Outside/extr. air tr
Ventilation air lter
Outs./vent/ex. air lter
Extract air lter
Outs./vent. air lter
VALUESAVEEsc CANCEL
Conguration
Filter:
Please select
Factory setting Customer setting
Outside/extr. air tr
New conguration control unit
Select heat recovery system:
No HR available
PHE
RHE
Coil loop without feed
Coil loop + heat feed
Coil loop + cold feed
Coil loop + heat/cold feed
VALUESAVEEsc CANCEL
Conguration
HR:
Please select
Factory setting Customer setting
CKL / CFL PHE
CRL RHE
