Wittkopp Primor 1000 Guía del usuario

Primor 1000

Installer manual

Installation and commissioning instructions

en_02 P1000-Part 2b-Installer manual V2.01

1 / 6

Note:

On the cover sheet you can find warning information, and an explanation of the symbols and

terms used, together with the exclusion of liability.

Contents

General................................................................................................................................. 2

Preparation for installation..................................................................................................... 3

Installation dimensions for lock 1000................................................................................. 3

Preparation of the boltwork / door...................................................................................... 3

Installation............................................................................................................................. 4

Wiring / installation................................................................................................................ 4

Connecting the Primor Signal plus..................................................................................... 5

Function test.......................................................................................................................... 5

Input of the opening code.................................................................................................. 5

Keypad test ....................................................................................................................... 6

Mount the keypad before installing the electronic lock. All the keypads of the Primor series

can be used. For information on how to install the keypads, please refer to "Part 2a- Primor

keypad installer manual".

Primor 1000

Installer manual

Installation and commissioning instructions

en_02 P1000-Part 2b-Installer manual V2.01

2 / 6

General

P1000 series locks have standard

installation dimensions and can be installed

in all 4 installation positions (right, left, top,

bottom). They are designed for boltworks

with a one-sided locking edge, i.e. only for

force absorption by the straight boltwork

flank of the quarter-circle-shaped bolt.

They are intended to be installed in safes

made of metal.

The electronic lock requires no

maintenance in a normal residential or

office environment. We recommend a

security and function test of the electronic

lock after around 10,000 closing actions.

It is essential that the lock is protected

against attacks from outside. It is

recommended to protect the security-

relevant parts of the high-security lock

against access even when the safe door is

open

It is not permissible to use two locks of the

same type with analogue keypads without

any additional components for lock status

detection.

Do not apply any lubricants or other

substances to the lock.

Always follow the following sequence for installation:

•Check the preconditions for installation

•Wiring / installation of the cables

•Connect the power supply

•Function test of the locking mechanism

•Perform all settings (user installation, delay time)

Ensure that the load limits are not exceeded at any time.

You can find the corresponding values in Annex C "Technical data".

Primor 1000

Installer manual

Installation and commissioning instructions

en_02 P1000-Part 2b-Installer manual V2.01

3 / 6

Preparation for installation

Installation dimensions for lock 1000

Preparation of the boltwork / door

To install the lock, there must be four

threaded holes for fastening on the

boltwork or inside the safe door. The

electronic lock must be fastened with the

supplied screws or M6 or 1/4” cylinder

screws (min. strength class 8.8). The screw

length should be measured so that a

minimum screw-in depth of 6 mm is

possible.

Drilling pattern:

The electronic lock can be installed in the area of openings with a maximum diameter of 11

mm around the axis centre shown above.

Primor 1000/1600/2000: this hole can be omitted

Primor 100 / 2000: Centre of electronic lock drive is flush with centre of

input unit (Primor RO)/centre of keypad lever (Primor RE)

Primor 1000

Installer manual

Installation and commissioning instructions

en_02 P1000-Part 2b-Installer manual V2.01

4 / 6

Installation

The retaining screws must be tightened in

such a way that a permanent and firm hold

is ensured.

Tighten the fastening screws with a

maximum torque of 3.5 - 5 Nm. To prevent

the screws from becoming loose, we

recommend using screw locking agents

(adhesive).

There must be no tension or pressure on

the lock bolt after installation.

Make sure there is sufficient clearance to

the locking point.

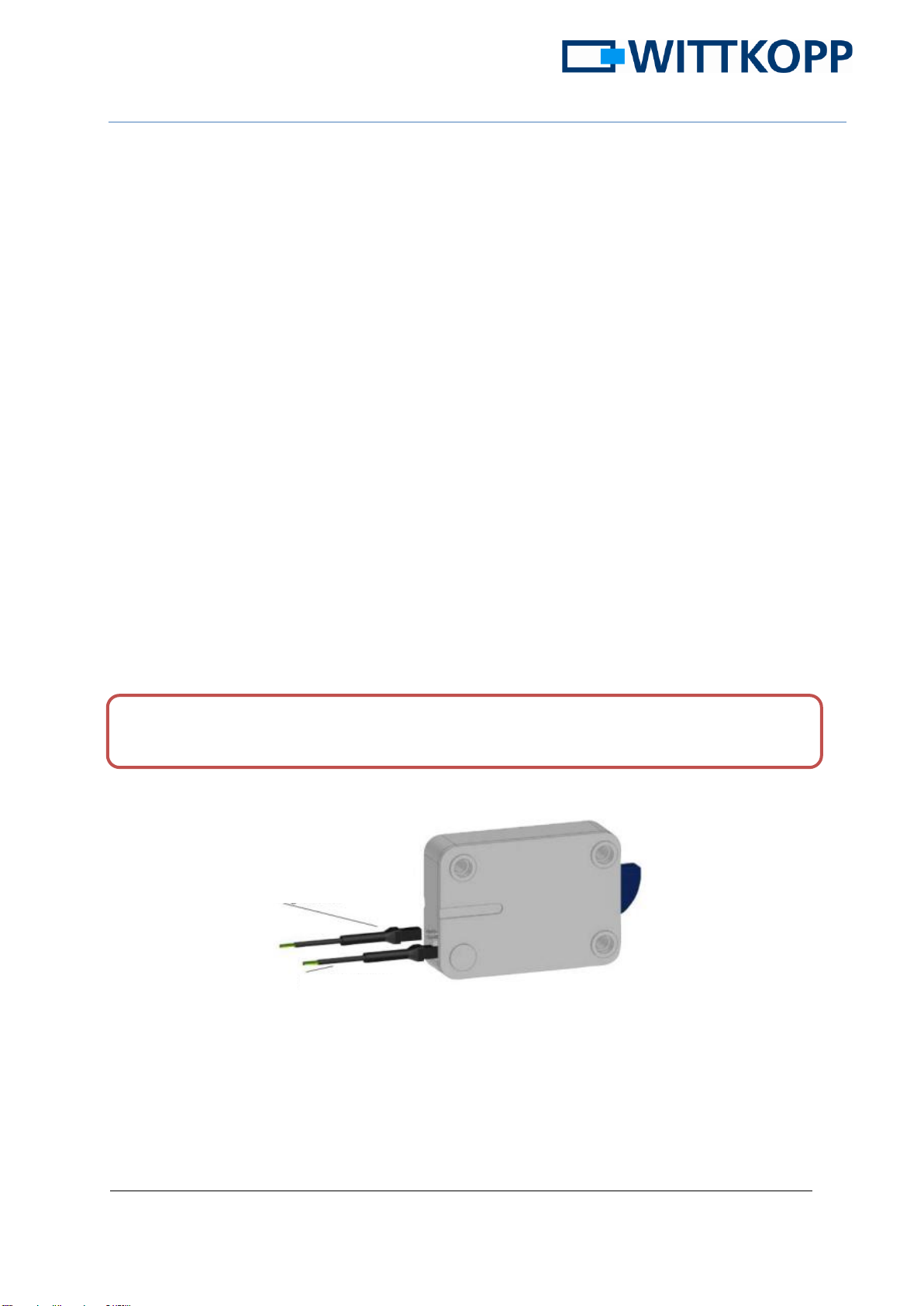

Wiring / installation

The Primor 1000 locks can be externally

powered with Primor Signal plus.

When supplied by a power supply unit, the

charge status of the inserted battery is not

monitored.

Emergency power supply (optional): Insert

the 1 x 9V alkaline block battery.

Disconnect the power supply, including that from batteries, before starting any work or

making any changes to the wiring between the lock, keypad or signal boxes.

External battery compartment / signalbox

Input unit

Primor 1000

Installer manual

Installation and commissioning instructions

en_02 P1000-Part 2b-Installer manual V2.01

5 / 6

Connecting the Primor Signal plus

It is always connected with the second port

(see above) if

•the lock system has an external

power supply,

•a "silent alarm" contact is used to

evaluate a hazard notification

system,

•a system disable function is to be

used by an external signal

(potential-free contact).

This requires the connection of additional

hardware.

The lock is compatible with all the available

components of the Primor series.

You can find informationon the wiring in the

instructions for the signal box.

Function test

Carry out a function test after completing all

the mounting and installation work.With the

door open, you should open and close the

lock several times using the master code

that has been set at the factory.

The relationship between easy opening and

reliable closing can be set using the

operating lever of the boltwork.

The locking check can be done via the

operating lever of the boltwork and should

be performed after each closing and

locking.

Input of the opening code

e.g. master factory code





=✓

→



The opening code can be entered

directly as described above, without

selection. The bolt is released for

approx. 3 seconds after a valid

code has been entered. Open the

container with the valuables within

this time after inputting the code.

=



Primor 1000

Installer manual

Installation and commissioning instructions

en_02 P1000-Part 2b-Installer manual V2.01

6 / 6

Keypad test

We recommend a final keypad test using function menu 5 to ensure that all the numeric keys

function properly.



☼Checking the menu system

Press the keys in the

sequence

…



=✓

Press each numeric key once. A

functional key is indicated by a

double signal tone.

A key that is not recognised is

indicated by a long signal tone and

the function test is terminated. The

system must be checked.
