Introduction

Congratulations! You have purchased one of Win-

egard’s latest developments in the mobile satellite

reception product line —the Movin’ ViewTM. This

system, used with your digital satellite receiver, will

deliver the best reception possible.

How Does Digital Satellite

TV Work?

Satellite programming originates from an “uplink”

facility on Earth — the facility receives many signals

from different sources, combines the signals digitally

and transmits to the satellites. The satellites (22,300

miles above Earth) receive the uplink signal, amplify

it and then transmit it back to earth in the Ku frequen-

cy band. This signal is concentrated and reected

to the LNBF* located at the “focal

point” of the dish. The LNBF ampli-

es and converts the signal to the

950 to 1450 MHz range. The signal

is then passed through a coaxial ca-

ble to the receiver where individual channel

selection and processing take place.

For Programming information call:

Introduction/How Does Digital Satellite TV Work?

PROGRAMMING UPLINK

CONTROL CENTERS

HIGH POWER KU-BAND

DOWNLINK SIGNAL

WINEGARD DIGITAL SATELLITE

SYSTEM ANTENNA

RECEIVER

UPLINK SIGNAL TELEVISION

SET

* Low Noise Block Converter Feed

DISH NETWORK®- 1-800-333-DISH (1-800-333-3474)

DIRECTV®- 1-800-DIRECTV (1-800-347-3288)

EXPRESSVU®- 1-888-SKYDISH (1-888-759-3474)

Your new Winegard RV Digital Satellite System is an easy-

to-use satellite TV reception system. Because it mounts on

the top of your recreational vehicle, it goes where you go

and provides quality reception of digital satellite signals.

Check with your program provider for exact coverage area.

MV3500A features:

• Easy “one-button” operation

• Compatible with most digital satellite receivers

• Ability to toggle between satellites using remote

control, if subscribing to multisatellite programming

• Wired for use with the Winegard HD Satellite

Interface (sold separately, Model WB-2000).

• Winegard warranty

About this manual —We hope this manual will provide clear instructions to install and

operate MV3500A. Two symbols have been used —

Indicates caution should be taken! Indicates suggestions to make

processes easier for you.

Rev. 7/07

 

2. Determine which programming you will be using. This will determine how you set your switches.

For DISH Network set switches to 119°. For ExpressVu®, set switches to 091°.

NOTICE!

This model is PRESET for DIRECTV®receivers.

If you have a DISH Network®or ExpressVu®(Canada) receiver,

you must change the numbered switches inside the dome.

TO CHANGE SWITCHES INSIDE DOME —

1. Remove screws holding dome to base and remove dome. Place dome in safe spot to avoid damage.

Switches will be set at 101° for DIRECTV®. You may be changing these switches.

(#1 represents Switch DOWN; #0 represents Switch up)

Sat. Rcvr. Mt. Option Switch Set Position

..................................... 1 2 3 4 5 6 7 8

DIRECTV 0 0 0 0 0 0 0 1

(FACTORY PRESET)

DISH NETWORK 0 0 0 1 0 0 1 1

ExpressVu 0 1 0 1 1 0 1 1

Quick Reference Guide

SWITCH SETTINGS

SHOWN BELOW

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

1= DOWN 0= UP 1= DOWN

0= UP 1= DOWN

  

  

0= UP

   

1 2 3 4 5 6 7 8

  

1 = DOWN

0 = UP 0 0 0 0 0 0 0 1

0 0 0 1 0 0 110 10 1 10 11

1. Turn on receiver and television set. The MV3500A

must be connected to a receiver that is plugged

into 120 VAC.

2. Verify that you are getting the receiver’s menu

screens on the television. These screens are available

with or without the dish nding the signal.

3. Turn the power switch on for the MV3500A. The

dish will detect if it is already on a satellite signal. If

it detects a signal, the dish will move to check its al-

ternate satellite and then move back to the original

satellite signal that it was on.

4. If no signal was detected, the dish will begin its

search to locate the primary satellite. Once the dish

locates a signal, it will pause long enough to identify

which satellite it has located. This may or may not be

OPERATION (VEHICLE MUST BE STATIONARY!!)

visible on your receiver’s point dish screen.

5. After the unit has veried that it has the correct satellite,

it will move to check the alternate satellite and move back

to the primary satellite to complete the search routine.

6. If you do not have signal, see Troubleshooting, p.11.

NOTE: Because the MV3500A uses information from

the last location that it was on a signal, satellite acqui-

sition may take longer if the dish is inactive over long

distance traveling.

DirecTV must be set to the “two” satellite, oval dish

setting. Refer to your receiver manual.

DISH Network receivers must have the check switch

set for “SW42”. See page 4.

CenTer line of vehiCle

Mv-3500

BACK of vehiCle

fronT of vehiCle

Mv3500A

MOUNTING

CABleS eXiT

froM reAr

To toggle between satellites when subscribing to multi-satellite programming—

The MV3500A will toggle between the primary

and seconday satellites for either DISH Network

or DIRECTV. Both have programming on more

than one satelite. When a channel is selected on

the remote control and is not on the satellite cur-

rently selected, the unit will automatically toggle

to the correct satellite.

DIRECTV programming

1. DIRECTV receivers must be set for oval dish 2

sat selection to enable toggling between primary

101°W satellite and alternate 119°W satellite

only. (Consult receiver manual for procedure.)

After receiver is set for the correct dish selection,

when you request a channel located on a different

satellite, the unit will automatically toggle to that

satellite.

DISH Network programming (DISH 500)

DISH Network receivers must have the “SW42”

switch installed in order to toggle between the pri-

mary 119° satellite and the alternate 110° satellite.

(Consult your receiver manual for the procedure

to reach the “check switch” menu.)

To install the “SW42” switch:

1. Before turning on your MV3500A system, make

sure that your satellite receiver and television are

turned on and your receiver is on the “point dish”

menu. (Consult your owner’s manual to reach this

menu.)

2. Turn on the MV3500A system and wait for sig-

nal acquisition on satellite 119°.

3. After signal is acquired, you have 6 minutes to

complete Check Switch test. Consult your receiv-

er manual for instructions on running this test. Be

sure that Superdish and Alternate are unchecked

if applicable. Onscreen options may vary by re-

ceiver.

4. During the Check Switch Test, the receiver will

begin checking the switch by toggling between

satellites. When this is completed, SW42 will

appear on the screen. It will be at the top of the

screen, satellite designations will be below, show-

ing odd and even transponders. See illustration.

If a switch other than SW42 appears, or you

have an X in one of the boxes below the satel-

lites, repeat Check Switch Steps.

NOTE: Be sure the “Superdish” and “Alter-

nate” boxes ARE NOT checked.

!Toggle: Your Winegard automatic

satellite dish will move from the

primary to the alternate satellite

in order to receive multi-satellite

programming.

5. Your system is now set up to toggle between

satellites. It will automatically move to the correct

satellite when a channel is selected with your re-

mote control.

NOTE: Once these steps are completed, you

won’t have to perform this test again, unless

Check Switch was performed on another satel-

lite dish, such as a home dish.

Check Switch screen display

Install Summary

Input: 1 1 1 1

Satellite: 119 119 110 110

Polarity: Odd Even Odd Even

Status: Satellite reception veried

Superdish Alternate

Cancel Test Help

SW42

!Be sure that either the “SW42” switch

is installed, or that “unknown switch”

is installed. Any switch other than

“SW42” may result in unexpected

operation.

All required screws, washers, bolts, and nylocks

1 base with electronics, dish, dual LNBF

30’ Coax Cable

30’ Power/Data Cable bundle

1. Open box and remove packing material.

2. Lift dome out of box vertically. Then lift unit out of box

vertically. Do not turn box and “roll” out, or turn up-

side down to remove.

USE 2 PEOPLE

when removing the unit

from the carton.

Parts Included • Tools Needed • How to Unpack

If using knife to open

carton, BE CAREFUL.

Do not cut the dome on

the unit.

1 Radome

1 Power switch

1 Wall plate (white)

1 Surface mount box

1 Cable entry plate

4 Base feet

large yellow ag connector

2 small red ag connectors

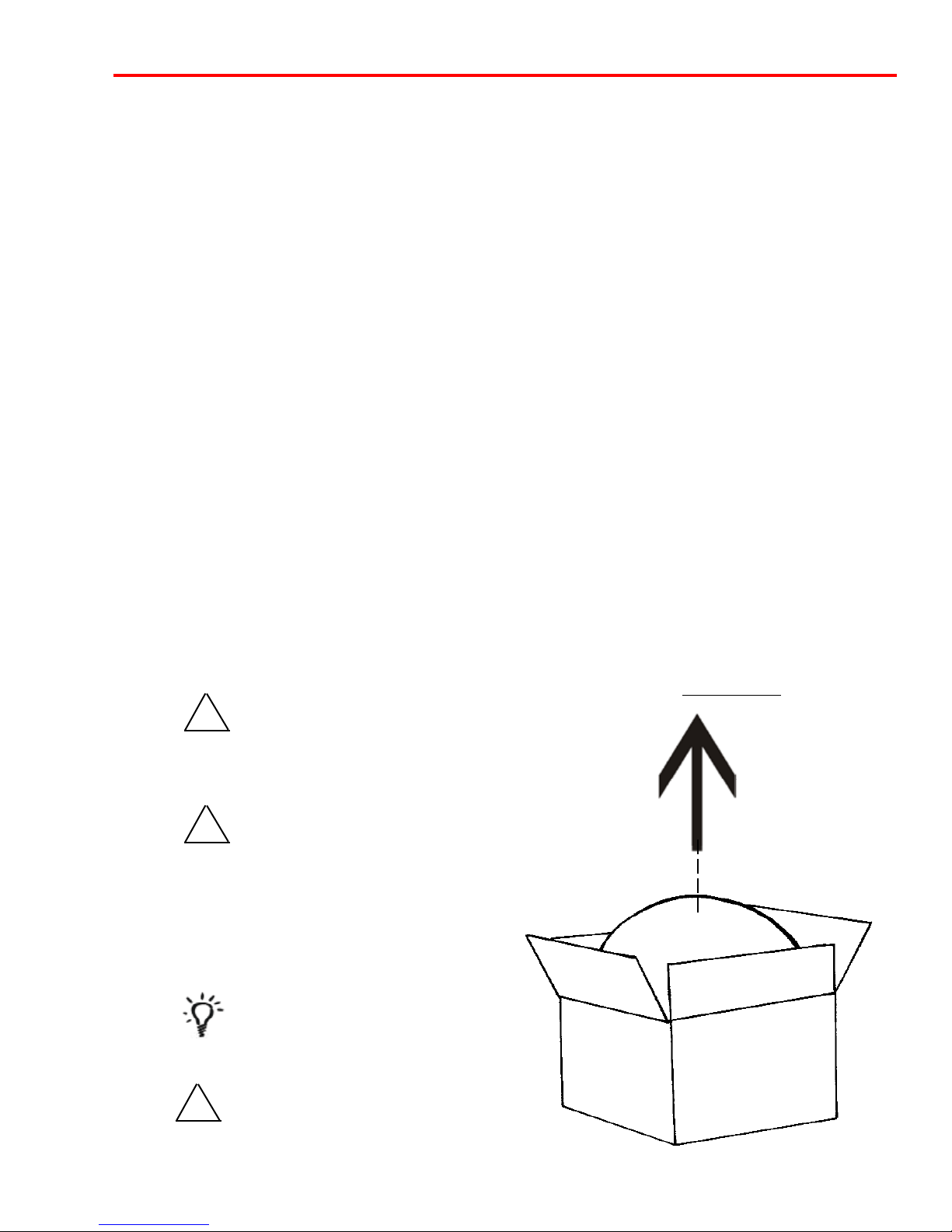

LIFT UNIT STRAIGHT UP

OUT OF CARTON!

TOOLS NEEDED FOR UNPACKING & INSTALLATION:

UNPACKING THE UNIT

Level

Drill w/3/4” bit

1-1/4” hole saw (if mounting switch in wall)

Phillips screw driver #2

3/8” Open end wrench

1/2” Drill bit

7/16” Open end wrench

Sealant (consult RV manufacturer for proper type

for your roof material)

PARTS INCLUDED:

!BE CAREFUL when

removing unit. Dome is

attached to base by only

3 pieces of tape, NOT BY

SCREWS.

!DO NOT PAINT DOME!

Painting dome will cause

signal degradation.

REV. 7/07

Installation Diagram

Control Box detail

LNBF

RECEIVER

ELEVATION

AZIMUTH

(#1 represents Switch DOWN; #0 represents Switch up)

Sat. Rcvr. Switch Set Position

....................... .... 1 2 3 4 5 6 7 8

DISH NETWORK....................... ....... 0 ... 0.... 0 ... 1.... 0 ... 0....1 ... 1

DIRECTV.................................... 0 ... 0.... 0 ... 0.... 0 ... 0.... 0 ... 1

(FACTORY PRESET)

ExpressVu .................................. 0 ... 1.... 0 ... 1.... 1 ... 0....1 ... 1

Model MV3500A

Control Unit

ELEVATION

MOTOR

LNBF



SiDeS of ConTrol UniT

MUST Be PArAllel To

The CenTer line of The

vehiCle AnD fACe fronT

or reAr of vehiCle.

CenTer

line of The

vehiCle



GPS ANTENNA

(RoadTrip SDi In-Motion

models ONLY)



CenTer

line of The

vehiCle

Used for

Second

Receiver

(Not Included)

of vehiCle.

Installation

IMPORTANT! Do not install this system

in the rain, or under any wet conditions. Mois-

ture may affect electronics and void your warranty!

1. For best performance and to reduce signal

acquisition time, park vehicle on a level surface;

level the RV.

2. Select a level spot on your roof for installation.

Using the chart,

determine the

minimum distances

to other equipment.

WARNING: Level the base front to back and

side to side. If base is not level the MV3500A

may require more time to locate the correct

satellite or may not locate the correct satellite.

 •Besurenoroof-mountedequipmentis

blocking the satellite “line of sight”, Fig. 3

• You will need to decide where the wires will enter

the vehicle. A coax and a power wire (minimum 16

gauge) will need to be run into the vehicle.

WARNING: Many +12VDC sources can cause the

unittofail.Selectalteredsource,preferablya

dedicated line to the battery.

Install in DRY conditions only!

Installing unit on roof of vehicle —

Obstruction Ht. Unit Clearance

8” ........................................... 4”

10” .................................... 11.5”

12” ....................................... 19”

15” ....................................... 32”

FIGURE 3

oBSTrUCTion

UniT BASe

3. After selecting location for unit (see number 2),

put the unit on the centerline of the vehicle.

4. Position base so that cables exit toward the rear

of the vehicle. Electronics box should be parallel

to the centerline of the vehicle.

5. Mark around the 4 base feet, shown in Fig. 4.

FIGURE 4

6. Clean roof area where the base feet will be at-

tached to the roof. Do not erase your marks!

7. Put approved sealant in the areas marked

for the base feet. Place base feet on top of the

sealant and screw down with the (3) #10 screws

(provided) for each foot.

8. After all base feet are secured to roof, put seal-

ant around edge of feet and over screws.

Installation

1. Decide the best location for the cables to enter the

vehicle, and the location of the power switch and

receiver (see “Installing the switch and receiver”on

pages 9 and 10). Drill a 1/2” hole in the roof, push

wires inside. Make proper connections.

Youmusthaveltered+12VDCpowersource.

2. If installing a second receiver, route second coax

cable (not supplied) through empty Heyco into base.

Connect to secondary coax connection point. See

page 6.

3. Place cable-entry plate over hole and cables. Screw

in place. Seal plate and screw holes with approved

sealant (not included).

4. Depending on the length of the cable on the roof,

you may need to use cable clamps or wire ties (not

provided) between the unit and your cable-entry plate.

Clamping the cable every 12”-16” should eliminate any

unnecessary cable movement.

Cable entry installation —

REV. 7/07

PRIMARY

RECEIVER

(GRAY WIRE)

Mv-3500

roADTriP

SECONDARY

RECEIVER

(WHITE WIRE-

OEM ONLY)

COAX CABLE ROUTING

INSTALLING THE POWER SWITCH

1. Choose a location to install the Movin’ View power

ON/OFF switch. Remember when selecting a location

that you will need to run the +12VDC power cable from

the Movin’ View antenna to the switch. Be sure the

switch is in the OFF position before continuing.

See Figure 7 page 8.

Wall or panel mount: Drill 1-1/4” hole, pull wires

through wall or panel.

2. Connect the ground wire from the vehicle and the

BLACK ground wire from the antenna together,

using large yellow ag connector.

3. Connect the YELLOW ag connector to

the silver spade on the switch.

4. Connect the RED wire from the antenna to the

small RED ag connector.

5. Connect small RED ag connector to center

spade on switch.

6. Connect the +12 V power wire from the vehicle to

a small RED ag connector.

7. Connect small RED ag connect to isolated

spade on switch.

INSTALLING THE POWER SWITCH DIAGRAM

STEPS 2 & 3

TWO GROUND WIRES

1 FROM VEHICLE

1 BLACK WIRE FROM

SATELLITE DISH STEPS 4 & 5

RED POWER

WIRE FROM

DISH

STEPS 6 &7

+12 V FROM VEHICLE

ON/OFF ROCKER SWITCH

WITH LIGHT

(Shown in OFF position.)

FIGURE 7

DO NOT CUT DATA CABLE SHORT!

HD Ready

The power wire is bundled with a data cable for con-

necion to the Winegard HD Satellite Interface. DO NOT

CUT DATA CABLE SHORT! If you will not connect the

HD Satellite Interface at this time, hide the data cable

behind the wall plate for future use.

MOVIN’ VIEW

(NOT

SUPPLIED)

QUADREX

SCREW WITH

RUBBER

WASHER

(USE #2 PHIL-

LIPS)

1. Be sure that switch settings have been made ac-

cording to your service provider. See page 3.

2. Be sure vehicle is in a location free of all obstruc-

tions and with a clear view of the satellite.

3. Power up unit, turn on receiver. Verify that the

correct satellite is found. Refer to page 3 for de-

tail of operation.

4. Replace dome using 8 supplied screws.

Initializing & replacing the dome after

connecting the receiver(s) —

Connecting two receivers

1. Connect the coax cable coming from the

MV3500A to the “ SATELLITE IN” input on the

primary receiver. The primary receiver is the re-

ceiver used most often and will toggle between

satellites.

2. Run a second cable through the empty Heyco

opening and connect to the ground block-type

feed through and connect the other end of this

cable to “Satellite IN” input on the second receiver.

NOTE: Secondary receiver will not toggle.

NOTE: Many DVR receivers and many dual re-

ceivers require two coax cables be connected

to operate properly. Consult your receiver

manualforspecics.

Installation • Wiring

Connecting one receiver

1. Connect the coax cable from the MV3500A to

the “SATELLITE IN” on the receiver.

Connecting the receiver —

PRIMARY

RECEIVER

USED ONLY WITH

A SECONDARY RE-

CEIVER

GROUND BLOCK

CUSTOMER/INSTALLER PRO-

VIDES COAX FOR SECOND

RECEIVER

Rev. 9/07

HD Compatibility

In order to receive the full lineup of HD Programming

from your Satellite Program Provider, you will need to

purchase the Winegard HD Satellite Interface Model

WB-2000.

The Satellite Interface will allow your Movin’ View

system to receive additional satellites with more HD

programming.

DIRECTV subscribers will also require the DIRECTV

110°W Converter, Model WB-1100.

INSTALLING THE DOME

Insert screw in holes on dome

rim. Be sure bolt is vertical;

not tilted to side. Tighten to

20 in.-lb., or approximately

until washer is visible around

screw head.

CAUTION:

DO NOT

OVERTIGHTEN!!

Troubleshooting

The MV3500A does not attempt to nd a satellite or

it never moves.

The dish never stops on any of the signals that

it sees.

1. Check your Power switch to verify that it is in the ON position.

2. Check +12 V wires at unit to verify power. Check fuse on

electronics.

PROBLEM SOLUTION

1. Make sure that your receiver is set up correctly.

For DISH Network, the check switch should read either “Unknown”

or “SW42”.

For DirecTV the receiver should be set for a Two Satellite Oval

Dish.

With DIRECTV, the dish will nd the alternate

satellite but it never nds the primary satellite.

I am not getting all the DISH Network channels

I subscribed to.

The MV3500A never sees any signals, it just keeps

searching.

Make sure that the Switches on the Electronics Control Box are

set for DirecTV. See page 3. These switches are found under the

dome, inside the Electronics Control Box.

1. Go to the check switch menu in receiver. Make sure that it’s set

for SW42 and lists both even and odd transponders on satellites

110° and 119°.

1. Rain, Snow or excessive Dew on the dome can interrupt the

signal. Snow and Dew can be brushed off the dome. If Heavy rain

or Snow fall is blocking the signal, it may be necessary to wait

until the weather clears.

2. Check to see if the Southern sky is clear. Trees, Buildings,

Large signs or an Overpass can block the signal. Find an area

where you can be sure that this is not the problem and try again.

3. Make sure the receiver has power and the satellite dish is con-

nected to the “Sat In”.

Otros manuales para Movin' View MV3535A

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Antena de Winegard

Winegard

Winegard Sensar HV CC-25HV Manual de usuario

Winegard

Winegard Carryout G2 Manual de usuario

Winegard

Winegard RZ-7500 Manual de usuario

Winegard

Winegard DuraSAT D4 CM2000T Manual de usuario

Winegard

Winegard RoadTrip Mission Manual de usuario

Winegard

Winegard SENSAR III Manual de usuario

Winegard

Winegard SK-1000 Manual de usuario

Winegard

Winegard Pathway X1 Manual de usuario

Winegard

Winegard Movin' View MV3500A Manual de usuario

Winegard

Winegard Carryout PM-2000 Manual de usuario

Winegard

Winegard Rayzar Z1 RZ-5000 Manual de usuario

Winegard

Winegard HD6055P Manual de usuario

Winegard

Winegard Movin' View MV-0099 Manual de usuario

Winegard

Winegard WAVU W1 Manual de usuario

Winegard

Winegard FlatWave AIR Manual de usuario

Winegard

Winegard RD-9046 Manual de usuario

Winegard

Winegard RM-4600 Instrucciones originales

Winegard

Winegard SensarPro Manual de usuario

Winegard

Winegard TRAV'LER SK-73UP Guía de inicio rápido

Winegard

Winegard YA-1713 Manual de usuario

Winegard

Winegard SENSAR Manual de usuario

Winegard

Winegard RAYZAR z1 Manual de usuario

Winegard

Winegard PROSTAR HD-6000 Manual de usuario

Winegard

Winegard AIR 360+ Manual de usuario

Manuales populares de Antena de otras marcas

Alfa Network

Alfa Network APA-L01 Manual de usuario

Naval

Naval PR-422CA Manual de usuario

Feig Electronic

Feig Electronic ID ISC.ANTH200/200 Series Manual de usuario

TERK Technologies

TERK Technologies TV44 Manual de usuario

Directive Systems & Engineering

Directive Systems & Engineering DSE2324LYRMK Manual de usuario

HP J8999A Manual de usuario

MobilSat

MobilSat MSP-S Manual de usuario

Steren

Steren ANT-UHF 13 Manual de usuario

Novatel

Novatel 600-G Manual de operación

Radio Shack

Radio Shack Amplified VHF/UHF/FM Indoor Antenna Manual de usuario

TRENDnet

TRENDnet TEW-AO12O Manual de usuario

Radio Shack

Radio Shack 15-1837 Manual de usuario

CommScope

CommScope CMAX-OMFX-43M-I53 Manual de usuario

Ramsey Electronics

Ramsey Electronics DAP25 Manual de usuario

COBHAM

COBHAM SAILOR 800 VSAT Manual de uso y cuidado

Trango Systems

Trango Systems AD900-9 Manual de usuario

Steren

Steren ANT-100 Manual de usuario

Proxim

Proxim 5054-PA-23 Manual de usuario
