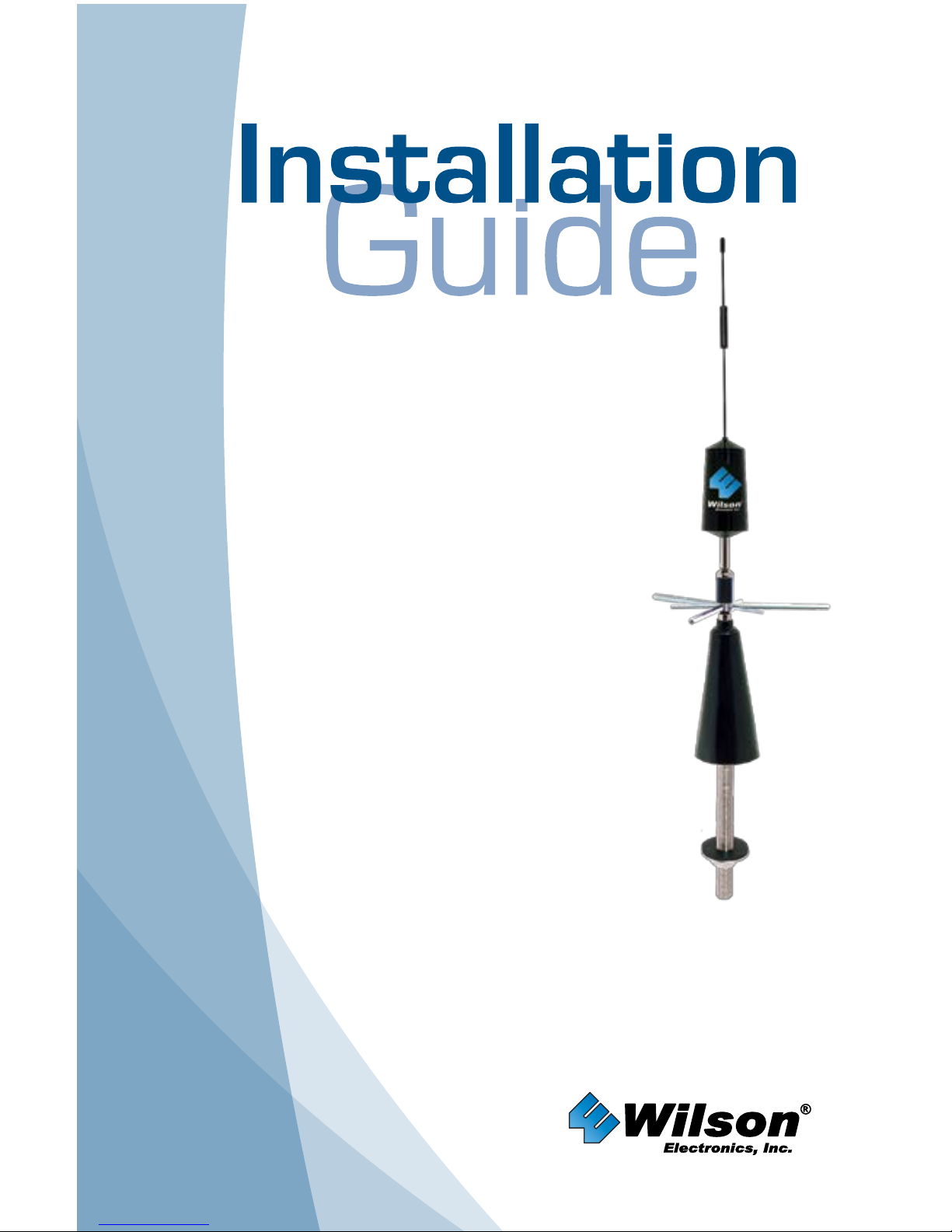

Wilson Electronics 301119 Manual de usuario

Antenna

Features:

• Multi-band

• Analog and digital

• Improves voice and data signal quality

• Designed for RV’s and trucks

• Built-in spring reduces impact damage

• Built-in ground plane allows for mounting on any surface

RV / Trucker

Roof Mount

Cellular Antenna

#301119

1Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [email protected]. Hours: 7 am to 6 pm MST.

Package Contents

1 - RV / Trucker Antenna 2 - 5/8” nuts

6 - radials (3 short, 3 long) 2 - star lock washers

1 - thread-locker liquid 2 - steel washers

2 - rubber washers 1 - rubber boot

2 - sets of angle mounts 1 - 5/8” x 7” threaded rod

Installing the Antenna

1. Unscrew the 7” threaded rod from the antenna and

slide it off the antenna cable. Remove the washers

and nuts from the threaded rod. Leave the rubber boot

on the antenna.

2. Choose the location to mount your antenna. Some

installations may require headliner removal - this is

difficult and my require a professional installer. For

RV’s we recommend mounting your antenna so that

the lower hole is hidden inside a cabinet towards

the front of the RV. If you are installing on a slanted

surface, you will want to use the included angle

mounts (see Diagram 1). If you use the angle mounts,

make sure the rubber washers are placed directly against

the mounting surface.

3. Disconnect the vehicle’s electrical power. Drill a 5/8”

hole up through the roof being careful not to come into

contact with electrical wires or air vents. Drill the hole

perpendicular to the ground. Avoid following any slant

in the roof. (Antenna should be mounted vertically).

4. Note that one end of the threaded rod has inside

threads. This is the top end that the antenna will screw

into after installation of the threaded rod. Put a rubber

washer, angle mount (if mounting surface is slanted),

steel washer, star washer and nut on top of the

threaded rod. Push the threaded rod down through

the hole - the side that has inside threads must be on

top. If you are mounting on a slanted surface, rotate

the angle mounts to account for any gaps.

5. Depending on your application, you may want to cut

the threaded rod if it extends too far down from the

roof. Alternatively, if the ceiling of your vehicle is

thicker than 7 inches, Wilson Electronics offers a 12-

inch threaded rod (#901116), available through your

dealer. If you don’t want to cut - skip to step 6. The

threaded rod is brass and should cut easily. Mark the

location of the cut on the lower part of the threaded

rod. Leave enough threads to fit the remaining three

RV/Trucker

Cellular Antenna

Radials

Spring

Rubber Cone

Rubber Boot

5/8” Nut

Star Washer

Steel Washer

Rubber Washer

5/8” x 7”

Threaded rod

Rubber Washer

Steel Washer

Star Washer

5/8” Nut

DIAGRAM 1 (Angle Mounts)

ANGLED ROOF

How It Works

Wilson Electronics RV / Trucker Roof Mount Cellular Antenna will collect the cell tower

signal and send it through the cable to a Signal Booster or directly to the cell phone or

laptop data card. When the cellular device transmits, the signal is transferred to a Signal

Booster or directly to the antenna and transmitted back to the cell tower.

Antenna Adapter Required – Sold Separately

A phone/data card-specific, six-inch Antenna Adapter is required when connecting

the antenna directly to a cellular device. To identify the correct adapter, see Wilson

Electronics Adapter Guide at www.WilsonElectronics.com or call Technical Support at

866-294-1660.

Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [email protected]. Hours: 7 am to 6 pm MST.

Disclaimer: The information provided by Wilson Electronics, Inc. is believed

to be complete and accurate. However, no responsibility is assumed by Wilson

Electronics, Inc. for any business or personal losses arising from its use, or for

any infringements of patents or other rights of third parties that may result from

its use.

Roof

Ceiling

Roof

Headliner

washers and the nut. Remove the threaded rod

from the vehicle. Place a nut onto the threaded rod

at the point where you will cut it.

CAUTION: Check that you are not cutting into the

top end with the inside threads. Tighten this nut

in a vise and cut with a hacksaw. Once the cut is

complete, remove the nut from the cut end to de-

burr the threads. Use a rat-tail file or knife to de-

burr the inside of the rod. This is important because

a sharp edge may later cut the cable.

6. Push the threaded rod back down through the hole

in the roof. Place a rubber washer, steel washer,

star washer and nut onto the lower end of the

threaded rod. Tighten the nut until it is snug, but

do not over tighten. It may be necessary to have a

second person hold the nut on top of the vehicle.

7. Feed the antenna’s cable through the center of the

threaded rod from the top of the vehicle. Screw the

bottom of the antenna to the internal threads of the threaded rod. We recommend that you place a

bead of silicone caulking around the outside rubber washer and bottom of the outside nut. Push the

rubber boot down over the nut and washers.

8. The six radials should be screwed into the antenna just above the short fiberglass rod. A small amount

of the included liquid thread lock on the radial’s threads will ensure that they will not vibrate out.

9. Route the cable to the location where you will be using your phone. Attach the adapter (not included)

to the female FME connector on the end of the antenna cable.

NOTE: For best performance, it is important to mount the antenna as high as possible.

Warning: If using a Signal Booster, ensure that all antenna and adapter cables are

connected before powering up the Signal Booster.

Warning: Mount the antenna at least 8 inches away from any other antennas to avoid

interference.

Technical Support

You may obtain additional help by calling 866-294-1660, Monday through Friday between 7:00 AM

and 6:00 PM MST. Wilson Electronics is closed Sat.-Sun. and holidays.

U.S. Patent Nos. – D462,070; D506,995; 6,788,261

Antenna Specifications

Part Number 301119

Frequency Range 700-800 MHz / 824-894 MHz / 880-960 MHz /1850-1990 MHz

Impedance 50 ohms

Antenna Gain 3.1 dBi 700-800 MHz / 4.1 dBi 824-894 MHz /

2.0 dBi 880-960 MHz / 5.1 dBi 1850-1990 MHz

Radiation Omni

Polarization Vertical

Ground Plane Built-in Ground Plane

Connector FME Female

Material Whip - Stainless Steel

Coax Cable RG58 - 13.5 feet / 4.115 meters

Height 24 inches including threaded mount / 45.72 cm

Mount 5/8” x 7” threaded mounting rod

30-Day Money-Back Guarantee

All Wilson Electronics products are protected by Wilson Electronics 30-day

money-back guarantee. If for any reason the performance of any product is not

acceptable, simply return the product directly to the reseller with a dated proof of

purchase.

1-Year Warranty

Wilson Electronics Trucker Roof-Mount Multi-Band Cellular Antenna is warranted

for one (1) year against defects in workmanship and/or materials. Warranty cases

may be resolved by returning the product directly to the reseller with a dated proof

of purchase.

Antennas may also be returned directly to the manufacturer at the consumer’s

expense, with a dated proof of purchase and a Returned Material Authorization

(RMA) number supplied by Wilson Electronics. Wilson Electronics shall, at its

option, either repair or replace the product. Wilson Electronics will pay for delivery

of the repaired or replaced product back to the original consumer.

This warranty does not apply to any antennas determined by Wilson Electronics

to have been subjected to misuse, abuse, neglect, or mishandling that alters or

damages physical or electronic properties.

RMA numbers may be obtained by contacting Technical Support at 866-294-1660

or e-mail [email protected].

3301 East Deseret Drive, St. George, UT 84790

For additional Technical Support visit www.WilsonElectronics.com

or email at: tech@wilsonelectronics.com

Phone: 866-294-1660 Local: 435-673-5021 Fax: 435-656-2432

www.twitter.com/WilsonCellular www.facebook.com/WilsonCellular

Part #103016_AIG_AntennaRV_Rev12_08.10.12
