Wilson Electronics 301114 Manual de usuario

Antenna

Installation

ide

stallatio

stallat

Dual-Band

Glass-Mount

Antenna

PART# 301102

Features:

• Vehicle, home or ofﬁce use

• Easy to install

• Permanent installation

• Built-in ground plane

• Requires antenna adapter (sold separately)

• Compatible with Wilson ampliﬁers (optional)

Wilson

Electronics, Inc.

Dual-Band Mini

Glass-Mount

Antenna

PART# 301114

30-Day Money-Back Guarantee

All Wilson Electronics products are protected by Wilson’s 30-day money-back

guarantee. If for any reason the performance of any product is not acceptable,

simply return the product directly to the reseller with a dated proof of purchase.

90-Day Warranty

Wilson Electronics antennas are warranted for ninety (90) days against defects in

workmanship and / or materials. Warranty cases may be resolved by returning the

product directly to the reseller with a dated proof of purchase.

Antennas may also be returned directly to the manufacturer at the consumer’s

expense, with a dated proof of purchase and a Returned Material Authorization

(RMA) number supplied by Wilson Electronics. Wilson shall, at its option, either

repair or replace the product. Wilson Electronics will pay for delivery of the repaired

or replaced product back to the original consumer.

This warranty does not apply to any ampliﬁers determined by Wilson Electronics

to have been subjected to misuse, abuse, neglect, or mishandling that alters or

damages physical or electronic properties.

RMA numbers may be obtained by phoning Technical Support at 866-294-1660.

How They Work

Wilson’s Dual-Band Glass Mount and Mini Glass-Mount antennas will collect the

cell tower signal and send it through the cable to an ampliﬁer or directly to the cell

phone or cellular data card. When the cell phone or cellular data card transmits,

the signal is transferred to an ampliﬁer or directly to the antenna and broadcast

back to the cell tower. See the back cover for information on Wilson ampliﬁers.

Antenna Adapter

An 18-inch external adapter is required to connect the cell phone or cellular data

card to the antenna. The external adapter is cell phone/data card-speciﬁc and

may be purchased through a local retailer. Refer to Wilson’s Adapter Guide to

identify the right adapter for your cell phone or cellular data card. TheAdapter

Guide is available through a local retailer. It is also available on our web site,

www.wilsonelectronics.com, or you may call Technical Support at 866-294-1660.

Disclaimer: The information provided by Wilson Electronics, Inc. is believed to

be complete and accurate. However, no responsibility is assumed by Wilson

Electronics, Inc. for any business or personal losses arising from its use, or for

any infringements of patents or other rights of third parties that may result from

its use.

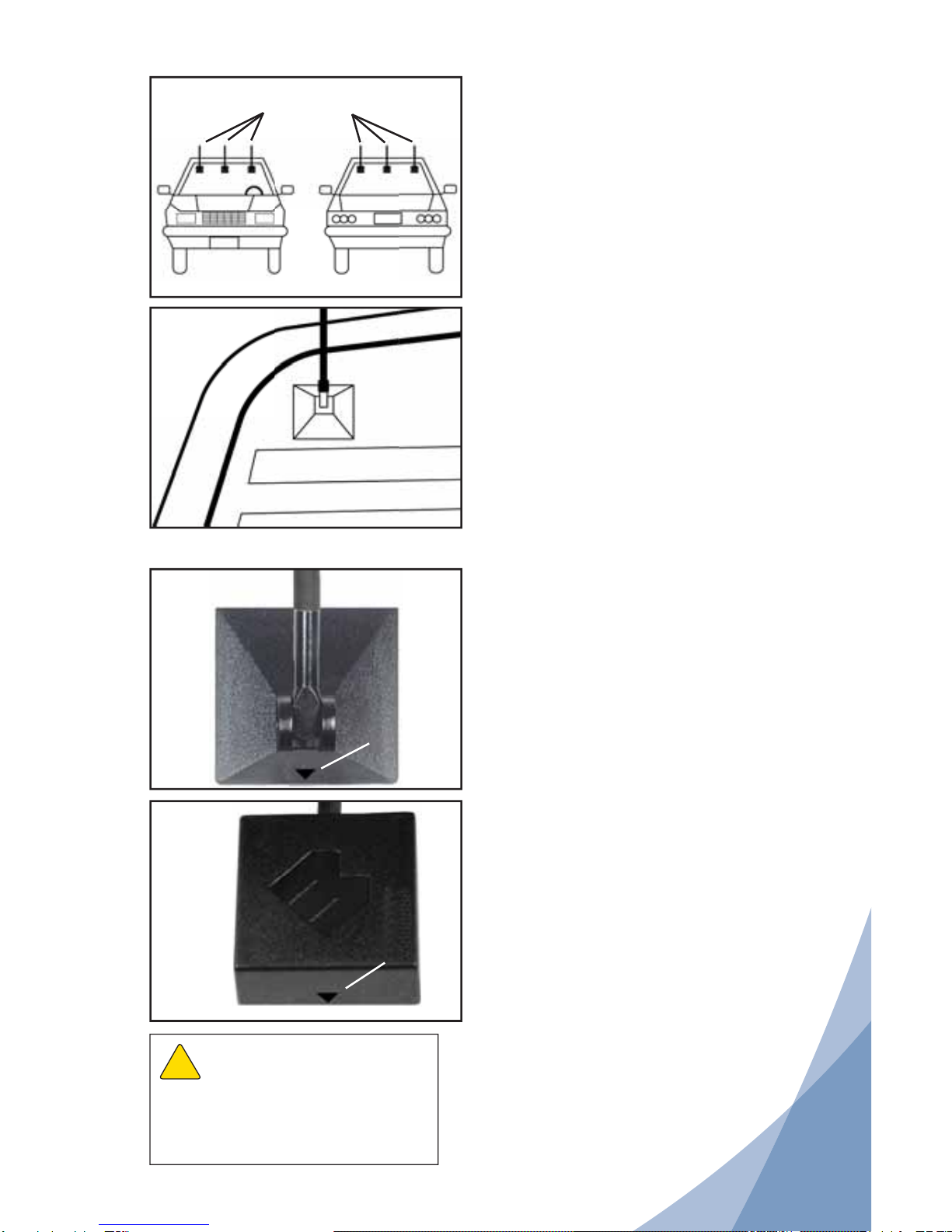

The antenna may be mounted along

the top of the front or rear window. For

best performance don’t mount on the

rear window of trucks or SUVs.

Check to ensure your mounting

location won’t interfere with windshield

wiper operation.

Keep the antenna away from defogger

wires and metallic aftermarket window

tint - most factory tint is nonmetallic

and will not interfere. If the antenna

must be mounted on the defogger,

center it between the defogger wires

as much as possible.

Clean the exterior window surface

with glass cleaner or an alcohol swab.

Be sure the same location inside the

window is clear of obstacles.

Remove the protective paper on the

base to expose the adhesive pad and

ﬁrmly press the antenna into place on

the outside of the window. Note: If

installing on a home or ofﬁce window,

ensure that it is not dual pane glass.

Not recommended for RVs - too much

metal above the window will interfere

with operation.

The coupling box is installed on

the interior of the glass in the same

position as the antenna base on the

outside. Clean the inside surface with

window cleaner or an alcohol swab.

The coupling box must be installed

so the arrow indicator faces the same

direction of the arrow indicator on the

antenna base.

Remove the protective paper to

expose the adhesive pad and ﬁrmly

press the coupling box into place.

Connect the coax cable to your

adapter cable or ampliﬁer.

Warning: The antenna and coupling

box must be properly positioned or they will

fail to function. Both direction indicator

arrows must face the same direction when

the antenna is installed.

Direction

Indicator

Direction

Indicator

Antenna

Base

Coupling

Box

Possible Mounting

Locations

Avoid

Defogger

Wires

3301 East Deseret Drive, St. George UT 84790

For additional Technical Support visit

www.wilsonelectronics.com

Phone: 866-294-1660 Fax: 435-656-2432

Part #000000 AIG DBGM 002 / 02.06.07

Wilson

Electronics, Inc.

Antenna Speciﬁcations

Part Number 301102 301114

Frequency Range 806-894 MHz / 1850-1990 MHz

Impedance 50 ohms

Antenna Gain 4.5 dBi 806-894 MHz /

5.9 dBi 1850-1990 MHz 1.4 dBi 806-894 MHz /

2.4 dBi 1850-1990 MHz

Radiation Omni

Polarization Vertical

Wavelength 1.1 Wavelength 806-894 MHz /

2.3 Wavelength 1850-1990 MHz 1/4 Wavelength 806-894 MHz /

9/16 Wavelength 1850-1990 MHz

Ground Plane Built-in ground plane

Connector FME-Female

Material Whip - Stainless Steel Whip - plastic coated steel wire

Coax Cable RG58 - 14 feet / 4.27 meters

Height 15 inches / 38.10 cm 5.375 inches / 13.65 cm

Mount Glass mounting with 3M™ adhesive

Wilson Ampliﬁers Boost Coverage Even More

A Wilson Electronics ampliﬁer (sold separately), when used in conjunction with

your antenna, can improve your cell phone and laptop data card coverage

area up to 50 miles. Wilson manufactures a wide range of wireless and direct-

connection ampliﬁers for mobile or in-building use. See your dealer for details or

visit www.wilsonelectronics.com.
