WMPPPL_IOM_Sump Pumps_RV-002_202011102

en Installation and Operating

I

n

str

uctions

WILO Mather and Platt –Sump Pumps

Installation and operating instructions WILO Mather and Platt –Sump Pumps 2

Disclaimer

WILO Mather and Platt is very grateful for your interest in its products. The basic objective of this

document is to provide instructions for maintaining and operating WILO Mather and Platt Sump Pumps.

Instructions are compiled for the person having a working knowledge of Sump Pumps and the pumps shall

be installed under expert supervision and guidance.

With this document WILO Mather and Platt does not accept any liability for inaccurate installation,

operation or maintenance of the product at site. The authorities that install and maintain the pump shall

be responsible for hassle free installation operation or maintenance of the product.

This document is prepared with at most care to ensure correct and accurate information, enabling the

user to have trouble free installation and operational support. However, there can be few areas for

improvement to make this document error free.

We welcome your valuable suggestions to make this document complete in all respects.

WILO Mather and Platt Pumps Pvt. Ltd.

Mumbai-Pune Road, Chinchwad,

Pune- 411 019, Maharashtra (India)

Tel: +91 20 27442100/1/2/3/4,

Toll Fee Service: 1-800-266-8866

Fax: +91 2027442111

service.in@wilo.com

www.wilo.in

Plant Location -

Pump Type -

So. No. -

Q (m3/hr.) -

H (m) -

N (rpm) -

P kW -

Imp. Dia. -

Note: To be filled by the Customer

Installation and operating instructions WILO Mather and Platt –Sump Pumps 3

CAUTION! : Do not lift the Pump with motor.

Always dismantle the motor before lifting the pump unit.

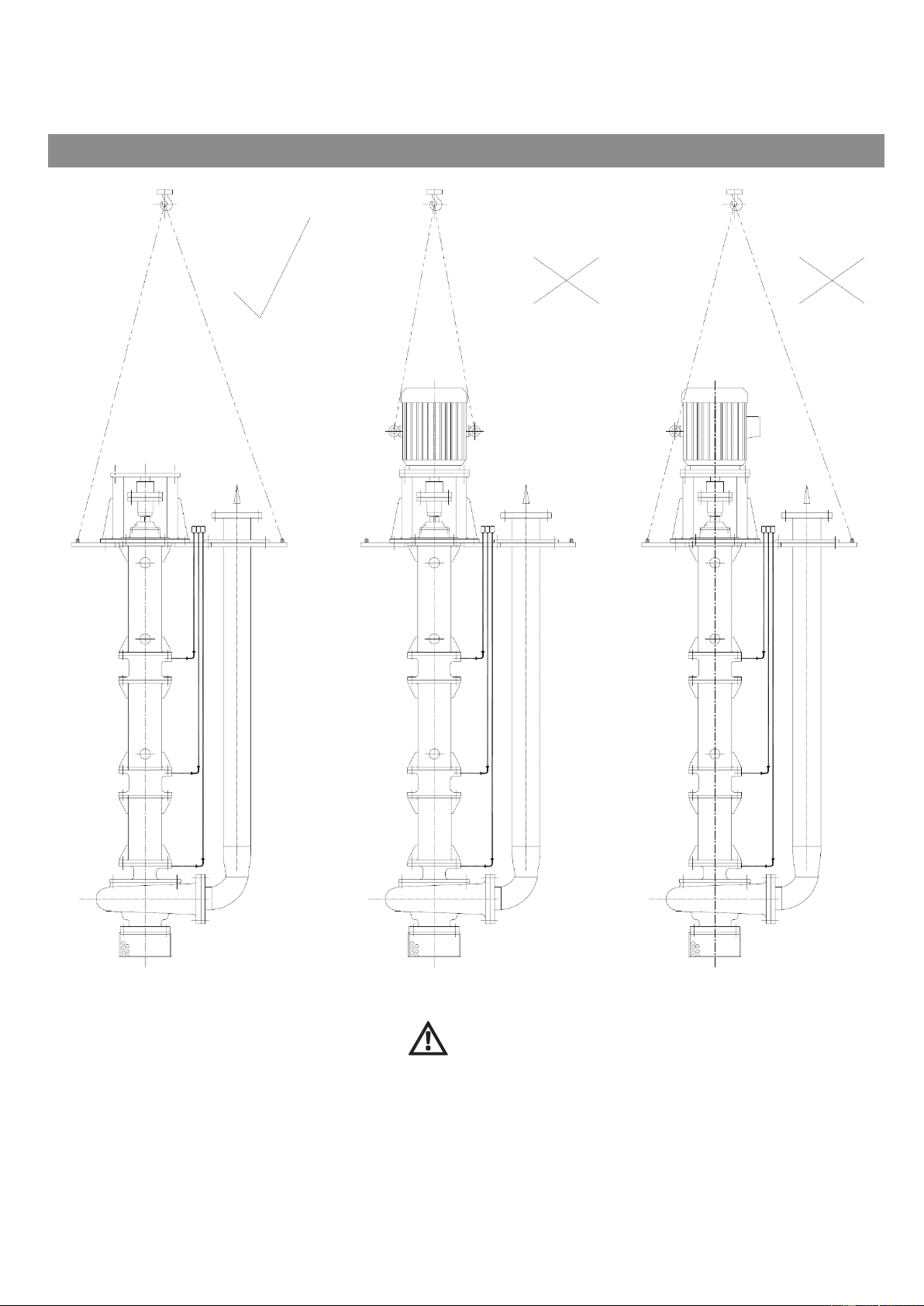

Fig. 1: Lifting of complete pump: (See Page No. 15; Point no. 3.1)

Installation and operating instructions WILO Mather and Platt –Sump Pumps 4

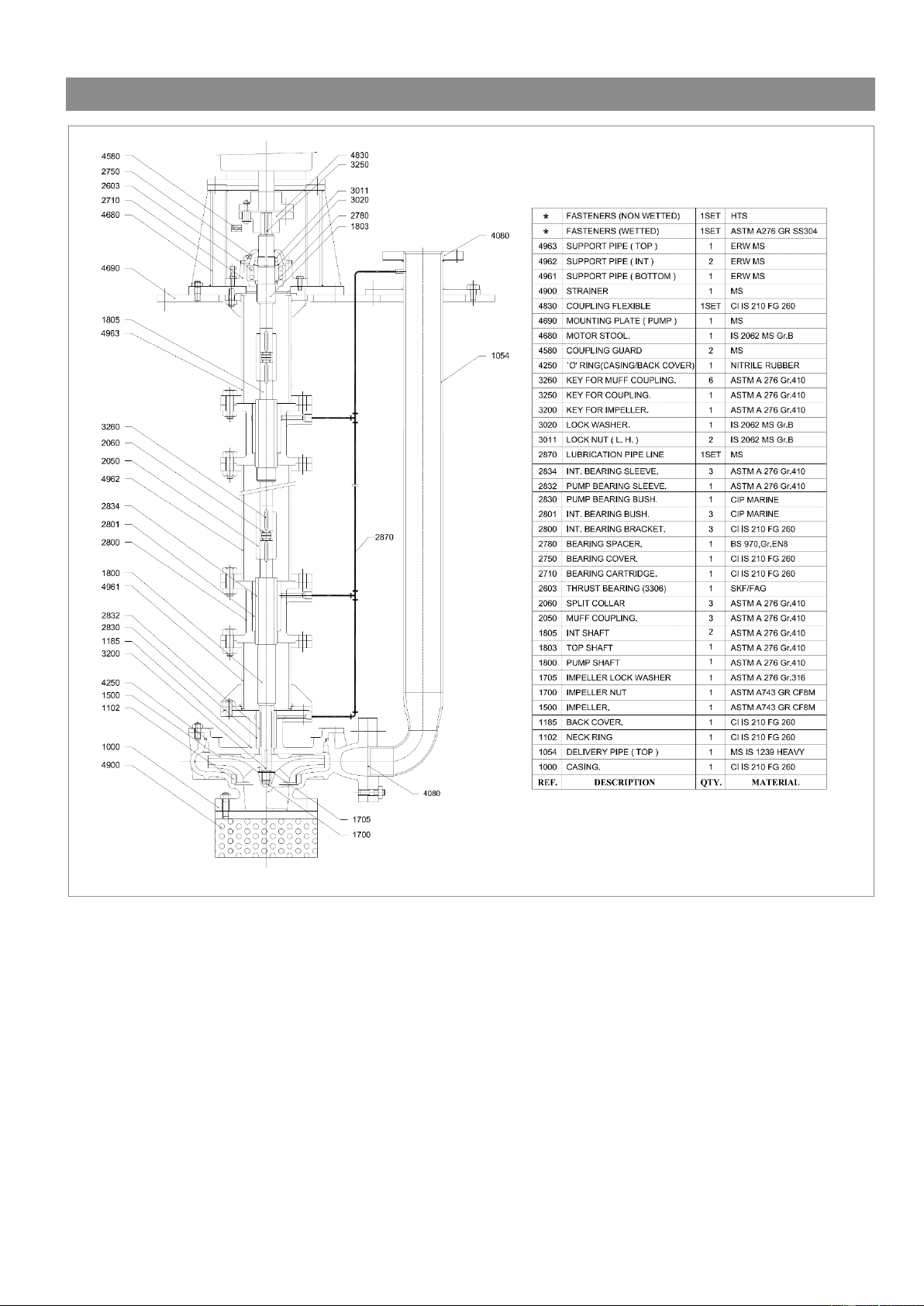

Fig. 2: PNV pump with self-lubrication: (See Page No. 23; Point no. 9.3.1.2)

Installation and operating instructions WILO Mather and Platt –Sump Pumps 5

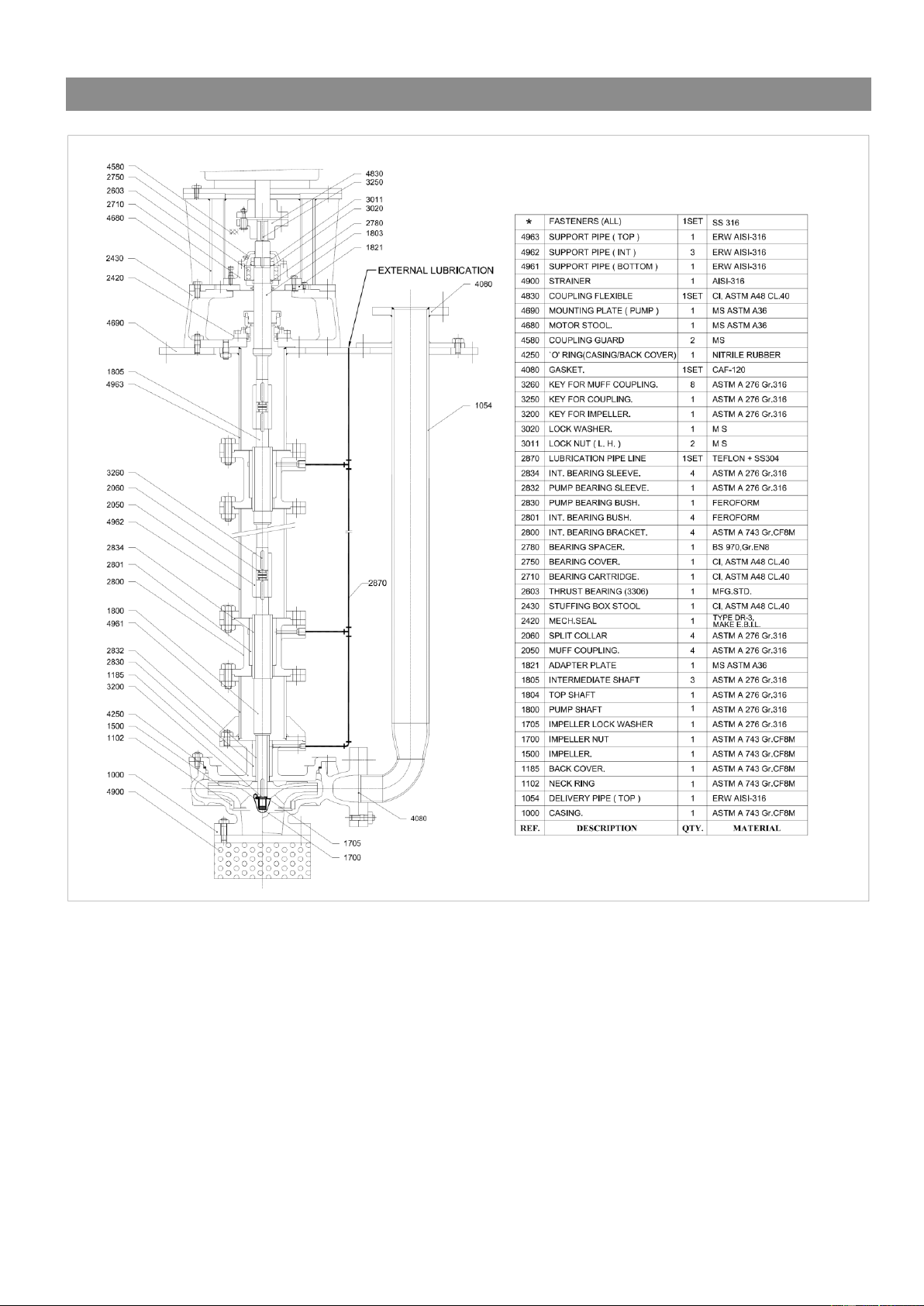

Fig. 3: PNV pump with external water lubrication: (See Page No. 23; Point no. 9.3.1.1)

Installation and operating instructions WILO Mather and Platt –Sump Pumps 6

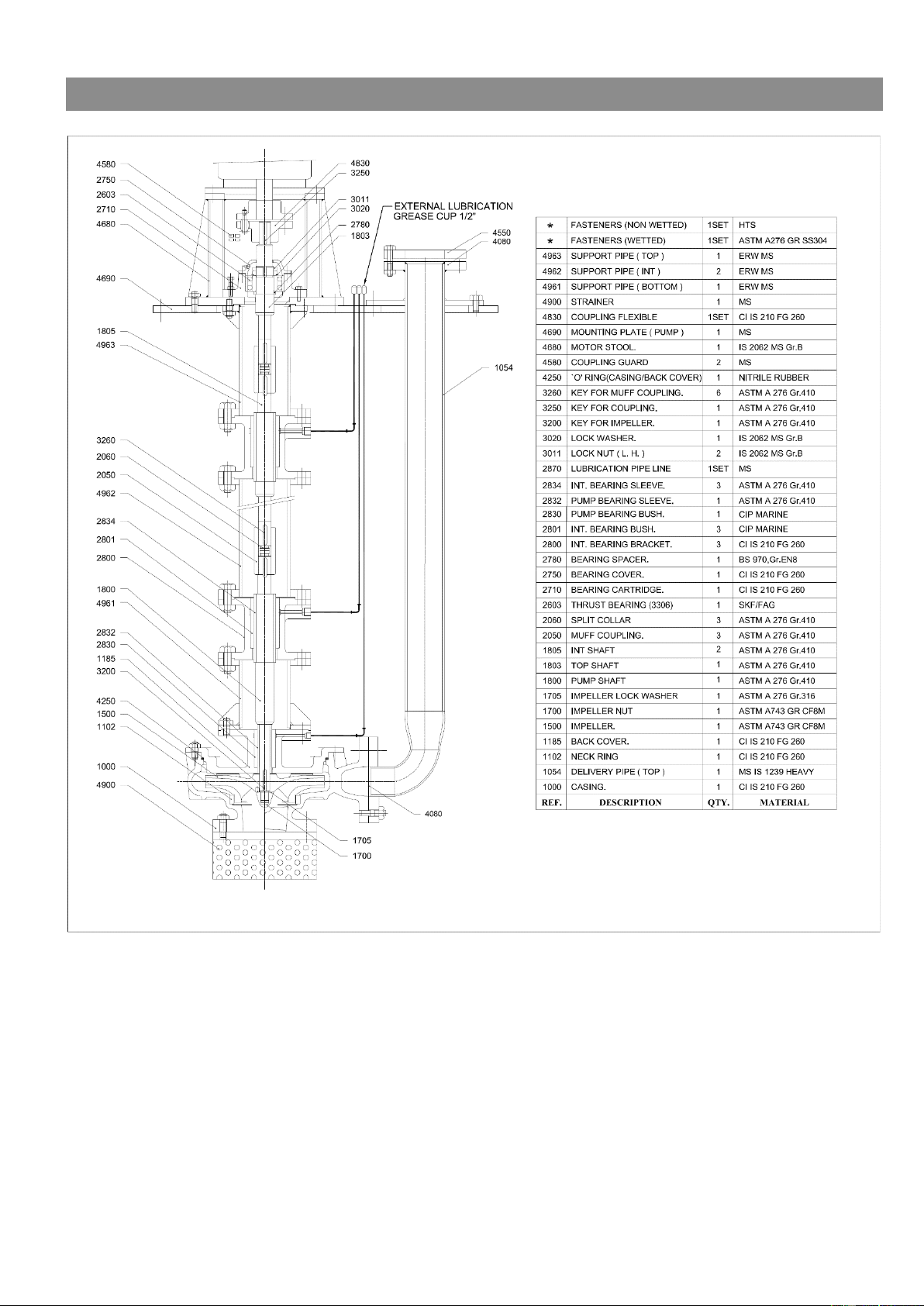

Fig. 4: PNV pump with grease lubrication: (See Page No. 23; Point no. 9.3.1.3)

Installation and operating instructions WILO Mather and Platt –Sump Pumps 7

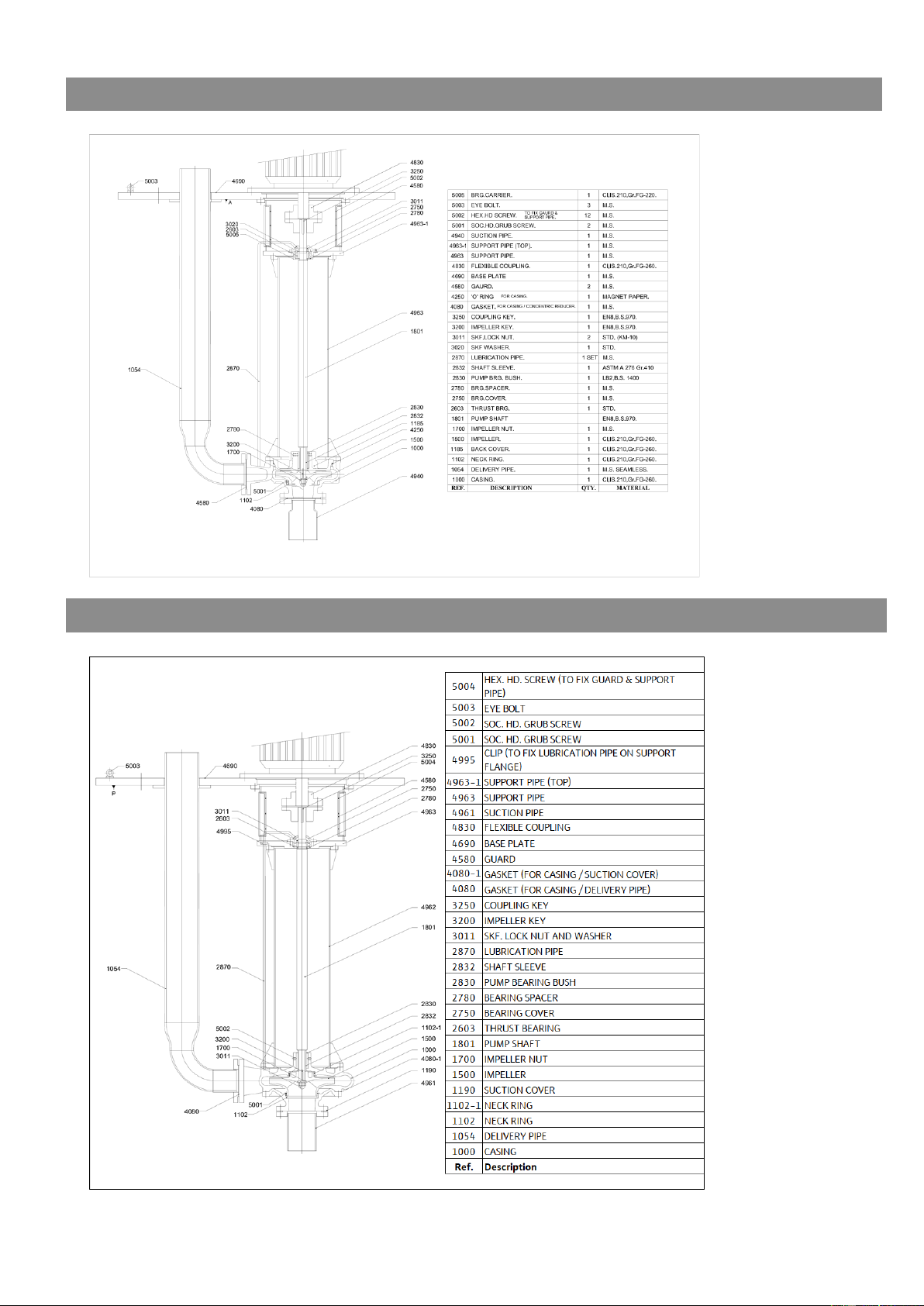

Fig. 5: Auxiliary Oil Pumps (AOP): (See Page No. 23; Point no. 9.3.2)

Fig. 6: Emergency Oil Pump (EOP): (See Page No. 23; Point no. 9.3.2)

Installation and operating instructions WILO Mather and Platt –Sump Pumps 8

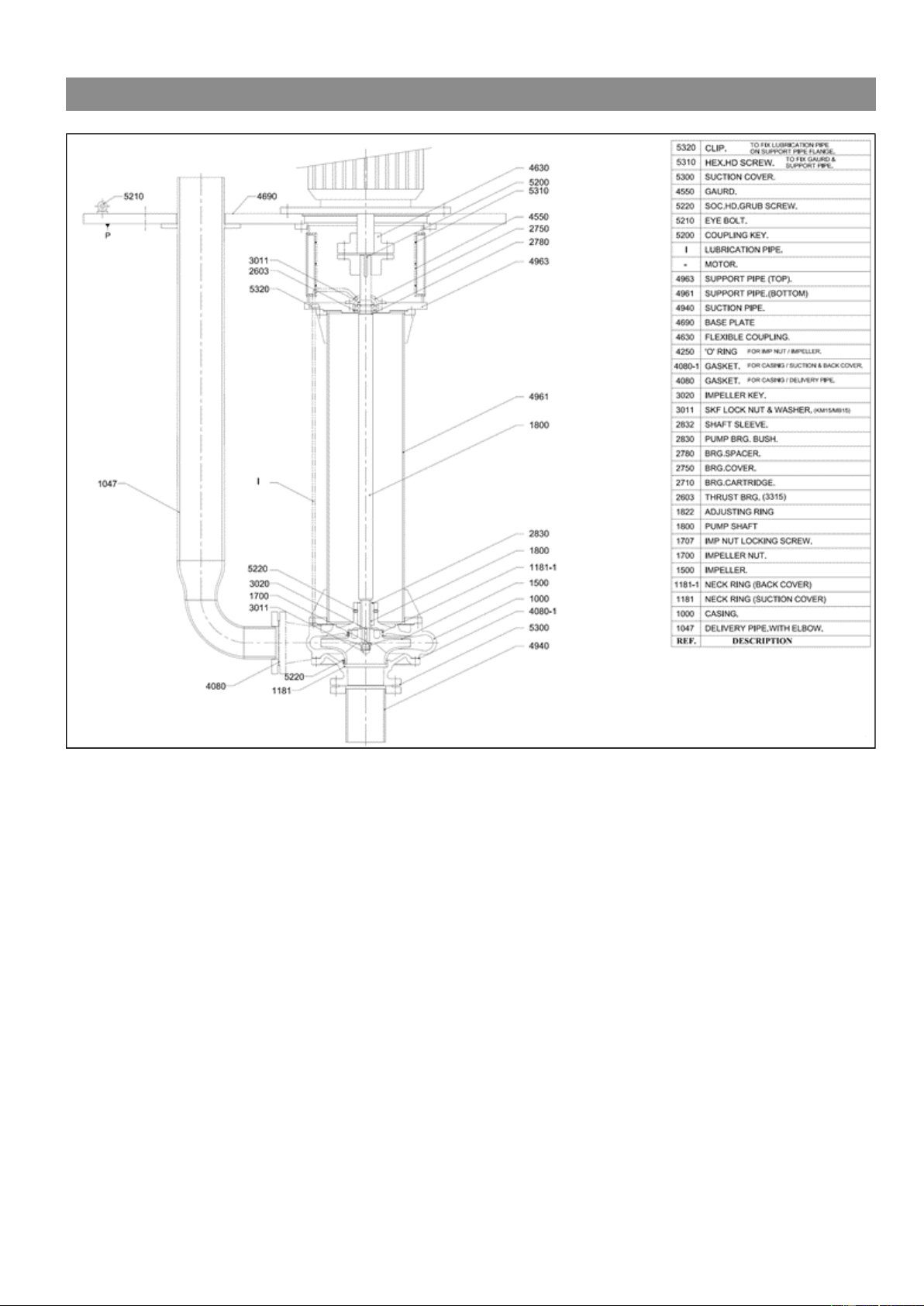

Fig. 7: 4/5 SR.12 KL Model 70 Pump (See Page No. 24; Point No. Technical Data)

Installation and operating instructions WILO Mather and Platt –Sump Pumps 9

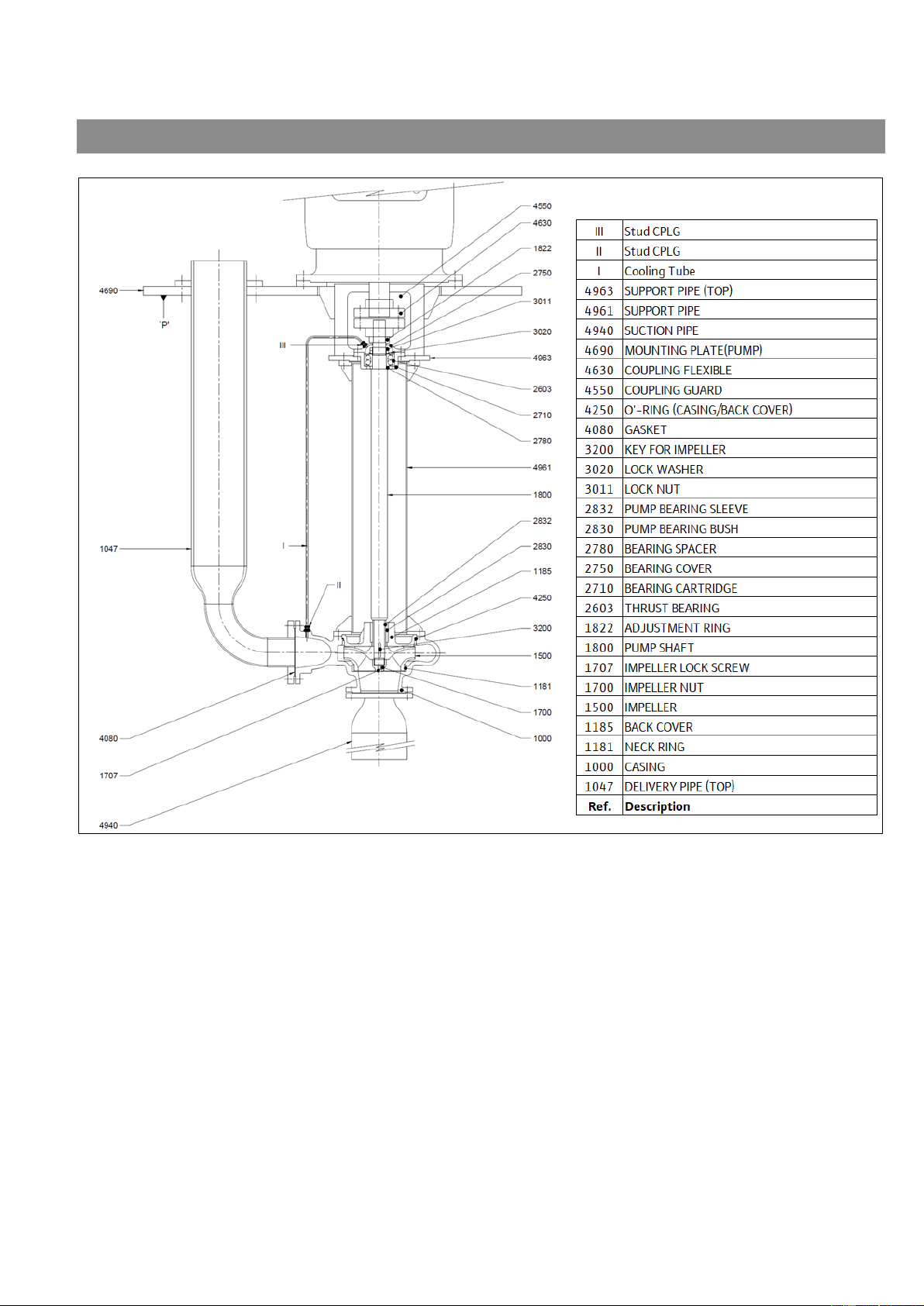

Fig. 8: 5/6 EHLG Pump (See Page No. 24; Point No. Technical Data)

Installation and operating instructions WILO Mather and Platt –Sump Pumps 10

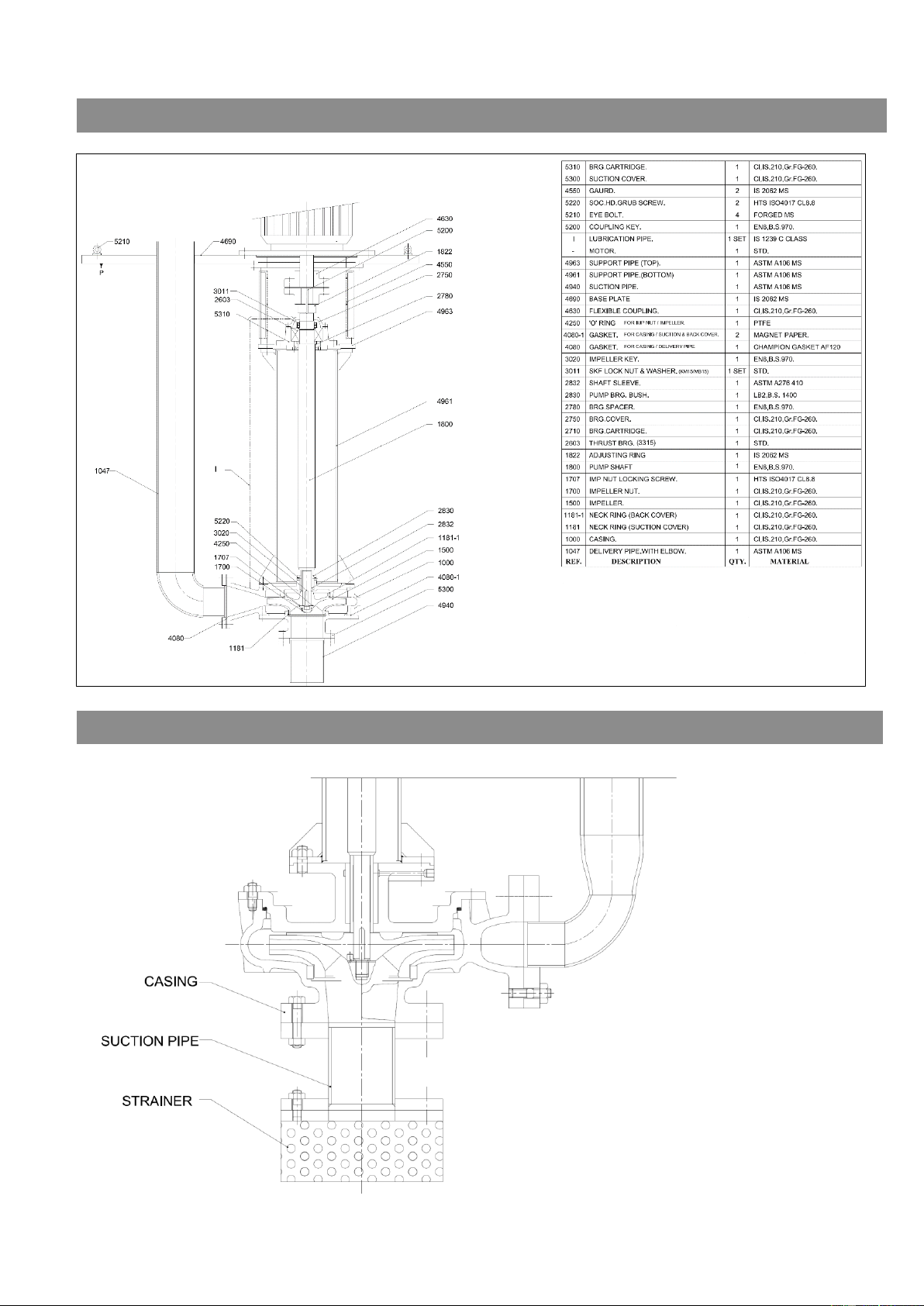

Fig. 9: 8/8 Series 6 Model 60 (See Page No. 24; Point No. Technical Data)

Fig. 10: Suction Pipe details: (See Page No. 21; Point No. 7.6.2)
