Manual V 1.03 / ref. no. 00.000.0059.0 / 28.03.2001

podissystem manual

Part 1: podisCON - Energy bus

Part 2: podisDRIVE – Distributed motor control units

Ref. no: 00.000.0059.0

Version: 1.03

Issue date: 08.01.2001

Last modified: 28.03.2001

Wieland podissystem

Manual V 1.03 / ref. no. 00.000.0059.0 / 28.03.2001

I About this manual

This system manual is directed at qualified staff with

training in PLC programming, electrical engineers or staff

instructed by electrical engineers who are authorised to

commission, earth and label devices, systems and

circuits according to safety standards.

This system manual describes the components,

installation, commissioning and maintenance of the

podissystem. The total system is composed of the

energy bus podisCON and the motor control units

podisDRIVE. As an energy bus system, podisCON

is an independent system which supplies all types of

installations with both primary and control voltage.

The motor control units podisDRIVE require the use of

podisCON components. They are specially geared to

the properties of podisCON components and enable

the control of connected loads via the field bus coupler

which is integrated in the motor control units.

The two parts of the podissystem are described

separately in this manual. If you have purchased podis

CON components, you will receive the first section of the

manual. You require both sections of the manual to

operate podisDRIVE.

At WIELAND ELECTRIC GmbH, your satisfaction with

our products is of primary importance. If you have any

ideas or suggested improvements for this manual, we

would be happy to receive them.

If you have any queries about the manual or parts of the

podis



system, please direct your questions to the

following address:

Wieland Electric GmbH

Brennerstraße 10-14

96052 Bamberg

Tel.: 0951 9324 0

Fax : 0951 9324 198

Email: info@wieland-electric.com

If you have any technical queries, please contact our

hotline on 0951 9324 358.

Who is the manual intended for?

What is the scope of the manual?

User-friendly

Contact address

Hotline

Wieland podissystem

Manual V 1.03 / ref. no. 00.000.0059.0 / 28.03.2001

II Using this manual

Before reading the manual, please familiarise yourself with the

table of contents. This will provide you with an immediate

overview of the manual.

Please note the warnings and safety notes in particular. These

are denoted by the following symbols.

Means that death, serious risk to health or

considerable damage to property will occur if

the appropriate warning is disregarded or not

sufficiently heeded.

Means that risk to health or considerable

damage to property will occur if the appropriate

warning is disregarded or not sufficiently

heeded.

Means that damage to property will occur if the

appropriate warning is disregarded or not

sufficiently heeded.

Means that death, risk to health or damage to

property may occur if the appropriate warning

is disregarded or not sufficiently heeded.

Emphasises an important piece of information

which affects the handling of the devices or the

respective section of the manual.

DANGER

WARNING

CARE

CAUTION

NOTE

Wieland podissystem

Manual V 1.03 / ref. no. 00.000.0059.0 / 28.03.2001

Part 1:

podis



CON – Energy bus

Proofing status of podis



system manual, part 1

Date Publication Version Proofing

status

Proofing

status (old)

Edited

(new)

08.01.2001 podis manual part 1 1 (draft) 00 - TK

18.01.2001 podis manual part 1 1 (draft) 01 00 TK

12.03.2001 podis manual part 1 1 (draft) 02 01 TK

28.03.2001 podis manual part 1 1 03 02 TK

Wieland podissystem

Manual V 1.03 / ref. no. 00.000.0059.0 / 28.03.2001

All rights are reserved. This publication including the

diagrams is copyrighted. Any use of this publication

that deviates from these conditions is not permitted.

No reproduction, translation, electronic or

photographic archiving or modification can be carried

out without written permission from WIELAND

ELECTRIC GmbH. Any violations incur a claim for

compensation.

WIELAND ELECTRIC GmbH reserves the right to

make changes for technical progress. WIELAND

ELECTRIC GmbH reserves all rights regarding the

issue and protection of patents and designs. Products

from other manufacturers are always named without

patent rights. The existence of these rights cannot

therefore be ruled out.

WIELAND ELECTRIC GmbH does not accept any

liability for mishandling and damage caused to

Wieland products, third-party products or persons

when the notes in this manual are disregarded.

Changes of any type to Wieland products as regards

hardware or software are excluded from liability on the

part of WIELAND ELECTRIC GmbH.

Wieland podissystem

Manual V 1.03 / ref. no. 00.000.0059.0 / 28.03.2001

Overview of the contents

System manual, part 1

I About this manual

II Using the manual

Proofing status of podis



system manual, part 1

1 Structure and use of the energy bus system

1.1 General structure

1.2 Areas of application

1.3 Performance data for flat cable

1.4 Permitted use

1.5 Additional devices

1.5.1 Monitoring and protective devices

1.5.2 Loads (three-phase asynchronous motors)

1.6 Flat cable outlet

1.7 Sealing ends

2 Fixing and exchange

2.1 Wiring instructions

2.2 Cable clips

2.3 Flat cable outlets

2.3.1 Round cable outlet

2.3.2 Outlet for connectors

2.3.3 Attachment and connection

2.3.4 Dismantling

2.4 Loads

2.5 Sealing ends

3 Commissioning and maintenance

3.1 Safety notes and measures

3.1.1 Staff selection and qualification

3.1.2 Conditions for operation

3.1.3 General notes

3.1.4 Specific notes

3.1.5 Disconnection and emergency stop

3.1.6 Maintenance and service

Appendix: podis



CON components

Part 2: podis



DRIVE motor control units

Wieland podissystem

Manual V 1.03 / ref. no. 00.000.0059.0 / 28.03.2001

1 Structure and use of the energy bus

system

This chapter describes the general structure of the podis





system. It includes the electrical configuration of podis



and the

factors that must be considered when designing a podis





installation. You can find an overview of the system

components and their technical data in the appendix under

”podis



components” and ”Technical data”.

1.1 General structure

The podis



system has a distributed configuration. This applies

to the distribution of energy, automation and the inputs/outputs.

The basic framework of podis



is composed of a flexible flat

cable. It contains five high-capacity cores (∅2.5 mm2) as the

main circuit and two cores for the 24 V control electronics.

Energy can be supplied and drawn via supply terminals at any

point on the flat cable (three-phase asynchronous motors). This

system also enables the installation to be retrofitted according

to the user’s requirements.

Since the energy and the control voltage are drawn at the point

of the flat cable which is nearest to the load, the

electromagnetic susceptibility of the installation and the

applications is considerably reduced. The complete installation

thus has a clearer overview for both planning and maintenance.

Programmable controllers

PLC

IPC

PROFIBUS DP

Devices from other manufacturers

with PROFIBUS DP capability

DP slave: ricos

DP slave: podis

Distributed configuration

The general field bus configuration

of the podis



CON system with

connected loads

Wieland podissystem

Manual V 1.03 / ref. no. 00.000.0059.0 / 28.03.2001

1.2 Areas of application

The podis



system can be used in all installations where

three-phase asynchronous motors must be supplied with

energy and control voltage e.g. for conveyor belts. A

prerequisite for the operation of podis



CON is the

availability of a three-phase system with an earthed

infeed and separate N and PE conductor (TN-S system).

Intended use

Wieland podissystem

Manual V 1.03 / ref. no. 00.000.0059.0 / 28.03.2001

1.3 Performance data for flat cable

podis



CON is connected to an earthed infeed.

General data

Rated voltage VDE 450/750 V AC

UL 600 V AC

Nominal frequency 50 Hz

Rated current (at 50°C) 16 A

Rated voltage of auxiliary circuit

(L+)

50 V DC

Sheath PVC according to CENELEC HD 21.1

S3, TM5, oil-resistant, LBS-free,

silicone-free

Dimensions mm (H x W) 35 x 6.1 with single-sided coding lug

Cu number (kg/km) 168

Cable weight (kg/km) 402

Ambient temperature (operating) -15°C to +50°C

Connection temperature

(piercing contact)

+10°C to +50°C

Behaviour in the event of a fire Self-extinguishing according to

DIN VDE 0472 section 804 B,

IEC 60332-1

Approval (in preparation) VDE, SEV and UL

Main circuit (colour coding: yellow/green, blue, brown, black)

Fuse 16 A with tripping characteristic C

Number of cores x cross section 5 x 2.5 mm2based on HD 359 and DIN

VDE 0281 section 404

Conductor Bare copper, highly flexible according to

DIN VDE 0295 class 6, corresponds to

CENELEC HD 383 S2 class 6

Conductor insulation PVC according to CENELEC HD 21.1

S3, TI2, silicone-free

Auxiliary circuit (colour coding: red, white)

Fuse 16 A with tripping characteristic C

Number of cores x cross section 2 x 2.5 mm2based on HD 359 and DIN

VDE 0281 section 404

Conductor Bare copper, highly flexible according to

DIN VDE 0295 class 6, corresponds to

CENELEC HD 383 S2 class 6

Conductor insulation PVC according to CENELEC HD 21.1

S3, TI2

1.4 Permitted use

podis



CON may only be operated in networks with an earthed

infeed (TN-S system). A non-earthed configuration of podis





systems is not permitted.

The sheath of the flat cable should not show any signs of

damage. Any holes left by the piercing contact should be

sealed. An approved sealing strip (Scotch VM from 3M) may be

used for this purpose.

It is not permitted to operate podis



CON with

open flat cable outlets.

The flat cable must be de-energized at the

relevant outlets during installation and

maintenance.

During operation, unused flat cable outlets should either be

sealed using a cover (order no. 07.409.7256.0 for connectors)

or using a cover and a dummy screwed gland at the round

cable outlet.

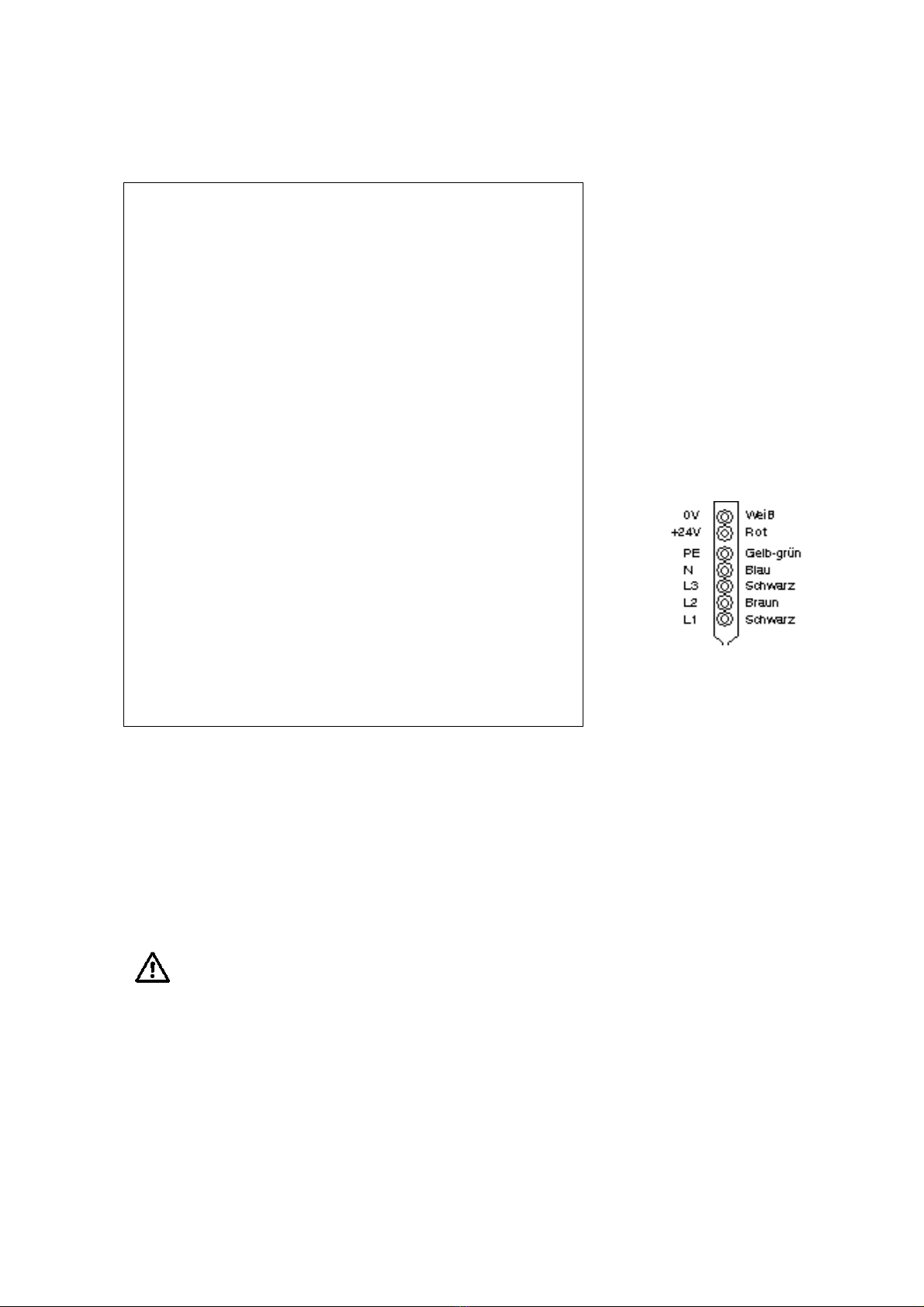

Specification of the flat cable

Cross section with colour coding

M White

L+ Red

PE Yellow/green

N Blue

L3 Black

L2 Brown

L1 Black

WARNING

Wieland podissystem

Manual V 1.03 / ref. no. 00.000.0059.0 / 28.03.2001

When laying the flat cable in cable trunking, you must

take the derating into consideration according to VDE

0660 section 507 as well as the ambient temperature of

50°C.

1.5 Additional devices

This section describes devices which can or must be

operated in connection with podis



CON but which are

not part of the podis



CON system.

1.5.1 Monitoring and protective devices

Depending on the application, various components and

protective measures are stipulated for the installation of a

complete system. The type of components and the level

of protective measures required is dependent on the VDE

regulations that apply to your installation. Please also

read section 1.8.

Fuse

The allocation of protective equipment for the short-circuit

protection of cables and lines in main or auxiliary circuits

outside switchgear assembly must be carried out under

consideration of the loop impedance. DIN VDE 0100

section 430 should be applied.

The 2.5 mm2flat cable must be fused to prevent overload

and short circuits using a three-phase miniature circuit-

breaker 16 A (Inom) with tripping characteristic C. The

tripping current is 8 to 10 Inom (EN 60898, DIN VDE 0641

section 11 and IEC 898).

You must fuse the auxiliary circuit with a single-phase

miniature circuit-breaker 16 A (Inom) with tripping

characteristic C.

Emergency stop devices

Emergency stop devices (according to IEC 204,

corresponds to DIN VDE 113) must be present. Their

function may not be limited in any way.

Earthing

The infeed must be earthed (TN-S system). The

installation in which podis



systems are integrated

should have a connection to protective earth (neutral

point of the network transformer). If this is not the case,

you must link each of the loads connected to podis





CON separately to the neutral point of the network

transformer via a PE conductor. The minimum diameter

of the PE conductor must be 4 mm2. The PE conductor

may not be looped through via the loads.

Tripping characteristic C for

100/400 V supply

Tripping characteristic C for

auxiliary circuit

Otros manuales para podis CON

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Electricidad industrial de Wieland

Wieland

Wieland selos BIT Manual de usuario

Wieland

Wieland Rhodinette 2 Manual de usuario

Wieland

Wieland gesis FLEX-REG4 Manual de usuario

Wieland

Wieland gesis FLEX-FC EM Manual de usuario

Manuales populares de Electricidad industrial de otras marcas

Rexroth Indramat

Rexroth Indramat DURADRIVE SYSTEM200 Manual técnico

Abtech

Abtech HVJB Series Guía

Murata

Murata GRM0335C1H8R1DA01 Series Manual de usuario

SAF-HOLLAND

SAF-HOLLAND CBX 5415.5 Manual de usuario

Eaton

Eaton Ulusoy HMH24-04 Manual de usuario

Newlong

Newlong NP-7H Manual de usuario

Murata

Murata GJM0335C1E4R4BB01 Series Manual de usuario

Stahl

Stahl 8575/12 Manual de usuario

SI Pegasus Manual de usuario

Murata

Murata GRM1555C1H2R7CA01 Seies Manual de usuario

Murata

Murata GRM0225C1E6R4BA03 Series Manual de usuario

Cooper Power Systems

Cooper Power Systems VXE15 Manual de usuario

S&C

S&C Vista SD Manual de usuario

Murata

Murata GRM0335C2A7R3CA01 Series Manual de usuario

Siemens

Siemens 3VA9988-0BM10 Manual de usuario

Siemens

Siemens SITRANS LVS100 Manual de usuario

Murata

Murata GRM32ER60G227ME05 Series Manual de usuario

Siemens

Siemens SENTRON SUPERSWITCH 3KL82 Series Manual de usuario

Wieland podis CON Guía del usuario

Manuales populares de Electricidad industrial de otras marcas
