Whites Spectra V3 Manual de usuario

Spectra V3

Field Guide

all you need to know

™

White’s Electronics, Inc. • 1011 Pleasant Valley Rd • Sweet Home, Oregon 97386 USA

Navigation

TO Search - SQUEEZE AND RELEASE TRIGGER

UP/DOWN moves the Cursor vertical to select from a list.

SIDE/SIDE moves the highlighted selection horizontally.

MENU/TAB brings up menu or moves the Cursor to the next item or

selection on the screen. Selection is highighted.

MENU/TAB x2 brings up information screen. Includes backlight and

advanced menu (see page 11).

ENTER selects the option.

ZOOM/VIEW increases text size or provides more detailed Menu.

ACTIVE SEARCH SCREEN

TRIGGER IN

CENTER POSITION

BACKUP or ESCAPE squeeze and release trigger from any Menu or

control.

Pg 2

SQUEEZE TRIGGER and HOLD

TO Pinpoint - SQUEEZE AND HOLD TRIGGER

ACTIVE PINPOINT SCREEN

ACTIVE ANALYZE SCREEN

TRIGGER FORWARD

TO Analyze - TRIGGER FORWARD Pg 3

The Live Control Bar across the bottom

of the display for quick and easy on-

the-y adjustment. Spectra continues

to operate normally while these settings

are being changed. Use to

highlight, to adjust, or press

to pop up the control. Press

to expand the content. Detector contin-

ues to operate to allow for perfect adjust-

ments.

Coin - Aggressively rejects pull-tabs and trash. Responds to all coins and some rings.

Coin & Jewelry - Less trash rejection than coin - accepts aluminum, responds to most

jewelry, and and all coins.

Salt Beach - Salt subtraction method. Rejects iron and some trash. Accepts aluminum,

responds to most jewelry, coins and rings.

Relic - Accepts Civil and Revolutionary War relics, large iron accepted. Large and small

iron respond with a low tone.

Prospecting - Accepts Gold, Silver and Copper nuggets. Iron ID Uses VCO audio, SAT

and aggressive ground reject. Accepts all metal targets.

Deep Silver - Accepts very high range VDI numbers. Allows max detection of deep

Silver targets.

High Trash - High trash rejection for heavy use in public areas.

Hi Pro - Minimum audio trash reject. Display used for target ID - very high gain levels.

May be unstable in some areas requiring adjustment of Gain and Sensitivity.

Mixed Mode Pro - Combines Audio from Discrimination and All Metal modes plus

Hi Pro options. A relic-hunter favorite.

Meteorite - Detects nickel/iron specic to meteorites by accepting negative VDI

numbers. Most other targets rejected.

Common - Contains Demo Program. Further options in Expert Menu.

Restore - Returns selected Program to factory settings. Use Menu/Tab to select. Push

Enter to restore. See back cover.

More in “Complete Owner’s Guide”

USING LIVE CONTROLS -

Programs

Sensitivity

Programs - Sensitivity -

Audio - Discrimination -Frequency -

Ground Balance/Tracking

Sensitivty Live Control used as EXAMPLE

Sensitivity Zoomed

Pg 4

Rx Gain - (Pre-Amp) Adjusts receive signal amplication. Affects sensitivity, depth,

and interference from external noise.

Tx Boost - Boosts transmit signal for use in low mineral ground.

CAUTION - prolonged use will increase battery drain.

Discrimination - Adjusts level of sensitivity to targets. Affects depth.

All Metal - Adjust detection signal in All Metal circuit. Effects depth and width of

target response.

Sensitivity

Tips ...

LIVE CONTROLS - SENSITIVITY

Sensitivity

Sensitivty Zoomed

Probe -

Percentage indicator of signal capacity-

to-noise ratio, and a Best Gain calculation

for MAX performance.

a. Signal % = return from ground.

b. Noise % = external electrical and

ground noise.

c. Best Gain = RX Gain reasonable level

(considering all other current settings).

With the loop on the ground, note “Best

Gain”. Adjust RX Gain to match.

The “preset” factory program settings are always marked with a checkmark or

the value is underlined. When changing Sensitivity on RX Gain, re-

ground balance is recommended - see Ground Balance/Tracking page 9.

More in “Complete Owner’s Guide”

Pg 5

Wireless Headphone - Quick Connect

• Select Audio or Zoom Audio

• to Wireless Headphone. Press

• Press to enable x

• Press headphone power button.

• Headphone is connected within ve seconds

when you hear...

Target Volume - Adjust how loud a metal target “beeps”.

Audio Threshold - Adjust volume level of Threshold (slight background hum).

Tone - Target Tone or Pitch. (the “beep” a metal target produces).

Threshold Tone or Pitch - Tone or pitch of the Threshold.

Tone ID - When activated produces a progressively higher pitch keyed to VDI

number.

Wireless Headphone - SEE BELOW

Audio

LIVE CONTROLS - AUDIO

More in “Complete Owner’s Guide”

Headphones automatically turn off with the detector.

To manually turn OFF headphones, press headphone

power button. You will hear

The metal detector speaker will connect within ten

seconds. More options available in “Complete

Owner’s Guide”.

Audio

Audio Zoomed

SpectraSound System comes factory pre-connected (Channel 4)

allowing the below “Quick Connect Sequence”.

Tips ...

• Trigger to search.

Pg 6

Tips ...

Discrimination Accept / Reject - Custom setting accept or reject for VDI range.

“X” Box = Accept (detected) - Empty Box = Reject.

Bottle Cap Reject - Adjusts level of Bottle cap signal response.

Hot Rock - Adjusts rejection level of negative pebbles and rocks that are not

silenced by the ground balance system and would sound like targets.

Ground Filter -

Selects one combination set of:

Sweep speeds - Slowest 5.0Hz-7.5Hz-10Hz-12.5Hz (Fastest)

Pass lters - High for moderate to high mineralized ground or

Band for lower mineralized ground.

Select 10Hz-High for best all around performance.

CAUTION - activation of bottle cap or hot rock controls may cause good targets to

break up and/or reject.

LIVE CONTROLS - DISCRIMINATION

Discrimination

Discrimination Zoomed

Discrimination

Zoom Discrimination -

Visual Reject, VDI

Select, and Icons

Advanced and custom

Discrimination selections

from several methods

and menus. Icons can be

selected from three sets - Park, Relic

and Prospecting. Use Help Balloons

(trigger forward) and advanced manual

for more information.

More in “Complete Owner’s Guide”

Pg 7

Three Frequencies - Best choice for general use. Transmits and receives

2.5 KHz-7.5 KHz and 22.5 KHz at the same time.

Salt Compensate - Receives and displays all frequencies. Uses subtraction

method for saltwater balance.

2.5 kHz - Single frequency. More sensitive to high conductive metals,

Silver/Copper.

7.5 kHz - Single frequency. Sensitive to all types of metals.

22.5 kHz - Single frequency. Most sensitive to small and/or low conductive metal,

Gold/Nickel.

Frequency Offset - Tunes out unwanted external signals by selecting one of 5

positive or 5 negative offsets. Aids in avoiding other metal detector signals and

other electrical interference. Offsets apply to single or combined frequencies.

LIVE CONTROLS - FREQUENCY

Frequency

Frequency Zoomed

Frequency

Zoomed Frequency Control -

• Allows advanced frequency methods

and display.

• Use “Help Balloons”, (trigger forward),

and advanced manual for more infor-

mation on Best Data/Correlate.

Using a single frequency can increase

the sensitivity to certain classes of met-

als by concentrating all available energy

to a single transmit frequency.

Tips ...

Moreover, 22.5 kHz is more sensitive to small and low-conductive targets like

gold. 2.5 kHz works best for high-conductive targets like silver coins. Preset

progams Prospecting and Deep Silver use the single frequency method. (Pros-

pecting 22.5 kHz and Deep Silver 2.5 kHz.) When changing frequencies a

re-adjustment of Sensitivity and ground balancing is necessary.

More in “Complete Owner’s Guide”

Pg 8

For best results, instrument start up should be followed by a manual ground balance.

Pull and hold trigger, then press and hold enter while pumping loop up and down

over the ground until threshold is smooth. Release enter then release trigger. Also

helpful as an option to check tracking from any search mode.

Report - ON (“X” in box) Activates ground tracking indicator arrows on display reports

(indicates) the automatic increasing or decreasing of the ground balance point.

Inhibit - ON (“X” in box) When on, delays the point automatic tracking begins to

adjust to the ground. Helps in iron infested ground. Use off in widely variable ground

with little or no iron to allow immediate tracking.

Speed - Adjust the rate of ground tracking – higher numbers “track” faster to changes

in the ground.

Offset - Manually moves ground balance point from perfect balance. Positive offset

often used in highly mineralized ground to enhance low conductive and small (gold,

silver, coins) targets in radically changing noisy ground.

Locktrac - Locks ground setting. Turns off all tracking. Turn ON and use manual

method above. Best used for repeatable responses on very deep targets, and rejec-

tion of difcult minerals.

LIVE CONTROLS - GROUND BALANCE/TRACKING

Ground Balance/Tracking

Ground Balance/Tracking Zoomed

Ground Balance/

Tracking

Ground Probe -

Provides helpful information -

• To determine the severity of ground

(weak ground vs strong ground).

• Targets can also be analyzed for VDI

number, phase and target strength at

each frequency. To use - (from Zoomed

Live Control) Menu/Tab to Zero and press

Enter with loop in air. Hold loop on the

ground or target to read results.

More in “Complete Owner’s Guide”

Pg 9

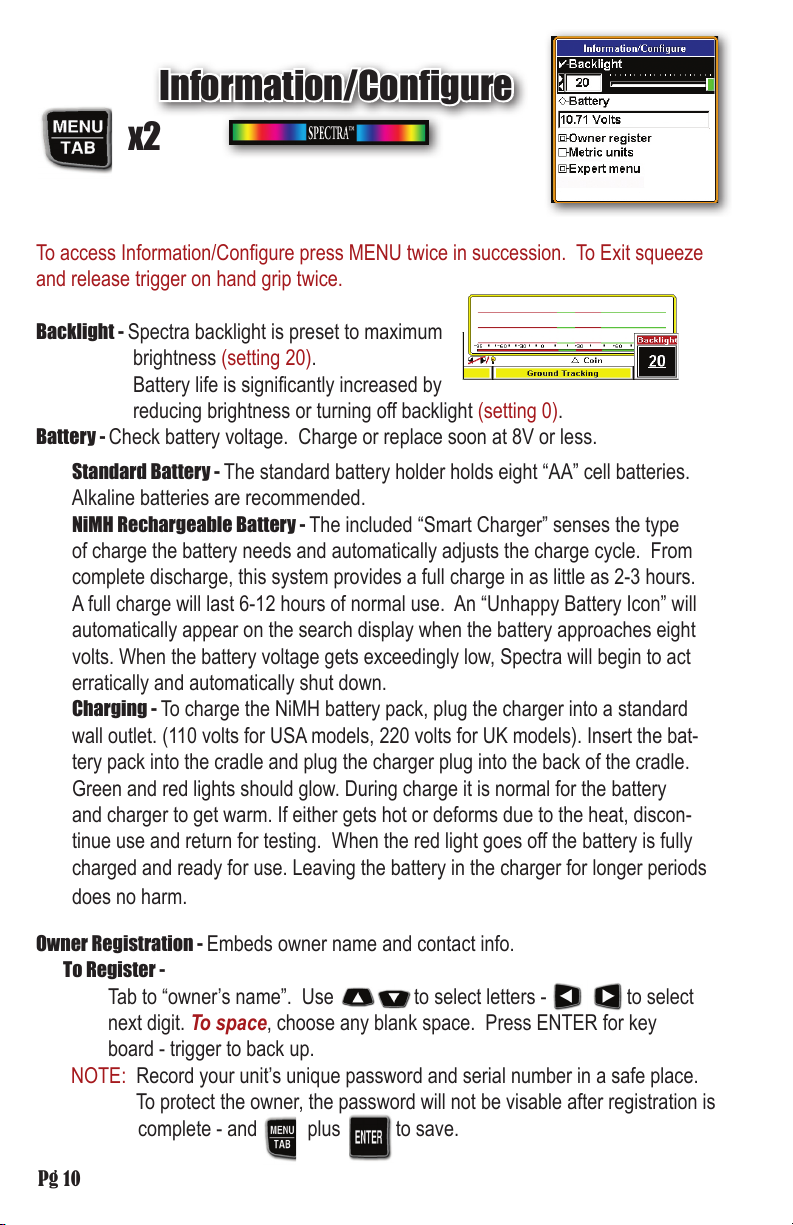

To access Information/Congure press MENU twice in succession. To Exit squeeze

and release trigger on hand grip twice.

Backlight - Spectra backlight is preset to maximum

brightness (setting 20).

Battery life is signicantly increased by

reducing brightness or turning off backlight (setting 0).

Battery - Check battery voltage. Charge or replace soon at 8V or less.

Owner Registration - Embeds owner name and contact info.

To Register -

Tab to “owner’s name”. Use to select letters - to select

next digit. To space, choose any blank space. Press ENTER for key

board - trigger to back up.

NOTE: Record your unit’s unique password and serial number in a safe place.

To protect the owner, the password will not be visable after registration is

complete - and plus to save.

Information/Congure

Pg 10

Standard Battery - The standard battery holder holds eight “AA” cell batteries.

Alkaline batteries are recommended.

NiMH Rechargeable Battery - The included “Smart Charger” senses the type

of charge the battery needs and automatically adjusts the charge cycle. From

complete discharge, this system provides a full charge in as little as 2-3 hours.

A full charge will last 6-12 hours of normal use. An “Unhappy Battery Icon” will

automatically appear on the search display when the battery approaches eight

volts. When the battery voltage gets exceedingly low, Spectra will begin to act

erratically and automatically shut down.

Charging - To charge the NiMH battery pack, plug the charger into a standard

wall outlet. (110 volts for USA models, 220 volts for UK models). Insert the bat-

tery pack into the cradle and plug the charger plug into the back of the cradle.

Green and red lights should glow. During charge it is normal for the battery

and charger to get warm. If either gets hot or deforms due to the heat, discon-

tinue use and return for testing. When the red light goes off the battery is fully

charged and ready for use. Leaving the battery in the charger for longer periods

does no harm.

Otros manuales para Spectra V3

Tabla de contenidos

Otros manuales de Detector de metales de Whites

Whites

Whites TREASUREmaster Manual de usuario

Whites

Whites BULLSEYE TRX Manual de usuario

Whites

Whites Prizm II Manual de usuario

Whites

Whites BeachHunter 300 Manual de usuario

Whites

Whites Beachcomber Series Especificaciones

Whites

Whites 6000/Di Pro Plus Manual de usuario

Whites

Whites TM 808 Manual de usuario

Whites

Whites MATRIX 100 Manual de usuario

Whites

Whites Alaskan Discriminator Manual de usuario

Whites

Whites Vision Spectra Manual de usuario

Whites

Whites Coinmaster 2-TR Manual de usuario

Whites

Whites Treasuremaster G.E.B. Especificaciones

Whites

Whites Surf PI Dual Field Manual de usuario

Whites

Whites MX5 Manual de usuario

Whites

Whites Lawman L-4 Especificaciones

Whites

Whites Coinmaster 1/DB Especificaciones

Whites

Whites COINMASTER 2500/D Manual de usuario

Whites

Whites MX 7 Manual de usuario

Whites

Whites Goldmaster 64TR Manual de usuario

Whites

Whites Comet 300 Manual de usuario

Whites

Whites Beachcomber G.E.B. Manual de usuario

Whites

Whites G.E.B. Series Especificaciones

Whites

Whites Conquistador 100 Manual de usuario

Whites

Whites Quantum XT Manual de usuario

Manuales populares de Detector de metales de otras marcas

Garrett

Garrett MAGNASCANNER CS 5000 Manual de usuario

Valex

Valex 1800200 Manual de usuario

Gauss

Gauss MIL MD Manual de usuario

Velleman

Velleman CS130 Manual de usuario

Sears

Sears 321.596370 Manual de usuario

Eriez

Eriez X8 Manual de usuario

Steinberg Systems

Steinberg Systems SBS-MD-22 Manual de usuario

Zircon

Zircon MetalliScanner m60c Manual de usuario

nalanda

nalanda MD027 Manual de usuario

REV Ritter

REV Ritter CB-7005 Manual de usuario

Minelab

Minelab F1A4 Manual de usuario

Fisher Research Labs

Fisher Research Labs F70 Manual de usuario

Steinberg Systems

Steinberg Systems SBS-MD-12 Manual de usuario

GOLDEN MASK

GOLDEN MASK 5 Manual de usuario

Grizzly

Grizzly YM 203 Manual de usuario

Fisher Research Labs

Fisher Research Labs 1280-X Aquanaut Manual de usuario

Treasure Cove

Treasure Cove Vibra-Probe 560 Manual de usuario

Accurate Locators

Accurate Locators XL16 IMAGER Manual de usuario
