CONTENTS
SUBJECT PA GE
Pre-lnstallation Requirements ................................................. 2
Electrical Requirement .......................................... 2
Grounding Requirement ........................................ 2
Water Supply Requirements .......................................... 2
Drain Requirements ................................................ 2
Location Of Your Washer ........................................... 2
Unpacking ...................................................... 2-3

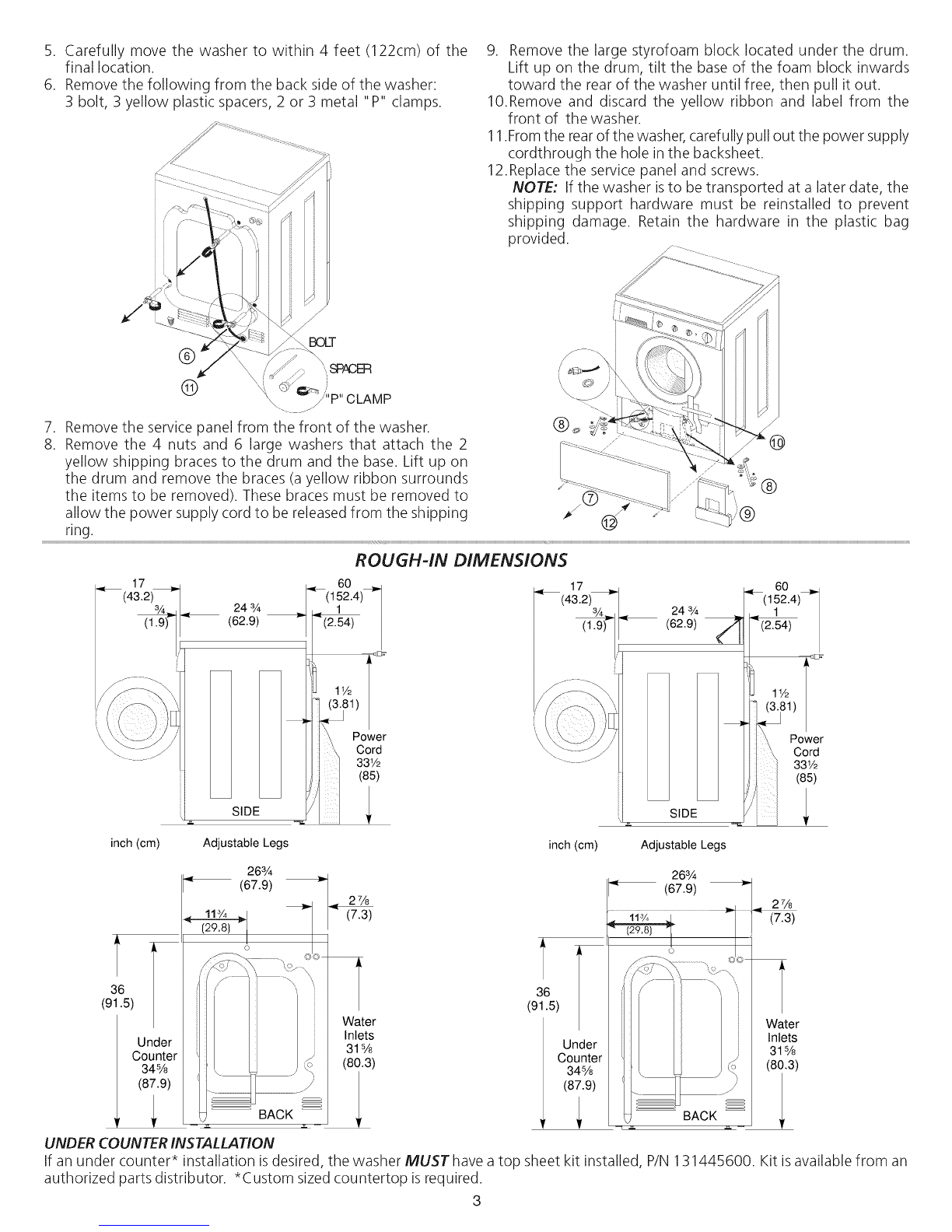

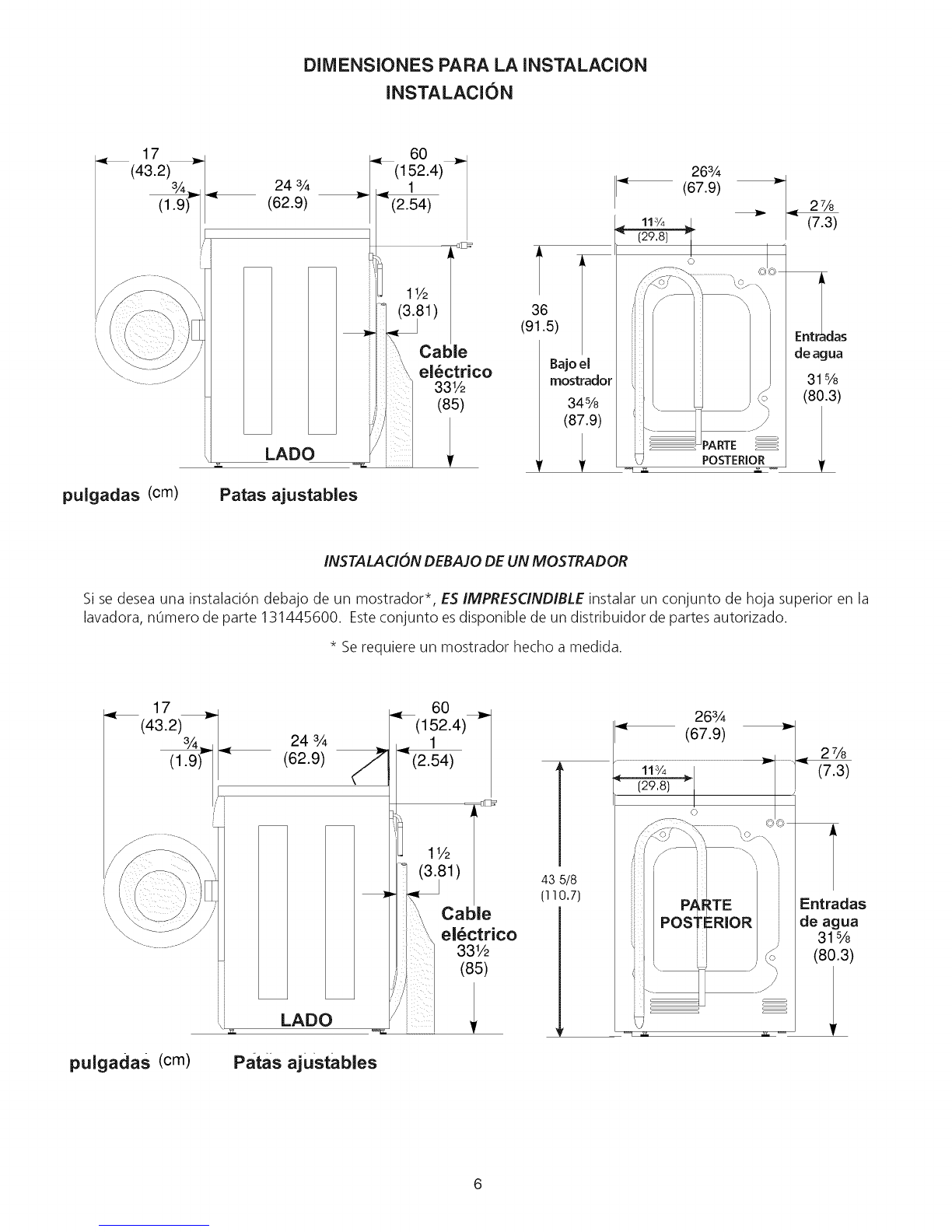

Rough-In Dimensions ............................................. 3

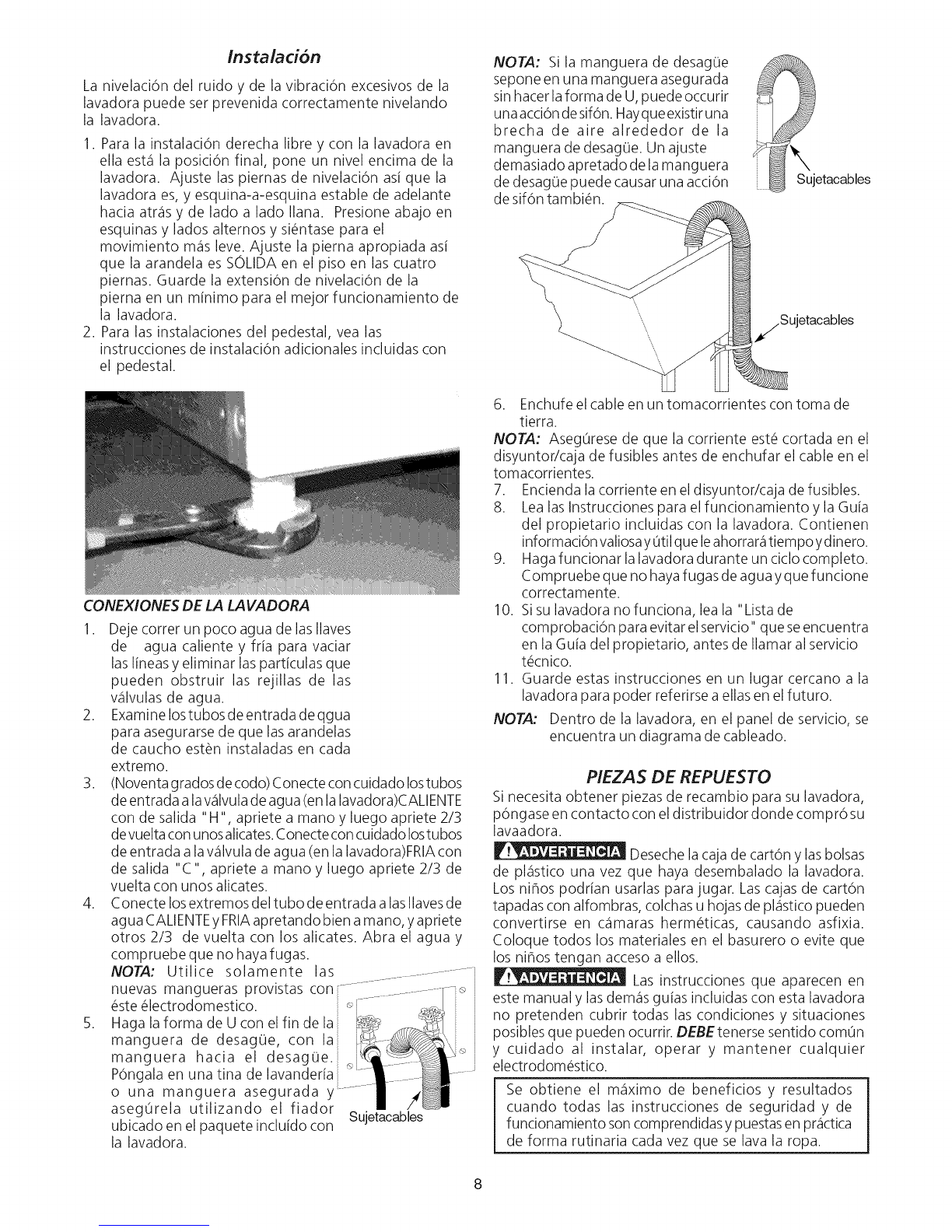

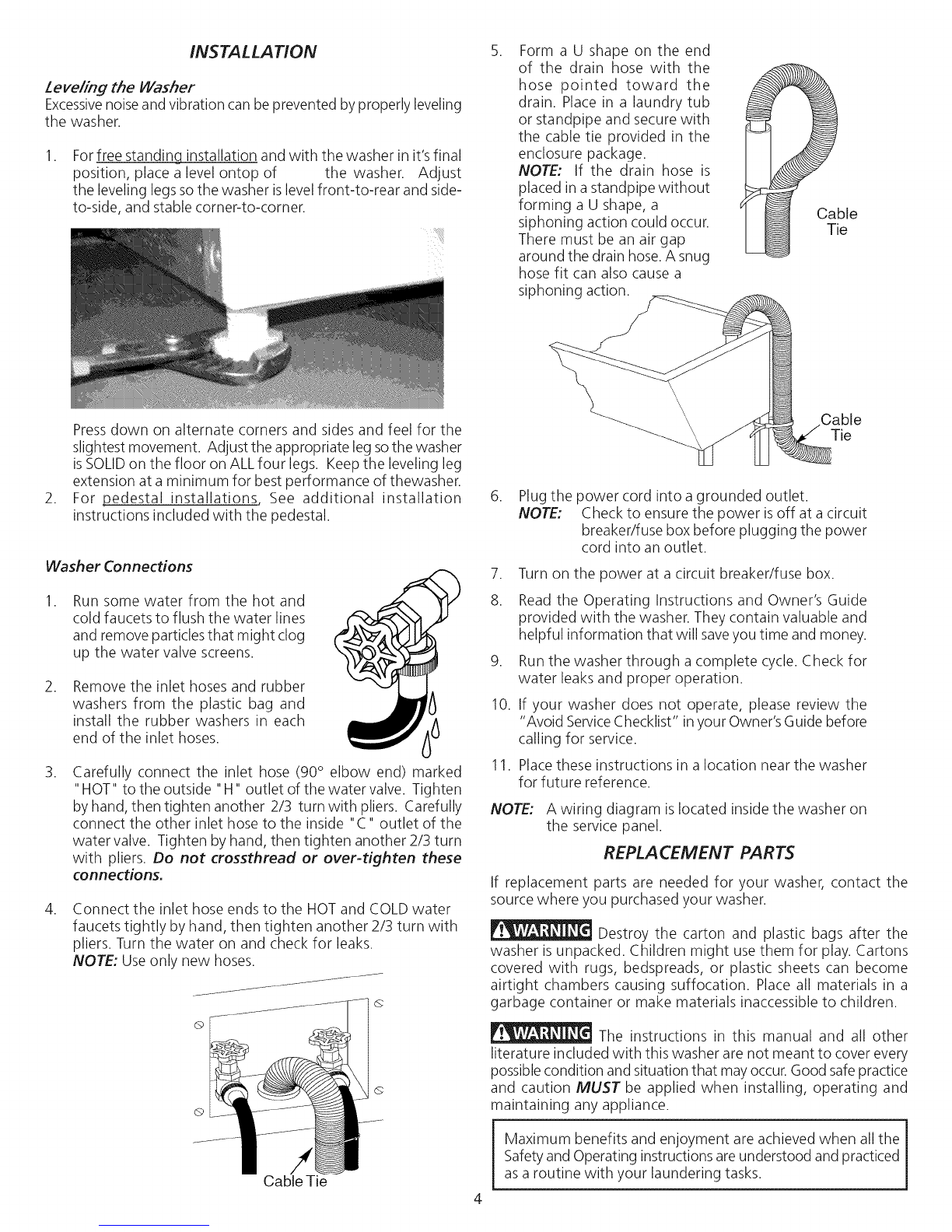

Installation ....................................................... 4
Replacement Parts ............................................... 4

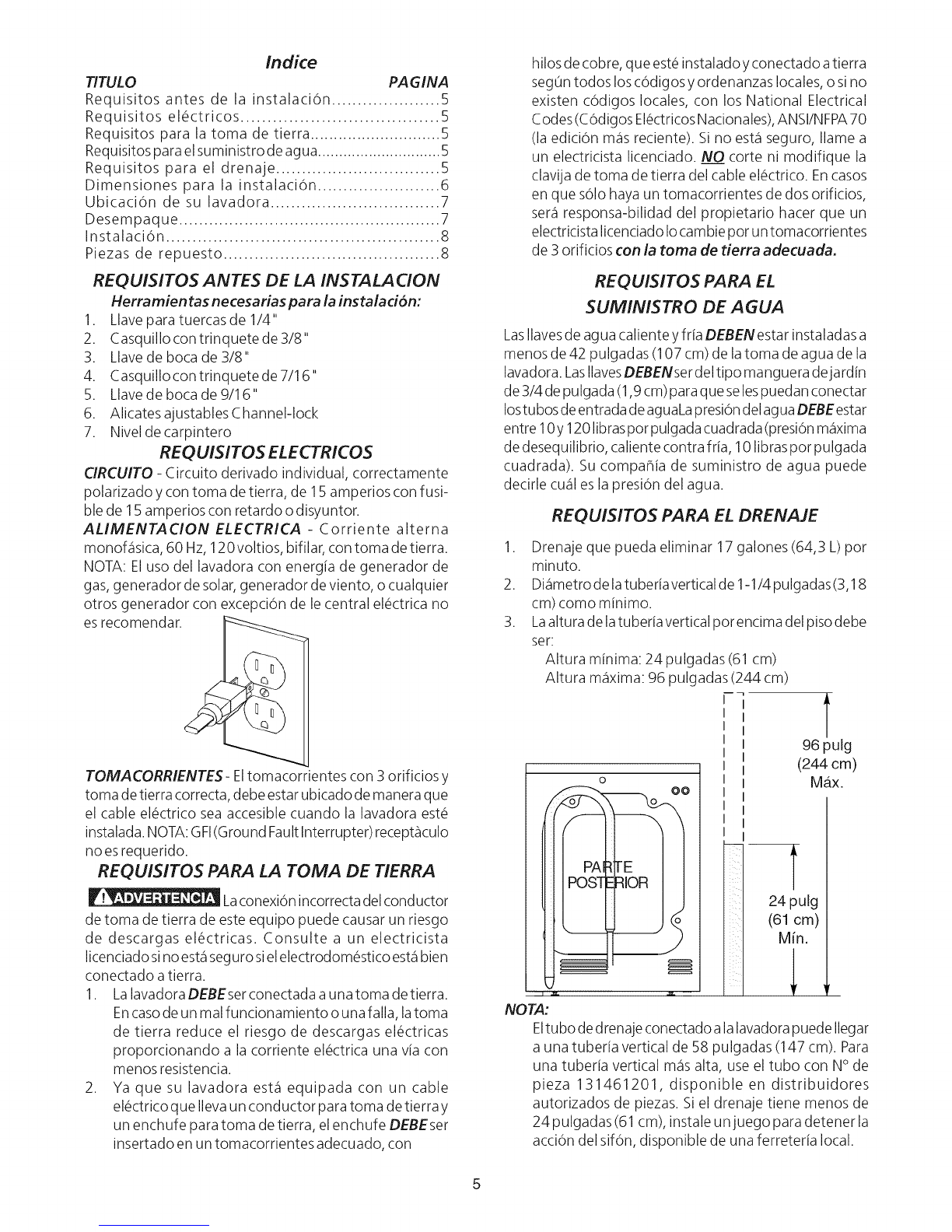

Espahol ........................................................... 5-8

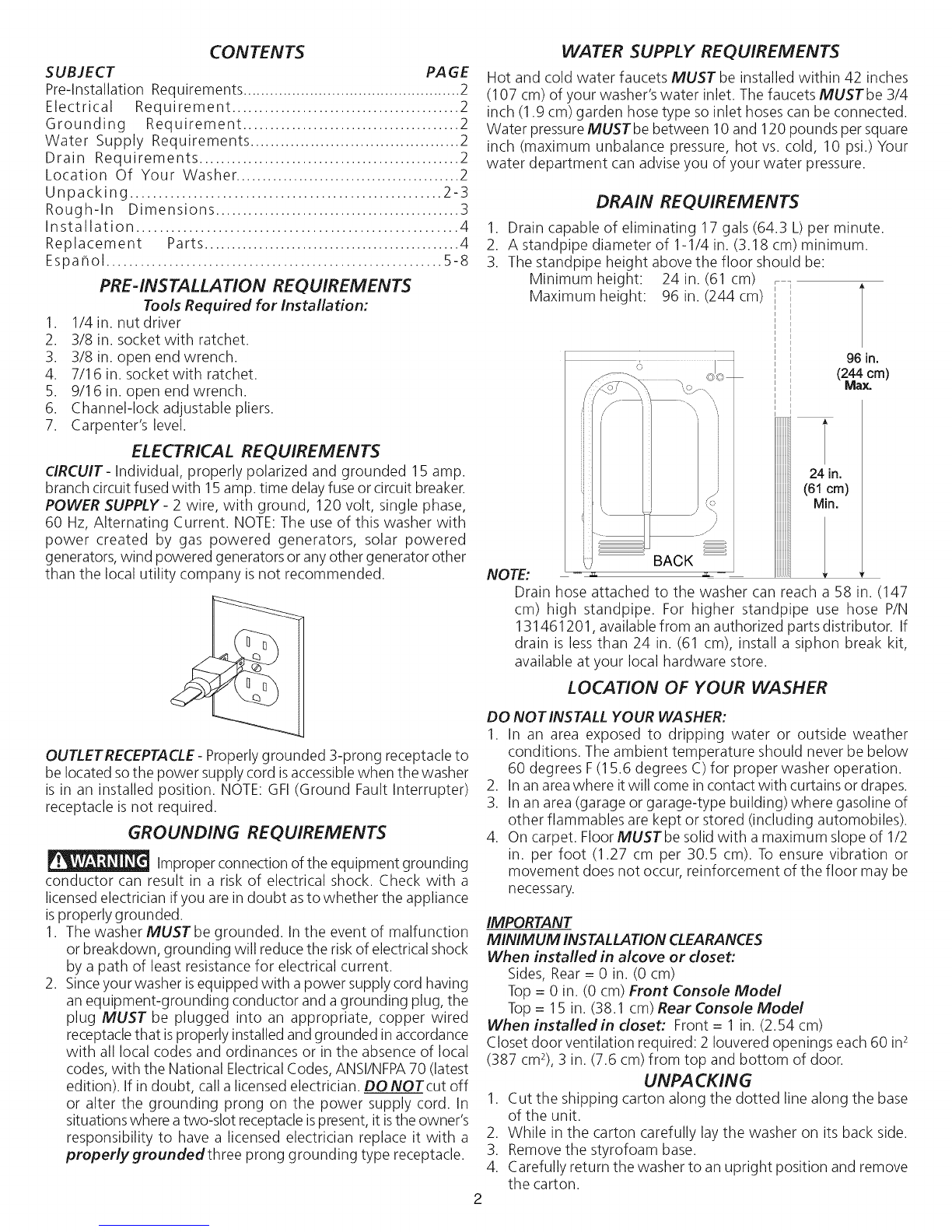

PRE-INSTALLATION REQUIREMENTS
Tools Required for installation:
1. 1/4 in. nut driver
2. 3/8 in. socket with ratchet.
3. 3/8 in. open end wrench.
4. 7/16 in. socket with ratchet.
5. 9/16 in. open end wrench.
6. Channel-lock adjustable pliers.
7. Carpenter's level.
ELECTRICAL REQUIREMENTS
CIRCUIT- Individual, properly polarized and grounded 15 amp.
branch circuit fused with 15 amp. time delayfuse or circuit breaker.
POWER SUPPLY - 2 wire, with ground, 120 volt, single phase,
60 Hz, Alternating Current. NOTE: The use of this washer with
power created by gas powered generators, solar powered
generators, wind powered generators or anyother generator other
than the local utility company is not recommended.
OUTLET RECEPTACLE- Properly grounded 3-prong receptacle to
be located sothe power supply cord isaccessiblewhen the washer
is in an installed position. NOTE: GFI (Ground Fault Interrupter)
receptacle is not required.
GROUNDING REQUIREMENTS
Improper connection of the equipment grounding
conductor can result in a risk of electrical shock. Check with a
licensed electrician if you are in doubt asto whether the appliance
isproperly grounded.
1. The washer MUSTbe grounded. In the event of malfunction
or breakdown, grounding will reduce the risk of electrical shock
by a path of least resistance for electrical current.
2. Sinceyour washer isequipped with a power supply cord having
an equipment-grounding conductor and a grounding plug, the
plug MUST be plugged into an appropriate, copper wired
receptaclethat isproperly installed and grounded in accordance
with all local codes and ordinances or in the absence of local
codes, with the National ElectricalCodes, ANSI/NFPA70 (latest
edition). If in doubt, call a licensed electrician. DONOTcut off
or alter the grounding prong on the power supply cord. In
situations where atwo-slot receptacle ispresent, it isthe owner's
responsibility to have a licensed electrician replace it with a
properlygroundedthree prong grounding type receptacle.
WATER SUPPLY REQUIREMENTS
Hot and cold water faucets MUST be installed within 42 inches
(107 cm) of your washer's water inlet. The faucets MUSTbe 3/4
inch (1.9 cm) garden hose type so inlet hoses can be connected.
Water pressureMUSTbe between 10 and 120 pounds per square
inch (maximum unbalance pressure, hot vs. cold, 10 psi.) Your
water department can advise you of your water pressure.
DRAIN REQUIREMENTS
1. Drain capable of eliminating 17 gals (64.3 L) per minute.
2. A standpipe diameter of 1-1/4 in. (3.18 cm) minimum.
3. The standpipe height above the floor should be:
Minimum height: 24 in. (61 cm)
Maximum height: 96 in. (244 cm)
NOTE:
)# ,,_,
J
BACK
96 in.
(244 cm)
Max.
24 in.
(61 cm)
Min.
Drain hose attached to the washer can reach a 58 in. (147
cm) high standpipe. For higher standpipe use hose P/N
131461201, available from an authorized parts distributor. If
drain is less than 24 in. (61 cm), install a siphon break kit,
available at your local hardware store.
LOCATION OF YOUR WASHER
DO NOT INSTALL YOUR WASHER:
1. In an area exposed to dripping water or outside weather
conditions. The ambient temperature should never be below
60 degrees F(15.6 degrees C) for proper washer operation.
2. In an area where it will come in contact with curtains or drapes.
3. In an area (garage or garage-type building) where gasoline of
other flammables are kept or stored (including automobiles).
4. On carpet. FloorMUSTbe solid with a maximum slope of 1/2
in. per foot (1.27 cm per 30.5 cm). To ensure vibration or
movement does not occur, reinforcement of the floor may be
necessary.
IMPORTANT
MINIMUM INSTALLATION CLEARANCES
When instafled in alcove or doset:
Sides, Rear = 0 in. (0 cm)
Top = 0 in. (0 cm) Front Console Model
Top = 15 in. (38.1 cm) Rear Console Model
When installed in closet: Front = 1 in. (2.54 cm)
Closet door ventilation required: 2 Iouvered openings each 60 in2
(387 cm2),3 in. (7.6 cm) from top and bottom of door.

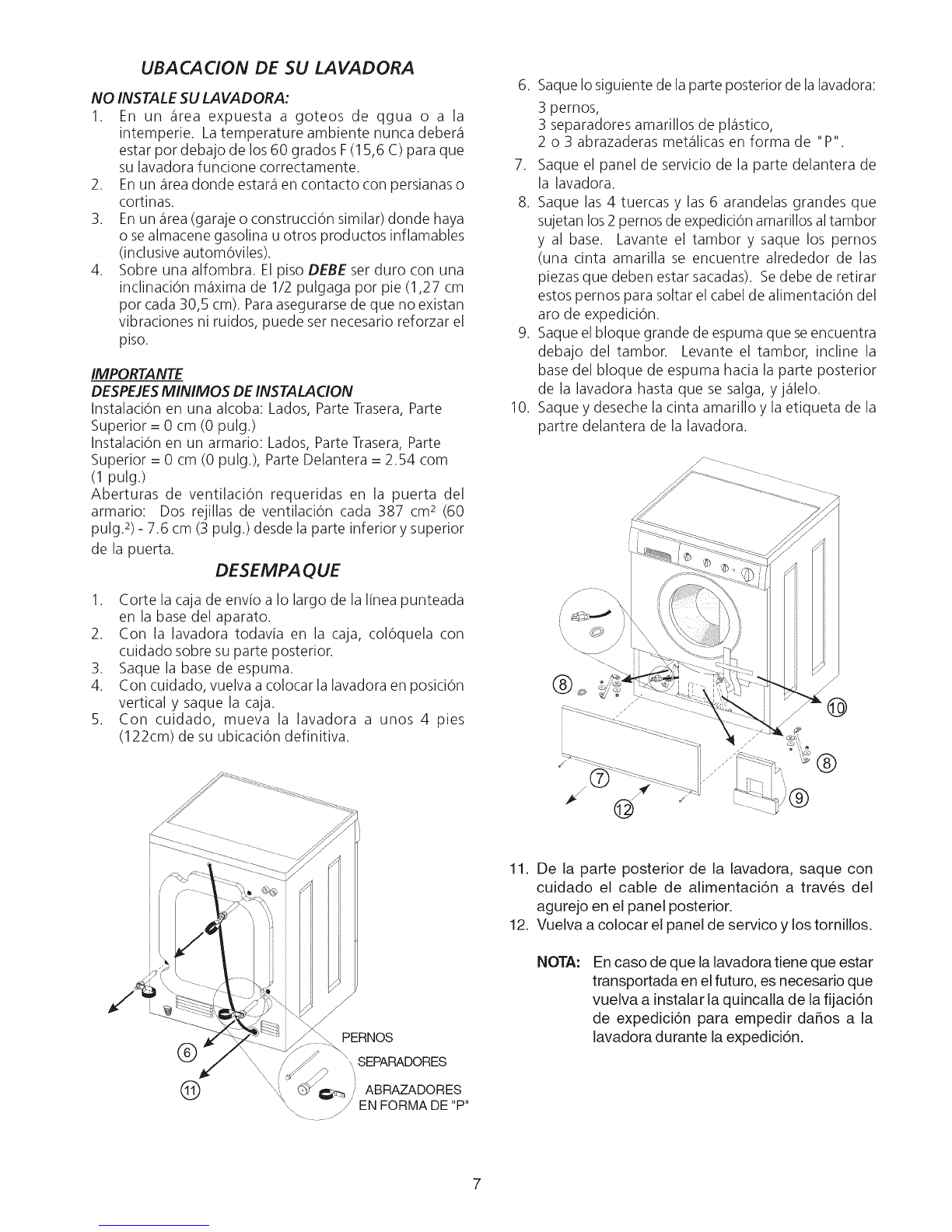

UNPACKING
1. Cut the shipping carton along the dotted line along the base
of the unit.
2. While in the carton carefully lay the washer on its back side.
3. Remove the styrofoam base.
4. Carefully return the washer to an upright position and remove
the carton.
