INSTALLATION INSTRUCTIONS

AND OWNER'S MANUAL

The Breckenridge

Deluxe Vent-Free Universal Fireboxes

DO NOT ATTEMPT TO MODIFY OR ALTER THE

CONSTRUCTION OF THE FIREBOX OR ITS COMPO-

NENTS. ANY MODIFICATION OR ALTERATION OF

CONSTRUCTION MAY VOID THE WARRANTY OF

THIS FIREBOX.

CHILDREN AND ADULTS SHOULD BE ALERTED TO

THE HAZARDS OF HIGH SURFACE TEMPERATURE

AND SHOULD STAY AWAY TO AVOID BURNS OR

CLOTHING IGNITION.

YOUNG CHILDREN SHOULD BE CAREFULLY SUPER-

VISED WHEN THEY ARE IN THE SAME ROOM AS THE

FIREBOX.

FOR USE ONLY WITH A LISTED GAS-FIRED UN-

VENTED DECORATIVE ROOM HEATER NOT TO

EXCEED 40,000 BTU/H.

DO NOT BUILD A WOOD FIRE.

UNIVERSAL FIREBOX FOR ALL

VENT-FREE LOG SETS

MODELS

VFD32FB0L-1 VFD36FB0L-1 VFD42FB0L-1

VFD32FB2ML-2 VFD36FB2ML-2 VFD42FB2ML-2

VFD32FB2CL-1 VFD36FB2CL-1 VFD42FB2CL-1

VFD32FB0F-1 VFD36FB0F-1 VFD42FB0F-1

VFD32FB2MF-2 VFD36FB2MF-2 VFD42FB2MF-2

VFD32FB2CF-1 VFD36FB2CF-1 VFD42FB2CF-1

Effective Date

November 2006

WARNING: Improper installation, adjustment, alteration,

service or maintenance can cause injury or property dam-

age. Refer to this manual. For assistance or additional in-

formation, consult a qualiﬁed installer, service agency or the

gas supplier.

Carefully review the instructions supplied with the decora-

tive type unvented room heater for the minimum ﬁreplace

size requirement.

DO NOT INSTALL A VENT-FREE LOG SET IN THIS

FIREBOX, UNLESS THIS FIREBOX MEETS THE

MINIMUM DIMENSIONS REQUIRED FOR THE

INSTALLATION.

GAS-FIRED

ANSI Z21.91 Ventless Fireplace Enclosures for Gas Fired Dec-

orative Type Unvented Room Heaters

— Do not store or use gasoline or other ﬂammable vapors

and liquids in the vicinity of this or any other appli-

ance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any

phone in your building.

• Immediately call your gas supplier from a neigh-

bor’s phone. Follow the gas supplier’s instruc-

tions.

• If you cannot reach your gas supplier, call the ﬁre

department.

— Installation and service must be performed by a quali-

ﬁed installer, service agency or the gas supplier.

WARNING: If the information in these instructions are

not followed exactly, a ﬁre or explosion may result caus-

ing property damage, personal injury or loss of life.

Installer: Leave this manual with the appliance.

Consumer: Retain this manual for future reference.

22992-0-1106Page 2

SECTION PAGE

Important Safety Information .................................................................................................3

Introduction ............................................................................................................................3

Clearances ..............................................................................................................................4

Firebox Installation Instructions ......................................................................................... 4-7

Installing Hood ................................................................................................................... 7-8

Gas Line Connection .............................................................................................................8

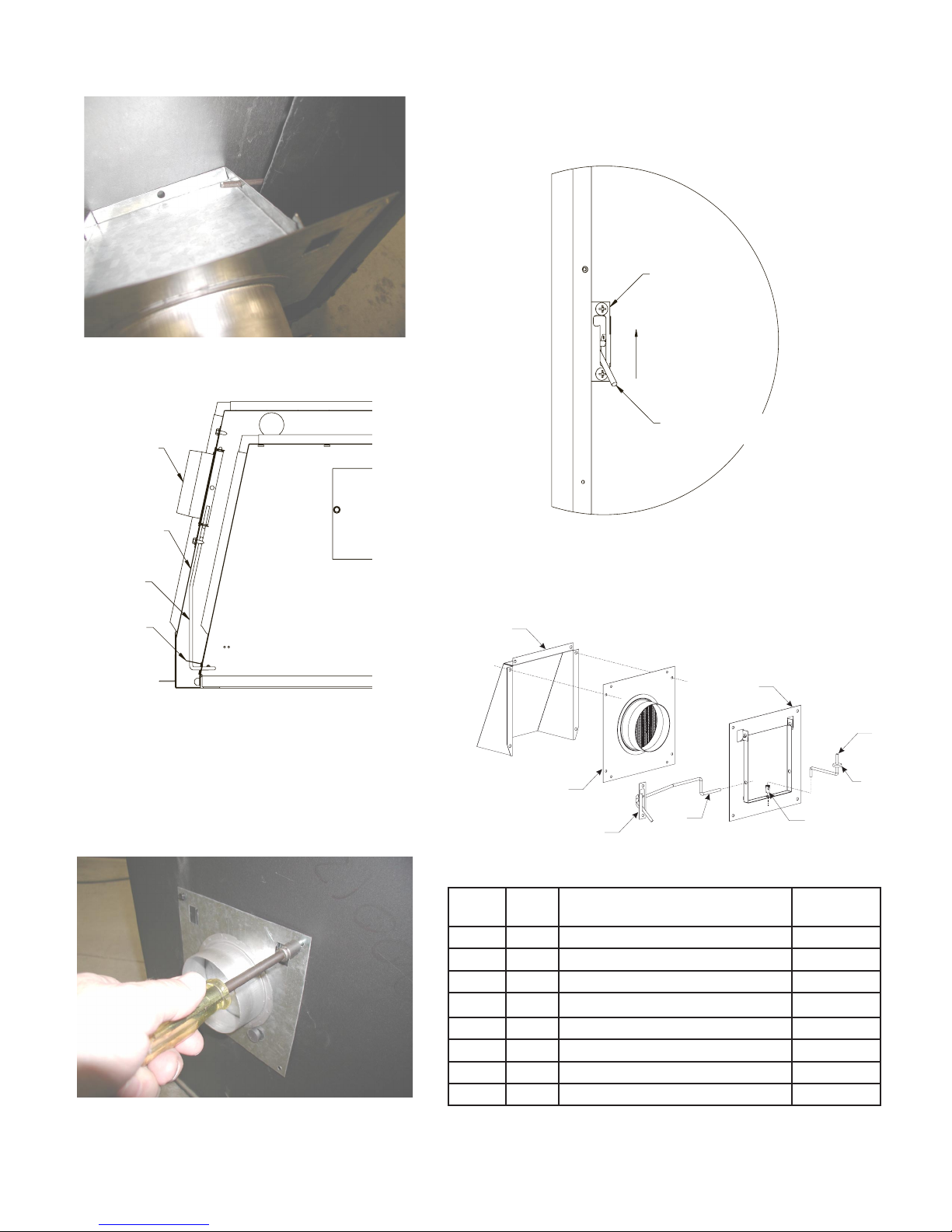

Optional Fresh Air Kit Installation Instructions ............................................................... 9-11

Optional Single Speed Blower Installations Instructions ............................................... 12-14

Junction Box Wiring Installation Instructions ......................................................................15

Maintenance .........................................................................................................................15

Parts List ....................................................................................................................... 16-17

How to Order Repair Parts ...................................................................................................17

Parts View .............................................................................................................................18

Accessories ..................................................................................................................... 19-20

TABLE OF CONTENTS

Page 322992-0-1106

The installation must conform with local codes or, in

the absence of local codes, with the National Fuel Gas

Code, ANSI Z223.1 (latest edition) and to the National

electrical Code, ANSI/NFPA70 (latest edition).

NOTE: Installation and repair should be done by a quali-

ﬁed service person. The appliance should be inspected

before use and at least annually by a qualiﬁed service

person. More frequent cleaning may be required due to

excessive lint from carpeting, bedding material, etc. It

is imperative that control compartment, burners and

circulating air passageways of the appliance be kept

clean.

Any safety screen or guard removed for servicing an

appliance must be replaced prior to operating the ap-

pliance. Provide adequate combustion and ventilation

air.

The ﬂow of combustion and ventilation air MUST NOT

be obstructed.

Provide adequate clearance around air openings into

the combustion chamber and adequate accessibility

clearance for servicing and proper operation. NEVER

obstruct the front opening of the appliance.

This Empire Comfort Systems, Inc. firebox and its

components have been tested and will operate safely when

installed in accordance with this installation manual.

Read all instructions before starting installation, then

follow these instructions carefully during installation

to maximize ﬁrebox beneﬁt and safety. Report to your

dealer any parts damaged in shipment.

The Empire Comfort Systems, Inc. warranty will be

voided by, and Empire Comfort Systems, Inc. disclaims

any responsibility for the following actions:

- Installation of any damaged ﬁrebox.

- Modiﬁcation of the ﬁrebox or any of the components

parts thereof.

- Installation other than as instructed by Empire

Comfort Systems, Inc.

- Installation and/or use of any component part or

accessory not approved by Empire Comfort Systems,

Inc. in combination or assembly with a Empire

Comfort Systems, Inc. ﬁrebox, not withstanding any

independent testing laboratory or other third party

approval of such component part or accessory.

Any such action may create a possible ﬁre hazard.

Consult your local building codes.

Firebox Screen.

The ﬁrebox screen must be in place when the ﬁrebox is

operating.

Instructions to Installer

1. Installer must leave instruction manual with owner after

installation.

2. Installer must have owner ﬁll out and mail warranty card

supplied with ﬁrebox.

3. Installer should show owner how to start and operate log set

that is installed into ﬁrebox.

Important

All correspondence should refer to complete Model Number,

Serial Number.

Notice: During initial ﬁring of this ﬁrebox with a log set installed, its

paint will bake out, and smoke will occur. To prevent triggering of

smoke alarms, ventilate the room in which the unit is installed.

Qualiﬁed Installing Agency

Installation and replacement of gas piping, gas utilization

equipment or accessories and repair and servicing of equipment

shall be performed only by a qualiﬁed agency. The term "qualiﬁed

agency" means any individual, ﬁrm, corporation or company

which either in person or through a representative is engaged in

and is responsible for (a) the installation or replacement of gas

piping or (b) the connection, installation, repair or servicing of

equipment, who is experienced in such work, familiar with all

precautions required and has complied with all the requirements

of the authority having jurisdiction.

State of Massachusetts: The installation must be made by

a licensed plumber or gas ﬁtter in the Commonwealth of

Massachusetts. The state of Massachusetts requires that a

ﬂexible appliance connector cannot exceed three feet in

length.

Sellers of unvented propane or natural gas-ﬁred supplemental

room heaters shall provide to each purchaser a copy of 527

CMR 30 upon sale of the unit.

In the State of Massachusetts, unvented propane and natural

gas-ﬁred space heaters shall be prohibited in bedrooms and

bathrooms.

The installation must conform with local codes or, in the absence

of local codes, with the National Fuel Gas Code, ANSI Z223.1/

NFPA 54.*

*Available from the American National Standards Institute, Inc., 11 West

42nd St., New York, N.Y. 10036.

IMPORTANT SAFETY INFORMATION

INTRODUCTION

22992-0-1106Page 4

Clearances to combustibles

Sidewall Clearances: The clearance from the inside of the ﬁrebox

to perpendicular combustible side wall should not be less than

6". See Figure 1.

Firebox Side and Back Clearances: The ﬁrebox outer casing side

and back ﬂanges are zero clearance to combustibles.

Top Framing and Finishing: Combustible framing may rest on

top of standoffs. Combustible ﬁnishing materials may extend

to the top standoff screws on the front edge of the outer wrap.

See Figure 2.

Ceiling Clearances: The ceiling height should not be less than 42"

from the top of the hood. See Figure 3.

Mantel Clearances: Vent free ﬁrebox models must use the hood

supplied with the ﬁrebox, or one of the optional hood kits

available for each model. If a combustible mantel is installed,

it must meet the clearance requirements detailed below.

Grate Clearance: The minimum clearance between the front legs

of the grate and front edge of the ﬁrebox is 2".

Leave at least 36" clearance from the front of the ﬁrebox.

Any vent-free Gas Log Heater must be “For use with approved

ANSI Z21.11.2 unvented room heater.”

Follow and complete the installation instructions of the gas log set

and the requirements of this ﬁrebox.

Check all ﬁttings for leaks before lighting the gas log set.

In planning the installation for the ﬁrebox, it is necessary to

determine where the unit is to be installed and whether optional

accessories are desired. Gas supply piping should also be planned

at this time.

A gas shut off must be in this line.

45°

6”

3”

MAX.

PERPENDICULAR

SIDE WALL

FRONT FACE (SIDE)

FIREBOX

(TOP VIEW)

COMBUSTIBLE

MATERIALS ALLOWED

IN SHADED AREAS

FIREBOX

STAND OFF

FINISH WITH TRIM KIT OR

NON-COMBUSTIBLE MATERIAL

AS DESIRED.

COMBUSTIBLE

FINISHED WALL

OR MANTEL

2X4

HEADER

MANTEL

HOOD

13”

10”

12”

MAX

42”

MIN.

(CEILING TO

TOP OF HOOD)

11 1/2”

MIN.

FIREBOX

FACE

84”

MIN.

(CEILING TO FLOOR)

CEILING

COMBUSTIBLES

ALLOWED

3/8” COMBUSTIBLE

CLEARANCE REQUIRED

FROM TOP EDGE

OF FIREBOX

10”

22”

8”

20”

6 ½”

18”

5”

16”

3 ½”

14”

2”

12 ½”

3/4”

24 ½”

0”

Figure 1

Figure 2

Figure 3

CLEARANCES

FIREBOX INSTALLATION INSTRUCTIONS

Page 522992-0-1106

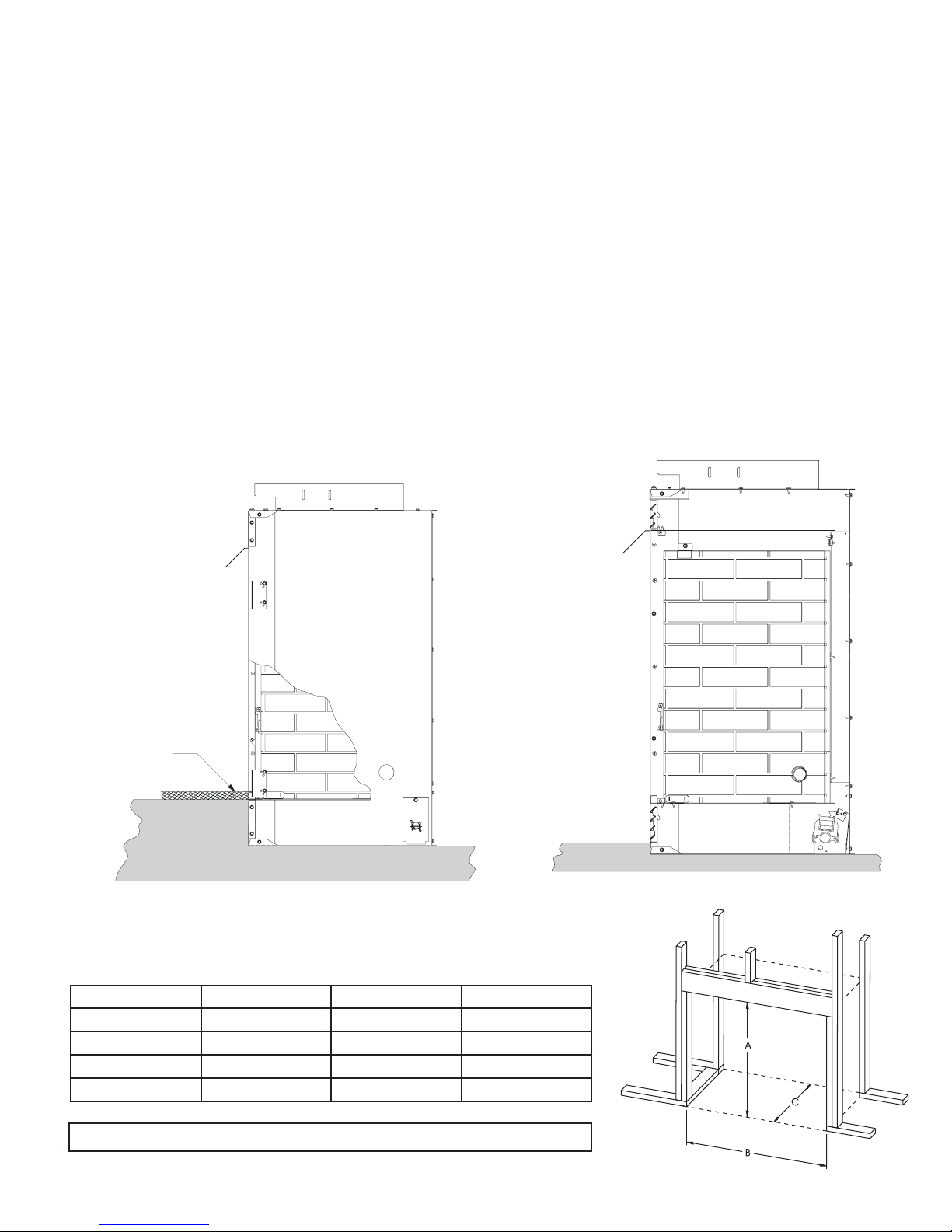

Deluxe Vent-Free Firebox Framing Dimensions (in inches)

"A" "B" "C"

Model Framing Height Framing Width Framing Depth

VFD32FB 36 1/8" 35" 17"

VFD36FB 38 1/8" 40" 19 3/8"

VFD42FB 38 1/8" 44" 19 3/8"

Attention: Add 3-3/4" to "A" Dimension when using ﬂush mantel base.

Framing dimension A includes a three inch clearance for standoffs on ﬁrebox.

Accessory kits such as the FBB5 Blower kit, Trim kits, Mantles,

Full Cabinet Mantels, plus other Decorative Frame, Hood, and

Door accessory kits may be installed after the ﬁrebox is secured

to the framed opening.

Refer to the instructions provided with each of the optional

accessory kits for proper installation and operation.

Firebox Framing

Firebox framing can be built before or after the ﬁrebox is set

in place. Framing should be positioned to accommodate wall

covering and ﬁrebox facing material. The ﬁrebox framing should

be constructed of 2 x 4 lumber or heavier. The framing headers

may rest on the top of the ﬁrebox standoffs. Refer to Figures 6

and 7 for ﬁrebox framing dimensions.

The ﬁrebox can be mounted on any of these surfaces:

1. A ﬂat hard combustible or non-combustible surface.

2. A raised platform of combustible or non-combustible

material.

3. Recessed into the ﬂoor as illustrated by Figure 4 (ﬂush face),

and Figure 5 (louvered models).

4. Supported under all (4) corners of the ﬁrebox so that contact

is made on all four perimeter edges on the bottom of the unit

(Example: Four (4) concrete masonry blocks).

If the firebox is installed directly on carpeting, tile or other

combustible material other than wood ﬂooring, it should be installed

on a metal or wood panel extending the full width and depth of

the unit.

At this point, you should have decided what components to include

in your installation, and where the ﬁrebox is to be located. If this

has not been done, stop and consult your dealer for assistance with

this planning.

Planning Your Installation

Please note that the optional BVA1 Fresh Air kit available for use

with the Vent Free Firebox must be installed at the time of the initial

installation. Refer to pages 9, 10, and 11 for detailed instructions

for the air kit.

COMBUSTIBLE MATERIALS ALLOWED

NON-COMBUSTIBLE

FINISHING MATERIAL

TO FIREBOX OPENING

FLUSH

FACE

MODELS

LOUVERED

FIREBOX

MODELS

COMBUSTIBLE MATERIALS ALLOWED

Figure 4

Figure 5

Figure 6

22992-0-1106Page 6

Figure 7

Firebox Dimensions

DELUXE

LOUVERED

DELUXE

FLUSH

FIREBOX INSTALLATION INSTRUCTIONS (continued)

DELUXE

REFERENCE

LETTER

LOUVERED FLUSH

VFD32 VFD36 VFD42 VFD32 VFD36 VFD42

A 35 5/8" 37 5/8" 37 5/8" 35 5/8" 37 5/8" 37 5/8"

B 34 1/2" 39 1/2" 43 1/2" 34 1/2" 39 1/2" 43 1/2"

C 17 7/16" 19 13/16" 19 13/16" 17 7/16" 19 13/16" 19 13/16"

D 29" 33" 37" 29" 33" 37"

E 33" 35" 35" 33" 35" 35"

F 31" 36" 40" 31" 36" 40"

G 22 3/8" 24 3/8" 24 3/8" 22 3/8" 24 3/8" 24 3/8"

H 1 1/4" 1 1/4" 1 1/4" 6 1/8" 6 1/8" 6 1/8"

I 31 1/2" 33 1/2" 33 1/2" 28 9/16" 30 9/16" 30 9/16"

J 8 3/8" 8 3/8" 8 3/8" 8 3/8" 8 3/8" 8 3/8"

K 5 3/4" 5 3/4" 5 3/4" 5 3/4" 5 3/4" 5 3/4"

L 31 13/16" 36 3/16" 38 3/16" 31 13/16" 36 3/16" 38 3/16"

M 63 3/8" 72 3/8" 76 3/8" 63 3/8" 72 3/8" 76 3/8"

Page 722992-0-1106

Locating Firebox

Place ﬁrebox in framing opening. Use the four (4) framing brackets

provided on the ﬁrebox to attach ﬁrebox to framing. Different hole

locations can be used for ﬁnishing materials with thicknesses of

3/8", 1/2" and 3/4". Attach these materials with screws provided,

two (2) per framing bracket. See Figure 8.

Framing brackets should ﬁt directly against framing material. Use

at least one (1) nail per bracket to secure in place.

Check squareness of the ﬁrebox prior to securing to framed opening.

See Figure 9.

Figure 8

A black hood that is furnished with each ﬁrebox (or optional hood)

MUST be installed before the ﬁrebox is used. Failure to do so may

create a possible ﬁre hazard. The hood is located behind upper

louver, or inside the ﬁrebox on ﬂush face units. If brass, stainless

steel, or hammered pewter hoods are desired, they can be purchased

as an option. Attachment is the same as the standard black hood.

Flush Face Models

1. On ﬂush face models, loosen the two screws (A) holding ﬁrebox

top to face panel, then slide the hood ﬂange between the ﬁrebox

top and face panel and re-tighten the screws.

2. Install one (1) screw at each end of the hood as shown (C).

Louvered Models

1. If you have a louvered model, remove upper louver.

2. Place the top hood ﬂange on top of the ﬁrebox, then install three

screws through the ﬁrebox top from below and screw into the

pilot holes in the hood ﬂange (B).

3. Install one (1) screw at each end of the hood as shown (C).

4. Re-install louver.

Caution: The hood must be installed prior to operation of appliance.

See Figure 10

ATTACH (4)

FRAMING BRACKETS

TO SIDES OF FIREBOX

PRIOR TO INSTALLING

UNIT TO FRAMED OPENING

ACAC

Louvered Models

Flush Face Models

Figure 10

FIREBOX OPENING

CHECK TO SEE

THAT BOX IS SQUARE

PRIOR TO ATTACHING TO

FRAMING

Figure 9

FIREBOX INSTALLATION INSTRUCTIONS (continued)

INSTALLING HOOD

22992-0-1106Page 8

The ﬁrebox is designed to accept a 3/8-inch gas line for an approved

vent-free gas logset. Have the line installed by a qualiﬁed service

person in accordance with all building codes. Consult local building

codes to properly size the gas supply line leading to the 3/8-inch

hook-up at the unit. The state of Massachusetts requires that a

ﬂexible appliance connector cannot exceed three feet in length.

Gas access holes are provided on both sides of the ﬁrebox. See

Figure 11. On models with ceramic brick panels installed, carefully

remove the indented knockout in the ceramic brick panel using a

drill or utility knife. See Figure 12.

When installing optional ceramic ﬁber side panels into ﬁrebox,

lay panel on a ﬂat surface. Remove the gas line knockout (round

depression) in the appropriate side panel using a drill or utility

knife.

After the brick panel knockout is removed, the ﬁrebox wrap may

have a round metal knockout that must be removed also. Use a

screwdriver to punch out the metal knockout.

Check gas type. Use only the gas type indicated on the gas log

set rating plate. If the gas listed on the plate is not your type of

gas supply, DO NOT INSTALL. Contact your dealer for proper

model.

Always use an external regulator for all LP ﬁreboxes to reduce the

supply tank pressure to a maximum of 14" w.c. This is in addition

to the regulator ﬁtted to the log set.

WA R N I N G : C O N N EC T I O N D I R E C T LY TO A N

UNREGULATED L.P. TANK CAN CAUSE EXPLOSION.

Install only a ANSI Z21.11.2 vent-free log set into this ﬁrebox.

Figure 11

Extended Hoods

If your non-combustible facing material is over 1" in thickness that will be used to ﬁnish this ﬁrebox, an extended hood is available that

will extend out 2" farther out into the room. Contact your local dealer for details.

Finishing

All joints (top, bottom and sides), where the wall or decorative facing material meets the ﬁrebox surround should be sealed with a non-

combustible material.

Hearth extensions are recommended, but not required for these ﬁreboxes.

VB4H32BL Standard Black VB4H36BL Standard Black VB4H42BL Standard Black

VB4H32BR Polished Brass VB4H36BR Polished Brass VB4H42BR Polished Brass

VB4H32SS Stainless Steel VB4H36SS Stainless Steel VB4H42SS Stainless Steel

VB4H32HP Hammered Pewter VB4H36HP Hammered Pewter VB4H42HP Hammered Pewter

GAS ACCESS HOLES

Figure 12

INSTALLING HOOD (continued)

GAS LINE CONNECTION

Page 922992-0-1106

OPTIONAL FRESH AIR KIT INSTALLATION INSTRUCTIONS

FOR DELUXE AND PREMIUM FIREBOXES

4. Next, with the vise grip attached, feed the long control rod

through the small rectangular opening at the left side of the

ﬁrebox face. Carefully position the rod and bracket so that

the bracket can be secured to the inside opening of the ﬁrebox

with two screws. See Figure 16. Do not remove vise grips at

this time.

5. Working from the side cutout opening, place the slightly

opened air door assembly into the cutout opening as shown

in Figure 17.

6. While holding the door assembly in your left hand, grasp the

vise grip (attached to the long control rod). Rotate and move

the control rod around until the inside end of the rod is mated

The optional BVA1 Fresh Air Kit is designed to introduce outside

air to the ﬁreplace or ﬁrebox as desired.

It must be installed prior to, or at the time of ﬁreplace or ﬁrebox

installation to framing.

The Fresh Air kit must be installed prior to the installation of wall-

board or other ﬁnishing materials around the unit.

Tools needed: Gloves, Metal snips, Vise-Grip, ¼” Nut Driver,

Standard Screwdriver

Caution: Sharp edges

Air Door Installation for Vent Free Firebox Models:

VFD(32,36,42)FB

1. Begin by removing the rectangular cutout located on the left

side of the ﬁrebox. Use gloves and sheet metal snips to cre-

ate the opening for the Air Door assembly to install into. See

Figures 13 and 14.

2. Move the left hand curtain screen to the center of the ﬁrebox

opening.

3. Grasp the long control rod lever with control bracket (items 7

and 8 in Fresh Air Kit Parts List) securely with a vise grips

as shown in Figure 15.

Figure 13

Figure 15

Figure 16

Figure 17

TO INSTALL BVA-1 FRESH AIR KIT,

REMOVE RECTANGULAR CUT-OUT WITH

SHEET METAL CUTTERS

Figure 14

22992-0-1106Page 10

with the hole in the front ﬂange of the movable air door. See

Figure 18.

7. Once the control rod is fed through the air door hole, gently

lift the outer air door plate assembly inward and upward until

the mounting holes in the plate line up with the pilot holes in

the side wrap.

8. Install (4) screws to retain the Air Door assembly. See Fig-

ure 20.

9. Remove vise grip from control rod, then check the operation

of the Air Door. The control lever should open the air door

Figure 18

Figure 21

OUTSIDE AIR

ROD BRACKET

OPEN

FRESH AIR ROD

(CONTROL LEVER)

LEFT SIDE VIEW

OF FIREBOX OPENING

TOP CUTAWAY

VIEW

DAMPER

ASSEMBLY

OUTER

CASING

FRESH AIR

ROD

OUTSIDE AIR

ROD BRACKET

Figure 20

OUTSIDE AIR

ROD BRACKET

OPEN

FRESH AIR ROD

(CONTROL LEVER)

LEFT SIDE VIEW

OF FIREBOX OPENING

TOP CUTAWAY

VIEW

DAMPER

ASSEMBLY

OUTER

CASING

FRESH AIR

ROD

OUTSIDE AIR

ROD BRACKET

when rotated upward, and can be locked open by pulling for-

ward into the notch at the top of the control lever bracket.

10. To close, simply disengage by letting the lever rotate down-

ward. The air door will remain closed by magnetic action.

See Figure 21.

Figure 19

FRESH AIR KIT PARTS LIST

INDEX

NO.

PART

NO. DESCRIPTION

QUANTITY

SUPPLIED

1 10124 OUTSIDE AIR HOOD 1

2 18476 OUTSIDE AIR TUBE ASSEMBLY 1

3 R8196 WASHER, SILICONE (BV) 1

4 19548 DAMPER ASSEMBLY 1

5 R8047 TUBULAR CLIP (BV) 1

6 R8189 ROD, FRESH AIR (BV) 1

7 R8703 ROD, AIR CONTROL (FB) 1

8 20473 BRACKET, OUTSIDE AIR ROD (FB) 1

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Chimenea de interior de White Mountain Hearth

White Mountain Hearth

White Mountain Hearth VFP32FP(20 Guía de inicio rápido

White Mountain Hearth

White Mountain Hearth DVD32FP3 Series Guía de inicio rápido

White Mountain Hearth

White Mountain Hearth INNSBROOK DV25IN33LN-1 Manual de usuario

White Mountain Hearth

White Mountain Hearth MILLIVOLT DVCX FP30-3 Series Guía de inicio rápido

White Mountain Hearth

White Mountain Hearth VFBL-30-1 Guía de inicio rápido

White Mountain Hearth

White Mountain Hearth Breckenridge Deluxe VFD32FB0L-1 Guía de inicio rápido

White Mountain Hearth

White Mountain Hearth DVCX36NAT Manual de usuario

White Mountain Hearth

White Mountain Hearth Tahoe DVS-30-2 Instrucciones de instalación

White Mountain Hearth

White Mountain Hearth DV25IN33L Guía de inicio rápido

White Mountain Hearth

White Mountain Hearth CIBV-30-20 Guía de inicio rápido

White Mountain Hearth

White Mountain Hearth DVTL27FP90N-1 Guía de inicio rápido

White Mountain Hearth

White Mountain Hearth VSM-18-1 Manual de usuario

White Mountain Hearth

White Mountain Hearth VF24FP2-2 Manual de usuario

White Mountain Hearth

White Mountain Hearth Tahoe DVS-30-3 Manual de usuario

White Mountain Hearth

White Mountain Hearth VFS32FB2DF-3 Manual de usuario

White Mountain Hearth

White Mountain Hearth DVP36FP30-3 NAT Guía de inicio rápido

White Mountain Hearth

White Mountain Hearth Vail Guía de inicio rápido

White Mountain Hearth

White Mountain Hearth VFP32FB2ML-1 Manual de usuario

White Mountain Hearth

White Mountain Hearth BVD34FP30 Guía de inicio rápido

White Mountain Hearth

White Mountain Hearth DVCX(36 Guía de inicio rápido

White Mountain Hearth

White Mountain Hearth Morgan Creek LS-30MC-1 Guía de inicio rápido

White Mountain Hearth

White Mountain Hearth VFSR-16-3, VFSR-18-3, VFSR-24-3, VFSR-30-3, VFSV-16-3, VFSV-18-3, VFSV-24-3, VFSV-30-3, VFSM-18-3, VFSM-24-3,... Guía de inicio rápido

White Mountain Hearth

White Mountain Hearth LSu24rr-2 Guía de inicio rápido

White Mountain Hearth

White Mountain Hearth DVX36FP32CL(N Guía de inicio rápido

Manuales populares de Chimenea de interior de otras marcas

Brigantia

Brigantia 35-DVRS31N-2 Manual del propietario

Nordpeis

Nordpeis Bergen Manual de usuario

Superior

Superior BCT2536TMN Manual de usuario

Quadra-Fire

Quadra-Fire 5100I-GD-B Manual de usuario

Renaissance

Renaissance RUMFORD 1000 Manual de usuario

Lacunza

Lacunza IV-800 Manual de usuario

Baxi

Baxi 940 Instrucciones de uso

Dru

Dru Maestro 60/2 Tall RCH Manual de usuario

Diamond Fireglass

Diamond Fireglass SS-O22 Manual de usuario

HearthStone

HearthStone Windsor Bay 8830 Manual de programación

Napoleon

Napoleon ASCENT B42 Manual de usuario

Enviro

Enviro E33GI Manual de usuario

Smeg

Smeg L30 FABE Instrucciones de montaje

KEDDY

KEDDY K700 Manual de usuario

Godin

Godin 3451 Manual de usuario

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manual de usuario

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manual de usuario

Desa

Desa CCFPDFT Manual de operación
