SERVICE MANUAL

Wiring Diagram

Exploded Views

Parts List

July 2013

Time Steered Condenser Dryer

White Knight C77AS

0312 76A 15332

White Knight Condenser Dryer - Exploded View 1

559

394

461

538

217

180

460

368

196

386

248

370

376

199

391

235

235a

353

215

352

211

372

497

248a

458

397

184 416

366

365

364

363

359

203a 367

362

201

203

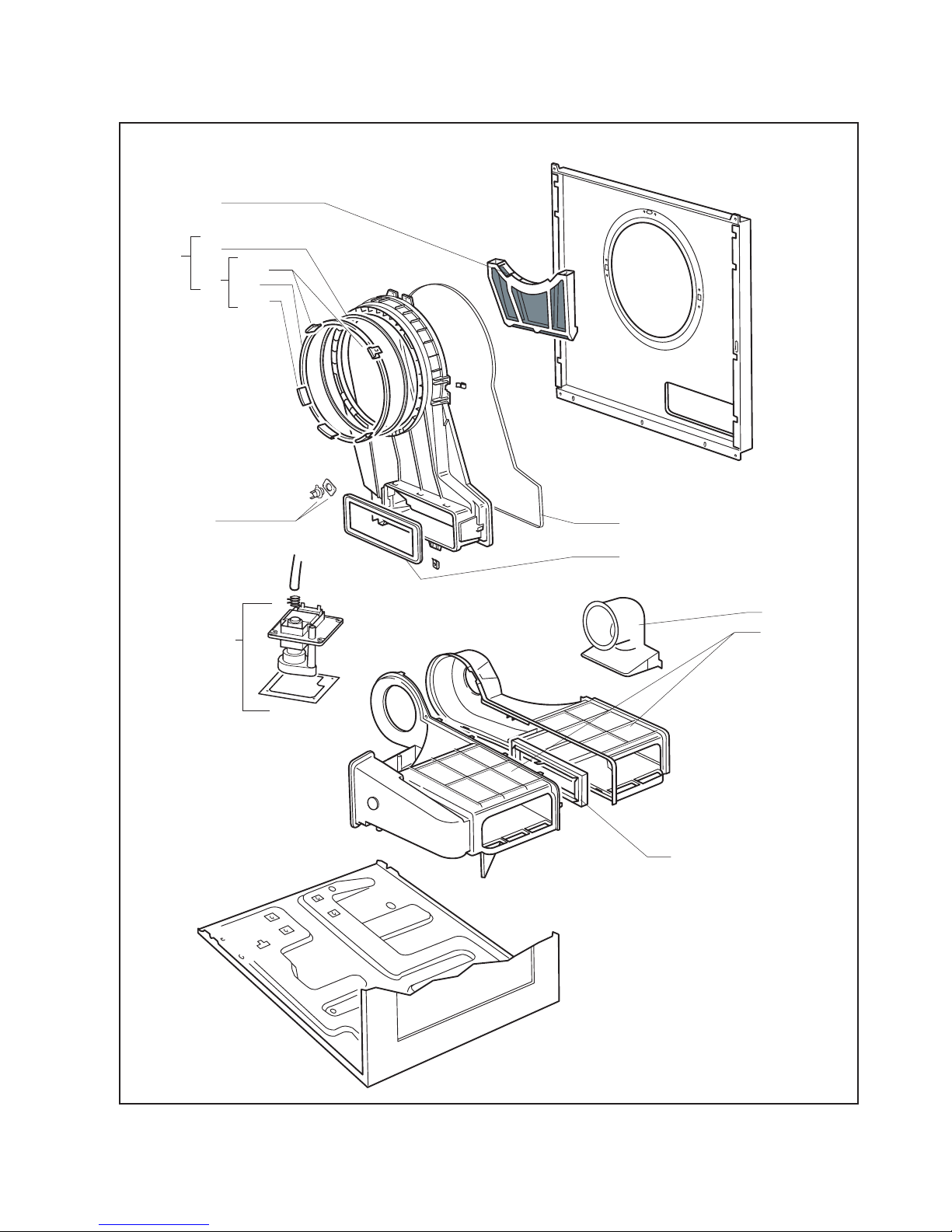

White Knight Condenser Dryer - Exploded View 2

454

512 445b

442

445a

445

440

229 456

506

475

437

166

505

169

White Knight Exploded View 3

153

557

White Knight Condenser Dryer - ExplodedView 4

270

401

550

515

228

400

230

393

141 142

227

447

125

413

478

453

446

448

543

112

432

433

450 449

101

558

444

266

518

144

Wiring Diagram

White Knight Condenser - Parts List

Item Descri

tion Part Number Ex

l.View

101 Motor + 8µf Capacitor Assembly 4213 092 21001 4

112 Capacitor Assembly 8µf 4213 092 08091 4

125 Drive Belt 4213 092 19501 4

141 Mains Cable 4213 076 35123 4

142 Terminal Block 4213 078 44621 4

144 Earth Tab Assembly 4213 092 41181 4

153 Valve 4213 077 85111 3

166 Pump Assembly 4213 092 25211 2

169 Valve to Pipe Assembly 4213 092 40391 3

180 Bottle Switch Adjuster Assembly 4213 092 17431 1

184 Condensing Unit/Heat Exchanger 4213 092 54011 1

196 Cabinet Assembly 4213 092 54021 1

199 Ignis Plinth 4213 092 47261 1

201 Door Seal 4213 092 21051 1

203 Full Door/Window Assembly 4213 092 54031 1

203a Door Frame Assembly 4213 092 54041 1

211 Timer 4213 078 55142 1

215 Bottle Neon Assembly 4213 092 09901 1

217 Bottle Switch Assembly 4213 092 21291 1

227 Heater Assembly 4213 092 44911 4

228 Heater TOC (Manual Reset) Assembly 4213 092 21261 4

229 Exhaust Thermostat 4213 092 21081 2

230 Inlet Thermostat 4213 092 21251 4

235 Heat Switch 4213 078 52401 1

235a Start Switch 4213 078 52762 1

248 Door Micro-Switch Assembly 4213 092 05251 1

248a Door Interlock Relay Board Assembly 4213 092 51871 1

266 Drum Assembly (includes items 270 & 444) 4213 092 37081 4

270 Drum Shaft/Bearing Kit Assembly 4213 092 05591 4

352 Timer Knob Assembly 4213 092 53961 1

353 Control Panel Assembly 4213 092 59891 1

359 Door Hinge Assembly 4213 092 26071 1

362 Window 4213 077 44095 1

363 Door Frame 4213 092 54191 1

364 Latch Pivot 4213 075 13013 1

365 Latch Spring 4213 075 70833 1

366 Door Latch 4213 077 53413 1

367 Switch Strike 4213 077 83571 1

368 Bottle 4213 092 17941 1

370 Latch Guide 4213 077 40992 1

372 Timer Bracket 4213 070 10934 1

376 Front Panel Assembly 4213 092 54061 1

386 Ellipse Top Cover Assembly 4213 092 54001 1

391 Buttons Assembly 4213 092 53991 1

393 Flex Support Clip 4213 077 40982 4

394 Foot 4213 077 39833 1

397 Condenser Door Assembly 4213 092 54071 1

400 Insulating Plate 4213 092 44951 4

401 Rear Banjo Duct Assembly 4213 092 44941 4

413 Back Panel Assembly 4213 092 40371 4

416 Heat Exchanger Links 4213 092 37481 1

432 Motor Bracket Assembly 4213 092 26161 4

433 Seal Clamp Kit 4213 092 27661 4

437 Condenser Housing Assembly 4213 092 21151 2

0312 76A 15332

White Knight Condenser - Parts List

440 Banjo/Seals/Clips/Bearing Pads Assembly 4213 092 21161 2

442 Front Seal 4213 077 40942 2

444 Lifter 4213 077 41009 4

445 Front Bearings/Drum Seal Assembly 4213 092 21171 2

445a Bearing Pads (long) 4213 077 40962 2

445b Bearing Pads (short) 4213 077 40952 2

446 Cooling Air Fan 4213 077 56173 4

447 Fan Cover Assembly 4213 092 21181 4

448 Seal Fan Access Cover 4213 077 08871 4

449 Inlet Duct Case Assembly 4213 092 21241 4

450 Inlet Duct Panel Seal 4213 077 09041 4

453 Inlet Duct Rear Seal 4213 077 08568 4

454 V Filter 4213 092 18351 2

456 Banjo Seal 4213 077 08487 2

458 Condenser Latch Set 4213 092 21191 1

460 Pivot Bracket 4213 077 51408 1

461 Bottle Housing Assembly 4213 092 17951 1

475 Inlet Duct Assembly 4213 092 37531 2

478 Re-Circulating Fan 4213 092 34011 4

497 Switch Cover 4213 177 01141 1

505 Heat Exchanger Seal 4213 077 09032 2

506 Housing - Banjo Seal 4213 077 60797 2

512 Front Felt 4213 078 55972 2

515 T.O.C. Cover & Seal Unit 4213 092 09491 4

518 Cable Clamp 4213 077 47303 4

538 Housing Drawbar Spring 4213 078 53494 1

543 Capacitor Bracket 4213 070 09324 4

550 Anti-Foul Plate 4213 070 12601 4

557 Hose 4213 092 40381 3

558 Heater Mounting Brackets (Top Hats) 4213 070 14471 4

559 Exhaust Deflector 4213 077 83912 1

580 Door Buffer 4213 077 89071 1

User Instruction Booklet 4213 194 12722

Not Shown On Exploded Views

0312 76A 15332
