White Knight 96aw Manual de usuario

SERVICE MANUAL

Wiring Diagram

Exploded Views

Parts List

May 2013

Electronic Sensing Condenser

0312 96A 15000 - 96AW

White Knight

White Knight Electronic Sensing Condenser Dryer - Exploded View 1

559

184 397

416

458

394

461

538

217

180

460

368

196

386

248

370

376

199

366

365

364

359

203a 367

580

362

201

203 363

372

235

350

233

352

553

353

215

454

512 445b

442

445a

445

440

229 456

506

475

437

166

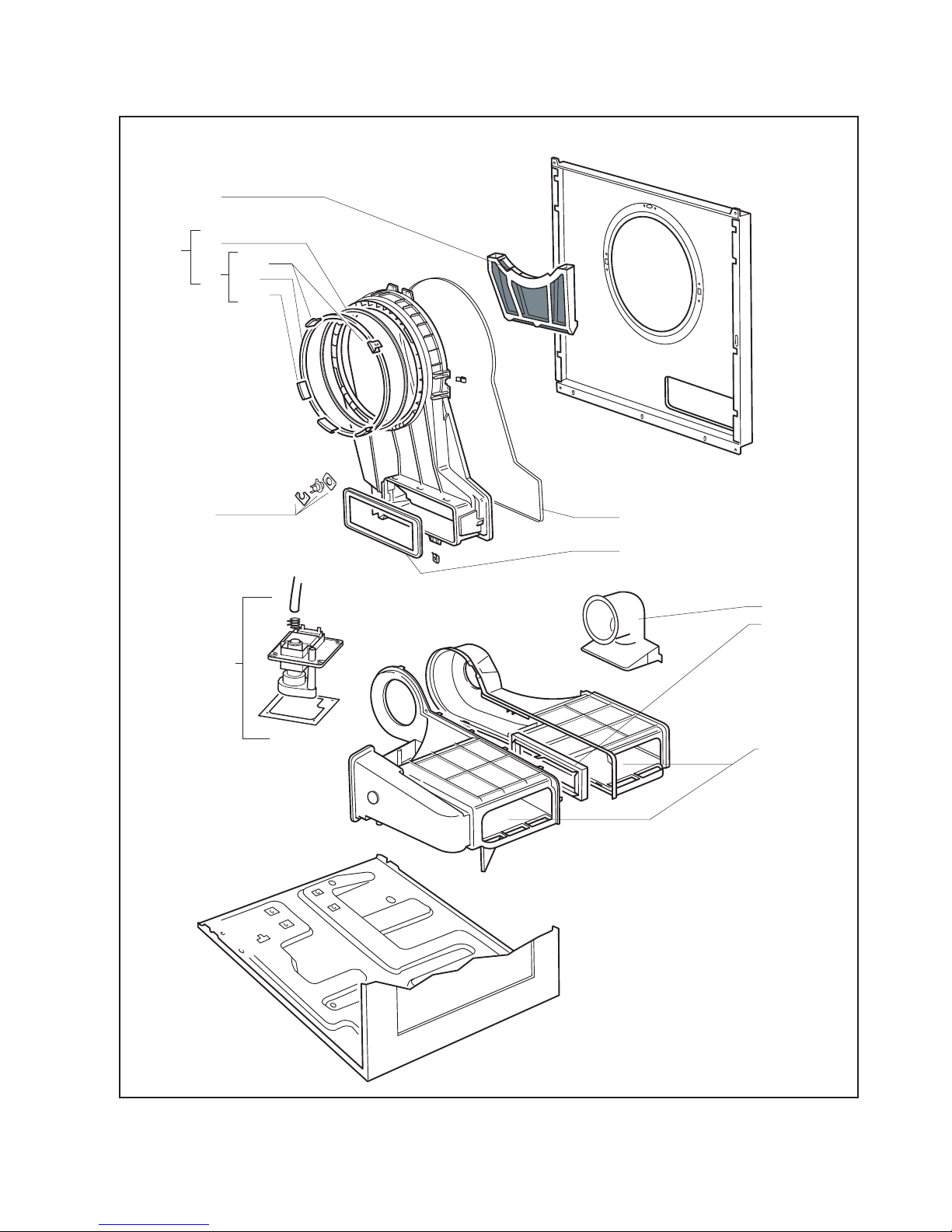

White Knight Electronic Sensing Condenser Dryer - Exploded View 2

505

White Knight Condenser Dryer - Exploded View 3

418

417

419

232

169

153

557

White Knight Electronic Sensing Condenser Dryer - ExplodedView 4

401

550

515

228

400

230

393

141 142

227

447

125

413

478

453

446

448

543

112

432

433

450 449

101

558

518

144

270

466

477

467

465

463

468

464

438

439

444

266

Wiring Diagram

White Knight Electronic Sensing Condenser - Parts List

Item Descri

tion Part Number Ex

l.View

101 Motor + 8µf Capacitor Assembly 4213 092 21001 4

112 Capacitor Assembly 8µf 4213 092 08091 4

125 Drive Belt 4213 092 19501 4

141 Mains Cable 4213 076 35123 4

142 Terminal Block 4213 078 44621 4

144 Earth Tab Assembly 4213 092 41181 4

153 Water Valve 4213 077 85111 3

166 Pump Assembly 4213 092 25211 2

169 Pipe 4213 092 40391 3

180 Bottle Switch Adjuster Assembly 4213 092 17431 1

184 Condensing Unit/Heat Exchanger 4213 092 45991 1

196 Cabinet Assembly 4213 092 43691 1

199 Plinth Assembly 4213 092 46811 1

201 Door Seal 4213 092 21051 1

203 Full Door/Window Assembly 4213 092 46041 1

203a Door Frame Assembly 4213 092 46051 1

215 Bottle Full Neon Assembly 4213 092 56321 1

217 Bottle Switch Assembly 4213 092 21291 1

227 Heater Assembly 4213 092 44911 4

228 Heater TOC (Manual Reset) Assembly 4213 092 21261 4

229 Exhaust Thermostat 4213 092 21081 2

230 Inlet Thermostat 4213 092 21251 4

232 Programmed PCB 4213 078 57741 3

233 Display Board 4213 078 58111 3

235 Momentary Switch 4213 078 57791 1

248 Door Micro-Switch Assembly 4213 092 05251 1

266 Drum Assembly (includes items 270 & 444) 4213 092 39101 4

270 Drum Shaft/Bearing Kit Assembly 4213 092 05591 4

350 Membrane Assembly 4213 092 56201 1

352 Button Assembly 4213 092 56191 1

353 Control Panel Assembly 4213 092 56331 1

359 Door Hinge Assembly 4213 092 26071 1

362 Window 4213 077 44095 1

363 Door Frame 4213 092 45671 1

364 Latch Pivot 4213 075 13013 1

365 Latch Spring 4213 075 70833 1

366 Door Latch 4213 077 53413 1

367 Switch Strike 4213 077 83571 1

368 Bottle 4213 092 17941 1

370 Latch Guide 4213 077 40992 1

372 Timer Bracket 4213 070 10934 1

376 Front Panel Assembly 4213 092 46021 1

386 Top Cover Assembly 4213 092 46211 1

393 Flex Support Clip 4213 077 40982 4

394 Foot 4213 077 39833 1

397 Condenser Door Assembly 4213 092 43721 1

400 Insulating Plate 4213 092 44951 4

401 Rear Banjo Duct Assembly 4213 092 44941 4

413 Back Panel Assembly 4213 092 40371 4

416 Heat Exchanger Links 4213 092 37481 1

417 Brush Holder Support RH 4213 070 12774 3

418 Brush Assembly 4213 078 45023 3

419 Brush Holder 4213 077 39503 3

432 Motor Bracket Assembly 4213 092 26161 4

0312 96A 15000

White Knight Electronic Sensing Condenser - Parts List

433 Seal Clamp Kit 4213 092 27661 4

437 Condenser Housing Assembly 4213 092 21151 2

438 Slip Ring Assembly 4213 092 05731 4

439 Sensing Strip Assembly 4213 092 05691 4

440 Banjo /Seals/Clips/Beaing Pads Assembly 4213 092 21161 2

442 Front Seal 4213 077 40942 2

444 Lifter 4213 077 41248 4

445 Front Bearings/Drum Seal Assembly 4213 092 21171 2

445a Bearing Pads (long) 4213 077 40962 2

445b Bearing Pads (short) 4213 077 40952 2

446 Cooling Air Fan 4213 077 56173 4

447 Fan Cover Assembly 4213 092 21181 4

448 Seal Fan Access Cover 4213 077 08871 4

449 Inlet Duct Case Assembly 4213 092 21241 4

450 Inlet Duct Panel Seal 4213 077 09041 4

453 Inlet Duct Rear Seal 4213 077 08568 4

454 V Filter 4213 092 18351 2

456 Banjo Seal 4213 077 08487 2

458 Condenser Latch Set 4213 092 21191 1

460 Pivot Bracket 4213 077 51408 1

461 Bottle Housing Assembly 4213 092 17951 1

463 Location Grommet 4213 077 07711 4

464 Slip Ring Insulator 4213 077 41253 4

465 Slip ring 4213 075 13142 4

466 Ring Spring 4213 075 70931 4

467 Sensing Strip 4213 075 13152 4

468 Sensing Strip Clip 4213 077 41176 4

475 Inlet Duct Assembly 4213 092 37531 2

477 Ring Spring Plug 4213 074 81353 4

478 Re-Circulating Fan 4213 092 34011 4

505 Housing Seal 4213 077 09032 2

506 Housing - Banjo Seal 4213 077 60797 2

512 Front Felt 4213 078 55972 2

515 T.O.C. Cover & Seal Unit 4213 092 09491 4

518 Cable Clamp 4213 077 47303 4

538 Housing Drawbar Spring 4213 078 53494 1

543 Capacitor Bracket 4213 070 09324 4

550 Anti-Foul Plate 4213 070 12601 4

553 Adapter 4213 177 04881 1

557 Drain Hose Kit 4213 092 40381 3

558 Heater Mounting Brackets (Top Hats) 4213 070 14471 4

559 Exhaust Deflector 4213 077 83912 1

580 Door Buffer 4213 077 89071 1

User Instruction Booklet 4213 194 12631

Not Shown On Exploded Views

0312 96A 15000
