TOP AND CABINET PARTS

For Models: WTW5500SQ2, WTW5500ST2

(White) (Biscuit)

1−08 Litho in U.S.A. (drd) Part No. W10183169 Rev. A

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Models: WTW5500SQ2, WTW5500ST2

(White) (Biscuit)

W10183169

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10150593

Installation

Instructions

W10150595

Use & Care Guide

W10150601

Feature Sheet

W10178027

Energy Guide

8577358 Wiring Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

4313896 Manual, Washer

2 Top

8543451 White

8543452 Biscuit

3 62750 Spacer, Cabinet To

Top (4)

4 357213 Nut, Push−In (2)

5 Cabinet

63424 White

3954357 Biscuit

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

7 8566266 Dispenser, Bleach

8 3351614 Screw, Ground

9 8318084 Switch, Lid

10 3390631 Screw,

10−16 x 3/8 (4)

W10119828

Screw, Lid Hinge

Mounting (4)

12 9724509 Bumper, Lid (2)

13 8559336 Hinge, Lid (L.H.)

14 91770 Hinge, Lid (R.H.)

15 8319539 Bearing, Lid

Hinge (2)

16 Lid

W10171313

White

W10171314

Biscuit

CONTROLS AND REAR PANEL PARTS

For Models: WTW5500SQ2, WTW5500ST2

(White) (Biscuit)

W10183169

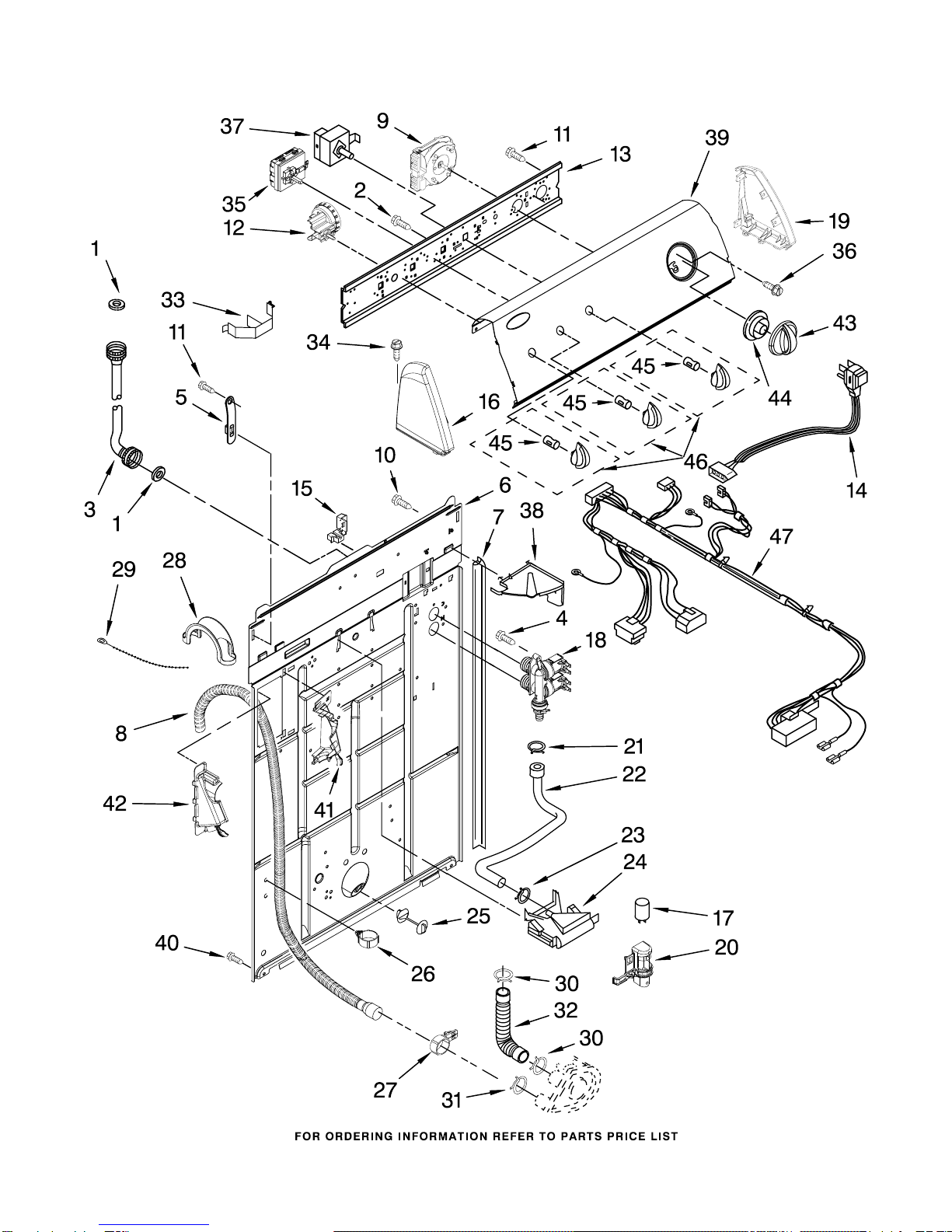

CONTROLS AND REAR PANEL PARTS

For Models: WTW5500SQ2, WTW5500ST2

(White) (Biscuit)

W10183169

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3976300 Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)

2 3400073 Screw, Ground

3 Hose, Water

Inlet (2)

8571377 Blue Coupler

8571378 Red Coupler

4 9740848 Screw, 8−18 x 1/2

5 8568314 Strap, Console (2)

6 8318015 Panel, Rear

7 62747 Pad, Rear Panel

W10122138

Drain Hose

Assembly (Includes

Items 26 & 27)

9 8577356 Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

10 3351614 Screw, Ground

11 90767 Screw, 8−18 x 3/8

12 8577844 Switch, Water Level

13 8544893 Bracket, Control

14 8578842 Cord, Power

(Includes Item 15)

15 3952821 Strain Relief,

Power Cord

16 Cap, End (L.H.)

8271365 White

8271368 Biscuit

17 8572717 Capacitor,

Motor Start

18 3979347 Valve, Water Inlet

W/Thermistor

19 Cap, End (R.H.)

8271359 White

8271362 Biscuit

20 8318046 Clip, Capacitor

21 301958 Clamp, Hose

22 8317974 Hose, Vacuum

Break

23 370450 Clamp, Hose

24 387606 Break, Vacuum

25 8519200 Support, Rear

Panel

26 8541667 Clamp, Hose

27 8541668 Clamp, Hose

28 8577378 U−Bend,

Drain Hose

29 3347868 Cable Tie

30 3363366 Clamp, Hose

31 8317496 Clamp, Hose

32 3951449 Hose, Pump To Tub

(Includes Item 30)

33 8055003 Clip, Harness

& Pressure Hose

34 388326 Screw, 8−18 x 1.25

(Panel To Top)

W10113058

Switch, Water

Temperature (ATC)

36 3400818 Screw, Timer

Mounting

37 3949187 Switch, Rotary

38 8539874 Shield, Suds

39 Panel, Console

8578785 White

8578786 Biscuit

40 62863 Screw, 10−16 x 3/8

41 8541669 Bucket, Drain Hose

(Left Half)

42 8541658 Bucket, Drain Hose

(Right Half)

43 Knob, Timer

8566022 White

8566025 Biscuit

44 8566018 Dial, Timer

45 8536939 Clip, Knob

46 Knob, Control

8565944 White

8565947 Biscuit

W10044160

Wiring Harness

(For Detail See

Pages 9 & 10)

AGITATOR, BASKET AND TUB PARTS

For Models: WTW5500SQ2, WTW5500ST2

(White) (Biscuit)

W10183169

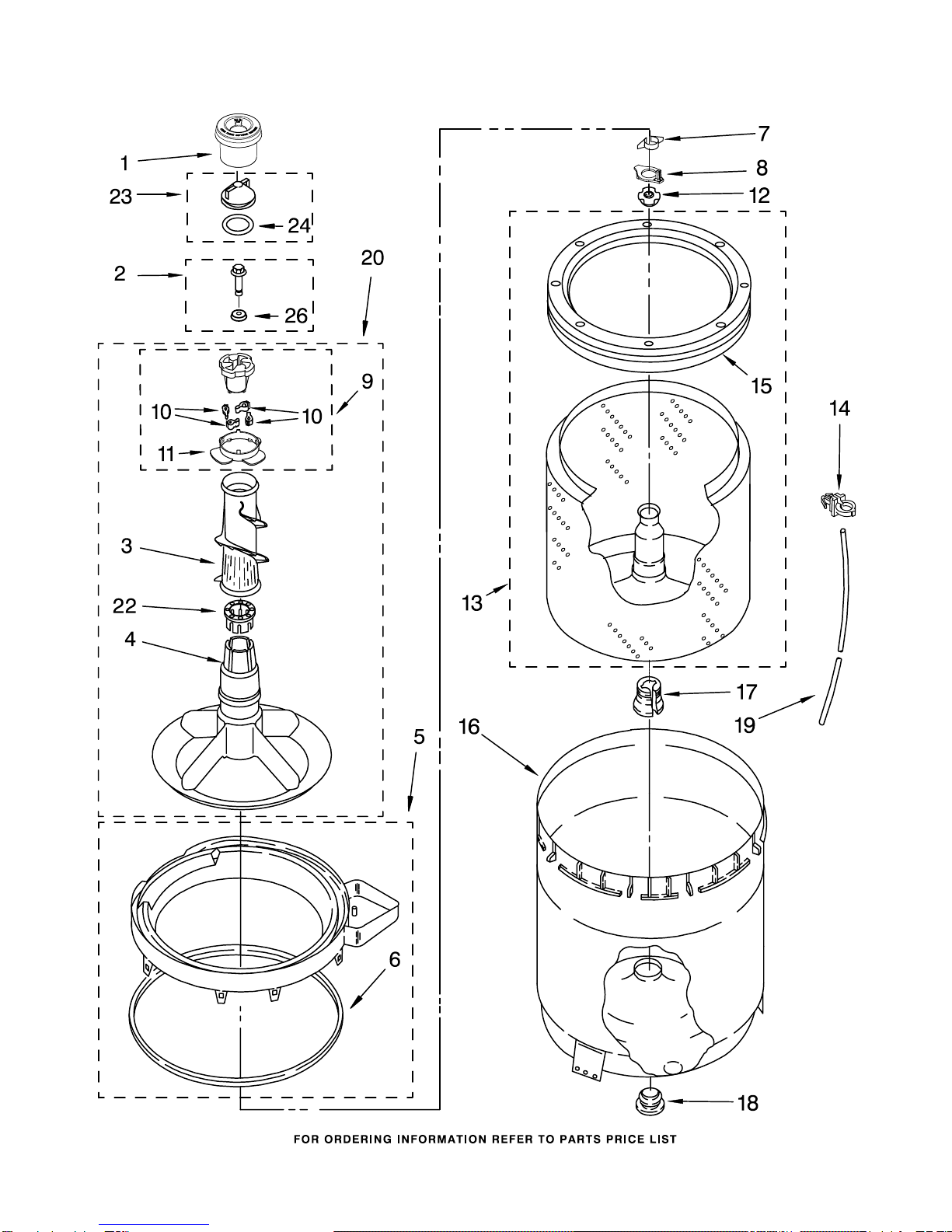

AGITATOR, BASKET AND TUB PARTS

For Models: WTW5500SQ2, WTW5500ST2

(White) (Biscuit)

W10183169

Illus. Part

No. No. DESCRIPTION

1 8575076 Dispenser,

Fabric Softener

2 358237 Screw & Washer

(5/16−24 x 1)

3 3363003 Clothes Mover

4 3951632 Agitator

5 8528150 Tub Ring & Gasket

6 3976308 Gasket, Tub Ring

7 3354845 Clip, Agitator

8 8543666 Washer, Agitator

9 3951682 Cam, Driven

10 3366877 Dog, Agitator

Clutch (4)

11 3952374 Bearing, Cam

Driven

12 21366 Nut, Spanner

13 8526016 Basket & Balance

Ring

14 2219077 Clip, Pressure

Switch Hose

15 8519788 Balance Ring

16 63849 Tub

17 389140 Block, Basket

Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure

Switch

20 3951744 Agitator

(Complete)

22 3951608 Spacer, Thrust

23 3354733 Cap, Barrier

W10072840

Seal, Inner Cap

26 3949550 Washer

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Models: WTW5500SQ2, WTW5500ST2

(White) (Biscuit)

W10183169

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 388952 Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3951311 Clutch (Complete)

6 3951308 Band & Lining,

Clutch (Includes

Items 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3946792 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page 12

For Further

Breakdown)

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 3364003 Coupling, Motor

& Isolation

14 3946532 Shield, Motor

15 3355454 Clip,

Anti−Rattle

16 3400516 Screw

W10086010

Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 8528157 Motor, Main

Drive

20 3952056 Switch, Main

Drive Motor

21 8546127 Retainer, Pump (2)

22 3363394 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 8577374 Seal

MACHINE BASE PARTS

For Models: WTW5500SQ2, WTW5500ST2

(White) (Biscuit)

W10183169

Illus. Part

No. No. DESCRIPTION

1 3400076 Screw, Bracket

Mounting

(10−32 x 5/8)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

4 8575214 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 63466 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

10 8546455 Bearing,

Centerpost (2)

11 357409 Seal, Centerpost (3)

12 388492 Spring,

Counterweight

13 62568 Pad, Plate

14 3946509 Plate, Suspension

(Includes Item 13)

15 3363660 Pad, Base

16 3946512 Base Assembly

(Includes Items 6,

7, 8, 9, 13, 14

15 & 22)

17 3359452 Nut, Lock (2)

(3/8−16)

W10001130

Foot, Front (2)

19 8577376 Seal, Centerpost

20 285203 Centerpost

Bearing Kit

(Includes Items

10, 11 & 19)

21 63134 Ring, Sound

Deadening

W10145155

Retainer,

Suspension Spring

WIRING HARNESS PARTS

For Models: WTW5500SQ2, WTW5500ST2

(White) (Biscuit)

W10183169

WIRING HARNESS PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3349557 Retainer, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

(Push−In)

5 90016 Clip, Harness

(Half−Harness)

6 3390496 Clip, Harness

7 389379 Retainer, Harness

8 Timer, Block

Disconnect

3948614 Natural

352089 Black

9 62889 Receptacle,

Terminal

(3−Way)

10 353424 Plug, Terminal

(3−Way)

11 62505 Block, Disconnect

(Motor 2 Speed)

12 3347243 Block, Disconnect

13 63523 Protector

14 717252 Connector

(2−Way)

15 3352944 Clip, Harness

16 3390423 Block, Disconnect

(12−Way)

17 3347730 Receptacle

(6−Way)

18 3948617 Connector (T.P.A.)

(3−Circuit)

19 3360056 Plug (T.P.A)

(3−Circuit)

(Pressure Switch)

20 Block, Connector

3354925 Natural

3354926 Red

FOR COMPLETE WIRING HARNESS REFER TO

CONTROL AND REAR PANEL PARTS PAGE

For Models: WTW5500SQ2, WTW5500ST2

(White) (Biscuit)

W10183169
