Whirlpool WFW8300SW04 Guía de solución de problemas

TOP AND CABINET PARTS

For Model: WFW8300SW04

(White/Grey)

5−08 Printed in U.S.A. (drd) (eeb) Part No. W10205674 Rev. A

AUTOMATIC WASHER

TOP AND CABINET PARTS

For Model: WFW8300SW04

(White/Grey)

W10205674

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10117767

Use & Care Guide

W10071760

Tech Sheet

W10171154

Energy Guide

8540913 Quick Start Guide

2 8540716 Top

W10184997

Cabinet

4 8540572 Panel, Front

5 8540813 Toe Panel

W10121677

Foot, Leveling (4)

7 3359452 Nut, Lock (4)

W10110676

Strain Relief,

Power Cord

9 8518891 Rivet (2)

10 8540582 Panel, Rear

W10189659

Brace, Transport

12 8540199 Bolt, Shipping (4)

13 Hose, Water Inlet

8571377 Blue Coupler

8571378 Red Coupler

W10029820

Cord, Power

W10163005

Motor Control Unit

W10161694

Brace, Rear

17 8540093 Clamp, Tube

Transportation

W10114608

Hose, Drain

19 8540607 Retainer,

Hose Outlet

20 238614 Bumper (2)

W10015090

Screw, 8−18 x 5/8

22 8540230 Filter,

Interference

W10163980

Switch, Pressure

24 8540294 Hose, Pressure

Switch

25 8540479 Screw, Grounding

26 8540268 Cover, Transport

27 8540021 U−Bend,

Drain Hose

W10085220

Microswitch (2)

29 8540728 Sleeve,

Cord Support (2)

30 8540727 Screw, 3 x 8 mm

31 8540329 Screw

32 8540720 Brace, Top

(Includes Item 33)

33 8283273 Damper, Brace

34 2161302 Sleeve, Pressure

Switch Hose

35 3347868 Cable Tie

36 16123 Washer, Water

Inlet Hose (4)

1−1/16 x 5/8

W10168548

Harness Channel,

Top Rear

W10168546

Harness Channel,

Side Front

W10168547

Harness Channel,

Side Rear

40 8540669 Bracket,

Console Retainer

41 8533954 Screw

42 8540643 Bracket, Spring

DOOR AND LATCH PARTS

For Model: WFW8300SW04

(White/Grey)

W10205674

Illus. Part

No. No. DESCRIPTION

1 8540108 Clamp, Bellow

To Tub

2 8540952 Bellow

3 8540772 Lock, Door

4 8540725 Screw

5 8540221 Hook, Door

6 8540533 Trim Ring,

Outer Door

7 8540107 Clamp, Bellow

To Front Panel

8 8540115 Clamp, Support

9 8540114 Clamp, Glass (2)

10 8540513 Screw

11 8540588 Frame, Door

Front Assembly

12 8540428 Glass, Door

W10138523

Door,

Back Support

14 8540416 Hinge, Door

15 8540284 Screw

16 8540282 Screw

W10015090

Screw

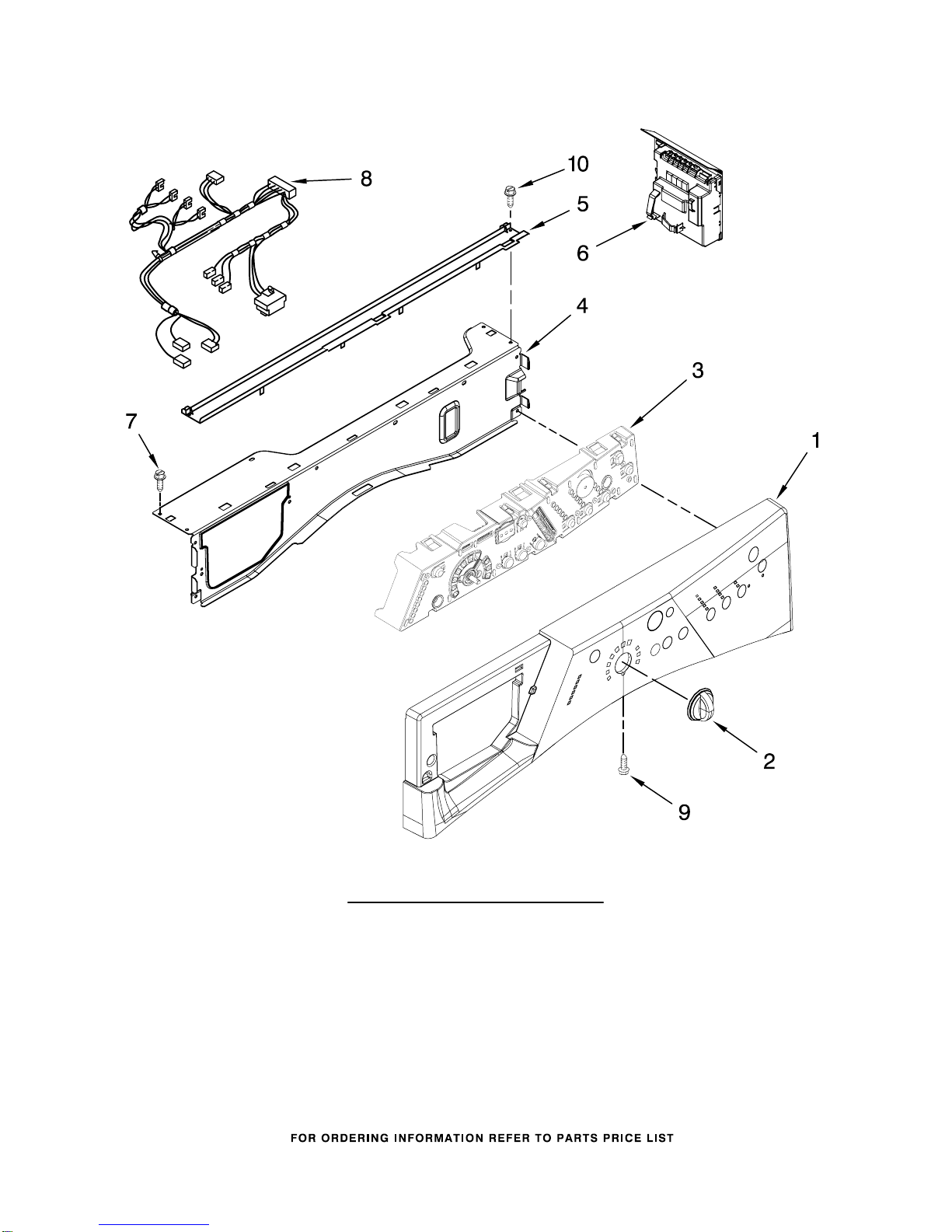

CONTROL PANEL PARTS

For Model: WFW8300SW04

(White/Grey)

W10205674

Illus. Part

No. No. DESCRIPTION

W10099593

Panel, Control

2 8574963 Knob, Control

3 8571903 User Interface

W10161692

Brace, Top Front

5 8540839 Channel, Water

W10160252

Microcomputer,

Machine Control

7 3390647 Screw, 8−18 x 1/2

W10169929

Harness, Wiring

(Main)

9 8540282 Screw

W10015090

Screw, 8−18 x 5/8

DISPENSER PARTS

For Model: WFW8300SW04

(White/Grey)

W10205674

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8540751 Valve, Inlet

2 8540065 Hose, Valve

To Dispenser

3 370450 Clamp, Hose

4 8540282 Screw, Valve Mtg.

5 8540042 Nozzle, Inlet

6 8540393 Cam, Actuator

7 8540394 Lever, Water

Distribution

W10143587

Actuator

9 8540400 Hook, Drawer

10 8281276 Clamp, Hose

11 8540395 Connection, Lever

12 8540058 Dispenser

13 8540053 Nozzle,

Distribution

14 8540063 Hose, Dispenser

To Tub

15 8571947 Handle, Drawer

W10117943

Medallion

17 8540402 Drawer,

Detergent

18 8540399 Cover,

Detergent Drawer

19 8540429 Siphon,

Bleach/Softener

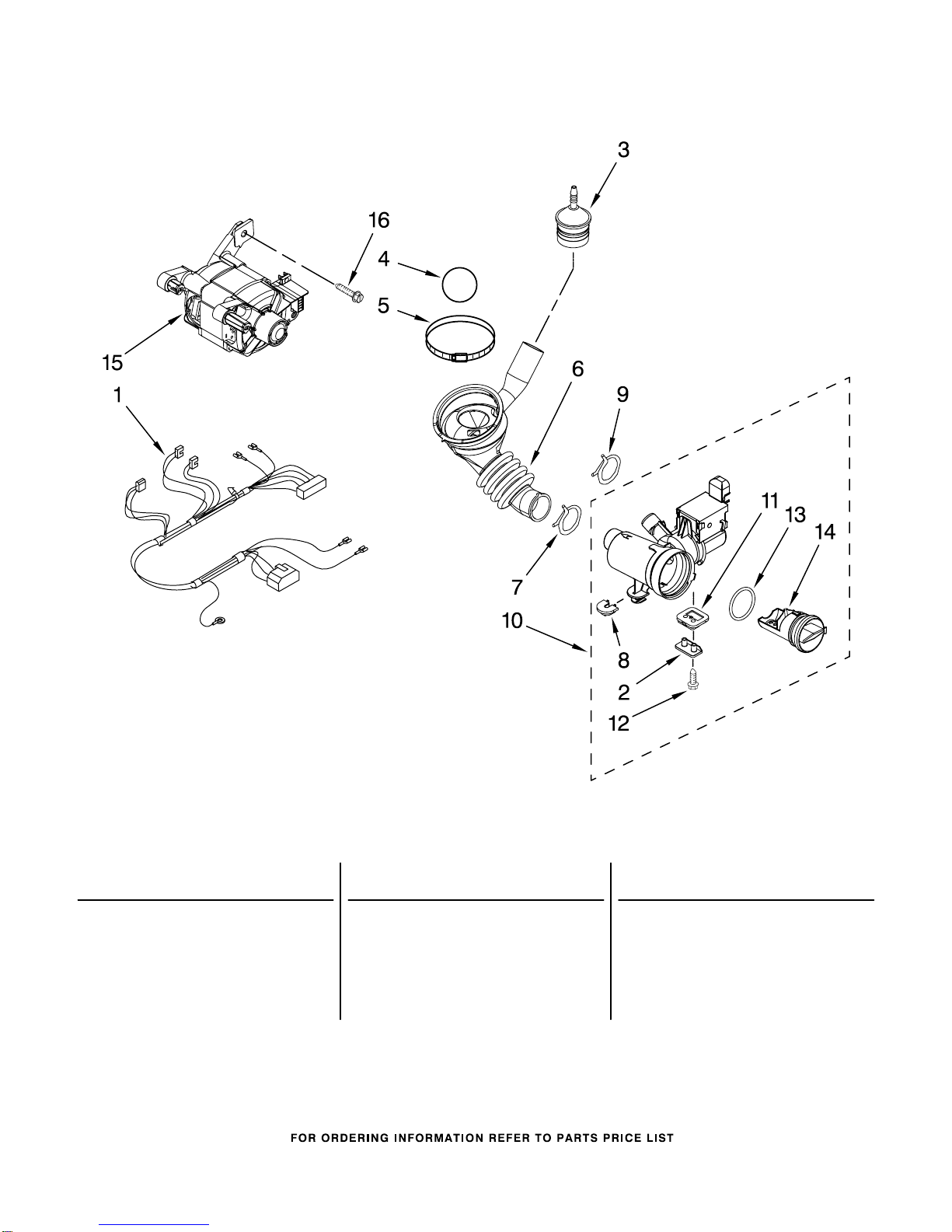

PUMP AND MOTOR PARTS

For Model: WFW8300SW04

(White/Grey)

W10205674

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10166995

Harness, Motor

2 8540033 Cap, Lock Foot

3 8540180 Air Trap

4 8540013 Ball

5 8540008 Clamp

6 8540012 Hose,

Tub to Pump

7 370448 Clamp

W10034820

Foot, Rubber

(Slider)

9 356138 Clamp, Hose

W10130913

Pump (Complete)

W10034830

Foot, Rubber

(Lock)

12 8533964 Screw,

10−16 x 1.25 (2)

13 8540025 Seal, Filter Cap

14 8540996 Filter Assembly

(Includes Item 13)

W10140579

Motor, Drive

16 8540134 Bolt, Motor

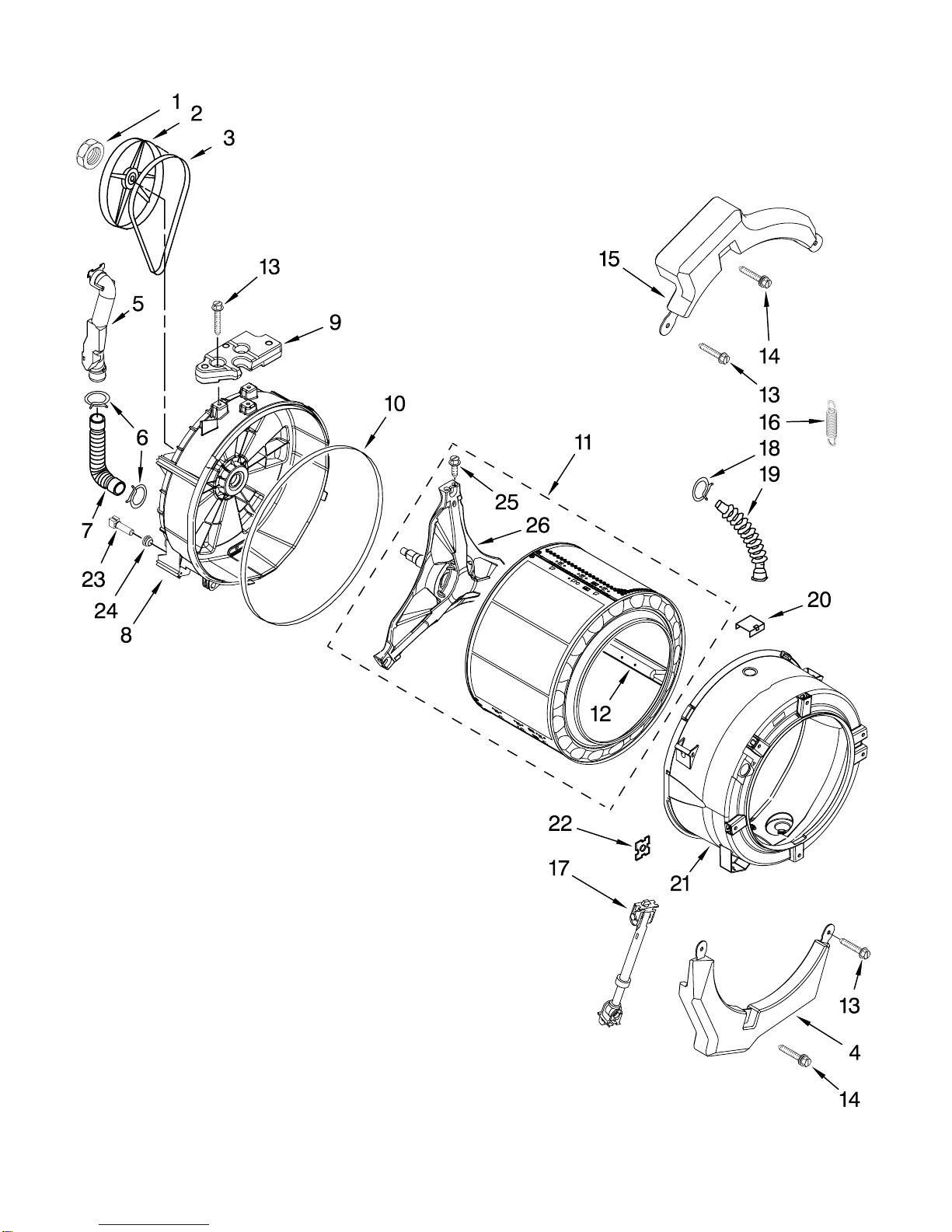

TUB AND BASKET PARTS

For Model: WFW8300SW04

(White/Grey)

W10205674

TUB AND BASKET PARTS

For Model: WFW8300SW04

(White/Grey)

W10205674

Illus. Part

No. No. DESCRIPTION

1 8533999 Nut, Pulley

2 8540088C Pulley

3 8540101 Belt, Drive

W10151304

Counterweight,

Front Lower

W10112169

Pipe, Ventilation

6 8540010 Clamp, Vent Hose

7 8540019 Hose, Exhaust

W10112658

Tub, Rear

(Includes Items

10, 21 & 22)

9 8540602 Counterweight,

Rear

10 8540090 Gasket, Tub

11 8540451 Basket, Complete

12 8540456 Baffle, Tub

W10094780

Bolt,

Counterweight Mtg.

W10174473

Bolt Assembly,

Counterweight

Center Hole

W10151303

Counterweight,

Front Upper

W10010360

Spring,

Suspension

(Set Of 2)

W10163171

Shock Absorber (3)

18 3363365 Clamp, Hose

19 8540015 Hose, Exhaust

20 8540092 Clamp, Tub

W10112659

Tub, Front

(Includes Items

8, 10 & 22)

22 8540072 Nut, Push−In

23 8540226 Negative

Thermistor Control

24 8540766 Seal, Rubber

25 8540382 Screw

26 8540457 Crosspiece Asm

OPTIONAL PARTS (NOT INCLUDED)

For Model: WFW8300SW04

(White/Grey)

W10205674

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350938 Primer, Gray

350930 White

PAINT, BULK (1 qt.)

799344 White (Uncut)

ACCESSORY PARTS

285863 Drain Extension

W10135699

Affresh

Odor Remover
