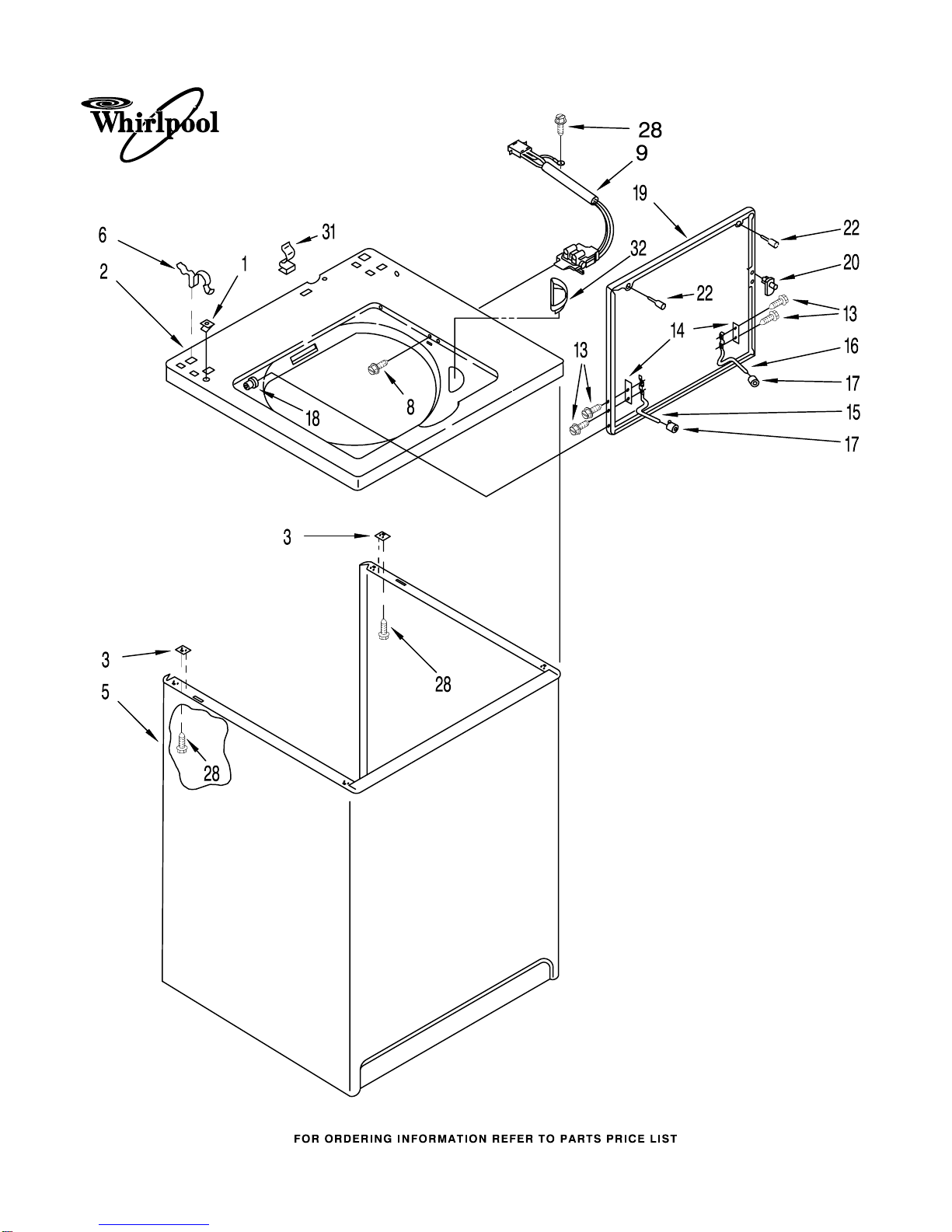

TOP AND CABINET PARTS

For Models:LLT8244AW0, LLT8244AN0, LLT8244AQ0, LLT8244AZ0

3−93 Litho in U.S.A. Part No. 881034 Rev. A

(White) (Designer White)

(Designer Almond)

(Almond) AUTOMATIC

WASHER

TOP AND CABINET PARTS

LITERATURE AND OPTIONAL PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

OPTIONAL PARTS NOT INCLUDED

LITERATURE PARTS

PAINT, TOUCH−UP (1/2oz.)

PAINT, PRESSURIZED SPRAY

(13 oz.)

PAINT, BULK (1 qt.)

OIL

LUBRICANT

SEALER

SHIPPING KIT

ACCESSORY PARTS

881034

LIT3358964 Sheet, Installation

Instructions

LIT3357461 Guide, Use and

Care

LIT3358668 Energy Guide

LIT3359514 Label, Wiring

Diagram

LIT4313896 Manual, (Washer)

Do−It−Yourself

LIT881034 List, Repair Parts

72017 White

72107 Almond

72110 Golden Harvest

350941 Leveler (Thinner)

350938 Primer, Gray

350930 White

350956 Almond

261890 Golden Harvest

799344 White (Uncut)

978883 Almond (Uncut)

261891 Golden Harvest

(Uncut)

350572 Oil, Gearcase

(16 Oz.)

285208 Lubricant (Use

Only in Brake

Shoe Assembly

On Roller and

Pin)

285195 Sealer, Gasket

(.20 Fl. Oz.) (6 ml)

3348675 Shipping Kit

89121 Stand−Pipe Kit

367031 Drain Protector

285320 Siphon Break Kit

1 357213 Nut, Push−In (2)

2 Top

3358200 For White And

Designer White

Models

3358201 For Almond And

Designer Almond

Models

3 62750 Spacer, Cabinet To

Top (4)

5 Cabinet

63424 For White And

Designer White

Models

63425 For Almond And

Designer Almond

Models

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

8 3356311 Screw & Washer,

Lid Switch (2)

9 3352629 Switch, Lid

13 3351355 Screw, Lid Hinge

Mounting (4)

14 21097 Pad, Lid Hinge (2)

15 54584 Hinge, Lid (L.H.)

16 54583 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid

Hinge (2)

19 Lid

3351659 For White And

Designer White

Models

3351660 For Almond And

Designer Almond

Models

20 358684 Strike, Lid Switch

22 93770 Bumper, Lid (2)

28 384435 Screw,

10−16 x 1/2 (4)

31 90016 Clip, Harness

32 63289 Dispenser, Bleach

For Models:LLT8244AW0, LLT8244AN0, LLT8244AQ0, LLT8244AZ0

(White) (Designer White)

(Designer Almond)

(Almond)

CONTROLS AND REAR PANEL PARTS

881034

For Models:LLT8244AW0, LLT8244AN0, LLT8244AQ0, LLT8244AZ0

(White) (Designer White)

(Designer Almond)

(Almond)

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

CONTROLS AND REAR PANEL PARTS

MISCELLANEOUS PARTS

1 3359460 Miscellaneous

Parts Bag

2 16123 Washer, Inlet

Hose

(1−1/16 x 5/8) (4)

4 3359452 Nut, Lock

(3/8−16)

5 389102 Foot, Front (2)

7 356138 Clamp, Hose

881034

For Models:LLT8244AW0, LLT8244AN0, LLT8244AQ0, LLT8244AZ0

(White) (Designer White)

(Designer Almond)

(Almond)

2 694419 Mini Buzzer

1 16123 Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)

3 660028 Hose, Water

Inlet (2)

81339 (Alt.)

366108(Alt.)

387057 (Alt.)

5 387402 Hinge, Console (2)

6 3357978 Panel, Rear

7 62747 Pad, Rear Panel

8 661575 Hose, Drain

(5−1/2 Ft.)

661577 Hose, Drain

(10 Ft.)

(Not Included)

9 3359512 Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

11 3390646 Screw, 8−18 x 5/16

12 Switch, Water Level

3357482 For White And

Almond Models

3357481 For Designer

White Model

3357480 For Designer

Almond Model

13 3358890 Bracket, Control

14 62734 Cord, Power

15 63848 Strain Relief,

Power Cord

16 Cap, End (L.H.)

3358531 White/Chrome

3358532 Almond/Chrome

17 96160 Screen, Filter (2)

18 358992 Valve, Water

Mixing

19 90864 Screw,

10−24 x 3/8 (2)

21 660632 Clamp, Hose

272846 (Alt.)

353367 (Alt.)

22 3357328 Hose, Vacuum

Break

23 371503 Clamp, Hose

24 3347034 Break, Vacuum

25 63290 Support, Rear

Panel

26 3355497 Connector, Drain

Hose

27 356138 Clamp, Hose

28 3359818 Hose, Pump To

Drain Connector

30 371502 Clamp, Hose

31 660628 Clamp, Hose

272858 (Alt.)

370447 (Alt.)

353097 (Alt.)

32 62731 Hose, Pump To Tub

35 Switch, Touch−Pad

(8)

3359557 For White And

Almond Models

3359558 For Designer

White Model

3359559 For Designer

Almond Model

36 96435 Screw, Timer

Mounting

(10−32 x 1) (2)

37 3397537 Screw, 8−18 x 7/8

39 Panel, Console

3359294 For White Model

3359295 For Almond Model

3359298 For Designer White

Model

3360708 For Designer

Almond Model

40 689559 Nut, Push−In (2)

44 Knob, Timer

3358419 For White And

Almond Models

3358417 For Designer

White Model

3358420 For Designer

Almond Model

45 Dial, Timer

3358446 For White And

Almond Models

3358447 For Designer

White Model

3358448 For Designer

Almond Model

49 3353145 Screw, 8−18

(Panel to Top)

50 62863 Screw, 10−16 x 3/8

51 Cap , End (R.H.)

3358516 White/Chrome

3358517 Almond/Chrome

55 3357011 Screw,

10−16 x 1/2

58 3357331 Clamp, Drain

Hose

AGITATOR, BASKET AND TUB PARTS

881034

For Models:LLT8244AW0, LLT8244AN0, LLT8244AQ0, LLT8244AZ0

(White) (Designer White)

(Designer Almond)

(Almond)

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

AGITATOR, BASKET AND TUB PARTS

WATER SYSTEM PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 285442 Connector Kit,

Plastic Drain

Hose

2 285321 Sleeve Kit,

(Contains 2

Sleeves)

3 370447 Clamp, Hose

4 16272 Connector,

Straight

5 285320 Siphon Break

Kit

(Not Included)

6 65349 Clamp, Hose

7 367031 Drain Protector

(Not Included)

881034

1 63580 Dispenser

2 358237 Screw & Washer

(5−16−24 x 1)

3 3349019 Clothes Mover

4 3350830 Agitator

5 3360611 Tub Ring & Gasket

6 3359586 Gasket, Tub Ring

7 387868 Balance Ring

8 387867 Clip, Balance

Ring (8)

9 3351001 Cam Driven

10 387091 Dog, Agitator

Clutch

11 357574 Seal, Agitator

12 21366 Nut, Spanner

13 3357245 Basket

14 62941 Filter, Plate

(Includes Illus.

15)

15 62942 Lock, Filter

16 63039 Tub

(Includes Item 21)

17 389140 Block, Basket

Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure

Switch

21 3358198 Hose, Bleach

22 3350389 Spacer, Thrust

23 3347290 Cap, Barrier

24 3348855 Seal, Inner Cap

25 3354845 Clip, Agitator

26 3355921 Washer, Agitator

For Models:LLT8244AW0, LLT8244AN0, LLT8244AQ0, LLT8244AZ0

(White) (Designer White)

(Designer Almond)

(Almond)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

881034

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 661560 Coupling, Motor

& Isolation

15 3355454 Clip,

Anti−Rattle

16 98062 Screw,

5/16−24 x 5/8 (2)

17 3349637 Retainer, Motor (2)

18 3349282 Shield, Tub

To Motor

19 3349644 Motor, Main

Drive

20 62850 Switch, Main

Drive Motor

21 62700 Retainer, Pump (2)

22 3352492 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 3351341 Shield, Motor

25 9420601 Screw,

10−16 x 5/16

26 357021 Capacitor

27 357030 Clamp, Capacitor

For Models:LLT8244AW0, LLT8244AN0, LLT8244AQ0, LLT8244AZ0

(White) (Designer White)

(Designer Almond)

(Almond)

1 388951 Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3350115 Clutch (Complete)

6 388190 Band & Lining,

Clutch (Includes

Illus. 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3354731 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page 12

For Further

Breakdown)

10 3357334 Screw, Gearcase

To Base (3)

Illus. Part

No. No. DESCRIPTION

MACHINE BASE PARTS

881034

1 98610 Screw, Bracket

Mounting

(10−16 x 5/8) (6)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

4 389350 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 3348727 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

13 3347047 Bearing,

Centerpost (2)

14 357409 Seal, Centerpost (3)

15 388492 Spring,

Counterweight

16 62568 Pad, Plate

17 389299 Plate, Suspension

(Includes Illus. 16)

18 62602 Pad, Base

19 3359886 Base Assembly

(Includes Illus, 6,

7, 8, 9, 18 & 26)

21 3359452 Nut, Lock

(3/8−16)

22 389102 Foot, Front (2)

23 356934 Seal, Centerpost (2)

24 285203 Centerpost

Bearing Kit

(Includes Illus.

13, 14 & 23)

25 63134 Ring, Sound

Deadening

26 63806 Retainer,

Suspension Spring

For Models:LLT8244AW0, LLT8244AN0, LLT8244AQ0, LLT8244AZ0

(White) (Designer White)

(Designer Almond)

(Almond)

Illus. Part

No. No. DESCRIPTION

WIRING HARNESS PARTS

881034

1 3349557 Clip, Harness

2 62749 Clip, Harness

3 98997 Clip, Harness

4 3352501 Clip, Harness

5 90016 Clip, Harness

6 3390496 Clip, Harness

7 3359851 Wiring Harness

8 352090 Block, Disconnect

9 352089 Block, Disconnect

11 62889 Receptacle,

Terminal

(3−Way) (Lid Switch)

12 94614 Terminal, Female

13 3353876 Plug, Terminal

(3−Way)

(Power Cord)

14 94613 Terminal, Male

15 62505 Block, Disconnect

(Motor)

17 3348075 Block, Connector

18 63523 Protector, Harness

19 3371761 Terminal

For Models:LLT8244AW0, LLT8244AN0, LLT8244AQ0, LLT8244AZ0

(White) (Designer White)

(Designer Almond)

(Almond)

BRAKE AND DRIVE TUBE PARTS

Illus. Part

No. No. DESCRIPTION

1 388951 Brake And Drive

Tube (Complete)

2 62658 Ring, Thrust

3 91939 Seal, Oil

4 356427 Seal, Drive Tube

5 356937 Spacer, Drive

Tube

6 64027 Tube, Basket

Drive (Includes

Illus. 3, 4, 5 & 9)

7 64035 Ring, Retaining

8 64232 Brake Shoe

9 62703 ‘‘T’’ Bearing,

Spin Tube

10 62648 Cap, Brake

Spring (2)

11 62647 Spring, Brake

12 62909 Sleeve, Brake

Spring

13 63023 Cam, Brake

Release

14 63022 Sleeve, Cam

15 64194 Driver, Brake

Cam

16 90368 Ring, Retaining

FOLLOWING PARTS

NOT ILLUSTRATED

285208 Lubricant

(Use Only In

Brake Shoe

Assembly On

Roller & Pin)

11 881034

For Models:LLT8244AW0, LLT8244AN0, LLT8244AQ0, LLT8244AZ0

(White) (Designer White)

(Designer Almond)

(Almond)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Arandela de Whirlpool

Whirlpool

Whirlpool Duet WFW8410SW01 Manual de usuario

Whirlpool

Whirlpool LSR6132DQ0 Manual de usuario

Whirlpool

Whirlpool LBR5432PQ2 Manual de usuario

Whirlpool

Whirlpool WTW4800X Series Manual del propietario

Whirlpool

Whirlpool FFB 8469 SBV SPT Manual de usuario

Whirlpool

Whirlpool Cabrio,- WED7300X Manual de usuario

Whirlpool

Whirlpool LXR9245EQ2 Manual de usuario

Whirlpool

Whirlpool AWG 338 Manual de usuario

Whirlpool

Whirlpool Duet WFW9200SQ02 Guía de solución de problemas

Whirlpool

Whirlpool Cabrio 6AWTW5550XW Manual de usuario

Whirlpool

Whirlpool LA6150XS Manual de usuario

Whirlpool

Whirlpool WFW9620HW0 Manual de usuario

Whirlpool

Whirlpool 3950306 Instrucciones de instalación

Whirlpool

Whirlpool FSCR10431 Manual de usuario

Whirlpool

Whirlpool Duet Steam WFW9750WL Instrucciones de montaje

Whirlpool

Whirlpool WTW5500SQ2 Manual de usuario

Whirlpool

Whirlpool WFW8300SW - Duet Sport Washer Manual de usuario

Whirlpool

Whirlpool duet Front Loading Automatic Washer Manual de usuario

Whirlpool

Whirlpool LHW0050PQ2 Manual de usuario

Whirlpool

Whirlpool AWZ 410 Instrucciones de instalación

Whirlpool

Whirlpool AWG 875/D CE Manual de usuario

Whirlpool

Whirlpool LSS7233DQ0 Manual de usuario

Whirlpool

Whirlpool WPWADREW91501 Manual de usuario

Whirlpool

Whirlpool 4GWTW4740 Manual de usuario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Beko

Beko WKB 51231 PTMA Manual de usuario
