TOP AND CABINET PARTS

For Models: LBR5432PQ2, LBR5432PT2

(Designer White) (Biscuit)

11−05 Litho in U.S.A. (drd) Part No. 8180897

AUTOMATIC

WASHER

TOP AND CABINET PARTS

For Models: LBR5432PQ2, LBR5432PT2

(Designer White) (Biscuit)

8180897

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

3958075 Installation

Instructions

3955901 Feature Sheet

8578232 Use & Care Guide

8557228 Wiring Diagram

3957458 Energy Guide

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

4313896 Manual, Washer

2 Top

8541621 White

8541623 Biscuit

4 357213 Nut, Push−In (2)

5 Cabinet

63128 White

3954777 Biscuit

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

7 3357011 Screw, 10−16 x 1/2

8 3351614 Screw, Ground

11 8318084 Switch, Lid

13 3351355 Screw, Lid Hinge

Mounting (4)

15 8318088 Hinge, Lid (L.H.)

16 54583 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid

Hinge (2)

19 Lid

8542383 White

8542385 Biscuit

20 9724509 Bumper, Lid (2)

21 3390631 Screw,

10−16 x 3/8 (4)

CONTROLS AND REAR PANEL PARTS

For Models: LBR5432PQ2, LBR5432PT2

(Designer White) (Biscuit)

8180897

CONTROLS AND REAR PANEL PARTS

For Models: LBR5432PQ2, LBR5432PT2

(Designer White) (Biscuit)

8180897

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3976300 Washer, Water

Inlet Hose (4)

2 3400073 Screw, Ground

3 Hose, Water

Inlet

8571377 Cold

8571378 Hot

4 8541672 U−Bend,

Drain Hose

5 8568314 Strap, Console (2)

6 8541686 Panel, Rear

7 62747 Pad, Rear Panel

8 8559373 Drain Hose

Assembly (Includes

Items 19 & 27)

9 8557226 Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

10 388326 Screw, 8−18 x 1.25

11 90767 Screw, 8−18 x 3/8

12 3366849 Switch, Water Level

13 3948814 Bracket, Control

14 661661 Cord, Power

(Includes Item 15)

15 3952821 Strain Relief,

Power Cord

16 Cap, End (L.H.)

8271365 White

8271368 Biscuit

17 9740848 Screw, 8−18 x 1/2

18 3955673 Valve, Water

Mixing

19 8541668 Clamp, Hose

20 3351614 Screw, Ground

21 301958 Clamp, Hose

22 8541607 Hose, Vacuum

Break

23 370450 Clamp, Hose

24 3347034 Break, Vacuum

25 303294 Edge Protector

26 8519200 Support, Rear

Panel

27 8541667 Clamp, Hose

28 8572717 Capacitor,

Motor Start

29 8318046 Clip, Capacitor

30 3363366 Clamp, Hose

31 8317496 Clamp, Hose

32 3951449 Hose, Pump To Tub

(Includes Item 30)

33 3349557 Retainer, Harness

34 8559320 Restraint, Hose

35 661612 Switch, Water

Temperature

36 3400818 Screw, Timer

Mounting

37 8541669 Bucket, Drain Hose

(Left Half)

38 8541658 Bucket, Drain Hose

(Right Half)

39 Panel, Console

3956558 White

3956578 Biscuit

44 Knob, Timer

8544943 White

8544944 Biscuit

45 Dial, Timer

8544947 White

8544948 Biscuit

46 8536939 Clip, Knob

47 Knob, Control

8544935 White

8544936 Biscuit

50 62863 Screw, 10−16 x 3/8

51 Cap, End (R.H.)

8271359 White

8271362 Biscuit

52 3347868 Cable Tie

54 3957021 Harness, Wiring

(For Detail See

Page 9 & 10)

FOLLOWING PARTS

NOT ILLUSTRATED

3957361 Miscellaneous

Parts Bag

AGITATOR, BASKET AND TUB PARTS

For Models: LBR5432PQ2, LBR5432PT2

(Designer White) (Biscuit)

8180897

AGITATOR, BASKET AND TUB PARTS

For Models: LBR5432PQ2, LBR5432PT2

(Designer White) (Biscuit)

8180897

Illus. Part

No. No. DESCRIPTION

1 3352483 Cap, Agitator

2 358237 Screw & Washer

(5/16−24 x 1)

4 63377 Agitator

5 3360611 Tub Ring & Gasket

Assembly

6 3359586 Gasket, Tub Ring

7 8519815 Clip, Balance

Ring (8)

8 3956205 Balance Ring

10 3949550 Washer

11 2219077 Clip, Pressure

Switch Hose

12 21366 Nut, Spanner

13 3956206 Basket & Balance

Ring

14 63125 Tub

15 389140 Block, Basket

Drive

16 383727 Gasket, Centerpost

17 3363657 Hose, Pressure

Switch

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Models: LBR5432PQ2, LBR5432PT2

(Designer White) (Biscuit)

8180897

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 388951 Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3951311 Clutch (Complete)

6 3951308 Band & Lining,

Clutch (Includes

Illus. 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3946792 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page

12 For Further

Breakdown.)

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 285753 Coupling, Motor

And Isolation

Coupling

14 3946532 Shield, Motor

15 8577374 Seal

16 3400516 Screw

17 3349637 Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 8528157 Motor, Main

Drive

20 3952056 Switch, Main

Drive Motor

21 8546127 Retainer, Pump (2)

22 3363394 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 3355454 Clip,

Anti−Rattle

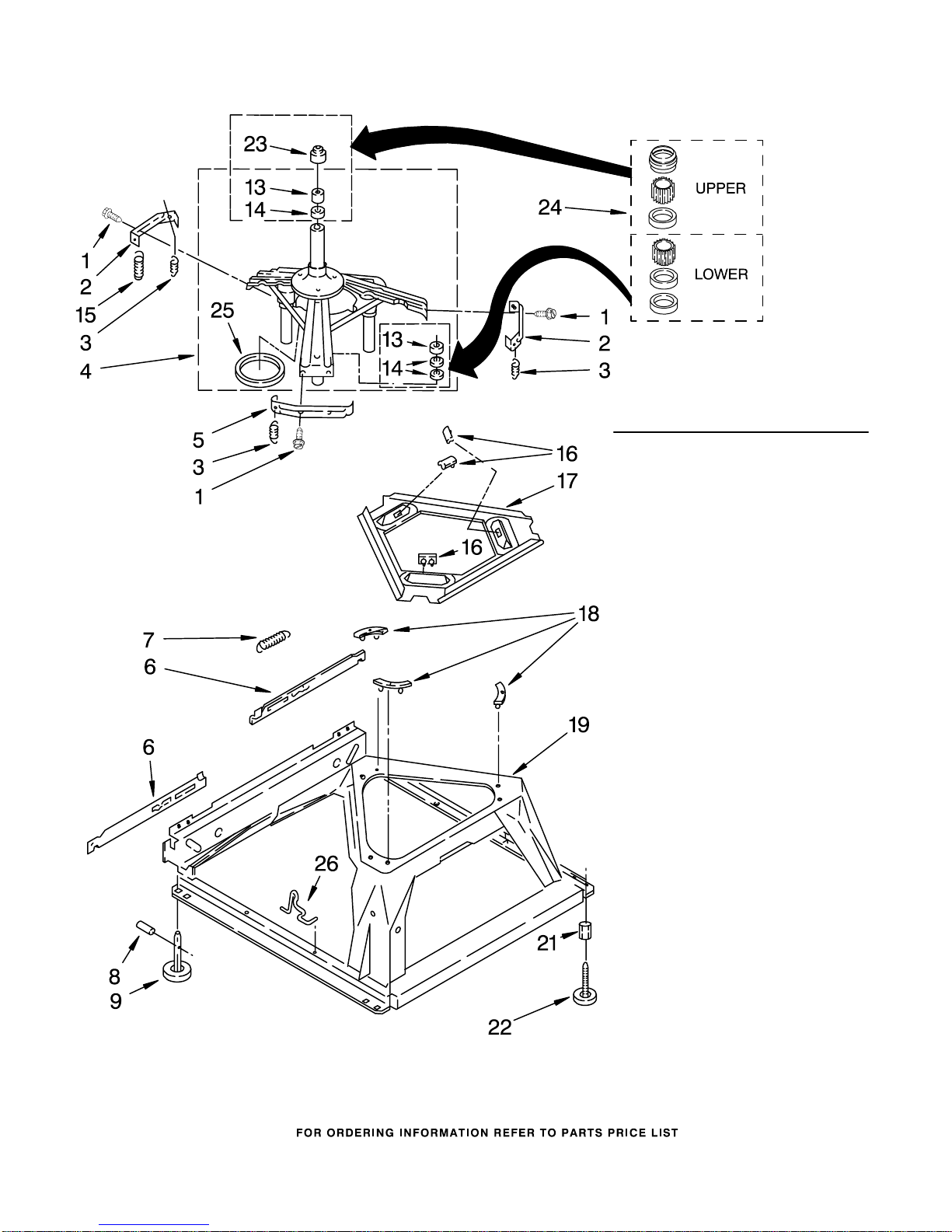

MACHINE BASE PARTS

For Models: LBR5432PQ2, LBR5432PT2

(Designer White) (Biscuit)

8180897

Illus. Part

No. No. DESCRIPTION

1 3400076 Screw, Bracket

Mounting

(10−32 x 5/8)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring (3)

4 8575214 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 63138 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

13 3347047 Bearing,

Centerpost (2)

14 357409 Seal, Centerpost (3)

15 388492 Spring,

Counterweight

16 62568 Pad, Plate

17 3946509 Plate, Suspension

(Includes Item 16)

18 3363660 Pad, Base

19 3349337 Base Assembly

(Includes Items 6,

7, 8, 9, 18 & 26)

21 3359452 Nut, Lock (2)

(3/8−16)

22 389102 Foot, Front (2)

23 8577376 Seal, Centerpost

24 285203 Centerpost

Bearing Kit

(Includes Items

13, 14 & 23)

25 63134 Ring, Sound

Deadening

26 63806 Retainer,

Suspension Spring

WIRING HARNESS PARTS

For Models: LBR5432PQ2, LBR5432PT2

(Designer White) (Biscuit)

8180897

WIRING HARNESS PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3349557 Clip, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

5 90016 Clip, Harness

6 3390496 Clip, Harness

7 389379 Retainer,

(Suds Models)

8 Timer, Block

Disconnect

3948614 White

352089 Black

9 62889 Receptacle,

Terminal

(3−Way)

(Lid Switch)

(Use Term.94613)

Or 94614.)

10 353424 Plug, Terminal

(3−Way)

(Power Cord)

(Use Term.94613)

11 62505 Block, Disconnect

(Motor 2 Speed)

(Use Term.352088)

12 3347243 Block, Disconnect

(Use Term. 352088)

13 63523 Protector

14 717252 Connector

(2−Way)

(Use Term.94614)

15 3352944 Clip, Harness

16 3390423 Block, Disconnect

(12−Way)

(Timer)

(Use Term. 94613)

17 3347730 Receptacle

(6−Way)

(Use Term. 94613)

18 3349494 Connector, Etc

19 3407125 E.T.C. Control

20 3948617 Connector (T.P.A.)

(3−Circuit)

(Lid Switch)

21 3360056 Connector (T.P.A)

(3−Circuit)

(Pressure Switch)

22 Block, Connector

3354925 Cold Valve

3354926 Hot Valve

For Models: LBR5432PQ2, LBR5432PT2

(Designer White) (Biscuit)

8180897

Este manual sirve para los siguientes modelos
