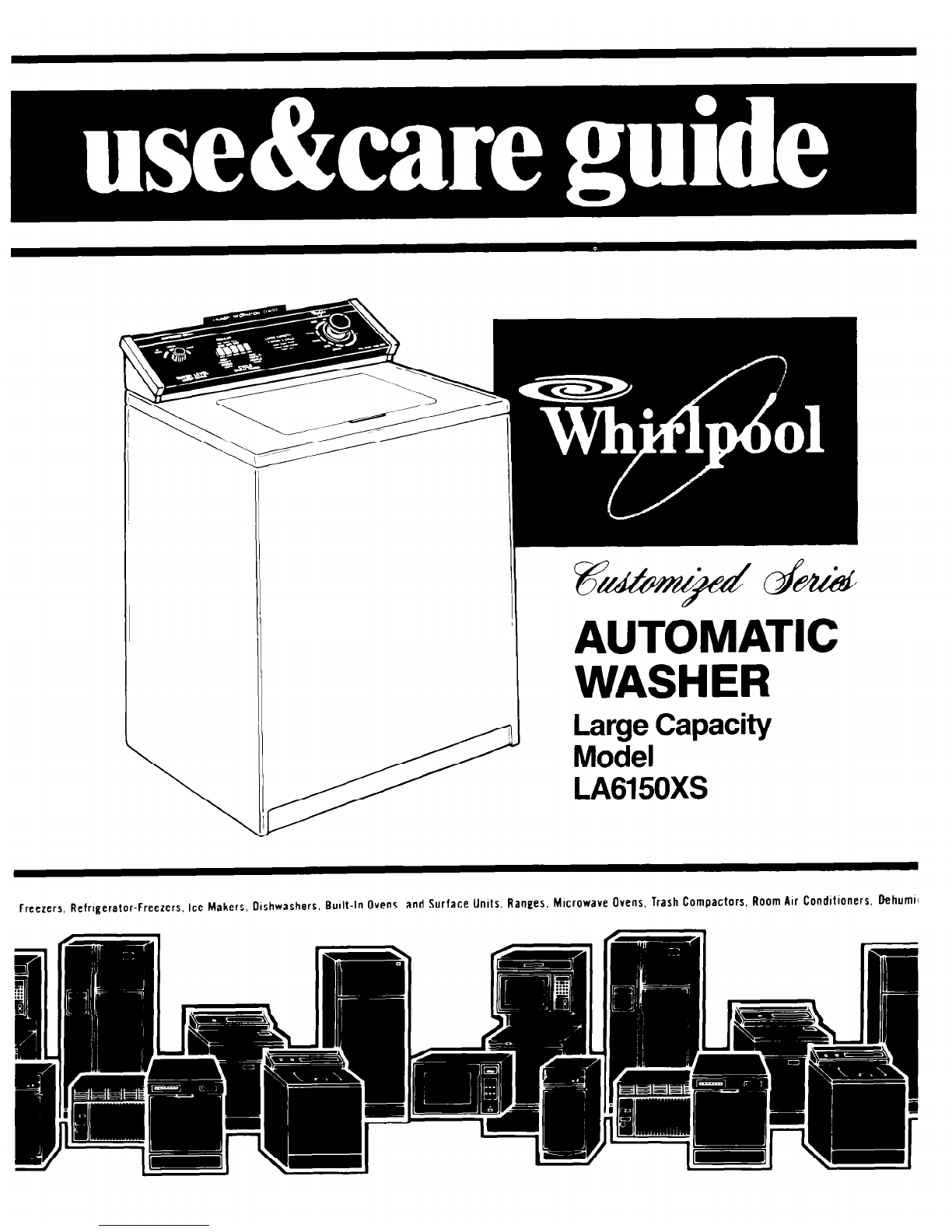

AUTOMATIC

WASHER

Large Capacity

Model

LA6150XS

Freezers, Refrtgerator-Freezers, Ice Makers, DIshwashers, Bullt-In Ovens and Surface Units. Ranges, MIcrowave Ovens, Trash Compactors. Room Au Condltloners, Oehumli

1Contents

PARTS AND FEATURES . . . . . . . . . . .

IMPORTANT SAFETY INSTRUCTIONS

OPERATING INSTRUCTIONS . . . . . . .

Starting Your Washer . . . . . . . . . . . .

What Happens in Each Cycle . .

OTHER OPERATING INSTRUCTIONS

For a Rinse and Spin . . . . . . , .

For a Drain and Spin . . . . . .

Page

. 2

. . 4

. 6

. . ii

, . 8

Page

MAGIC CLEAN” Lint Filter . . . . . . . . . . . 8

For Visually and Physically

Impaired Consumers . . . . . . . . . . . . 8

CARING FOR YOUR WASHER . . . . . . . . . 9

Winterizing . . . . . . . . . . . . . . . . . . . . . . . , 10

IF YOU NEED SERVICE OR

ASSISTANCE . . . . . . . . . . . . . . . . . . . . . . . . 11

WASHER WARRANTY . . . . . . . . . . . . . . . , 12

01987 Whirlpool Corporation

Parts and features

WATER LEVEL LAUNDRY CYCLE

SELECTOR INFORMATION SELECTOR MAGIC CLEAN@

LINT FILTER

(not shown)

MODEL AND SERIAL

NUMBER PLATE

(not shown)

Remove the Consumer

Buy Guide label. It will be

easier to remove before

the washer is used.

You should wipe out the

basket with a damp cloth

before using to remove

dust from storing or

shipping.

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this information ready:

1. Complete Model and Serial Numbers

(from plate under the lid near the

hinge).

2. Purchase date from the sales slip.

Copy this information in these spaces.

Keep this book in the Laundry Information

Model Number

Serial Number

Purchase Date

Center with your “Laundry Guide:’ sales

slip and warranty. Service Company Phone Number

Please complete and mail the Owner Registration Card furnished with this product.

Additional Safety Instructions and Your Responsibilities

ALWAYS store detergent, laundry aids and

other materials in a cool, dry place where

children can’t reach them - in a locked

cabinet if possible.

ALWAYS read and follow instructions on

packages of detergent and laundry aids

- especially warnings and precautions.

HAZARDOUS FUMES can be formed if

chlorine bleach is used in the same wash

as ammonia or acids such as vinegar or

rust remover.

ALWAYS unplug the power supply cord

before attempting to service the washer.

DO NOT machine wash glass fiber mate-

rials. Small particles can stick to fabrics

washed in following loads and cause skin

irritation.

You are personally responsible for mak-

ing sure that your washer:

is used only for jobs normally expected

of home automatic washers.

is not run by children or anyone unable

to operate it properly.

,- .

’ Starting Your Washer

Be sure to measure and add detergent,

then place a sorted load in the washer

before starting it.

Select a WATER LEVEL

w Select a CYCLE

Turn the knob to point to a setting that

describes the size of the load you want

to wash.

The water level can be set for EX SMALL

(a few items), MEDIUM or LARGE (a full

load).

Each cycle has preset wash and rinse

water temperatures. (See pages 6 & 7

for more information.)

All rinses are cold.

Recommended wash temperatures can

be found in your “Laundry Guide:’

NOTE: Use the LARGE water level for

best permanent press results. I

LOAD SIZES AND WATER LEVELS

For best cleaning results, the

load must be able to move freely in

the water. Too big a load or too

little water can cause wear or tear-

ina of load items.

*Approximate

fill with load.

CAUTION:

DO NOT

OVERLOAD WASHER.

LARGE (17.3 gals./655 L)*

MEDIUM (13.4 galsJ50.8 L)*

EXSMALL (9.5 galsJ36.0 L)*

Start the Washer

Pushin the Timer Knob and turn it to the

right.

It must be pushed in and turned

only clockwise.

6. After starting the washer,

it will fill to the

level you s&t with wash water of the

preset temperature. After finishing the

entire cycle, the Timer Knob will move

into the OFF area.

For REGULAR and PERM’T PRESScycles,

turn the Timer Knob to the STARTline.

For the KNITS GENTLE cycle, turn the

Timer Knob to the *.

Start the washer by pulling out the Timer

Knob.

Tostop the washer at any time, push in

the Timer Knob.

To restart the washer,

pull out the Timer Knob.

What Happens in Each Cycle

Each cycle has been designed for different kinds of fabrics.

When a Cycle Selector Button is pushed and the Timer Control Knob pulled out, the

washer fills before agitation and timing starts. After agitation starts, the Timer Knob turns

clockwise until it points to OFF and the cycle ends.

REGULAR Cycle!

PERMANENT PRESSCycle

REGULAR [HOT WATER)

A cycle with a hot water

wash and cold water rinse

for sturdily constructed fab-

rics that are heavily soiled.

REGULAR (WARM WASH)

A cycle with a warm water

wash and cold water rinse

for sturdily constructed fab-

rics that are moderately

soiled.

REGULAR (COLD WASH)

A cycle with a cold water

wash and rinse for sturdily

constructed items that are

lightly soiled.

A cycle with warm water

wash and cold water rinse.

This cycle has cool down

rinse which helps keep

wrinkles from setting into

permanent press and

some synthetic fabrics.

FILL

Selected

Level

WASH

Minutes

High

Speed

Mil

1 Minutes 1

FILL

Se&d

1 6 1

Level Low

L-l

Speed

NOTE: You may hear the sound of water spraying during the spin parts of some cycles. In

some cycles, cold water is sprayed on the spinning load to help rinsing.

Gentle Wash System

For better fabric care in REGULAR and PERMANENT PRESScycles, the agitation speed is

reduced during the last few minutes of wash time.

WASH

Minutes

Low

Speed

RINSE

High

Speed

DRAIN SPIN

1 Agik%on 1 High

Speed

1 Spray

Rinse

DRAIN

Agitation

SPIN

Low

Speed

FILL

for

fJ=P

Rinse

RINSE 1

Low

Speed

DRAIN

Agitation

DRAIN

Agitation

SPIN

Low

SPd

1Spray

Rinse

SPIN

Low

Speed

1 Spray

Rinse

Other operating instructions

For a rinse and spin

You may need an extra rinse and spin

for heavily soiled loads which need more

detergent. (Extra detergent can require

an extra rinse.)

Push Timer Knob in.

Turn clockwise to the Rinse portion of

the cycle. See above drawing.

Pull Timer Knob out.

The washer will fill to selected level;

agitate 2 minutes; drain and spin.

MAGIC CLEAW lint filter

For a drain and spin

Your washer can be set to drain and

spin out water.

Push Timer Knob in.

Turn clockwise to the second Drain por-

tion of the cycle. See above drawing.

Pull Timer Knob out.

The washer will drain and spin.

Foragitation and spin speeds in each

cycle, see pages 6 and 7.

The lint filter in your washer cleans itself. Collected I,int is drained away with the wash

and rinse water. If your washer drains into a tub, remove any lint collected in the drain or

strainer.

For visually and physically

impaired consumers

The washer (LA615OXS) you have

purchased features easy to read:

control panel instructions

Use & Care literature

lid instructions

For consumers who have difficulty turn-

ing the control knobs, an Easy Grip Knob

kit is available. The kit includes easy to

grip rubber control knob covers for your

washer and matching dryer

(LE6150XS/LG6151KS).

For visually impaired consumers, audio

cassettes and Braille Use & Care literature

are also available.

If you need the Easy Grip Knob kit, Braille

or audio cassette version of Use & Care

literature in order to use this appliance,

please write to:

Literature Department

Whirlpool Corporation

LaPorte Division

1900 Whirlpool Drive

LaPorte, IN 46350

Select one of the following materials:

Kit 389211 Easy Grip Knob kit*

Kit 787480 Audio Cassette Use & Care

literature

Kit 787479 Braille Use & Care Liter&me

*One Easy Grip Knob kit contains knob

covers for both your washer and the

LE6150XS/LG6151XS dryer. If ordering for

both appliances order only one kit.

Include your name, mailing address

plus the model and serial numbers for

your Whirlpool appliance to the address

shown above. We will send the kit you

select at no charge.

Caring for your washer

WHEN NOT WASHING, keep both water

faucets turned off. This takes the pressure

off the water inlet valve and hoses.

REMOVE SHARP OBJECTS such as

pins, buckles, etc., from clothes before

washing. Close metal zippers.

AFTER WASHING, use a soft dry cloth to

wipe the outside and inside dry. Leave

the lid up until the basket is dry. Wipe up

spills right away. Spills can dull or

damage the finish. -

SHARP OR HEAVY OBJECTS should never

be put on or in the washer. Check pockets

for bolts, nuts, tools, etc.

SOME PRETREATMENT PRODUCTS can

damage washer and dryer dials, con-

soles and finishes. Do not use these prod-

ucts on or near your washer or dryer.

Winterizing

Because some water stays in the washer,

freezing can cause a lot of damage. If your

washer is stored or moved during the cold

weather...

1. Shut off both water 2. Put a quart of R.V.

faucets. Disconnect or automobile type

and drain water inlet antifreeze in the

hoses. basket.

3. Set the washer for a

DRAIN and SPIN (see

page 8). Let it run for

about 30 seconds

to mix the antifreeze

and water.

To use the washer again...

1. Flush water pipes and hoses.

2. Connect hoses to the washer.

3. Turn on the water faucets.

4. Run the water

through a com-

plete cycle with

one cup of deter-

gent to clean out

the antifreeze.

Tabla de contenidos

Otros manuales de Arandela de Whirlpool

Whirlpool

Whirlpool LOAD-SENSING W10330946A Manual de usuario

Whirlpool

Whirlpool LHW0050PQ1 Manual de usuario

Whirlpool

Whirlpool WFW9250W Series Manual de lista de piezas

Whirlpool

Whirlpool W10722908B Manual de usuario

Whirlpool

Whirlpool ATW4475V Manual de usuario

Whirlpool

Whirlpool WTW4880AW Manual de usuario

Whirlpool

Whirlpool 2DLSQ8000JQ0 Manual de usuario

Whirlpool

Whirlpool LA3400XP Manual de usuario

Whirlpool

Whirlpool Cabrio WTW6300SW2 Manual de usuario

Whirlpool

Whirlpool LBR2121DW0 Manual de usuario

Whirlpool

Whirlpool CATALYST Instrucciones de funcionamiento

Whirlpool

Whirlpool WTW57ESV Series Manual

Whirlpool

Whirlpool TWO SPEED AUTOMATIC WASHERS Manual de usuario

Whirlpool

Whirlpool AWG 640-1/WP-HU Manual de usuario

Whirlpool

Whirlpool AWE 4017 Manual de usuario

Whirlpool

Whirlpool cabrio W10560171B Manual de usuario

Whirlpool

Whirlpool 3360620 Manual de usuario

Whirlpool

Whirlpool LA6055XS Manual de usuario

Whirlpool

Whirlpool FSCR10432 Manual de instalación y operación

Whirlpool

Whirlpool WMD 622 Manual de usuario

Whirlpool

Whirlpool LC4500XK Manual de usuario

Whirlpool

Whirlpool FSCR90420 Manual de instalación y operación

Whirlpool

Whirlpool WASHER Manual de usuario

Whirlpool

Whirlpool Cabrio WTW6700T Manual de usuario

Manuales populares de Arandela de otras marcas

Tricity Bendix

Tricity Bendix AW 1000 W Guía del producto

Panasonic

Panasonic NA-F60L5WRB Manual de usuario

GE WSLP1500 Manual

Electrolux

Electrolux EWF1284EDW Manual de usuario

Bosch

Bosch WAN2829BSN Manual de usuario

LG TV2516DV3B Manual de usuario

LG TH2517DSAV Manual de usuario

VESTEL

VESTEL CMH-XL 7510 TE Manual de usuario

AEG

AEG 74335 Manual de operación

Johnson

Johnson JWF721A Manual de usuario

Beko

Beko WTE7604XLW0 Manual de usuario

Danby

Danby DTT100A1WDB Instrucciones de montaje

Amica

Amica WA 14 Ex Manual de usuario

Daewoo

Daewoo DWD-F1222 Manual de usuario

Bosch

Bosch WAS28461AU Manual de usuario

Miele

Miele PW 6080 Vario Manual de usuario

Finlux

Finlux FLX108CF220 Manual de usuario

Beko

Beko WKB 51231 PTMA Manual de usuario
