Whirlpool LA6058XS Manual de usuario

AUTOMATIC

WASHER

Super Capacity

Model

LA6058XS

Microwave Ovens, Trash Campaclors. Room Au Condilloners. Oehumldlllers. Aulomallc Washers, Clothes Oryers. Freezers. Refrigerator-I

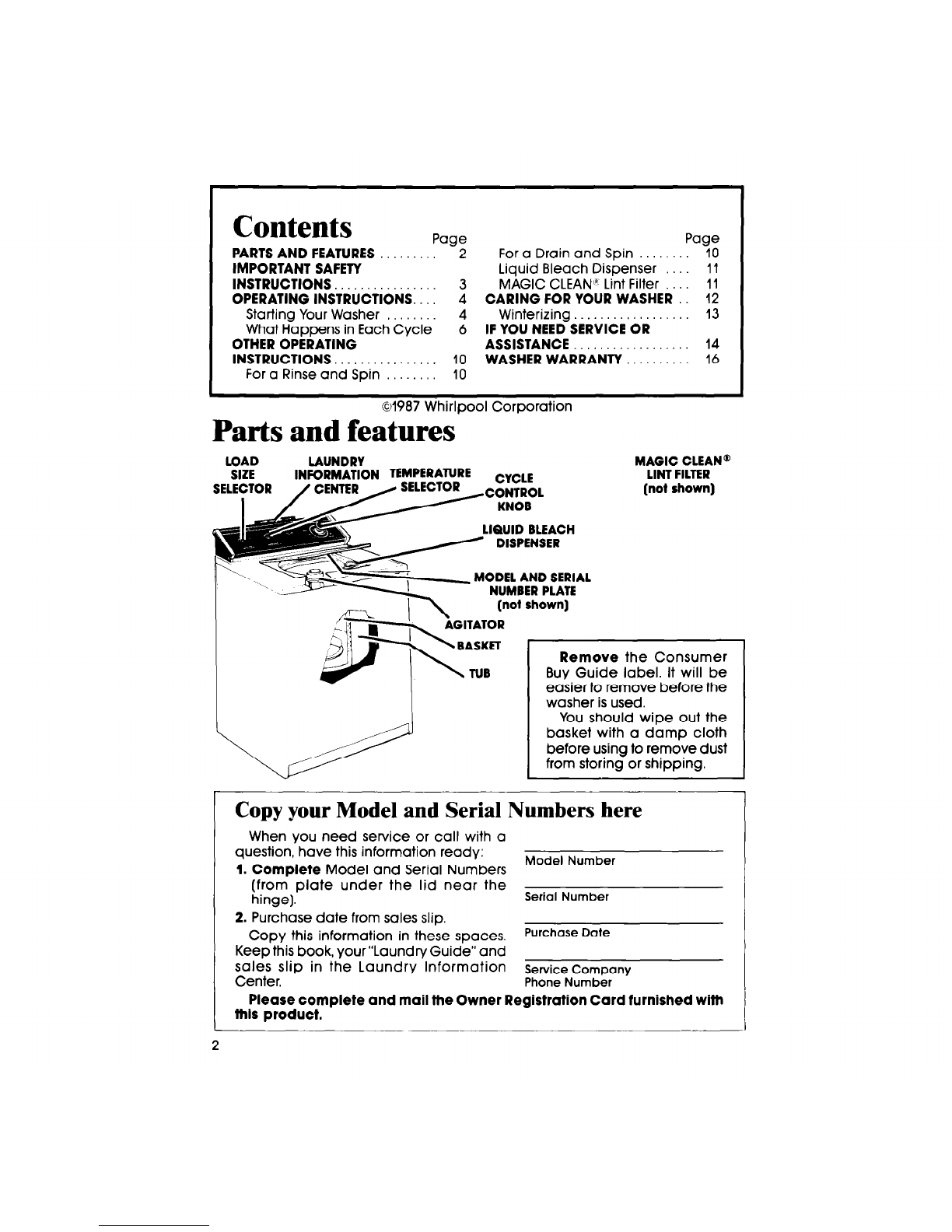

Contents

Page Page

PARTS AND FEATURES 2 For a Drain and Spin 10

IMPORTANT SAFEN Liquid Bleach Dispenser 11

INSTRUCTIONS.. 3 MAGIC CLEAN” Lint Filter 11

OPERATING INSTRUCTIONS.. 4 CARING FOR YOUR WASHER 12

Starting Your Washer 4 Winterizing. 13

What Happens in Each Cycle 6 IF YOU NEED SERVICE OR

OTHER OPERATING ASSISTANCE , 14

INSTRUCTIONS.. 10 WASHER WARRANN 16

For a Rinse and Spin 10

@I987 Whirlpool Corporation

Parts and features

LOAD

SIZE LAUNDRY

INPORMATION TEMPERANRE MAGIC CLEAN”

LINT FILTER

(not shown)

IQUID BLEACH

MODEL AND SERIAL

NUMBER PLATE

Remove the Consumer

Buy Guide label. It will be

easier to remove before the

washer is used.

You should wipe out the

basket with a damp cloth

before using to remove dust

from storing or shipping.

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this information ready:

1. Complete Model and Serial Numbers

Model Number

(from plate under the lid near the

hinge). serial Number

2. Purchase date from sales slip.

Copy this information in these spaces Purchose Date

Keep this book, your”Laundry Guide” and

sales slip in the Laundry Information

Center.

Service Company

Phone Number

Please complete and mail the Owner Registration Card furnished with

product.

Additional Safety Instructions and Your Responsibilities

ALWAYS store detergent, laundry aids

and other materials in a cool, dry

place where children can’t reach

them-in a locked cabinet if possible.

ALWAYS read and follow instructions

on packages of detergent and laun-

dry aids - especially warnings and

precautions.

HAZARDOUS FUMES can be formed if

chlorine bleach is used in the same

wash as ammonia or acids such as

vinegar or rust remover.

ALWAYS unplug the power supply

cord before attempting to service the

washer.

DO NOT machine wash glass fiber

materials. Small particles can stick to

fabrics washed in following loads

and cause skin irritation.

You are personally responsible for

making sure that your washer:

is used only for jobs normally ex-

pected of home automatic washers.

is not run by children or anyone un-

able to operate it properly. 3

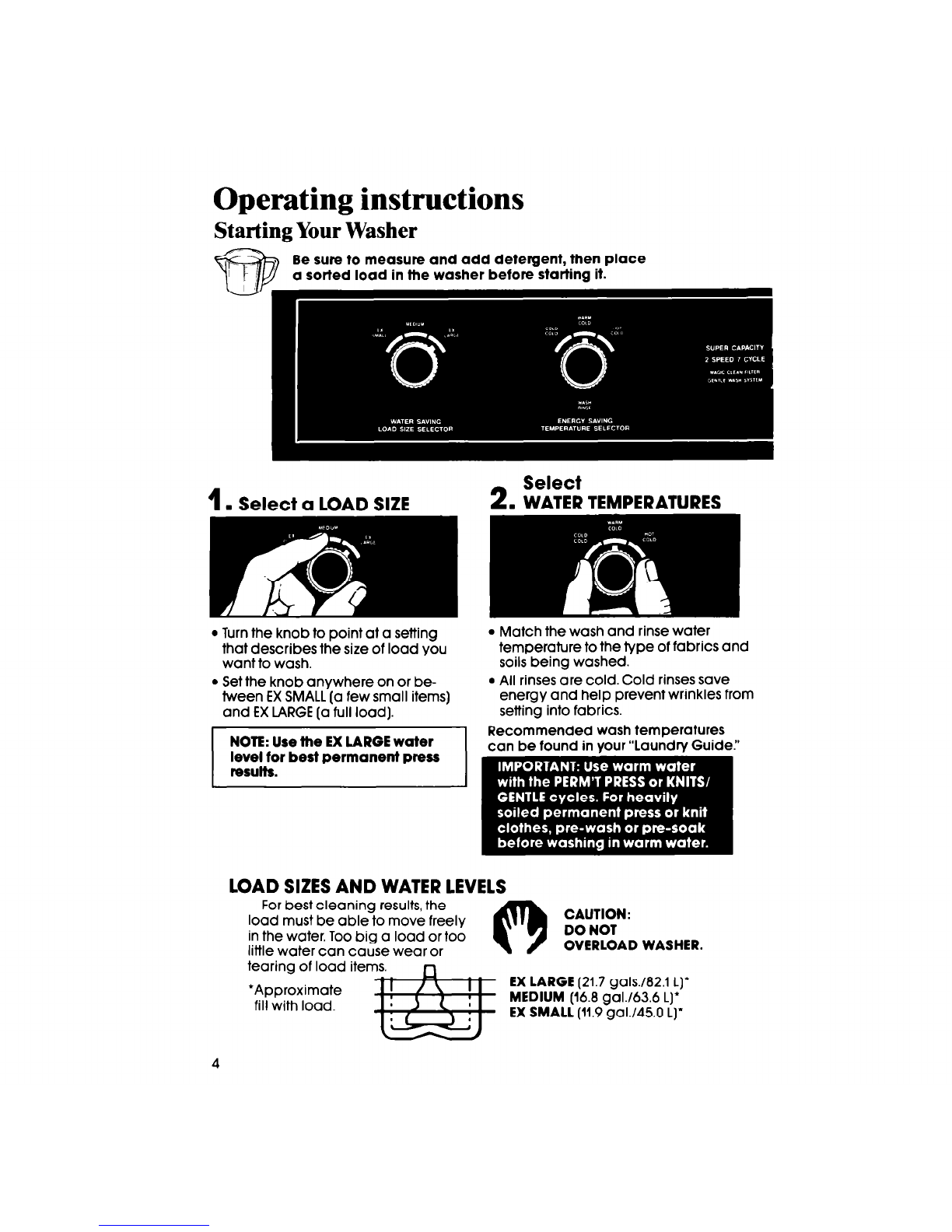

Operating instructions

Starting Your Washer

Be sure to measure and add detergent, then place

a sorted load in the washer before starting it.

Turn the knob to point at a setting

that describes the size of load you

want to wash.

Set the knob anywhere on or be-

tween EX SMALL (a few small items)

and EX LARGE (a full load].

NOTE: Use the EX LARGE water

level for best permanent press

resulfs.

Match the wash and rinse water

temperature to the type of fabrics and

soils being washed.

All rinses are cold. Cold rinses save

energy and help prevent wrinkles from

setting into fabrics.

Recommended wash temperatures

can be found in your “Laundry Guide.”

LOAD SIZESAND WATERLEVELS

For best cleaning results, the

load must be able to move freely

in the water. Too big a load or too

little water can cause wear or

CAUTION:

DO NOT

OVERLOAD WASHER.

tearing of load items.

*Approximate

fill with load. EX LARGE (21.7 gals./82.1 L)’

MEDIUM (16.8 gaU63.6 L)’

EX SMALL (11.9gal./450 L)’

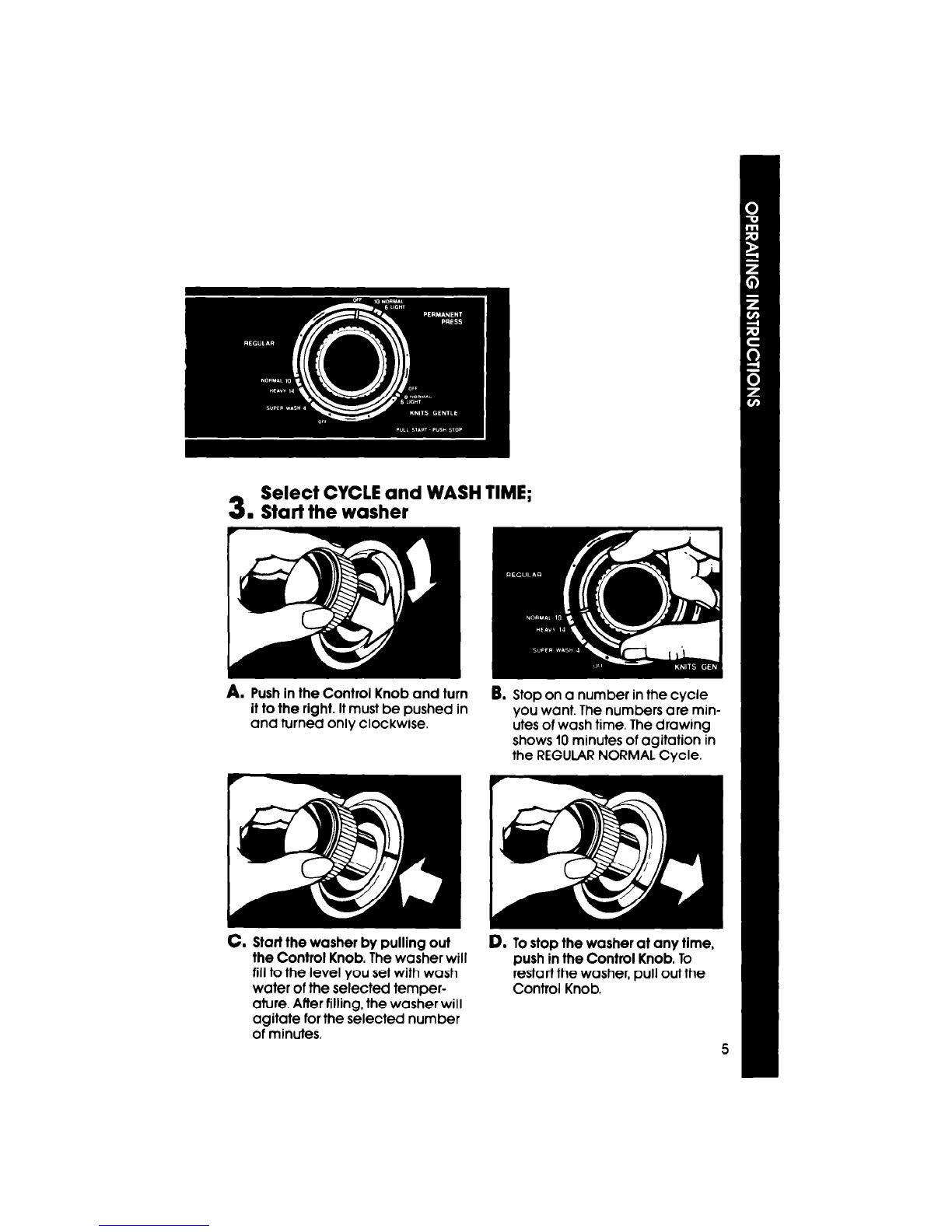

3. Start the washer

Push in the Control Knob and turn

it to the right.

It must be pushed in

and turned only clockwise.

6. Stop on a number in the cycle

you want. The numbers are min-

utes of wash time. The drawing

shows 10 minutes of agitation in

the

REGULARNORMAL

Cycle.

Start the washer by pulling out

the Control Knob.

The washer will

fill to the level you set with wash

water of the selected temper-

ature. After filling, the washer will

agitate for the selected number

of minutes.

Tostop the washer at any time,

push in the Control Knob. To

restart the washer,

pull out the

Control Knob.

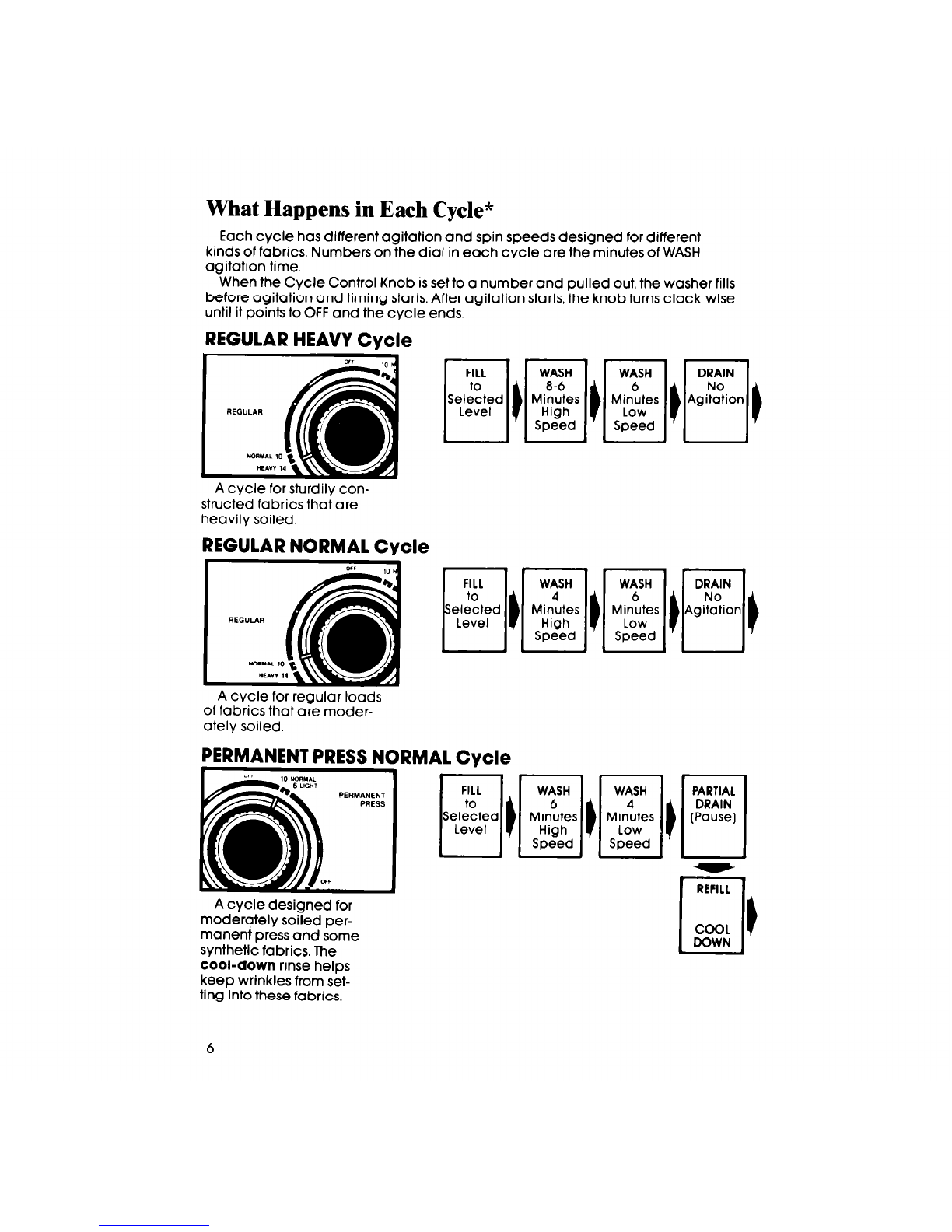

What Happens in Each Cycle*

Each cycle has different agitation and spin speeds designed for different

kinds of fabrics. Numbers on the dial in each cycle are the minutes of WASH

agitation time.

When the Cycle Control Knob is set to a number and pulled out, the washer fills

before agitation and timing starts. After agitation starts, the knob turns clock wise

until it points to OFF and the cycle ends.

REGULAR HEAVY Cycle

DRAIN

Agitation

A cycle for sturdily con-

structed fabrics that are

heavily soiled.

REGULAR NORMAL Cycle

A cycle for regular loads

of fabrics that are moder-

ately soiled.

PERMANENT PRESSNORMAL Cycle

A cycle designed for

moderately soiled per-

manent press and some

synthetic fabrics. The

cool-down

rinse helps

keep wrinkles from set-

ting into these fabrics.

WASH

Minutes

High

Speed

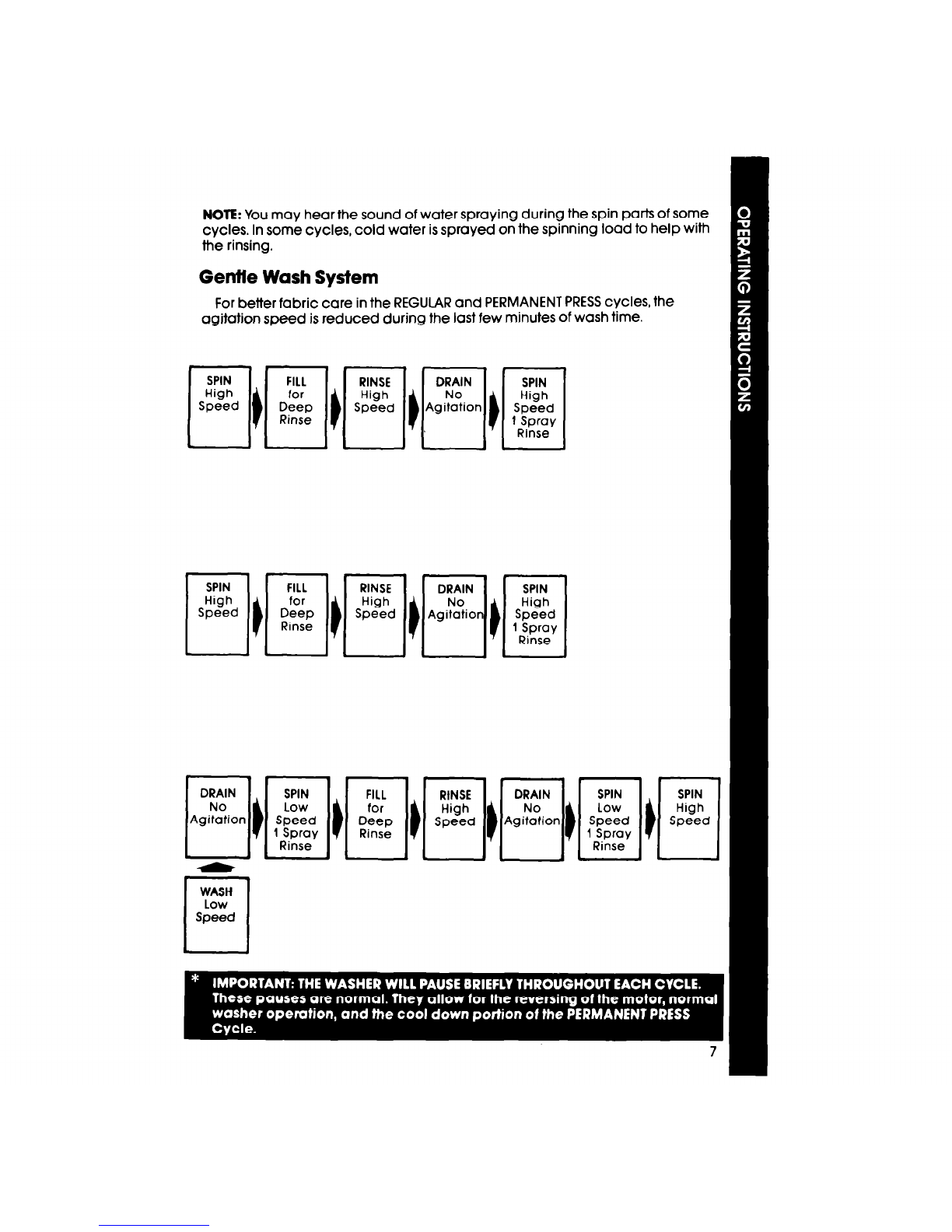

NOTE: You may hear the sound of water spraying during the spin parts of some

Cycles.

In some cycles, cold water is sprayed on the spinning load to help with

the rinsing.

Genlle Wash System

For better fabric care in the REGULAR and PERMANENT PRESScycles, the

agitation speed is reduced during the last few minutes of wash time.

PERMANENT PRESSLIGHT Cycle

A cycle designed for

lightly soiled permanent

press and some synthetic

fabrics. The cool-down

rinse helps keep wrinkles

from setting into these fabrics.

KNITS/GENTLE NORMAL Cycle

A cycle that

gently washes

and spins mod-

erately soiled

delicate items

and washable

knits.

KNITS/GENTLE LIGHT Cycle

SUPERWASH Cycle

A cycle that

gently washes

and spins lightly

soiled delicate

items and wash-

able knits.

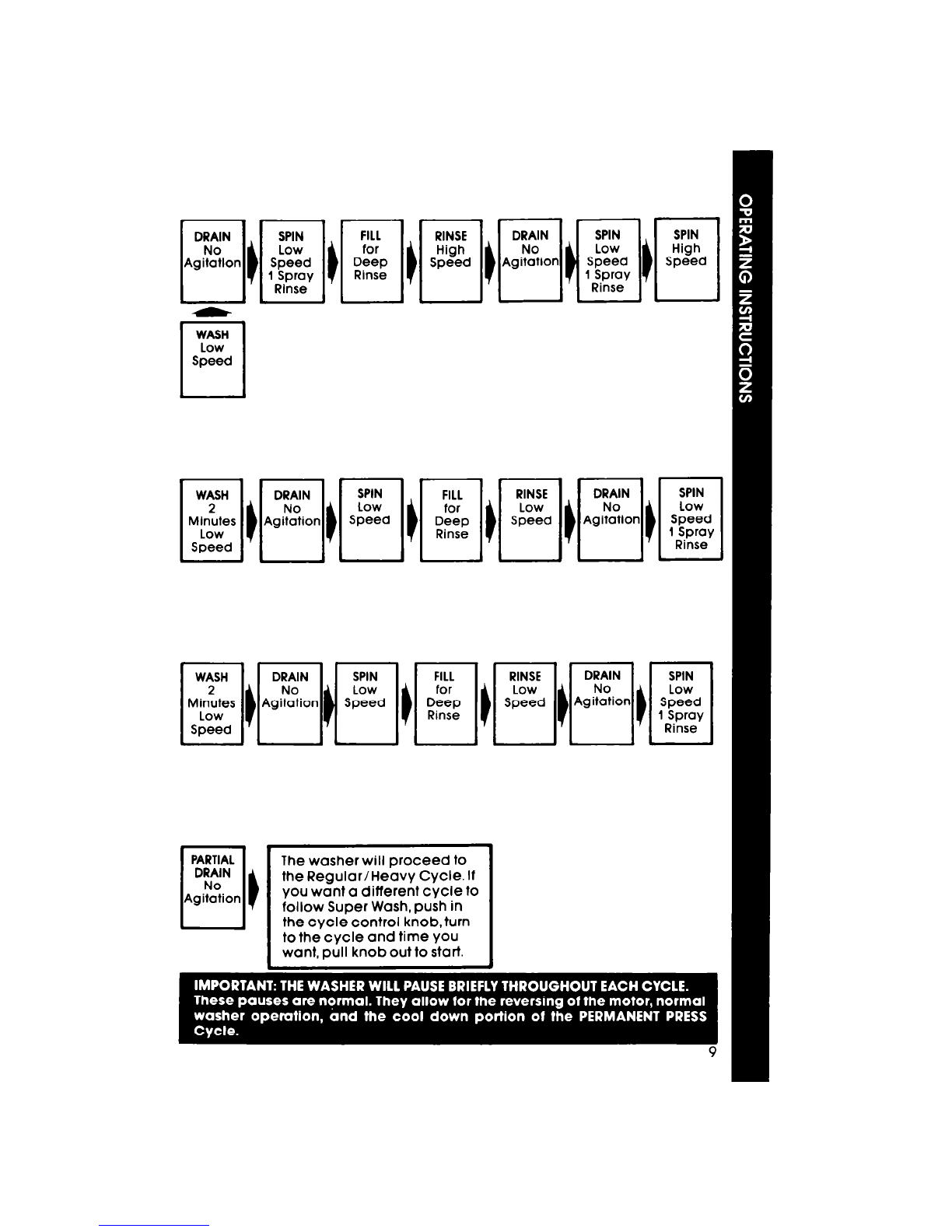

A Indicates the machlne Is

pausing for a brief soak

perlod.

A lndlcates the machine Is

pausing for a brief soak

perlod.

Use for washing heavily

soiled loads that require

maximum soil removal.

Double the amount of

detergent recommended

when using the SUPER

WASH Cycle.

WASH

Minutes

High

Speed

WASH

Low

rl Speed

FILL

for

PARTIAL

DRAIN

Agitation

The washer will proceed to

the Regular/Heavy Cycle. If

you want a different cycle to

follow Super Wash, push in

the cycle control knob, turn

to the cycle and time YOU

want, pull knob out to start.

SPIN

Low

1 Speed

1 Spray

Rinse

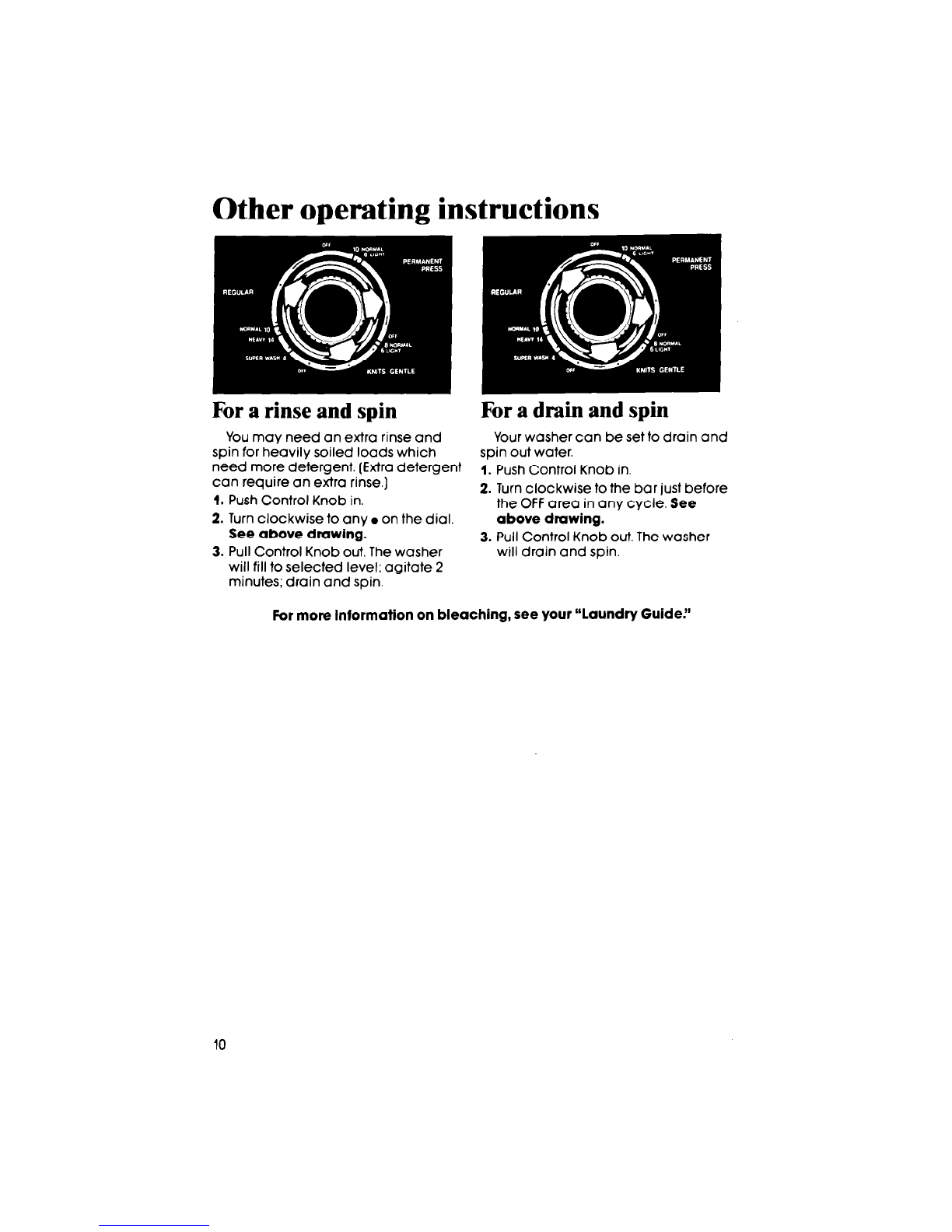

Other operating instructions

For a rinse and spin For a drain and spin

You may need an extra rinse and

spin for heavily soiled loads which

need more detergent. (Extra detergent

can require an extra rinse.]

1. Push Control Knob in.

2. Turn clockwise to any

on the dial.

See above drawing.

3. Pull Control Knob out. The washer

will fill to selected level; agitate 2

minutes; drain and spin.

Your washer can be set to drain and

spin out water.

1. Push Control Knob in

2. Turn clockwise to the bar just before

the OFF area in any cycle. See

above drawing.

3. Pull Control Knob out. The washer

will drain and spin.

For more Information on bleaching, see your “Laundry Guide!’
