Whirlpool LA50000XP Manual de usuario

AUTOMATIC

WASHER

Design 2000

k;qE,Capacity

LA5000XP

!wave Ovens. Trash Compactors Room Air Condltloners Oehumld~llers Automatic Washers Clothes Oryers Freezers Refrlgerator~Freezer

Parts and features

LAUNDRY TEMPERATURE

LOAD INFORMATION

MODEL AND SERIAL

,NUMBER PLATE

(not shown)

-AGITATOR

BASKET

Remove the Consumer

Buy Guide label. It will be

easier to remove before

the washer is used.

You should wipe out the

basket with a damp cloth

before using to remove

dust from storing or

shipping.

Cops, your Model and Serial Numbers here

When youneed service or call with o ..- -_ __-~~.-- - .-

question, have this InformatIon reacdy

M,: lc Utirnt 7.1

1. Complete Model and Serial fudrn

bers (from plate under the lid necr the -~

hinge). &Jr 3 ‘.~,TL r

2. Purchase date from sales slip - ~--~~~

COW this information In these soaces C’. )h. i‘,E-’Dote

Keep’ (his book in the Laundry In’forma- ------.

tion Center with your”Loundry Gu!de Service Comoonv

sales slip and warranty

Phone Number

There IS no warranty reglstratlon :O return Profzlf-of-purchase

oil

that IS required for in-warranty ser, rce

Your

Read this “Use and Care Guide”

and your “Laundry Guide” care-

fully for important use and safety

information.

You are personally responsible

for making sure that your

washer...

is installed by a qualifiedinstaller.

is properly installed and

leveled on a floor that can

support the weight.*

is connected to the right kind

of outlet, electric supply, water

supply and drain.*

is properly grounded.‘

is used only for jobs normally

expected of home automatic

washers.

is properly maintained.

is protected from the weather

and kept where the tempera-

ture will not fall below freezing.

is not run by children or anyone

unable to operate it properly.

*See the ‘Installation Instructions”

for complete information.

Contents

Page

PARTS AND FEATURES.

YOUR RESPONSIBILITIES

SAFETY FIRST

STARTING YOUR WASHER

WHAT HAPPENS IN EACH

CYCLE

OTHER OPERATING

INSTRUCTIONS

For a Rinse and Spin

For a Drain and Spin

ForoSoak

CARING FOR YOUR &SHER

Winterizing

IF YOU NEED SERVICE OR

ASSISTANCE.

1. Before Calling for

Assistance

2. If You Need Assistance

3. If You Need Service

4. If You Have a Problem

-2

,c,1985 Whirlpool Corporation - SAVE THESE INSTRUCTIONS - 3

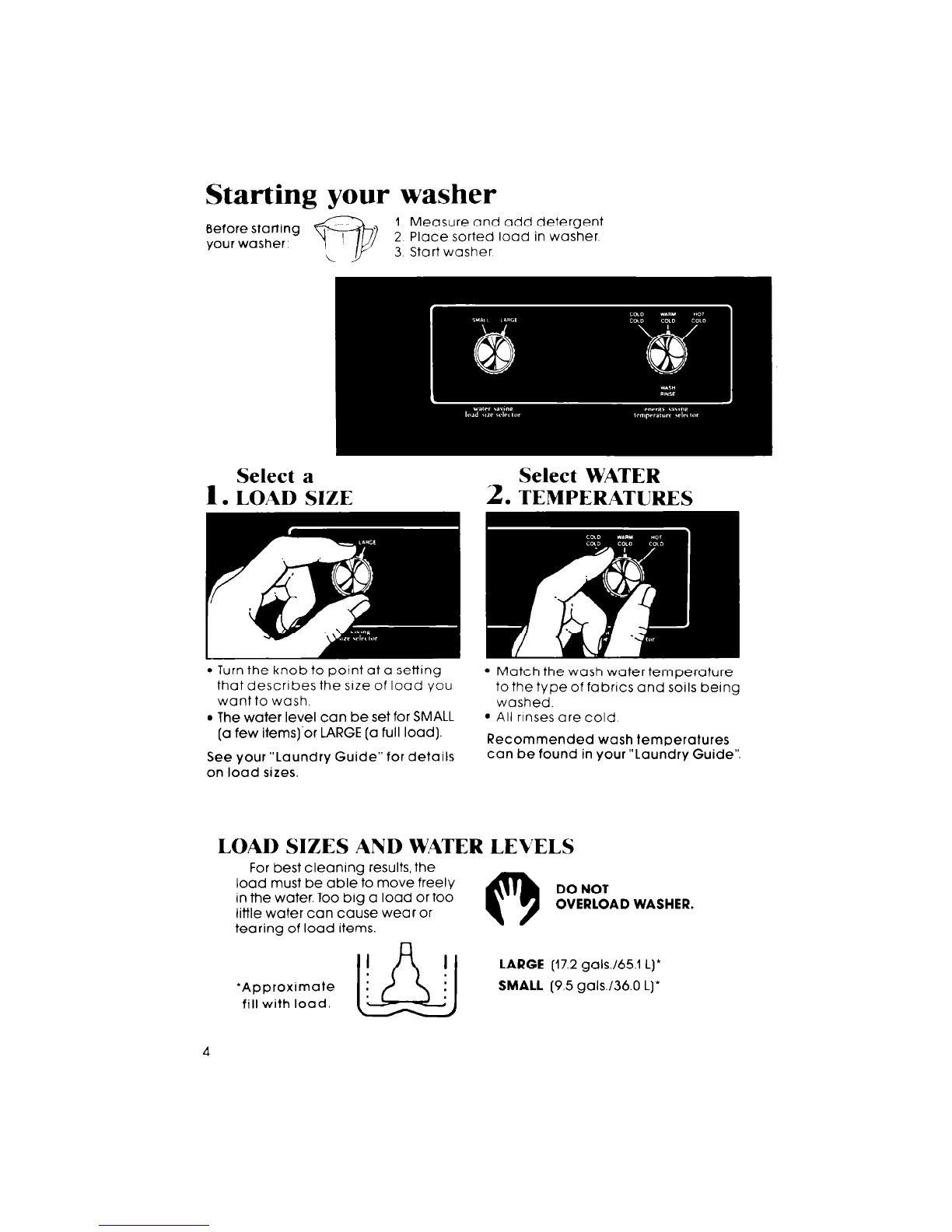

Starting your washer

1 Measure and add detergent.

2 Place sorted load in washer.

3 Start washer

Select a

1. LOAD SIZE Select WATER

TEMPERATURES

Turn the knob to point at a setting 8 Match the wash water temperature

that describes the size of load you to the type of fabrics and soils being

want to wash. washed.

The water level can be set for SMALL

(a few items).or LARGE [a full load).

See your “Laundry Guide” for details

on load sizes.

9 All rinses are cold

Recommended wash temperatures

can be found in your “Laundry Guide”.

LOAD SIZES AND WATER LEVELS

For best cleaning results, the

load must be able to move freely

in the water. Too big a load or too

little water can cause wear or

tearing of load items.

DO NOT

OVERLOAD WASHER.

‘Approximate

fill with load.

LARGE (17.2 gals./65.1 L)*

SMALL (9.5 gals./36.0 L)’

3. Start the washer

A. Push in the Control Knob and

turn it to the right. It must be

pushed in and turned only

clockwise.

B. Stop on a number in the cycle

you want. The numbers are min-

utes of wash time. The drawing

shows 14 minutes of agitation in

the REGULAR HEAVY Cycle. Note:

The washer will till only when

the knob points within a FILL

area.

C. Start the washer by pulling out

the Control Knob. The washer

WIII fill to the level you set with

wash water of the selected

temperature. After filling, the

washer will agitate for the

selected number of minutes

D. To stop the washer at any time

push in the Control Knob. To

restart the washer, pull out the

Control Knob.

What happens in each cycle*

Each cycle has been designed for different kinds of fabrics. Numbers on the

dial in each cycle are the minutes of WASH agitation time.

When the-Cycle Control Knob is set to a number and pulled out, the washer

fills before agitation and timing starts. After agitation starts, the knob turns clock-

wise until it points to OFF and the cycle ends.

REGULAR HEAVY Cycle

A cycle for sturdily con-

strutted fabrics that are

heavily soiled.

REGULAR

Cycle

A cycle for regular loads of

fabrics that are moderately

soiled.

KNITS/GENTLE Cycle

A cycle that gently washes

and spins delicate items

and washable knits.

SOAK

Cycle

Brief periods of agitation

and soak time help remove

heavy soils and certain

stains that need extra

pretreatment. Use recom-

mended amount of

detergent. The SOAK Cycle

should always be fol-

lowed by a Wash Cycle.

NOTE: Ycu may hear the sound of water spraying during the

some cycles. In some cycles, cold water is sprayed on the spir

with the rinsing.

spin parts of

ining load to

Special care

needed when soaking or pre-washing laundry.

See your”Laundry Guide” for proper use of this cycle.

Other operating instructions

For a rinse and spin For a drain and spin

You may need an extra rinse and

spin for heavrly soiled loads whrch

need more detergent. [Extra de-

tergent can require an extra rinse.]

Push Control Knob in.

Turn clockwrse to any .on the dial

See above drawing.

Pull Control Knob out.

The washer will fill to selected

level; agitate 2 minutes; drain

and spin

Your washer can be set to drain

and spin out water

. Push Control Knob in.

Turn clockwise to the bar just before

OFF in any cycle See above

drawing.

Pull Control Knob out

The washer will drain and spin.

For agitation and spin speeds in each cycle,see pages 6and 7

For a soak

For best results, use warm water

for soaking or pre-washing stained

laundry. Hot water can set stains.

Use recommended amount of

detergent or pre-soak product.

Push Control Knob in.

9 Turn clockwise to point at a number

in the SOAK Cycle...use the 6-minutes

mark for a pre-wash?

Pull Control Knob out to start washer.

When the cycle is over, add de-

tergent for the next selected wash

cycle. The SOAK Cycle should

always be followed by a Wash

Cycle.

Important: See additional care

information on page 7 of your

“Laundry Guide!’

‘To start soak or pre-wash with agitation, the Cycle Control Knob

must point to a number in the SOAK Cycle.

Caring for your washer

WHEN NOT WASHING, keep both

water faucets turned off. This takes

the pressure off the water inlet Valve

and hoses.

REMOVE SHARP OBJECTS such as pins,

buckles, etc., from clothes before

washing. Close metal zippers.

AFTER WASHING, use a soft dry cloth

to wipe the outside and inside dry.

Leave the lid up until the basket is dry.

Wipe up spills right away. Spills can

dull or damage the finish.

SHARP OR HEAVY OBJECTS should

never be put on or in the washer.

Check pockets for bolts, nuts,

tools, etc.

SOME PRETREATMENT PRODUCTS

can damage washer and dryer

consoles and finishes. Do not us

these products on or near your

washer or dryer.

,di

‘e

Winterizing

Because some water stavs in the washer. freez-

ing can cause a lot of damage. If your washer is

stored or moved during the cold weather.,

1. Shut off both water 2. Put a quart of

faucets. Discon- automobile-type

nect and drain antifreeze In the

water inlet hoses. basket.

To use the washer again.. .

1. Flush water pipes and hoses.

2. Connect hoses to the washer.

3. Turn on the water faucets

3. Set the washer for a

DRAIN and SPIN

[see page 8). Let it

run for about 30

seconds to mix the

antifreeze and

water.

,,--

A--

++v

4. Run the washer

through a com-

plete cycle with

one cup of deter-

gent to clean out

the antifreeze.
