Whirlpool Duet Sport WFW8400T Instrucciones de uso

30" min.

(76.2 cm)

26" min.

(66 cm)

30" min.

(76.2 cm)

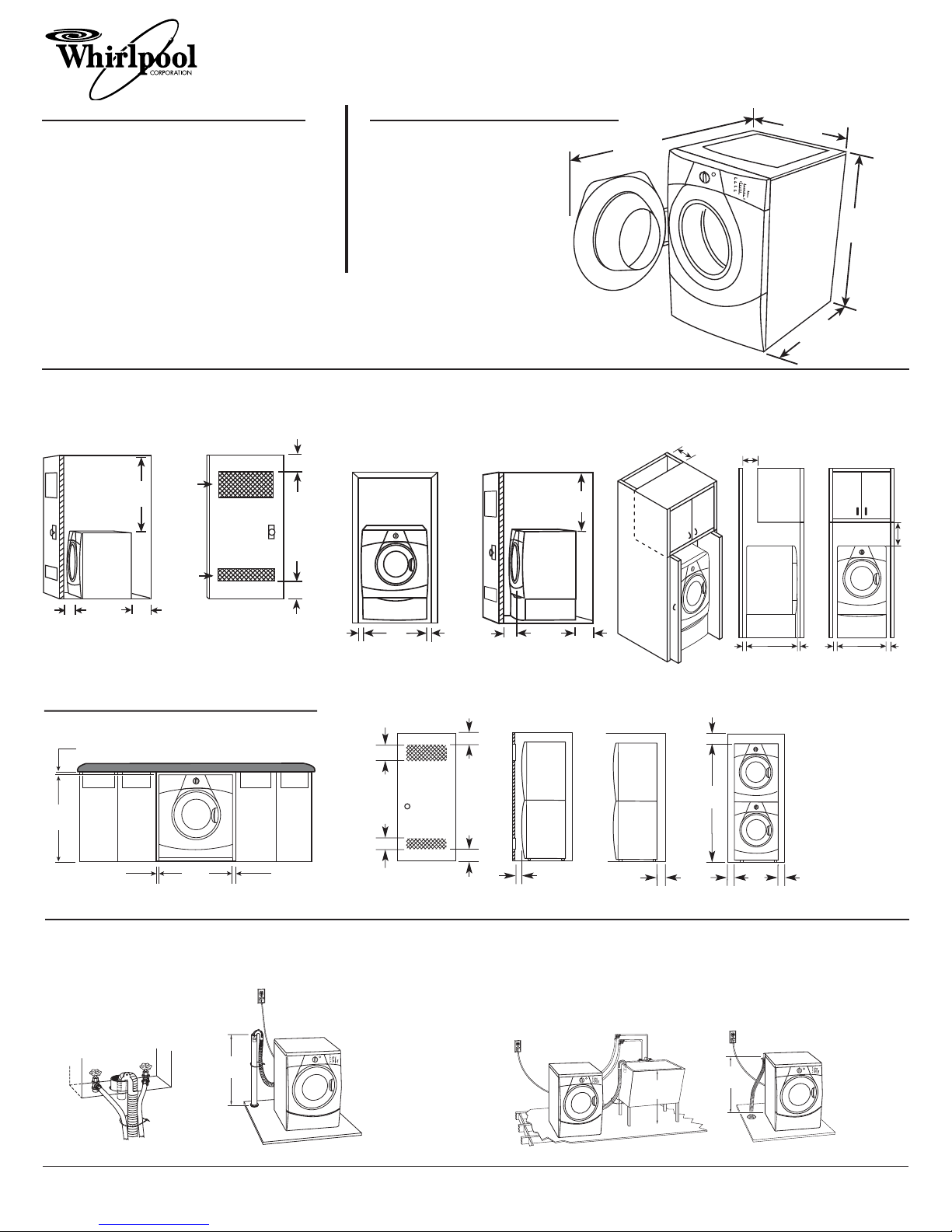

Duet Sport™Front Loading Washer

PRODUCT MODEL NUMBERS OVERALL DIMENSIONS

DRAIN SYSTEM OPTIONS

WFW8400T

Electrical: 120 volt, 60 Hz, AC only,

15- or 20-amp, fused electrical supply. A time-

delay fuse or circuit breaker and separate circuit is

recommended.

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. W10117768

07-16-07

50¹⁄₄"

(127.6 cm)

27"

(68.6 cm)

36"

(91.4 cm)

29¹⁄₄"

(74.3 cm)

UNDERCOUNTER INSTALLATION

Washer on Pedestal

Dimensions shown are the recommended spacing.

Standpipe drain system - wall or floor (view A & B)

The standpipe drain requires a minimum diameter standpipe of 2”(5 cm). The

minimum carry-away capacity can be no less than 17 gal. (64 L) per minute.

The top of the standpipe must be at least 30”(76.2 cm) high and no higher than

96”(2.4 m) from the bottom of

the washer.

Laundry tub drain system (view A)

The laundry tub needs a minimum

20 gal. (76 L) capacity. The top of

the laundry tub must be at least

30”(76.2 cm) above the floor.

Floor drain system (view B)

The floor drain system requires a siphon break

that may be purchased separately.

The siphon break must be a minimum of 28”

(71 cm) from the bottom of the washer.

Additional hoses might be needed.

Stacked Washer and Dryer

Recommended installation spacing for

cabinet installation

For cabinet installation, with a door, the minimum

ventilation openings in the top are required.

RECESSED AREA AND CLOSET INSTALLATIONS

For closet installation, with a door, the minimum ventilation

openings in the top and bottom of the door are required (view 2).

Louvered doors with equivalent air ventilation openings in the top

and bottom are acceptable.

A. Side view - closet or confined area

B. Closet door with vents

48"

(122 cm)

(7.6 cm)

(2.5 cm) 4"

(10.2 cm)

29¹⁄₄"

(74.3 cm)

48 in.2

(310 cm2)

24 in.2

(155 cm2)

(2.5 cm)

¹⁄₄

(74.3 cm)

(2.5 cm)

27"

(68.6 cm)

(10.2 cm)

38" min.

(96.5 cm)

7" (17.8 cm)

(22.9 cm)

7" (17.8 cm)

(10.2 cm)

29¹⁄₄"

(74.3 cm)

27"

(68.6 cm)

(2.5 cm)

36" min.

(91.4 cm)

27"

(68.6 cm)

2" (5 cm)

48"2*

(310 cm2)

3" (7.6 cm)

1" (2.5 cm)

24"2*

(155 cm2)

12" (30.5 cm)

72"

(182.9 cm)

27"

(68.6 cm)

5 ¹⁄₄"**

(13.3 cm)

1"***

(2.5 cm)

1"***

(2.5 cm)

*Min. top and

bottom air

openings for

closet door.

**External exhaust

elbow requires

additional space.

***Wall, door and

floor molding may

require additional

spacing.
