GB INSTALLATION GUIDE

• Noise, excessive vibrations and water leakages can be caused

by incorrect installation.

• Never move the appliance by carrying it at the worktop.

• Installation of the washing machine requires at least 2

persons.

•Read this “INSTALLATION GUIDE” before operating.

•Keep this “INSTALLATION GUIDE” for future reference.

•ReadthegeneralrecommendationsaboutdisposingofpackagingintheInstructionsforUse.

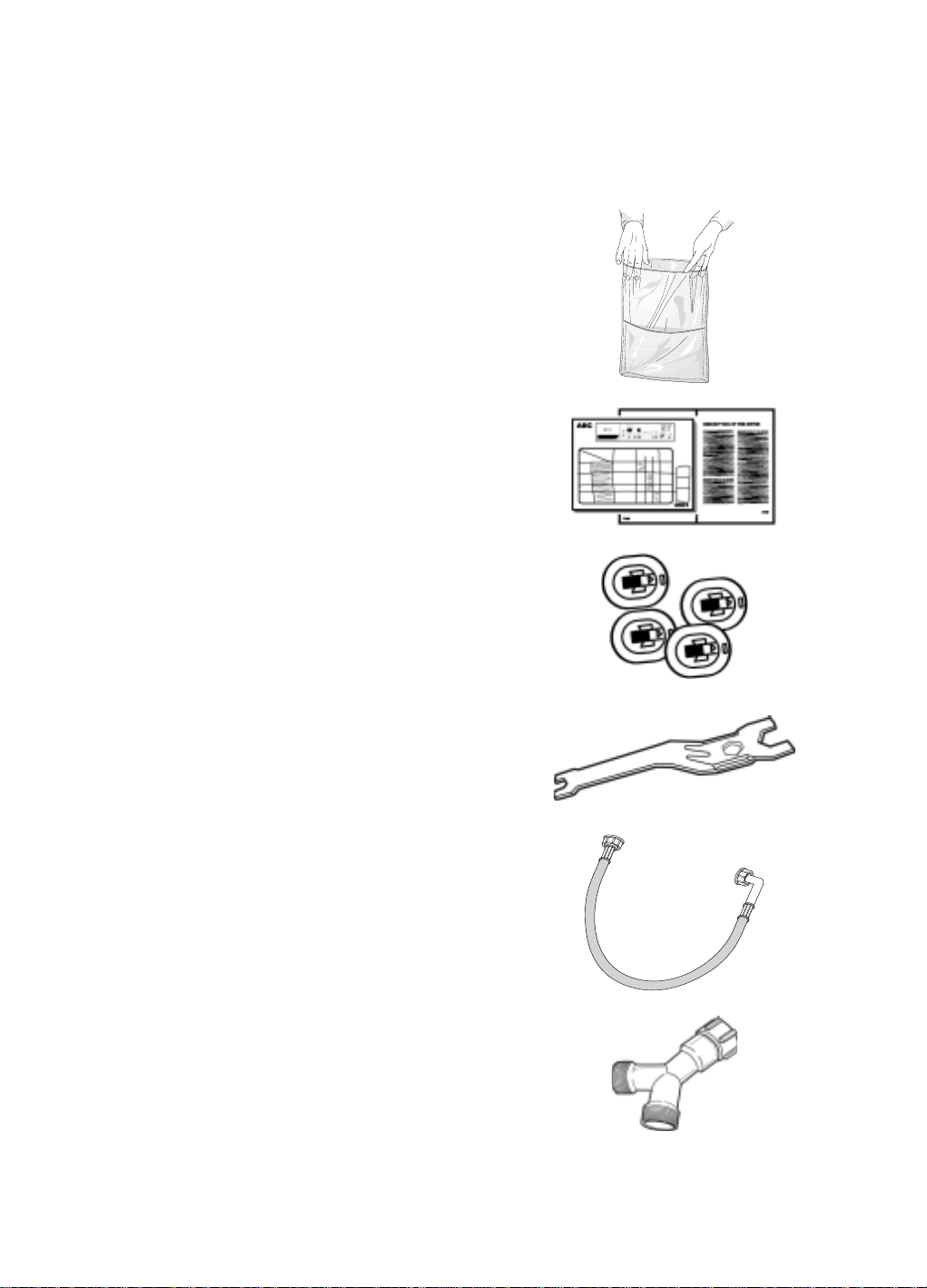

PARTS SUPPLIED

Bag with small items

Instructions for Use

4 plastic caps

Wrench

Inlet hose (inside the machine or already installed)

Y-adapter (only supplied for certain models)

IMPORTANT: FIRST REMOVE TRANSPORT BOLTS!

- Not removed transport bolts cause damages to the washing machine!

Keep the transport bolts and the wrench for further transporting of the washing

machine; in this case refit the transport bolts in reverse order.

1. - Unscrew the 4 screws of the transport bolts

with the wrench supplied; the screws are

quite long and you have to screw a while until

you can release them.

2. - Move the screws to the center of the holes

and remove them by pulling them out.

3. - To close the holes, insert the supplied plastic

caps in the wide part of the holes and push

them towards the edge of the appliance, until

they click into place.

ADJUSTMENT OF THE FEET

- The appliance must be installed on a solid and level floor surface (if necessary use a spirit

level). If the floor is wooden or floating, distribute the weight by placing it on a sheet of

plywood measuring at least 60 x 60 cm and thickness of at least 3 cm which is screwed

to the floor. If the floor is uneven, adjust the 4 levelling feet as required; do not insert

pieces of wood etc. under the feet.

4. - Slacken the locknut clockwise (see arrow)

using the wrench supplied.

5. - Lift slightly the machine and adjust the height

of the foot revolving it.

6. - Important: tighten the locknut by turning it

anti-clockwise towards the appliance casing.

CONNECT THE WATER INLET HOSE

7. - If the water inlet hose is not already installed,

it must be screwed to the appliance.

Ifyourwashingmachinehasoneinletvalveon

the back: connect it to cold fill only.

8. - If your washing machine has two inlet valves

ontheback,you must connect both valves

to the water supply:

• either connect red inlet valve to hot fill tap and

blue inlet valve to cold fill tap.

• or connect both inlet valves to cold water tap by

using a Y-adapter.

Make sure all connections are tightly fixed.

Screw the inlet hose by hand to the tap and to the

inlet valve and tighten the nut. Do not use any

tools for fixing the inlet hose.

Attention

• No kinks in the hose!

• The appliance must not be connected to the mixing tap of an un-pressurized water

heater.

• Check water-tightness of connections by turning the tap completely on.

• If the hose is too short, replace it with a suitable length of pressure resistant hose

(1000 kPa min, EN 50084 approved type).

• Check the inlet hose regularly for brittleness and cracks and replace if necessary. It is

generally recommended to renew the inlet hose every 3 years.

• The washing machine can be connected without a non-return valve.

- For models with Water Stop hose:

If the flexible hose is too short, replace it with a longer Water Stop

hose available through our After-Sales Service or from your dealer.

Thereplacementmustbecarriedoutbyanexpert.Whileunscrewing

the water stop hose, the release lever must be pushed down.

Red inlet valve

Blue inlet valve

Hot fillCold fill

Y-adapter

Cold fill

release lever

5019 102 00xxx

CONNECT THE DRAIN HOSE

9. - Unclip the drain hose from the holders marked by the arrows (depending on the model).

- If the drain hose is installed inside your washing machine, pull the hose completely out of

the holder and close the opening with cap “A” attached.

10.- Firmly connect the drain hose to a siphon or standpipe for drain water (if necessary

use the U-bend provided with the washing machine; it must be fixed at the end of

the drain hose).

Important

• Make sure there are no kinks in the drain hose.

• Make sure the hose is firmly connected to siphon

or standpipe.

• To make an extension, use a hose of the same

type and secure the connections with clips.

• Max. Overall drain hose length: 2.50 m.

ELECTRICAL CONNECTION

- Use a socket with an earth connection.

- Do not use extension leads or multi sockets.

- The electrical power cable must be replaced exclusively by a licensed electrician.

- Electrical connections must be made in accordance with local regulations.
