Whirlpool AUTOMATIC WASHER W10314723 Manual de usuario

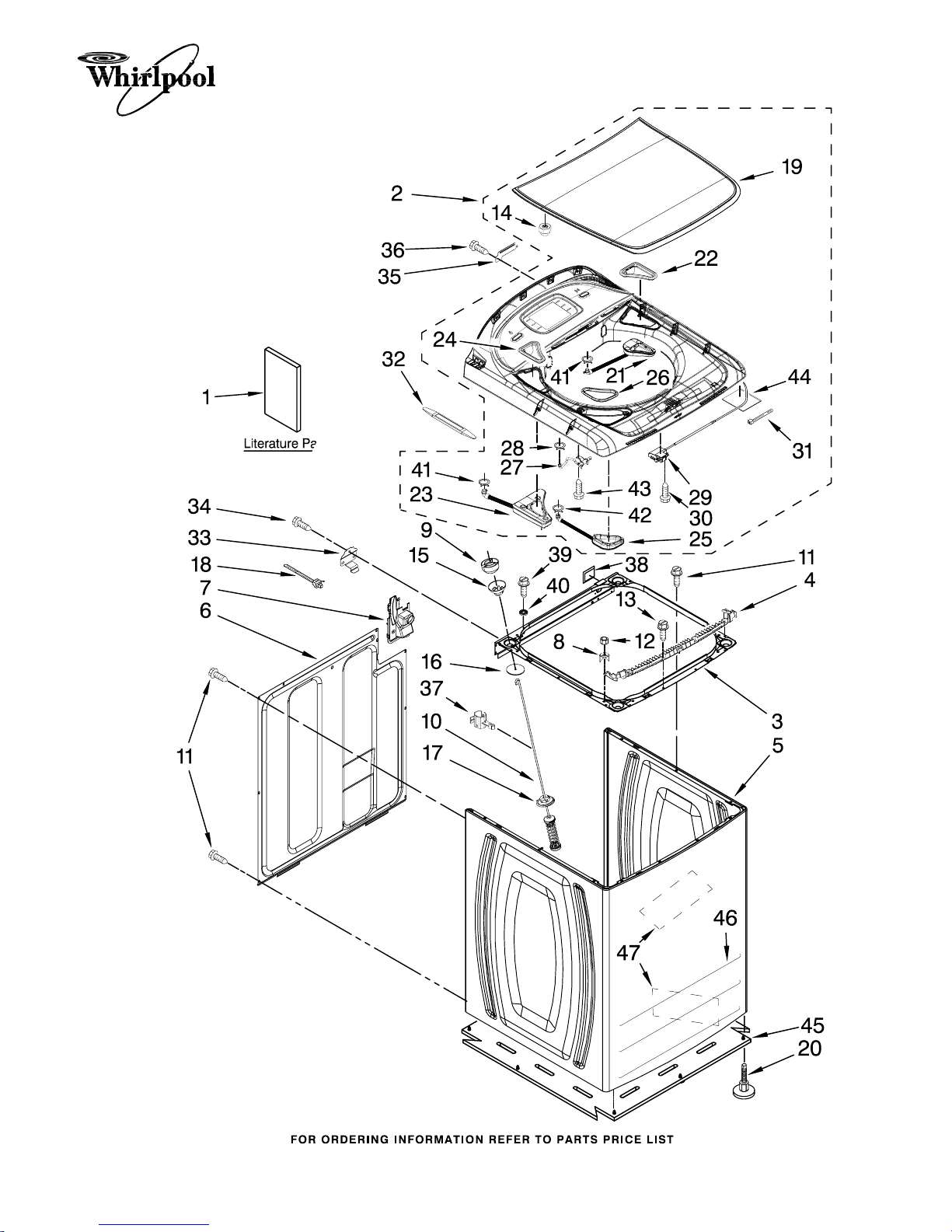

TOP AND CABINET PARTS

(Cosmetallic)

FOR MODEL: WTW7990XG0

11−10 Printed In U.S.A. (drd) Part No. W10314723 Rev. A

AUTOMATIC WASHER

TOP AND CABINET PARTS

(Cosmetallic)

FOR MODEL: WTW7990XG0

W10314723

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

Installation

Instructions

W10240438

English/French

W10240439

Spanish

W10330930

Use & Care Guide

W10312006

Installation

Instructions−

Sound Shield

W10329226

Tech Sheet

W10326642

Energy Guide

W10285672

Top & Console

Assembly

(Includes Items

26 & 27 on Page 3)

W10162416

Frame Assembly,

Cabinet Top

(Includes Item 38)

W10285716

Bracket−Support,

Front

W10297810

Cabinet

6 8566090 Panel, Rear

W10160572

Retainer, Drain

Hose Storage

W10285737

Bracket, Lower

Top Retention

W10111536

Ball, Suspension

(Set Of 4 −

Includes Item 15)

W10256514

Damper Assembly,

Tub Suspension

(Set Of 4−Includes

Items 9, 15,

16 & 17)

11 1157158 Screw, 8−18 x 3/8

12 3934662 Nut, 5/16 x 18

W10324301

Screw, 8−18 x 1/2

W10300818

Nut, Acorn

(M6−1.0 x 10)

W10167599

Bushing,

Suspension (Set Of

4−Includes Item 9)

16 8577896 Washer, Suspension

Umbrella

17 8564017 Cup, Suspension

W10155270

Cable Tie

W10285675

Lid, Glass

Assembly

W10240448

Foot Assembly,

Leveling

W10283377

Dispenser,

Fabric Softener

W10285707

Bezel, Fabric

Softener Dispenser

W10283967

Dispenser, Bleach

W10285695

Bezel,

Bleach Dispenser

W10283970

Dispenser,

Detergent

W10285701

Bezel, Detergent

Dispenser

W10283978

Nozzle Assembly,

Fresh Water

W10096852

Clamp, Hose

W10059230

Lock Assembly, Lid

W10296801

Screw, 8−18 x 3/4

W10035712

Cable Tie

W10285826

Tool, Trim Stick

W10285717

Hinge, Rear

34 343641 Screw, 10−16 x 1/2

35 8563941 Cover, Harness

W10303701

Screw, 8−18 x 3/4

37 8543784 Bracket,

Drain Hose

38 8578386 Shield, Wire

Harness

39 489474 Screw, 8−18 x 1.00

W10323797

Spacer, Rear

Locator

41 370451 Clamp, Hose

42 371503 Clamp, Hose

43 3400061 Screw,

10−16 x 9/16

W10212660

Pad, Sound

Dampening

45 8565184 Absorber − Sound,

Bottom

46 8578225 Absorber − Sound,

Cabinet Front

W10123957

Panel, Dampening

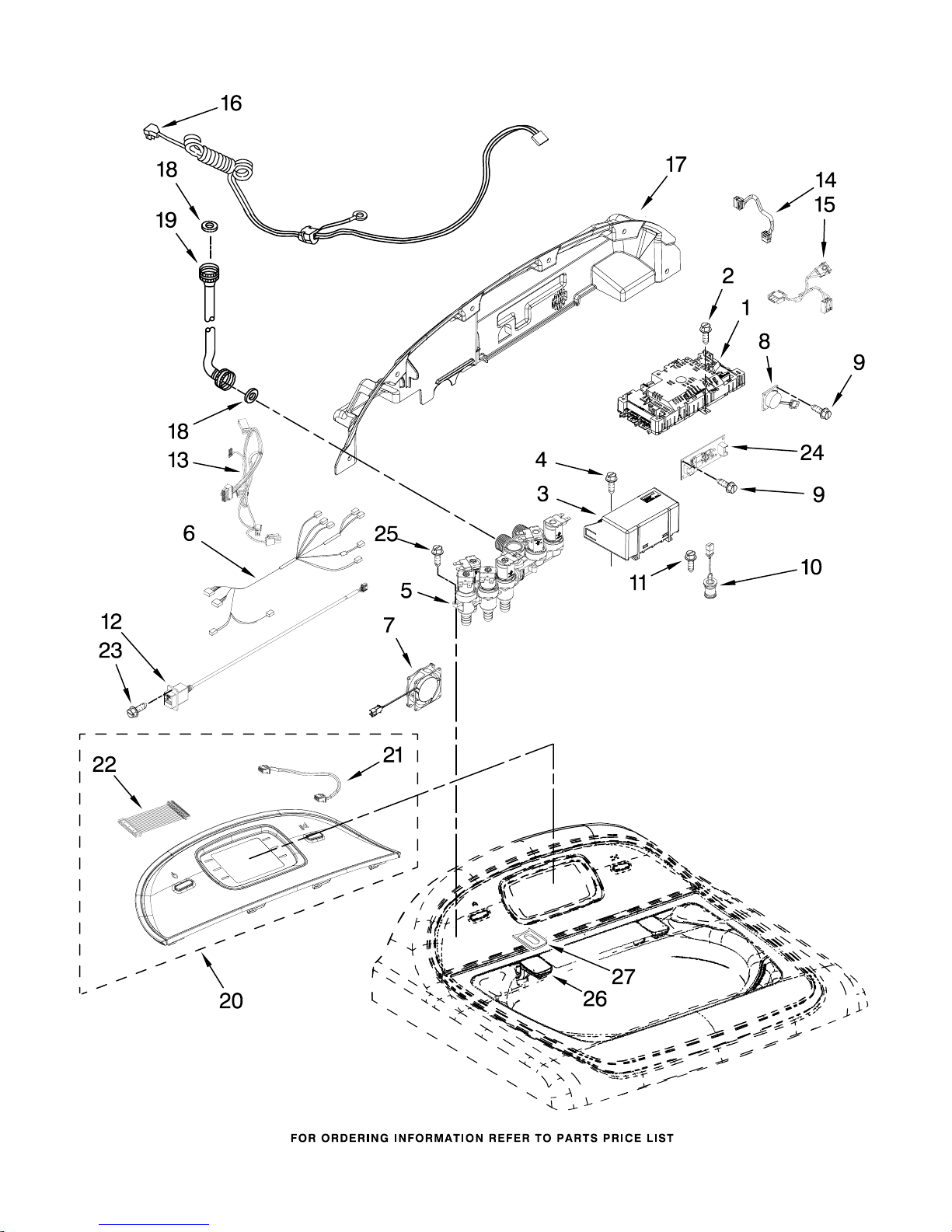

CONTROL PANEL PARTS

(Cosmetallic)

FOR MODEL: WTW7990XG0

W10314723

CONTROL PANEL PARTS

(Cosmetallic)

FOR MODEL: WTW7990XG0

W10314723

Illus. Part

No. No. DESCRIPTION

W10286071

Control Unit

Assembly,

Machine & Motor

7101P650−60

Screw

W10280594

Power Supply

4 12990204 Screw, 8−18 x 1/2

W10326917

Valve, Log

W10331300

Harness, Log Valve

W10285759

Fan

W10280595

Speaker

W10300795

Screw,

M2−0.4 x 8.75

W10280747

LED Assembly

W10300799

Screw, 8−18 x 1/2

W10280760

Jumper, UI To USB

W10280738

Jumper,

User Interface

W10280736

Jumper,

CCU To Wide ISO

W10280742

Jumper, Main Power

W10051098

Cord Assembly,

Power

W10285715

Panel, Rear

Console Cover

W10242307

Washer, Water

Inlet Hose

19 Hose, Water Inlet

W10194208

Cold Water

8571378 Hot Water

W10285684

Panel, Console

Facia Assembly

W10289382

Jumper, Atlas

Audio To HMI

W10167482

Wire Assembly,

Main Connection

W10300815

Screw,

M2−0.89 x 10

W10280598

Circuit Board,

Wide ISO IR

25 8281136 Screw, 8−18 x 3/4

W10285714

Hinge, Lid

27 Bezel, Hinge

W10323408

Left

W10323407

Right

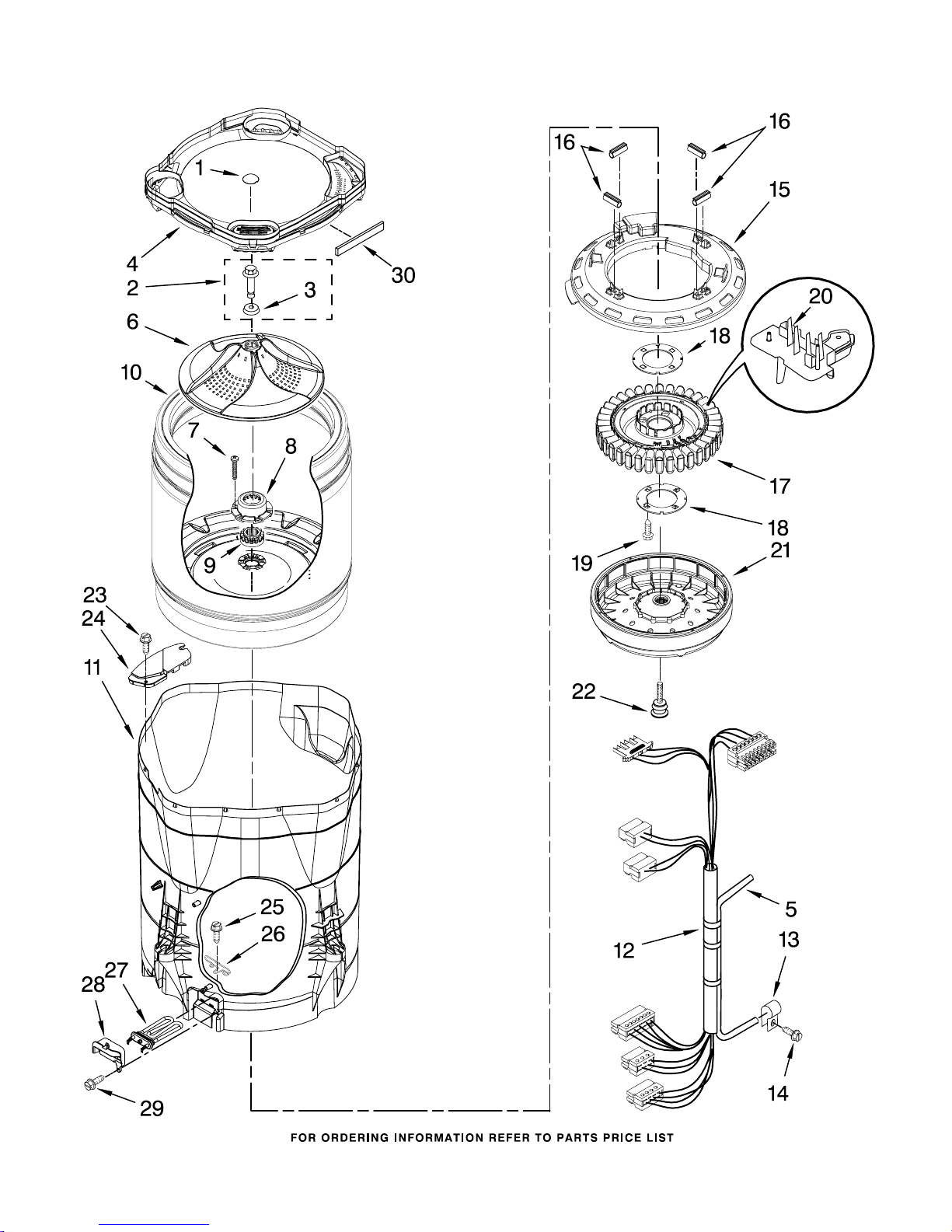

MOTOR, BASKET AND TUB PARTS

(Cosmetallic)

FOR MODEL: WTW7990XG0

W10314723

MOTOR, BASKET AND TUB PARTS

(Cosmetallic)

FOR MODEL: WTW7990XG0

W10314723

Illus. Part

No. No. DESCRIPTION

W10305259

Cap, Impeller

W10076270

Screw & Washer

Assembly

W10076260

Washer

W10309701

Tub Ring

(Includes Item 30)

5 8054711 Hose Pressure

Switch

W10286241

Impeller

(Washplate)

7 8533953 Screw, 8−16 X 1.00

W10118114

Hub, Basket−Driven

(Includes Item 9)

9 8545953 Hub, Basket−Driver

(Includes Item 8)

W10310957

Basket Assembly

(Includes Items

7, 8, & 9)

W10157673

Tub & Drive Shaft

Assembly

W10280737

Harness, Main

(Includes Item 5)

W10005430

Clamp, Pressure

Hose Retainer

14 8533957 Screw, 10−16 x 1/2

W10137698

Shield,

Drive Motor

(Includes Item 16)

16 8565172 Tube, Buffer

(Set Of 4)

17 8565170 Stator, Motor

(Includes Item 18)

18 8557836 Plate, Stator

(Set Of 2)

19 8534042 Screw,

1/4−20 x .968

W10178988

RPS Assembly

21 8565177 Rotor, Main Drive

Motor (Includes

Item 22)

22 Bolt, Rotor

Assembly

Non−Serviceable

(Supplied W/Rotor)

23 8533928 Screw, 8−18 X 3/4

W10222008

Filter, Dual

Pump Hood

W10119266

Screw, 8−18 x 3/4

W10134571

Clip, Tub Heater

W10121071

Heater, Tub

W10140727

Cover, Tub Heater

29 8533943 Screw, 10−16 x 3/4

W10205824

Absorber, Impact

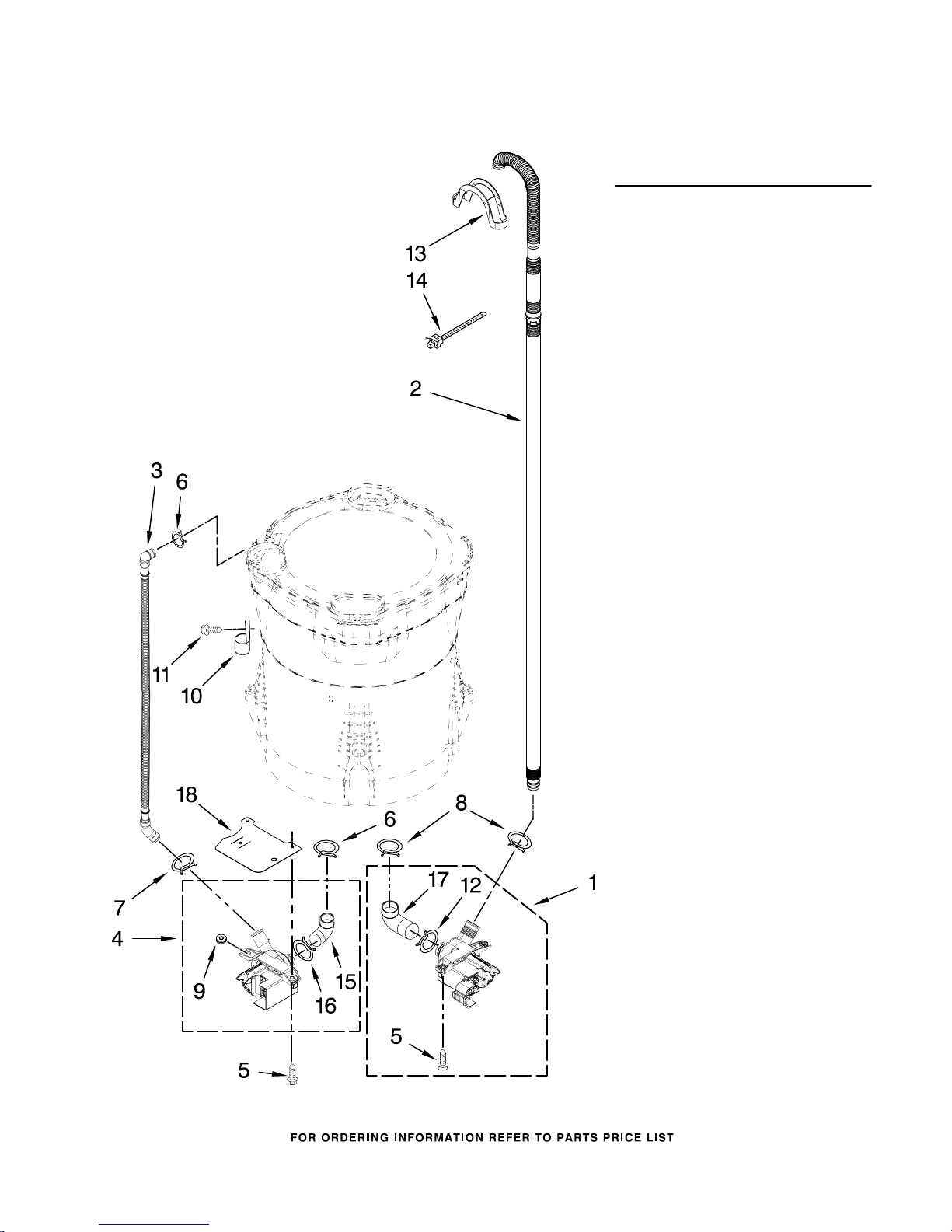

PUMP PARTS

(Cosmetallic)

FOR MODEL: WTW7990XG0

W10314723

Illus. Part

No. No. DESCRIPTION

W10155921

Pump Assembly,

Drain

W10236686

Hose, Drain

3 8543774 Hose, Recirc

W10049400

Pump Assembly,

Recirc

W10004910

Screw,

12−16 x 1−1/8

6 370449 Clamp, Hose

7 8269146 Clamp, Hose

8 8317496 Clamp, Hose

9 8182771 Grommet, Pump

Mounting

10 8534021 Clamp, Recirc

Hose Retainer

11 8533943 Screw, 10−16 x 3/4

12 8182768 Clamp,

Drain Pump Hose

13 8576642 Retainer,

Drain Hose

W10339879

Cable Tie

15 8182769 Hose, Recirc Pump

16 8182770 Clamp,

Recirc Pump Hose

17 8182767 Hose, Drain Pump

18 8578572 Shield,

Recirc Pump

OPTIONAL PARTS (NOT INCLUDED)

(Cosmetallic)

FOR MODEL: WTW7990XG0

W10314723

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

W10318650

Cosmetallic

WATER SYSTEM PARTS

285442 Connector Kit,

Plastic Drain

Hose

285321 Sleeve Kit,

(Contains 2

Sleeves)

285320 Siphon Break Kit

367031 Drain Protector

SEALER

285195 Sealer, Gasket

(.20 Fl. Oz.) (6 ml)

COUPLING

384496 Coupling, Hose

ACCESSORY PARTS

W10135699

Affresh

Odor Remover

8212546RP

Inlet Hoses, 4 Ft.

(Two Black Hoses

W/Straight Ends &

4 Rubber Washers)

8212641RP

Inlet Hoses, 5 Ft.

(Two Black Hoses

W/Straight Ends &

4 Rubber Washers)

8212545RP

Inlet Hoses, 5 Ft.

(One Red Hose

& One Blue Hose

W/Straight Ends &

4 Rubber Washers)

8212487RP

Inlet Hoses, 5 Ft.

(Two Braided Hoses

W/Straight Ends &

4 Rubber Washers)

8212637RP

Inlet Hoses, 6 Ft.

(Two Black Hoses

W/One Straight

End & One

90 Degree End &

4 Rubber Washers)

8212638RP

Inlet Hoses, 6 Ft.

(Two Braided Hoses

W/One Straight

End & One

90 Degree End &

4 Rubber Washers)

285448A Hose Washers

(Package of 4)

285452A Hose Screen

(Package of 2)
