Whirlpool Thin Twin LT5000XV Manual de usuario

Appliances

Use&CareGuide

Model and serial

number plate

Lint screen

Dryer drum

Washer controls

Optional exhaust

outlet

Agitator

_Dryer controls

Washer lid latch

i Tub

Basket

Manual clean

lint filter

(inside agitator)

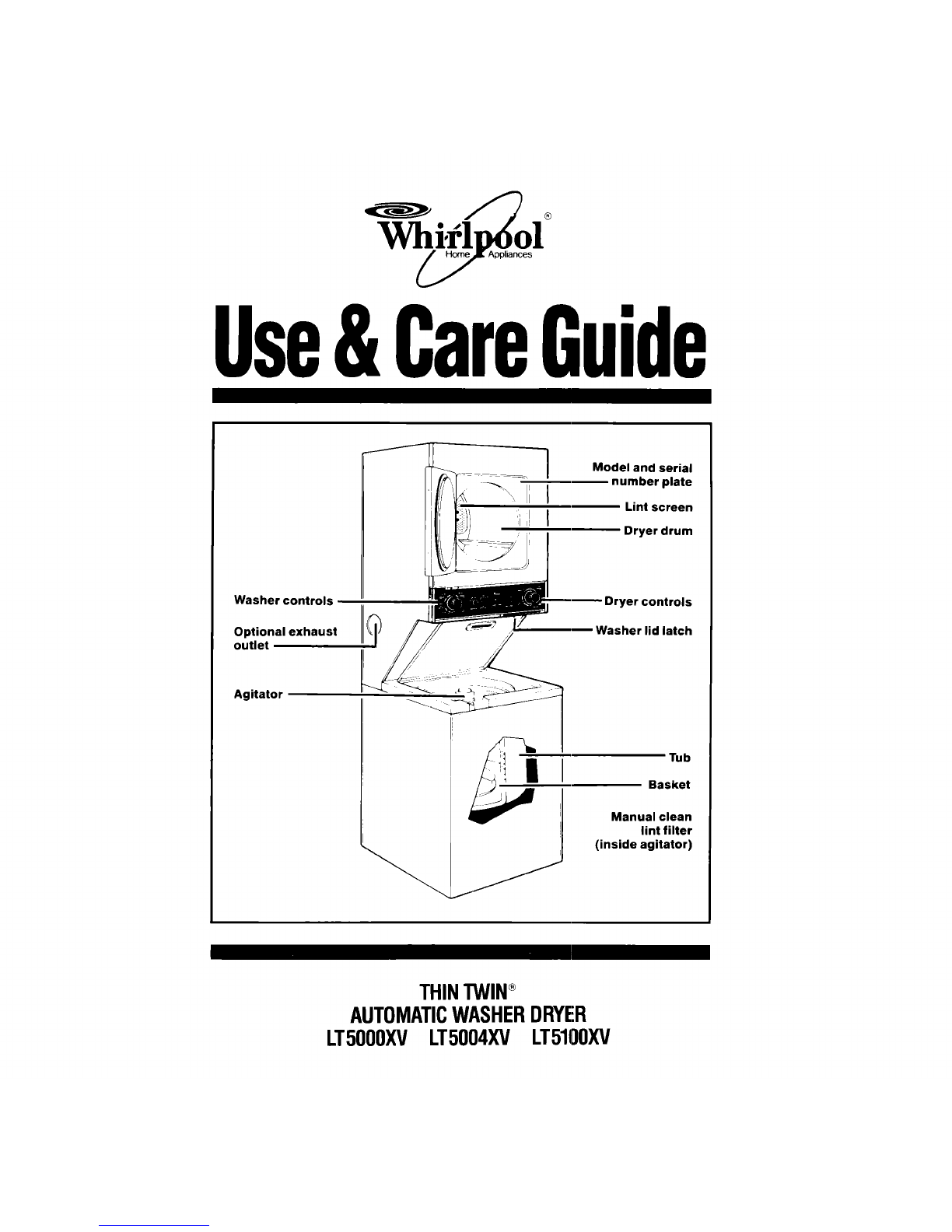

THINTWIN®

AUTOMATICWASHERDRYER

LT5OOOXVLT5OO4XV LT511DOXV

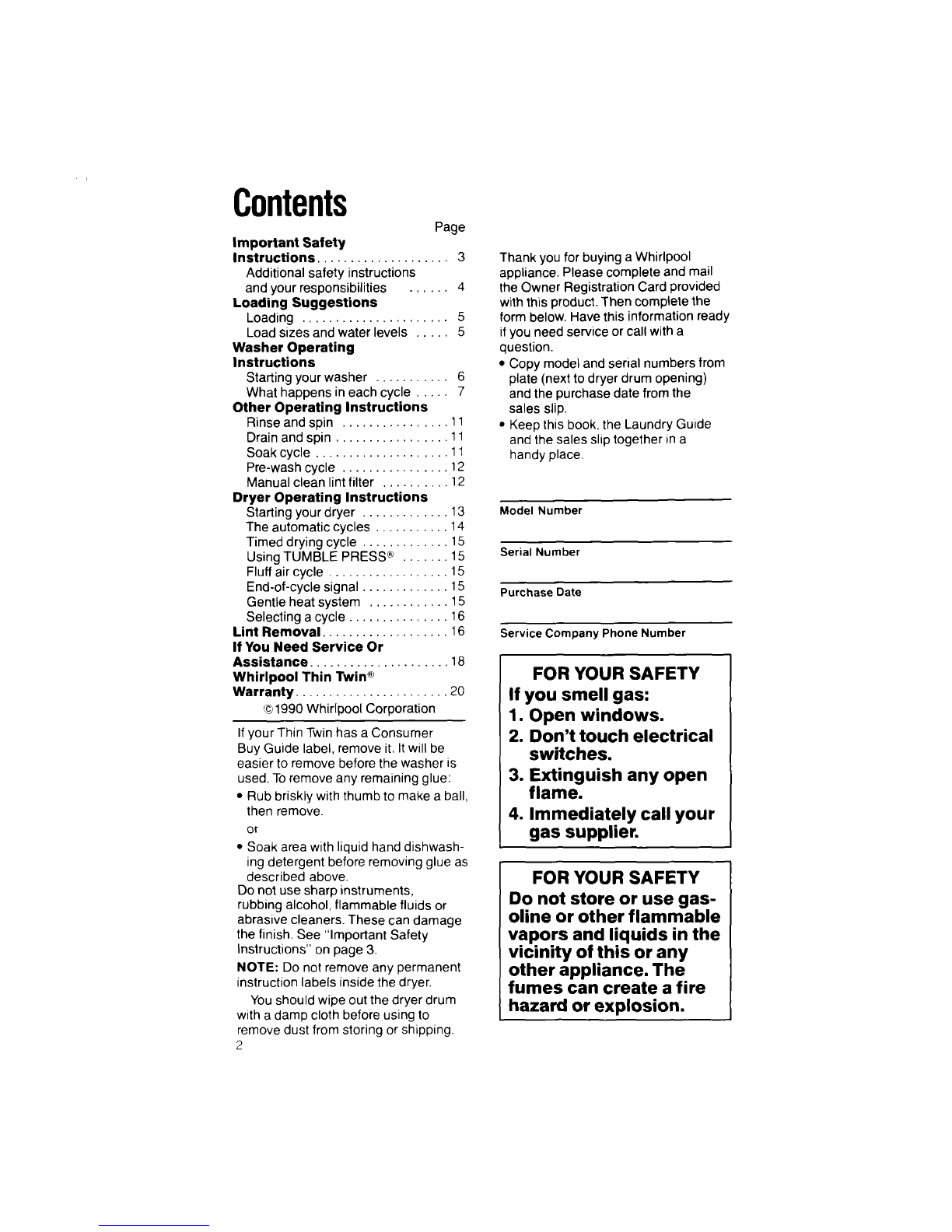

Contents Page

Important Safety

Instructions .................... 3

Additional safety instructions

and your responsibilities ...... 4

Loading Suggestions

Loading ...................... 5

Load sizes and water levels ..... 5

Washer Operating

Instructions

Starting your washer ........... 6

What happens in each cycle ..... 7

Other Operating Instructions

Rinse and spin ................ 11

Drain and spin ................. 11

Soak cycle .................... 11

Pre-wash cycle ................ 12

Manual clean lint filter .......... 12

Dryer Operating Instructions

Starting your dryer ............. 13

The automatic cycles ........... 14

Timed drying cycle ............. 15

Using TUMBLE PRESS ® ....... 15

Fluff air cycle .................. 15

End-of-cycle signal ............. 15

Gentle heat system ............ 15

Selecting a cycle ............... 16

Lint Removal ................... 16

If You Need Service Or

Assistance ..................... 18

Whirlpool Thin Twin ®

Warranty ....................... 20

If your Thin Twin has a Consumer

Buy Guide label, remove it. It will be

easier to remove before the washer is

used. To remove any remaining glue:

•Rub briskly with thumb to make a ball,

then remove.

• Soak area with liquid hand dishwash-

inn detergent before removing glue as

described above.

Do not use sharp instruments,

rubbing alcohol, flammable fluids or

abrasive cleaners. These can damage

the finish. See "Important Safety

Instructions" on page 3.

NOTE: Do not remove any permanent

instruction labels inside the dryer.

You should wipe out the dryer drum

with a damp cloth before using to

remove dust from storing or shipping.

Thank you for buying a Whirlpool

appliance. Please complete and mail

the Owner Registration Card provided

with this product. Then complete the

form below. Have this information ready

if you need service or call with a

question.

• Copy model and serial numbers from

plate (next to dryer drum opening)

and the purchase date from the

sales slip.

•Keep this book, the Laundry Guide

and the sales slip together in a

handy place.

Model Number

Serial Number

Purchase Date

Service Company Phone Number

FOR YOUR SAFETY

If you smell gas:

1. Open windows.

2. Don't touch electrical

switches.

3. Extinguish any open

flame.

4. Immediately call your

gas supplier.

FOR YOUR SAFETY

Do not store or use gas-

oline or other flammable

vapors and liquids in the

vicinity of this or any

other appliance. The

fumes can create a fire

hazard or explosion.

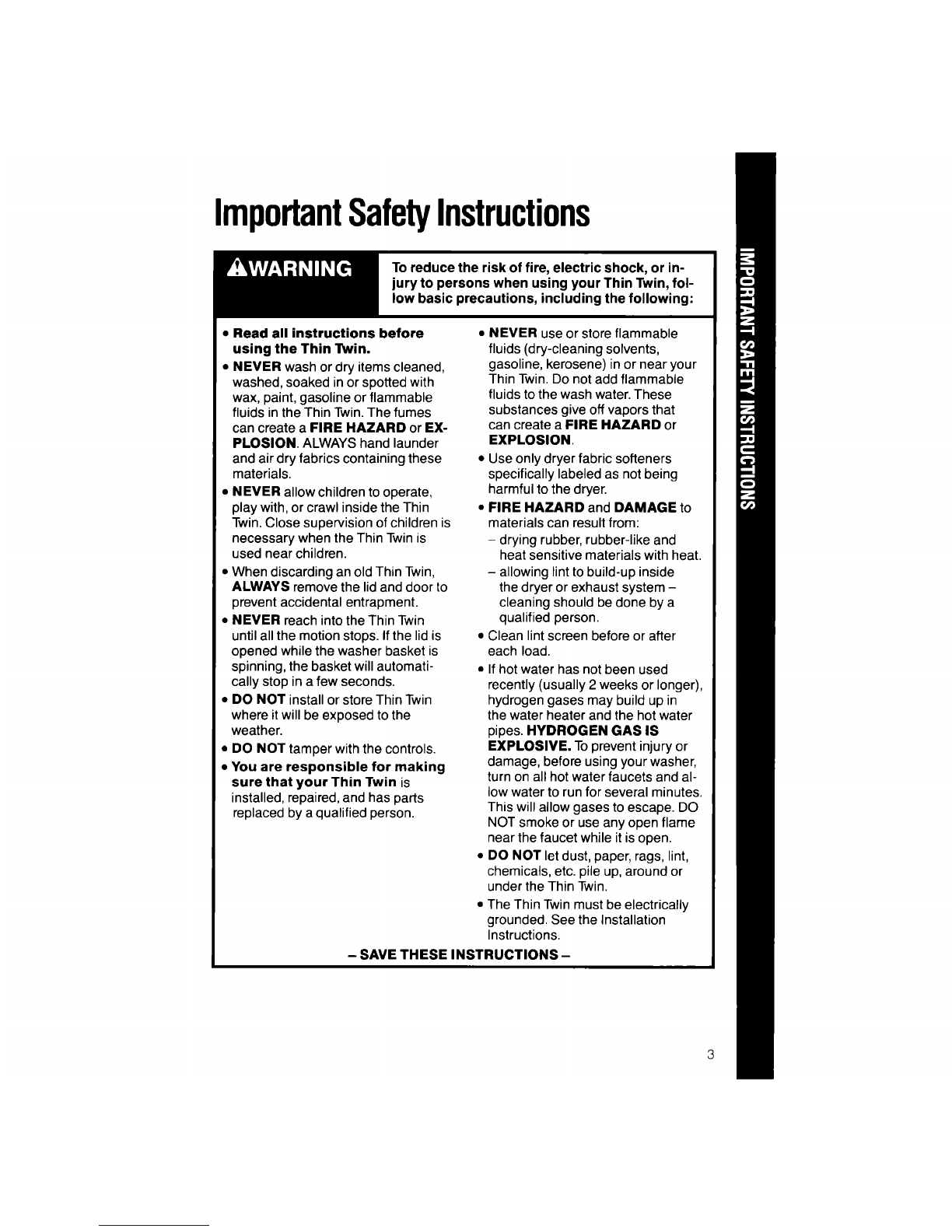

ImportantSafetyInstructions

To reduce the risk of fire, electric shock, or in-

jury to persons when using your Thin Twin, fol-

low basic precautions, including the following:

•Read all instructions before

using the Thin Twin.

•NEVER wash or dry items cleaned,

washed, soaked in or spotted with

wax, paint, gasoline or flammable

fluids in the Thin Twin. The fumes

can create aFIRE HAZARD or EX-

PLOSlON. ALWAYS hand launder

and air dry fabrics containing these

materials.

•NEVER allow children to operate,

play with, or crawl inside the Thin

Twin. Close supervision of children is

necessary when the Thin Twin is

used near children.

•When discarding an old Thin Twin,

ALWAYS remove the lid and door to

prevent accidental entrapment.

•NEVER reach into the Thin Twin

until all the motion stops. If the lid is

opened while the washer basket is

spinning, the basket will automati-

cally stop in a few seconds.

•DO NOT install or store Thin Twin

where it will be exposed to the

weather.

•DO NOT tamper with the controls.

•You are responsible for making

sure that your Thin Twin is

installed, repaired, and has parts

replaced by a qualified person.

• NEVER use or store flammable

fluids (dry-cleaning solvents,

gasoline, kerosene) in or near your

Thin Twin. Do not add flammable

fluids to the wash water. These

substances give off vapors that

can create a FIRE HAZARD or

EXPLOSION.

• Use only dryer fabric softeners

specifically labeled as not being

harmful tothe dryer.

•FIRE HAZARD and DAMAGE to

materials can resultfrom:

-drying rubber, rubber-like and

heat sensitive materials with heat.

-allowing lintto build-up inside

the dryer or exhaust system -

cleaning should be done by a

qualified person.

• Clean lint screen before or after

each load.

• If hot water has not been used

recently (usually 2 weeks or longer),

hydrogen gases may build up in

the water heater and the hot water

pipes. HYDROGEN GAS IS

EXPLOSIVE. Toprevent injury or

damage, before using your washer,

turn on all hot water faucets and al-

low water to run for several minutes.

This willallow gases to escape. DO

NOT smoke or use any open flame

near the faucet while it isopen.

•DO NOT let dust, paper, rags, lint,

chemicals, etc. pile up, around or

under the Thin Twin.

• The Thin Twin must be electrically

grounded. See the Installation

Instructions.

- SAVE THESE INSTRUCTIONS -

ImportantSafetyInstructions

Continued

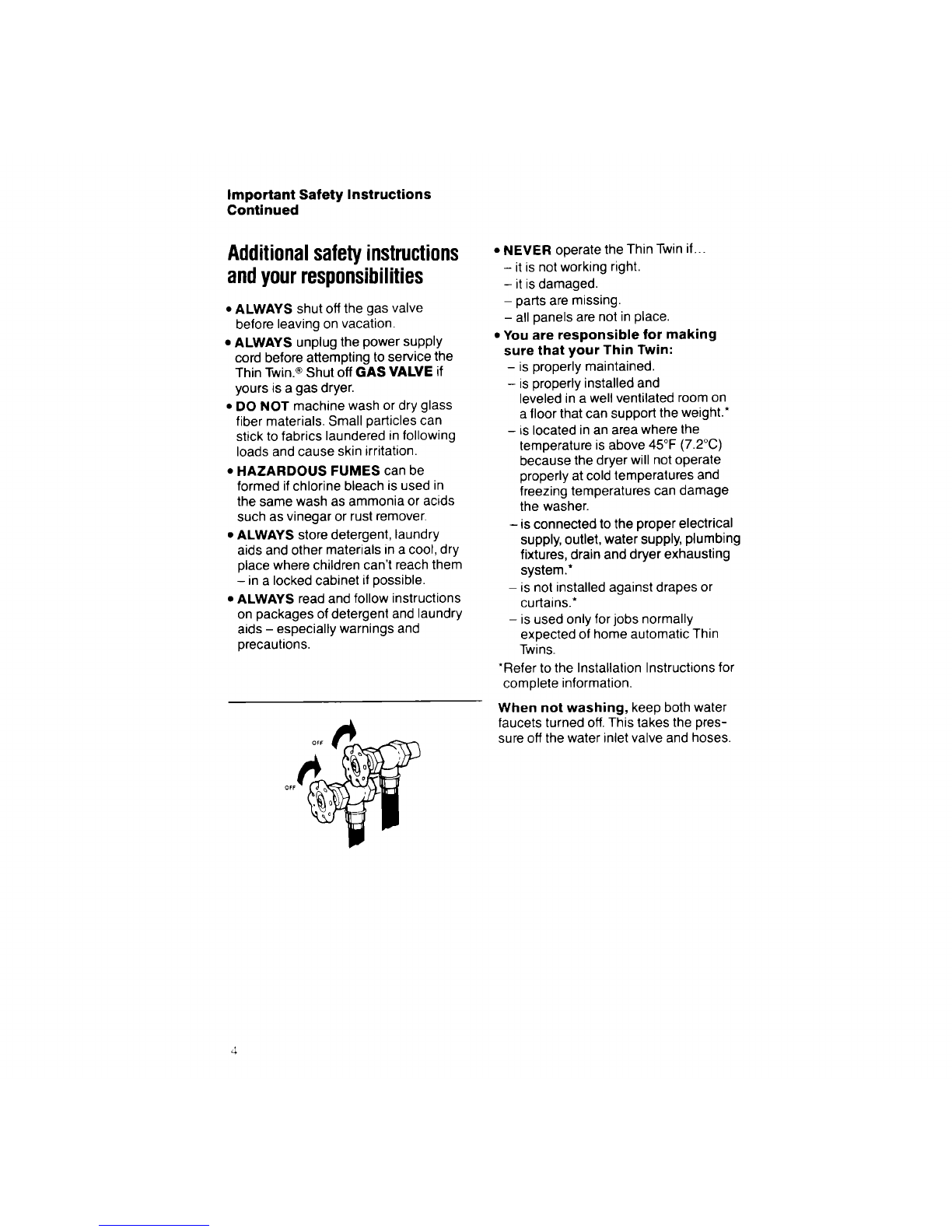

Additionalsafetyinstructions

andyourresponsibilities

•ALWAYS shut off the gas valve

before leaving on vacation.

•ALWAYS unplug the power supply

cord before attempting to service the

Thin Twin.®Shut off GAS VALVE if

yours isa gas dryer.

•DO NOT machine wash or dry glass

fiber materials. Small particles can

stick to fabrics laundered in following

loads and cause skin irritation.

•HAZARDOUS FUMES can be

formed if chlorine bleach isused in

the same wash as ammonia or acids

such as vinegar or rust remover.

•ALWAYS store detergent, laundry

aids and other materials ina cool, dry

place where children can't reach them

- in alocked cabinet if possible.

•ALWAYS read and follow instructions

on packages of detergent and laundry

aids -especially warnings and

precautions.

• NEVER operate the Thin Twin if...

- it is not working right.

- it is damaged.

- parts are missing.

- all panels are not in place.

•You are responsible for making

sure that your Thin Twin:

-is properly maintained.

- is properly installed and

leveled in a well ventilated room on

a floor that can support the weight.*

-is located in an area where the

temperature is above 45°F (7.2°C)

because the dryer will not operate

properly at cold temperatures and

freezing temperatures can damage

the washer.

- is connected to the proper electrical

supply, outlet, water supply, plumbing

fixtures, drain and dryer exhausting

system.*

- is not installed against drapes or

curtains.*

- is used only for jobs normally

expected of home automatic Thin

Twins.

*Refer to the Installation Instructions for

complete information.

When not washing, keep both water

faucets turned off. This takes the pres-

sure off the water inlet valve and hoses.

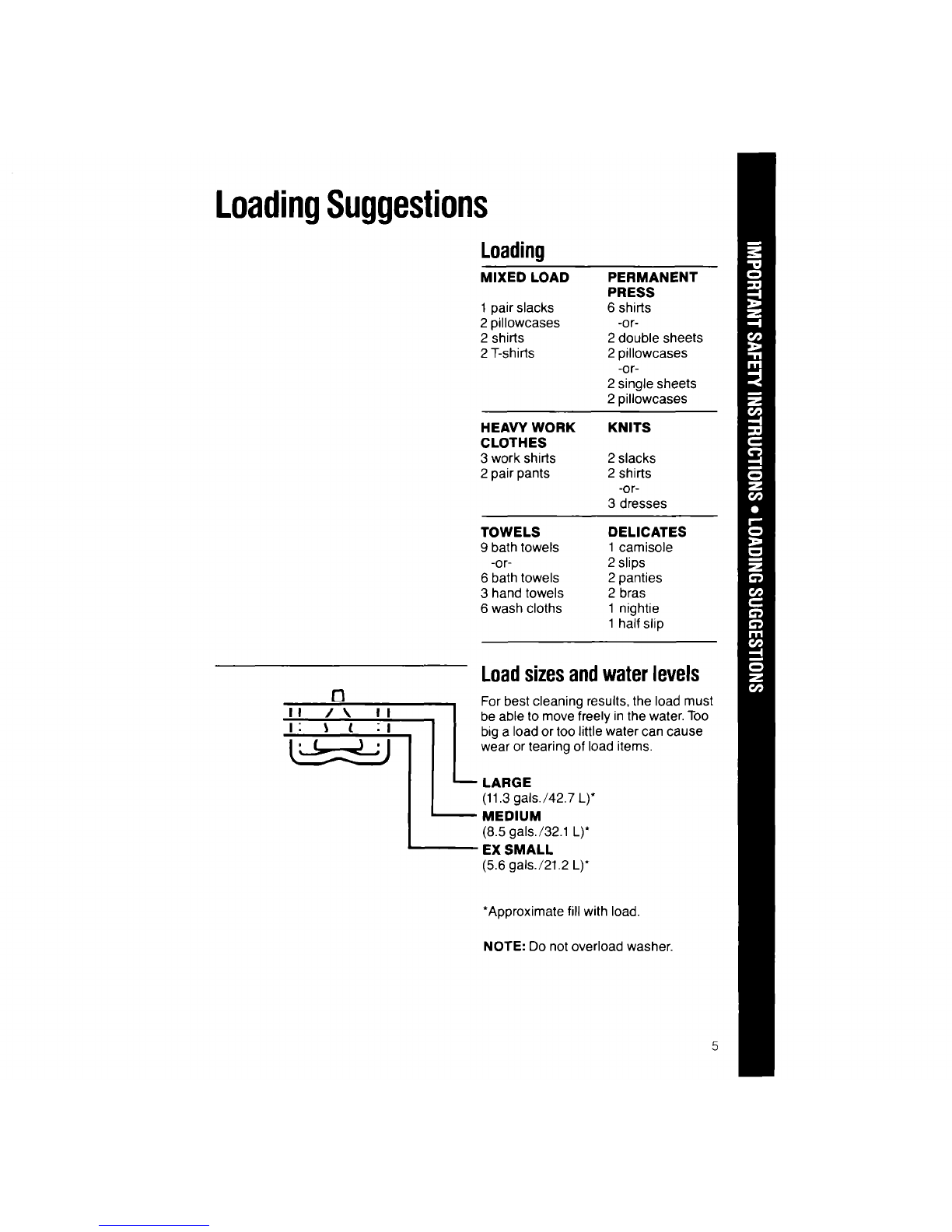

LoadingSuggestions

MIXED LOAD

1pair slacks

2 pillowcases

2 shirts

2 T-shirts

HEAVY WORK

CLOTHES

3 work shirts

2 pair pants

PERMANENT

PRESS

6 shirts

-or-

2double sheets

2 pillowcases

-or-

2single sheets

2 pillowcases

KNITS

2 slacks

2 shirts

-or-

3dresses

TOWELS DELICATES

9 bath towels 1 camisole

-or- 2 slips

6 bath towels 2 panties

3 hand towels 2 bras

6 wash cloths 1 nightie

1 half slip

II /%II

I" _/. 1L

Loadsizesandwaterlevels

For best cleaning results, the load must

be able to move freely in the water. Too

big a load or too little water can cause

wear or tearing of load items.

LARGE

(11.3 gals./42.7 L)*

MEDIUM

(8.5 gals./32.1 L)*

EX SMALL

(5.6 gals.i21.2 L)*

*Approximate fill with load.

NOTE: Do not overload washer.

WasherOperatingInstructions

The drawings in this book may vary slightly from your washer model. They are

designed to show the different features of all the models covered by this book.

NOTE: Your model may not include all the features shown.

Startingyourwasher

Be sure to measure and add detergent, then place a sorted load in the washer before

starting it.

1. Select a load size

• Turn the knob to point at asetting that

describes the size of load you want

to wash.

• Set the knob on EX SMALL (a few

small items), MEDIUM or LARGE

(a full load).

NOTE" For best washing results, items

should move freely in the washer. Do

not overload the washer or choose a

water level that is too low for your wash

load. For best results with permanent

press clothes, use the LARGE water

level. Reduce wash time when using EX

SMALL or SMALL water level settings.

2. Select water temperature

•Match the water temperature to the

type of fabric and soils being washed.

• The top temperature isthe wash

selection and the bottom temperature

is the rinse selection.

NOTE: Use warm wash water with

the PERMANENT PRESS or KNITS

GENTLE Cycles.

For heavily soiled permanent press

or knit clothes, pre-wash or pre-soak

before washing in warm water.

ALWAYS use cold rinse water for

permanent press fabrics.

3. Select cycle and wash time

Start the washer

• Push in the Cycle Control Knob and

turn it clockwise.

• Stop when the indicator on the knob's

outer ring points to the number in the

wash cycle you want. The numbers

are minutes of wash time.

•Start the washer by pulling out the

Cycle Control Knob. The washer will

fill to the selected water level with the

selected wash water temperature.

After filling, the washer will agitate for

the selected number of minutes.

• Tostop the washer at any time,

push in the Cycle Control Knob. To

restart the washer, pull out the

Cycle Control Knob.

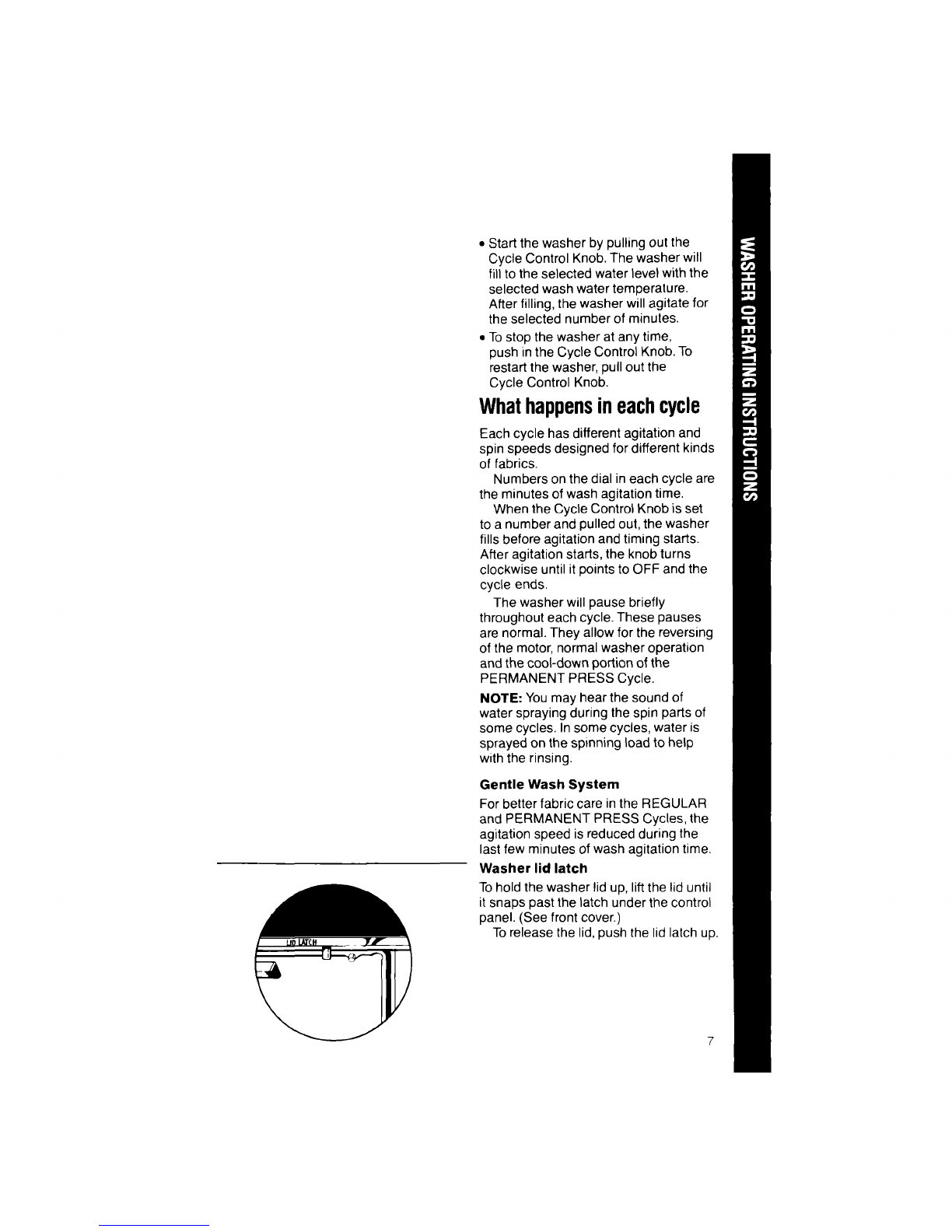

Whathappensineachcycle

Each cycle has different agitation and

spin speeds designed for different kinds

of fabrics.

Numbers on the dial in each cycle are

the minutes of wash agitation time.

When the Cycle Contro_ Knob is set

to a number and pulled out, the washer

fills before agitation and timing starts.

After agitation starts, the knob turns

clockwise until it points to OFF and the

cycle ends.

The washer will pause briefly

throughout each cycle. These pauses

are normal. They allow for the reversing

of the motor, normal washer operation

and the cool-down portion of the

PERMANENT PRESS Cycle.

NOTE: You may hear the sound of

water spraying during the spin parts of

some cycles. In some cycles, water is

sprayed on the spinning load to help

with the rinsing.

Gentle Wash System

For better fabric care in the REGULAR

and PERMANENT PRESS Cycles, the

agitation speed is reduced during the

last few minutes of wash agitation time.

Washer lid latch

Tohold the washer lid up, lift the lid until

it snaps past the latch under the control

panel. (See front cover.)

Torelease the lid, push the lid latch up.

Washer Operating Instructions

Continued

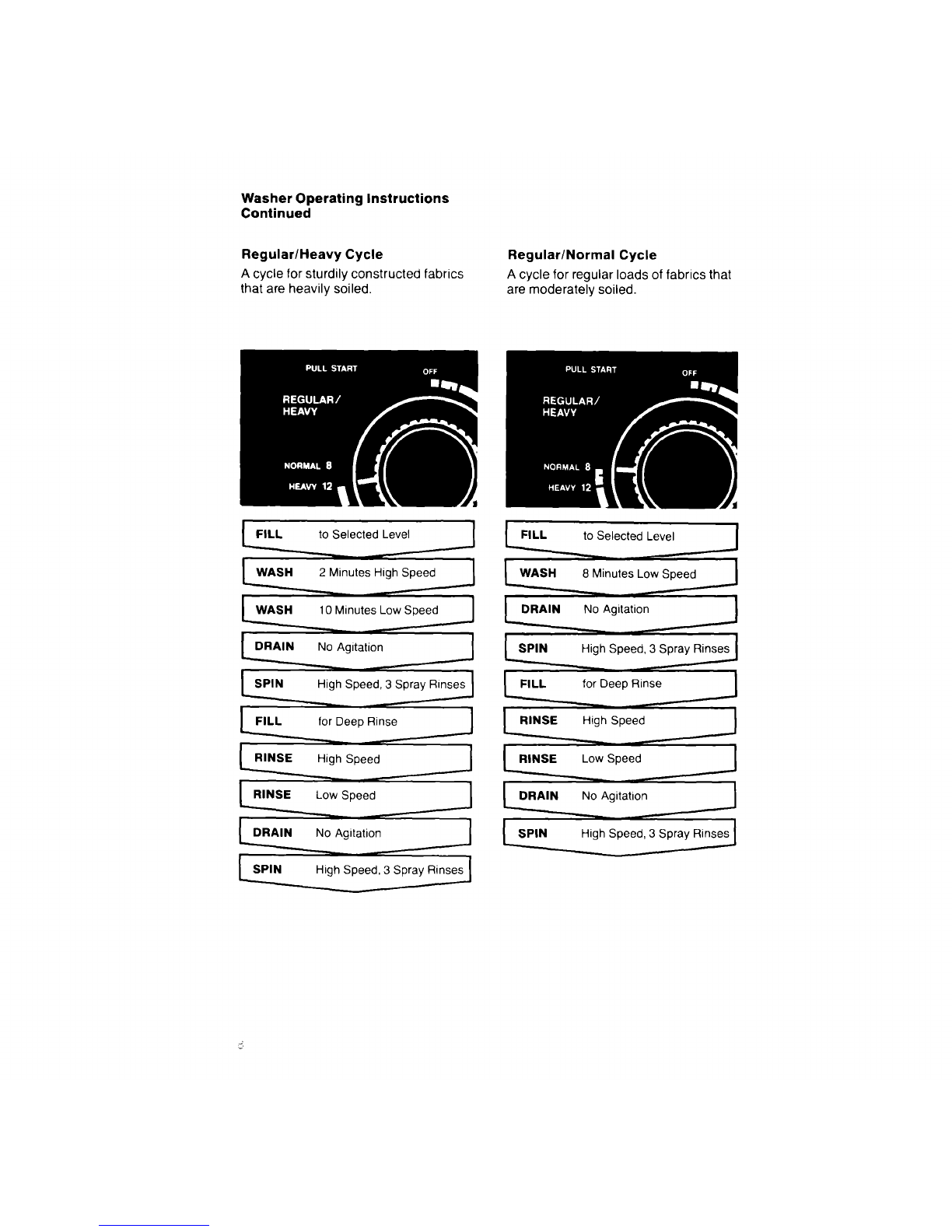

Regular/Heavy Cycle

A cycle for sturdily constructed fabrics

that are heavily soiled. Regular/Normal Cycle

A cycle for regular loads of fabrics that

are moderately soiled.

lected Level j

o.,0eoo]

for Deep Rinse 1

_S_eo0 1

elected Level

nutes Low Speed j

_gilatioo ]

_ Speed, 3 'Spray Rinsesj

_eep'Rinse j

Speed

gitation

_ Speed, 3 Spray Rinses]

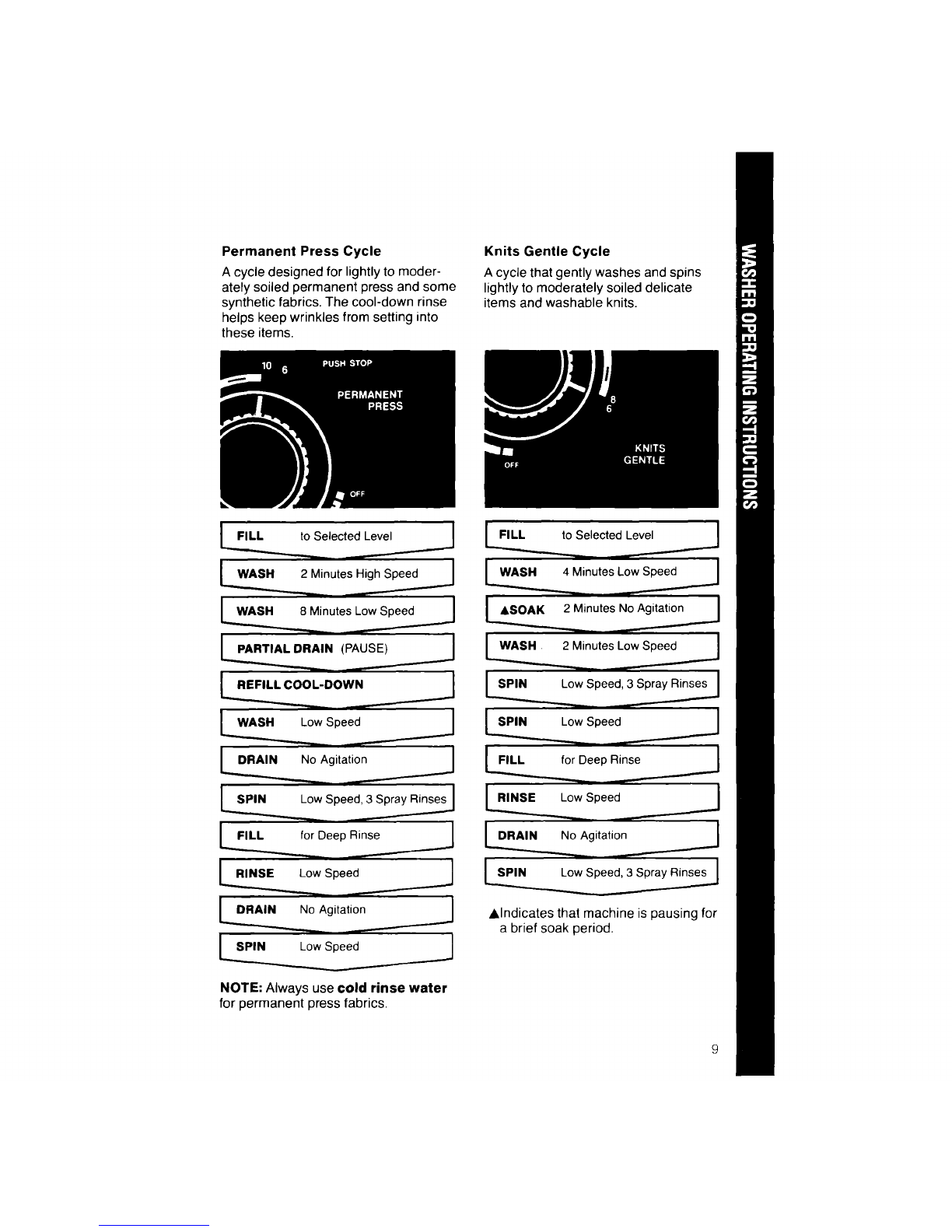

Permanent Press Cycle

A cycle designed for lightly to moder-

ately soiled permanent press and some

synthetic fabrics. The cool-down rinse

helps keep wrinkles from setting into

these items.

Knits Gentle Cycle

Acycle that gently washes and spins

lightly to moderately soiled delicate

items and washable knits.

lect_

WA$_inutes_

_nutes LowSpeed ._ I

_S pee_._,._J

_Spe_

_eep _._.._J

_Speed ._l

1'"'" Lo_S0oe0__1

NOTE: Always use cold rinse water

for permanent press fabrics.

FILL_elected Level

nutesLow Speed

_nutes No_

inutesLow Speed

SPINL._._°w Speed'_

SPINL._N__ow Speed

Deep Rinse

_ Speed _/

_g itatio___._._._..._._..

SPIN Low Speed,3 SprayRinses

Alndicates that machine is pausing for

a brief soak period.

Washer Operating Instructions

Continued

Soak and Pre-Wash Cycles

Brief periods of agitation and soak time

help remove heavy soils and certain

stains that need extra pretreatment.

Use recommended amount of

detergent or pre-soak additive. The

SOAK Cycle should always be followed

by a wash cycle.

Super Wash Cycle

Use for washing heavily soiled loads

that require maximum soil removal.

Double the amount of detergent

recommended when using the

SUPER WASH Cycle.

lected__i__._

_nutes HighSpeed .._

nutes High Speed .._.J

_S pee_,...,._l

[WASHER STOPS Select Wash Cycle )

FILLL_.L _Selected Level__]

wAsL_._.._Min ut es High Spee._

[REFILL to Selected Level ]

After the partial drain, the washer

automatically refills and goes into the

REGULAR/HEAVY Cycle, Be sure to

use enough detergent for the double

wash.

NOTE: The pre-wash setting starts the

washer at the second wash period.

Special care is needed when soaking

or pre-washing laundry, See the Laun-

dry Guide for proper use of this cycle.

Otros manuales para Thin Twin LT5000XV

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Lavadora secadora de Whirlpool

Whirlpool

Whirlpool YLTE5243DQA Instrucciones de instalación

Whirlpool

Whirlpool 27" ELECTRIC WASHER/DRYER Manual de usuario

Whirlpool

Whirlpool WNAR75210 Manual de instalación y operación

Whirlpool

Whirlpool W10222389A Manual de usuario

Whirlpool

Whirlpool LTG5243DT5 Manual de usuario

Whirlpool

Whirlpool WGT3300SQ1 Manual de usuario

Whirlpool

Whirlpool YLTE6234DQ6 Manual de usuario

Whirlpool

Whirlpool WFC682CLW Manual de usuario

Whirlpool

Whirlpool Thin Twin LT7000XV Manual de usuario

Whirlpool

Whirlpool 8577199-D-WH Manual

Whirlpool

Whirlpool YLTE6234DQ0 Manual de usuario

Whirlpool

Whirlpool 3395326 Manual de usuario

Whirlpool

Whirlpool W10150624A Manual de usuario

Whirlpool

Whirlpool WGTLV27FW Manual de usuario

Whirlpool

Whirlpool 27" ELECTRIC WASHER/DRYER Manual de usuario

Whirlpool

Whirlpool FWDG96148SBS ZA Manual de instalación y operación

Whirlpool

Whirlpool 8572777 Manual de usuario

Whirlpool

Whirlpool W10558490A Manual de usuario

Whirlpool

Whirlpool 7MWFC9822HC Manual de usuario

Whirlpool

Whirlpool WFCR 86430 Guía de instalación

Whirlpool

Whirlpool 27" ELECTRIC WASHER/DRYER Manual de usuario

Whirlpool

Whirlpool AWZ 410 Manual de usuario

Whirlpool

Whirlpool W10196553A Manual de usuario

Whirlpool

Whirlpool THIN TWIN LTE5243D Manual de lista de piezas

Manuales populares de Lavadora secadora de otras marcas

Bosch

Bosch XQG100-WDU285H00W Manual de usuario

montpellier

montpellier MWD7512S Manual de usuario

LG FHD0905 T Series Manual de usuario

Midea

Midea MF200D85B Manual de usuario

Maytag

Maytag MGT3800XW Manual de usuario

Siemens

Siemens WD15G440TR Hoja de especificaciones

Equator

Equator Clothes Processor EZ1500 Manual de usuario

Splendide

Splendide WDC7100XCP Manual de usuario

John Lewis

John Lewis JLWD 1408 Manual de usuario

Ariston

Ariston A1200WD Manual de usuario

ATT

ATT Hammer Jet v1 Manual de usuario

AEG

AEG LAVAMAT 63742 VI Manual de usuario

Electrolux

Electrolux EWW8024P5WB Manual de usuario

GE GTD42EASJWH Manual de usuario

LG F2721HVRB Manual de usuario

Indesit

Indesit XWDE 751480 Manual de usuario

AEG

AEG LWR7195M4B Manual de usuario

Beko

Beko WMI 61241 Manual de usuario
