Range Hood Installation / User Manual
Model:INAC700W / INAC900W
抽油煙機使用說明書
Warning .......................................................................... 1
Before using the hood ................................................... 2
Installation ..................................................................... 3
Hood measurement ...................................................... 4
Procedure & Mounting method ....................................... 5
Mounting method ........................................................... 6 - 9
Hood Operation .......................................................... 9
Maintenance & Cleaning ................................................ 10
Others & Specifications ................................................. 11
Wiring diagram ............................................................... 12
警告 ................................................................................ 13
安裝前檢查 .................................................................... 14
安裝守則 ......................................................................... 15
油機尺寸 ......................................................................... 16
安裝注意事項 &吊掛方式 ................................................ 17
吊掛方式 ......................................................................... 18 - 21
功能簡介 ......................................................................... 21
保養與清潔 ..................................................................... 22
注意事項及警告標示 & 性能規格表 ............................... 23
線路圖 ............................................................................ 24
XP022402(1)
For safety purpose, you should read the instructions carefully before using
the appliance for the first time. Save the instruction for future reference.
The appliance is designed for domestic use and may only be installed and
operated in accordance with these instructions for use.
Important:
1
1. Please follow the instruction in this user manual.
2. Unplug the power before doing maintenance job on the hood.
3. Wear rubber gloves when doing maintenance job on the hood.
4. Do not spray the hood with water directly.
5. When using the hood with flammable gas, please keep a good air flow in
the kitchen to avoid hazard.
6. Do not burn directly under the range hood.
7. Do not share duct with other flammable gas pipes.
8. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without
supervision.
9. There is a fire risk if cleaning is not carried out in a accordance with the
instructions.
10. Do not flambe under the range hood.
11. Accessible parts may become hot when using with cooking appliances.
12. The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels.
13. Regulations concerning the discharged of air have to be fulfilled.
14. If the supply cord is damaged, do not operate the appliance, it must be
replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
15. The appliances is not to be used by persons (including children), with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction.
16. Children being supervised not to play with the appliance.
17. Disconnect the power supply before cleaning, repairing, replacing light
bulb or dismantling the range hood.
18. The appliance should be positioned 65 – 75 cm above the cooking range.
19. The range hood must be earthed.
20. There should be adequate ventilation in the room when the range hood is
used along with appliance the burn gas.
21. To prevent fire hazard in case of oil build-up, the turbine impellers and
other easily-soiled parts must be cleaned at least twice a month.
WARNING
• Packing materials (plastic bags, polystyrene, etc.) must be kept out of children’s
reach, as they are potentially dangerous.
•Installation must be carried out by a qualified technician.
• Check the voltage on the rating plate which should corresponds to the voltage
in your home.
• Connect the power and switch on the motors and lighting system to check the
operation.
• Check the following accessories before installation:
a. Exhaust duct adapter ( 6" to 6" x 1 pc, 6" to 5" x 1 pc)
b. Detachable oil cup x 2 pcs, oil dish x 2 pcs
c. Light bulb x 1 pc
d. Warranty card x 1pc, Instruction manual x 1pc
e. Hardware package x 1 set
Hardware set
Bracket
Bracket
3/16”*1” screw
3/16”*1/2” screw
M4*8 screw
6#”*1 1/2”
wooden screw
Metal strip
For side mounting
For side mounting
For wall mounting
For top mounting
8pcs for side mounting or 4pcs
for wall mount (attach the
bracket to the machine back)
For wall mounting (screws for
fixing the machine on the wall)
For fixing exhaust duct adaptor
2
BEFORE USING THE HOOD
Q’ty Picture Purpose
2pcs
2pcs
1pc
4pcs
8pcs
4pcs
2pcs
3
INSTALLATION
1. Location
■ Air turbulence is from window/door may reduce the
effectiveness of hood.
To suggest close window / door before use hood.
■ The smoke has to rise up to 25 cm to be within the
range of suction efficiency.
2. Position
■ The installation height is measured vertically from
center of fan grille of hood to the top of the stove.
The minimum installation height should not be less than
650mm and the recommended height is 700±50 mm.
■ Avoid left-right or front-dropped inclination.
3. Exhaust duct
■ 6-inch diameter exhaust duct is recommended to use
in order to maximize suction efficiency. In case of 5
-inch exhaust duct, an adapter as enclosed in the
packaging can be used.
■ Before installing the hood,please apply fast drying
glue to the collar and securely attach it to the top of
the cooker hood’s vent lid. Install the cooker hood
and exhaust duct to the plastic collar and seal with
fast drying glue.
700±50mm
Exhaust duct
4
INAC700W hood size: W 715 x D323 x H180 mm
INAC900W hood size: W 895 x D323 x H180 mm

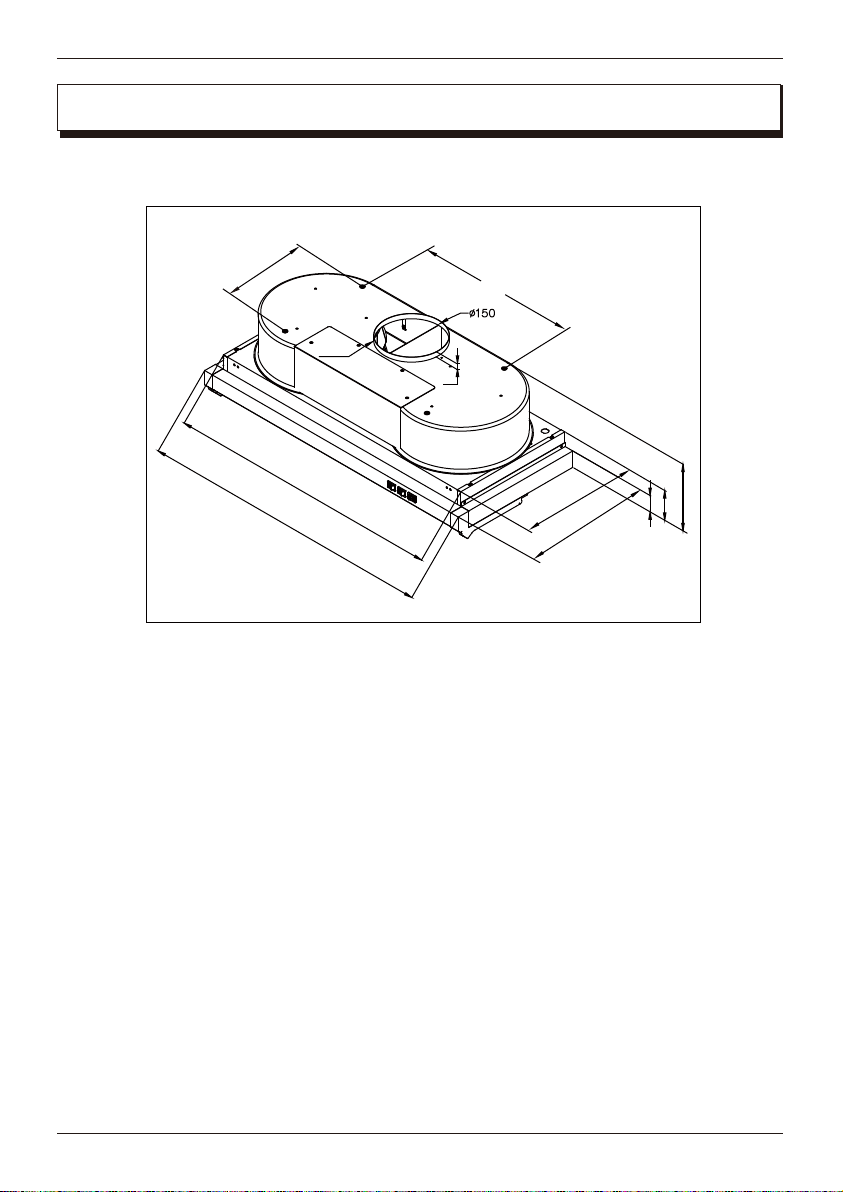

HOOD MEASUREMENT
unit:mm
400
INAC700=669
INAC900=850
INAC700=715
INAC900=895
Ø152
218
293
323
12
40
75.5
180
1. Find a suitable installation position of hood which should be next to a window
and can be cut to let the exhaust duct pass through. Mark the location of
exhaust outlet hole, the cut/drill the hole with care.
2. If the exhaust duct has to pass through the wall,particular attention must be
paid to the structure of the wall as steel reinforcement may be embedded.
3. Adjust the hanging hooks on both sides of the hood and hang the hood on
the steel nails, and then adjust the hood from side to side and from front and
back to a horizontal position.
4. Follow the instruction print on the enclosed exhaust duct adapter and connect
the exhaust duct adapter to the hood and window/wall 5-inch or 6-inch duct
can be used.
5

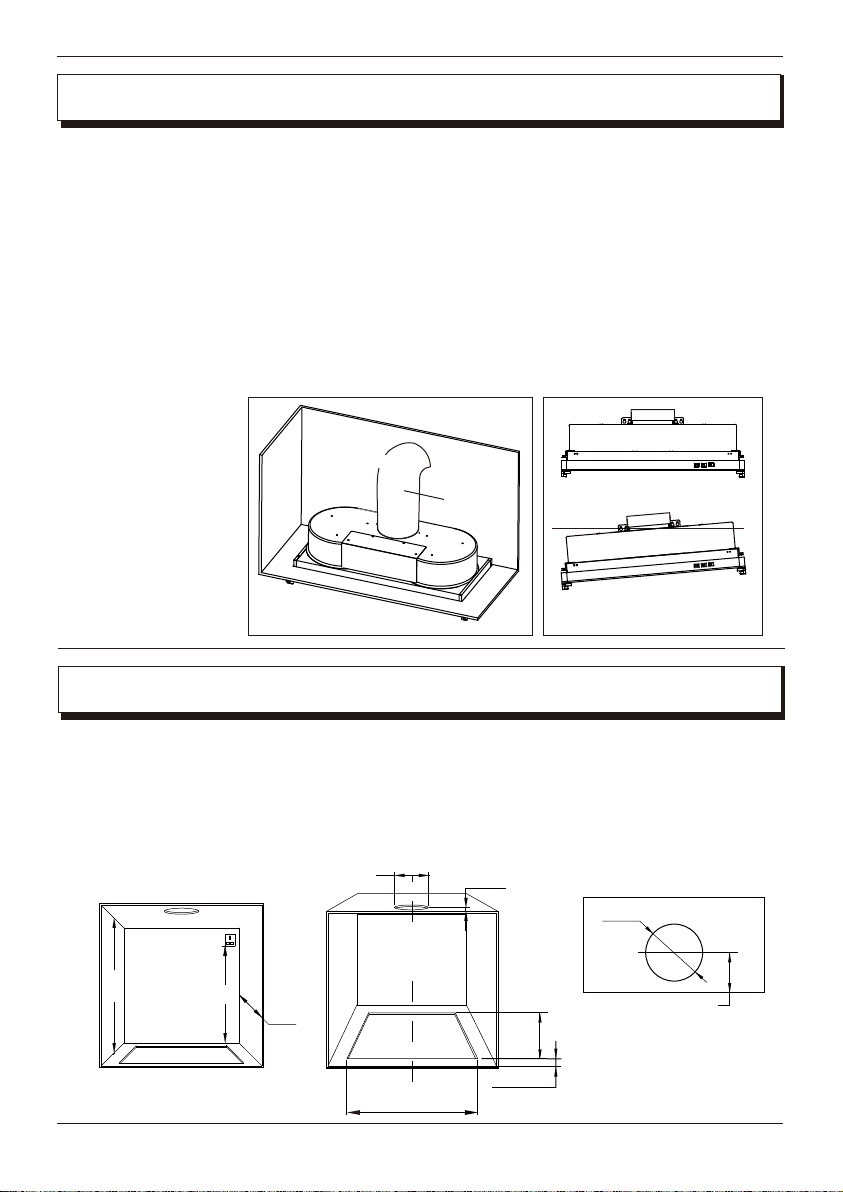

PROCEDURE
Cabinet cut-out size
Built-in hood is designed for installing under a kitchen cabinet. Below cut-out
size is for side mounting.
# lnstallation dimension of the hood to align with the housing of kitchen cabinet
* lnstallation dimension of the hood to align with the door of the kitchen cabinet
MOUNTING METHOD
Level
Tilted
Exhaust duct
Cabinet /plywood
Keeps the hood in level to
avoid the oil leaking from oil cup.
#215/*195
295
unit:mm
#30/*10
INAC700=675
INAC900=860
Ø210
300
Cabinet
back plate
MIN
450
MIN
330
#215/*195
Ø210
Cabinet
back plate
Top view of cabinet

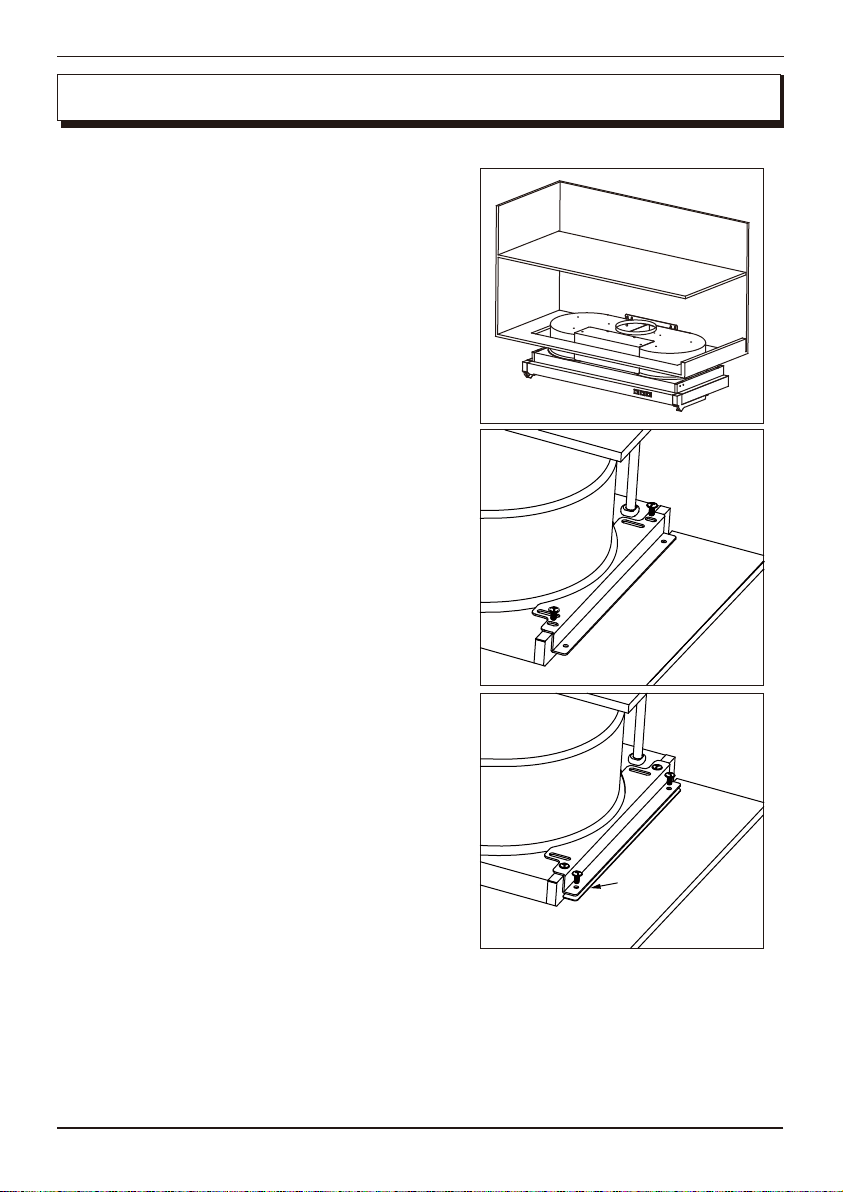

A. Side mounting
MOUNTING METHOD
6
1. Put the hood in cabinet.
2. Secure the two side brackets with
four 3/16”*1/2” screws ( two for each
side) to the hood.
Make sure the wooden board of
cabinet is clip properly between side
brackets and hood.
3. Put the metal strip between side
brackets and wooden board of
cabinet to avoid the wooden board
break after installation.
Tighten four 3/16”*1/2”screws (two
for each side) to secure hood to
cabinet.
Metal
strip

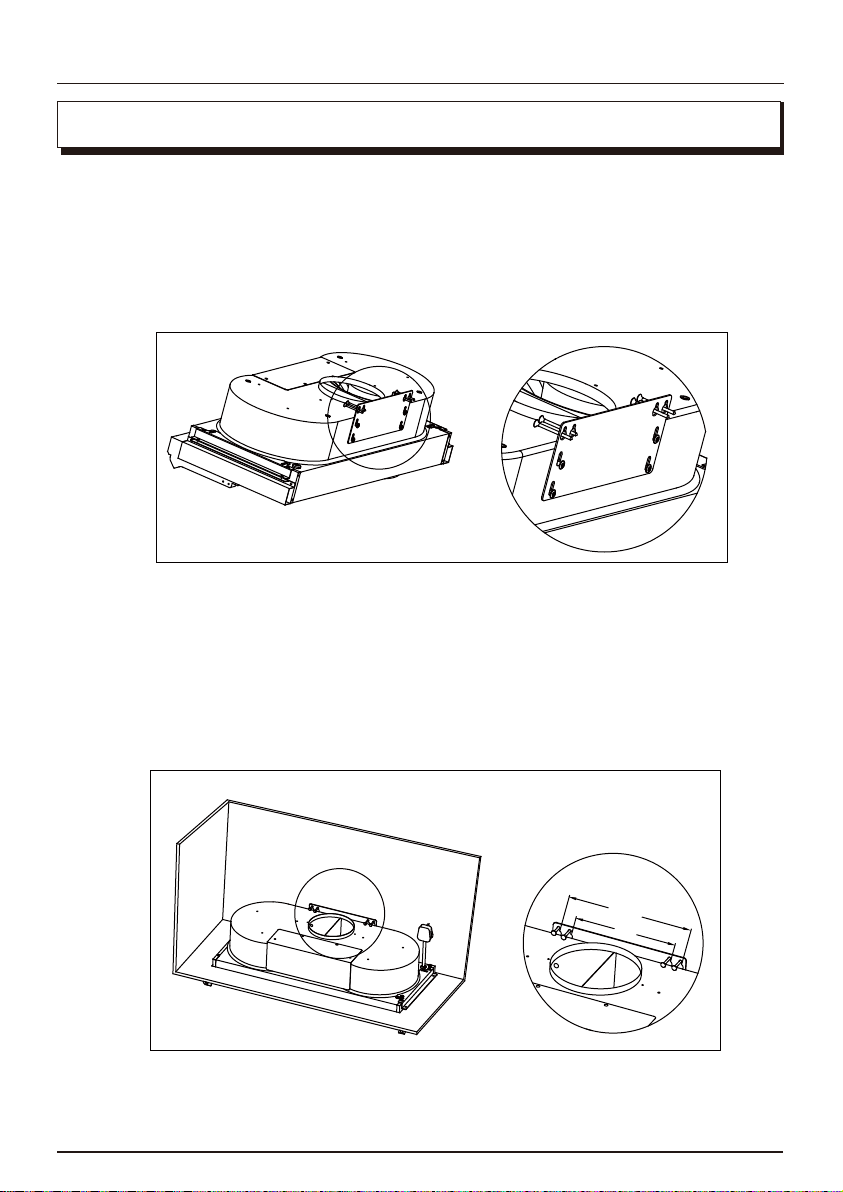

B. Wall mounting
2. Temporarily position the range hood in the desired mounting location.
Measure and mark the mounting holes. Fasten hood onto cabinet with
four 6#*1 1/2” wooden screws.
1. Fix the position of hood and mark the position of the two hanging hooks.
Secure the wall bracket with four 3/16”*1/2” screws. Fasten the hanging
bracket to the wall by four 6#*1 1/2” wooden screws from the fixed holes
to avoid of being hanged up by accident.
7
MOUNTING METHOD
221mm
C
181mm

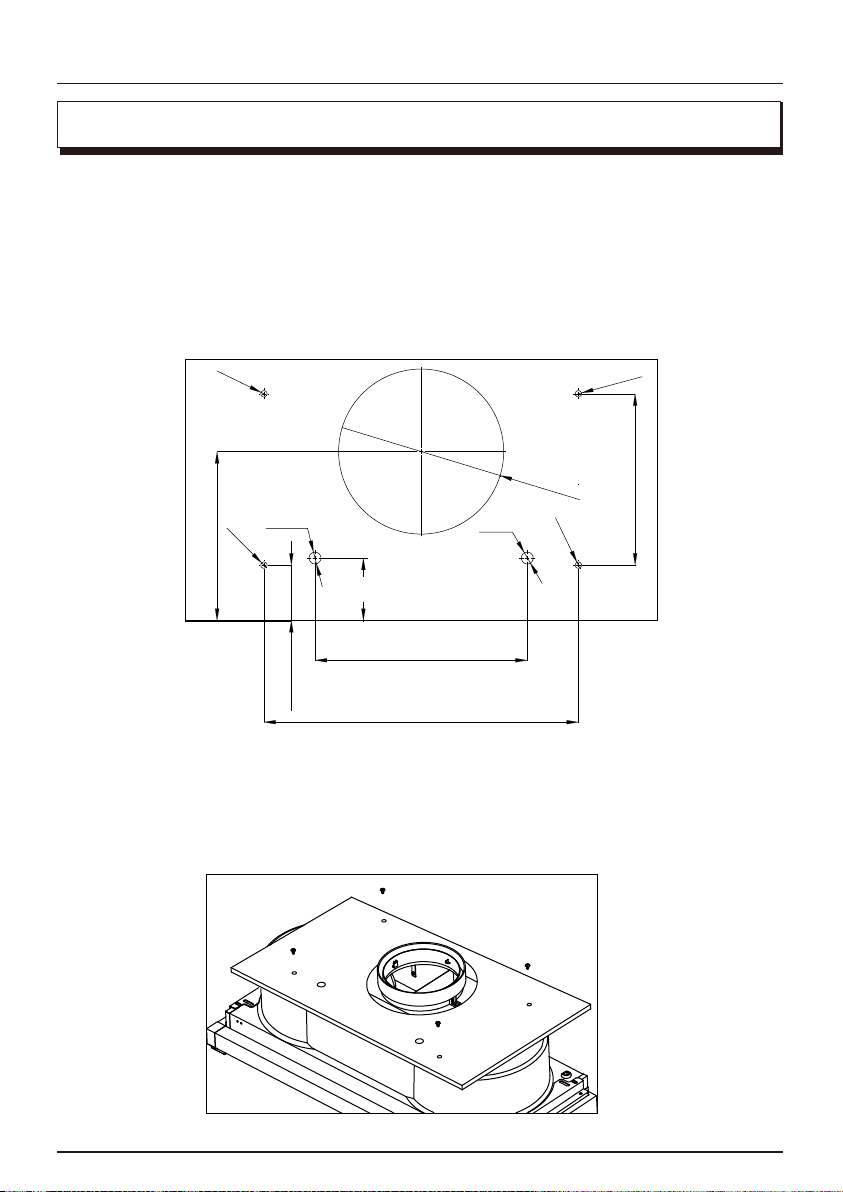

C. Top mounting
8
1. Follow the below diagram to drill/cut out the required openings for ducting and
mounting. Four Ø8 holes are for top mounting. Two Ø15 holes are for removing
the cover of electrical assembly above the hood (this is for maintenance or repair
purpose). One Ø210 is for installing collar.
2. Use four 3/16”*1” screws to secure the hood to the cabinet. Lift hood screws
located on the cabinet and lock into place. Tighten each screw to secure the
hood to the cabinet.
unit:mm
# Installation dimension of the hood to align with the housing of kitchen cabinet
*Installation dimension of the hood to align with the door of the kitchen cabinet
Note: Please refer to below dimension diagram to measure and adjust the
height of cabinet (see next page).
MOUNTING METHOD
#79.5/*59.5
270
400
#70.5/*50.5
#215/*195
218
Ø8
Ø8
Ø8
Ø8
Ø15 Ø15
Ø210
9

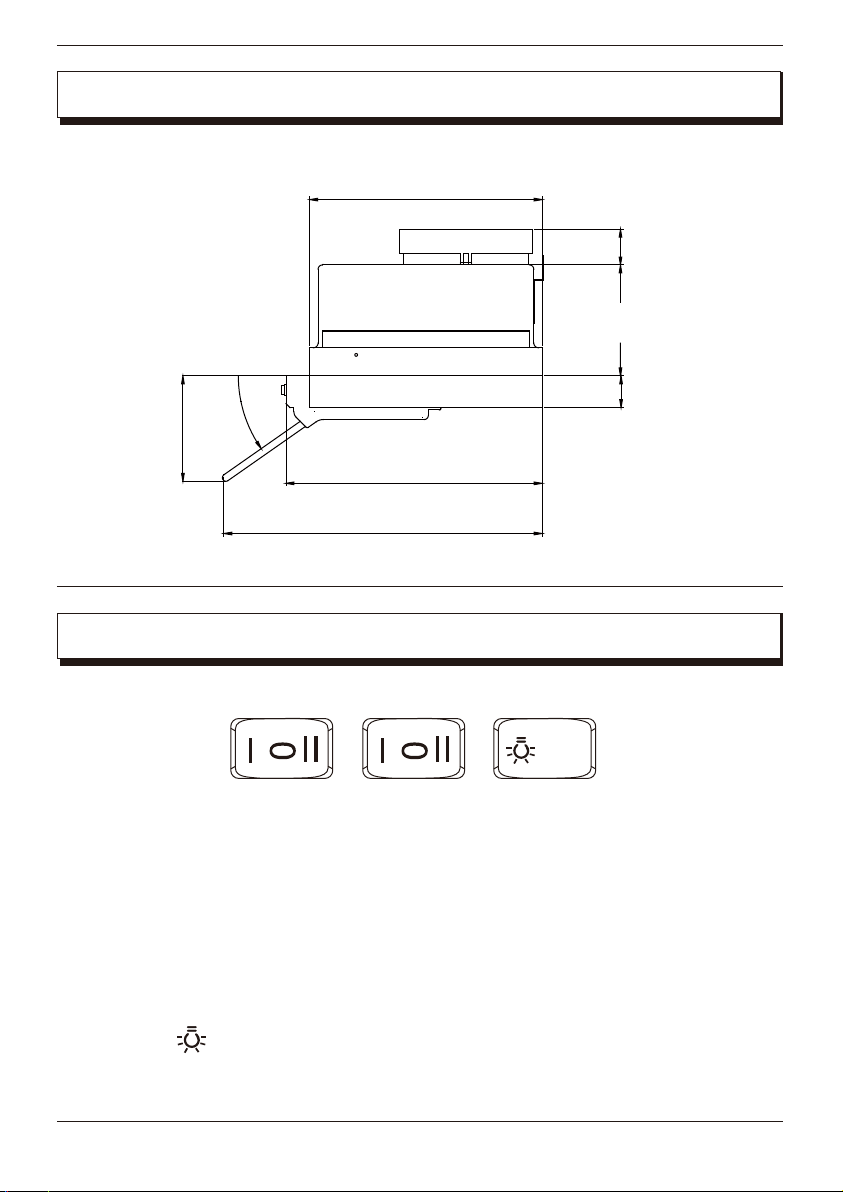

MOUNTING METHOD
HOOD OPERATION
(1) Left fan speed adjust.
I is low speed, II is high speed, O is off.
(2) Right fan speed adjust.
I is low speed, II is high speed, O is off.
(3) Light.
is light on, another side is light off.
(1) (2) (3)
323
41°
396
293
143
44
Actual machine height :140mm
Suggested installation height:145mm
40
unit:mm
