CABINET PARTS
1
REFRIGERATOR
For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
5−09 Litho In U.S.A. (mat) (eeb) Part No. W10217728 Rev. B
REFRIGERATOR
CABINET PARTS
2
For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10217728
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
12827970 Tech Sheet
W10215185
Use & Care Guide
W10213475
Guide, Energy
2 67006317 Tube W/Waterline,
Fill−IM
3 67003405 Block, Pivot
4 B5759649 Gasket, MC Back
5 Cover, Top Hinge
(Right)
67005956 Black
W10191117
Apollo Grey
67005958 White
6 Cover, Fill Tube
67006320 Black
67006321 White
W10191141
Apollo Grey
7 67006427 Cover, Control Box
8 M0108105 Clamp, Tube
9 67006521 Screw, Hinge Cover
10
12963205ED
Hinge, Top Right
11 67006380 Screw, Center
Hinge
13 Cover, Top Hinge
(Left)
67005951 Black
W10191116
Apollo Grey
67005953 White
14 67006303 Screw, Top Hinge
15 Hinge, Center (RT)
67006379 White
13000008ED
Black
W10191143
Apollo Grey
17 Cover, Corner (2)
67003484 White
67003485 Black
12587703AP
Apollo Grey
18
12963204ED
Hinge, Top Left
19 Roller Assy.
(Front)
W10237087
Right
W10237085
Left
20 67006564 Screw (8)
21 Shim, Top Hinge
67006308 Left
67006309 Right
22 Grille, Toe
W10131133
White
W10120000
Apollo Grey
W10131134
Black
24 Hinge, Center (LT)
67006277 White
13000007ED
Black
W10191142
Apollo Grey
25 67006425 Screw, Cover
27 12701908 Cover, Water Valve
28 67006626 Screw, Block
30
12575101WD
Cover, MC Back
31
W10164397
Tube, Drain
32
W10157973
Clip, Drain Tube
33 67003796 Fiber, Acoustic
34
W10141622
Brake, Foot
36 Cabinet (Not a
Servicable Part)
REFRIGERATOR LINER PARTS
3
For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10217728
REFRIGERATOR LINER PARTS
4
For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10217728
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 67006328 Module, Light
3 67006326 Foil, Light
4 67006327 Cover, Light
5 67006316 Grille, Air
6 12466103 Switch, Light (2)
7 67006318 Cover, Light
8 67003901 Housing, Light
9 A0282812 Bulb, Light
10
Y12570701
Socket, Light
11 67006330 Cover, Water Tank
(Upper)
12 67006331 Lid, Water Filter
13 67006329 Cover, Water Tank
(Lower)
14
UKF8001AXX
Filter, Water
15 67006325 Bracket, Filter
Base
16 12002355 Thermister
17 67006324 Bracket, Water
Tank & Valve
18 12956202 Water Tank &
Head Assembly
19 12664501 Plug, Bypass
20 67006322 Valve, Water Inlet
21 67007113 Cover, Ice Box
Harness
22 M0238642 Screw
24 67006970 Waterline, Cabinet
(W/Nut)
25
W10118193
Enclosure, Water
Valve Connector
26
W10118194
Lid, Enclosure

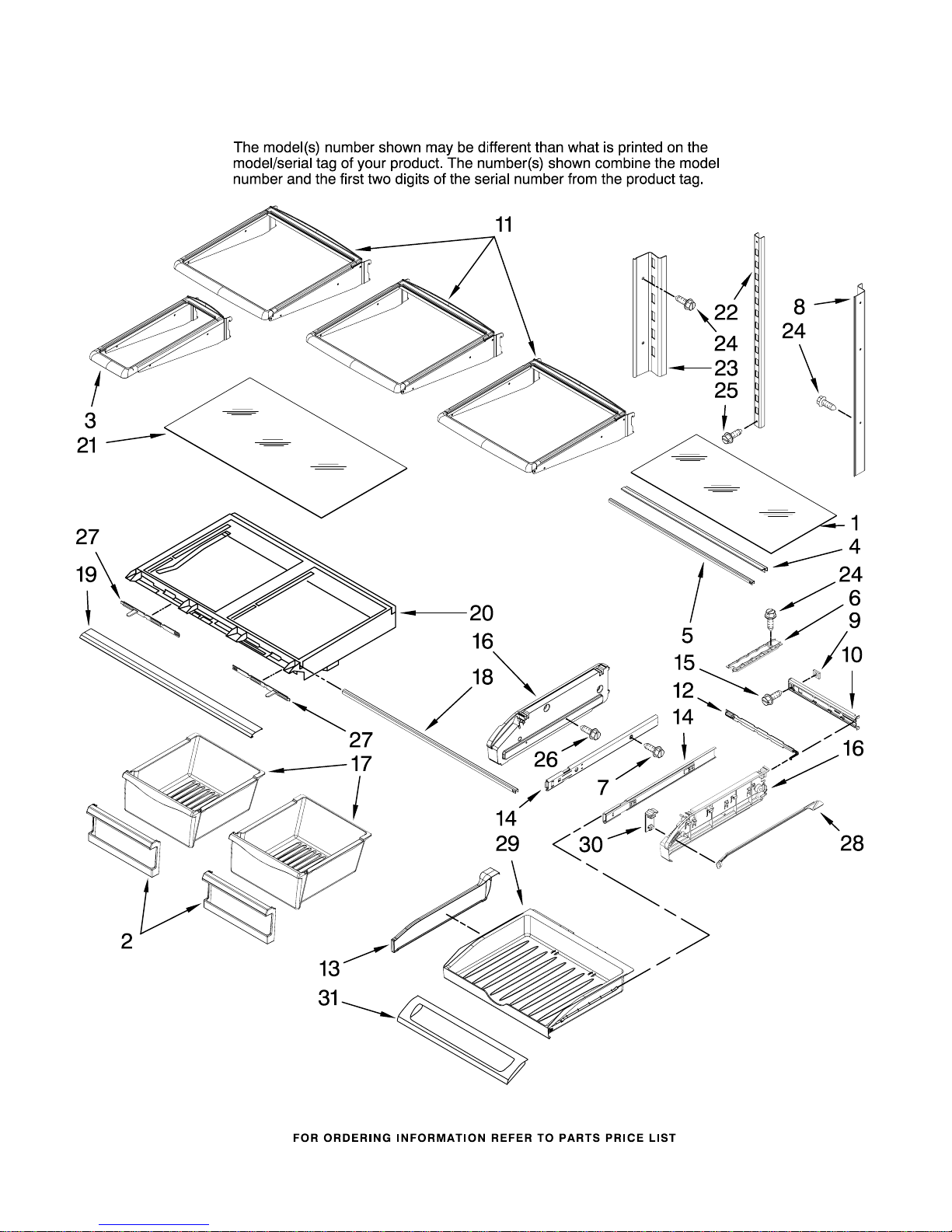

SHELF PARTS
5
For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10217728
SHELF PARTS
6
For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10217728
Illus. Part
No. No. DESCRIPTION
1 67002332 Glass, Pantry
2 67005923 Front, Crisper
Pan (2)
3
W10187463
Shelf, Mini
(Stationary)
4 67006010 Extr, Glass
Support (2)
5 67002330 Brace, Pantry (2)
6 67001719 Track, Pantry
7 67006287 Screw
8 67007115 Ladder, Side
9 67002329 Gasket, Pantry
10 67005625 Housing, Control
11 12463912 Shelf, Glide (3)
12 67003793 Slide, Temperature
13 67002321 Divider,
Pantry Drawer
14 67007026 Glide, Drawer (2)
15 67006400 Screw
16 Endcap, Pantry
67005862 Left
67005857 Right
17 67002659 Pan, Crisper (2)
18 67002488 Brace, Crisper
Cover
19 12530651 Trim, Crisper
20 67006185 Frame, Crisper
21 67006655 Glass, Crisper
Cover
22 67006358 Ladder, Center
23 67006354 Ladder, Side
24 67006400 Screw
25 67006360 Screw (2)
26 67006415 Screw
27 67005864 Slide, Humidity
Control
28 67003794 Rod, Temperature
Control
29 67003530 Drawer, Pantry
30 67003791 Knob, Temperature
Control
31 67005903 Door,
Pantry Drawer
MOTOR AND ICE CONTAINER PARTS
7
For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10217728
MOTOR AND ICE CONTAINER PARTS
8
For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10217728
Illus. Part
No. No. DESCRIPTION
1 13012608 Ice Bin Assembly
(Includes Auger)
2
W10121282
Inlet, Blower
3
W10121281
Scroll, Blower
4
W10162697
Motor, Fan
5
W10123444
Wheel, Blower
6
W10165970
Clip, Fan Motor
7
W10151687
Grommet, Fan Motor
8
W10187440
Divider, Ice Box
9 67006341 Gasket, Damper
10 67006342 Motor, Auger
11
W10127427
Damper, Control
12 67006344 Solenoid
13
W10118612
Liner, Divider
14 67006425 Screw (3)
15 67007111 Bracket, Solenoid
16 67006346 Washer
17 63052−1 Yoke, Ice
Dispenser
18 67006347 Yoke, Solenoid
19 67006348 Spring, Solenoid
20
W10142628
Foil, Ice Box
ICEMAKER PARTS
9
For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10217728
ICEMAKER PARTS
10
For Models: GI0FSAXVQ00, GI0FSAXVB00, GI0FSAXVY00, GI0FSAXVA00
(White) (Black) (Monochromatic (Monochromatic
Stainless) Satina)
W10217728
Illus. Part
No. No. DESCRIPTION
1
W10122527
Mold & Heater
Assembly (Also
Order 542638
Grease)
2
W10175514
Arm, Shutoff
3 628515 Cup, Fill
4 627843 Ejector
5 2182124 Ice Stripper
6 2194712 Support, Housing
7 2315522 Retainer,
Thermostat
8 627985 Thermostat
(Also Order 542369
Cement)
9 489464 Screw (3)
10
W10121440
Extension, Shutoff
Arm
11 8533917 Screw (2)
12
W10121444
Cover
13 2313326 Switch, On−Off
14
W10121269
Impinger Assy.
15
W10123395
Harness, Icemaker
16 67006425 Screw, Impinger
17 626678 Module Assembly
18 489276 Screw (3)
19 628379 Clip
20
W10121434
Insert, Fill Cup
100
D7824706Q
Icemaker Assembly
