Whirlpool GB2FHDXWQ00 Manual de usuario

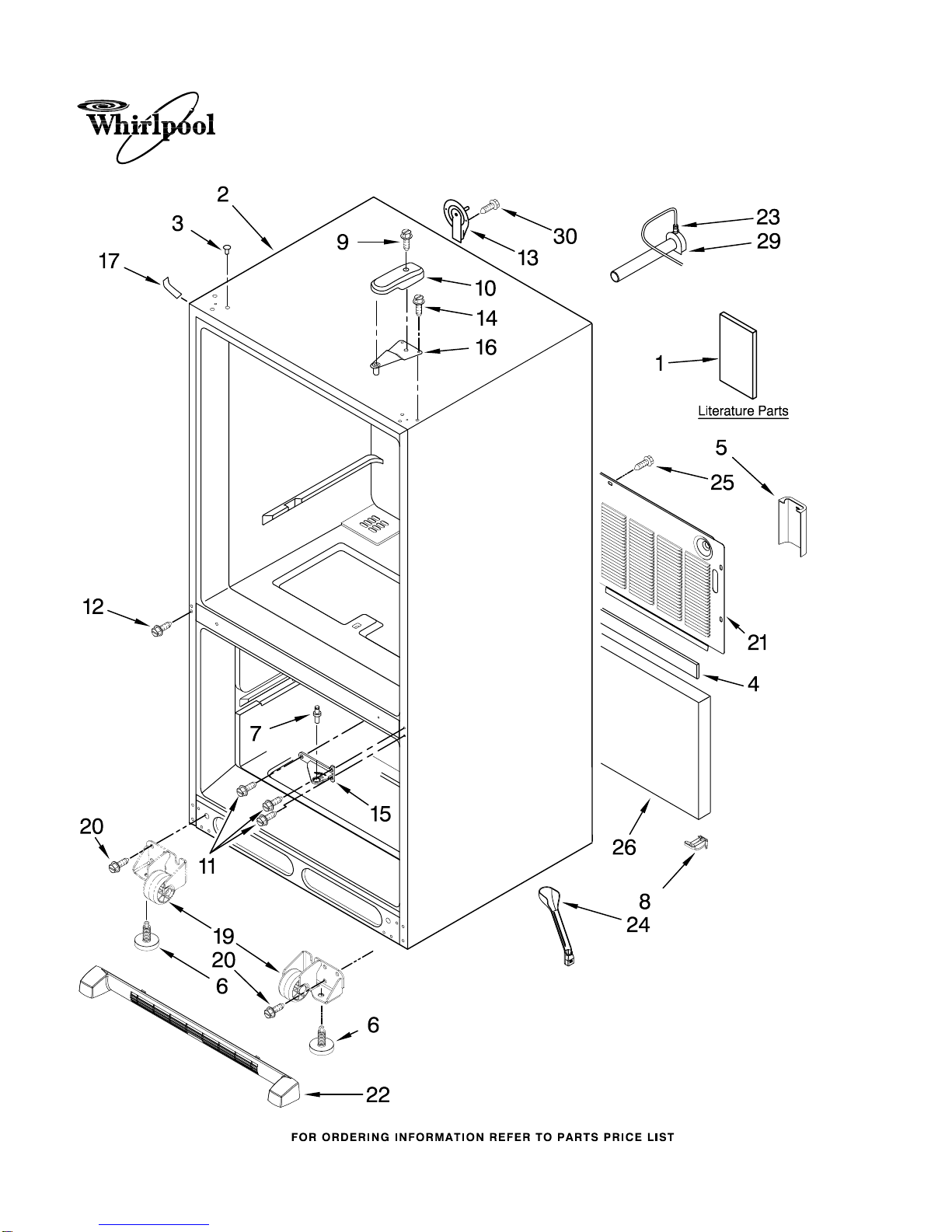

CABINET PARTS
1
For Models: GB2FHDXWQ00, GB2FHDXWB00, GB2FHDXWD00, GB2FHDXWS00
(White) (Black) (Universal Silver) (Stainless Steel)
8−09 Litho In U.S.A. (mat) (eeb) Part No. W10292178 Rev. A
REFRIGERATOR
CABINET PARTS
2
For Models: GB2FHDXWQ00, GB2FHDXWB00, GB2FHDXWD00, GB2FHDXWS00
(White) (Black) (Universal Silver) (Stainless Steel)
W10292178
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10208431
Use & Care Guide
W10258249
Energy Guide
W10259132
Tech Sheet
2 Cabinet (Not a
Servicable Part)
3 Plug, Button (3)
M0310729 White
M0310731 Black
4 B5759655 Gasket
5
W10208592
Guard, Water Valve
6
W10141622
Foot, Brake
7 10351006 Pin, Center Hinge
8
W10216614
Sweep, Water Valve
9 12992602 Screw
10 Cover, Hinge
12477601W
White
12477601B
Black
11 12990101 Screw
12 12990521 Screw
13 12726003 Cover, Water Line
14 12992403 Screw (3)
15 Hinge, Center
12607103WD
White
12607104ED
Black
16
12566604ED
Hinge, Top
17 Cover, Corner
12587703W
White
12587703B
Black
19 Roller Assembly
W10212382
Left
W10212381
Right
20 12991302 Screw (4)
21
W10210979
Cover, Unit
22 Grille, Toe
W10236195
White
W10236196
Black
23
M0114003SP
Clip, Speed
24
W10210988
Tube, Drain
25 12990511 Screw
26 12820505 Fiber, Acoustic
29
10463203SP
Elbow, Fill Tube
30 12990504 Screw

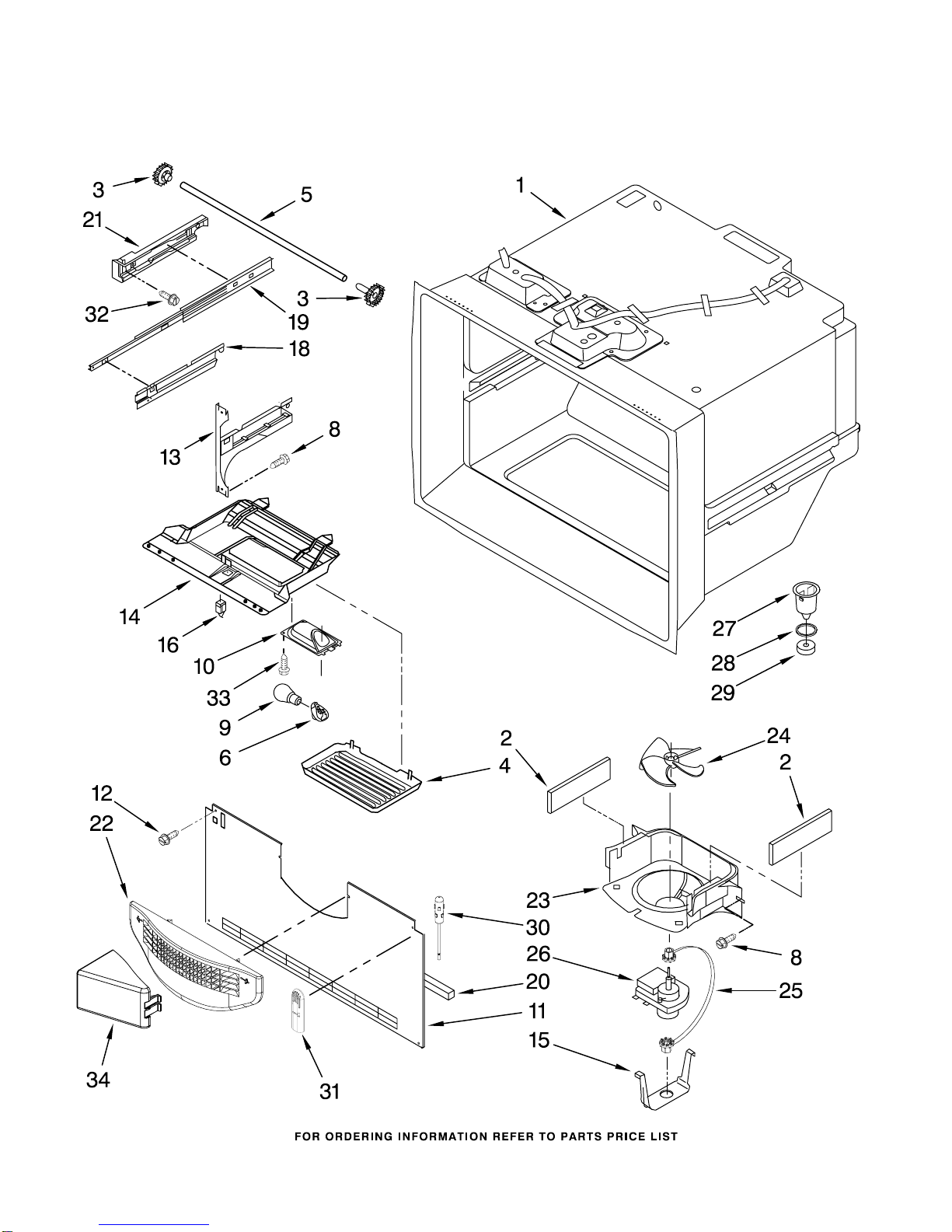

FREEZER LINER PARTS
3
For Models: GB2FHDXWQ00, GB2FHDXWB00, GB2FHDXWD00, GB2FHDXWS00
(White) (Black) (Universal Silver) (Stainless Steel)
W10292178
FREEZER LINER PARTS
4
For Models: GB2FHDXWQ00, GB2FHDXWB00, GB2FHDXWD00, GB2FHDXWS00
(White) (Black) (Universal Silver) (Stainless Steel)
W10292178
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 A3189397 Gasket, Foam (2)
3 12002497 Gear (2)
(Includes RH & LH)
4 12804901 Cover, Light
5
12812902WD
Shaft
6
12570701V
Socket, Light
8 12990521 Screw (8)
9
W10194422V
Bulb, Light
10
12476401V
Housing, Frz. Light
11 12226111 Cover, Evaporator
12 12990101 Screw (7)
13 Bracket, Door
W10122147
Left
W10122148
Right
14 12805001 Housing, Lighting
15 13058002 Clip, Evap. Motor
16 12466105 Switch, Light
18 Bracket, Basket
W10280608
Left
W10280613
Right
19
W10120018
Slide, Drawer (2)
20 A3189395 Gasket, Bottom
21 Adapter, Slide
W10149390
Left
W10149391
Right
22 13024803 Cover, Fan Shroud
23 13057901 Shroud, Evap.Fan
24 2169142 Fan, Evaporator
25
W10150583
Grommet (2)
26 13062901 Motor, Evaporator
27 D7753903 Funnel, Drain
(Incl. # 28 & 29)
28 M0500703 Seal
29 B8381501 Gasket
30 12002355 Thermistor
31 12815301 Cover, Thermistor
32 12990501 Screw (6)
33
12991603V
Screw
34
W10157765
Diverter, Air
Following Parts Not Illustrated
13014801 Harness, Lights
(Freezer)

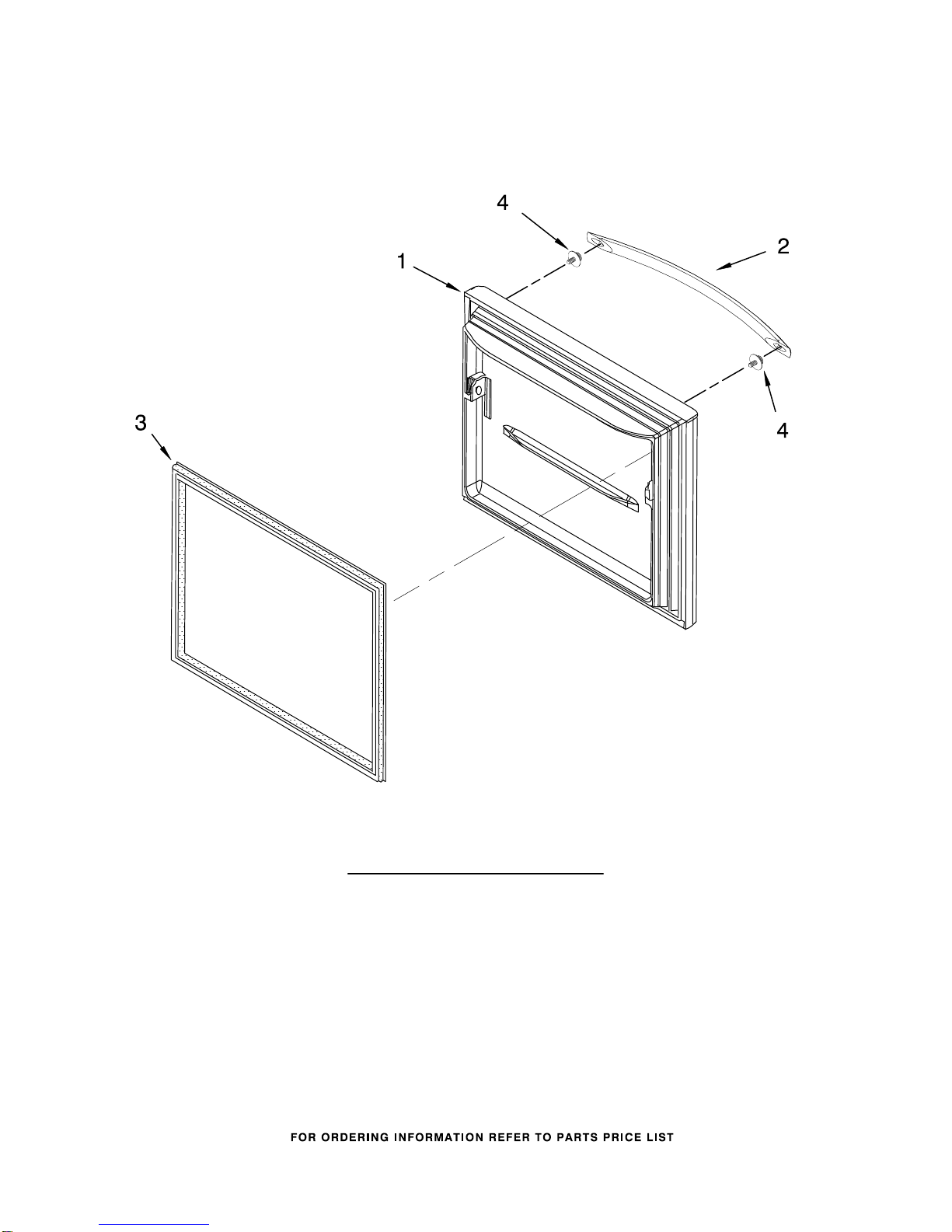

FREEZER DOOR PARTS
5
For Models: GB2FHDXWQ00, GB2FHDXWB00, GB2FHDXWD00, GB2FHDXWS00
(White) (Black) (Universal Silver) (Stainless Steel)
W10292178
Illus. Part
No. No. DESCRIPTION
1 Door, Freezer
13092230WQ
White
13092230BQ
Black
13092249DQ
Universal Silver
13092237SQ
Stainless Steel
2 Handle, Door
W10222984
White
W10222985
Black
W10223019
Stainless Steel
3 Gasket, Door
W10164036
White
W10164037
Black
4 12992902 Screw, Handle

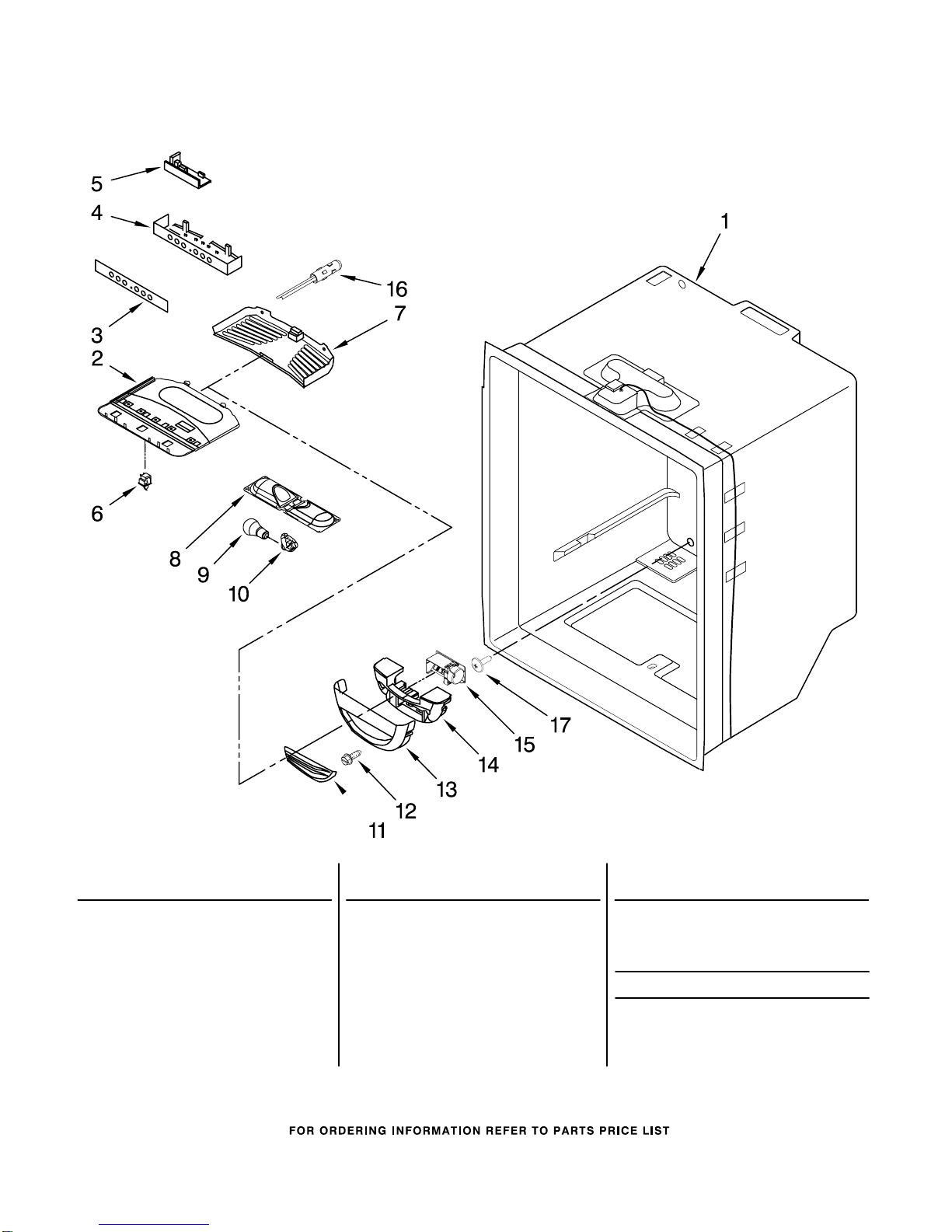

REFRIGERATOR LINER PARTS
6
For Models: GB2FHDXWQ00, GB2FHDXWB00, GB2FHDXWD00, GB2FHDXWS00
(White) (Black) (Universal Silver) (Stainless Steel)
W10292178
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 12806301 Bracket, Control
and Lights
3
12816518N
Overlay
4 12806406 Housing,
Electronic Control
5 12868513 Board, Control
6
C3680310V
Switch, Light
7 12806501 Cover, Light
8
12806601V
Housing, Light
9
W10194422V
Bulb, Light (2)
10
12570701V
Socket, Light (2)
11 12806801 Insert,
Damper Cover
12 12990604 Screw (2)
13 12806701 Cover, Damper
14 13012402 Insulation
15
W10196393
Control, Damper
16 12002355 Thermistor
17 M0310343 Plug Button
Following Parts Not Illustrated
12868701 Harness, Controls
(Refrigerator)
(Includes # 16)

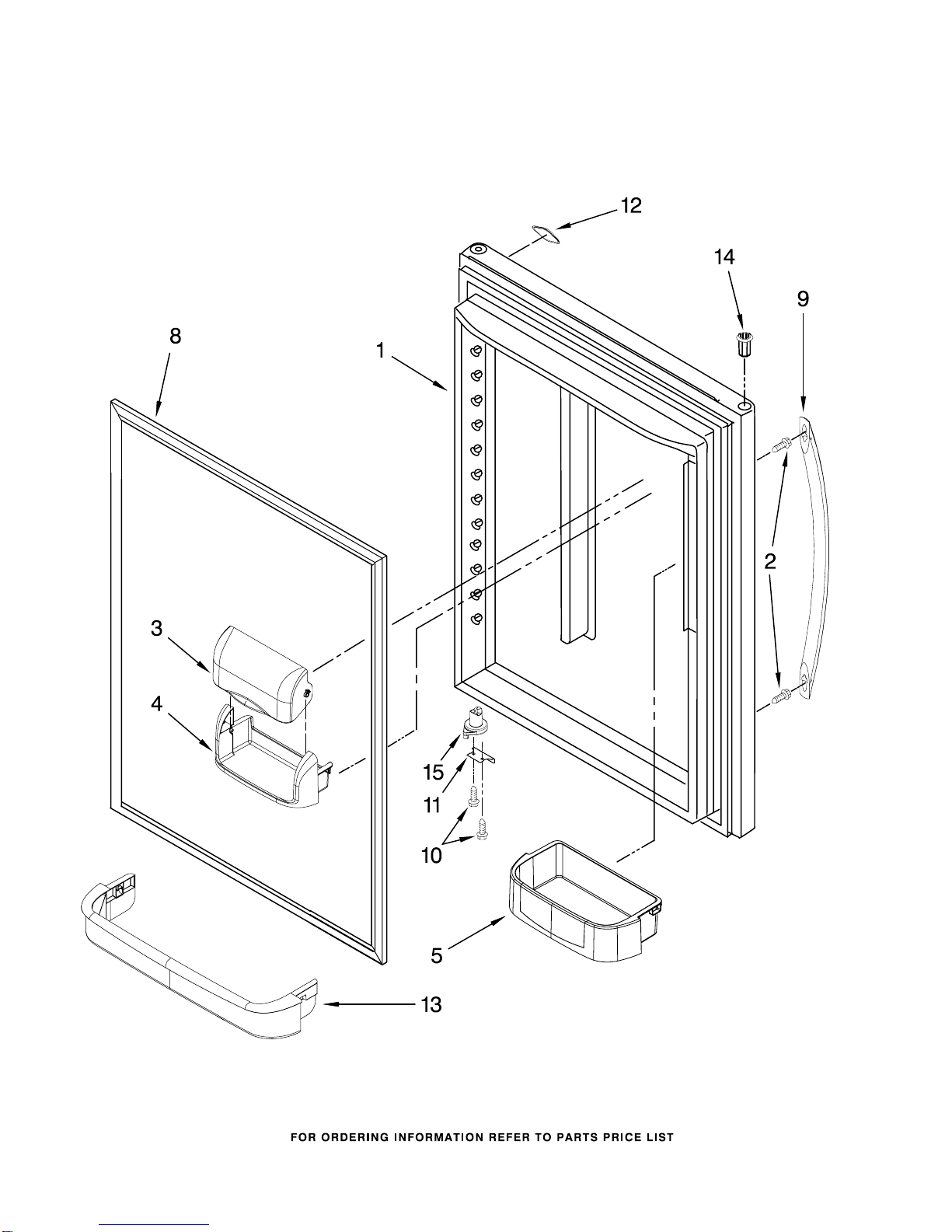

REFRIGERATOR DOOR PARTS
7
For Models: GB2FHDXWQ00, GB2FHDXWB00, GB2FHDXWD00, GB2FHDXWS00
(White) (Black) (Universal Silver) (Stainless Steel)
W10292178
REFRIGERATOR DOOR PARTS
8
For Models: GB2FHDXWQ00, GB2FHDXWB00, GB2FHDXWD00, GB2FHDXWS00
(White) (Black) (Universal Silver) (Stainless Steel)
W10292178
Illus. Part
No. No. DESCRIPTION
1 Door, Refrigerator
12658572WQ
White
12658572BQ
Black
13023866DQ
Universal Silver
13023861SQ
Stainless Steel
2 12992902 Screw−Handle
3
12804701SP
Door, Dairy
4
12369502SP
Tray, Dairy
5
12849124K
Bucket, Medium (4)
8 Gasket, Door
W10164034
White
W10164035
Black
9 Handle, Door
W10222984
White
W10222985
Black
W10223019
Stainless Steel
10 12990504 Screw
11 Stop, Door
10447111 White
10447112 Black
12 2220214 Nameplate
13 12690502 Retainer, Ref Door
14 Bushing (4)
10961006W
White
10961006B
Black
15 Closure, Door
12028505W
White
12028505B
Black

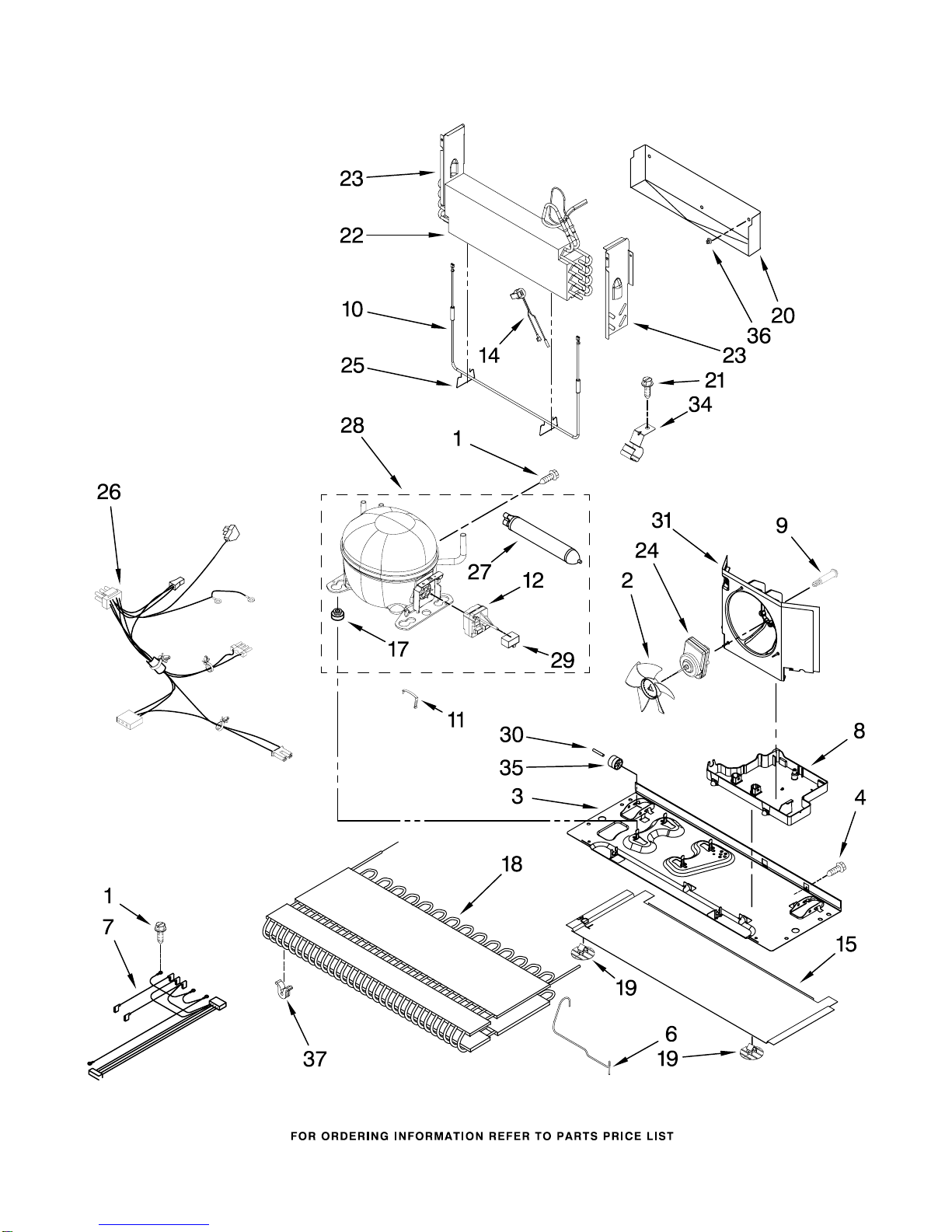

UNIT PARTS
9
For Models: GB2FHDXWQ00, GB2FHDXWB00, GB2FHDXWD00, GB2FHDXWS00
(White) (Black) (Universal Silver) (Stainless Steel)
W10292178
UNIT PARTS
10
For Models: GB2FHDXWQ00, GB2FHDXWB00, GB2FHDXWD00, GB2FHDXWS00
(White) (Black) (Universal Silver) (Stainless Steel)
W10292178
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 12992301 Screw
2 12825803 Blade, Fan
3
W10210983
Basepan
4 12990511 Screw
6
W10217748
Tube, Discharge
7
W10224242
Harness, Evap
Heater
8
W10189185
Pan, Drain
9
W10216919
Screw, Shoulder
10 12729128 Evaporator Heater
11
W10204187
Strap, Bale
12 Start Protect,
Combo
W10197428
Production
W10128791
Service
14
12639324SP
Thermostat,
Defrost
15
W10206337
Extension, Basepan
17
10835903SP
Grommet (4)
18
W10135027
Condenser
19
W10206339
Fastener, Basepan
Extension
20
12225402WD
Tray, Drip
21 12990701 Screw
22 12726402 Evaporator
23 Dam
12225702 Right Side
12225602 Left Side
24 12825101 Motor, Fan
25 10428101 Clip, Heater
26
W10234024
Harness, Unit
27
W10143759
Drier
28
W10134623
Compressor Kit
(Contains Items
12, 17, 27, & 29)
29 2264017 Capacitor
30 12477202 Axle, Roller
31
W10189184
Shroud
34 10547003 Clip, Drier
35 12477102 Roller (2)
36 10623002 Clip, Evap (2)
37
W10137529
Grommet (4)
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.25 Ozs.
(R−134A)
