Whirlpool ET8GTKXKQ02 Manual de usuario

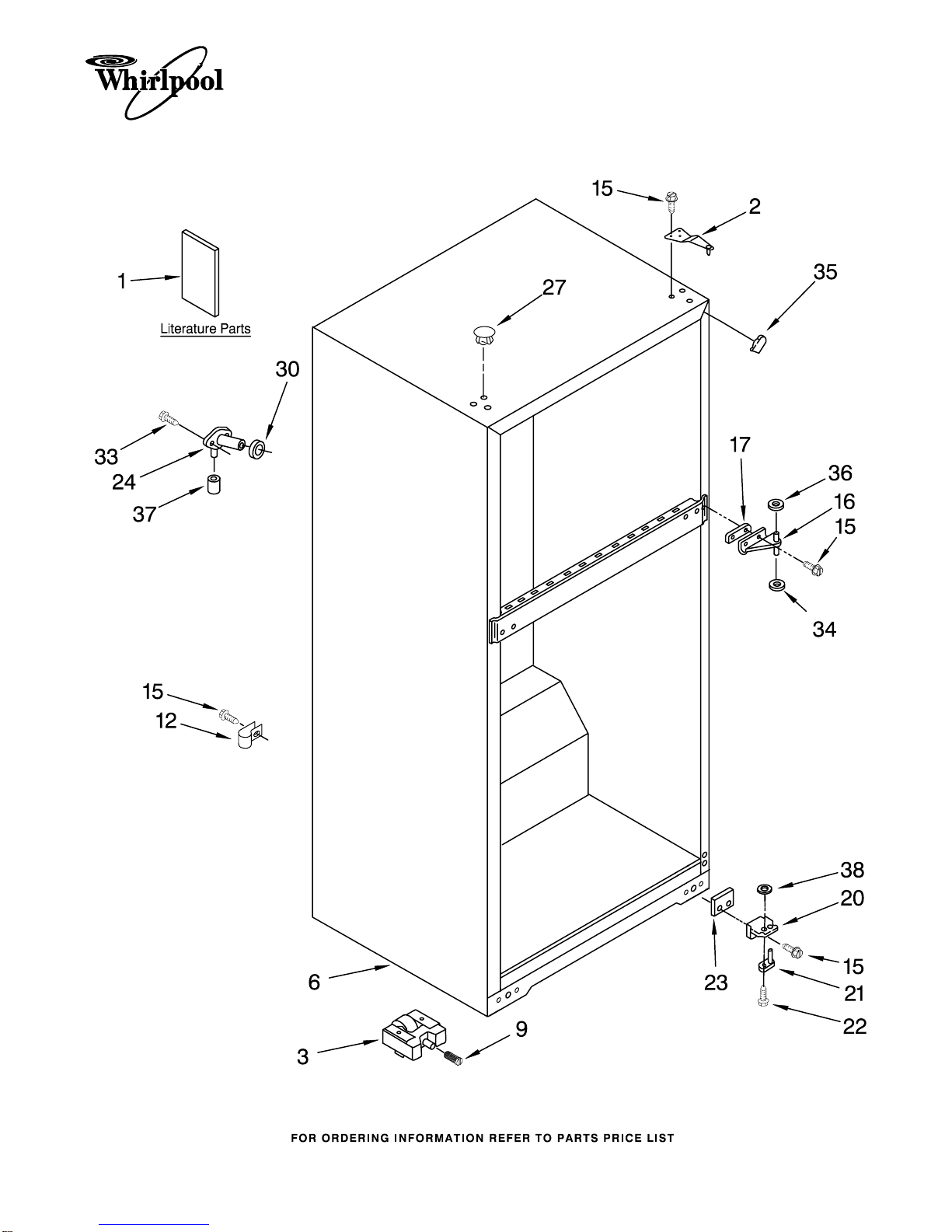

CABINET PARTS

For Models: ET8GTKXKQ02, ET8GTKXKT02

(White) (Biscuit)

9−04 Litho In U.S.A. (ebk) Part No. 8199142

REFRIGERATOR

CABINET PARTS

For Models: ET8GTKXKQ02, ET8GTKXKT02

(White) (Biscuit)

8199142

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2217549 Service &

Wiring Sheet

2263330 Energy Label

2210108 Use & Care Guide

2 2261963 Hinge (Top)

3 2217757 Roller−Front

6 Cabinet (Not a

Serviceable Part)

9 2222100 Screw

12 549193 Clamp−Cord

15 489497 Screw

16 2166086 Hinge, Center

17 2166043 Shim, Hinge

Center

20 2221926 Hinge Butt

21 9791682 Hinge−Pin Bott.

22 3428970 Screw

23 2201567 Shim, Bottom

Hinge

24 2174760 Fitting, Water Tube

27 Hole Plug (6)

2201012 White

2200924 Biscuit

30 1106508 Seal

33 2262176 Screw

34 489341 Washer

35 Corner Filler

2166003 White

2202282 Biscuit

36 488296 Washer

37 487996 Cap

Bushing

38 487802 Washer

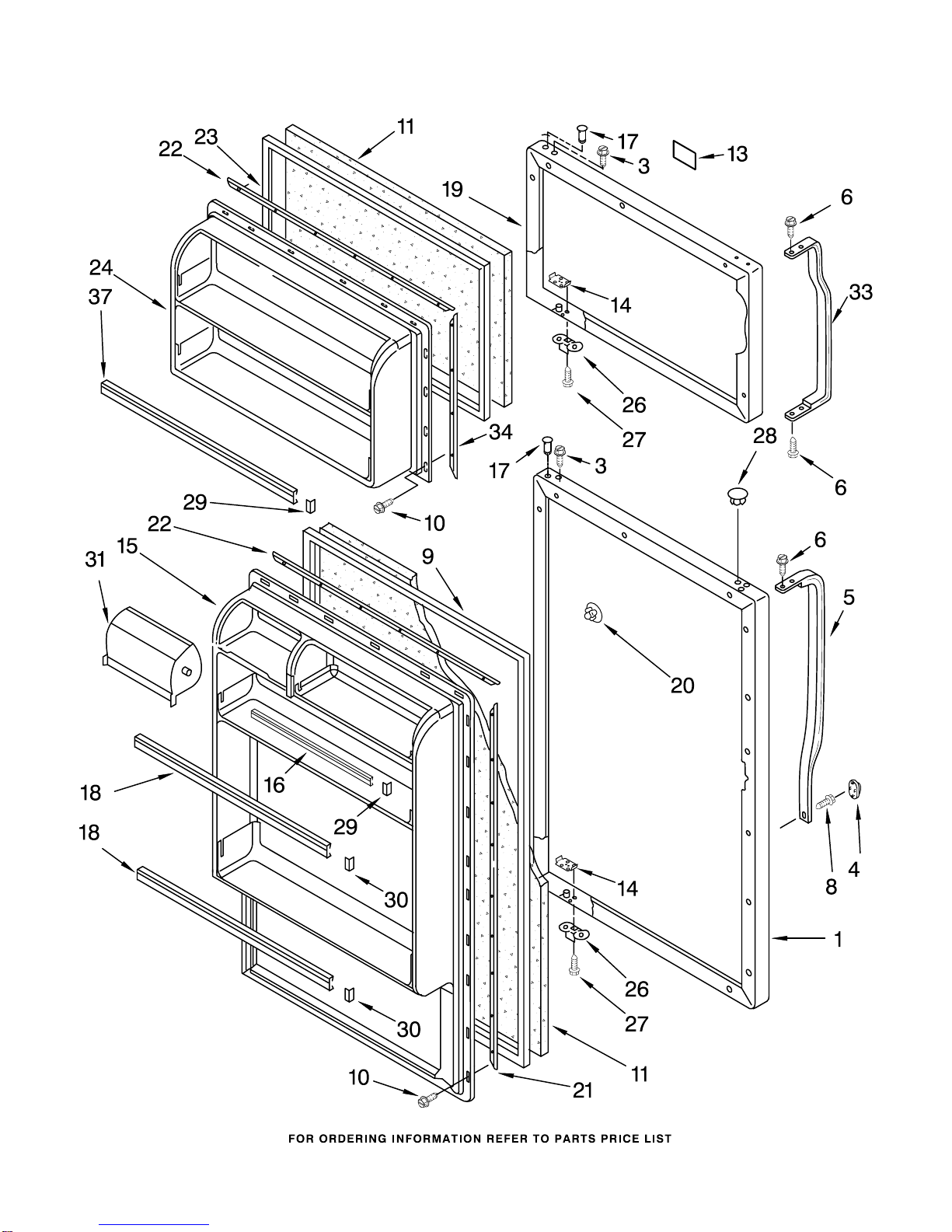

DOOR PARTS

For Models: ET8GTKXKQ02, ET8GTKXKT02

(White) (Biscuit)

8199142

DOOR PARTS

For Models: ET8GTKXKQ02, ET8GTKXKT02

(White) (Biscuit)

8199142

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

Panel (Also

Order Item 11)

2197087 White

2215359 Biscuit

3 8281206 Screw

4 Cover, Screw

2202819W White

2202819T Biscuit

5 Handle

2221946W White

2221946T Biscuit

6 489357 Screw

8 8281146 Screw

9 2262080 Door Gasket,

Magnetic

10 489442 Screw

11 876029 Foam Insulation

(Required When

Replacing Exterior

Door Panel)

13 2262218 Nameplate

14 2183000 Tap Plate

15 2197158 Interior Door

Panel

(Refrigerator)

16 2163630 Trim, Door Shelf

(Upper)

17 2183003 Thimble

18 2163628 Trim, Door

19 Freezer Door

Panel (Also

Order Item 11)

2197086 White

2197143T Biscuit

20 Hole Plug

2189000 White

2200936 Biscuit

21 2197082 Retainer, Gasket

22 1120614 Retainer, Gasket

23 2262079 Door Gasket,

Magnetic

24 2197159 Interior Door

Panel (Freezer)

26 2189202 Bracket, Door Stop

27 488921 Screw

28 Hole Plug

2212648 White

2212649 Biscuit

29 2156007 Plug−Trim

30 2156006 Plug−Trim

31 2207942 Door, Compartment

33 Handle F.C.

2202098 White

2215015 Biscuit

34 1122553 Retainer, Gasket

37 2163629 Trim−Door (2)

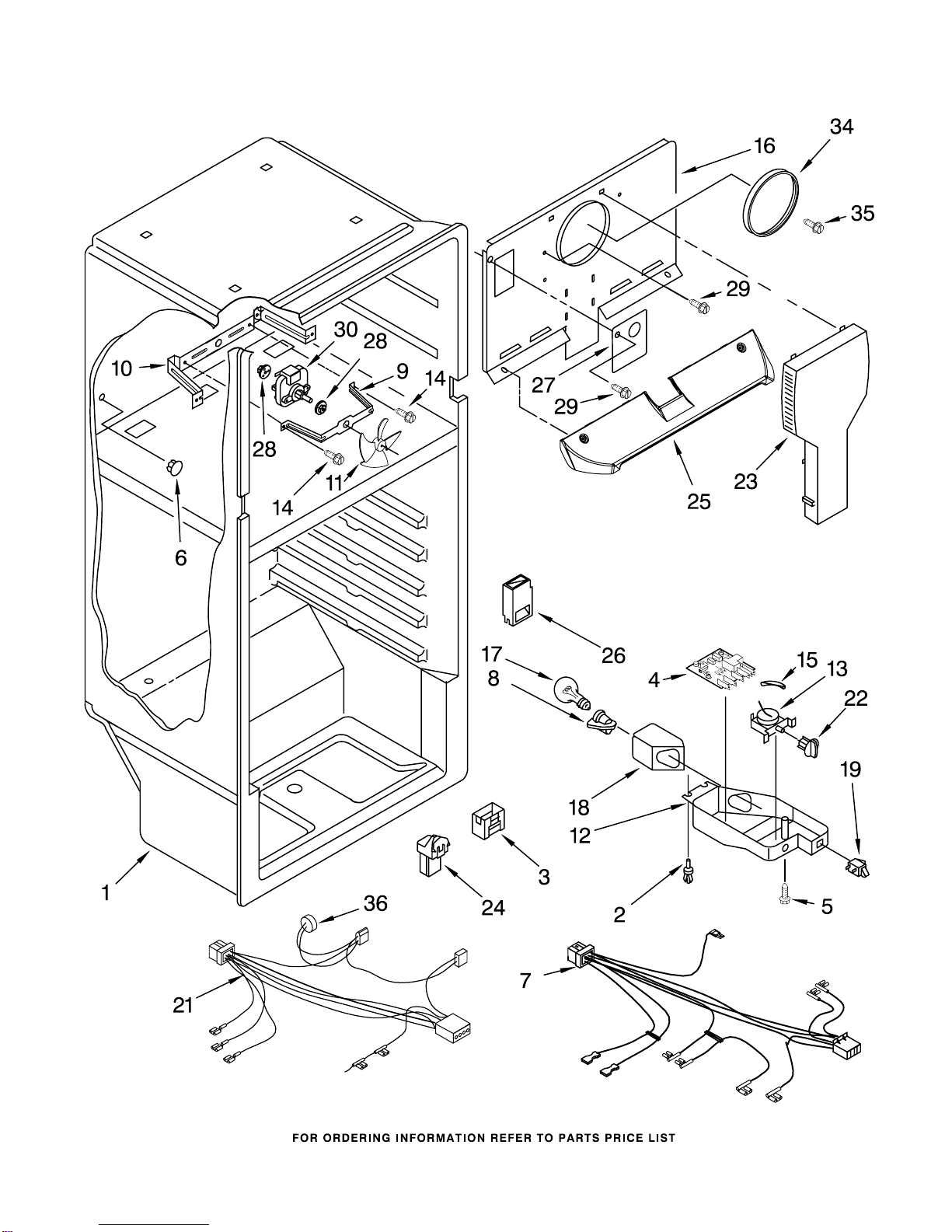

LINER PARTS

For Models: ET8GTKXKQ02, ET8GTKXKT02

(White) (Biscuit)

8199142

LINER PARTS

For Models: ET8GTKXKQ02, ET8GTKXKT02

(White) (Biscuit)

8199142

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 939962 Rivet−Plastic

3 2183061 Cover, Air Diffuser

4 2303825 Control, Adaptive

Defrost

5 489174 Screw

6 941839 Hole Plug

7 2215115 Wire Assembly

Control Box

8 2162085 Socket, Light

9 2197404 Fan Support

Bracket

10 2197405 Fan Mounting

Bracket

11 2169142 Fan Blade

12 2215210 Control Box

13 2201754 Thermostat

14 489399 Screw

15 1118680 Thermostat Tube

Barrier

16 2201205 Cover−Evaporator

17 2252970 Light Bulb

18 9791702 Light Shield

19 1118894 Rocker Arm

Switch

21 2215114 Wiring−Freezer

(Includes Item 36)

22 2202885 Control Knob

23 9790408 Air Tower

24 2197052 Hood And Foil

Assembly

25 2261978 Cover, Air Return

26 2221992 Air Diffuser

27 2217784 Cover, Hole

28 2264462 Grommet−Motor

29 2262178 Screw

30 2201212 Evaporator Fan

Motor

34 2213999 Ring, Evaporator

Cover

35 489478 Screw

36 2183073 Defrost, Bi Metal

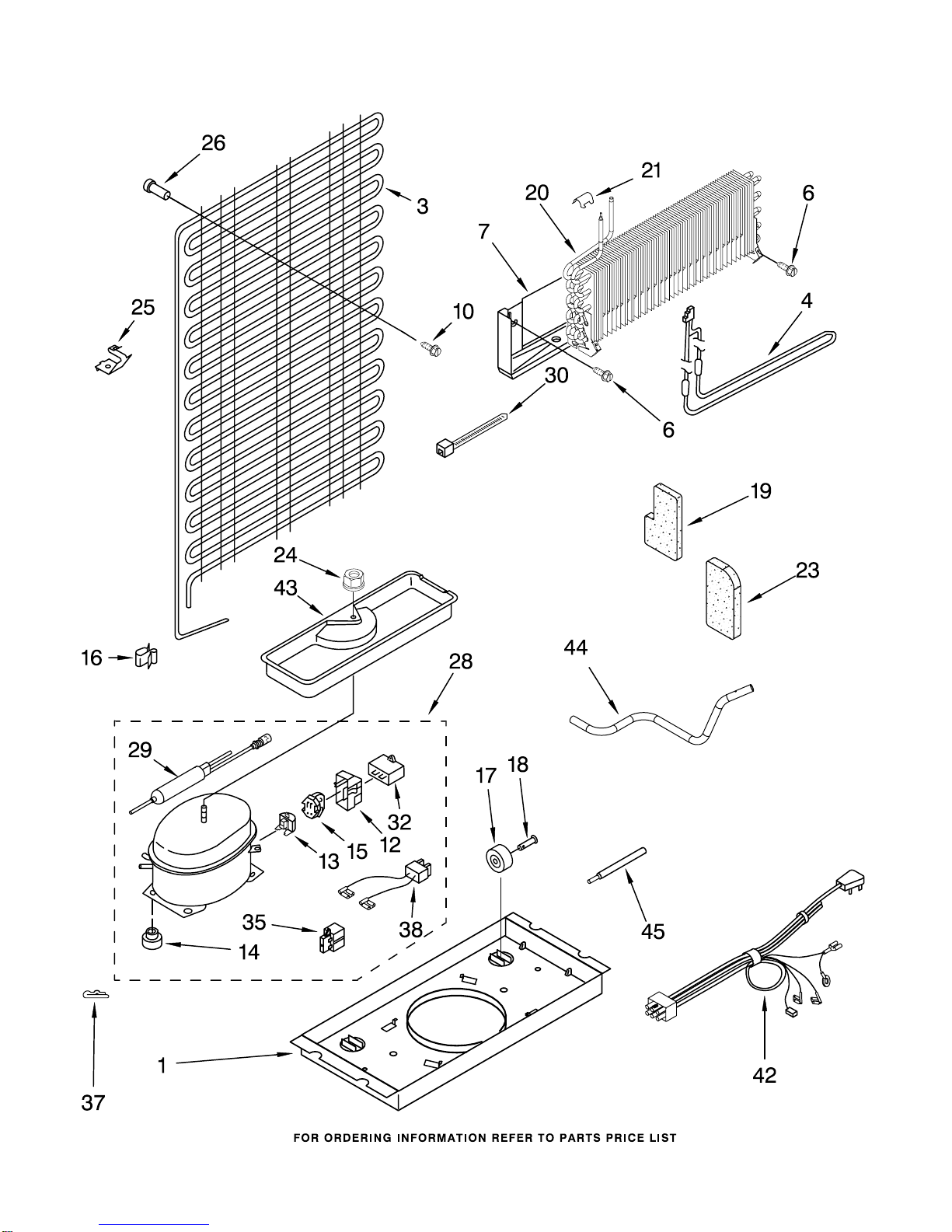

UNIT PARTS

For Models: ET8GTKXKQ02, ET8GTKXKT02

(White) (Biscuit)

8199142

UNIT PARTS

For Models: ET8GTKXKQ02, ET8GTKXKT02

(White) (Biscuit)

8199142

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2221886 Support Plate,

Compressor

3 2252731 Condenser

4 2176942 Heater, Defrost

6 489442 Screw

7 2201515 Heat Shield

10 8533892 Screw

12 Cover

2162358 Production

4387731 Service

13 Overload

2214067 Production

4390624 Service

14 Grommet

2222084 Production

4387558 Service

15 Start Relay

2262181 Production

(Service

See Overload)

16 939054 Clip, Wire

17 2150304 Roller

18 2262072 Axle, Rivet

19 2262191 Wedge−Evaporator

20 2263920 Evaporator Assy.

21 9791833 Clip, Evaporator

Tube

23 2262192 Wedge−Evaporator

24 489153 Hex Nut

25 2172892 Clip, Condenser

Mounting

26 2258452 Bracket, Condenser

28 2216049 Compressor

(Includes Items

12,13,14,29,32

35 & 38)

(Also Order

482801

Installation Kit

& 876765

Tube Kit)

29 Drier

2201796 Production

4387019 Service

30 2263990 Strap

32 Capacitator

2264017 Production

1118576 Service

35 2183454 Relay

(Service Only)

37 24364001 Clip, Compressor

38 Wire Assembly

2172890 Production

4387765 Service

42 2165793 Wire Assy. Unit

43 2201801 Evaporating Tray

44 2262244 Tube, Discharge

45 2174739 Tube, Process

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

3.75 Ozs.

(R134A)

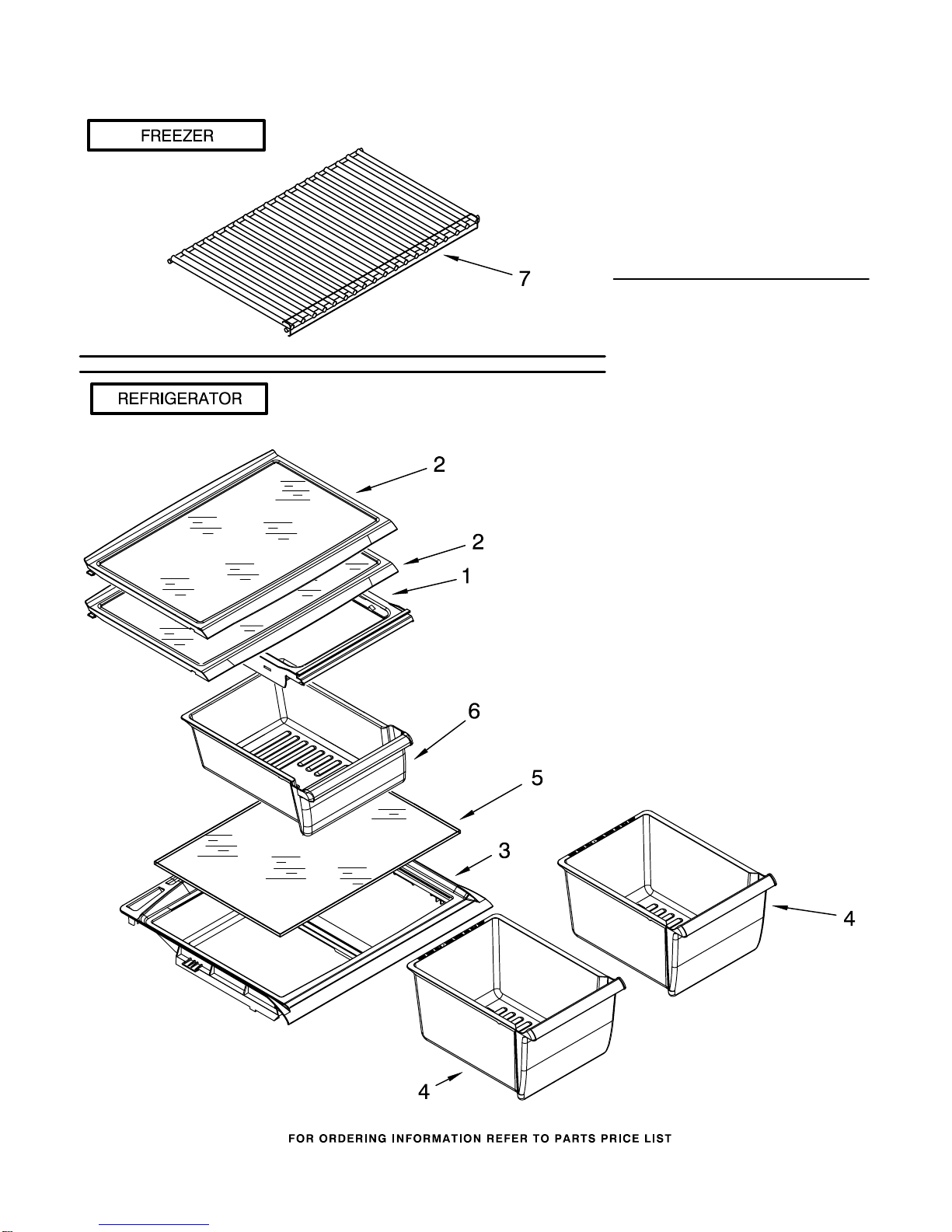

SHELF PARTS

For Models: ET8GTKXKQ02, ET8GTKXKT02

(White) (Biscuit)

8199142

Illus. Part

No. No. DESCRIPTION

1 2263863 Holder, Meat Pan

2 2263641 Shelf

3 2192250 Crisper Cover

4 2252767 Crisper Pan

5 2210047 Glass, Crisper

6 2207936 Pan, Meat

7 2197240 Shelf, Freezer

OPTIONAL PARTS

For Models: ET8GTKXKQ02, ET8GTKXKT02

(White) (Biscuit)

8199142

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

978941 Insulation,

Fiberglass

(63−1/2" x 35−1/2"

x 2−5/8")

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4" x 108")

876305 Kit, Insulation

(14 Pcs.

3" x 24" x 48")

876370 Kit, Insulation

(2 Pcs.

3" x 24 " x 48")

876029 Kit, Foam Slab

(30" x 32−1/2" x

1−1/2")

505587 Sealer, Mastic

(1 Qt.)

511873 Touch−Up, White

Porcelain (2 Oz.)

542638 Grease, Silicone

(1/2 Oz.)

542639 Cement,

Alumilastic

(1−1/4 Oz.)

606755 Bag, Insulation

(36−5/8" x 46")

799833 Kit, Evaporator

Repair

(Aluminum Epoxy)

799832 Kit, Porcelain

Repair (White)

503695 Cork Sealer

(1/4 Pound)

Customer Touch−Up Material

350942 Primer, White

(13 Oz. Spray Can)

350939 Enamel, Black

(13 Oz. Spray Can)

350930 Enamel, White

(13 Oz. Spray Can)

350956 Enamel, Almond

(13 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

72032 Brush Touch−Up Kit

(Black)

72107 Brush Touch−Up Kit

(Almond)

Refinishing Material

799344 Enamel, White

(1 Qt. Uncut)

978883 Enamel, Almond

(1 Qt. Uncut)

833938 Kit, Terminal

Connector

Caution: The Spray Paint Is Not

To Be Used Where The Paint

May Make Contact With The

Door Gaskets

FIELD INSTALLABLE

ICE MAKER

2155469 ECKMF94

TORX SCREW WRENCH

1117510 Torx Key
