Contents

Page

Important Safety Instructions. ........

Before Using Your Refrigerator .......

Using Your Refrigerator. ..............

Setting the controls ...................

Changing the control settings ..........

Exterior moisture control ..............

Adjusting the refrigerator shelves .......

Moving the meat drawer and cover ......

Removing the crispers and crisper cover.

Changing the light bulb. ...............

Reversing the door swing ..............

Ice cube trays. .......................

Automatic ice maker ..................

Sounds you may hear .................

Energy saving tips ....................

Cleaning Your Refrigerator ...........

Cleaning chart .......................

Food Storage Guide ..................

Storing fresh food ....................

Storing frozen food ...................

Caring For Your Refrigerator. .........

Vacation and moving care .............

Power interruptions ...................

If You Need Service Or Assistance ....

Whirlpool Refrigerator Warranty. .....

01990 Whirlpool Corporation

-3

Remove the Consumer Buy Guide Label, tape

and any inside labels before using the refrigerator.

To remove any remaining glue:

Rub briskly with thumb to make a ball, then

remove.

Soak area with liquid hand dishwashing

detergent before removing glue as described

above. Do not use sharp instruments, rubbing

alcohol, flammable fluids or abrasive cleaners.

These can damage the material. See “Important

Safety Instructions” on page 3.

NOTE: Do not remove any permanent instruction

labels inside your refrigerator. Do not remove the

Tech Sheet fastened under the refrigerator at

the front.

Thank you for buying a Whirlpool appliance.

Please complete and mail the Owner Regis-

tration Card provided with this product.

Then complete the form below. Have this informa-

tion ready if you need service or call with a

question.

Copy model and serial numbers from plate

(see diagram on front cover) and purchase date

from sales slip.

Keep this book and sales slip together in a

handy place.

Model Number

Serial Number

Purchase Date

Service Company Phone Number

ImportantSafetyInstructions

To reduce the risk of fire, electrical shock, or injury when using your

refrigerator, follow basic precautions including the following:

Read all instructions before using the It is your responsibility to be sure your

refrigerator. refrigerator:

Child entrapment and suffocation

is installed and leveled on a floor that will hold

are not problems of the past. Junked the weight, and in an area suitable for its size

or abandoned refrigerators are still and use.

dangerous...even if they will “just sit

in the garage a few days.”

is connected only to the right kind of outlet,

with the right electrical supply and grounding.

If you are getting rid of your old (Refer to the Electrical Requirements and

refrigerator, do it safely. Please read Grounding Instructions Sheet.)

the enclosed safety booklet from

the Association of Home Appliance

is used only to do what home refrigerators

Manufacturers. Help prevent accidents. are designed to do.

Never allow children to operate, play

is not near an oven, radiator or other heat

source.

with, or crawl inside the refrigerator.

Never clean refrigerator parts with

is properly maintained.

flammable fluids. The fumes can create

is out of the weather.

a fire hazard or explosion.

is used in an area where the room tempera-

. FOR YOUR SAFETY

ture will not fall below 55°F (13°C).

DO NOT STORE OR USE GASOLINE OR

is not used by anyone unable to operate

OTHER FLAMMABLE VAPORS AND LIQ- it properly.

UIDS IN THE VICINITY OF THIS OR ANY

is not loaded with food before it has time to

OTHER APPLIANCE. THE FUMES CAN get properly cold.

CREATE A FIRE HAZARD OR EXPLOSION.

-SAVE THESE INSTRUCTIONS -

BeforeUsingYourRefrigerator

1. Clean it

Clean your refrigerator before using it. See

cleaning instructions on page 10.

2. Plug it in

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15 or 20 ampere fused

and properly grounded electrical supply is

required. It is recommended that a separate circuit

serving only this appliance be provided. Use a re-

ceptacle which cannot be turned off with a switch

or pull chain. Do not use an extension cord.

See Electrical Requirements and Grounding

Instruction Sheet in your Literature Package.

3. Install properly

. . -

1. Allow 3 inches (7.5 cm) between overhead

cabinets and the refrigerator top.

2. Allow at least 1 inch (2.5 cm) between the

refrigerator condenser on the back and the wall.

3. Allow YZinch (1.25 cm) on each side of the

refrigerator for ease of installation.

4. If the refrigerator is to be against a wall, you

might want to leave extra space on the hinge

side so the door can be opened wider.

5. If your refrigerator has an ice maker, make sure

ice maker water supply has been connected.

Refer to Installation Instructions.

Leveling screw

’

4. Level refrigerator-freezer

1. To raise front, turn screw in direction shown.

2. To lower front, turn screw in direction shown.

3. Check with level.

Use screwdriver Right to raise;

to adjust left to lower.

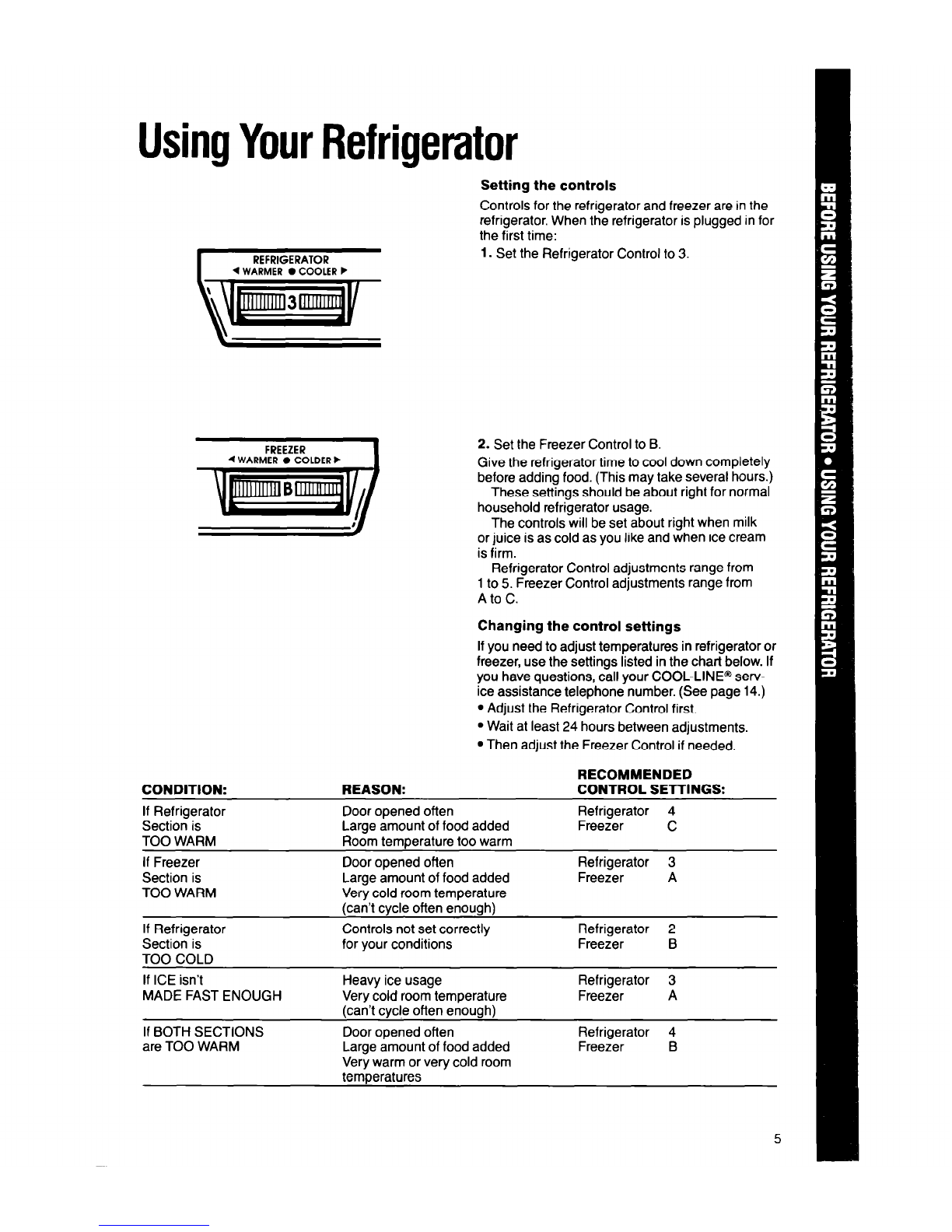

UsingYourRefrigerator

Setting the controls

Controls for the refrigerator and freezer are in the

refrigerator. When the refrigerator is plugged in for

the first time:

1. Set the Refrigerator Control to 3.

2. Set the Freezer Control to B.

Give the refrigerator time to cool down completely

before adding food. (This may take several hours.)

These settings should be about right for normal

household refrigerator usage.

The controls will be set about right when milk

or juice is as cold as you like and when ice cream

is firm.

Refrigerator Control adjustments range from

1to 5. Freezer Control adjustments range from

A to C.

Changing the control settings

If you need to adjust temperatures in refrigerator or

freezer, use the settings listed in the chart below. If

you have questions, call your COOL-LINE@ setv-

ice assistance telephone number. (See page 14.)

Adjust the Refrigerator Control first.

Wait at least 24 hours between adjustments.

Then adjust the Freezer Control if needed.

CONDITION:

If Refrigerator

Section is

TOO WARM

If Freezer

Section is

TOO WARM

If Refrigerator

Section is

TOO COLD

REASON:

Door opened often

Large amount of food added

Room temperature too warm

Door opened often

Large amount of food added

Very cold room temperature

(can’t cycle often enough)

Controls not set correctly

for your conditions

RECOMMENDED

CONTROL SETTINGS:

Refrigerator 4

Freezer C

Refrigerator 3

Freezer A

Refrigerator 2

Freezer B

If ICE isn’t

MADE FAST ENOUGH

If BOTH SECTIONS

are TOO WARM

Heavy ice usage

Very cold room temperature

(can’t cycle often enough)

Door opened often

Large amount of food added

Very warm or very cold room

temperatures

Refrigerator 3

Freezer A

Refrigerator 4

Freezer B

Using Your Refrigerator

Continued

EXTERIOR MOISTURE CONTROL

4 OFF .nhl b

\Insnv

Glass shelves are

heavy. Be careful.

Pull out to the stop, lifl the

front and pull again.

Exterior moisture control

The Exterior Moisture Control on the Control

Console operates electric heaters around the door

openings. These heaters help keep moisture from

forming on the outside of the refrigerator.

1. Use the OFF setting when humidity is low.

2. Use the ON setting if moisture forms on the

outside of the refrigerator.

Adjusting the refrigerator shelves

Shelves can be adjusted to match the way you use

your refrigerator. Glass shelves are strong enough

to hold bottles, milk and other heavy food items.

To remove glass shelves:

1. Remove items from shelf.

2. Tilt up at front.

3. Lift up at back.

4. Pull shelf straight out.

To replace glass shelves:

1. Guide the rear hooks into the slots in the

shelf supports.

2. Tilt up front of shelf until hooks drop into slot.

Lower front of shelf to level position.

Moving the meat drawer and cover

To remove the meat drawer:

1. Slide the meat drawer out to the stop.

2. Lift the front.

3. Slide the drawer the rest of the way out.

4. Replace in reverse order.

To remove the cover:

1. Tilt front of cover up, lift at back, and pull

straight out.

2. Replace in reverse order.

Pull

out to the stop,

lift the front

thentheback. . UJ

Removing the crispers and crisper cover

To remove the crispers:

1. Slide crisper straight out to the stop, lift front,

then slide the rest of the way out.

2. Replace in reverse order.

To remove the cover:

1. Push up glass insert from bottom, then slide out

with both hands.

2. Lift front of cover frame and remove cover

support.

3. Lift out cover frame by pulling up and out.

To replace the cover:

1. Fit back of cover into notch supports on walls

of refrigerator, then lower into place.

2. Replace cover support with the long tab toward

the front.

NOTE: If the support needs adjustment, turn

base clockwise to raise or counter-clockwise

to lower.

3. Slide back of glass insert into place, then

lower front.

Changing the light bulb

Electrical Shock Hazard

Before removing the light bulb, either

unplug the refrigerator or disconnect the

electricity leading to the refrigerator at the

main power supply. Shock and injury can

occur if electricity remains connected.

To change refrigerator light:

1. Disconnect refrigerator from power supply.

2. Reach behind the Control Console to find bulb.

3. Remove bulb.

4. Replace with a 40-watt appliance bulb.

5. Reconnect power supply.

NOTE: Not all commercial appliance bulbs will fit

your refrigerator. Be sure to replace bulb with one

of the same size and shape.

Reversing the door swing

You can change the hinges on your refrigerator

so the doors open the other way. You will need a

Phillips head screwdriver. Refer to the instruction

sheet included with your refrigerator.

Using Your Refrigerator

Continued

Ice cube trays

If cubes are not used, they may shrink. The

moving cold air starts a slow evaporation. The

longer cubes are stored, the smaller they get.

To remove ice:

1. Hold tray at both ends.

2. Twist slightly.

signal

arm to

stop ice

Lower

slgnal

arm to

starl it

Automatic ice maker

If you have the automatic ice maker accessory, or

if you plan to add one later (Part No. ECKMF-90)

there are a few things you will want to know:

The ON/OFF lever is a wire signal arm.

Down.. .for making ice automatically.

Up.. .to shut off the ice maker.

NOTE: Do not turn ice maker on until it is

connected to the water supply.

The dial or lever on the side of the ice maker

changes the size of the cubes.

Shake the bin occasionally to keep cubes sepa-

rated, and to obtain increased storage capacity.

It is normal for ice crescents to be attached by a

corner. They will break apart easily.

You will hear water running when ice maker is

working. You’ll hear ice fall into the bin. Don’t let

these sounds bother you.

The ice maker will not operate until the freezer

is cold enough to make ice. This can take

overnight.

Because of new plumbing connections, the first

ice may be discolored or off-flavored. Discard the

first few batches of ice.

If ice is not being made fast enough and more ice

is needed, turn the Refrigerator Control toward a

higher number. Wait a day and, if necessary, turn

the Freezer Control toward A.

If you remove the ice bin, raise the signal arm to

shut off the ice maker. When you return the bin,

push it all the way in and lower the arm to the ON

position.

If cubes are stored too long, they may develop

an off-flavor...like stale water. Throw them away.

They will be replaced. Cubes in the ice bin can

also become smaller by evaporation.

Good water quality is important for good ice

quality. It is not recommended that the ice maker

be connected to a softened water supply. Water

softener chemicals such as salt from a malfunc-

tioning softener can damage the ice maker mold

and lead to poor quality ice. If a softened water

supply cannot be avoided, then it is important

that the water softener be well maintained and

operating properly.

Soundsyoumayhear

Your new refrigerator may make sounds that your

old one didn’t. Because the sounds are new to

you, you might be concerned about them. Don’t

be. Most of the new sounds are normal. Hard sur-

faces like the floor, walls and cabinets can make

the sounds seem louder.

The following describes the kinds of sounds

that might be new to you, and what may be

making them.

Slight hum, soft hiss

You may hear the refrigerator’s fan motor and

moving air.

Clicking or snapping sounds

The thermostat makes a definite click when the

refrigerator stops running. It also makes a sound

when the refrigerator starts. The defrost timer will

click when the defrost cycle starts and stops.

Water sounds

When the refrigerator stops running, you may hear

gurgling in the tubing for a few minutes after it

stops. You may also hear defrost water running

into the defrost water pan.

Ice maker sounds

trickling water

thud (clatter of ice)

If your refrigerator has an ice maker you may hear

buzzing (from the water valve), trickling water and

the clatter of ice dumped into the bin.

Running sounds

Your refrigerator has a high-efficiency compressor

and motor. It will run longer than older designs. It

may even seem to run most of the time.

Energysavingtips

You can help your refrigerator use less electricity.

Check door gaskets for a tight seal. Level the

cabinet to be sure of a good seal.

Clean the condenser coils regularly.

Open the door as few times as possible. Think

about what you need before you open the door.

Get everything out at one time. Keep food orga-

nized so you won’t have to search for what you

want. Close door as soon as food is removed.

Go ahead and fill up the refrigerator, but don’t

overcrowd it so air movement is blocked.

It is a waste of electricity to set the refrigerator

and freezer to temperatures colder than they

need to be. If ice cream is firm in the freezer and

drinks are as cold as your family likes them,

that’s cold enough.

Keep the Exterior Moisture Control on the OFF

setting unless moisture forms on refrigerator

exterior.

Make sure your refrigerator is not next to a heat

source such as a range, water heater, furnace,

radiator or in direct sunlight.

CleaningYourRefrigerator

Both the refrigerator and freezer sections defrost

automatically. But both should be cleaned about

once a month to help prevent odors from building

up. Spills should be wiped up right away.

To clean your refrigerator, turn the Refrigerator

Control to OFF, unplug it, take out all removable

parts and clean the refrigerator according to the

following directions.

Cleaningchart

PART WHAT TO USE HOW TO CLEAN

Removable parts Sponge or cloth; mild

(shelves, crispers, meat

Wash removable parts by hand with

detergent and warm

drawer, etc.) warm water and a mild detergent.

water.

Rinse and dry.

Outside Sponge, cloth or paper

Wash with warm water and a mild detergent.

towel; mild detergent; Do not use abrasive or harsh cleansers.

appliance wax (or

good auto paste wax).

Rinse and dry.

Wax painted metal surfaces at least twice a

year with appliance wax or a good auto paste

wax. Apply wax with a clean, soft cloth. Do not

use wax on plastic parts.

inside wails (Freezer

should be allowed to

warm up so cloth won’t

stick.)

Door liners and

gaskets

Dark plastics

(covers and panels)

Waxing painted metal surfaces provides rust protection.

Sponge, soft cloth or

Wash with warm water and

paper towel, baking - mild detergent or

soda, warm water, mild -baking soda (2 tablespoons [26 g] to

detergent. 1 quart [.95 L.] warm water).

Rinse and dry.

Sponge, soft cloth or

Wash with mild detergent and warm

paper towel; mild water.

detergent, warm water.

Rinse and dry.

DO NOT USE cleaning waxes, concentrated detergents, bleaches

or cleansers containing petroleum on plastic parts.

Mild detergent and

Wash with a soft cloth or sponge.

warm water; soft, clean

sponge or soft, clean

Rinse and dry.

cloth.

DO NOT USE paper towels, window sprays, scouring cleansers

or flammable fluids. These can scratch or damage the material.

See “important Safety instructions” on page 3.

Defrost pan

(behind refrigerator

on top of the motor)

Sponge or cloth: mild

detergent and warm

water.

Roll refrigerator out away from wall.

Wash defrost pan with warm water and mild

detergent. Do not remove defrost pan

to clean.

Rinse and dry.

Condenser coils

Floor under

refrigerator

Use vacuum cleaner

with brush attachment.

Floor cleaners.

Roll refrigerator back into place.

Clean dust and lint from condenser coils behind

the refrigerator at least once every other month.

Roll refrigerator out away from wall.

Clean the floor.

Roll refrigerator back.

Check to see if the refrigerator is level.

Tabla de contenidos

Otros manuales de Refrigerador de Whirlpool

Whirlpool

Whirlpool ED5GTFXKQ00 Manual de usuario

Whirlpool

Whirlpool 6ETl6ZK Manual de usuario

Whirlpool

Whirlpool E2BLH 19** F TK Manual de usuario

Whirlpool

Whirlpool 2309541B Manual de usuario

Whirlpool

Whirlpool WRX-17TM Manual de usuario

Whirlpool

Whirlpool REFRIGERATOR Manual de usuario

Whirlpool

Whirlpool GI7FVCXW - DIMENSION GUIDE 8-12-09 Manual de usuario

Whirlpool

Whirlpool TS22AGXNQ00 Manual de usuario

Whirlpool

Whirlpool GB9SHDXPB01 Manual de usuario

Whirlpool

Whirlpool WRT311SFYB Instrucciones de montaje

Whirlpool

Whirlpool GS6NHAXVS - 25 Cubic Foot Qualifi Instrucciones de montaje

Whirlpool

Whirlpool W10305235A Manual de usuario

Whirlpool

Whirlpool ET18RK Manual de usuario

Whirlpool

Whirlpool ET18MMXJT00 Manual de usuario

Whirlpool

Whirlpool WF2B220RPS Guía de instalación

Whirlpool

Whirlpool ADN 221/2 Manual de usuario

Whirlpool

Whirlpool WSF26D2EXY02 Manual de usuario

Whirlpool

Whirlpool WRS973CIDM Manual de usuario

Whirlpool

Whirlpool ETl8JM Manual de usuario

Whirlpool

Whirlpool WRS325FDAB Instrucciones de montaje

Whirlpool

Whirlpool ADN140 Manual de usuario

Whirlpool

Whirlpool ET8WTKXVB00 Manual de usuario

Whirlpool

Whirlpool G2IXEFMWQ - 21.8 cu. Ft. Refrigerator Manual de usuario

Whirlpool

Whirlpool W8TXEGFYQ Instrucciones de montaje

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
