PRODUCT DESCRIPTION

A) Refrigerator compartment

(for storage of fresh food and beverages)

1. Shelves (partly height adjustable)

2. Crispers

3. Refrigerator inner door with:

(if supplied)

a. Adjustable door trays

b. Top door tray

c. Bottom door tray

4. Drawer (telescopic extraction) (if supplied)

5. Pull-out defrost water drain

6. Rating plate

B) Freezer compartment (if supplied)

(marked with the symbol for storing

fresh food, frozen food and making ice cubes)

7. Grid (not shown in the figure, if available)

8. Freezer section

9. Ice cube trays

C) Controls

CONTROLS

A. Thermostat knob

B. Light switch

D. Thermostat control reference

E. Light bulb/LED bulb

HOW TO OPERATE THE REFRIGERATOR

COMPARTMENT

This appliance is a refrigerator with a star freezer

compartment.

OR is a refrigerator with a star freezer compartment.

Optimal appliance performance is obtained at ambient

temperatures between +10°C and +38°C.

Switching on the appliance

Once the power plug is inserted in the mains socket, unless the

thermostat (1) is set to symbol the inside light switches on each

time the door is opened.

Once the temperature has been set – see next chapter – the

appliance is ready for use.

Adjusting the temperature

- To adjust the temperature in the compartment, turn the

thermostat control knob:

•to lower numbers 1-2/MIN for the LEAST COLD internal

temperatures;

•to 3-4/MED for a MEDIUM temperature;

•to 5-7/MAX for the COLDEST temperature.

Thermostat setting on : no operation, no light.

Note:

The ambient air temperature, frequency of door opening and the

position of the appliance can affect internal temperatures. These

factors must be taken into account when setting the thermostat.

Important

•Thermostat adjustment (1) will depend on where the

appliance is installed, ambient temperature and frequency of

door opening.

How to use the refrigerator compartment:

Position the food as illustrated in the figure:

1. Cooked food

2. Dairy products, preserves, cheese, butter

3. Fish, meat

4. Sliced cold meat

5. Fruit, vegetables, salad

6. Small jars, eggs

7. Tubes, small jars

8. Small bottles

9. Bottles

Note:

•Cover food to prevent it drying out.

•Hot food must be allowed to cool properly before being placed

in the refrigerator.

•Make sure sufficient space is left for air to circulate around the

food.

Defrosting of the refrigerator compartment is completely

automatic.

HOW TO OPERATE THE FREEZER

COMPARTMENT

Only for or appliances:

Appliances with the symbol can be used to

store already frozen food.

Appliances with the symbol can be used to

store food for months and also to freeze food. The

amount of fresh food (in kg) that can be frozen in 24

hours is indicated on the appliance rating plate

(see paragraph “Product description”, point 6).

Freezing food

•Set the thermostat knob (1) to 3-4.

•Arrange the food to be frozen centrally in the

freezer compartment.

•Avoid contact between already frozen food and food that

has yet to be frozen (approx. 20 mm distance).

•After 24 hours turn the thermostat knob (1) back to the

normal position.

Important:

Wrap and seal the food in:

•Aluminium foil, cling film, watertight plastic bags,

polythene containers with lids or special freezer

containers.

When purchasing frozen food products:

•Ensure that the packaging is not damaged (frozen food in

damaged packaging may have deteriorated). If the package

is swollen or has damp patches, it may not have been

stored under optimal conditions and defrosting may have

already begun.

•Transport products in a thermally insulated cool bag.

•When shopping, leave frozen food purchases until last.

•Once at home, place the frozen foods immediately in the

freezer.

•If food has defrosted even partially, do not re-freeze it.

Consume within 24 hours.

•Avoid subjecting foods to temperature variations.

Observe the "best before" date on the package.

•Always observe the storage information on the package.

Making ice cubes

•Fill the ice cube trays (9) 3/4 with water and place them at

the bottom of the freezer compartment.

•Use a spoon handle to remove ice cube trays which stick

to the compartment.

Do not use sharp or pointed instruments.

HOW TO DEFROST AND CLEAN THE

APPLIANCE

Before carrying out any maintenance or cleaning

operations, unplug the appliance from the mains

socket. Defrost the freezer compartment when the ice

on the walls reaches a thickness of 3 mm.

•Remove foodstuffs from the or freezer and

turn the thermostat knob to .

•The frozen food must be wrapped in sheets of newspaper

(or a cover) and kept in a cool place.

•Clean the freezer compartment using a sponge dampened

in a solution of lukewarm water and/or neutral detergent.

•Rinse and dry carefully.

•Defrosting of the refrigerator compartment is fully

automatic.

Clean the defrost water drain outlet regularly in order to

ensure that defrost water is removed correctly.

After cleaning, reconnect the appliance to the power

supply.

Do not use abrasive products.

Prolonged disuse.

•Empty the compartments.

•Disconnect the appliance from the mains power supply.

•Defrost and clean.

•Leave the doors open to prevent formation of unpleasant

odours.

TROUBLESHOOTING GUIDE

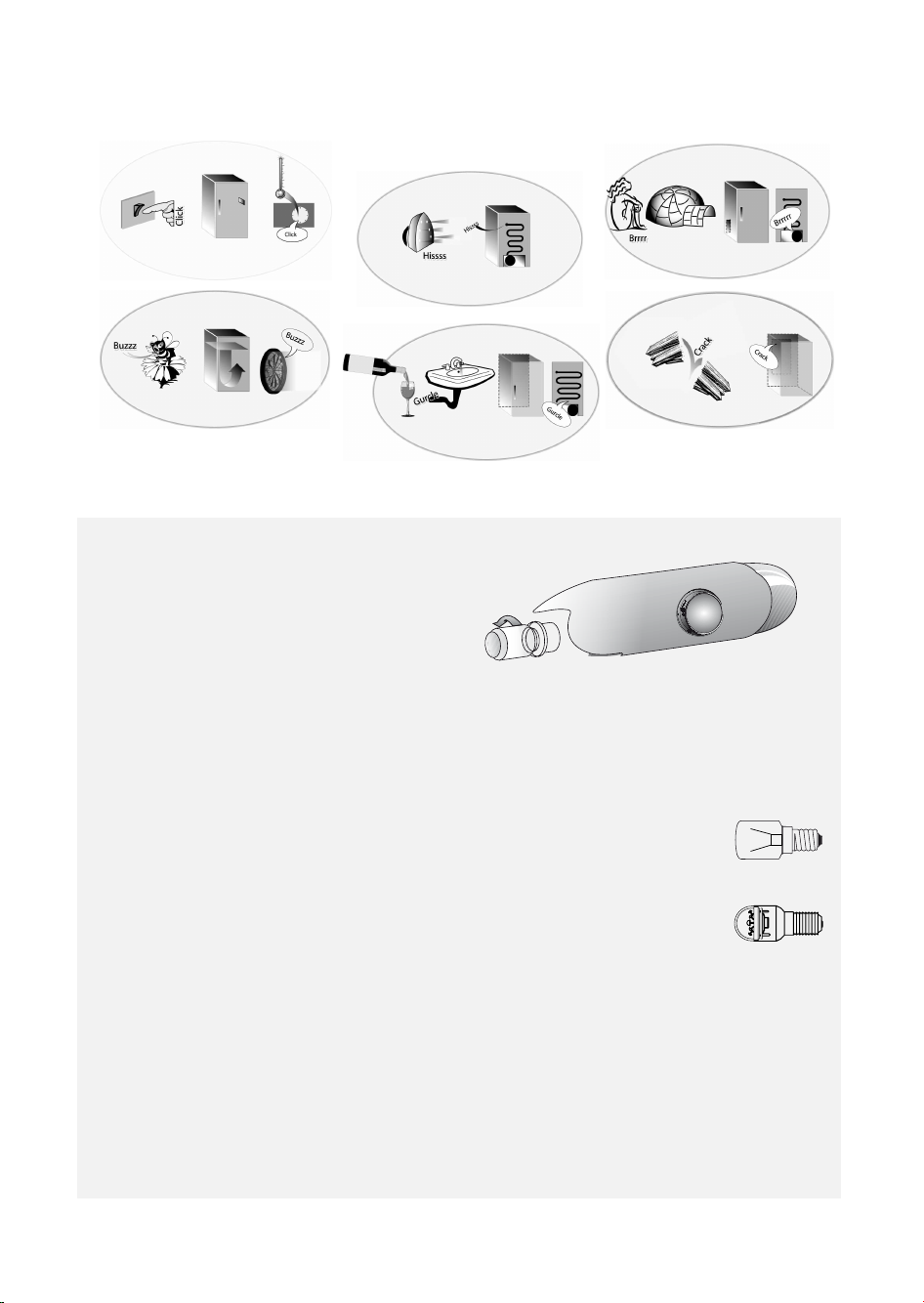

When you hear these noises

..your appliance is alive!!!

1. Temperature inside the compartments is not low

enough.

• Is food preventing the doors from closing properly?

• Is the thermostat setting correct?

• Are the air circulation vents blocked?

2. Temperature inside the refrigerator compartment

is too low.

• Is the thermostat setting correct?

3. The appliance is excessively noisy.

• Has the appliance been installed correctly?

• Are the pipes at the back touching or vibrating?

• It is normal to hear the noise of the refrigerant liquid in

circulation.

4. The appliance is not working?

• Is there a power failure?

• Is the plug properly inserted in the socket?

• Is the double-pole switch on?

• Do the household electrical system protection devices

work correctly?

• Is the power cord damaged?

5. Water collects at the bottom of the refrigerator

compartment.

• Is the thermostat setting correct?

• Is the defrost water drain blocked?

6. The inside light is not working. yPerform the

checks for point 4, and then:

• Disconnect the appliance from the power supply, check

the light bulb and, if necessary, replace it with a new

one:

- traditional light bulb

(max 25W)

- LED bulb

(with the same characteristics),

only available from the After-Sales Service

• Removing the light bulb: Unscrew the bulb

anticlockwise as shown in the figure.

AFTER-SALES SERVICE

Before contacting After-Sales Service:

1. See if you can solve the problem yourself with the

help of the “Troubleshooting guide”).

2. Switch the appliance on again to see if the problem

has been solved. If it has not, disconnect the

appliance from the power supply and wait for

about an hour before switching on again.

3. If the problem persists after this course of action,

contact After-sales Service.

Specify:

•the nature of the problem,

•the model,

•the Service number (the number after the word

SERVICE on the rating plate on the inside of the

appliance),

•your full address,

•your telephone number and area code.

Note:

The direction of door opening can be changed.

If this operation is performed by After-sales

Service it is not covered by the warranty.

INSTALLATION

Install the freezer away from heat sources.

Installation in a hot environment, direct exposure to the

sun or installation near heat sources (heaters, radiators,

cookers) will increase power consumption and should

therefore be avoided.

If this is not possible, the following minimum distances

must be respected:

30 cm from coal or paraffin stoves

3 cm from electric stoves.

•Install the appliance in a dry, well-ventilated place.

•Clean the interior (see “How to defrost and clean the

appliance”).

•Fit the accessories.

•Check the door seal is not damaged or deformed,

especially after installation or reversal of door opening.

Electrical connection

•Ensure that the voltage indicated on the appliance rating

plate corresponds to the domestic supply voltage.

•Regulations require that the appliance is earthed. The

Manufacturer declines all liabilities for injury to persons or

damage to property resulting from failure to observe these

regulations.

•If the plug and socket are not of the same type, have the

socket replaced by a qualified electrician.

•Do not use extension cables, multiple sockets or adapters.

ELECTRICAL CONNECTION

1) For Great Britain only

Warning - this appliance must be earthed

Fuse replacement

If the mains lead of this appliance is fitted with a BS 1363A 13amp

fused plug, to change a fuse in this type of plug use an A.S.T.A.

approved fuse to BS 1362 type and proceed as follows:

1. Remove the fuse cover (A) and fuse (B).

2. Fit replacement 13A fuse into fuse cover.

3. Refit both into plug.

Important:

The fuse cover must be refitted when changing a fuse and if the

fuse cover is lost the plug must not be used until a correct

replacement is fitted.

Correct replacement are identified by the colour insert or the

colour embossed in words on the base of the plug.

Replacement fuse covers are available from your local electrical

store.

2) For the Republic of Ireland only

The information given in respect of Great Britain will frequently

apply, but a third type of plug and socket is also used, the

2-pin, side earth type.

3) Socket outlet / plug (valid for both countries)

If the fitted plug is not suitable for your socket outlet, please

contact Whirlpool Service for further instruction. Please do not

attempt to change plug yourself. This procedure needs to be

carried out by a qualified Whirlpool technician in compliance with

the manufactures instructions and current standard safety

regulations.

Tabla de contenidos

Otros manuales de Refrigerador de Whirlpool

Whirlpool

Whirlpool ET19JKXL Manual de usuario

Whirlpool

Whirlpool Roper RS25AFXRD02 Manual de usuario

Whirlpool

Whirlpool S20B RSB21-A Manual de usuario

Whirlpool

Whirlpool 290L Manual de usuario

Whirlpool

Whirlpool WRT351SFYB Instrucciones de montaje

Whirlpool

Whirlpool 240L TITANIUM Manual de usuario

Whirlpool

Whirlpool Inglis IS25CFXTQ02 Manual de usuario

Whirlpool

Whirlpool GS6NHAXV Manual de usuario

Whirlpool

Whirlpool GX5FHDXVQ - 24.8 cu. ft. Refrigerator Instrucciones de montaje

Whirlpool

Whirlpool REFRIGERATOR Manual de usuario

Whirlpool

Whirlpool EHT182VKWR0 EHT182VKW Manual de usuario

Whirlpool

Whirlpool GS6NHAXV Instrucciones de uso

Whirlpool

Whirlpool GSS30C6EYY02 Manual de usuario

Whirlpool

Whirlpool WT70E 831 X Manual de usuario

Whirlpool

Whirlpool 20RI-D3 SF Manual de usuario

Whirlpool

Whirlpool 6ED2FHKXKQ Manual de usuario

Whirlpool

Whirlpool GS2KVAXVS02 Manual de usuario

Whirlpool

Whirlpool R600A Manual de usuario

Whirlpool

Whirlpool GX5FHDXV Instrucciones de montaje

Whirlpool

Whirlpool W4TXNGFWQ - 14 cu. Ft. Refrigerator Instrucciones de montaje

Whirlpool

Whirlpool WRF995FIFZ Manual de usuario

Whirlpool

Whirlpool 3VET16GKGW01 Manual de usuario

Whirlpool

Whirlpool BSNF 8999 PB Manual de instalación y operación

Whirlpool

Whirlpool ED22RQ Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
