Whirlpool 8W8TXDGFXT00 Manual de usuario

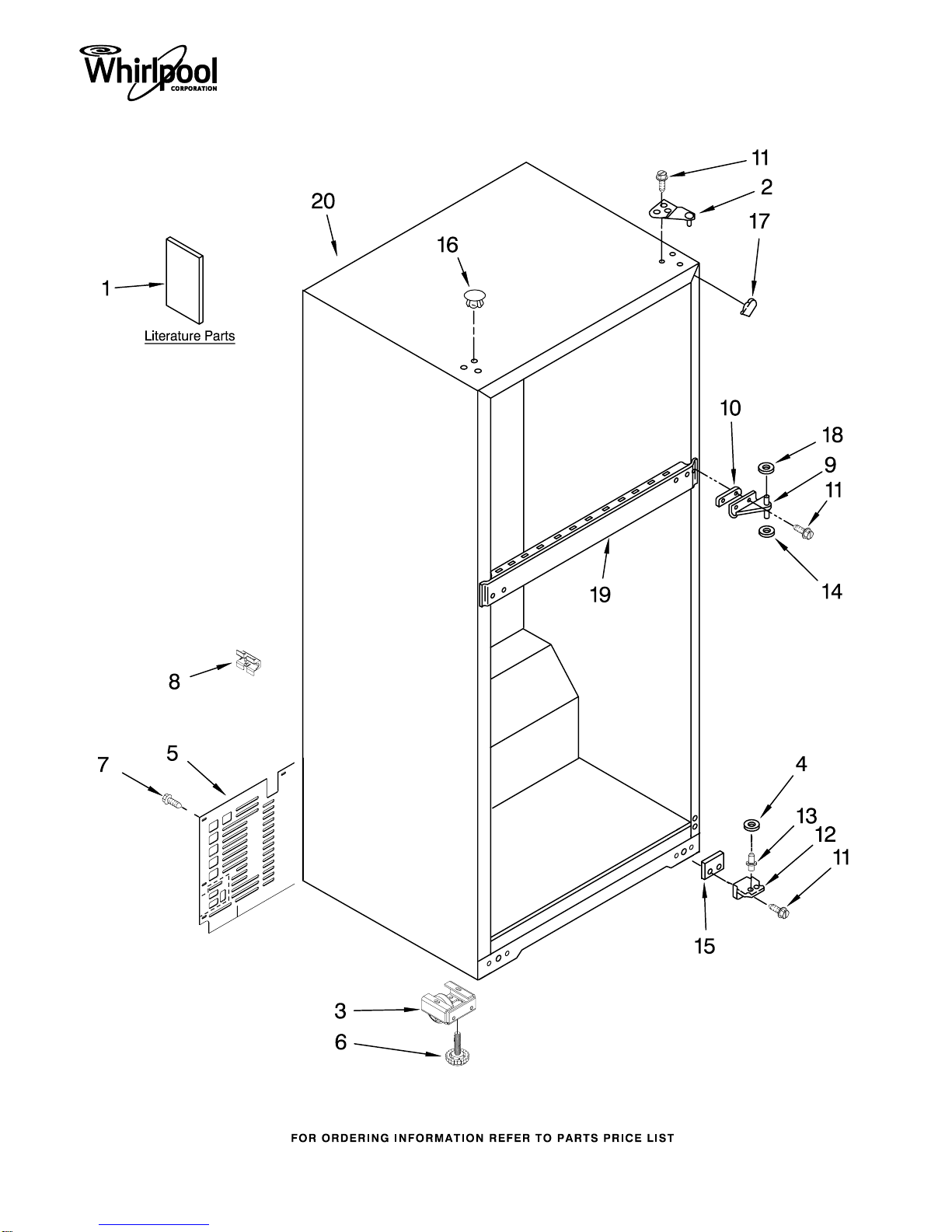

CABINET PARTS

For Model: 8W8TXDGFXT00

(Biscuit)

10−11 Litho In U.S.A. (mat)(bay) Part No. W10459021 Rev.A

REFRIGERATOR

CABINET PARTS

For Model: 8W8TXDGFXT00

(Biscuit)

W10459021

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10344152

Service &

Wiring Sheet

Use & Care Guide

W10335269

(English)

W10388619

(Chinese)

W10411908

Energy Guide

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677969 Do−It−Yourself

Manual, Ref./ Fzr.

2 2261963 Hinge Butt, Top

W10142530

Roller, Front

4 487576 Washer

5 2264132 Cover, Unit

W10133299

Leveler

7 489442 Screw

8 2266506 Spacer, Back

9 2166086 Hinge, Center

10 2166043 Shim, Hinge

Center

11 489497 Screw

12 2325482 Hinge Butt,

Bottom

13 2325483 Hinge−Pin,

Bottom

14 487576 Washer

15 2201567 Shim, Bottom

Hinge

16 Hole Plug (6)

2200924 Biscuit

17 Corner Filler

2202282 Biscuit

18 489341 Washer

19 Rail, Center

(Not Serviced)

20 Cabinet (Not a

Serviceable Part)

DOOR PARTS

For Model: 8W8TXDGFXT00

(Biscuit)

W10459021

DOOR PARTS

For Model: 8W8TXDGFXT00

(Biscuit)

W10459021

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes

Illus. 9,12,

14 & 24)

W10329720

Biscuit

2 2264478 Cover, Utility

3 8281206 Screw

4 2156003 Trim, Endcap

5 Handle,

Refrigerator

2221946T Biscuit

6 489357 Screw

7 2264477 Utility

Compartment

8 8281206 Screw

9 Door Gasket,

Magnetic

W10190032

Mist Beige

10 Screw Cover

2202819T Biscuit

11 2262218 Nameplate

12 939101 Screw Anchor

W10234241

Trim, Door Shelf

14 2262054 Thimble

16 Freezer Door

W10329721

Biscuit

(Includes

Illus. 14,18 & 24)

17 Hole Plug,

Handle

2200936 Biscuit

18 Door Gasket,

Magnetic

W10190031

Mist Beige

19 2189202 Bracket, Door Stop

20 488921 Screw

21 Hole Plug

2212649 Biscuit

22 2266727 Trim, Door

24 Handle, Freezer

2215015 Biscuit

25 2265126 Bin

26 2328217 Trivet

27 2258681W Shim, Door Stop

LINER PARTS

For Model: 8W8TXDGFXT00

(Biscuit)

W10459021

LINER PARTS

For Model: 8W8TXDGFXT00

(Biscuit)

W10459021

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 939962 Rivet

3 2183061 Cover, Air Diffuser

4 2303825 Adaptive Defrost

Control

5 489174 Screw

6 488693 Screw

7 2265572 Wire Assembly

Control Box

8 2162085 Socket, Light

W10180172

Fan Support

Bracket

10 2197405 Fan Mounting

Bracket

11 2169141 Fan Blade

W10338475

Control Box

13 2325701 Thermostat

14 489399 Screw

15 1118680 Thermostat Tube

Barrier

W10244012

Cover, Evaporator

17 2311792 Light Bulb

18 9791702 Light Shield

19 1118894 Rocker Arm

Switch

20 2217784 Cover, Hole

W10183127

Wiring, Freezer

(Includes Item 32)

22 2202885 Control Knob

23 9790408 Air Tower

24 2197052 Hood And Foil

Assembly

25 2261978 Cover, Air Return

26 2221992 Air Diffuser

Assembly

28 2264462 Grommet, Motor

29 489478 Screw

30 2315539 Evaporator Fan

Motor

31 2262178 Screw

32 2266066 Defrost, BI−Metal

W10337823

Tube, Barrier

(2nd)

UNIT PARTS

For Model: 8W8TXDGFXT00

(Biscuit)

W10459021

UNIT PARTS

For Model: 8W8TXDGFXT00

(Biscuit)

W10459021

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10222450

Support Plate,

Compressor

2 489442 Screw

3 2264597 Condenser

4 2176942 Heater, Defrost

5 2264835 Clip, Condenser

6 8533859 Screw

7 2319224 Heat Shield

8 2263628 Clip, Combo

9 2264278 Tube, Drain

W10358308

Scroll, Fan

11 2188874 Motor, Condensor

12 2264278 Clip, Harness

13 24364001 Clip, Compressor

14 Grommet

2264447 Production

2264447 Service

16 939054 Clip, Wire

17 2150304 Roller

18 2264756 Axle, Rivet

19 2262191 Wedge, Evaporator

20 2263920 Evaporator Assy.

W10151680

Wire Assy, Unit

W10197428

Start− Device

Combination

(Start Relay and

Overload)

23 2262192 Wedge, Evaporator

24 2264129 Fan Blade

25 2264841 Screw

26 2266360 Shield,Electrical

W10200250

Compressor

(Includes Items

14, 22, 29 & 32)

29 Drier

W10190413

Production

W10143759

Service

30 2263990 Strap

31 2264838 Sleeve

32 2264017 Capacitor

33 2263928 Evaporator Tray

35 2174739 Tube, Process

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

3.75 Ozs.

(R134A)

SHELF PARTS

For Model: 8W8TXDGFXT00

(Biscuit)

W10459021

Illus. Part

No. No. DESCRIPTION

W10258418

Holder, Meat Pan

W10283851

Shelf (2)

3 2222031 Crisper, Cover

4 2263086 Crisper Pan

5 2262441 Glass, Crisper

6 2261934 Pan, Meat

W10142525

Shelf, Wire

8 2212446 Body, Humidity

9 2176222 Slide, Humidity

OPTIONAL PARTS

For Model: 8W8TXDGFXT00

(Biscuit)

W10459021

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

978941 Insulation,

Fiberglass

(63−1/2" x 35−1/2"

x 2−5/8")

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4" x 108")

876305 Kit, Insulation

(14 Pcs.

3" x 24" x 48")

876370 Kit, Insulation

(2 Pcs.

3" x 24 " x 48")

876029 Kit, Foam Slab

(30" x 32−1/2" x

1−1/2")

505587 Sealer, Mastic

(1 Qt.)

511873 Touch−Up, White

Porcelain (2 Oz.)

542638 Grease, Silicone

(1/2 Oz.)

542639 Cement,

Alumilastic

(1−1/4 Oz.)

606755 Bag, Insulation

(36−5/8" x 46")

799832 Kit, Porcelain

Repair (White)

503695 Cork Sealer

(1/4 Pound)

Customer Touch−Up Material

350942 Primer, White

(12 Oz. Spray Can)

350939 Enamel, Black

(12 Oz. Spray Can)

350930 Enamel, White

(12 Oz. Spray Can)

4392901 Enamel, Biscuit

(12 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

72032 Brush Touch−Up Kit

(Black)

4392899 Brush Touch−Up Kit

(Biscuit)

Refinishing Material

799344 Enamel, White

(1 Qt. Uncut)

799340 Enamel, Black

(1 Qt. Uncut)

4392900 Enamel, Biscuit

(1 Qt. Uncut)

833938 Kit, Terminal

Connector

Important: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

TORX SCREW WRENCH

1117510 Torx Key

FIELD INSTALLABLE

ICE MAKER

2155469A ECKMF94
