Whirlpool 3VED23DQ Manual de usuario

VL#l 01

Home Appliances

UseAndCare

A Note To You

Important Safety

Instructions

Parts And Features

Before Using Your

Refrigerator

Using Your

Refrigerator

Caring For Your

Refrigerator

Food Storage Guide 26

NO-FROST REFRIGERATOR-FREEZERS

W’TH T=m&!IgR’ “‘h-i

B MODELS 3VED29DQ 3VED27DQ 3VED23DQ

A Note To You

Thank you folr buying a Whirlpool* appliance.

You have purchased a quality, world-class home appliance. Years of engineering experience

went into its manufacturing. To ensure that you enjoy many years of trouble-free operation,

we developed this tJse and Care Guide. It is full of valuable information on how to operate

and maintain your appliance properly and safely. Please read it carefully. Also, please com-

plete and mail the Ownership Registration Card provided with your appliance. This will help

us notify you about any new information on your appliance.

Your safety is important to us.

This guide contains, safety symbols and statements. Please pay special attention to these

symbols and follow any instructions given. Here is a brief explanation of the use of each

symbol.

This symbol will help alert you to such

dangers as personal injury, burns, fire

and electrical shock.

This symbol will help you avoid actions

which could cause product damage

(scratches, dents, etc.) and damage to

your personal property.

Help when you need it.

If you ever have a question concerning your appliance’s operation, or if you need service, first

see “If You Need Assistance Or Service” on page 28. If you need further help, feel free to call

an authorized Whirlpool service company. When calling, you will need to know your

appliance’s complete model number and serial number. You can find this information on the

model and serial number label (see diagram on page 4). For your convenience, we have

included a handy place below for you to record these numbers, the purchase date from the

sales slip and your dealer’s name and telephone number. Keep this book and the sales slip

together in a safe place for future reference.

Model Number ~

Serial Number ~

Purchase Date ~

~- Dealer Name

Dealer Phone

Important Safety Instructions

To reduce the risk of fire, electrical shock, or injury when

using your refrigerator, follow these basic precautions:

l Read all instructions before using the

refrigerator.

l Child entrapment and suffocation are

not problems of the past. Junked or

abandoned refrigerators are still danger-

ous even if they will “just sit in the

garage a few days.”

If you are getting rid of your old refrig-

erator, do it safely.

l Never allow children to operate, play

with, or crawl inside the refrigerator.

l Never clean refrigerator parts with

flammable fluids. The fumes can create a

fire hazard or explosion.

l FOR YOUR SAFETY l

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS OR

ANY OTHER APPLIANCE. THE FUMES

CAN CREATE A FIRE HAZARD OR

EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

l Install and level the refrigerator on a floor

that will hold the weight and in an area

suitable for its size and use.

l Do not install the refrigerator near an oven,

radiator or other heat source.

l Do not use the refrigerator in an area

where the room temperature will fall below

13°C (55°F).

l Keep the refrigerator out of the weather.

l Connect the refrigerator only to the proper

kind of outlet, with the correct electrical

supply and grounding.

l Do not load the refrigerator with food

before it has time to get properly cold.

l Use the refrigerator only for the uses

described in this manual.

l Properly maintain the refrigerator.

l Be sure the refrigerator is not used by

anyone unable to operate it properly.

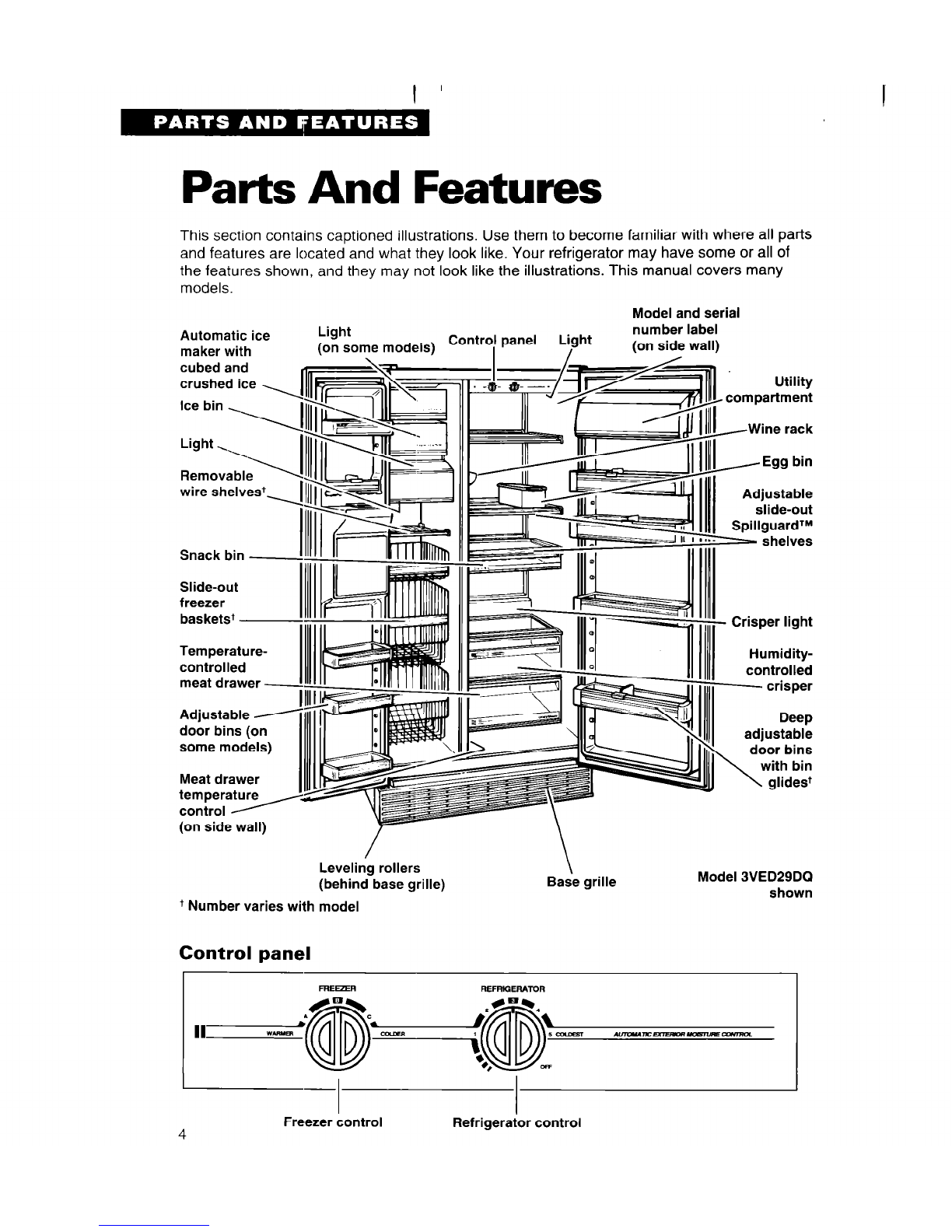

Parts And Features

This section contains captioned illustrations. Use them to become familiar with where all parts

and features are located and what they look like. Your refrigerator may have some or all of

the features shown, and they may not look like the illustrations. This manual covers many

models.

Model and serial

Automatic ice

maker with

cubed and

crushed ice

(on some models) Light number label

(on side wall)

/ -A.

Utility

Slide-out

freezer

basketst

Temperature-

controlled

door bins (on

some models)

Meat drawer

temperature

control N

(on side wall)

Leveling rollers

(behind base grille)

t Number varies with model

Control panel

- Crisper light

Humidity-

controlled

- crisper

Deep

adjustable

door bins

\ with bin

glidest

Base grille Model 3VED29DQ

shown

I FREDER

REFRIGERATOR

4 Freezer control Refrigerator control

Before Using Your

Refrigerator

In This Section

Page Page

Cleaning it .......................................... .5 Installing it properly .......................... .6

Plugging it in.. .................................... .5 Leveling it ............................................ 6

It is important to prepare your refrigerator for use. This section tells you how to clean it,

connect it to a power source, install it and level it.

Cleaning it

Removing packaging materials

Remove tape and any inside labels (except

the model and serial number label) before

using the refrigerator.

To remove any remaining glue:

l Rub briskly with thumb to make a ball, then

remove.

l Soak area with liquid hand-dishwashing

detergent before removing glue as

described above. Do not use sharp

instruments, rubbing alcohol, flammable

fluids or abrasive cleaners. These can

damage the material. See “Important

Safety Instructions” on page 3.

NOTE: Do not remove any permanent

instruction labels inside your refrigerator. Do

not remove the Tech Sheet fastened under

the refrigerator at the front.

Cleaning it before use

After removing all packaging materials,

clean your refrigerator before using it, if

necessary. See cleaning instructions on

pages 23-24.

Plugging it in

Recommended Grounding Method

A 220 or 240 Volt, 50 Hz., AC only 15 or

20 ampere fused and properly grounded

electrical supply is required. It is recom-

mended that a separate circuit serving only

this appliance be provided. Use a receptacle

which cannot be turned off with a switch or

pull chain. Do not use an extension cord.

See Electrical Requirements and Ground-

ing Instructions Sheet in your Literature

Package.

Installing it properly

1. Allow 1.25 cm (I,$ inch) space on each

side and at the tfop of the refrigerator for

ease of installation.

2. If the refrigerator is to be against a wall,

you might want IO leave extra space on

the hinge side closest to the wall so the

door can be opened wider.

3. The refrigerator can be flush against the

wall.

4. Make sure ice maker water supply has

been connected. Refer to Installation

Instructions.

Leveling it

Your refrigerator has 2 front leveling

screws-one on the right and one on the left

To adjust one or both of these, follow the

directions below.

1. Remove base grille. (See page 20.)

2. To raise front, turn screw clockwise.

3. To lower front, turn screw counterclock-

wise.

4. Check with level.

5. Replace base grille. (See page 20.)

Using Your Refrigerator

In This Section

Page

Setting the controls ............................ 8

Changing the control settings.. ........ .9

Removing the door shelf fronts ....... .9

Removing the door trim .................. .10

Adjusting the door bins .................. .10

Adjusting the door bin glides.. ....... .ll

Adjusting the refrigerator shelves ..l 1

Using the egg bin ............................ .12

Removing the crisper and

crisper cover .................................... .12

Adjusting the crisper humidity

control .............................................. .13

Page

Removing the snack bin ................. .I4

Adjusting the wine rack .................. .14

Removing the freezer baskets.. ...... .I4

Removing the freezer shelf.. ........... .14

Using the THIRSTCRUSHER* 15

dispensing system ...........................

Using the automatic ice maker.. ..... .17

Removing the ice maker

storage bin ........................................ 18

Solving common ice maker/

dispenser problems ....................... .19

Removing the base grille ................ .20

Removing the meat drawer and Changing the light bulbs ................ .20

cover ................................................. .13 Understanding the sounds you

Adjusting the meat drawer may hear ........................................... .22

temperature ...................................... .13 Saving energy ................................... 22

To obtain the best possible results from your refrigerator, it is important that you operate it

properly. This section tells you how to set the controls, remove and adjust some of the

features in your refrigerator, and how to save energy.

Setting the controls

Controls for the refrigerator and freezer are in

the refrigerator. When you plug in the refrigerator

for the first time:

1. Set the Refrigerator Control to 3.

Refrigerator Control adjustments range from

1 (warmest) to 5 (coldest).

2. Set the Freezer Control to B.

Freezer Control adjustments range from

A (warmest) to C (coldest).

3. Give the refrigerator time to cool down com-

pletely before adding food. This may take

several hours.

The settings indicated above should be

correct for normal, household refrigerator

usage. The controls are set correctly when

milk or juice is as cold as you like and when

ice cream is firm. If you need to adjust these

settings, see “Changing the control settings”

on page 9.

NOTE: The Automatic Exterior Moisture control

continuously guards against moisture build-up on

the outside of your refrigerator cabinet. This

control does not have to be set or adjusted.

Changing the control settings

If you need to adjust temperatures in

refrigerator or freezer, use the settings listed

in the chart below as a guide.

l Adjust the Refrigerator Control first.

l Wait at least 24 hours between adjustments.

l Then adjust the Freezer Control if needed.

CONDITION:

Refrigerator

section

too warm

_______ --.- .__._-- - - - - I_

RECOMMENDED

REASON: CONTROL SElTINGS:

__I---._--_.-- -.-- --

l Door opened often

l Large amount of food added Refrigerator 4

Freezer A

l Room temoerature too warm

Freezer

section

too warm

Refrigerator

section

too cold

l Door opened often

l Large amount of food added

l Very cold room temperature

(can’t cycle often enough)

l Controls not set correctly

for your conditions

Refrigerator 3

Freezer C

Refrigerator 2 ,

Freezer B ’

Ice not

made fast

enough

Both

sections

too warm

l Heavy ice usage

l Very cold room temperature

(can’t cycle often enough)

l Door opened often

l Large amount of food added

l Very warm or very cold room

temperatures

Refrigerator 3

Freezer C

Refrigerator 4

Freezer B

Removing the door shelf fronts

(on some models)

Remove the door shelf fronts for easier

cleaning.

To remove shelf fronts:

1. Remove all items from the shelf.

2. Pull out on the inside tab at each end of

the shelf front.

3. Pull shelf front straight out.

To replace shelf fronts:

1. Line up each end of the shelf front with

the button on the door liner wall.

2. Push shelf front straight back until it

snaps securely into place.

3. Replace items on the shelf.

Removing the door trim (dispenser area)

(on some models)

Remove the trim above the dispenser area

for easier cleaning.

To remove trim:

1. Remove all items from the shelf.

2. Pull straight up at each end of the trim.

To replace trim:

1. Line up each end of the trim above the

trim pocket opening in the door liner wall.

2. Push the trim straight down until it stops.

3. Replace items on the shelf.

Adjusting the door bins

To remove door bins:

1. Lift bin up.

2. Pull bin straight out.

To replace door bins:

1. Slide bin in above desired support button.

2. Push down until it stops.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Refrigerador de Whirlpool

Whirlpool

Whirlpool TOP-FREEZER REFRIGERATOR Manual de usuario

Whirlpool

Whirlpool GI6FDRXXB Instrucciones de montaje

Whirlpool

Whirlpool GS2KVAXVS Instrucciones de montaje

Whirlpool

Whirlpool ED25SM Manual de usuario

Whirlpool

Whirlpool W8TXNWFWB Manual de usuario

Whirlpool

Whirlpool ARC 4170/IX Manual de usuario

Whirlpool

Whirlpool G9IXEFMWS - 19 cu. Ft. Refrigerator Instrucciones de montaje

Whirlpool

Whirlpool ER8AHKXRB02 Manual de usuario

Whirlpool

Whirlpool WRT511SZDM Manual de usuario

Whirlpool

Whirlpool ET8MTKXKQ00 Manual de usuario

Whirlpool

Whirlpool 1188595-W Manual de lista de piezas

Whirlpool

Whirlpool 3ED27DQ Manual de usuario

Whirlpool

Whirlpool ET22DK Manual de usuario

Whirlpool

Whirlpool WRNE282 Guía

Whirlpool

Whirlpool ES5DVAXWA00 Manual de usuario

Whirlpool

Whirlpool UH6F1CWUK Instrucciones de funcionamiento e instalación

Whirlpool

Whirlpool WUR35X24HZ Manual de usuario

Whirlpool

Whirlpool WUR50X24EM Manual de usuario

Whirlpool

Whirlpool W10224664A Manual de usuario

Whirlpool

Whirlpool ED22DK Manual de usuario

Whirlpool

Whirlpool GR2FHTXV Manual de usuario

Whirlpool

Whirlpool ET16AKXL Manual de usuario

Whirlpool

Whirlpool ETWM ws Manual de usuario

Whirlpool

Whirlpool GC3JHAXTL01 Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
