Whirlpool SF111PXSQ2 Manual de usuario

COOKTOP PARTS

For Model: SF111PXSQ2

(Designer White)

4−08 Litho in U.S.A. (jac)(bay) Part No. W10202706 Rev A.

30" GAS FREESTANDING

STANDARD CLEAN RANGE

ELECTRONIC IGNITION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10032070

Instructions

Installation

98015589 Installation Instr

(Template)

W10106860

Guide, Use & Care

98007130 Safer Cooking Tips

98007032 Tech Sheet

98017619W

Cooktop

W10094870

Panel, Manifold

4 98006102 Knob, Burner (4)

5 98007225 Screw

6 98013747 Grate, Burner (2)

7 98004722 Clip, Cooktop (2)

8 98014544 Wire, Ground

9 98013389 Bumper, Cooktop

10 98005000 Screw (3)

11 98017465 Cap, Burner (4)

12 8534079 Screw

13 98008321 Knob, Oven

14 98017537 Burner, Top (4)

BACKGUARD PARTS

For Model: SF111PXSQ2

(Designer White)

W10202706

Illus. Part

No. No. DESCRIPTION

1 Endcap

98005336 White Left

98005337 White Right

2 98006083 Rear, Backguard

3 98006393 Swtich, Rocker

98017735W

Panel, Backguard

5 9757609 Nameplate

7 98015526 Screw

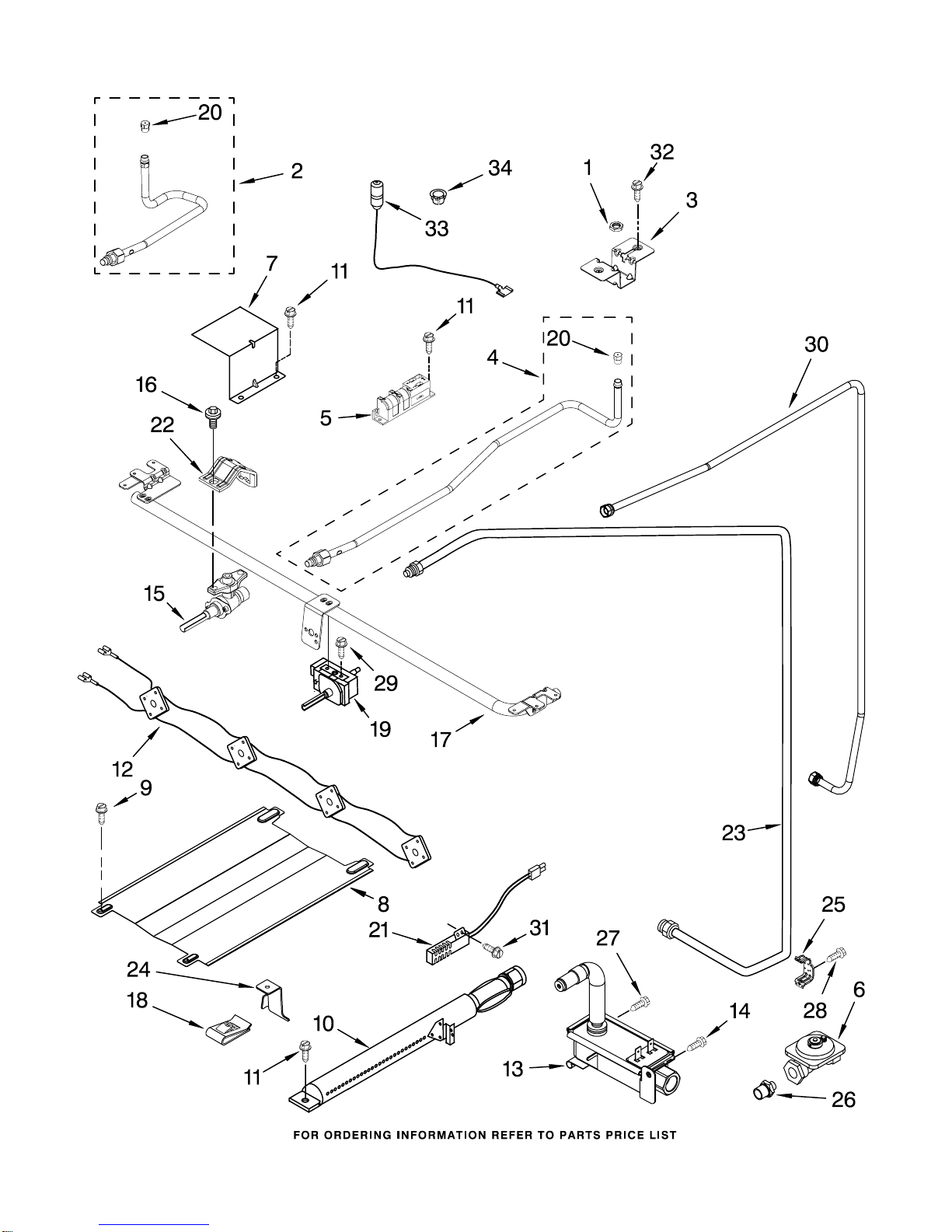

MANIFOLD PARTS

For Model: SF111PXSQ2

(Designer White)

W10202706

MANIFOLD PARTS

For Model: SF111PXSQ2

(Designer White)

W10202706

Illus. Part

No. No. DESCRIPTION

1 98017323 Nut (4)

2 98017582 Venturi, Front (2)

3 98017741 Brkt., Venturi (4)

4 98017359 Venturi, Rear (2)

5 98017954 Spark Module

6 98007411 Regulator

7 98007192 Cover, Module

8 98015099 Spreader, Flame

9 98006632 Screw

10 98012138 Burner, Oven

11 98006633 Screw

12 98014545 Harness, Switch

13 98014893 Valve, Oven

14 98006633 Screw

W10141709

Valve, Burner (4)

16 98017517 Bolt, Valve Mtg

17 98017558 Pipe, Manifold

18 98009179 U−Nut

19 98003984 Thermostat, Oven

98005663 Bolt, T−Stat Mtg

20 98017348 Orifice (4)

21 98005652 Igniter, Oven

Oven Pilot)

22 98017516 Bracket, Valve (4)

23 98007428 Tubing (Regltr to

Oven Valve)

24 98013314 Locator, Burner

25 98007410 Bracket, Regulator

26 98007431 Fitting 3/8to9/16

27 98013634 Screw

28 1180823 Screw

29 98005663 Screw (2)

30 98017171 Tubing, Inlet

31 98005659 Screw

W10146346

Screw

33 Igniter, Top

W10127480

W10127479

RR & RF

W10127481

34 98015032 Clip, Igniter

FOLLOWING PARTS

NOT ILLUSTRATED

W10032010

LP Spud Kit

(For Use With LP)

CHASSIS PARTS

For Model: SF111PXSQ2

(Designer White)

W10202706

CHASSIS PARTS

For Model: SF111PXSQ2

(Designer White)

W10202706

Illus. Part

No. No. DESCRIPTION

1 98003799 Flue Box

2 98013690 Clip, Flue

W10164112

Shield, Insulation

4 98010042 Panel, Side (2)

5 98005502 Clip, Oven Bottom

6 98006710 Counterweight

7 98006739 Wire, Brick

W10166434

Frame, Front

W10153610

Foot, Front (2)

W10058460

Foot, Rear (2)

11 98004449 Bottom, Oven

W10164109

Baffle, Side (2)

13 98003847 Baffle, Base

14 98003830 Rail, Base (2)

15 98012175 Support, Burner

16 98005642 Clip, Bulb (2)

17 98017162 Gasket, Broil Door

18 98009179 U−Nut

W10155121

Screw (4)

20 98015100 Back, Main

21 98017163 Seal, Oven

22 98006633 Screw

24 98007126 Base, Foot

25 98006632 Screw

26 98006715 Shield, Channel

27 98007191 Shield, Lower

29 98014532 Cord, Power

30 98005026 Clip, Tubing

31 98015346 Foil, Side (2)

32 98006634 Screw

33 98004447 Top, Oven

34 Side, Oven

98004452 Right Hand

98004451 Left Hand

35 98013777 Back, Oven

36 98015363 Support, Rear

37 98004498 Bulb, Light

W10114530

Socket, Light

39 98008545 Screw (4)

40 98007205 Cap, Insulation

41 98014105 Cover, Valve

42 98014104 Cover, Socket

INSULATION

W10137227

Insulation, Wrap

W10137233

Insulation, Back

OVEN & BROILER PARTS

For Model: SF111PXSQ2

(Designer White)

W10202706

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 98014136 Rack, Oven (2)

2 98003480 Grill, Broiler

3 98016005 Pan, Broiler

4 98016570 Rack, Broiler

5 98004761 Bracket, Rack (2)

6 98004715 Guide, Rack(4)

W10154379

Hinge, Brlr Door

8 98006727 Screw

W10162115

Liner, Door

W10137230

Insulation, Door

12 98009342 Panel, Door

13 98008486 Handle, Brlr Door

14 98004052 Bumper, Door(2)

15 98006633 Screw

16 98004219 Screw

17 98008341 Cover, Guide(4)

DOOR PARTS

For Model: SF111PXSQ2

(Designer White)

W10202706

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8533842 Screw

2 98008699 Screw (2)

3 98010182 Liner, Door

W10137238

Insulation, Door

5 Clip, Glass

98004952 Left

98004953 Right

6 98017875 Hinge, Door (2)

98017767W

Trim, Top Door

98017961W

Panel, Door

9 Glass, Inner

98006801 Coated, Reflective

W10164708

Uncoated

98017790W

Handle, Oven Door

11 98010557 Actuator (2)

12 98004993 Screw

13 Side Trim, Door(2)

98016787W

White Left

98016795W

White Right

14 98008544 Screw

15 Retainer

98004564 Right

98004629 Left

16 98010185 Lower Trim, Door

17 98004219 Screw

18 98004227 Bumper

19 98004938 Insulation,

Retainer−Top

20 98012904 Insulation,

Retainer−Bottom

21 98017250 Retainer, Upper

OPTIONAL PARTS (NOT INCLUDED)

For Model: SF111PXSQ2

(Designer White)

W10202706

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

8316781 Wire, Black

14 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

242827 Wire, Yellow

14 Ga. 150 c

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

WIRING HARNESS PARTS

6610437 Harness, Control

98005896 Clip, Wire

3196696 Clip, Wire

3391018 Cable Tie−Push Mnt

98015022 Bushing, Snap (2)

98005894 Clamp, Cord

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit(Uncut)

ANTI−TIP KIT

98017833 Anti−Tip Kit
