COOKTOP PARTS
1
For Model: SF110AXSQ2
(Designer White)
4−08 Litho in U.S.A. (jac)(bay) Part No. W10202705 Rev A.
30" GAS FREESTANDING
STANDARD CLEAN RANGE
ELECTRONIC IGNITION
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10032070
Instructions
Installation
98015589 Installation Instr
(Template)
W10106860
Guide, Use & Care
98007130 Safer Cooking Tips
98007032 Tech Sheet
2
98017619W
Cooktop
3
W10094870
Panel, Manifold
4 98006102 Knob, Burner (4)
5 98007225 Screw
6 98013747 Grate, Burner (2)
7 98004722 Clip, Cooktop (2)
8 98014544 Wire, Ground
9 98013389 Bumper, Cooktop
10 98005000 Screw (3)
11 98017465 Cap, Burner (4)
12 8534079 Screw
13 98008321 Knob, Oven
14 98017537 Burner, Top (4)
BACKGUARD PARTS
2
For Model: SF110AXSQ2
(Designer White)
W10202705
Illus. Part
No. No. DESCRIPTION
1 Endcap
98005336 White Left
98005337 White Right
2 98006083 Rear, Backguard
3
98017736W
Panel, Backguard
4 9757609 Nameplate
5 98015526 Screw
MANIFOLD PARTS
3
For Model: SF110AXSQ2
(Designer White)
W10202705

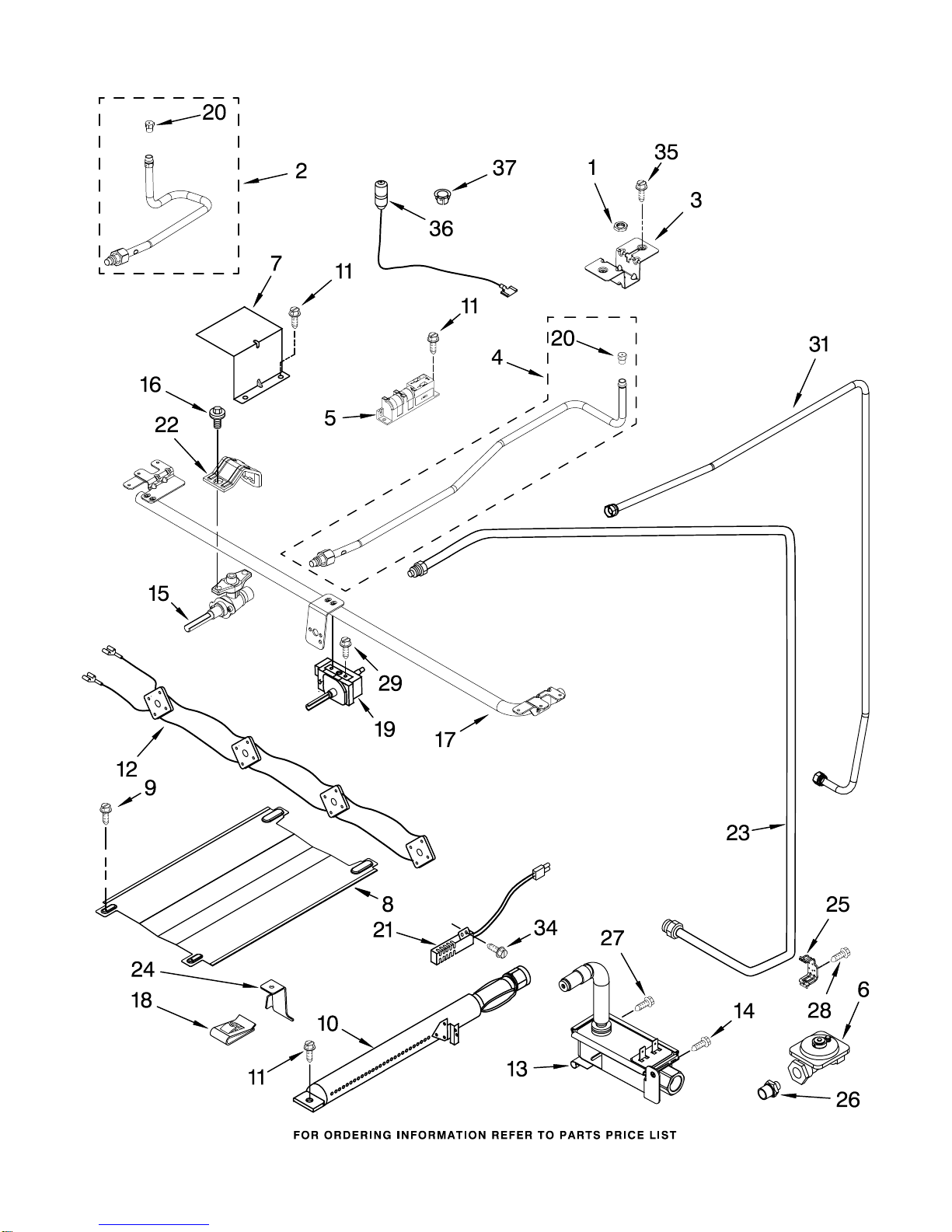

MANIFOLD PARTS
4
For Model: SF110AXSQ2
(Designer White)
W10202705
Illus. Part
No. No. DESCRIPTION
1 98017323 Nut (4)
2 98017582 Venturi, Front (2)
3 98017741 Brkt., Venturi (4)
4 98017359 Venturi, Rear (2)
5 98017954 Spark Module
6 98007411 Regulator
7 98007192 Cover, Module
8 98015099 Spreader, Flame
9 98006632 Screw
10 98012138 Burner, Oven
11 98006633 Screw
12 98014545 Harness, Switch
13 98014893 Valve, Oven
14 98006633 Screw
15
W10141709
Valve, Burner (4)
16 98017517 Bolt, Valve Mtg
17 98017558 Pipe, Manifold
18 98009179 U−Nut
19 98003984 Thermostat, Oven
20 98017348 Orifice (4)
21 98005652 Igniter, Oven
Oven Pilot)
22 98017516 Bracket, Valve (4)
23 98007428 Tubing (Regltr to
Oven Valve)
24 98013314 Locator, Burner
25 98007410 Bracket, Regulator
26 98007431 Fitting 3/8to9/16
27 98013634 Screw
28 1180823 Screw
29 98005663 Screw (2)
31 98017171 Tubing, Inlet
34 98005659 Screw
35
W10146346
Screw
36 Igniter, Top
W10127479
RF & RR
W10127480
LF
W10127481
LR
37 98015032 Clip, Igniter
FOLLOWING PARTS
NOT ILLUSTRATED
W10032010
LP Spud Kit
(For Use With LP)
CHASSIS PARTS
5
For Model: SF110AXSQ2
(Designer White)
W10202705
CHASSIS PARTS
6
For Model: SF110AXSQ2
(Designer White)
W10202705
Illus. Part
No. No. DESCRIPTION
1 98003799 Flue Box
2 98013690 Clip, Flue
3
W10164112
Shield, Insulation
4 98010042 Panel, Side (2)
5 98005502 Clip, Oven Bottom
6 98006710 Counterweight
7 98006739 Wire, Brick
8
W10166434
Frame, Front
9
W10153610
Foot, Front (2)
10
W10058460
Foot, Rear (2)
11 98004449 Bottom, Oven
12
W10164109
Baffle, Side (2)
13 98003847 Baffle, Base
14 98003830 Rail, Base (2)
15 98012175 Support, Burner
16 98017162 Gasket, Broil Door
17 98005642 Clip, Bulb (2)
18 98009179 U−Nut
19
W10155121
Screw (4)
20 98015100 Back, Main
21 98017163 Seal, Oven
22 98006633 Screw
24 98007126 Base, Foot
25 98006632 Screw
26 98006715 Shield, Channel
27 98007191 Shield, Lower
29 98014532 Cord, Power
30 98005026 Clip, Tubing
31 98015346 Foil, Side (2)
32 98006634 Screw
33 98004447 Top, Oven
34 Side, Oven
98004452 Right Hand
98004451 Left Hand
35 98005768 Back, Oven
36 98015363 Support, Rear
39 98008545 Screw (4)
40 98007205 Cap, Insulation
42 98014105 Cover, Valve
43 98014104 Cover, Socket
INSULATION
W10137227
Insulation, Wrap
W10137233
Insulation, Back
OVEN & BROILER PARTS
7
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
For Model: SF110AXSQ2
(Designer White)
W10202705
1 98014136 Rack, Oven (2)
2 98003480 Grill, Broiler
3 98016005 Pan, Broiler
4 98016570 Rack, Broiler
5 98004761 Bracket, Rack (2)
6 98004715 Guide, Rack (4)
7
W10154379
Hinge, Brlr Door
8 98006727 Screw
9
W10162115
Liner, Door
11
W10137230
Insulation, Door
12 98009342 Panel, Door
13 98008486 Handle, Brlr Door
14 98004052 Bumper, Door(2)
15 98006633 Screw
16 98004219 Screw
17 98008341 Cover, Guide (4)

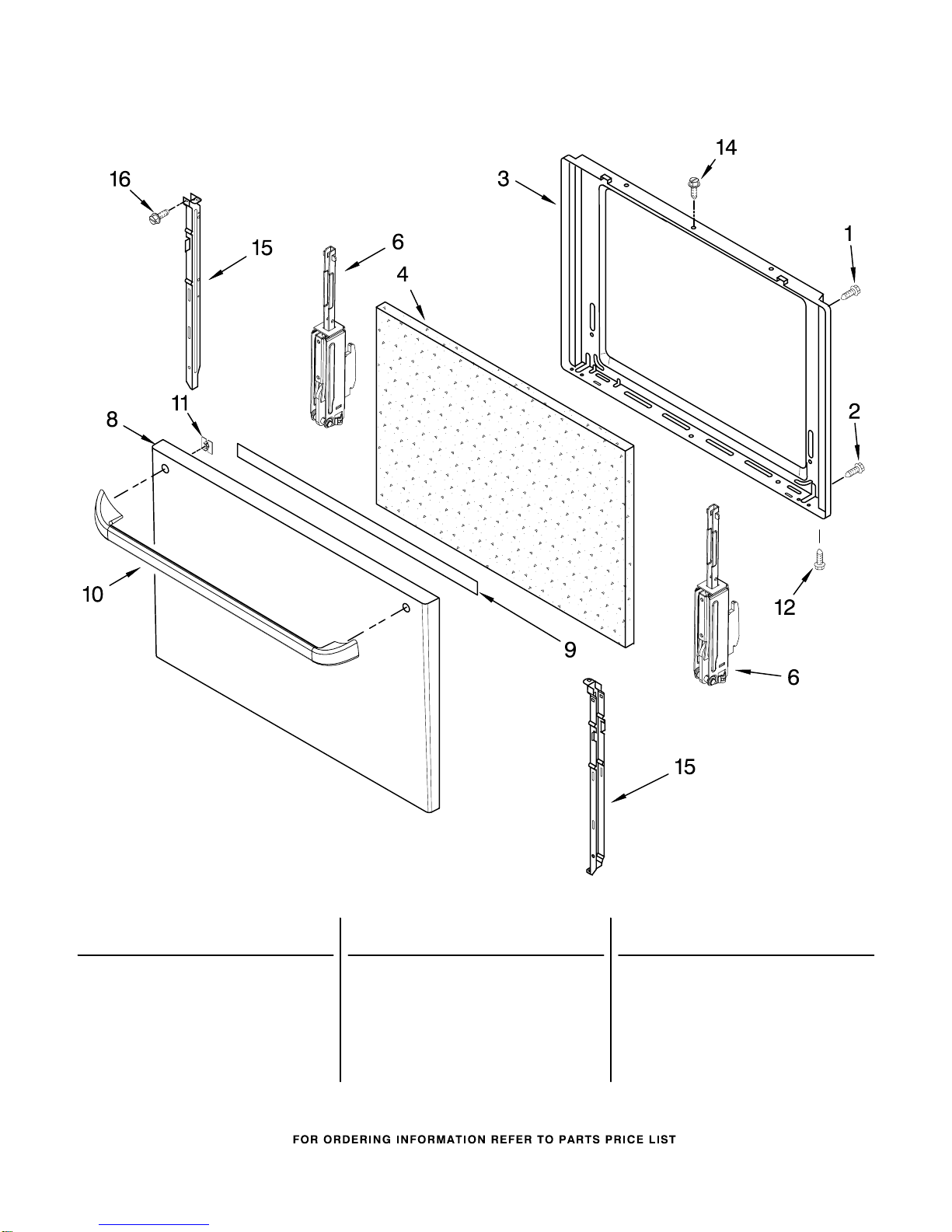

DOOR PARTS
8
For Model: SF110AXSQ2
(Designer White)
W10202705
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8533842 Screw
2 98008699 Screw (2)
3 98017966 Liner, Door
4
W10137223
Insulation, Door
6 Hinge, Door
98017873 Left
98017875 Right
8
98017968W
Panel, Door
9 98017250 Retainer, Upper(2)
10
98017915W
Handle, Oven Door
11 98017967 Bracket, Handle(2)
12 98004993 Screw
14 98006727 Screw
15 Retainer
98004564 Right
98004629 Left
16 98004219 Screw
OPTIONAL PARTS
9
For Model: SF110AXSQ2
(Designer White)
W10202705
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
Following Parts Not Illustrated
SPLICING WIRES−−25FT.
LENGTH
242828 Wire, Black
12 Ga. 150 c
8316781 Wire, Black
14 Ga. 150 c
242821 Wire, Blue
14 Ga. 150 c
242822 Wire, Brown
14 Ga. 150 c
242830 Wire, Brown
14 Ga. 200 c
242823 Wire, Green
14 Ga. 150 c
242824 Wire, Orange
14 Ga. 150 c
242825 Wire, Red
14 Ga. 150 c
242831 Wire, Red
14 Ga. 200 c
242827 Wire, Yellow
14 Ga. 150 c
REFINISHING MATERIAL
799832 Kit, Porcelain
Repair (White)
242756 Touch−Up
Self−Clean(1/2 Pt)
261582 Grease
INSULATION
261514 Insulation,
Fiberglass (1−1/2"
x 24" x 120")
240132 Insulation,
Fiberglass (2−1/2"
x 22" x 120")
PAINT, TOUCH−UP (1/2oz.)
72017 White
4392899 Biscuit
511873 White Porcelain
(2 Oz.)
WIRING HARNESS PARTS
6610434 Harness, Main
3196696 Clip, Wire
3391018 Cable Tie−Push Mnt
98015022 Bushing, Snap (2)
98005894 Clamp, Cord
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
4392901 Biscuit
285006 Superior Black
206922 Primer (White)
PAINT, BULK (1 qt.)
799344 White (Uncut)
4392900 Biscuit(Uncut)
ANTI−TIP KIT
98017833 Anti−Tip Kit
