Whirlpool RY160LXTS0 Manual de usuario

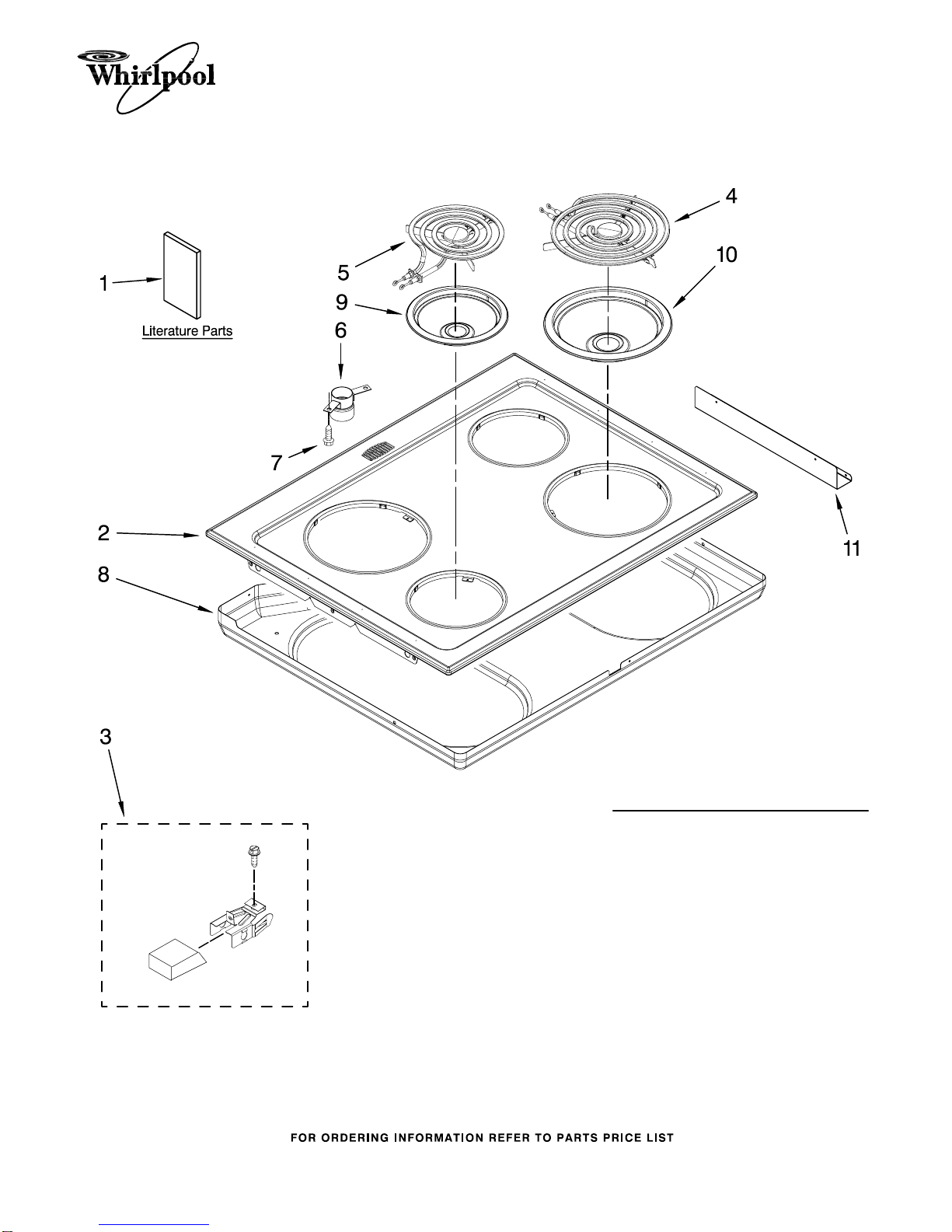

COOKTOP PARTS

For Models: RY160LXTS0

(Stainless Steel)

10−07 Litho in U.S.A. (mo) Part No. W10168891 Rev. A

30" Slide−In

Electric Range

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10165716

Use & Care Guide

W10166918

Wiring Diagram

W10165721

Installation

Instructions

2 74011071 Cooktop, (Black)

3 12001676 Kit, Hardware

4 74007159 Element RF/LR(2)8"

5 74007158 Element LF/RR(2)6"

6 74005759 Tube, Vent Upper

7 74003357 Screw (4)

8 74006046 Bottom, Burner Box

9 74001212 Bowl, Drip(Chr 6")

10 74001213 Bowl, Drip(Chr 8")

11 74010894 Bracket,Burner Box

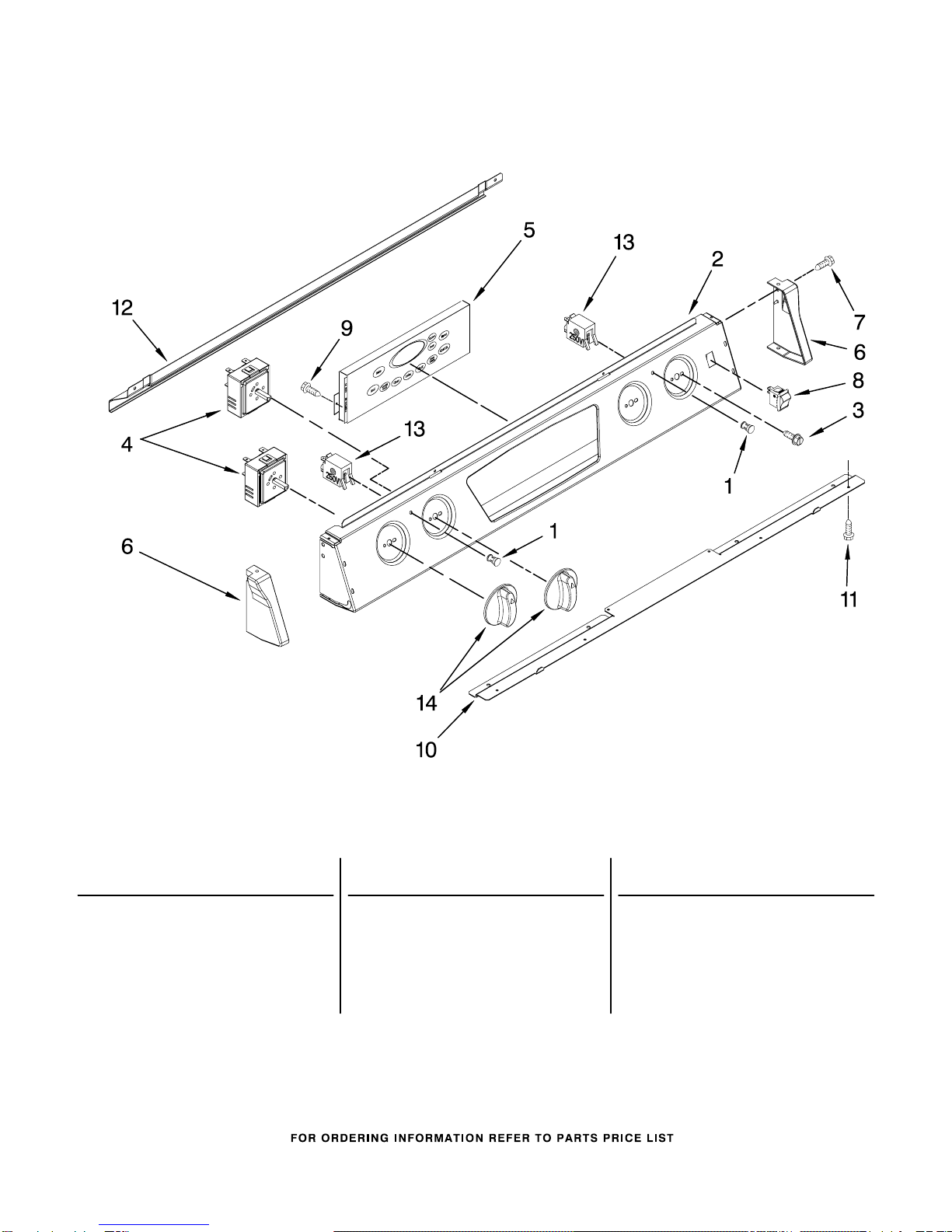

CONTROL PANEL PARTS

For Models: RY160LXTS0

(Stainless Steel)

W10168891

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

7730P011−60

Lens

W10168895

Panel, Control

7101P309−60

Screw, Switch (10)

4 Switch, Infinte

7403P239−60

8" (RF/LR)(2)

7403P238−60

6" (LF/RR) (2)

W10169865

Control W/Overlay

6 End Cap

74010835 Left Black

74010834 Right Black

7 74009527 Screw, End Cap

8 74008718 Switch, Rocker

9 74004288 Screw, Control

10 74004785 Support,

Control Panel

7101p338−60

Screw, Support (4)

12 74001337 Shield, Heat

13 74004153 Light, Indicator

14 74003612 Knob (4)

CHASSIS PARTS

For Models: RY160LXTS0

(Stainless Steel)

W10168891

CHASSIS PARTS

For Models: RY160LXTS0

(Stainless Steel)

W10168891

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Panel, Shield

74010821 Left

74010822 Right

2 74010897 Latch Assembly

3 74001075 Lever, Lock

4 74011465 Main Back

5 74006096 Cover, Main Wire

6 74010815 Extension, Back

7 Y700502 Screw

8 74006364 Insulator, Cord

9 74005264 Panel, Access

11 74010823 Fan, Cooling

12 74008298 Block, Bare Wire

13 74004223 Connector, Cable

14 74003040 Element, Broil

15 74004943 Sensor, Oven

W10165822

Tube, Vent Lower

17 74010886 Tube, Vent Upper

18 71001394 Screw (4)

19 74010817 Holder, Vent Tube

20 74008597 Smoke Eliminator

W10165724

Plate, Smoke Elm.

22 74010885 Light Assembly

23 74004180 Bracket,Pwr Supply

7407P103−60

Bulb, Oven

25 74010831 Trim, Side (Black)

26 74003976 Screw,Shoulder (4)

27 74010883 Element, Bake

28 74010884 Support, Oven Rear

29 71001394 Screw

30 74011142 Hinge (2)

7101P112−60

Screw, Hinge (4)

32 74010818 Switch, Hi−Limit

33 74003975 Screw, Lever (2)

34 74010820 Extention, Shield

35 74003386 Support, Element

36 74010805 Leg, Leveling

37 74010899 Pedestal, Bottom

38 74010882 Pedestal, Front

39 74007129 Support

40 74003565 Runner, Drawer (2)

41 74004078 Roller, Drawer (2)

42 74005231 Shaft, Roller (2)

43 74005230 Nut, Lock (2)

44 74006522 Retainer, Bottom

45 74005564 Bracket, Anti−Tip

7101P124−60

Screw, w/Washer

47 74010812 Support, Ov Bottom

48 74003976 Screw,Shoulder (2)

49 74010807 Cover, Front

INSULATION

74010987 Insulation, Wrap

W10165725

Insulation, Back

74011207 Insulation,

Oven Bottom

DOOR PARTS

For Models: RY160LXTS0

(Stainless Steel)

W10168891

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10168887

Panel, Door (SS)

2 74006635 Screw, Handle (2)

3 74011457 Baffel, Retainer

4 74001530 Screw 8AB 1/2

5 74003645 Glass, Inner (2)

6 74005546 Spacer, Rubber

7 74001574 Nut, Snap (4)

8 74011456 Lining, Door

9 74011458 Bracket, Glass (2)

10 74003647 Insulation, Door

11 Y700502 Screw

12 74011048 Insulation, Foil

13 74010043 Insulation, Door

14 74011049 Shield, Door

15 74004224 Tape, White

16 74010231 Glass, Coated

17 74003649 Glass, Inner Clear

18 74011050 Retainer, Glass

19 74009029 Gasket, Window

W10168886

Tape, Protective

7112P034−60

Clip, Glass (2)

7201P046−60

Seal, Door

23 74008318 Handle, Door

24 8303811 Nameplate, Logo

DRAWER AND RACK PARTS

For Models: RY160LXTS0

(Stainless Steel)

W10168891

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 74001757 Rack, Oven (2)

2 74008333 Drawer, Storage

3 74004310 Screw, Panel

4 74010896 Bracket, Drawer

7760P229−60

Panel, Dwr (SS)

6 74001530 Screw, Panel

7 74005230 Nut, Lock

2404F030−51

Lining, Drawer

9 74005546 Spacer, Rubber

10 74004078 Roller, Drawer (2)

11 74005231 Shaft, Roller (2)

7103P082−60

Nut

13 74009841 Handle, Drawer

OPTIONAL PARTS (NOT INCLUDED)

For Models: RY160LXTS0

(Stainless Steel)

W10168891

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

242827 Wire, Yellow

14 Ga. 150 c

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit(Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

3191048 Cleaner, Glass

WIRING HARNESS PARTS

74010890 Harness, Sensor

74010891 Coil, Harness (Rt)

74010893 Coil,Harness (Lt)

W10169071

Harness, Main

74011206 Cable, Assy.(Flex)

74006811 Clip, Wire

7101P027−60

Screw, Ground
