UseAndCare

Note to You 2

Important Safety

lnstnrctions 3

Parts and Features 6

Using Your Range 7

Usin the

Setf-t!leaning Cycle 30

Caring for

Your Range 35

If You Need

Assistance

or Service 40

Warranty 44

1-800-253-I 301

Call us with questions or comments.

SELF-CLEANING ELECTRIC RANGE

MODEL RF385PXY5

rolscr

A Note to You

Thank you for buying a Whirlpool@ appliance.

Because your life is getting busier and more complicated, Whirlpool ranges are easy to use,

save time, and help you manage your home better. To ensure that you will enjoy years of

trouble-free operation, we developed this Use and

Care

Guide. It is full of valuable informa-

tion on how to operate and maintain your appliance properly and safely. Please read it

carefully. Also, please complete and mail the Ownership Registration Card provided with

your appliance. This will help us notify you about any new information on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these

symbols and follow any instructions given. Here is a brief explanation of the use of each

symbol.

This symbol will help alert you to such

dangers as personal injury, burns, fire,

and electrical shock.

This symbol will help you avoid actions

which could cause product damage

(scratches, dents, etc.) and damage to

your personal property.

Our Consumer Assistance Center number, l-800-253-1 301,

is toll-free, 24 hours a day.

If you ever have a question concerning your appliance’s operation, or if you need service,

first see “If You Need Assistance or Service” on page 40. If you need further help, feel free to

call our Consumer Assistance Center. When calling, you will need to know your appliance’s

complete model number and serial number. You can find this information on the model and

serial number plate (see diagram on page 6). For your convenience, we have included a

handy place below for you to record these numbers, the purchase date from the sales slip,

and your dealer’s name and telephone number. Keep this book and the sales slip together in

a safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer

Name

Dealer

Phone

Important Safety Instructions

To reduce the risk of fire, electrical shock, injury to

persons, or damage when using the range, follow

basic precautions, including the following:

General

Read all instructions before using

the range.

Use the range only for its in-

tended use as described in this

Install or locate the range only in

accordance with the provided

Installation Instructions. The

range must be installed by a

manual.

qualified installer. The range must a fffdff

be properly connected to electri-

cal supply and grounded.

Do not touch surface units, areas

.@ @

near units, heating elements, or

interior surfaces of oven. Surface

units and heating elements may

be hot even though they are dark

in color. Areas near surface units

WARNING: To reduce the risk of and interior surfaces of an oven

tipping the appliance, the appli- become hot enough to cause

ante must be secured by a burns. During and after use, do

properly installed anti-tip bracket. not touch or let clothing or other

To check if the bracket is in- flammable materials contact

stalled properly, see “The anti-tip surface units, areas near units,

bracket” on page 29. heating elements, or interior

CAUTION: Do not store things surfaces of oven until the have

children might want above the r

had sufficient time to coo. Other

range. Children could be burned surfaces of the range, such as

or injured while climbing on it. the oven vent opening, the sur-

Do not leave children alone or face near the vent opening, the

unattended in area where the cooktop, and the oven door and

range is in use. They should window, could also become hot

never be allowed to sit or stand enough to cause burns.

on any part of the range. They

could be burned or injured.

Do not operate the range if

it is damaged or not working \

properly. @

Do not use the range for

Do not wear loose or hanging

warming or heating the room. garments when using the range.

Persons could be burned or They could ignite if they touch a

injured, or a fire could start. hot surface unit and you could be

burned.

continued on next page

*Use only d

or damp po holders on hot

r pot holders. Moist

surfaces could result in burns

from steam. Do not let pot

holder touch hot heating ele-

ments. Do not use a towel or

bulky cloth for a pot holder. It

could catch on fire.

Keep range vents unobstructed.

*Do not heat unopened contain-

ers. They could explode. The

hot contents could cause burns

and container particles could

cause Injury.

Do not store flammable materi-

als on or near the range. The

fumes could create an explosion

and/or fire hazard.

When using the cooktop

Make sure the reflector bowls

are in place during cooking.

Cooking without reflector bowls

could subject the wirin and

components undernea h them

to damage.

Do not line reflector bowls with

aluminum foil or other liners.

Improper installation of these

liners could result in a risk of

electric shock or fire.

Select a pan with a flat bottom

that is about the same size as

the surface unit. If pan is smaller

than the surface unit, some of

the heating element will be

exposed and could result in the

igniting of clothing or pot hold-

ers. Correct

pan

size also im-

proves cooking efficiency.

Check to be sure lass cook-

ing utensils are sa e for use on3

the range. Only certain types

of glass, glass-ceramic,

ceramic, earthenware, or other

glazed utensils are suitable for

cooktops without breaking due

to the sudden change in

temperature.

*Never leave surface units

unattended at high heat set-

tings. A boilover could result

and cause smokin

gr;;iy splllovers tI! and

at could

@Turnpan handles inward, but

not over other surface units.

This will help reduce the

chance of burns, i

flammable materia s, and spills9niting of

due to bumping of the pan.

When using the oven

@Always position oven rack(s)

in desired location while oven

is cool. If a rack must be

removed while oven is hot, do

not let pot holder contact hot

heating element in oven.

@Usecare when opening oven

door. Let hot air or steam

escape before removing or

replacing food.

Grease

Grease is flammable. Do not

allow grease to collect around

cooktop or in vents. Wipe spill-

overs immediately. *Do not use oven cleaners. No

commercial oven cleaner or

oven liner

any kind sc:

rotective coating of

ould be used in or

around any part of the oven.

*Before self-cleaning the oven,

@Donot use water on grease remove broiler pan, broiler gnd,

fires. Never pick up a flaming oven racks, and other utensils.

pan. Smother flaming pan on Do not use your oven to clean

range by coverin

fitted lid, cookie s7lwith a well- miscellaneous parts unless you

eet, or flat are instructed to do so in this

tray. Flaming grease outside of Use and Care Guide.

Iian can be extin uished with @Donot soak removable heating

aking soda or, i

9available, a elements in water. The element

multipurpose dry chemical or

foam-type extinguisher. will be damaged and shock or

fire could result.

Care and cleaning

@Donot clean door heat seal. It

is essential for a ood seal.

*Small amounts of formaldehyde Care should be ta

%en not to

and carbon monoxide are 9iven

off in the Self-Cleaning cyc e rub, damage, or move the seal.

from fiberglass insulation and Clean only parts recommended

in this Use and Care Guide.

food decomposition. Si

exposure to these subs4nificant

antes

Do not

repair or replace any

could cause cancer or repro- part of the range unless specifi-

ductive harm. Exposure can be tally recommended in this

minimized by venting with a manual. All other servicing

hood or open window and should be referred to a quali-

wiping out excess food spills fied technician.

prior to self-cleaning. aDisconnect the electrical supply

before servicing the range.

- SAVE THESE INSTRUCTIONS -

Parts and Features

This section contains captioned illustrations of your range. Use them to become

familiar with

the location and appearance of all parts and features.

Plug-in surface

unit with

Dorcelain-enamel

deflector bowl-

(Model RF385PXY,

Q series, includes

chrome trim ring)

Anti-tip floor

bracket y

(for information on

optional wall-

mounted anti-tip

bracket kii, see

page 29)

Removable _

storage drawer’

H Oven vent

Automatk oven

light switch

element

Control panel

Left Left

front rear

control control

knob knob

Electronic

oven

control

Right

rear Manual Fiig;

oven

control light control

knob

switch knob

Surface unit marker

Surface unit indicator light

Using Your Range

In This Section

Page

Using the surface units.. ................... .7

Positioning racks and pans.. .............8

For best air circulation .................... .I0

Using aluminum foil for baking.. .....I0

The electronic oven control.. ...........ll

Setting the clock ............................... 12

Using the electronic Minute Timer ..I 2

Using the Off/Cancel pad ................ .13

Audible signals ................................. 13

Baking/roasting ................................ 14

Page

Ad$;J;ng the oven temperature

............................................... 15

Broiling .............................................. 16

Broiling tips ....................................... 17

Energy saving tips ............................ 18

Using the electronic MEALTIMER’”

control ............................................... 18

The oven vent ................................... 28

The storage drawer .......................... 28

The anti-tip bracket .......................... 29

Optional door panel pat ................. .28

To obtain the best cooking results possible, you must operate your range properly. This

section gives you important information for efficient and safe use of your range.

Using the surface units

Push in control knobs before turning

them to a setting. You can set them any-

where between HI and OFF.

Surface unit markers

The solid dot in the surface unit marker

shows which surface unit is turned on by

that knob.

Surface unit indicator lights

One of the Surface Unit Indicator Lights on

the control panel will glow when a surface

unit is on.

Fire Hazard

Be sure all control knobs are turned to

OFF and all indicator lights are OFF

when you are not cooking.

Someone could be burned or a fire

could start if a surface unit is acciden-

tally left ON.

Until you get used to the settings,

use

the following as a guide.

For best results,

start cooking at the high setting; then turn

the control knob down to continue cooking.

SElTlNG

Medium-high

Medium

(opposite OFF)

Medium-low

RECOMMENDED USE

. To start foods cooking.

l To bring liquids to a boil.

. To hold a rapid boil.

. To fry chicken or pan-

cakes.

l For gravy, pudding, and

icing.

l To cook large amounts

of vegetables.

l To keep food cooking

after starting it on a

hiaher settina.

l To keep food warm until

ready to serve.

Cookware tips

l Select a pan that is about the same size

as the surface unit.

NOTE: For best results and greater

energy efficiency,

use only flat-bottomed

cookware that makes good contact with

the surface units. Cookware with rounded,

warped, ribbed (such as some porcelain

enamelware), or dented bottoms could

cause severe overheating, which damages

the cookware and/or surface unit.

You can, however, use the newer

cookware available with slightly indented

bottoms or very small expansion channels.

This cookware is specially designed to

provide the good contact needed for best

cooking results.

Also, woks, canners, and teakettles with

flat bottoms suitable for use on your

cooktop are now available in most stores

that sell housewares.

The pan

should have straight sides and a

tight-fitting lid.

Choose medium to heavy gauge

(thick-

ness) pans that are fairly lightweight.

The pan material (metal or glass) affects

how fast heat transfers

from the surface

unit through the pan material and how

evenly heat spreads over the pan bottom.

Choose pans that provide the best cooking

results.

Handles should be made of sturdy, heat-

resistant material and be securefy at-

tached to the pan.

NOTES:

If a surface unit

stays red for a long time,

the bottom of the pan is not flat enough or

is too small for the surface unit. Prolonged

usage of incorrect utensils could result in

damage to the surface unit, cooktop,

wiring, and surrounding areas. To prevent

damage, use correct utensils, start cook-

ing on HI, and turn control down to con-

tinue cooking.

l Do

not leave

an empty utensil, or one

which has boiled dry, on a hot surface unit.

The utensil could overheat and could

damage the utensil or surface unit.

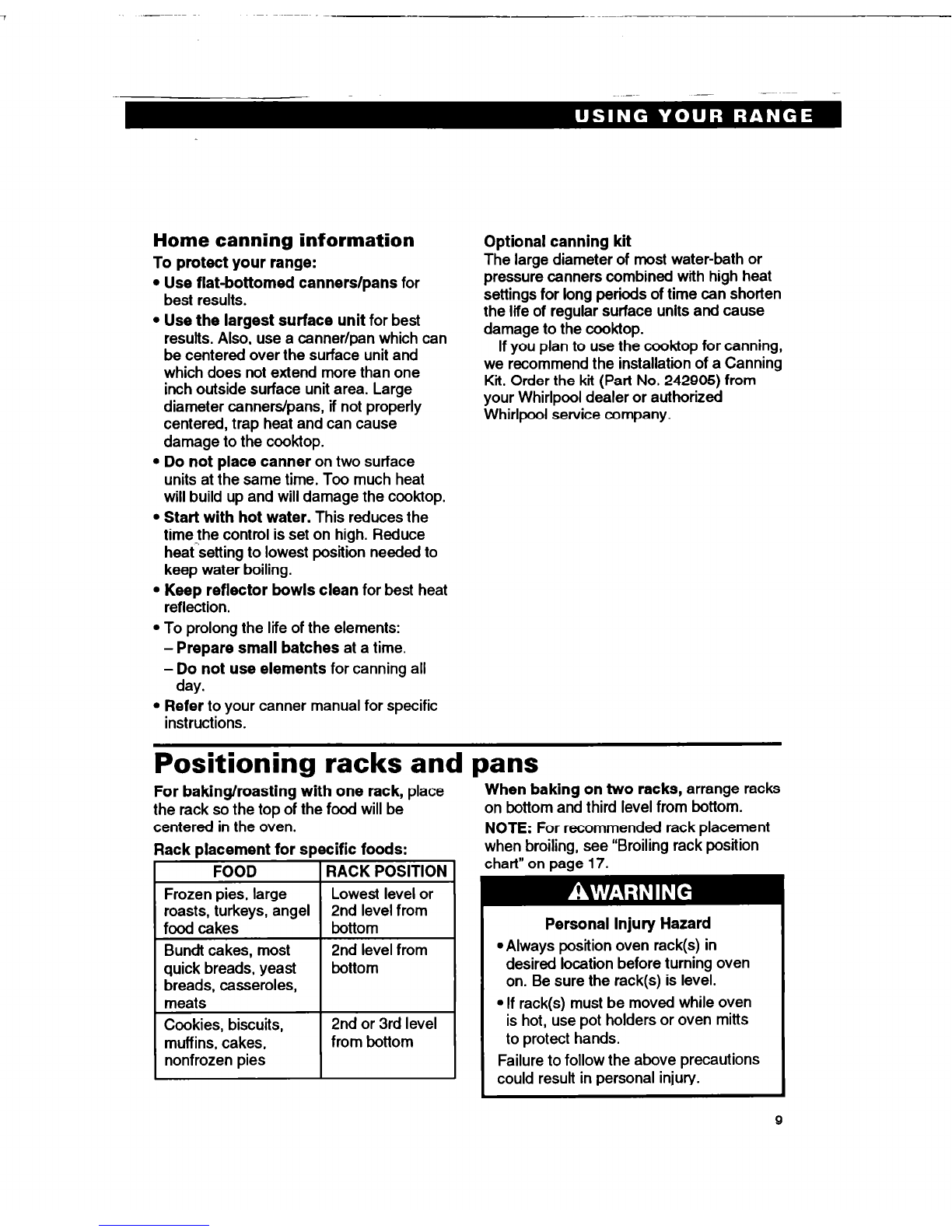

Home canning information

To protect your range:

Use flat-bottomed canners/pans

for

best results.

Use the largest surface unit

for best

results. Also, use a canner/pan which can

be centered over the surface unit and

which does not extend more than one

inch outside surface unit area. Large

diameter canners/pans, if not properly

centered, trap heat and can cause

damage to the cooktop.

Do not place canner

on two surface

units at the same time. Too much heat

will build up and will damage the cooktop.

Start with hot water.

This reduces the

timethe control is set on high. Reduce

heat setting to lowest position needed to

keep water boiling.

Keep reflector bowls clean

for best heat

reflection.

l To prolong the life of the elements:

- Prepare small batches

at a time.

- Do not use elements

for canning all

day.

Refer

to your canner manual for specific

instructions.

Optional canning kit

The large diameter of most water-bath or

pressure canners combined with high heat

settings for long periods of time can shorten

the life of regular surface units

and

cause

damage to the cooktop.

If you plan to use the cooktop for canning,

we recommend the installation of a Canning

Kit. Order the kii (Part No. 242905) from

your Whirlpool dealer or authorized

Whirlpool service company.

Positioning racks and pans

For baking/roasting with one rack,

place

the rack so the top of the food will be

centered in the oven.

Rack placement for specific foods:

FOOD j RACK POSITION

Frozen pies, large I Lowest level or

roasts, turkeys, angel 2nd level from

foodcakes - - 1 bottom

Bundt cakes, most 2nd level from

quick breads, yeast bottom

breads, casseroles,

meats

Cookies, biscuits,

muff ins, cakes,

nonfrozen pies

2nd or 3rd level

from bottom

When baking on two racks,

arrange racks

on bottom and third level from bottom.

NOTE:

For recommended rack placement

when broiling, see “Broiling rack position

chart” on page 17.

Personal Injury Hazard

9Always position oven rack(s) in

desired location before turning oven

on. Be sure the rack(s) is level.

l If rack(s) must be moved while oven

is hot, use pot holders or oven mitts

to protect hands.

Failure to follow the above precautions

could result in personal injury.

For best air circulation

Hot air must circulate around the pans in the

oven for even heat to reach all parts of the

oven. This results in better baking.

Place

the pans so that one is not directly

over the other.

For best results, allow

1l/2 to 2 inches

(4-5 cm) of space around each pan and

between pans and oven walls. There must

be a minimum space of 1 inch (2.5 cm).

Use

only one cookie sheet in the oven at

one time.

Use the following as a guide to determine

where to place the pans:

One pan

Place in the center of the oven rack.

Two pans

Place in opposite corners of the oven rack.

Three or four pans

Place in opposite corners on each oven

rack. Stagger pans so no pan is directly

over another.

Using aluminum foil for baking

Use aluminum foil to catch spillovers from

pies or casseroles:

Place

the foil on the oven rack below the rack

with the food.

Turn up

foil edges and

make

sure

foil is about 1 inch (3 cm) larger all

around than the dish holding the food.

Do not cover

the entire rack with aluminum

foil. It will reduce air circulation and cause

poor cooking results.

Do not line

oven bottom or entire oven rack

with foil or other liners. Poor baking will result.

Electrical Shock and Fire Hazard

Do not allow foil to touch the heating

elements.

Failure to follow this precaution could

result in electrical shock or fire hazard

and damage to the elements.

Tabla de contenidos

Otros manuales de Rango de Whirlpool

Whirlpool

Whirlpool SF3000EY Manual de usuario

Whirlpool

Whirlpool SF216LXS Manual de usuario

Whirlpool

Whirlpool RF317PXV Manual de usuario

Whirlpool

Whirlpool SF3000SG Manual de usuario

Whirlpool

Whirlpool 30" (76.2 CM) FREESTANDING GAS RANGES Manual de usuario

Whirlpool

Whirlpool SF31OPEW Manual de usuario

Whirlpool

Whirlpool SF114PXST2 Manual de usuario

Whirlpool

Whirlpool SF378LEPS3 Manual de usuario

Whirlpool

Whirlpool 30 " Eye-Level Gas Range Manual de usuario

Whirlpool

Whirlpool WGG555SOBS Manual de usuario

Whirlpool

Whirlpool RF301OXTW - Electric Range Manual de usuario

Whirlpool

Whirlpool SS3004SR Manual de usuario

Whirlpool

Whirlpool RJE-365B Manual de usuario

Whirlpool

Whirlpool RF340BXK Manual de usuario

Whirlpool

Whirlpool FGS337G Instrucciones de funcionamiento

Whirlpool

Whirlpool SS310PEB Manual de usuario

Whirlpool

Whirlpool WFE515S0ES Manual de usuario

Whirlpool

Whirlpool RF354BXB Manual de usuario

Whirlpool

Whirlpool 30" GW399LXU Guía del usuario

Whirlpool

Whirlpool RF365BXY Manual de usuario

Whirlpool

Whirlpool RS675PXGB Manual de usuario

Whirlpool

Whirlpool SF377PEGT5 Manual de usuario

Whirlpool

Whirlpool Roper RME30000 Manual de usuario

Whirlpool

Whirlpool RS363BXT Manual de usuario

Manuales populares de Rango de otras marcas

Samsung

Samsung FCQ321HTUW Manual de usuario

Kenmore

Kenmore 790.45712 Manual de usuario

Wolf

Wolf CHR CHSSR Manual de usuario

Smeg

Smeg Built-in Microwave Oven Manual de instrucciones

Zanussi

Zanussi ZCG054G Manual de usuario

Frigidaire

Frigidaire 316000635 Manual de usuario

GE JCSS630 Manual de usuario

Samsung

Samsung NX58M9960P series Manual de usuario

Hotpoint

Hotpoint RB524R Guía de instalación

Amana

Amana ART6610 SERIES Manual de usuario

Maytag

Maytag MERH770WB Manual de usuario

Fulgor Milano

Fulgor Milano SOFIA Manual de usuario

Premier

Premier EF-4358GH Manual de usuario

Kenmore

Kenmore 790.9010 Series Manual de usuario

KitchenAid

KitchenAid KESC300 Manual de usuario

Frigidaire

Frigidaire FFEF3012LS Guía del usuario

Diamond

Diamond G65/2F4T Manual de usuario

Samsung

Samsung NX58*565 Series Manual de usuario
