UseAndCare

Table of Contents

(complete) ..................2

A Note to You .................3

Range Safety ...............4-6

Getting to Know Your

Range .......m......................7

Using Your Range .........8

Using the Self-Cleaning

Cycle .............................21

Caring for Your

Range ............................ 25

Troubleshooting ..........29

Requesting

Assistance

or Service ..................... 31

Index .............................35

Warranty .......................36

1-800-253-l 301

Call

with questlons or comments.

SELF-CLEANING ELECTRIC RANGE

PART NO. 3189079 Rev. A

MODEL RF3661XD

jOI9 5

Table of Contents

A Note to You ............................................ 3

Range Safety ......................................... 4-8

Getting to Know Your Range ................... 7

Using Your Range .................................... 8

Using the surface units ......................... 8

Positioning racks and pans ................ 10

For best air circulation ........................ 11

Using aluminum foil for baking ........... 11

The electronic oven control ................ 12

Starting a function .............................. 13

Canceling a function .......................... 13

Baking/roasting .................................. 13

Adjusting the oven temperature

control ............................................... 15

Broiling .............................................. 18

Broiling tips ........................................ 18

Energy saving tips ............................. 18

The oven vent .................................... 19

The storage drawer ............................ 19

The anti-tip bracket ............................ 20

Optional door panel pat ..................... 20

Using the Self-Cleaning Cycle ............... 21

Before you start ................................. 21

Before setting the controls .................. 22

Setting the controls ............................ 22

Special tips ........................................ 24

How the cycle works .......................... 24

Caring for Your Range ........................... 25

Cleaning the cooktop ......................... 25

Cleaning other range parts.. !................ 27

The oven light .................................... 28

Troubleshooting ..................................... 29

Requesting Assistance or Service ........ 31

Index ....................................................... 35

Warranty ................................................. 36

A Note to You

Thank you for buying a WHIRLPOOL@ appliance.

Because your life is getting busier and more complicated, WHIRLPOOL ranges are easy to

use, save time, and help you manage your home better. To ensure that you enjoy years of

trouble-free operation, we developed this Use and Care Guide. It is full of valuable informa-

tion about how to operate and maintain your appliance properly and safely. Please read

it carefully.

Also, please complete and mail in the Ownership Registration Card provided with your

appliance. The card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service for

Model Number

your appliance, you need to know your

complete model number and serial number.

Serial Number

You can find this information on the model

Purchase Date

and serial number plate (see diagram on

page 7 for location of plate).

Please also record the ourchase date of

Dealer Name

Dealer Address

your appliance and your dealer’s name,

Dealer Phone

address, and telephone number.

Keep this book and the sales slip together in a safe place for future reference.

Our Consumer Assistance Center

number is toll-free 24 hours a day.

1-800-253-l 301

Range Safety

Your safety is important to us.

This guide contains safety statements

under warning symbols. Please pay special

attention to these symbols and follow any

instructions given. Here is a brief explana-

tion of the use of the symbol.

This symbol alerts you to such

dangers as fire, electrical shock,

burns, and personal injury.

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electrical shock,

injury to persons, or damage when using

the range, follow basic precautions,

including the following:

General never be allowed to sit or stand on

@Read all instructions before using any part of the range. They could

the range. be burned or injured.

@Install or locate the range only in @Donot operate the range if it is

accordance with the provided damaged or not working properly.

Installation Instructions. The ADO not use the range for warming

range must be installed by a or heating the room. Persons

qualified installer. The range must could be burned or injured, or a

be properly connected to electri- fire could start.

cal supply and grounded. 4Jse the range only for its intended

use as described in this manual.

@@ @

@WARNING: To reduce the risk

of tipping the appliance, the .Do not touch surface units, areas

appliance must be secured by a near units, heating elements, or

properly installed anti-tip bracket. interior surfaces of oven. Surface

To check if the bracket is in- units and heating elements could

stalled properly, see “The anti-tip be hot even though they are dark

bracket” on page 20. in color. Areas near surface units

@CAUTION: Do not store things and interior surfaces of an oven

children might want above the become hot enough to cause

range. Children could be burned burns During and after use, do not

or injured while climbing on it. touch, or let clothing or other flam-

ADO not leave children alone or mable materials contact surface

unattended in area where the units, areas near units, heating

range is in use. They should elements, or interior surfaces of

oven until they have had suffi-

cient time to cool. Other surfaces

of the range, such as the oven

vent opening, the surface near

the vent opening, the cooktop,

and the oven door, could also

become hot enough to cause

burns.

*Do not wear loose or hanging

garments when using the range.

They could ignite if they touch a

hot surface unit and you could

be burned.

@Useonly dry pot holders. Moist or

damp pot holders on hot surfaces

could result in burns from steam.

Do not let pot holder touch hot

heating elements. Do not use a

towel or bulky cloth for a pot

holder. It could catch on fire.

@Keep range vents unobstructed.

@Donot heat unopened contain-

ers. They could explode. The hot

contents could cause burns and

container particles could cause

injury.

@Use only utensils approved for

oven use. Follow utensil manu-

facturer’s instructions, especially

when using glass or plastic

utensils.

@Do not store flammable materials

on or near the range. The fumes

could create an explosion and/or

fire hazard.

When using the cooktop

@Do not cook on a broken cooktop.

If cooktop should break, cleaning

solutions and spillovers could

penetrate the broken cooktop and

create a risk of electrical shock.

Contact a qualified technician

immediately.

*Select a pan with a flat bottom

that is about the same size as the

surface unit. If pan is smaller

than the surface unit, some of

the heating element will be ex-

posed and could result in the

igniting of clothing or pot holders.

Correct pan size also improves

cooking efficiency.

@Check to be sure glass cooking

utensils are safe for use on the

range. Only certain types of glass,

glass-ceramic, ceramic, earthen-

ware, or other glazed utensils are

suitable for cooktops without

breaking due to the sudden

change in temperature.

*Never leave surface units un-

attended at high heat settings.

A boilover could result and cause

smoking and greasy spillovers

that could ignite.

aTurn pan handles inward, but not

over other surface units. This will

help reduce the chance of burns,

igniting of flammable materials,

and spills due to bumping of

the pan.

continued on next page

When using the oven

Always position oven rack(s) in

desired location while oven is

cool. If a rack must be removed

while oven is hot, do not let pot

holder contact hot heating ele-

ment in oven.

*Use care when opening oven

door. Let hot air or steam escape

before removing or replacing food.

off in the Self-Cleaning cycle from

fiberglass insulation and food

decomposition. Significant expo-

sure to these substances could

cause cancer or reproductive

harm. Exposure can be minimized

by venting with a hood or open

window and wiping out excess

food spills prior to self-cleaning.

Grease

*Grease is flammable. Do not

allow grease to collect around

cooktop or in vents. Wipe spill-

overs immediately.

*Do not use water on grease fires.

Never pick up a flaming pan.

Smother flaming pan on range

by covering with a well-fitted lid,

cookie sheet, or flat tray. Flaming

grease outside of pan can be ex-

tinguished with baking soda or, if

available, a multipurpose dry

chemical or foam-type extinguisher.

Care and cleaning

@Clean cooktop with care. Some

cleaners could produce noxious

fumes if applied to a hot surface.

If a wet paper towel is used to

wipe spills on a hot cooking area,

be careful to avoid steam burns.

@Small amounts of formaldehyde

and carbon monoxide are given

- SAVE THESE

@Donot use oven cleaners. No

commercial oven cleaner or oven

liner protective coating of any kind

should be used in or around any

part of the oven.

@Before self-cleaning the oven,

remove broiler pan, broiler grid,

oven racks, and other utensils.

Do not use your oven to clean

miscellaneous parts unless you

are instructed to do so in this

Use and Care Guide.

ADO not clean door heat seal. It is

essential for a good seal. Care

should be taken not to rub, dam-

age, or move the seal. Clean only

parts recommended in this Use

and Care Guide.

.Do not repair or replace any part

of the range unless specifically

recommended in this manual. All

other servicing should be referred

to a qualified technician.

@Disconnect the electrical supply

before servicing the range.

INSTRUCTIONS -

Getting

to Know Your Range

This section contains captioned illustrations of your range. Use them to become familiar with

the location and appearance of all parts and features. To help you find information on specific

parts and features quickly, page references are included.

Control panel !

Spurfice unit,

Model and

serial number

Anti-tip

floor bracket

(for information

on alternate

wall-mounted \

anti-tip bracket,

see p. 20)

Removable

storage drawer -

(P. 19)

- Oven vent

(P. 19)

CLEANTOP’

ceramic

- cooktop

(PP. 325)

Automatic

oven light

\switch (P. 28)

Broil element

(P. 17)

Bake element

(P. 14)

Control panel

Surface

unit marker

1 (P.

Left rear

control knob

1 (PP. 8, 27)

Electronic

oven control

(P. 12)

Rlght front

control knob

(PP. 627)

Lefl front

control knob

(PP.8,27)

I I

Right rear Surface unlt

control knob indicator light

(PP. ~~27) (P. ‘3)

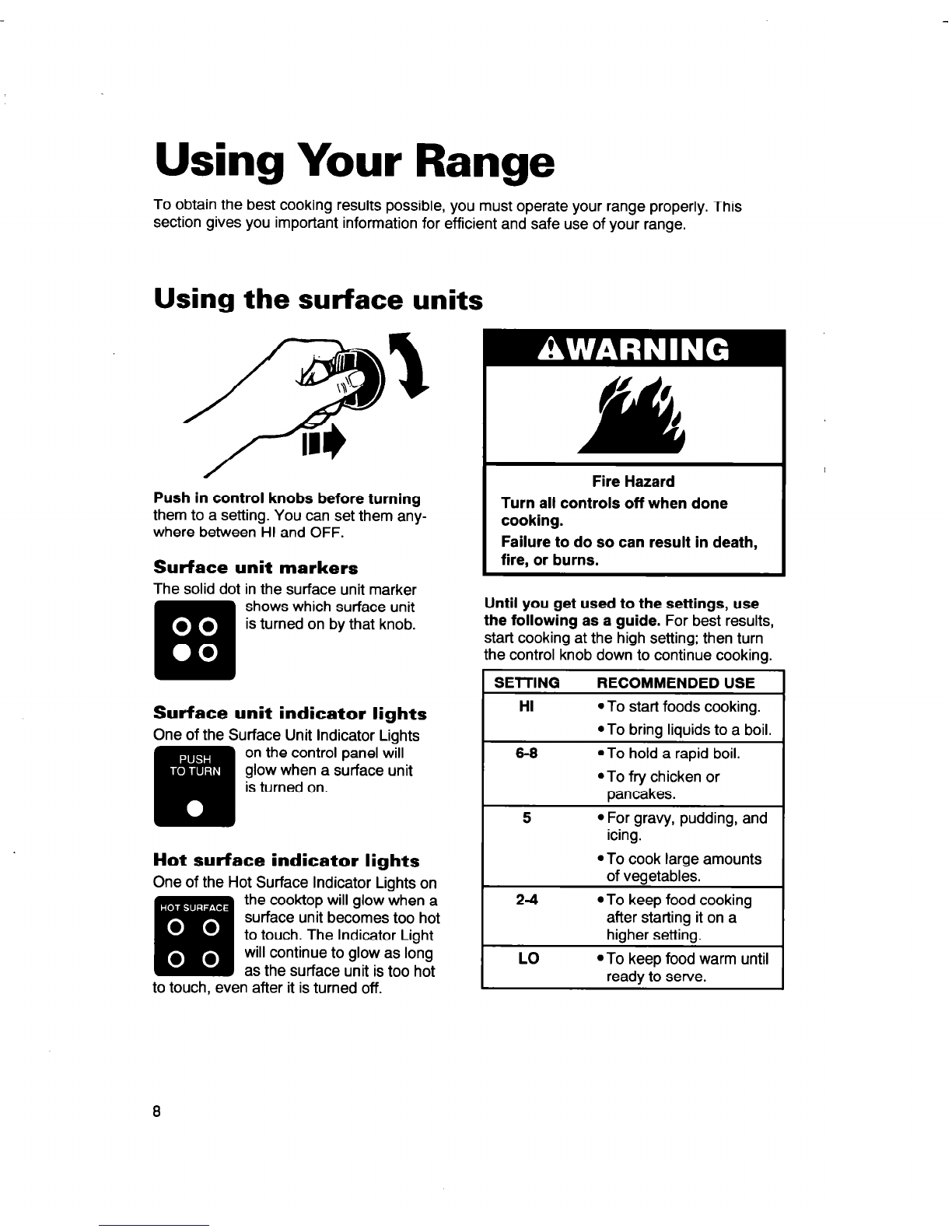

Using Your Range

To obtain the best cooking results possible, you must operate your range properly. This

section gives you important information for efficient and safe use of your range.

Using the surface units

Push in control knobs before turning

them to a setting. You can set them any-

where between HI and OFF.

Surface unit markers

The solid dot in the surface unit marker

Surface unit indicator lights

One of the Surface Unit Indicator Lights

Hot surface indicator lights

One of the Hot Surface Indicator Lights on

the cooktop will glow when a

surface unit becomes too hot

to touch. The Indicator Light

will continue to glow as long

as the surface unit is too hot

to touch, even after it is turned off.

Fire Hazard

Turn all controls off when done

cooking.

Failure to do so can result in death,

fire, or burns.

Until you get used to the settings, use

the following as a guide. For best results,

start cooking at the high setting; then turn

the control knob down to continue cooking.

SETTING

5-8

RECOMMENDED USE

.To start foods cooking.

To bring liquids to a boil.

.To hold a rapid boil.

.To fry chicken or

pancakes.

For gravy, pudding, and

higher setting.

@To keeo food warm until

ready to serve.

Using the ceramic glass

cooktop

Cooking on the ceramic glass cooktop is

almost the same as cooking on coil surface

units. There are, however, a few differences:

The surface unit will glow red when it is

turned on. You will see the element cycling

on (glowing red) and off - even on HI

setting -to maintain the proper tempera-

ture setting you have selected.

Sliding metal pans on ceramic glass

cooktop surface could leave marks. Wiping

off the cook-top before and after each use

will help keep the surface free from stains

and provide the most even heating. See

pages 25 and 26 for care and cleaning

suggestions.

Cookware tips

Select a pan that is about the same size

as the surface unit.

NOTE: For best results and greater

energy efficiency, use only flat-bottomed

cookware that makes good contact with

the surface units. Cookware with rounded,

warped, ribbed (such as some porcelain

enamelware), or dented bottoms could

cause uneven heating and poor cooking

results.

You can, however, use the newer

cookware available with slightly indented

bottoms or very small expansion channels.

This cookware is specially designed to

provide the good contact needed for best

cooking results.

Also, woks, canners, and teakettles

with flat bottoms suitable for use on your

cooktop are now available in most stores

that sell housewares.

The pan should have straight sides and a

tight-fitting lid.

Choose medium to heavy gauge (thick-

ness) pans that are fairly lightweight.

The pan material (metal or glass) affects

how fast heat transfers from the surface

unit through the pan material and how

evenly heat spreads over the pan bottom.

Choose pans that provide the best cooking

results.

Handles should be made of sturdy, heat-

resistant material and be securely attached

to the pan.

With your hand, feel the bottom of your

pans while they are cool for nicks and

scratches. Nicks and scratches on pan

bottoms will scratch the ceramic glass

cooktop.

Make sure bottoms of pans are clean and

dry before using on cooktop.

Avoid spillovers on cooktop. Use pans

with tall sides.

Do not cook food directly on cooktop.

NOTE: Do not leave an empty utensil, or

one which has boiled dry, on a hot surface

unit. The utensil could overheat and damage

the utensil or surface unit.

Home canning information

Pan

l Start with hot water. This reduces the

time the control is set on high. Reduce

heat setting to lowest position needed to

keep water boiling.

i-*Surface unit -

l Refer to your canner manual for specific

inst.,i ens.

-11111

l Use the largest surface unit for best

results. Also, use a canner/pan which can

be centered over the surface unit.

Positioning racks and

General guidelines

l Always position oven rack(s) in desired

location before turning oven on.

l To move rack(s), lift rack(s) at front and

pull out.

l Be sure the rack(s) is level.

l If rack(s) must be moved while oven is

hot, use pot holders or oven mitts to

protect hands.

l For baking/roasting with one rack, place

the rack so the top of the food will be

centered in the oven.

l When baking on two racks, arrange

racks on the bottom and third level from

the bottom.

pans

Rack placement for specific

foods:

FOOD

Frozen pies, large

roasts, turkeys,

angel food cakes

Bundt cakes, most

quick breads, yeast

breads, casseroles,

meats

RACK POSITION

Lowest level or

2nd level from

bottom

2nd level from

bottom

Cookies, biscuits,

muff ins, cakes,

nonfrozen pies

2nd or 3rd level

from bottom

NOTE: For recommended rack placement

when broiling, see “Broiling rack position

chart” on page 17.

Tabla de contenidos

Otros manuales de Rango de Whirlpool

Whirlpool

Whirlpool RF350BXE W Manual de usuario

Whirlpool

Whirlpool RF367LXSB0 Manual de usuario

Whirlpool

Whirlpool WFG745H0FE Manual de usuario

Whirlpool

Whirlpool WDE350LVQ - 30" - Slide-In Electric Range Manual de usuario

Whirlpool

Whirlpool WLP30800 Manual de usuario

Whirlpool

Whirlpool RF306BXP Manual de usuario

Whirlpool

Whirlpool RF272LXTD0 Manual de usuario

Whirlpool

Whirlpool FES340Y Manual de instrucciones de instalación

Whirlpool

Whirlpool GFG474LVS1 Manual de usuario

Whirlpool

Whirlpool RS313PXT Manual de usuario

Whirlpool

Whirlpool LWF7200 Manual de usuario

Whirlpool

Whirlpool WGE555 Manual de usuario

Whirlpool

Whirlpool RY160LXTQ Manual de usuario

Whirlpool

Whirlpool RJE-960P Manual de usuario

Whirlpool

Whirlpool W10017610 Manual de usuario

Whirlpool

Whirlpool Inglis IGS325RQ0 Manual de usuario

Whirlpool

Whirlpool GGG388LXQ Manual de lista de piezas

Whirlpool

Whirlpool WDE101LVQ0 Manual de usuario

Whirlpool

Whirlpool SF367PEY Manual de usuario

Whirlpool

Whirlpool 30" (76.2 CM) SLIDE-IN GAS RANGES Manual de usuario

Whirlpool

Whirlpool WGE555S0BB Manual de usuario

Whirlpool

Whirlpool SF375PEE Manual de usuario

Whirlpool

Whirlpool RS385PCB Manual de usuario

Whirlpool

Whirlpool NWF30312 Instrucciones de uso

Manuales populares de Rango de otras marcas

Samsung

Samsung FCQ321HTUW Manual de usuario

Kenmore

Kenmore 790.45712 Manual de usuario

Wolf

Wolf CHR CHSSR Manual de usuario

Smeg

Smeg Built-in Microwave Oven Manual de instrucciones

Zanussi

Zanussi ZCG054G Manual de usuario

Frigidaire

Frigidaire 316000635 Manual de usuario

GE JCSS630 Manual de usuario

Samsung

Samsung NX58M9960P series Manual de usuario

Hotpoint

Hotpoint RB524R Guía de instalación

Amana

Amana ART6610 SERIES Manual de usuario

Maytag

Maytag MERH770WB Manual de usuario

Fulgor Milano

Fulgor Milano SOFIA Manual de usuario

Premier

Premier EF-4358GH Manual de usuario

Kenmore

Kenmore 790.9010 Series Manual de usuario

KitchenAid

KitchenAid KESC300 Manual de usuario

Frigidaire

Frigidaire FFEF3012LS Guía del usuario

Diamond

Diamond G65/2F4T Manual de usuario

Samsung

Samsung NX58*565 Series Manual de usuario
