A Note to You 2

Important Safety

Instructions 3

Parts and

Features 6

Using Your Range 7

Using the Self-

Cleaning Cycle 21

Carin for

Your angeR 25

If You Need

Assistance

or Service 30

Warranty 36

1-800-253-1301

Call us with questions or comments.

SELF-CLEANING ELECTRIC RANGE

MODEL RF364PSB

‘1M

A Note to You

Thank you for buying a Whirlpool@ appliance.

Because your life is getting busier and more complicated, Whirlpool ranges are easy to use,

save time, and help you manage your home better. To ensure that you will enjoy years of

trouble-free operation, we developed this Use and Care Guide. It is full of valuable information

on how to operate and maintain your appliance properly and safely. Please read it carefully.

Also, please complete and mail the Ownership Registration Card provided with your appli-

ance. This will help us notify you about any new information on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these

symbols and follow any instructions given. Here is a brief explanation of the use of each

symbol.

This symbol will help alert you to such

dangers as personal injury, burns, fire,

and electrical shock.

This symbol will help you avoid actions

which could cause product damage

(scratches, dents, etc.) and damage to

your personal property.

Our Consumer Assistance Center number, 1-800-253-1301,

is toll-free, 24 hours a day.

If you ever have a question concerning your appliance’s operation, or if you need service, first

see “If You Need Assistance or Service” on page 30. If you need further help, feel free to call

our Consumer Assistance Center. When calling, you will need to know your appliance’s

complete model number and serial number. You can find this information on the model and

serial number plate (see diagram on page 6). For your convenience, we have included a

handy place below for you to record these numbers, the purchase date from the sales slip and

your dealer’s name and telephone number. Keep this book and the sales slip together in a

safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

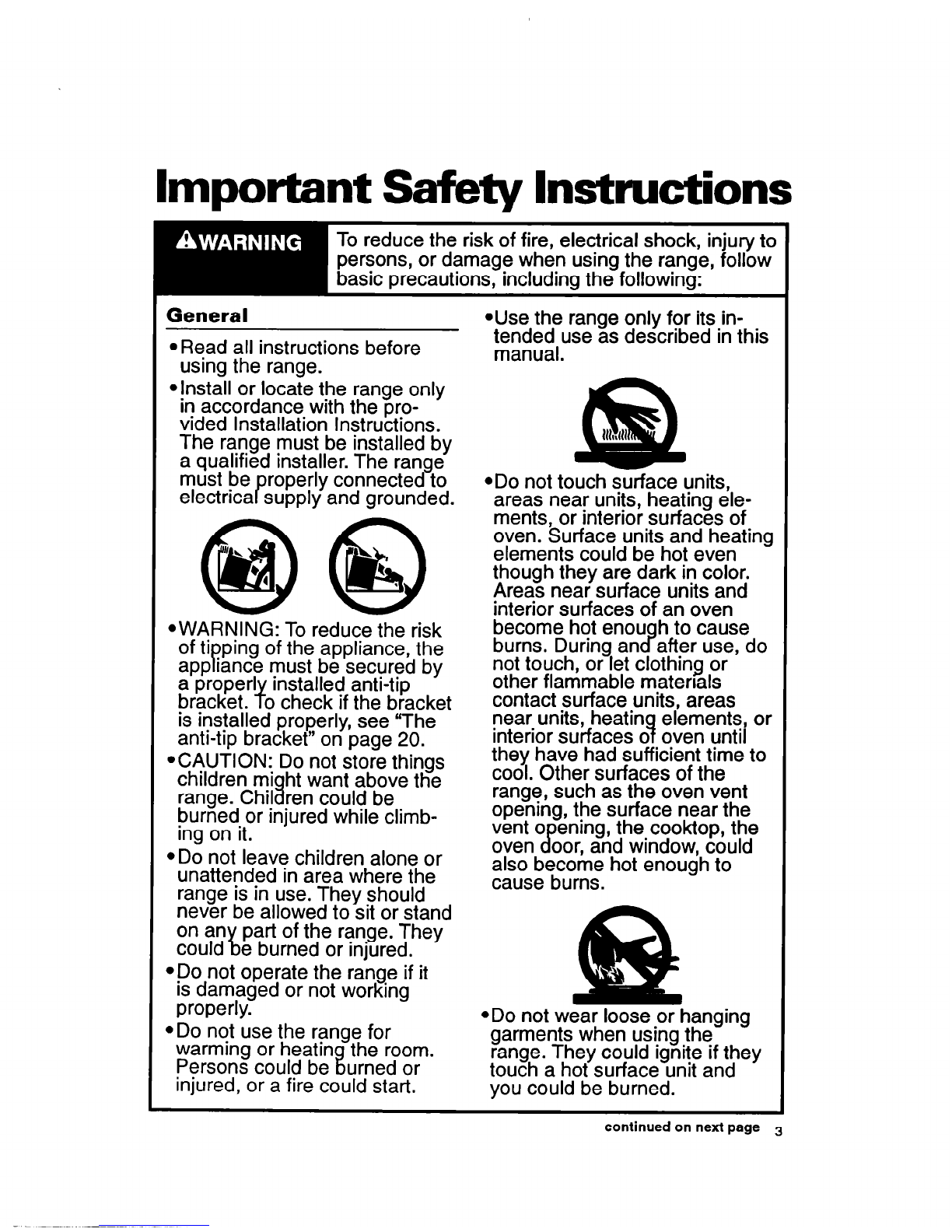

Important Safety Instructions

To reduce the risk of fire, electrical shock, injury to

persons, or damage when using the range, follow

basic precautions, including the following:

General

Read all instructions before

using the range.

4nstall or locate the range only

in accordance with the pro-

vided Installation Instructions.

The range must be installed by

a qualified installer. The range

must be roperly connected to

electrica Psupply and grounded.

@WARNING: To reduce the risk

of tiP

ping of the appliance, the

app iance must be secured by

a proper1 installed anti-tip

bracket. o check if the bracket

is installed properly, see “The

anti-tip bracket” on page 20.

*CAUTION: Do not store things

children mi ht want above the

range. Chil 3ren could be

burned or injured while climb-

ing on it.

Do not leave children alone or

unattended in area where the

range is in use. They should

never be allowed to sit or stand

on an

could k part of the range. They

e burned or injured.

.Do not operate the range if it

is damaged or not working

properly.

*Do not use the range for

warming or heatin the room.

Persons could be urned or

injured, or a fire could start.

*Use the range only for itsin-

te;e;zluse as described In this

tttllrtt

@Donot touch surface units,

areas near units, heating ele-

ments, or interior surfaces of

oven. Surface units and heating

elements could be hot even

though they are dark in color.

Areas near surface units and

interior surfaces of an oven

become hot enou h to cause

burns. During anB after use, do

not touch, or let clothing or

other flammable materials

contact surface units, areas

near units, heatin elements, or

interior surfaces 0 oven until

they have had sufficient time to

cool. Other surfaces of the

range, such as the oven vent

opening, the surface near the

vent o ening, the cooktop, the

oven oor, and window, coulds

also become hot enough to

cause burns.

@Donot wear loose or hanging

garments when using the

range. They could ignite if they

touch a hot surface unit and

you could be burned.

continued on next page

@Useonly d potholders. Moist

or damp po holders on hot

surfaces could result in burns

from steam. Do not let pot-

holder touch hot heating

elements. Do not use a towel

or bulk cloth for a potholder.

It coul II7catch on fire.

*Keep range vents unobstructed.

@Donot heat unopened contain-

ers. They could explode. The

hot contents could cause burns

and container particles could

cause injury.

@Donot store flammable materi-

als on or near the range. The

fumes could create an explo-

sion and/or fire hazard.

When using the cooktop

@Donot cook on a broken

cooktop. If cooktop should

break, cleaning solutions and

spillovers could penetrate the

broken cooktop and create a

risk of electrical shock. Contact

a qualified technician imme-

diately.

@Select a pan with a flat bottom

that is about the same size as

the surface unit. If pan is

smaller than the surface unit,

some of the heatin element

will be exposed an could result!

~~~~l~~~~.n~~~r~~t~~~~~e

also improves cooking

efficiency.

@Check to be sure lass cook-

ing utensils are sa e for use

on the range. Only certain

types of glass, glass-ceramic,

ceramic, earthenware, or

other lazed utensils are

suitab B

e for cooktops without

breaking due to the sudden

change In temperature.

*Never leave surface units

unattended at high heat set-

tings. A boilover could result

and cause smokin

gm;iy sprllovers tz and

at could

@Turnpan handles inward, but

not over other surface units.

This will help reduce the

chance of burns, i niting of

flammable materia s, and

spills due to bumping of the

pan.

When using the oven

@Always position oven rack(s)

in desired location while oven

is cool. If a rack must be re-

moved while oven is hot, do

not let potholder contact hot

heating element in oven.

@Usecare when opening oven

door. Let hot air or steam

escape before removing or

replacing food.

Grease

*Grease is flammable. Do not

allow grease to collect around

cooktop or in vents. Wipe spill-

overs immediately.

*Do not use water on grease

fires. Never pick up a flaming

pan. Smother flamin

range by coverin pan on

fitted lid, cookie s eet, or flat

%WIh a well-

tray. Flaming grease outside of

an can be extin

aking soda or, i? uished with

available, a

multipurpose dry chemical or

foam-type extinguisher.

Care and cleaning

*Clean cooktop with care. Some

cleaners could reduce noxious

fumes if applie crto a hot sur-

face. If a wet pa er towel is

used to wipe s I Is on a hot7

cookin 9 area, I!e careful to

avoid s earn burns.

@Small amounts of formaldehyde

and carbon monoxide are iven

off in the Self-Cleaning cyc e

from fiberglass insulation and

food decomposition. Si

exposure to these subs9nificant

antes

could cause cancer or repro-

ductive harm. Exposure can be

minimized by venting with a

hood or open window and wip-

ing out excess food spills prior

to self-cleaning.

ADOnot use oven cleaners. No

commercial oven cleaner or

oven liner

any kind sR

rotective coating of

ould be used in or

around any part of the oven.

*Before self-cleaning the oven.,

remove broiler pan, broiler gnd,

oven racks, and other utensils.

Do not use your oven to clean

miscellaneous parts unless you

are instructed to do so in this

Use and Care Guide.

@Donot clean door heat seal. It

is essential for a ood seal.

Care should be ta

R en not to

rub, damage, or move the seal.

Clean only parts recommended

in this Use and Care Guide.

*Do not repair or replace any

part of the range unless specifi-

cally recommended in this

manual. All other servicing

should be referred to a qualified

technician.

@Disconnect the electrical supply

before servicing the range.

- SAVE THESE INSTRUCTIONS -

Parts and Features

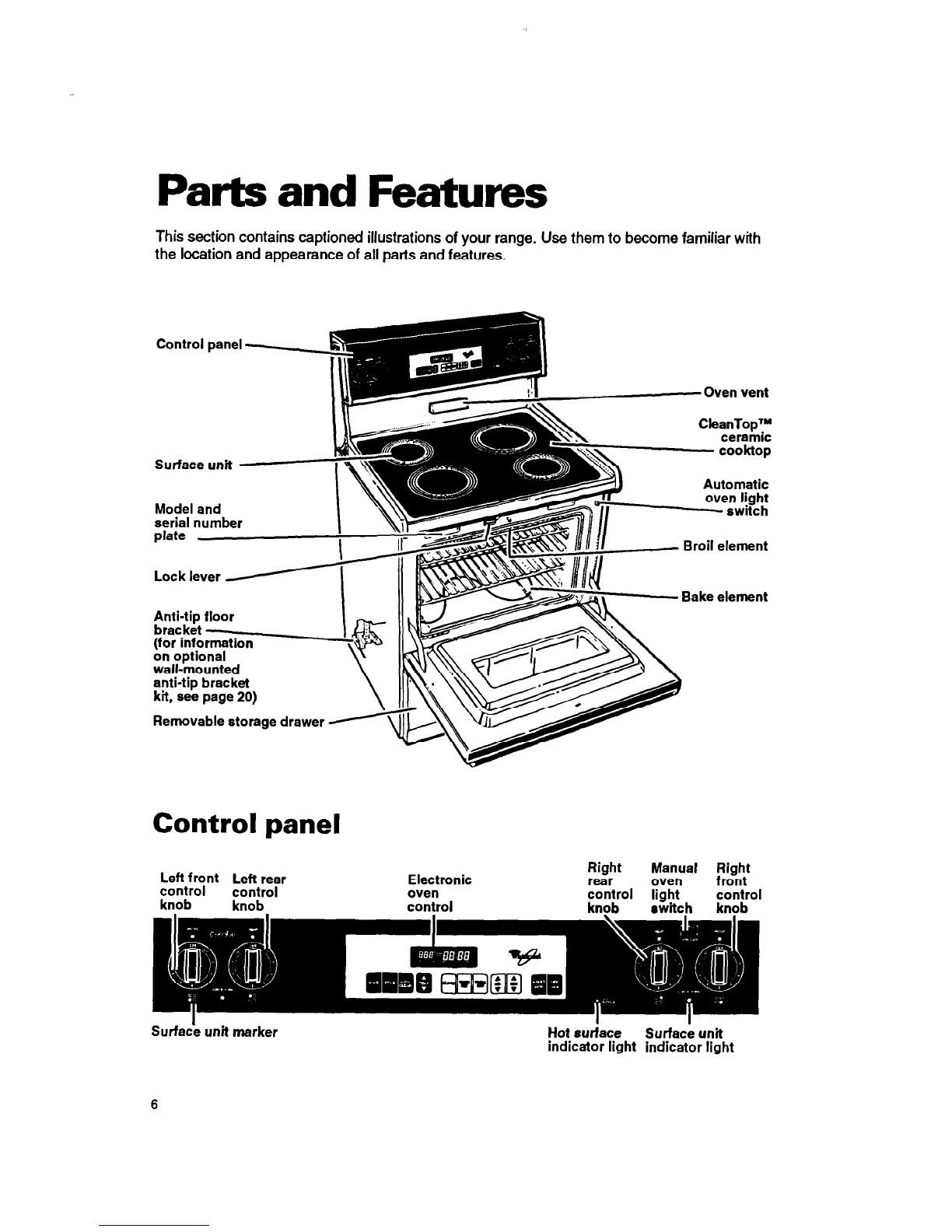

This section contains captioned illustrations of your range. Use them to become familiar with

the location and appearance of all parts and features.

Control panel d

Oven vent

CleanTopTY

ceramic

COOktOP

Model and

Automatic

ove~J$t;

Broil element

Bake element

kit, see page 20)

Removable storage drawer

Control panel

Left front

kiEt;zr

control

knob knob

Electronic

oven

control

Right

rear Manual Riff;

oven

;;;pl light control

switch knob

Surfa& unit marker Hot surface Surface unit

indicator light indicator light

Using Your Range

In This Section

Page

Using the surface units ..................... 7

Positioning racks and pans ..............9

For best air circulation .................... IO

Using aluminum foil for baking ...... IO

The electronic oven control ............ I I

Setting the clock .............................. I2

Using the Minute Timer ................... I2

Using the Off/Cancel pad ................ I3

Baking/roasting ................................ 14

Page

A,lju;$ng the oven temperature

............................................... I5

Broiling ............................................. I6

Broiling tips ...................................... I7

Energy saving tips ........................... I8

The oven vent ................................... I9

The storage drawer .......................... I9

The anti-tip bracket .......................... 20

Optional door panel pat .................. 20

To obtain the best cooking results possible, you must operate your range properly. This

section gives you important information for efficient and safe use of your range.

Using the surface units

Push in control knobs before turning

them

to a setting. You can set them anywhere

between HI and OFF.

Surface unit markers

The solid dot in the surface unit marker shows

which surface unit is turned on by that knob.

Surface unit indicator lights

One of the Surface Unit Indicator lights on

the control panel will glow when a surface

unit is turned on.

Hot surface indicator light

The Hot Surface Indicator Light on the control

panel will glow when a surface unit becomes

too hot to touch. The Indicator Light will con-

tinue to glow as long as the surface unit is too

hot to touch, even after it is turned off.

Fire Hazard

Be sure all control knobs are turned to

OFF and all indicator lights are OFF

when you are not cooking.

Someone could be burned or a fire could

start if a surface unit is accidentally left

ON.

Until you get used to the settings, use the

following as a guide.

For best results, start

cooking at the high setting; then turn the

control knob down to continue cooking.

1 SETTING 1 RECOMMENDEDUSE 1

HI I

*To start foods cooking.

.To bring liquids to a boil. I

Medium-high

*To hold a rapid boil.

I .To fry chickenor pancakes. I

Medium I

l For gravy, pudding, and

(opposite OFF) king. I

setting.

.To keep food warm until

readv to serve.

Using the ceramic glass

cooktop

Cooking on the ceramic glass cook-top is

almost the same as cooking on coil surface

units. There are, however,

few differences:

The surface unit will glow red

when it is

turned on. You will see the element cycling

on (glowing red) and off - even on HIGH

setting -to maintain the proper tempera-

ture setting you have selected.

Sliding metal pans

on ceramic glass

cooktop surface could leave marks. Wiping

off the cooktop before and after each use

will help keep the surface free from stains

and provide the most even heating. See

pages 26 and 27 for care and cleaning

suggestions.

Cookware tips

Select a pan

that is about the same size as

the surface unit.

NOTE: For best results and greater

energy efficiency,

use only flat-bottomed

cookware that makes good contact with

the surface units. Cookware with rounded,

warped, ribbed (such

some porcelain

enamelware), or dented bottoms could

cause uneven heating and poor cooking

results.

You can, however, use the newer

cookware available with slightly indented

bottoms or very small expansion channels.

This cookware is specially designed to

provide the good contact needed for best

cooking results.

Also, woks, canners, and teakettles with

flat bottoms suitable for use on your

cooktop are now available in most stores

that sell housewares.

The pan

should have straight sides and a

tight-fitting lid.

Choose medium to heavy gauge

(thick-

ness) pans that are fairly lightweight.

The pan material

(metal or glass) affects

how fast heat transfers from the surface

unit through the pan material and how

evenly heat spreads over the pan bottom.

Choose pans that provide the best cooking

results.

Handles

should be made of sturdy, heat-

resistant material and be securely at-

tached to the pan.

With your hand,

feel the bottom of your

pans while they are cool for nicks and

scratches. Nicks and scratches on pan

bottoms will scratch the ceramic glass

cooktop.

Make sure bottoms

of pans are clean and

dry before using on cooktop.

Avoid spillovers

on cooktop. Use pans

with tall sides.

Do not

cook food directly on cooktop.

Product Damage Hazard

Do not leave an empty utensil, or one

which has boiled dry, on a hot surface

unit.

The utensil could overheat and could

damage

the utensil or surface unit.

Home canning information

Use the largest surface unit for

best

results.

Start with hot water. This reduces the

time the control is set on high. Reduce

heat setting to lowest position needed to

keep water boiling.

Refer

to your canner manual for specific

instructions.

Positioning racks and pans

For baking/roasting with one rack,

place

the rack so the top of the food will be

centered in the oven.

Rack placement for specific foods: Burn Hazard

FOOD RACK POSITION 1

Frozen pies, large

roasts, turkeys, angel

food cakes

Lowest level or

2nd level from

bottom

Bunti cakes, most

quick breads, yeast

breads, casseroles,

meats

2nd level from

bottom

l Always position oven rack(s) in

desired location before turning oven

on. Be sure the rack(s) is level.

l If rack(s) must be moved while oven

is hot, use potholders or oven mitts to

protect hands.

Failure to follow the above precautions

could result in burns.

Cookies, biscuits,

muffins, cakes,

nonfrozen pies

2nd or 3rd level

from bottom

When baking on two racks,

arrange racks

on bottom and third level from bottom.

NOTE:

For recommended rack placement

when broiling, see “Broiling rack position

chart” on page 17.

For best air circulation

Hot air must circulate around the pans in the

oven for even heat to reach all parts of the

oven. This results in better baking.

Place

the pans so that one is not directly

over the other.

For best results, allow

Ii/2 to 2 inches

(4-5 cm) of space around each pan and

between pans and oven walls. There must

minimum space of 1 inch (2.5 cm).

Use

only one cookie sheet in the oven at

one time.

Use the following as a guide to determine

where to place the pans:

One pan

Place in the center of the oven rack.

Two pans

Place in opposite corners of the oven rack.

Three or four pans

Place in opposite corners on each oven

rack. Stagger pans so no pan is directly over

another.

Using aluminum foil for baking

Use aluminum foil to catch spillovers

from pies or casseroles:

Place

the foil on the oven rack below the

rack with the food.

Turn up

foil edges and

make sure

foil is about 1 inch (3 cm)

larger all around than the dish holding the

food.

l Do

not cover

the entire rack with alumi-

num foil. It will reduce air circulation and

cause poor cooking results.

Do not line

oven bottom or entire oven

rack with foil or other liners. Poor baking

will result.

Electrical Shock and Fire Hazard

Do not allow foil to touch the heating

elements.

Failure to follow this precaution could

result in electrical shock or fire hazard

and damage to the elements.

Tabla de contenidos

Otros manuales de Rango de Whirlpool

Whirlpool

Whirlpool SF314PEA Manual de usuario

Whirlpool

Whirlpool WFE745H0FS Manual de usuario

Whirlpool

Whirlpool 8053373A Manual de usuario

Whirlpool

Whirlpool YWEE510S0FV Manual de usuario

Whirlpool

Whirlpool RF263LXTB2 Manual de usuario

Whirlpool

Whirlpool SF350BEG Manual de usuario

Whirlpool

Whirlpool STANDARD CLEANING W10330186A Manual de usuario

Whirlpool

Whirlpool WERP3100PQ4 Manual de usuario

Whirlpool

Whirlpool 30 " Eye-Level Gas Range Manual de usuario

Whirlpool

Whirlpool 30" (76.2 CM) FREESTANDING GAS RANGES Manual de usuario

Whirlpool

Whirlpool SF3020EW Manual de usuario

Whirlpool

Whirlpool TER46WOY Guía

Whirlpool

Whirlpool FEP314B Manual de instrucciones de instalación

Whirlpool

Whirlpool Roper FGP305KW3 Manual de usuario

Whirlpool

Whirlpool RS6700XK Manual de usuario

Whirlpool

Whirlpool SF315PEMB0 Manual de usuario

Whirlpool

Whirlpool RF3600XX Manual de usuario

Whirlpool

Whirlpool SAW ACE3411KA2 Manual de usuario

Whirlpool

Whirlpool SF111PXSQ2 Manual de usuario

Whirlpool

Whirlpool GS395LEG Manual de usuario

Whirlpool

Whirlpool SF3000SG Manual de usuario

Whirlpool

Whirlpool RF3365XW Manual de usuario

Whirlpool

Whirlpool WF5000 Manual de usuario

Whirlpool

Whirlpool SF367LXS Manual de usuario

Manuales populares de Rango de otras marcas

Samsung

Samsung FCQ321HTUW Manual de usuario

Kenmore

Kenmore 790.45712 Manual de usuario

Wolf

Wolf CHR CHSSR Manual de usuario

Smeg

Smeg Built-in Microwave Oven Manual de instrucciones

Zanussi

Zanussi ZCG054G Manual de usuario

Frigidaire

Frigidaire 316000635 Manual de usuario

GE JCSS630 Manual de usuario

Samsung

Samsung NX58M9960P series Manual de usuario

Hotpoint

Hotpoint RB524R Guía de instalación

Amana

Amana ART6610 SERIES Manual de usuario

Maytag

Maytag MERH770WB Manual de usuario

Fulgor Milano

Fulgor Milano SOFIA Manual de usuario

Premier

Premier EF-4358GH Manual de usuario

Kenmore

Kenmore 790.9010 Series Manual de usuario

KitchenAid

KitchenAid KESC300 Manual de usuario

Frigidaire

Frigidaire FFEF3012LS Guía del usuario

Diamond

Diamond G65/2F4T Manual de usuario

Samsung

Samsung NX58*565 Series Manual de usuario
