Whirlpool RF111PXSQ3 Manual de usuario

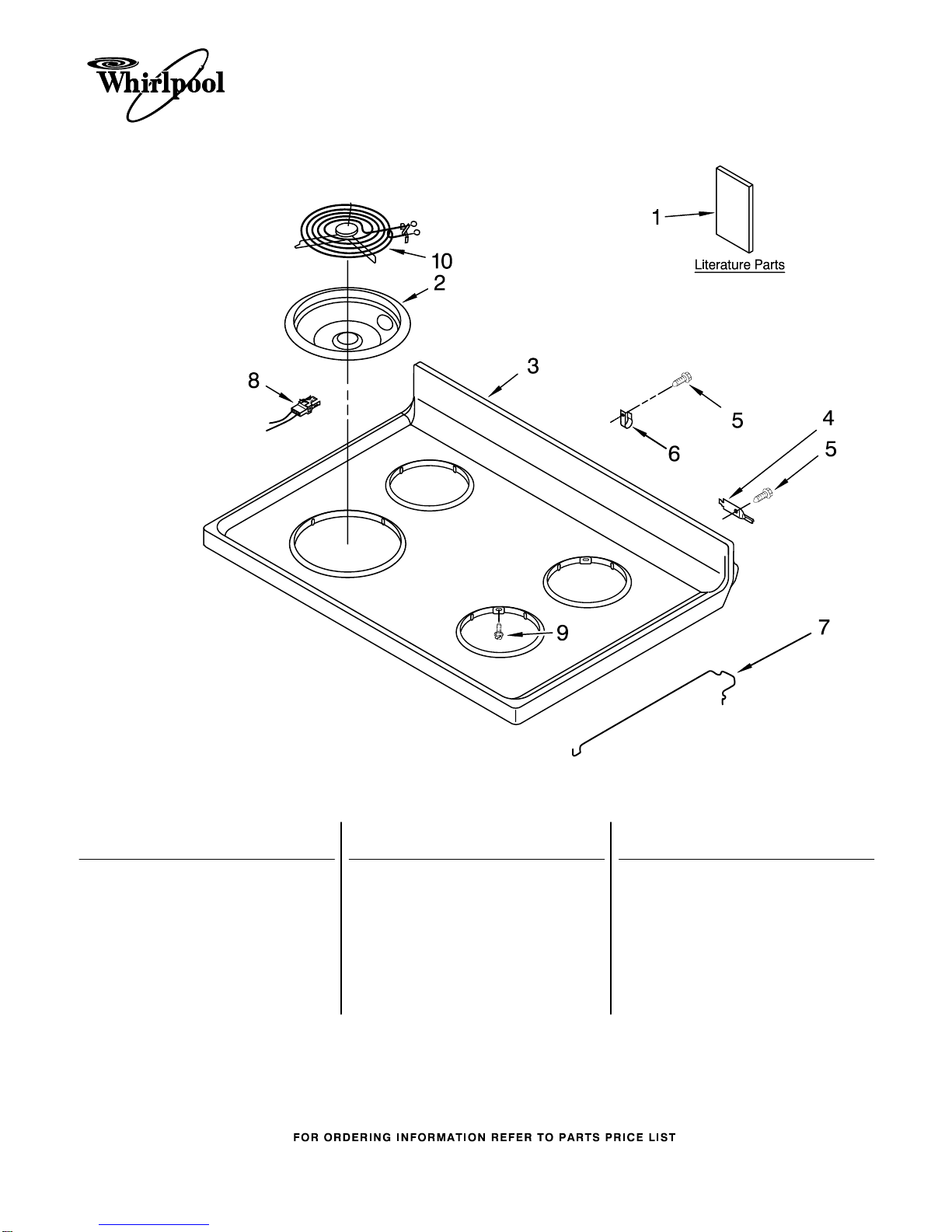

COOKTOP PARTS

FOR MODELS: RF111PXSQ3, RF111PXSW3

(Designer White) (White/Black)

5−08 Litho in U.S.A. (mo)(bay) Part No. W10206582 Rev. A

30" ELECTRIC FREESTANDING

STANDARD CLEAN RANGE

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10141166

Instructions,

Installation

Anti−Tip Template

9757142 English/Spanish

9757143 English/French

9763000 Owners Manual

W10114281

Sheet, Tech

9762761 Safer Cooking Tips

2 Bowl, Drip

3195208 6" Chrome (3)

3195209 8" Chrome (1)

3 Cooktop

3186235 White

4 3195060 Hinge, Cooktop (2)

5 3196178 Screw

6 308605 Strain Relief

7 3195812 Rod, Support (2)

8 814399 Receptacle, Elmnt

9 3196154 Screw

10 Element, Surface

(Includes #8)

9761348 6" (3)

9761346 8" (1)

CONTROL PANEL PARTS

FOR MODELS: RF111PXSQ3, RF111PXSW3

(Designer White) (White/Black)

W10206582

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Endcap

W10009040

Left Hand−White

W10009080

Left Hand−Black

W10009050

Right Hand−White

W10009090

Right Hand−Black

2 9757609 Nameplate

3 Panel, Backguard

W10170675

White

W10170676

Black

4 Switch, Infinite

3148953 Use W/ 8" Element

3148951 Use W/ 6" Element

6 9762215 Switch, Selector

W10182322

Brkt−Mntg Console

8 8523266 Indicator, 250V

9 8273564 Clip

10 3196200 Clip, Spring (2)

11 Knob, Infinite (4)

9761962 White

9761964 Black

12 3149360 Switch, Rocker

13 3196068 Lens, Indicator

14 Knob, Thermostat

9762526 White

9762524 Black

15 8053912 Shield, Heat

16 8523265 Indicator, 125V

17 8272473 Cover, Upper Rear

18 3196166 Screw

19 3196178 Screw

20 3400882 Bolt

CHASSIS PARTS

FOR MODELS: RF111PXSQ3, RF111PXSW3

(Designer White) (White/Black)

W10206582

CHASSIS PARTS

FOR MODELS: RF111PXSQ3, RF111PXSW3

(Designer White) (White/Black)

W10206582

Illus. Part

No. No. DESCRIPTION

1 3169143 Vent Tube

2 3186144 Box, Burner

3 Panel, Side (2)

8053830 White−Textured

4 9760407 Brkt−Mounting

W10129032

Seal, Oven Door

6 9757340 Element, Broil

7 9758541 Element, Bake

W10181986

Sensor

W10114344

Glide, Drawer Frnt

10 3196037 Foot, Front (2)

W10067840

Screw

12 8054068 Tray, Insulation

13 3196576 Clip, Panel (6)

14 9760314 Rail, Base (2)

W10058460

Foot, Rear (2)

16 3195809 Bumper, Side (2)

17 3186116 Support, Oven (2)

18 3186034 Bracket, Service

19 9761958 Block, Terminal

20 8274034 Back, Main

21 3196567 Screw

22 3196168 Screw

23 3196174 Screw

24 3196169 Screw

25 3196179 Screw

26 3196178 Screw

27 3400016 Screw

W10031780

Screw

29 3196701 Light Socket Assy

30 311255 Bulb, Oven Light

31 112432 Nut

32 9758283 Cover, Box

INSULATION

8273263 Insulation, Wrap

8272611 Insulation, Back

DRAWER & BROILER PARTS

FOR MODELS: RF111PXSQ3, RF111PXSW3

(Designer White) (White/Black)

W10206582

Illus. Part

No. No. DESCRIPTION

W10138079

Rack, Oven (2)

2 9761031 Drawer, Storage

W10174396

Bracket, Drawer(2)

4 Rivet, Push (2)

3196814 White

5 Panel, Drawer Frnt

8053339 White

6 8053334 Glide, Drawer (2)

7 3196168 Screw

DOOR PARTS

FOR MODELS: RF111PXSQ3, RF111PXSW3

(Designer White) (White/Black)

W10206582

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Top

W10144869

White

W10144870

Black

2 3196164 Screw

3 Handle, Door

W10118384

White

W10118385

Black

4 9761340 Liner, Door

W10031790

Screw

6 9761494 Hinge, Door (2)

7 Trim, Door (2)

8523172 Left Hand−White

8523171 Left Hand−Black

8523166 Right Hand−White

8523165 Right Hand−Black

8 Glass, Door

9762476 White

9762477 Black

9 3196160 Screw

10 Trim, Lower

8523175 White

8523177 Black

W10113759

Strap, Door

12 9758163 Window, Inner

13 9761500 Retainer, Insul.

14 9761517 Clip,Dr Mntg (2)

W10031780

Screw

OPTIONAL PARTS (NOT INCLUDED)

FOR MODELS: RF111PXSQ3, RF111PXSW3

(Designer White) (White/Black)

W10206582

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

242827 Wire, Yellow

14 Ga. 150 c

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit

(Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

3184478 Cleaner, Glass

ANTI−TIP KIT

W10017440

Anti−Tip Kit

WIRING HARNESS PARTS

9761476 Harness, Cooktop

W10113075

Harness, Oven

313660 Clip, Ground Wire

311227 Wire, Ground

3196154 Screw, Grnd−Cktop

3196174 Screw, Grnd−Back

3196173 Screw, Ground
