COOKTOP PARTS
1
For Models:RS610PXGW3, RS610PXGN3, RS610PXGV3
(White) (Almond) (Black on Biscuit)
11−02 Litho in U.S.A. (RS) Part No. 8185618
30" DROP−IN
ELECTRIC
STANDARD CLEAN
OVEN
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
LIT3191799
Installation
Instructions
LIT3191537
Use & Care Guide
LIT3192846
Tech Sheet
LIT3191638
Safe Cooking Tips
2 3192459 Burner Box
4 3192575 Bracket, Mounting
5 3196537 Screw, 8−18 x 3/8
7 3192102 Trim, Extension
8 Cooktop
3191168 White
3191169 Almond
8284709 Biscuit
9 3195210 Clip, Receptacle
10 3191228 Panel, Control
11 3183956 Seal, Switch (4)
12 Switch, Infinite
3191471 Use W/ 6" Surface
(Blue Shaft)
3191472 Use W/ 8" Surface
(Silver Shaft)
13 3191491 Light, Indicator
14 3195917 Clip, Element
15 3400855 Screw, 8−32 x 1/4
17 4448444 Grommet
19 Drip Bowl
3195208 6" (2)
3195209 8" (2)
20 Element, Coil
8053265 6" LF−RR
8053267 8" RF−LR
21 3400843 Screw, 8−18 x 3/8
22 3196231 Knob, Control (4)
23 3192330 Bracket, Switch
Mounting

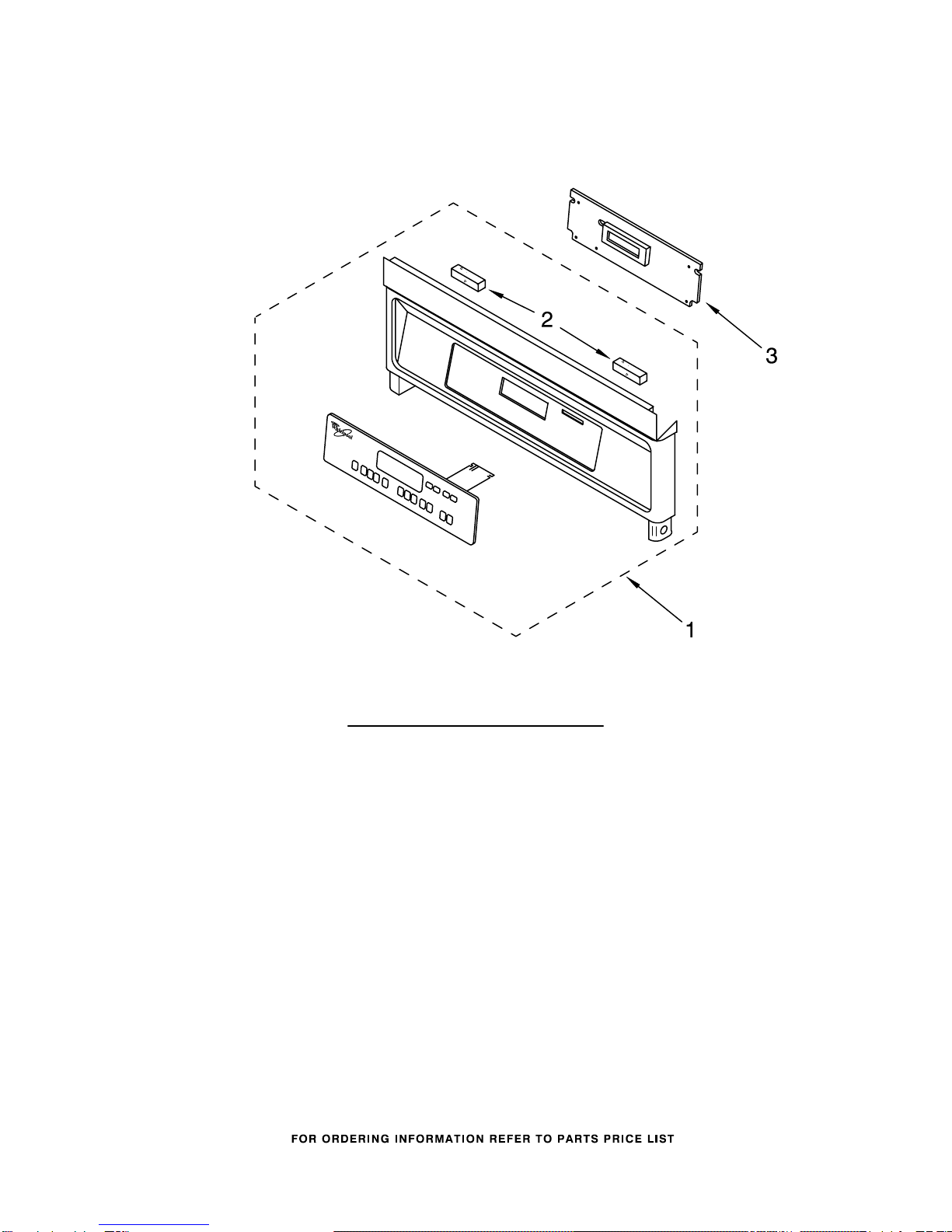

CONTROL PANEL PARTS
2
For Models:RS610PXGW3, RS610PXGN3, RS610PXGV3
(White) (Almond) (Black on Biscuit)
8185618
Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 4456313 Control Panel Assy.
W/Membrane Switch
4449745 Screw
3400832 Screw
2 4451034 Gasket,
Control Panel
3 4453193 Microcomputer
4449745 Screw
OVEN PARTS
3
For Models:RS610PXGW3, RS610PXGN3, RS610PXGV3
(White) (Almond) (Black on Biscuit)
8185618
OVEN PARTS
4
For Models:RS610PXGW3, RS610PXGN3, RS610PXGV3
(White) (Almond) (Black on Biscuit)
8185618
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 Trim, Side
4450844 RH Black
4450847 LH Black
4449747 Screw
2 4455509 Bracket, Support
3 Hinge Receiver
4455722 Left Hand
4455723 Right Hand
4 4448520 Bumper, Door
7 4455286 Top, Chassis
4449809 Screw
9 4452159 Tube, Vent
3196176 Screw
10 4451664 Fan & Bracket Assy
4449809 Screw
11 4452368 Oven Light Assy
12 4452166 Bulb, Light
13 4452165 Lens, Light
14 4451740 Frame, Front
4449040 Screw
4450118 Nut
15 4450493 Gasket, Door
19 4451478 Support, Insulation
4449809 Screw
21 Rail, Side
4450579 Right Side
4450580 Left Side
4448444 Grommet
4449154 Screw
23 4450051 Deflector
4449154 Screw
25 4454691 Side, Chassis
(R.H. & L.H.)
4449809 Screw
26 4452234 Back, Chassis
4449809 Screw
27 Liner, Oven
(Not serviceable)
29 4455636 Sensor
4449154 Screw
37 4451354 Fuse − Thermal
4449809 Screw
43 4455530 Base, Chassis
49 4448933 Retainer
4449154 Screw
50 4451747 Cover, Back
4449809 Screw
51 4448477 Trim, Bottom
53 4449845 Support, Bracket
4449154 Screw
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
4449316 Insulation, Wrap
4450365 Insulation, Back
OVEN DOOR PARTS
5
For Models:RS610PXGW3, RS610PXGN3, RS610PXGV3
(White) (Almond) (Black on Biscuit)
8185618
Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 4451719 Door Liner
2 4449259 Glass, Inner
3 4455523 Hinge, Door
4449743 Screw (4)
4 4451671 Retainer, Glass
4449809 Screw (4)
5 4450813 Bracket, Handle
4451040 Screw (4)
4449743 Screw (2)
6 4451674 Seal, Top
8 4452065 Assy, Door Glass
9 4448854 Handle, Door
10 4450863 Retainer, Glass
4449743 Screw (2)
INTERNAL OVEN PARTS
6
For Models:RS610PXGW3, RS610PXGN3, RS610PXGV3
(White) (Almond) (Black on Biscuit)
8185618
Illus. Part
No. No. DESCRIPTION
2 4452154 Element, Broil
4449154 Screw
3 3147563 Grill, Broiler
4 3147845 Pan, Broiler
6 4448717 Rack, Oven
7 4452153 Element, Bake
4449154 Screw
TOP VENTING PARTS
7
For Models:RS610PXGW3, RS610PXGN3, RS610PXGV3
(White) (Almond) (Black on Biscuit)
8185618
Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 4451759 Vent, Exhaust
4449040 Screw
2 4454943 Plate, Mounting
11 4449868 Block, Terminal
3400080 Screw
112432 Nut
13 4448549 Vent,
(Control Panel)
4450038 Screw
14 Side, Control Compt.
3191832 Right
3191833 Left
4449809 Screw
15 4452244 Back, Control
4449809 Screw
16 3191842 Cover, Rear
4449809 Screw
OPTIONAL PARTS
8
For Models:RS610PXGW3, RS610PXGN3, RS610PXGV3
(White) (Almond) (Black on Biscuit)
8185618
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
261869 Cord Brown
72032 Black
PAINT, SPRAY
350930 White
261900 Citrine White
830864 Black
ADHESIVE
591014 Adhesive
Loctite (1/3 oz.)
482338 Sealer, Silastic
(3 oz.)
SPLICING WIRES−−25FT.
LENGTH
242828 Wire (12 Ga.
150 c Black)
242820 Wire (14 Ga.
150 c Black)
242821 Wire (14 Ga.
150 c Blue)
242822 Wire (14 Ga.
150 c Brown)
242830 Wire (14 Ga.
200 c Brown)
242823 Wire (14 Ga.
150 c Green)
242824 Wire (14 Ga.
150 c Orange)
242829 Wire (12 Ga.
150 c Red)
242825 Wire (14 Ga.
150 c Red)
242831 Wire (14 Ga.
200 c Red)
242826 Wire (14 Ga.
150 c White)
242827 Wire (14 Ga.
150 c Yellow)
242832 Wire (14 Ga.
200 c Yellow)
WIRING HARNESS PARTS
4449809 Screw
3191220 Harness, Wire
(Main)
4455745 Harness, Wire
(EDC)
4451163 Conduit
3400015 Screw, Ground
4448664 Clamp
3192236 Harness, Wire
(Infinite Switch)
4455592 Harness, Wire
(Light)
4454384 Ground, Wire
4452222 Spacer, Harness
4454835 Tie, Cable
Miscellaneous
4448950 Screw, Install.
8−14 x 1" (4)
814381 Hinge Pin Kit
