OVEN PARTS

For Models:RBS305PRB00, RBS305PRQ00, RBS305PRT00, RBS305PRS00

(Black) (Designer White) (Biscuit) (S.Steel)

11−05 Litho in U.S.A. (dmm) Part No. 8186432

30" BUILT−IN

ELECTRIC OVEN

SELF CLEAN

OVEN PARTS

For Models:RBS305PRB00, RBS305PRQ00, RBS305PRT00, RBS305PRS00

(Black) (Designer White) (Biscuit) (S.Steel)

8186432

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8303647 Installation

Instructions

8303870 Use & Care Guide

(Oven)

8301758 Tech Sheet (Oven)

8303946 Installation/

Undercounter

Safer Cooking Tips

3191638 English

9759133 French

8301928 Instructions

Microwave Trim

Kit

2 Trim, Side

(Right Hand)

8302908 Black

8302909 White

8302911 Biscuit

8303213 Stainless

(Left Hand)

8302907 Black

8302910 White

8302912 Biscuit

8303214 Stainless

3 Hinge Receiver

4455605 Left Hand

4455606 Right Hand

4 4448520 Bumper, Door

5 Screw

3400832 Black

3400805 Zinc

7 8303099 Top Chassis

8 4452490 Spacer, Foam

9 4452158 Tube, Vent

10 4452165 Lens, Light

11 4452368 Oven Light Assy

12 4452166 Bulb, Light

13 4452337 Insulation,

Bottom Vent

14 9759060 Frame, Front

15 4455382 Gasket, Door

16 4449809 Screw

17 4449040 Screw

18 4452152 Bracket, Mounting

19 4451478 Support, Insulation

21 Rail, Side

8303115 Right Side

8303116 Left Side

4448444 Grommet

22 9759525 Latch, Motorized

23 4449154 Screw

25 4455641 Side, Chassis

(R.H. & L.H.)

26 4452234 Back, Chassis

27 Liner, Oven

(Not serviceable)

29 4455636 Sensor

33 9760677 Deflector, Vent

37 9759243 Thermostat (TOD)

(Temp.) SPST

43 9759713 Base, Chassis

49 4448933 Retainer, Gasket

50 4451747 Cover, Back

53 4449845 Support, Bracket

55 Trim, Bottom

8302947 Black

8302948 White

8302949 Biscuit

8302950 Stainless

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449316 Insulation, Wrap

4450365 Insulation, Back

OVEN DOOR PARTS

For Models:RBS305PRB00, RBS305PRQ00, RBS305PRT00, RBS305PRS00

(Black) (Designer White) (Biscuit) (S.Steel)

8186432

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8303700 Door Liner

2 Hinge, Door

9760571 R.Side (White)

9760572 L.Side (White)

9760573 R.Side (Lt.Blue)

9760574 L.Side (Lt.Blue)

3 4449259 Glass, Inner

4 4451722 Insulation, Door

5 4457132 Retainer, Glass

6 4449743 Screw

7 9759225 Glass, Inner

8 4449809 Screw

11 3400832 Screw

12 Assy, Door Glass

8303330 Black

8303339 White

8303342 Biscuit

8303314 Stainless

13 Door Handle

8302813 Black

8302814 White

8302815 Biscuit

14 8303167 Bracket, Handle

15 9759229 Bracket(2nd glass)

16 9759230 Bracket(3rd Glass)

17 8303811 Nameplate

18 Retainer, Door

8303389BL

Black

8303389WH

White

8303389BT

Biscuit

19 4457103 Shield, Heat

4449809 Screw

20 4451040 Screw

21 8303878 Seal, Door Top

22 4457114 Shield, Heat (Btm)

23 4451432 Retainer, Clip

24 9759228 Glass, Inner

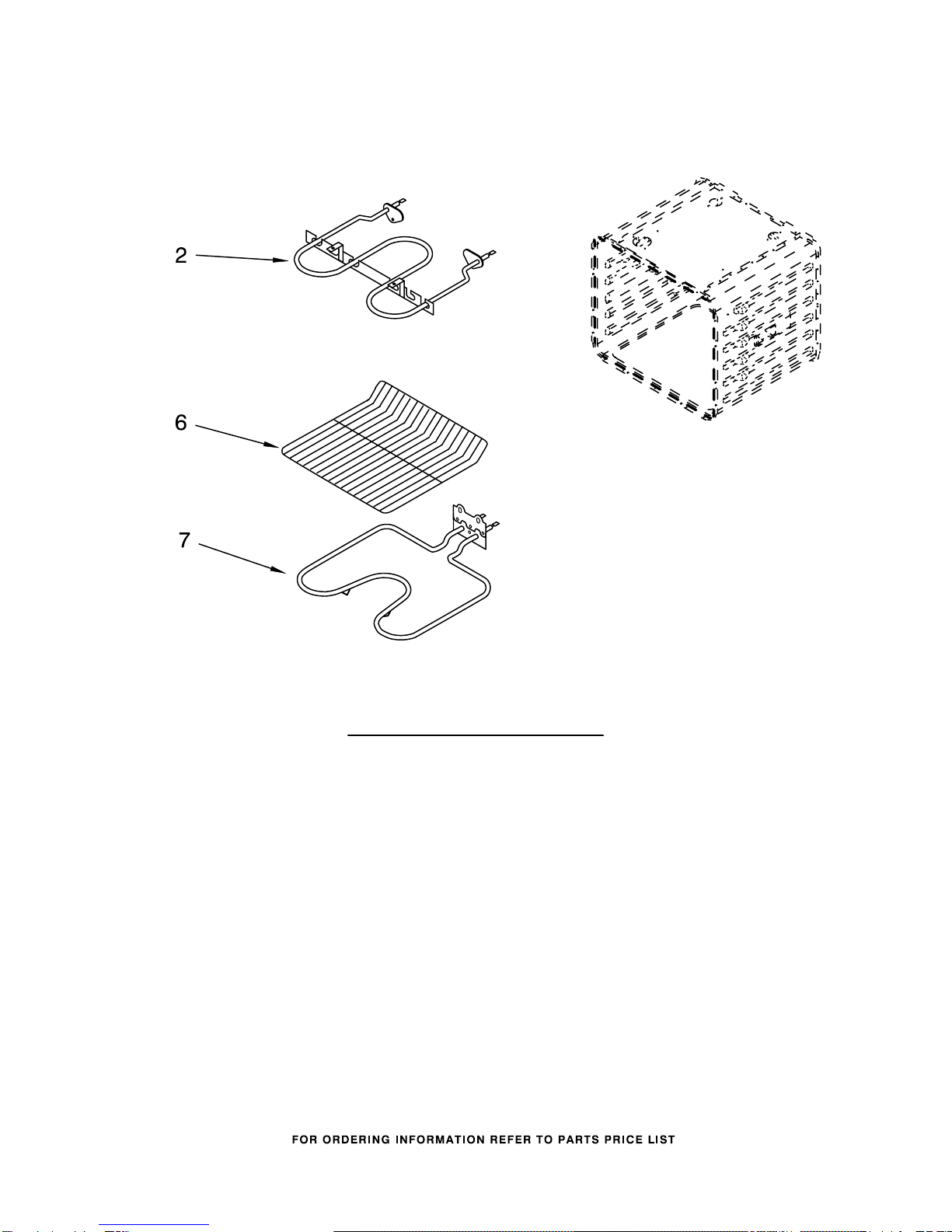

INTERNAL OVEN PARTS

For Models:RBS305PRB00, RBS305PRQ00, RBS305PRT00, RBS305PRS00

(Black) (Designer White) (Biscuit) (S.Steel)

8186432

Illus. Part

No. No. DESCRIPTION

2 4456103 Element, Broil

4449154 Screw

6 4448717 Rack, Oven

7 4452153 Element, Bake

4449154 Screw

CONTROL PANEL PARTS

For Models:RBS305PRB00, RBS305PRQ00, RBS305PRT00, RBS305PRS00

(Black) (Designer White) (Biscuit) (S.Steel)

8186432

Illus. Part

No. No. DESCRIPTION

1 Control Panel Assy.

8302848 Black

8302849 White

8302850 Biscuit

2 Membrane Switch

8304242 Black

8304243 White

8304244 Biscuit

3 8303885 Microcomputer

4 8304161 Bracket, Control

5 8302877 Cover, Stainless

TOP VENTING PARTS

For Models:RBS305PRB00, RBS305PRQ00, RBS305PRT00, RBS305PRS00

(Black) (Designer White) (Biscuit) (S.Steel)

8186432

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

2 4455178 Elbow, Vent−Top

3 4457289 Blower

4 4451758 Block, Foam

5 4455177 Elbow, Vent−Bottom

6 4449809 Screw

7 4449040 Screw

8 3400080 Screw

9 4450038 Screw

11 4449868 Block, Terminal

13 8303497 Vent,

(Control Panel)

14 Side, Control Top

4451597 Right

4451598 Left

15 9759135 Back, Control

16 4450551 Cover, Top Rear

17 4448664 Clamp

18 4450554 Cover, Top Front

19 8302143 Suppressor

OPTIONAL PARTS

For Models:RBS305PRB00, RBS305PRQ00, RBS305PRT00, RBS305PRS00

(Black) (Designer White) (Biscuit) (S.Steel)

8186432

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242827 Wire (14 Ga.

150 c Yellow)

WIRING HARNESS PARTS

8301400 Harness, Wire

(Main)

4450952 Conduit

4449809 Screw

112432 Nut

4450800 Screw, Ground

4451761 Support, Wiring

4454842 Tie, Cable

Miscellaneous

4396923 Broiler Pan Assy.

814381 Pin Hinge Kit

4448950 Screw, Install (4)
