LOWER OVEN PARTS
For Models:RBD275PRB00, RBD275PRQ00, RBD275PRT00,RBD275PRS00
(Black) (Designer White) (Biscuit) (Stainless Steel)
24" BUILT−IN ELECTRIC
DOUBLE OVEN
STD−CLEAN LOWER
SELF−CLEAN UPPER
1
6−06 Litho in U.S.A. (cre) Part No. 8186428 Rev.A
LOWER OVEN PARTS
2
For Models:RBD275PRB00, RBD275PRQ00, RBD275PRT00,RBD275PRS00
(Black) (Designer White) (Biscuit) (Stainless Steel)
8186428
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8303648 Installation
Instructions
8303870 Use & Care Guide
(Oven)
8302068 Tech Sheet
Safer Cooking Tips
3191638 English
9759133 French
2 Trim, Side
8302917 RH Black
8302919 RH White
8302921 RH Biscuit
8303210 RH Stainless
8302918 LH Black
8302920 LH White
8302922 LH Biscuit
8303209 LH Stainless
4 4448520 Bumper, Door
5 Screw
3400832 Black
3400805 Zinc
6 Receiver, Hinge
4455605 Left Hand
4455606 Right Hand
7 4455864 Top Chassis
8 4452490 Spacer, Foam
9 4452159 Tube, Vent
10 4452165 Lens, Light
11 4452368 Oven Light Assy
12 4452166 Bulb, Light
13 4452336 Insulation,
Bottom Vent
14 4455611 Frame, Front
15 4450492 Gasket, Door
16 4449809 Screw
17 4449040 Screw
18 4452152 Bracket, Mounting
(Bottom Vent)
19 4451477 Support, Insulation
20 4450935 Plug, Door
22 4451664 Fan & Bracket Assy
23 4449154 Screw
24 4449743 Screw
25 4455641 Side, Chassis
(R.H. & L.H.)
28 3196176 Screw
26 4452233 Back, Chassis
27 Liner, Oven
(Not serviceable)
29 4455636 Sensor
33 9760676 Deflector, Vent
37 4451354 Fuse−Thermal
43 4455529 Base, Chassis
49 4448933 Retainer, Gasket
50 4451747 Cover, Back
51 Trim, Bottom
8302937 Black
8302938 White
8302939 Biscuit
8302940 Stainless
53 4449845 Support, Bracket
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
4449315 Insulation, Wrap
4450364 Insulation, Back

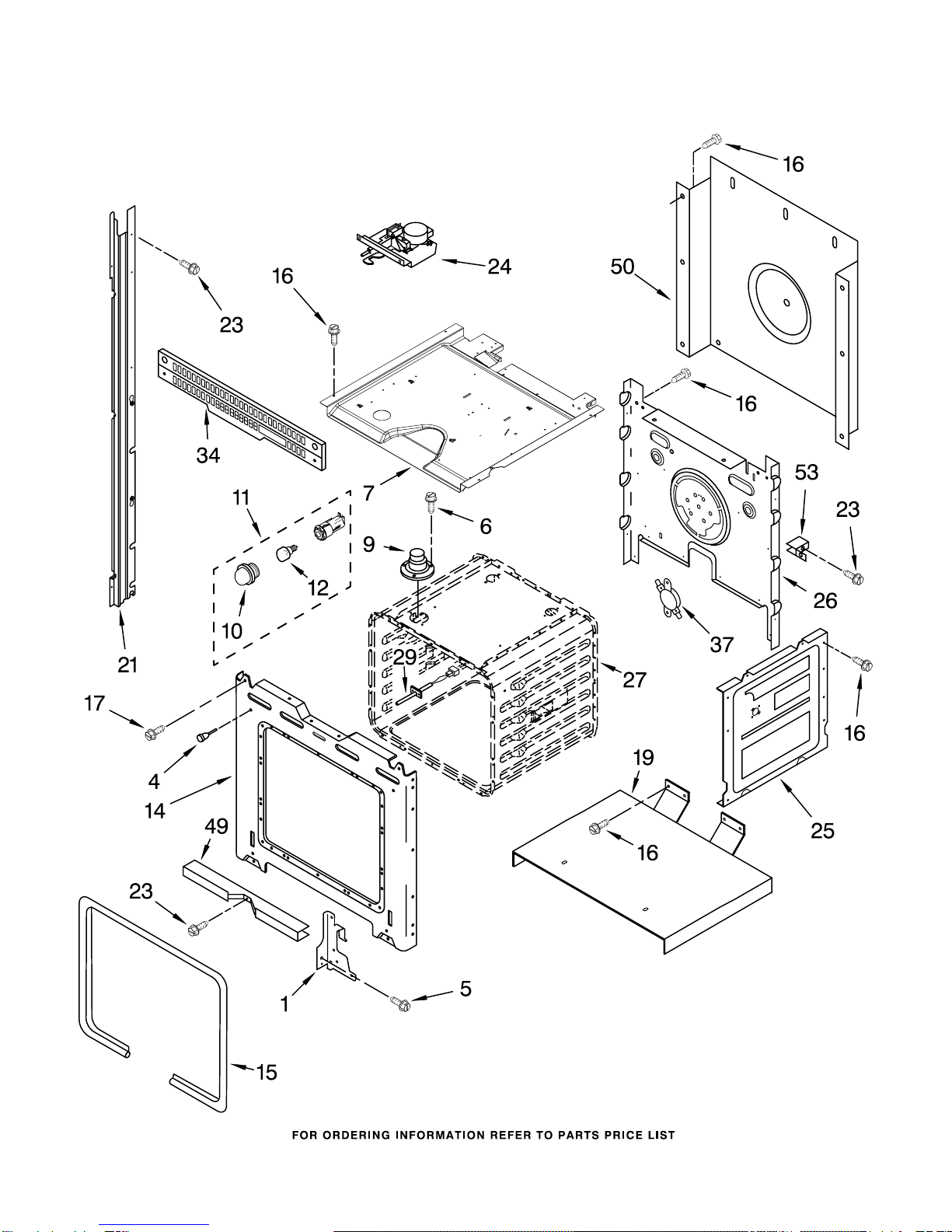

UPPER OVEN PARTS
3
For Models:RBD275PRB00, RBD275PRQ00, RBD275PRT00,RBD275PRS00
(Black) (Designer White) (Biscuit) (Stainless Steel)
8186428
UPPER OVEN PARTS
4
For Models:RBD275PRB00, RBD275PRQ00, RBD275PRT00,RBD275PRS00
(Black) (Designer White) (Biscuit) (Stainless Steel)
8186428
Illus. Part
No. No. DESCRIPTION
1 Receiver, Hinge
4455605 Left Hand
4455606 Right Hand
4 4448520 Bumper, Door
5 4449743 Screw
6 3196176 Screw
7 4455864 Top Chassis
9 4452158 Tube, Vent
10 4452165 Lens, Light
11 4452368 Oven Light Assy
12 4452166 Bulb, Light
14 4455611 Frame, Front
15 4455381 Gasket, Door
16 4449809 Screw
17 4449040 Screw
19 4451477 Support, Insulation
21 Rail, Side
8302793 Right Side
8302794 Left Side
4448444 Grommet
23 4449154 Screw
24 9759525 Latch Assy
25 4455641 Side, Chassis
(R.H. & L.H.)
26 4452233 Back, Chassis
27 Liner, Oven
(Not serviceable)
29 4455636 Sensor
34 4452266 Vent, Center
37 9759243 Thermostat (TOD)
(Temp.) SPST
49 4448933 Retainer, Gasket
50 4451747 Cover, Back
53 4449845 Support, Bracket
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
4449315 Insulation, Wrap
4450364 Insulation, Back
LOWER OVEN DOOR PARTS
5
For Models:RBD275PRB00, RBD275PRQ00, RBD275PRT00,RBD275PRS00
(Black) (Designer White) (Biscuit) (Stainless Steel)
8186428
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8303699 Liner, Door
3 4449253 Glass, Inner
5 4457131 Retainer, Glass
6 Hinge, Door
9760563 Right Side
9760564 Left Side
(SS Model Only)
9760565 Left side
9760566 Right side
12 Door Glass, Assy
8303320 Black
8303338 White
8303341 Biscuit
8303313 Stainless
13 Door Handle
8302810 Black
8302811 White
8302812 Biscuit
14 8303166 Bracket, Handle
18 Retainer, Door
8303388BL
Black
8303388WH
White
8303388BT
Biscuit
20 4451040 Screw
21 8303877 Seal, Door
23 4450863 Retainer, Clip
UPPER OVEN DOOR PARTS
6
For Models:RBD275PRB00, RBD275PRQ00, RBD275PRT00,RBD275PRS00
(Black) (Designer White) (Biscuit) (Stainless Steel)
8186428
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8303699 Liner, Door
2 Hinge, Door
9760569 Right Side
9760570 Left Side
(SS Model Only)
9760572 Left Side
9760571 Right Side
3 4449253 Glass, Inner
4 4451721 Insulation, Door
5 4457131 Retainer, Glass
7 9759224 Glass, Inner
11 3400832 Screw
12 Door Glass, Assy
8303320 Black
8303338 White
8303341 Biscuit
8303313 Stainless
13 Door Handle
8302810 Black
8302811 White
8302812 Biscuit
14 8303166 Bracket, Handle
15 9759229 Bracket(2nd Glass)
16 9759230 Bracket(3rd Glass)
17 8303811 Nameplate
18 Retainer, Door
8303388BL
Black
8303388WH
White
8303388BT
Biscuit
19 4457102 Shield, Heat
20 4451040 Screw
22 4457113 Shield, Heat (Btm)
23 4451432 Retainer, Clip
24 9759227 Glass, Inner
21 8303877 Seal, Door
INTERNAL OVEN PARTS
7
For Models:RBD275PRB00, RBD275PRQ00, RBD275PRT00,RBD275PRS00
(Black) (Designer White) (Biscuit) (Stainless Steel)
8186428
Illus. Part
No. No. DESCRIPTION
2 4456103 Element, Broil
4449154 Screw
6 4448715 Rack, Oven (4)
7 4452153 Element, Bake
4449154 Screw
CONTROL PANEL PARTS
8
For Models:RBD275PRB00, RBD275PRQ00, RBD275PRT00,RBD275PRS00
(Black) (Designer White) (Biscuit) (Stainless Steel)
8186428
Illus. Part
No. No. DESCRIPTION
1 Control Panel Assy.
8302844 Black
8302845 White
8302846 Biscuit
2 Membrane Switch
8304248 Black
8304249 White
8304250 Biscuit
3 8303883 Microcomputer
4 8304162 Bracket, Control
5 8301848 Board, Mtrzd Latch
6 4449745 Screw
7 8302878 Trim−Panel
(Use on S.Steel
model only)
TOP VENTING PARTS
9
For Models:RBD275PRB00, RBD275PRQ00, RBD275PRT00,RBD275PRS00
(Black) (Designer White) (Biscuit) (Stainless Steel)
8186428
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 4451759 Vent, Exhaust
2 4457289 Blower
3 4451758 Foam, Block
4 4455178 Elbow, Vent−Top
5 4455177 Elbow, Vent−Bottom
6 4449809 Screw
7 4449040 Screw
8 3400080 Screw
9 4450038 Screw
11 4449868 Block, Terminal
13 8303498 Vent,
(Control Panel)
14 Side, Control Top
4451597 Right
4451598 Left
15 9759135 Back, Control
16 4450550 Cover, Top Rear
17 4448664 Clamp
18 4452366 Cover, Top Front
19 4454943 Plate, Fan
20 8302143 Suppressor
21 8300642 Transformer,
Single Control
OPTIONAL PARTS
10
For Models:RBD275PRB00, RBD275PRQ00, RBD275PRT00,RBD275PRS00
(Black) (Designer White) (Biscuit) (Stainless Steel)
8186428
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
261869 Cord Brown
72032 Black
PAINT, SPRAY
350930 White
261900 Citrine White
830864 Black
ADHESIVE
591014 Adhesive
Loctite (1/3 oz.)
482338 Sealer, Silastic
(3 oz.)
SPLICING WIRES−−25FT.
LENGTH
242828 Wire (12 Ga.
150 c Black)
242820 Wire (14 Ga.
150 c Black)
242821 Wire (14 Ga.
150 c Blue)
242822 Wire (14 Ga.
150 c Brown)
242830 Wire (14 Ga.
200 c Brown)
242823 Wire (14 Ga.
150 c Green)
242824 Wire (14 Ga.
150 c Orange)
242825 Wire (14 Ga.
150 c Red)
242831 Wire (14 Ga.
200 c Red)
242827 Wire (14 Ga.
150 c Yellow)
WIRING HARNESS PARTS
8302154 Harness, Wire STD
(Main)
8301878 Stainless Model
4450953 Conduit, Double
4450800 Screw
4448664 Clamp
4449809 Screw
112432 Nut
4454835 Tie, Cable
4451761 Support, Wiring
4454842 Tie, Cable
Miscellaneous
4448950 Screw, Install.
8−14 x 1" (4)
814381 Pin Hinge Kit
4396923 Broiler Pan Assy
