Whirlpool GW395LEPB01 Manual de usuario

COOKTOP PARTS

For Models: GW395LEPB01, GW395LEPQ01, GW395LEPT01, GW395LEPS01

(Black) (White) (Biscuit) (S.Steel)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literaturre Parts

9761413 Installation

Instructiions

9762258 Use & Care Guide

9761386 Tech Sheet

9757680 Anti−Tip Instruct.

3191638 Safe Cooking Tips

9759133 Safe Cooking Tips

2 9759523 Burner Box

3 4454023 Bracket, Mounting

4 Cooktop

9760428BT

Biscuit

9760428WH

White

9760428BL

Black

5 3400843 Screw

6 Trim−CkTop, SI

9759531WH

White LH

9759531BT

Biscuit LH

9759531BL

Black LH

9759531SS

S.Steel LH

9759530WH

White RH

9759530BT

Biscuit RH

9759530BL

Black RH

9759530SS

S.Steel RH

7 3196537 Screw

8 4453989 Shield, Heat

9 3192811 Bracket, Burner

10 9756821 Support, Wiring

9756505BL

Dome Cap, Vent

12 Grate, Burner

9759756BL

Black (RH)

9759756EP

Espresso (RH)

9759756MG

Mouse Grey (RH)

9759755BL

Black (LH)

9759755EP

Espresso (LH)

9759755MG

Mouse Grey (LH)

13 4449809 Screw

14 3196160 Screw

16 9759944 Thermostat (60c)

17 Vent, Center

9760224BL

Black

9760224WH

White

9760224BT

Biscuit

18 Trim, Extension

9760520WH

White

9760520BT

Biscuit

9760520BL

Black

9760520SS

S.Steel

19 Cap, Burner

14K (LF)

9753939GB

Black

9753939EP

Espresso

9753939GS

Mouse Grey

12.5K (RR)

3191904 Black

3191905 Mouse Grey

8273345 Espresso

6K (RF, LR)

3191898 Black

3191899 Mouse Grey

8273343 Espresso

23 9759629 Cover, Cktp Rear

8−07 Litho in U.S.A. (cre) Part No. 8186416 Rev.A

30" Slide−In

GAS OVEN

NON−CONV

CONTROL PANEL PARTS

For Models: GW395LEPB01, GW395LEPQ01, GW395LEPT01, GW395LEPS01

(Black) (White) (Biscuit) (S.Steel)

8186416

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Control Panel

8191141 White

8191142 Biscuit

8191143 Black

8191144 S.Steel

3 9760013 Control, Migration

4 9757119 Bracket, Console

5 3196537 Screw

6 9759731 Bracket, Control

7 9757409 Support, Gas Valve

8 Endcap

9756614BT

Biscuit LH

9756614WH

White LH

9756614BL

Black LH

9756611BT

Biscuit RH

9756611WH

White RH

9756611BL

Black RH

9 Knob

9759941BL

Black

9759941WH

White

9759941BT

Biscuit

10 9758080 Module, Spark

11 9780271 Screw

12 3196172 Screw

OVEN PARTS

For Models: GW395LEPB01, GW395LEPQ01, GW395LEPT01, GW395LEPS01

(Black) (White) (Biscuit) (S.Steel)

8186416

OVEN PARTS

For Models: GW395LEPB01, GW395LEPQ01, GW395LEPT01, GW395LEPS01

(Black) (White) (Biscuit) (S.Steel)

8186416

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Side

(Right Hand)

9757735WH

White

9757735BT

Biscuit

9757735BL

Black

9757735SS

S.Steel

(Left Hand)

9757734WH

White

9757734BT

Biscuit

9757734BL

Black

9757734SS

S.Steel

2 3400832 Screw

3 Hinge Receiver

4455605 Left Hand

4455606 Right Hand

4 4448520 Bumper, Door

5 3196160 Screw

6 9757461 Bracket,Side Panel

7 8303099 Top Chassis

8 9759469 Bracket, Vent Sprt

9 9761062 Tube, Vent

10 4452165 Lens, Light

11 4452368 Oven Light Assy

12 4452166 Bulb, Light

13 9757732 Shield, Heat

14 9759060 Frame, Front

15 4455382 Gasket, Door

16 4453951 Deflector, Vent

Bottom

17 4452152 Bracket, Mounting

18 9757685 Guide, Side Panel

19 9757811 Brace, SidePanel

20 Oven, Side Panel

9760723PB

Black

9760723PW

White

9760723PC

Biscuit

22 9760888 Latch, Motorized

23 9757807 Thermostat SPST

(230)

24 8053971 Brace, Main Back

25 4455641 Side, Chassis

(R.H. & L.H.)

26 9759762 Back, Chassis

27 Liner, Oven

(Not serviceable)

29 4455636 Sensor

30 9756454 Bracket, GOC

31 9760223 Slide, GOC

32 3196537 Screw

33 9759890 Clip, Side Panel

34 9757717 Insulation

37 8300802 Thermostat (TOD)

(Temp.) SPST

39 9757070 Plate, Relectance

43 4453981 Base, Chassis

9756637 Gasket

49 4448933 Retainer, Gasket

50 4451747 Cover, Back

51 4449809 Screw

54 Vent, Bottom Upper

9756481WH

White

9756481BT

Biscuit

9756481BL

Black

9756481SS

S.Steel

55 Trim, Btm Vent

9756485WH

White

9756485BT

Biscuit

9756485BL

Black

9756485SS

S.Steel

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

9756817 Insulation, Wrap

9756470 Insulation, Back

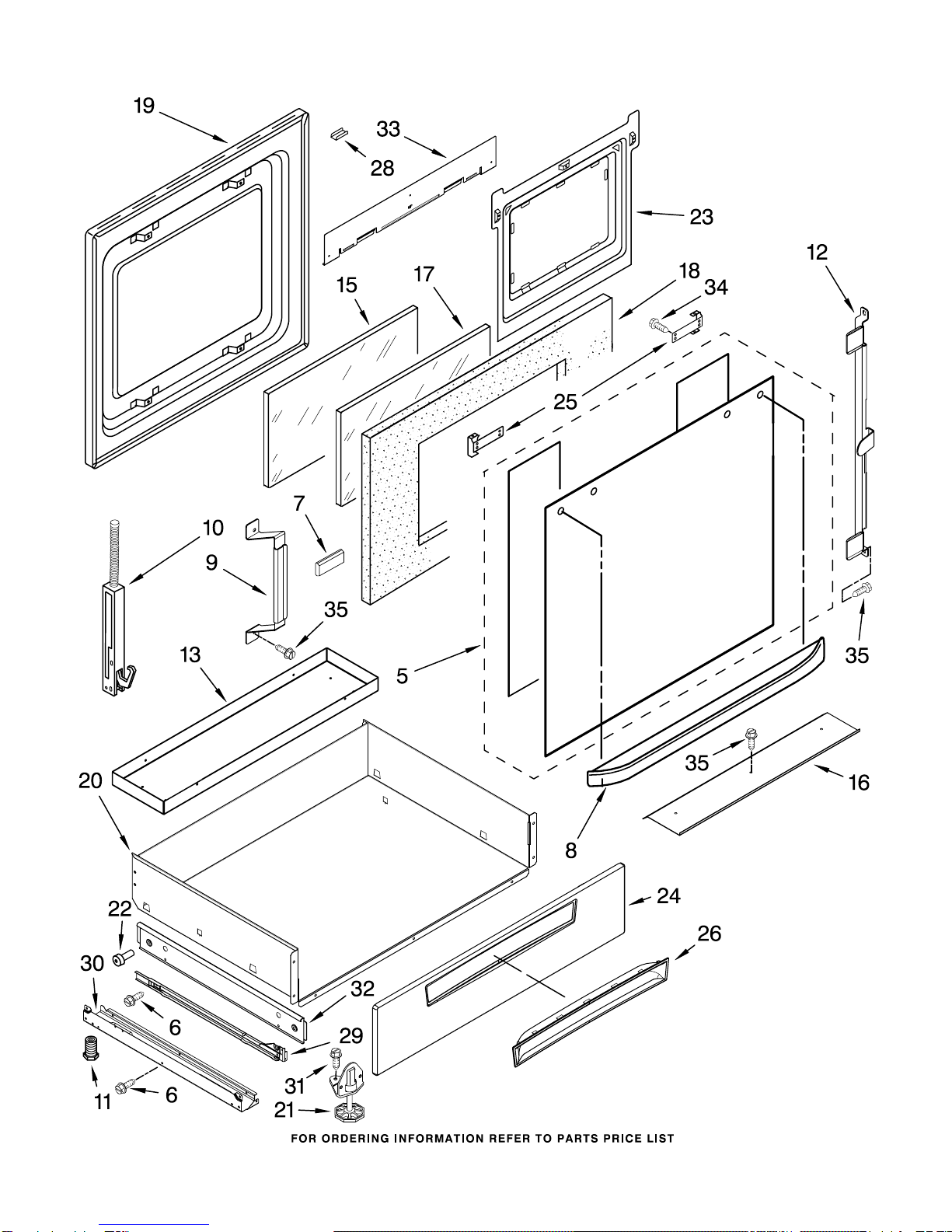

DOOR AND DRAWER PARTS

For Models: GW395LEPB01, GW395LEPQ01, GW395LEPT01, GW395LEPS01

(Black) (White) (Biscuit) (S.Steel)

8186416

DOOR AND DRAWER PARTS

For Models: GW395LEPB01, GW395LEPQ01, GW395LEPT01, GW395LEPS01

(Black) (White) (Biscuit) (S.Steel)

8186416

Illus. Part

No. No. DESCRIPTION

5 Glass, Door Front

9759641 Black

9759639 White

9759640 Biscuit

9759642 S.Steel

6 3196537 Screw

7 9759635 Spacer, Glass

8 Handle, Door

4448854 Black

4448855 White

4448856 Biscuit

9 8302094 Bracket, Central

10 Hinge, Door

9760571 White RH

9760572 White LH

11 9761935 Foot, Rear

12 8302092 Bracket, Side

13 9760592 Panel, Drawer

15 9757706 Glass, Inner

16 4457114 Shield, Heat Btm

17 4449263 Glass, Inner (2)

18 4451722 Insulation, Door

19 9759413 Liner, Door

20 9757806 Drawer & Roller

21 3196037 Foot, Front

22 422604 Roller, Drawer

23 4457132 Retainer, Glass

24 Front, Drawer

4453921WH

White

4453921BL

Black

4453921BT

Biscuit

4453921SS

S.Steel

26 Handle, Drawer

9756674WH

White

9756674BT

Biscuit

9756674BL

Black

28 4450863 Retainer, Clip

29 Track, Drawer

9756837 R.Side

9756839 L.Side

30 Side, Base

9759953 R.Side

9759954 L.Side

31 4449743 Screw

32 9756673 Guide, Roller

33 9757707 Shield, Heat Top

34 4451040 Screw

35 4449809 Screw

Bracket, Handle

9763497 R. Hand

9763496 L. Hand

4451040 Screw

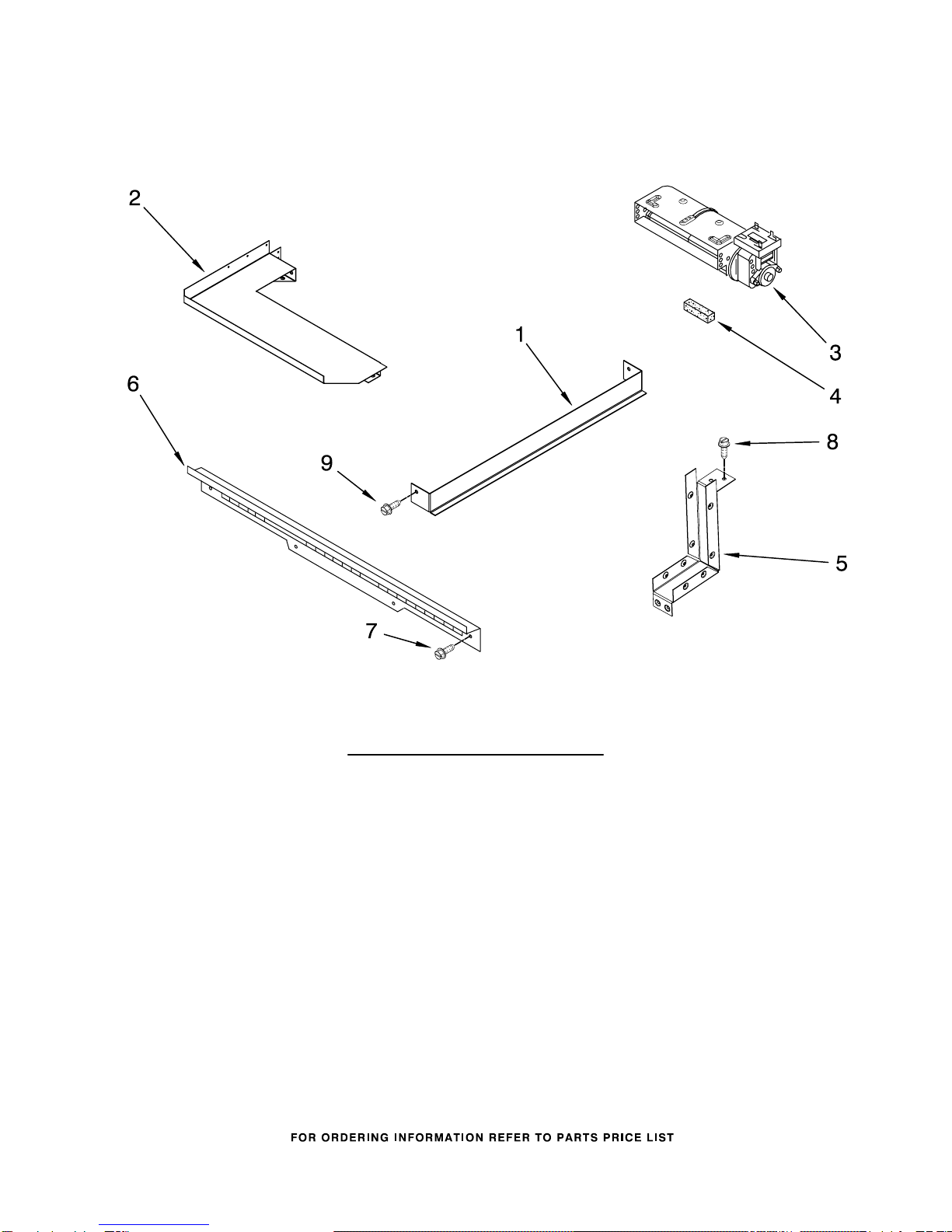

TOP VENTING PARTS

For Models: GW395LEPB01, GW395LEPQ01, GW395LEPT01, GW395LEPS01

(Black) (White) (Biscuit) (S.Steel)

8186416

Illus. Part

No. No. DESCRIPTION

1 9758810 Front, Air Duct

2 Top, Air Duct

9757827 L.Hand

9757828 R.Hand

3 9759320 Blower

4 4451758 Block, Foam

5 Corner, Air Duct

9756639 R.Hand

9756638 L.Hand

9757117BL

Vent,

(Control Panel)

7 4450038 Screw

8 4449809 Screw

9 4449040 Screw

INTERNAL OVEN PARTS

For Models: GW395LEPB01, GW395LEPQ01, GW395LEPT01, GW395LEPS01

(Black) (White) (Biscuit) (S.Steel)

8186416

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 9752980 Shield, Flame

2 3196176 Screw

3 4457277 Grill, Broiler

4 4457276 Pan, Broiler

5 9757779 Fitting, Broiler

6 3196176 Screw

7 4448717 Rack, Oven

8 4453957 Pan Support, Bake

9 4454048 Electrode, Bake

10 4454047 Burner, Bake Log

11 9752737 Shield, Oven

12 4453984 Shield, Bake Flame

13 4453999 Valve, Assy

14 9756831 Tube, Broil

15 9757700 Burner, Broil

16 8054129 Ignitor, Broil

17 4454009 Cover, Ignitor

18 4453920 Pan, Oven Bottom

19 3196176 Screw

COOKTOP BURNER PARTS

For Models: GW395LEPB01, GW395LEPQ01, GW395LEPT01, GW395LEPS01

(Black) (White) (Biscuit) (S.Steel)

8186416

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Burner Base

w/Orifice

9782447 Small (2)

9782448 Large

9782449 Turbi

2 9756827 Tubing, Burner(RF)

3 9756828 Tubing, Burner(RR)

4 9759759 Tubing, Burner(LF)

5 9756829 Tubing, Burner(LR)

6 4456818 Valve, Turbi

7 4456816 Valve, Burner

Small (2)

8 4456817 Valve, Burner

Large

9 9756822 Spark Switch &

Harness Assembly

10 4453755 Tube, Manifold

11 9756803 Manifold

12 3196537 Screw

14 8523704 Bolt, Valve (4)

18 4453754 Tubing

GDS to Manifold

21 Head, Burner

9759894 Small

4455981 Large

4455849 Turbi

22 3368921 Screw, 7−18 x .750

OPTIONAL PARTS

For Models: GW395LEPB01, GW395LEPQ01, GW395LEPT01, GW395LEPS01

(Black) (White) (Biscuit) (S.Steel)

8186416

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242829 Wire (12 Ga.

150 c Red)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242826 Wire (14 Ga.

150 c White)

242827 Wire (14 Ga.

150 c Yellow)

242832 Wire (14 Ga.

200 c Yellow)

WIRING HARNESS PARTS

9760533 Harness, Wire

(Main)

9756892 Harness, Wire

(Cooktop Power)

9756920 Harness, Wire

Bake/Broil Ignit.

9757727 Harness, Wire

(Cooktop Right)

313660 Clip, Ground Wire

4448664 Clamp

4449809 Screw

112432 Nut

4450800 Screw, Ground

4452222 Spacer, Harness

3400015 Screw, Ground

Miscellaneous

814381 Hinge Pin Kit

4448950 Screw, Install (4)

9756609 Gasket, 19 x 388

9758677 Power Cord

9782676 Anit−Tip Assy

9757427 Kit, Orific (LP)

Filler,Counter Top

9757785WH

White

9757785BL

Black

9757785BT

Biscuit

9758677 Cord, Power

Otros manuales para GW395LEPB01

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Horno de Whirlpool

Whirlpool

Whirlpool AKP 206/IX Manual de usuario

Whirlpool

Whirlpool RBIZOPXY Manual de usuario

Whirlpool

Whirlpool WOS51E Manual de usuario

Whirlpool

Whirlpool AKP 207 Manual de usuario

Whirlpool

Whirlpool AKZM 756 Manual de usuario

Whirlpool

Whirlpool GBD309PV Series Instrucciones de uso

Whirlpool

Whirlpool AKZM 745 Instrucciones de funcionamiento

Whirlpool

Whirlpool AMW 540 Manual de usuario

Whirlpool

Whirlpool AKZM 6550 Instrucciones de funcionamiento

Whirlpool

Whirlpool ADN508 Manual

Whirlpool

Whirlpool SB160PEX Manual de usuario

Whirlpool

Whirlpool 6AKZ 186/IX Manual de usuario

Whirlpool

Whirlpool AKZ 179 Dimensiones

Whirlpool

Whirlpool RS696PXGB8 Manual de usuario

Whirlpool

Whirlpool AMW 595 IX Manual de usuario

Whirlpool

Whirlpool OMR58CU1SX Manual de usuario

Whirlpool

Whirlpool W9 OS2 4S1 P Manual de usuario

Whirlpool

Whirlpool NUTID OV9 Manual de usuario

Whirlpool

Whirlpool W7 MS450 Manual de instalación y operación

Whirlpool

Whirlpool AKZ9 9480 NB Manual de usuario

Whirlpool

Whirlpool GBD277PR Manual de usuario

Whirlpool

Whirlpool AKZM 8920 Instrucciones de funcionamiento

Whirlpool

Whirlpool AKZM 778 Instrucciones de funcionamiento

Whirlpool

Whirlpool AKZM775IX Instrucciones de funcionamiento

Manuales populares de Horno de otras marcas

Bosch

Bosch HVA531NS0 Manual de usuario

Electrolux

Electrolux EOF6P46X Manual de usuario

NEFF

NEFF B44S32 5GB Series Manual de usuario

Combi

Combi BLODGETT BC142GDS Manual de usuario

AEG

AEG COMPETENCE 311704300 Manual de usuario

Falcon

Falcon DOMINATOR PLUS G3106 Series Guía del usuario

Rational

Rational SCC WE 61G Manual de usuario

Smeg

Smeg DOSPA38X Manual de instalación y operación

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manual de usuario

Miele

Miele HR 1954-2 Manual de usuario

KHIND

KHIND OT50 Manual de usuario

Henny Penny

Henny Penny Smoker Box Manual de usuario

Lang

Lang ECOD-AP Manual de usuario

AEG

AEG BEK455310M Manual de usuario

Frigidaire

Frigidaire FNGE90JGR Manual de usuario

Hotpoint

Hotpoint FE9 S831 JSH IX Manual de usuario

GE Advantium SCB2000 Manual de usuario

AEG

AEG DE401301DM Manual de usuario
