SERVICE MANUAL

WALL MONTED

COMPACT ELECTRIC DRYER

220V / 60Hz

MODEL:

WSI24ABBPH00 Wall Mounted - White Color GW

Portinari Project

MSEX0110i PHILIPPINES - OCTOBER/ 2006 MADE IN BRAZIL

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 2-21

INDEX

1– IDENTIFICATION.................................................................................................................03

2 – TECHNICAL SPECIFICATION...............................................................................................04

3 – BASIC FEATURES...................................................................................................................04

4 – INSTALLATION PROCEDURE................................................................................................05

5 – PARTS SUPPLIED WITH THE PRODUCT..............................................................................09

6 – ACCESSORIES........................................................................................................................09

7 – FUNCTIONAL CHARACTERISTICS.......................................................................................10

8 – CONTROL PANEL - USE INSTRUCTION...............................................................................11

9 – COMPONENT ASSEMBLY AND DISASSEMBLY..................................................................13

10 – COMPONENT TESTING........................................................................................................14

11 – NECESSARY TOOLS............................................................................................................19

12 – IMPORTANT HINTS...............................................................................................................20

13 – TROUBLE SHOOTING..........................................................................................................20

14 – WIRING DIAGRAM.................................................................................................................21

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 3-21

1 – IDENTIFICATION :

1.1 – Whirlpool Version

WSI24 A B B PH 00 DESCRIPTION

ENGING.

DIGIT 00= Lauching

DESTINATION PH= Philippines

VOLTAGE B= 220V / 60Hz

COLOR B= White color (painted)

VERSION A= 1ªVersion

CAPACITY 24 inches (10,5Kg)

TYPE I= Wall-Mounted, Electric

PRODUCT S= Dryer

BRAND W= WHIRLPOOL

1.2 – Whirlpool Serial Number

X X X XXXXXX DESCRIPCION

4ODIGIT Serial Number (Sequential manufacturing number)

3ODIGIT Manufacturing Year

2ODIGIT Manufacturing Month

1ODIGIT Manufacturing Plant (Factory)

The first digit indicates the Factory Plant (in Brasil), identified by a letter as follows:

C– Rio Claro Plant P– São Paulo Plant

J– Joinville Plant I– Imported Products M– Manaus Plant

The second digit indicates the manufacturing month of the product:

A– January D– April G– July J– October

B– February E– May H– August L– November

C– March F– June I– September M– December

The third digit indicates the manufacturing year of the product:

8– 1998 1– 2001 4– 2004 7– 2007

9– 1999 2– 2002 5– 2005 8– 2008

0– 2000 3– 2003 6– 2006 9– 2009

The following six digits indicate the product manufacturing sequential:

Example: 000001, 000002, ..

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 4-21

2 – TECHNICAL SPECIFICATION

WSI24A

Nominal tension (V) 230

Allowed tension oscilation (V) 198 a 242

Energy consumption – Cotton Cycle (kWh) 4,81

- Delicate cycle (kWh) 2,90

Frequency (Hz) 60

Current Intensity (A) 8,5

Heater Potency (W) 1750

Dryer total Potency (with heater) (W) 2000

Basket speed (rpm) 58

Maximum temperature – Cotton Cycle (°C) 60

Maximum temperature – Delicate Cycle (°C) 45

Circuit breaker * to install (A) 15

* The circuit breaker(s) must be installed in the phase wire(s). DO NOT install them on the neutral

wire.

* In those places with 220 V voltage and two phase wires, a 15 A circuit breaker must be installed on

each phase.

2.1 - Dimensions:

W/0 PACKAGING WITH PACKAGING

SHRINK

Width (mm) 610 660

Depth (mm) 580 660

With closed door

Height (mm) 780 900

With opened door Depth (mm) 1130 -

Weight Depth (kg) 41,1 47,0

3– BASIC FEATURES:

WSI24A

Rotating Timer l

Three-Wire Power Supply Cord l

Reversible Tempered Glass Door l

Lint Screen Cleaning Indicator l

7 Drying Programs l

Special Cycle Selection for Different Textiles l

Softening Cycle l

Anti-Wrinkle System l

Drying Time Information in the Panel l

Capacity for 10 kg of drier clothes l

Automatic Security Lock l

Leveling Legs

Shrink Packaging l

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 5-21

4- INSTALLATION PROCEDURE:

Before to install the Dryer check if:

•Wire diameter (gauge) complies with specifications (see table of item 2.1).

•Supply voltage indicated by the label of Dryer Power Supply Cord is the same as the outlet where the

Appliance will be connected.

•Will be appropriate Hot Air Exhausting

•The installation condition: has good ventilation;

is not exposed to sunlight, heat sources or rain;

has a ground wire and the circuit breaker(s) is (are) installed.

•There is a 10 cm minimum clearance between the Dryer and the walls.

•Do not use electrical extension and/or electrical “T” sockets, as they can be sources of bad contact and

overloads in the mains.

•The Dryer is well leveled, in order to prevent vibration and noise.

4.1 – Wire diameter (Gauge) for installation purposes:

voltage /

gauge 2.5 mm2

(12 AWG) 4.0 mm2

(10 AWG) 6.0 mm2

(8 AWG) 10.0 mm2

(6 AWG)

Distance from

the Circuit

Breaker 220 V up to 70 meters 71 to116 meters -- --

It’s very important and necessary to install a ground wire if it is unavailable.

4.2 – Rack Installation:

There is a risk of death or injury if the installation instructions are not followed properly.

The security instructions mentioned below point out possible risks and advise the user how to reduce the

possibility of any injury and details what can happen if the instructions are not followed properly.

Before installing the Rack Set:

Check if the walls of Customer’s home have the required structural conditions to have the Dryer's Rack Set

safely installed.

Check if the area where the rack will be installed is free of water, electricity and gas pipelines. For your

safety, please wear protective glove to handle the parts from the Rack Set and to lift the Dryer during

installation.

If the residence have walls made of wood or plaster, it is recommended that the installation of the dryer not

be done until you contact an exclusive representative of the material used for the walls and verify if the wall

material can take the weight of the dryer.

In case the dryer is installed in a wooden or plaster wall without the approval of the wall material

manufacturer, you will risk that the dryer might fall and void the warranty.

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 6-21

4.2.1 – The Rack Set is composed by:

4.2.2 – Required tools for installation:

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 7-21

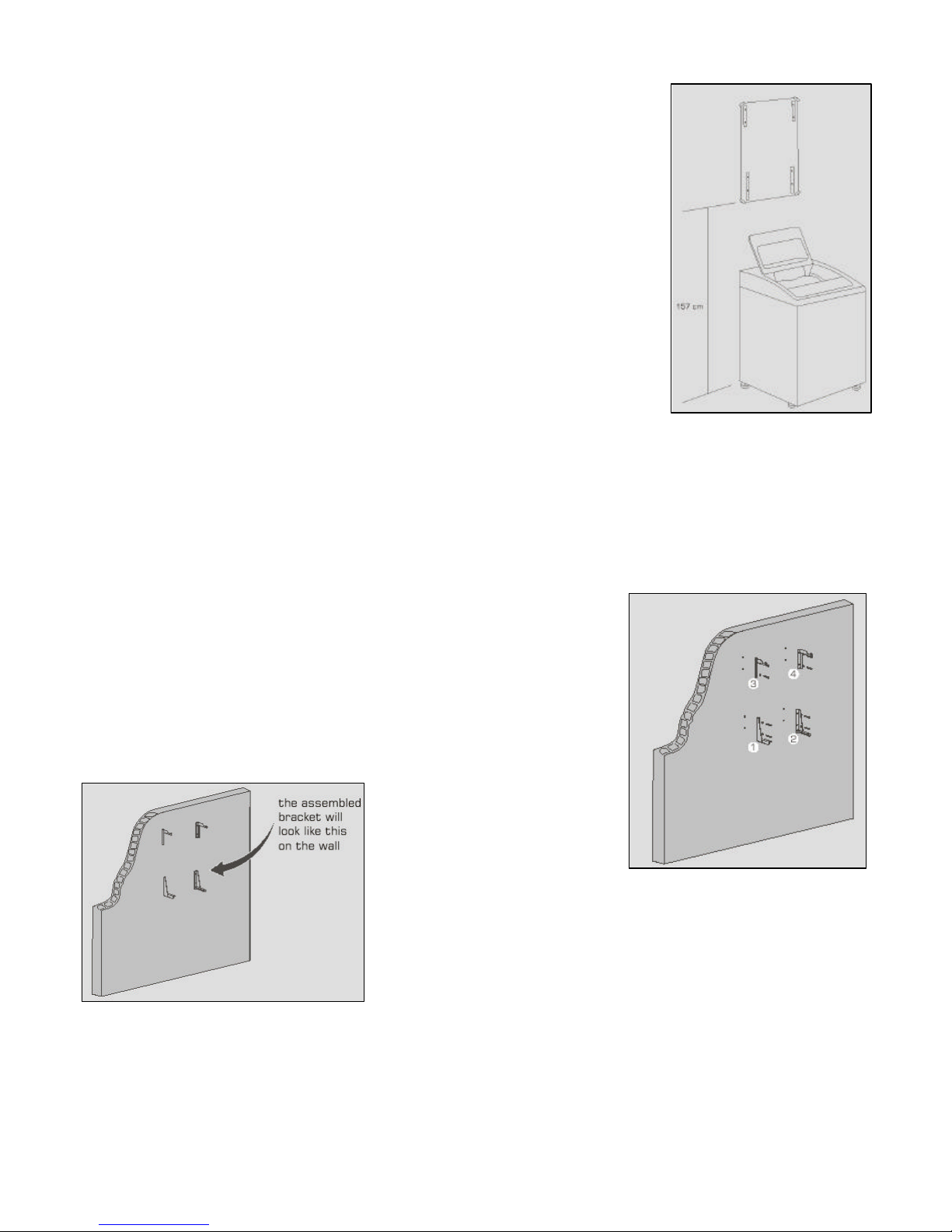

4.3 – Installation Procedure:

Marking the holes on the Wall:

A - Fix the guide on the wall with the adhesive tape, following the height

recommended below:

For 5-6kg or 7-8kg Whirlpool Washing Machines, please consider at least

157cm, measured from the lower edge, as drawing on the side.

For other washing machines, please consider the maximum height of the

washing machine with its door open, plus 20cm.

WARNING:

To prevent against the desalignment of your Dryer, check the guide

alignment by measuring from its two lower ends to the floor.

B - Use a nail and a hammer to mark the 8 holes on the wall, using the center

of the red circles as reference, on the sides of this Installation Guide.

C - After marking the holes, remove the installation guide from the wall.

D - Check if the distance between the hole marks are in accordance with the measurements indicated in

this guide.

4.3.1 - Drilling the wall:

A - Drill the 8 holes marked on the wall with the electric drill and the 5mm twist drill.

B - Then, repeat the procedure above with the 10mm twist drill.

C - Place the 8 bushings in the holes.

4.3.2 - Assembling the bracket

A - Screw the Bracket Set on the wall using the large screws and

washers, following the figure on the side.

B - Make sure the screws are

completely fixed. For that, even if

the screws are touching the

Bracket Set, keep on screwing

until it is not possible to twist the

open-end wrench.

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 8-21

4.3.3 - Fitting the Dryer on the bracket

WARNING

Risk of injures due to excess of weight. Use two or more people to move

and install the Dryer.

The non-compliance with this instruction may cause damages to your

column or physical injuries.

A - Fit the Dryer through the back slots on the clamps of upper right and left

brackets. To make fitting easy, tilt the front part of the Dryer slightly.

WARNING: Check if the Dryer is correctly fitted in the upper bracket clamps, as the figure on the

side.

B - Place the Dryer on the lower left and right brackets.

C - Then, screw the Dryer on the lower brackets using the two small bolts

and two washers on left and right sides (as shown in the drawing on the

side).

D - Make sure the Dryer is at a distance of approximately 13cm from the

wall in its whole extension.

WARNING: This whole procedure must be followed, so your Dryer is well fixed on the bracket and

safe for use.

5 – PARTS SUPPLIED WITH THE PRODUCT:

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 9-21

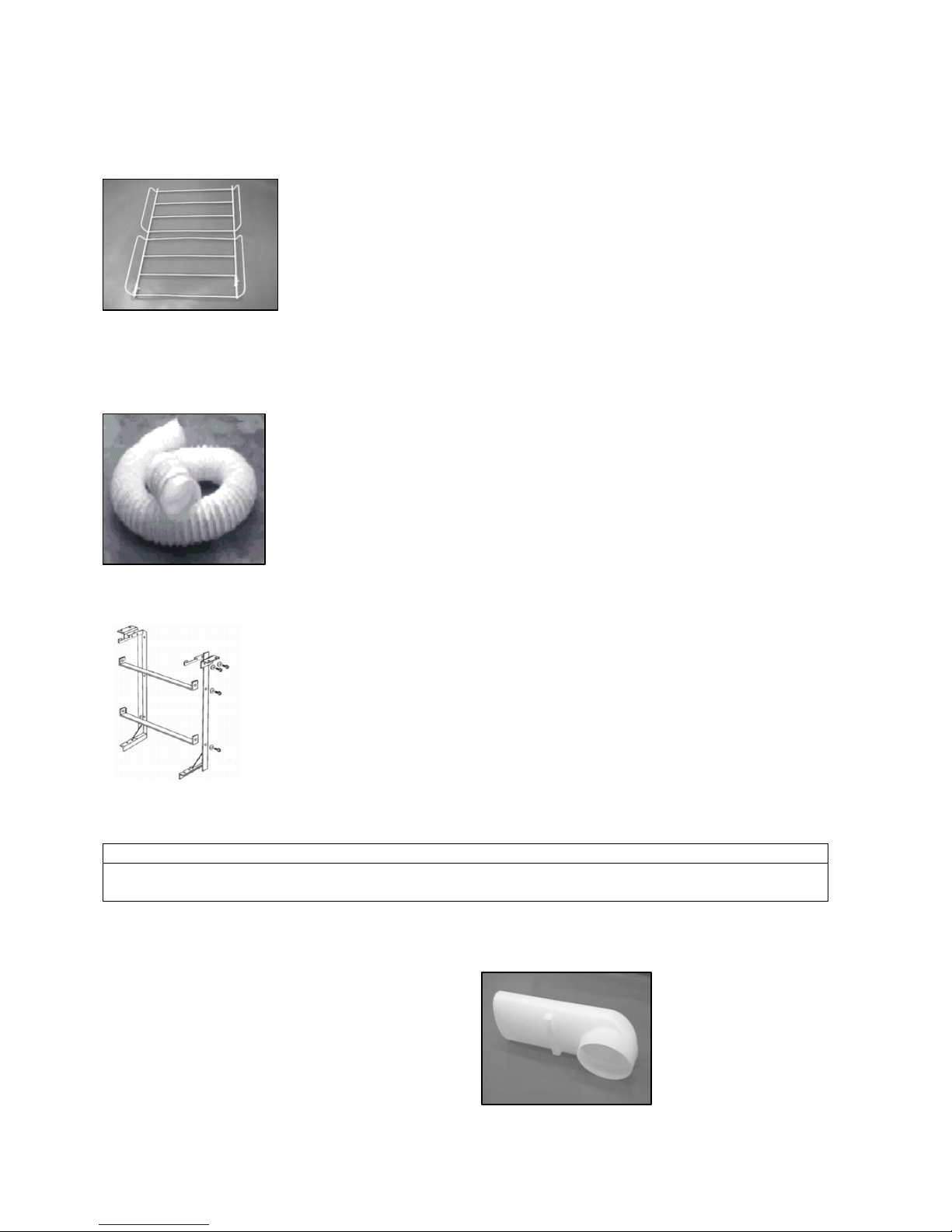

5.1 – Sneaker and clothes drying grid/shelf:

It is used for those shoes or clothes that must be dried in flat surfaces. It must be fastened to the Sneaker

Grid Plugs, which can be found inside the Dryer’s Drum.

GRID/SHELF

Part number: 326.013.309

5.2 – Exhaust vent:

It is also used to direct the air outdoors and avoid the excess of internal moisture, which can impair the

drying process. Do not assemble the hot air exhaust vent with splices. It must have a maximum length of 3

meters and two elbows, in order to improve the Dryer performance.

HOSE, OUTLET

Part number: 326.023.085

5.3 – Rack:

It is used to fix the product in product on the wall. See installation Instructions.

RACK

Part number: 326.058.319

6 – ACCESSORIES (it’s not included with the Dryer):

IMPORTANT:

ALTHOUGH THE ACCESSORIES ARE NOT SUPPLIED WITH THE DRYER, THEY CAN BE

ACQUIRED AT THE AUTHORIZED DEALERS.

6.1 – Air routing vent:

It is used to help routing the air outdoors, thus avoiding excess of moisture in the internal air, which can

impair the drying process.

DEFLECTOR

Part number: 000.055.208

7 – FUNCTIONAL CHARACTERISTICS:

MSEX0110i – Wall Mounted Dryer WSI24ABBPH00 Page 10 -21

7.1 – Drying Cycles:

The Dryer features 2 specific drying cycles for different fabric types: Normal Cycle and

Delicate Cycle.

•The Normal Cycle was designed to dry cotton and polyester clothes, with a

temperature of 60°C.

•The Delicate Cycle was designed to dry synthetic and fine clothes, with a

temperature of 45°C.

Note: Please see Instruction Use on item 8.1 – Delicate Cycle Knob

7.2 – Air Cycle / Cold Air:

At the end of each programming cycle, the Dryer will switch to cold air during

10 minutes, in order to cool the clothes and give a soft and agreeable touch

to the fabrics. The softening cycle can also be used to eliminate certain

smells from the clothes, such as mildew and cigarette smoke.

7.3 – Anti-Wrinkle System:

The Anti-Wrinkle System occurs during all drying cycles. It reverts the drum rotation direction at regular

intervals, preventing the entanglement of the clothes and minimizing wrinkle formation.

TABLE OF DRYER’S OPERATING TIMES (All Cycles)

DRUM TIME DRYER FUNCTION

Counterclockwise Rotation 5 minutes Clothes drying period

Still 3 seconds Drum reversion period

Clockwise Rotation 5 seconds Anti-wrinkle system period

Still 3 seconds Drum reversion period

These times are repeated during the entire dryer programming.

7.4 – Decorative Panel:

On its decorative panel, the Dryer shows the approximate clothes drying times, according to the clothes

quantity to be dried and the desired moisture level – that is, dry clothes for ironing or laying away. These

times are merely illustrative and have been calculated for clothes that are spun in 750-rpm Washers.

Tabla de contenidos

Otros manuales de Secadora de Whirlpool

Whirlpool

Whirlpool 3XLER5435HQ2 Manual de usuario

Whirlpool

Whirlpool Duet WED9200S Guía del usuario

Whirlpool

Whirlpool WED5500XW Manual de usuario

Whirlpool

Whirlpool WED7500VW Manual de usuario

Whirlpool

Whirlpool WED5800 Manual de usuario

Whirlpool

Whirlpool 3LWED5500 Manual de usuario

Whirlpool

Whirlpool LDE7800W1 Manual de usuario

Whirlpool

Whirlpool WGD5700V - 7.0 Cu Ft Manual

Whirlpool

Whirlpool LEV6646AW2 Manual de usuario

Whirlpool

Whirlpool LE5700XK Manual de usuario

Whirlpool

Whirlpool WED7990XG0 Manual de usuario

Whirlpool

Whirlpool 8527795 Manual de usuario

Whirlpool

Whirlpool 8TCEM2760KQ0 Manual de usuario

Whirlpool

Whirlpool MDG22PRBWW0 Manual de usuario

Whirlpool

Whirlpool WGD4910XQ Manual de usuario

Whirlpool

Whirlpool COMPACT DRYERS Manual de usuario

Whirlpool

Whirlpool LE4930XK Compact Manual de usuario

Whirlpool

Whirlpool CGM2793BQ Manual de usuario

Whirlpool

Whirlpool YWED7500VW Manual de usuario

Whirlpool

Whirlpool LEV6634BW0 Manual de usuario

Whirlpool

Whirlpool Duet YGEW9200LQ2 Manual de usuario

Whirlpool

Whirlpool WGD71HEDW Manual de usuario

Whirlpool

Whirlpool WED9250WR - Duet Cranberry - Electric Dryer Manual de usuario

Whirlpool

Whirlpool 3RLEC8600 Manual de usuario

Manuales populares de Secadora de otras marcas

Bosch

Bosch WTA79200GB Manual de usuario

Amana

Amana W10233410A Manual de usuario

Miele

Miele TWH 780 WP Manual de usuario

Asko

Asko T760 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manual de usuario

Bosch

Bosch Logixx 10 WTB76556GB Hoja de especificaciones

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manual de instrucciones

Electrolux

Electrolux EW2H328R2 Manual de usuario

Beko

Beko DS8433RX1M Manual de usuario

Dawlance

Dawlance Spinner DS 6000 C Manual de usuario

Electrolux

Electrolux TP5080TW Manual de usuario

AEG

AEG TR838P4OB Manual de usuario

Indesit

Indesit IDV 75 Manual de usuario

Infiniton

Infiniton SD-DG85C Manual de usuario

BOMANN

BOMANN WT 5019 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manual de usuario

Asko

Asko T793C Manual de usuario

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario
