CABINET PARTS

For Model: WED5510VQ0

(Designer White)

2−09 Litho in U.S.A. (LT)(bay) Part No. W10252020 Rev. A

29"ELECTRIC DRYER

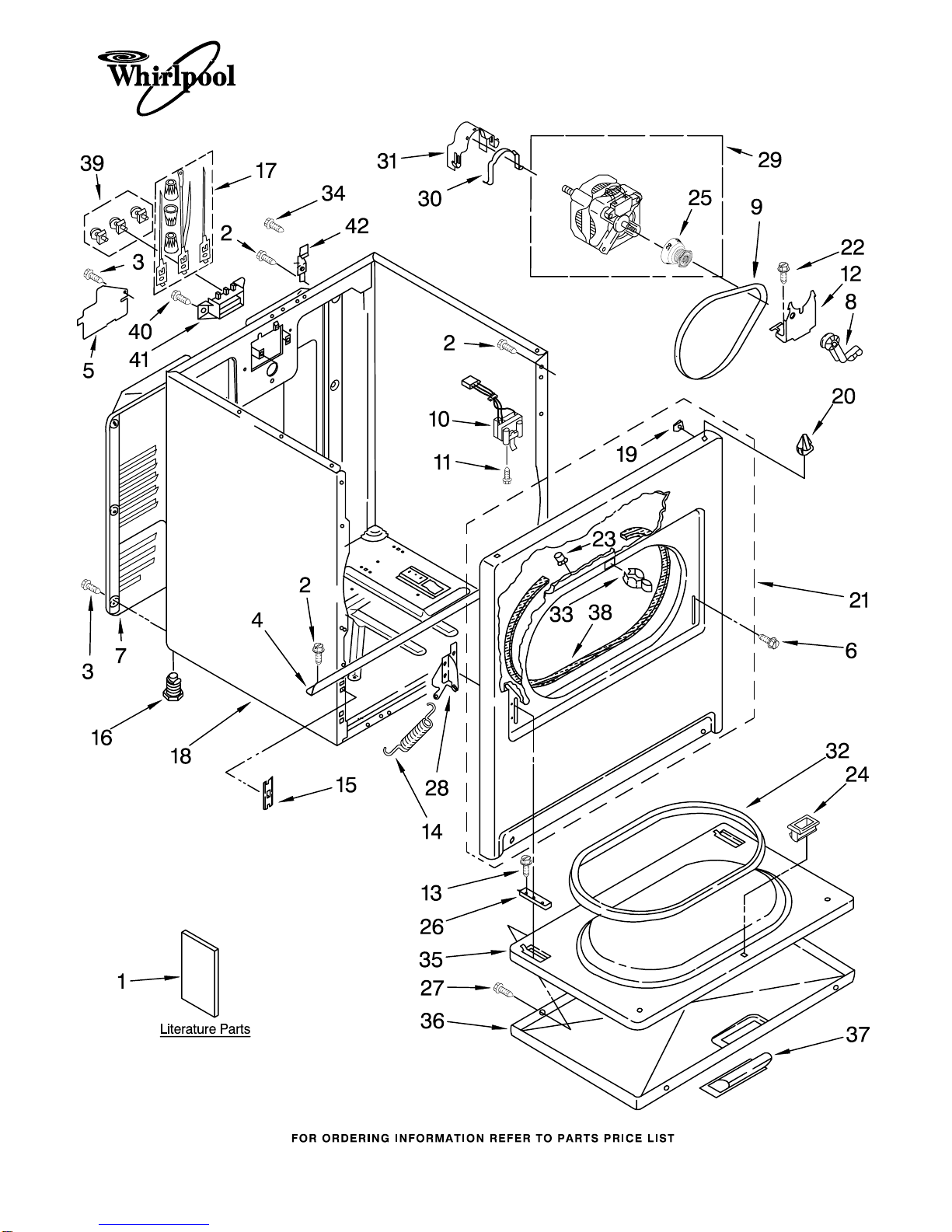

CABINET PARTS

For Model: WED5510VQ0

(Designer White)

W10252020

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10150612

Installation

Instructions

W10042960

Sheet,

Cycle Feature

W10150610

Use & Care Guide

8576817 Wiring Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677818 Dryer

2 343641 Screw, 10−16 x 1/2

3 693995 Screw, Hex

Washer Head

4 8541400 Bracket, Cabinet

5 3396795 Cover,

Terminal Block

6 342043 Screw, 10−32 x 3/8

7 3396805 Panel, Rear

8 691366 Idler & Pulley

Assembly

W10131364

Belt, Drive

10 3406107 Door Switch

Assembly

11 697773 Screw, 6−20 x 7/8

12 348780 Base, Motor

13 3357011 Screw, 10−16 x 1/2

W10041960

Spring, Door (2)

15 3394083 Clip, Front

Panel (2)

16 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

17 279318 Terminal, Tinned

& Brass (3)

(Includes Illus. 39)

18 8530603 Cabinet

(Includes

Illus. 4)

19 98234 Clip, Ground

20 690363 Lock, Front Top (2)

21 695620 Panel, Front

22 3400500 Bolt,

5/16−18 x 3/4

23 685203 Clip, Felt Pad (3)

24 3389441 Catch, Door

Assembly

25 8066184 Pulley, 60 Hz.

26 337189 Clip, Hinge (2)

27 694091 Screw, 8−18 x 3/8

28 8066056 Hinge, R.H.

8066057 Hinge, L.H.

W10194250

Motor Assembly

60 Hz.

W10121316

Clamp, Motor

31 3404162 Clamp, Motor

(W/Shield)

32 3390731 Seal, Door

33 696144 Strike, Door

34 697776 Screw, 10−32 x 5/8

(External Ground)

35 695737 Door, Rear

36 3393549 Door, Front

W10095180

Handle, Door

38 3406129 Seal & Bearing

Assembly

39 279393 Terminal Block

Kit (For

Terminal Block)

40 3393008 Screw, 10−16 x 1/2

41 3397659 Block, Terminal

42 8066217 Hinge, Top (2)

TOP AND CONSOLE PARTS

For Model: WED5510VQ0

(Designer White)

W10252020

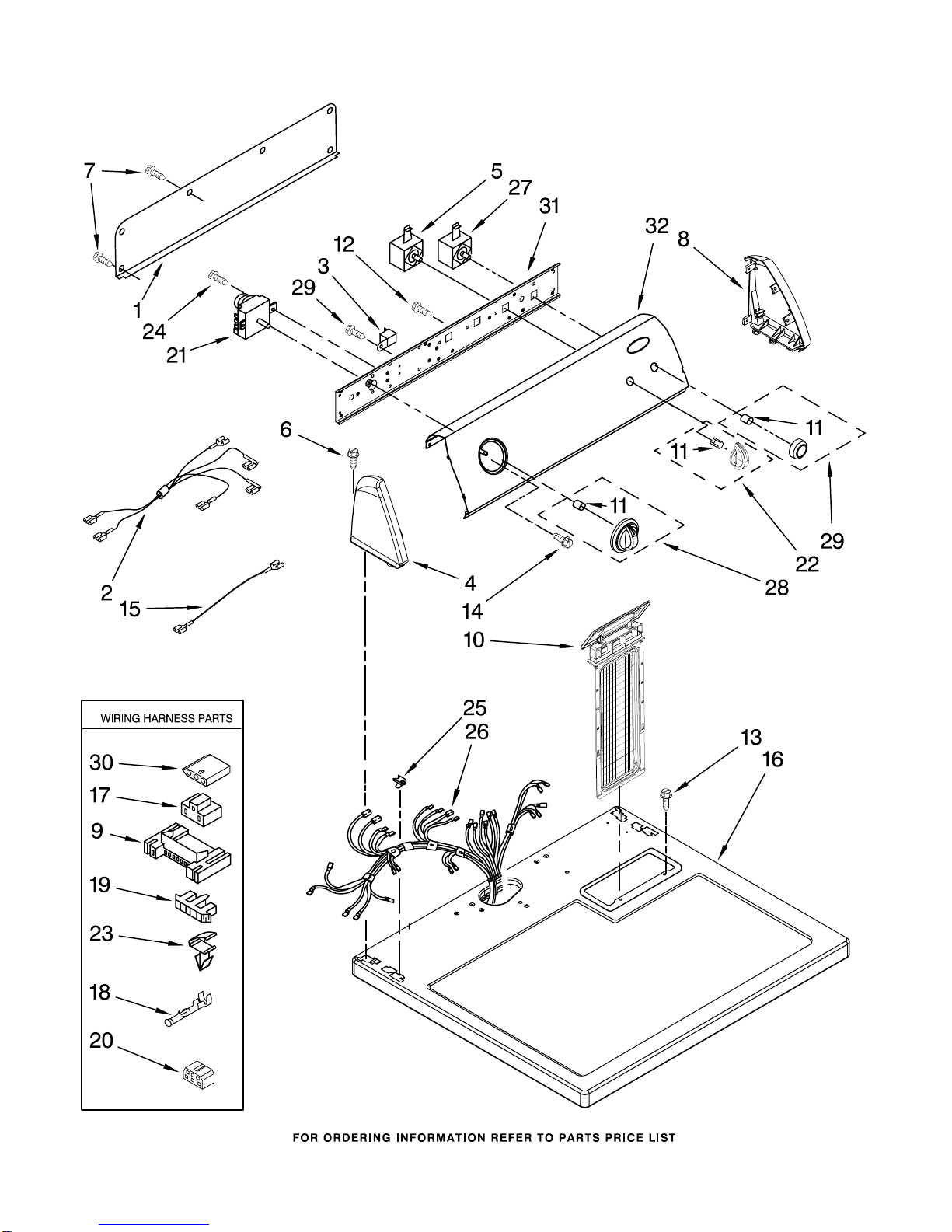

TOP AND CONSOLE PARTS

For Model: WED5510VQ0

(Designer White)

W10252020

Illus. Part

No. No. DESCRIPTION

1 8274261 Panel, Rear

Console

2 8539893 Wire, Jumper

(Temp. Switch)

3 694419 Buzzer

4 8271365 Cap, End (L.H.)

5 3399639 Switch, Rotary

6 388326 Screw, Console

7 693995 Screw, Hex Head

8 8271359 Cap, End (R.H.)

9 3395683 Housing, Connector

(Motor)

10 8557857 Screen, Lint

11 8536939 Clip, Spring

12 8533971 Screw, 8−18 x 5/16

13 688983 Screw, 8−18 x 5/8

14 8533951 Screw, Grounding

15 3401684 Wire, Jumper

(Timer−Signal)

16 8557930 Top

17 3347243 Connector,

(6−Circuit)

18 94614 Terminal

19 3397269 Connector, Timer

20 3401144 Connector,

(PTS Relay)

21 3979617 Timer, 60 Hz.

22 8565944 Knob, Control

23 3394427 Clip, Harness

24 8533971 Screw, 8−18 x 5/16

25 357213 Nut, Push−In (2)

26 8576503 Harness, Wiring

27 3398095 Switch,

Push−To−Start

28 8566061 Timer Knob

Assembly

29 8566073 Knob,

Push−To−Start

30 3936144 Connector

31 8544895 Bracket, Control

W10226241

Panel, Control

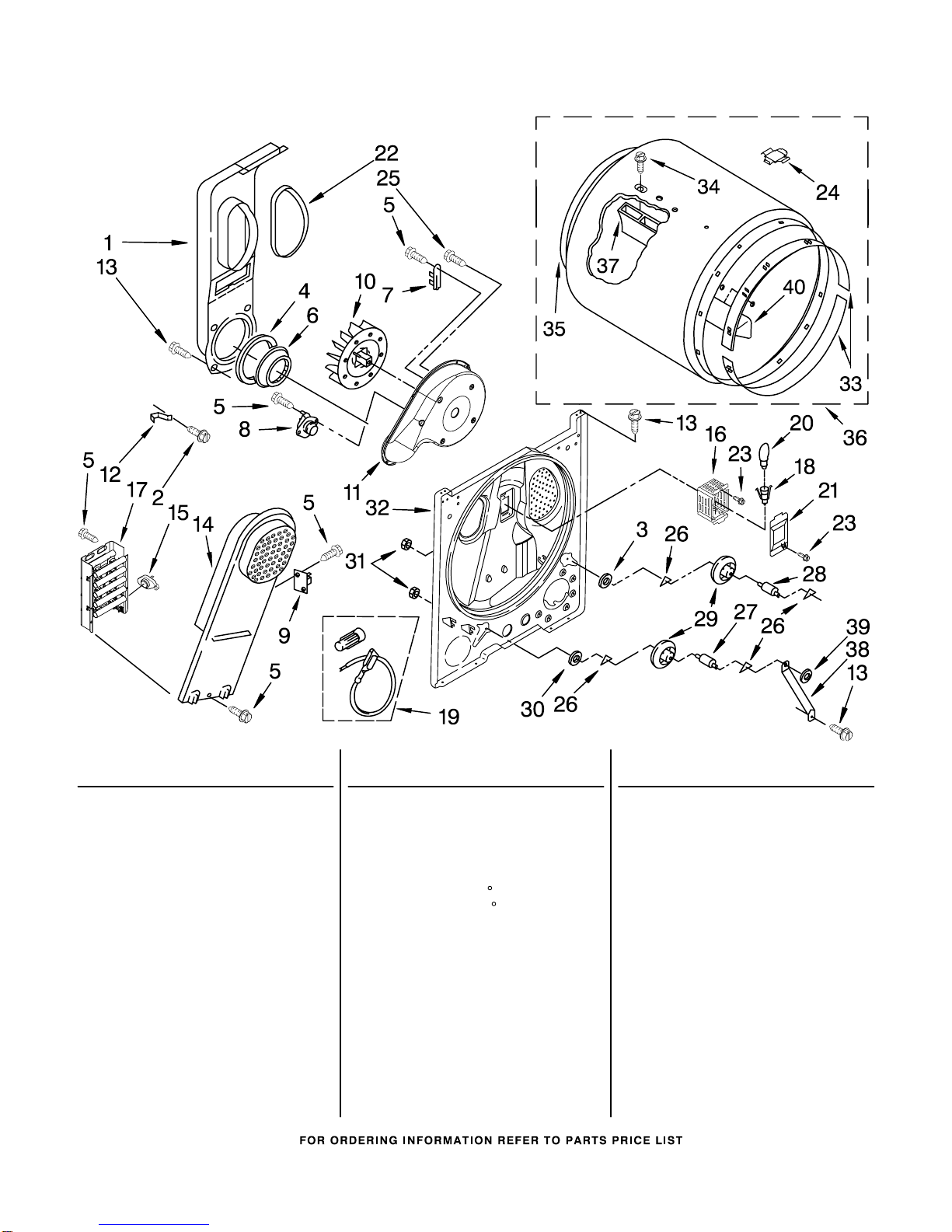

BULKHEAD PARTS

For Model: WED5510VQ0

(Designer White)

W10252020

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 348368 Lint Chute

Assembly

2 489463 Screw, 8−18 x 5/8

3 3388703 Washer−Support

4 347139 Seal, Lint

Chute

5 90767 Screw, 8−18 x 3/8

6 696302 Shield, Exhaust

7 3392519 Thermal Fuse

8 3387134 Thermostat,

Internal−Bias

9 3977393 Thermal Cut−Off

(Includes

Illus. 15)

10 694089 Wheel, Blower

(Includes

Illus. 22)

11 8577230 Housing, Blower

12 8066155 Clip

13 343641 Screw, 10−16 x 1/2

14 8541818 Box, Heater

15 3977767 Thermostat,

221 F

(105 C)

16 3977373 Bracket,

Drum Light

17 3403585 Element, Heater

W10136369

Socket Assembly

19 279457 Wire Kit, Terminal

(For Heater

Element Wiring

Harness Repair)

20 3406124 Bulb, Light

21 3402841 Lens,

Drum Light

22 339956 Seal

23 487909 Screw, 8−15 x 1/2

24 8066086 Drum Hole

Plug

25 3390647 Screw, 8−18 x 1/2

26 690997 Ring, Tri

27 3399506 Shaft, L.H.

28 3399507 Shaft, R.H.

29 3397590 Roller, Support

30 348197 Washer, Support

31 3359452 Nut, 3/8−16

32 3403493 Bulkhead

33 692526 Ring, Bearing

W10219342

Screw, 8−16 x 1/2

35 3406130 Seal, Rear Drum

36 695587 Drum Assembly

37 692490 Baffle, Drum (2)

38 3976434 Bracket, Support

39 90296 Clip

40 3403636 Baffle, Drum (1)

OPTIONAL PARTS (NOT INCLUDED)

For Model: WED5510VQ0

(Designer White)

W10252020

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

279948 Kit,

Dryer Repair

8522199 Kit, Dryer

Vent Testing

3404351 Dry Rack

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)
